◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#69967) — 538 parça

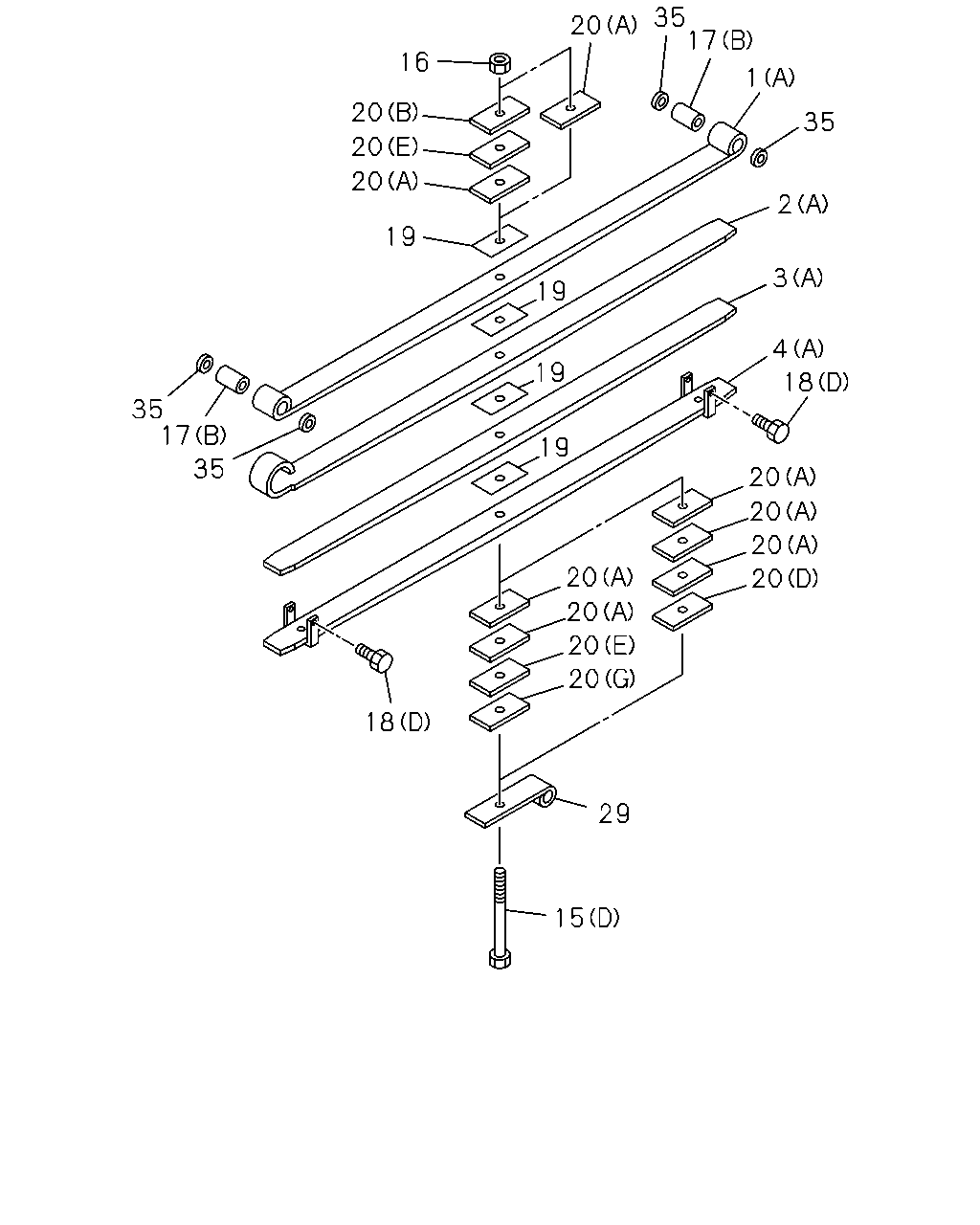

çizim 124950
20 35 1 17 16 20 20 20 19 19 35 2 3 4 20 20 20 20 18 19 19 35 35 17 18 20 20 20 20 29 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-024-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-026-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-028-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-622-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-025-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-584-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-592-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-614-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-159-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-025-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-027-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-029-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-623-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-026-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-585-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-593-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-615-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-160-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-030-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-624-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-027-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-586-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-594-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-616-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-161-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-391-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-031-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-625-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		8-98143-028-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-587-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-595-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-617-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=150 ASM PART: C = 8-98118-962-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=190 ASM PART: H = 8-98157-783-0, J = 8-98202-918-0 		1-51156-342-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=175 ASM PART: D = 8-98140-085-0, I = 8-98157-784-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=195 ASM PART: B = 8-98098-676-0 		1-51156-358-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=185 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=185 ASM PART: F = 8-98157-780-0 		8-98161-628-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, G = 8-98157-782-0, H = 8-98157-783-0, I = 8-98157-784-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: F = 8-98157-780-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=38 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, H = 8-98157-783-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51351-044-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: F = 8-98157-780-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: I = 8-98157-784-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: B = 8-98098-676-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: D = 8-98140-085-0, H = 8-98157-783-0, J = 8-98202-918-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X103 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-895-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: F = 8-98157-780-0 		8-98161-627-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: H = 8-98157-783-0 		1-51177-071-0 05 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98098-676-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 8-98157-780-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(F), T=12 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, H = 8-98157-783-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: J = 8-98202-918-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98140-085-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, J = 8-98202-918-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: H = 8-98157-783-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-98098-676-0, C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: D = 8-98140-085-0 		1-51177-097-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: J = 8-98202-918-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(I), T=12 ASM PART: I = 8-98157-784-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(J), T=13 ASM PART: F = 8-98157-780-0 		1-51177-311-0 01 1 -
20 SEAT; LEAF SPR,FRT
(K), T=11 ASM PART: F = 8-98157-780-0 		1-51177-340-0 02 1 -
20 SEAT; LEAF SPR,FRT
(H), T=13 ASM PART: H = 8-98157-783-0 		1-51177-346-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: B = 8-98098-676-0 		1-51177-347-0 04 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: J = 8-98202-918-0 		1-51177-347-0 02 1 -
20 SEAT; LEAF SPR,FRT
(L), T=10 ASM PART: F = 8-98157-780-0 		1-51377-402-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: F = 8-98157-780-0 		8-97618-651-0 01 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: B = 8-98098-676-0, D = 8-98140-085-0, H = 8-98157-783-0, I = 8-98157-784-0, J = 8-98202-918-0 		1-51681-650-0 01 1 -
35 SEAL; DUST
ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, F = 8-98157-780-0, H = 8-98157-783-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51177-321-0 04 1 -

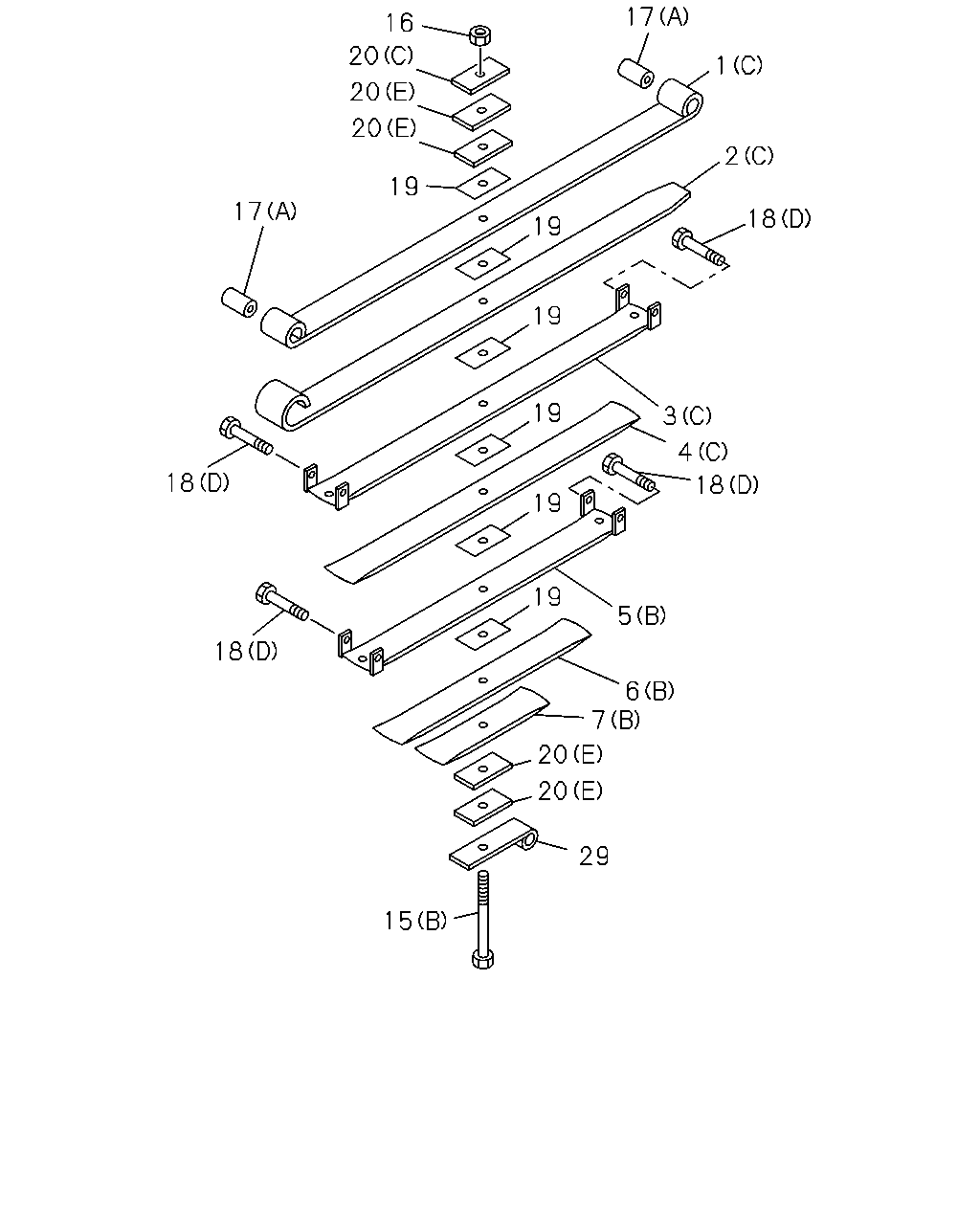

çizim 125046
17 1 2 18 19 19 19 19 19 3 18 4 16 20 20 20 19 17 18 18 15 29 20 7 5 6 20
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-024-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-026-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-028-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-622-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-025-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-584-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-592-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-614-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-159-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-025-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-027-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-029-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-623-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-026-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-585-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-593-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-615-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-160-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-030-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-624-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-027-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-586-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-594-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-616-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-161-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-391-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-031-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-625-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		8-98143-028-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-587-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-595-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-617-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: B = 8-98098-676-0 		1-51135-966-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-392-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(C) ASM PART: H = 8-98157-783-0 		8-98142-626-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-588-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(D) ASM PART: I = 8-98157-784-0 		8-98161-596-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: B = 8-98098-676-0 		1-51136-966-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-393-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-589-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(C) ASM PART: I = 8-98157-784-0 		8-98161-597-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: B = 8-98098-676-0 		1-51137-966-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-394-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-590-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(C) ASM PART: I = 8-98157-784-0 		8-98161-598-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=150 ASM PART: C = 8-98118-962-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=190 ASM PART: H = 8-98157-783-0, J = 8-98202-918-0 		1-51156-342-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=175 ASM PART: D = 8-98140-085-0, I = 8-98157-784-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=195 ASM PART: B = 8-98098-676-0 		1-51156-358-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=185 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=185 ASM PART: F = 8-98157-780-0 		8-98161-628-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, G = 8-98157-782-0, H = 8-98157-783-0, I = 8-98157-784-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: F = 8-98157-780-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=38 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, H = 8-98157-783-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51351-044-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: F = 8-98157-780-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: I = 8-98157-784-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: B = 8-98098-676-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: D = 8-98140-085-0, H = 8-98157-783-0, J = 8-98202-918-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X103 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-895-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: F = 8-98157-780-0 		8-98161-627-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: H = 8-98157-783-0 		1-51177-071-0 05 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98098-676-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 8-98157-780-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(F), T=12 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, H = 8-98157-783-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: J = 8-98202-918-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98140-085-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, J = 8-98202-918-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: H = 8-98157-783-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-98098-676-0, C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: D = 8-98140-085-0 		1-51177-097-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: J = 8-98202-918-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(I), T=12 ASM PART: I = 8-98157-784-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(J), T=13 ASM PART: F = 8-98157-780-0 		1-51177-311-0 01 1 -
20 SEAT; LEAF SPR,FRT
(K), T=11 ASM PART: F = 8-98157-780-0 		1-51177-340-0 02 1 -
20 SEAT; LEAF SPR,FRT
(H), T=13 ASM PART: H = 8-98157-783-0 		1-51177-346-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: B = 8-98098-676-0 		1-51177-347-0 04 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: J = 8-98202-918-0 		1-51177-347-0 02 1 -
20 SEAT; LEAF SPR,FRT
(L), T=10 ASM PART: F = 8-98157-780-0 		1-51377-402-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: F = 8-98157-780-0 		8-97618-651-0 01 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: B = 8-98098-676-0, D = 8-98140-085-0, H = 8-98157-783-0, I = 8-98157-784-0, J = 8-98202-918-0 		1-51681-650-0 01 1 -

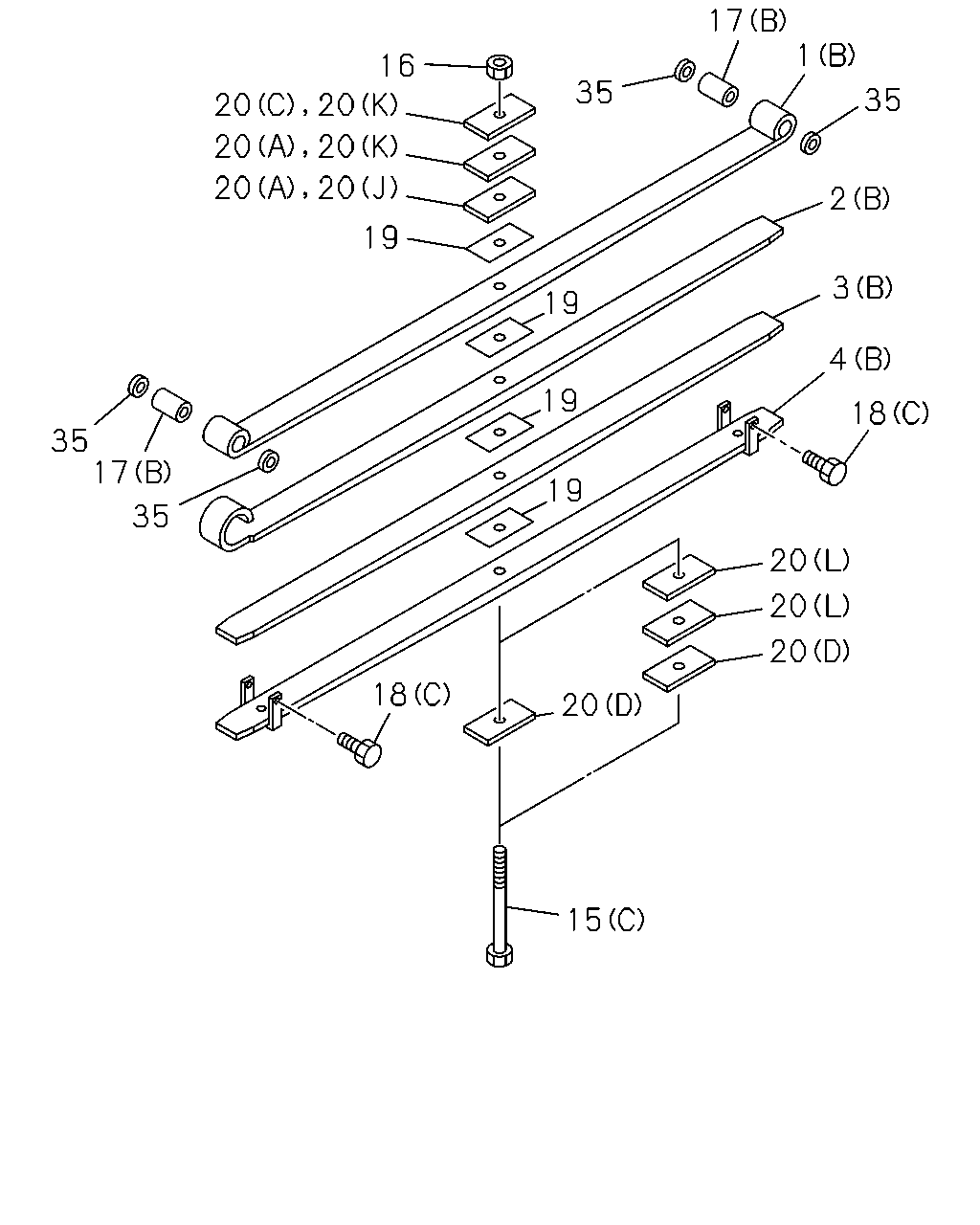

çizim 125102
17 35 1 16 35 2 4 3 18 20 20 20 20 15 19 19 19 19 20 20 20 20 20 20 35 18 17 35
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-024-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-026-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-028-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-622-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-025-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-584-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-592-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-614-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-159-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-025-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-027-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-029-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-623-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-026-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-585-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-593-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-615-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-160-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-030-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-624-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-027-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-586-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-594-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-616-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-161-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-391-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-031-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-625-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		8-98143-028-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-587-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-595-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-617-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=150 ASM PART: C = 8-98118-962-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=190 ASM PART: H = 8-98157-783-0, J = 8-98202-918-0 		1-51156-342-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=175 ASM PART: D = 8-98140-085-0, I = 8-98157-784-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=195 ASM PART: B = 8-98098-676-0 		1-51156-358-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=185 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=185 ASM PART: F = 8-98157-780-0 		8-98161-628-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, G = 8-98157-782-0, H = 8-98157-783-0, I = 8-98157-784-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: F = 8-98157-780-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=38 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, H = 8-98157-783-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51351-044-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: F = 8-98157-780-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: I = 8-98157-784-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: B = 8-98098-676-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: D = 8-98140-085-0, H = 8-98157-783-0, J = 8-98202-918-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X103 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-895-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: F = 8-98157-780-0 		8-98161-627-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: H = 8-98157-783-0 		1-51177-071-0 05 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98098-676-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 8-98157-780-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(F), T=12 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, H = 8-98157-783-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: J = 8-98202-918-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98140-085-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, J = 8-98202-918-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: H = 8-98157-783-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-98098-676-0, C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: D = 8-98140-085-0 		1-51177-097-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: J = 8-98202-918-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(I), T=12 ASM PART: I = 8-98157-784-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(J), T=13 ASM PART: F = 8-98157-780-0 		1-51177-311-0 01 1 -
20 SEAT; LEAF SPR,FRT
(K), T=11 ASM PART: F = 8-98157-780-0 		1-51177-340-0 02 1 -
20 SEAT; LEAF SPR,FRT
(H), T=13 ASM PART: H = 8-98157-783-0 		1-51177-346-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: B = 8-98098-676-0 		1-51177-347-0 04 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: J = 8-98202-918-0 		1-51177-347-0 02 1 -
20 SEAT; LEAF SPR,FRT
(L), T=10 ASM PART: F = 8-98157-780-0 		1-51377-402-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: F = 8-98157-780-0 		8-97618-651-0 01 1 -
35 SEAL; DUST
ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, F = 8-98157-780-0, H = 8-98157-783-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51177-321-0 04 1 -

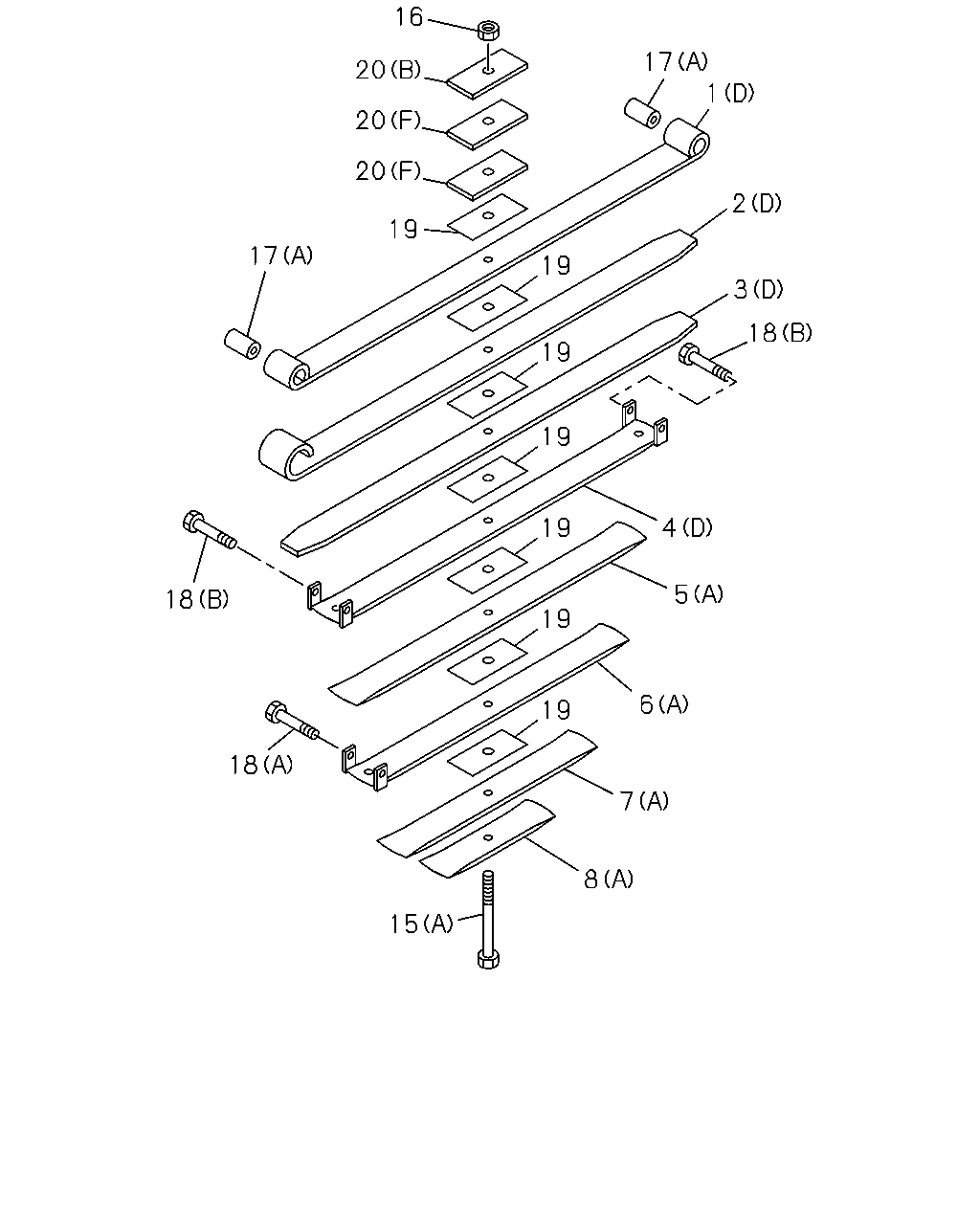

çizim 125108
17 2 1 3 19 18 4 5 6 7 8 19 19 19 19 19 15 18 18 17 19 20 20 20 16
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-024-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-026-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-028-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-622-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-025-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-584-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-592-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-614-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-159-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-025-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-027-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-029-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-623-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-026-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-585-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-593-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-615-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-160-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-030-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-624-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-027-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-586-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-594-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-616-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-161-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-391-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-031-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-625-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		8-98143-028-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-587-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-595-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-617-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: B = 8-98098-676-0 		1-51135-966-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-392-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(C) ASM PART: H = 8-98157-783-0 		8-98142-626-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-588-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(D) ASM PART: I = 8-98157-784-0 		8-98161-596-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: B = 8-98098-676-0 		1-51136-966-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-393-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-589-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(C) ASM PART: I = 8-98157-784-0 		8-98161-597-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: B = 8-98098-676-0 		1-51137-966-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-394-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-590-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(C) ASM PART: I = 8-98157-784-0 		8-98161-598-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-395-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-591-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
(B) ASM PART: I = 8-98157-784-0 		8-98161-599-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=150 ASM PART: C = 8-98118-962-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=190 ASM PART: H = 8-98157-783-0, J = 8-98202-918-0 		1-51156-342-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=175 ASM PART: D = 8-98140-085-0, I = 8-98157-784-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=195 ASM PART: B = 8-98098-676-0 		1-51156-358-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=185 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=185 ASM PART: F = 8-98157-780-0 		8-98161-628-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, G = 8-98157-782-0, H = 8-98157-783-0, I = 8-98157-784-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: F = 8-98157-780-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=38 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, H = 8-98157-783-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51351-044-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: F = 8-98157-780-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: I = 8-98157-784-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: B = 8-98098-676-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: D = 8-98140-085-0, H = 8-98157-783-0, J = 8-98202-918-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X103 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-895-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: F = 8-98157-780-0 		8-98161-627-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: H = 8-98157-783-0 		1-51177-071-0 05 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98098-676-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 8-98157-780-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(F), T=12 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, H = 8-98157-783-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: J = 8-98202-918-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98140-085-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, J = 8-98202-918-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: H = 8-98157-783-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-98098-676-0, C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: D = 8-98140-085-0 		1-51177-097-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: J = 8-98202-918-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(I), T=12 ASM PART: I = 8-98157-784-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(J), T=13 ASM PART: F = 8-98157-780-0 		1-51177-311-0 01 1 -
20 SEAT; LEAF SPR,FRT
(K), T=11 ASM PART: F = 8-98157-780-0 		1-51177-340-0 02 1 -
20 SEAT; LEAF SPR,FRT
(H), T=13 ASM PART: H = 8-98157-783-0 		1-51177-346-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: B = 8-98098-676-0 		1-51177-347-0 04 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: J = 8-98202-918-0 		1-51177-347-0 02 1 -
20 SEAT; LEAF SPR,FRT
(L), T=10 ASM PART: F = 8-98157-780-0 		1-51377-402-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: F = 8-98157-780-0 		8-97618-651-0 01 1 -

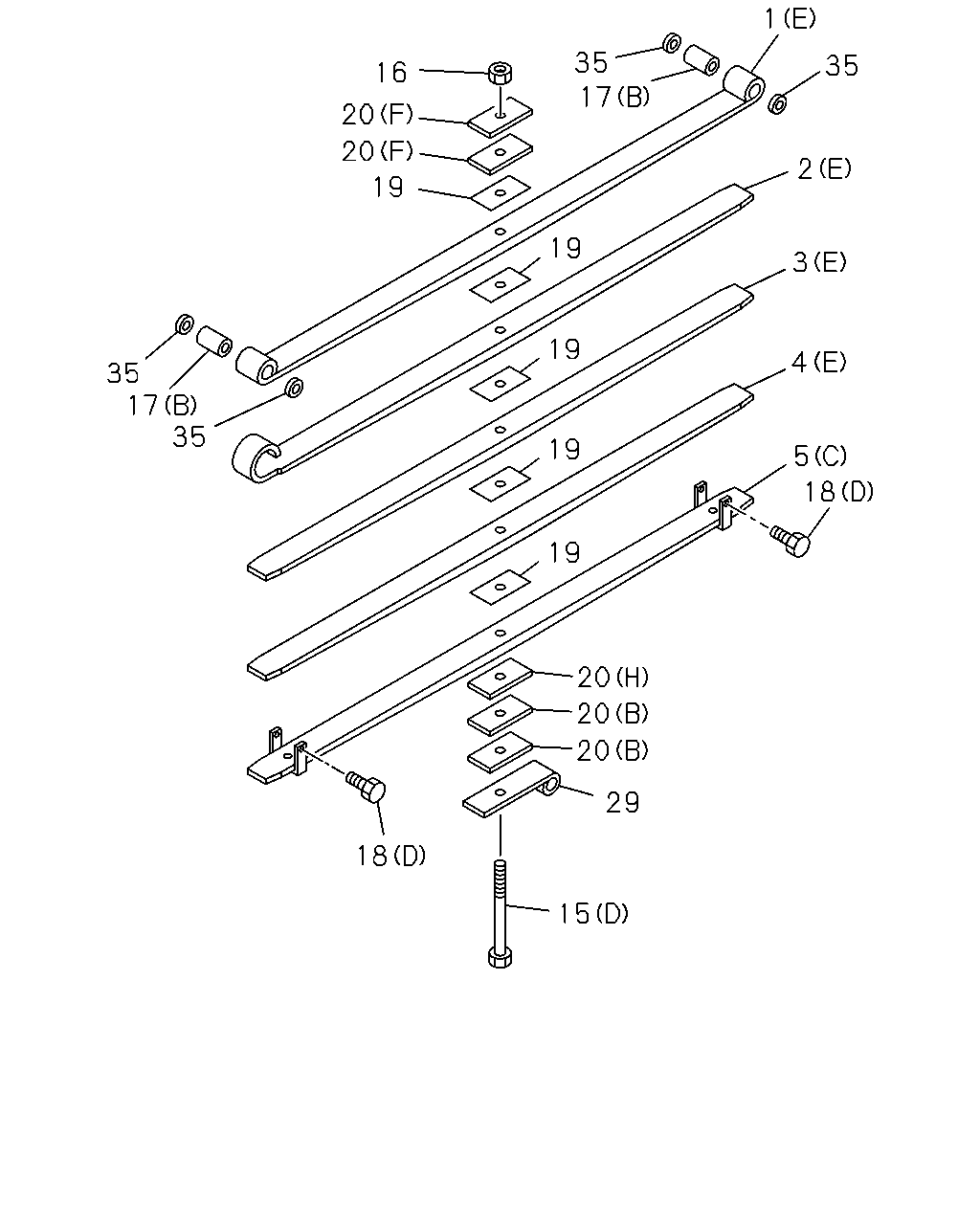

çizim 471536
16 20 20 19 35 17 35 18 15 29 20 20 20 19 19 19 19 17 35 1 35 2 3 4 5 18
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-024-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-026-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-028-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-622-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-025-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-584-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-592-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-614-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-159-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-025-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-027-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-029-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-623-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-026-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-585-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-593-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-615-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-160-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-030-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-624-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-027-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-586-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-594-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-616-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-161-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-391-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-031-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-625-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		8-98143-028-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-587-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-595-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-617-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: B = 8-98098-676-0 		1-51135-966-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-392-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(C) ASM PART: H = 8-98157-783-0 		8-98142-626-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-588-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(D) ASM PART: I = 8-98157-784-0 		8-98161-596-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=150 ASM PART: C = 8-98118-962-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=190 ASM PART: H = 8-98157-783-0, J = 8-98202-918-0 		1-51156-342-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=175 ASM PART: D = 8-98140-085-0, I = 8-98157-784-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=195 ASM PART: B = 8-98098-676-0 		1-51156-358-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=185 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=185 ASM PART: F = 8-98157-780-0 		8-98161-628-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, G = 8-98157-782-0, H = 8-98157-783-0, I = 8-98157-784-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: F = 8-98157-780-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=38 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, H = 8-98157-783-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51351-044-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: F = 8-98157-780-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: I = 8-98157-784-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: B = 8-98098-676-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: D = 8-98140-085-0, H = 8-98157-783-0, J = 8-98202-918-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X103 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-895-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: F = 8-98157-780-0 		8-98161-627-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: H = 8-98157-783-0 		1-51177-071-0 05 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98098-676-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 8-98157-780-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(F), T=12 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, H = 8-98157-783-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: J = 8-98202-918-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98140-085-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, J = 8-98202-918-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: H = 8-98157-783-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-98098-676-0, C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: D = 8-98140-085-0 		1-51177-097-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: J = 8-98202-918-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(I), T=12 ASM PART: I = 8-98157-784-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(J), T=13 ASM PART: F = 8-98157-780-0 		1-51177-311-0 01 1 -
20 SEAT; LEAF SPR,FRT
(K), T=11 ASM PART: F = 8-98157-780-0 		1-51177-340-0 02 1 -
20 SEAT; LEAF SPR,FRT
(H), T=13 ASM PART: H = 8-98157-783-0 		1-51177-346-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: B = 8-98098-676-0 		1-51177-347-0 04 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: J = 8-98202-918-0 		1-51177-347-0 02 1 -
20 SEAT; LEAF SPR,FRT
(L), T=10 ASM PART: F = 8-98157-780-0 		1-51377-402-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: F = 8-98157-780-0 		8-97618-651-0 01 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: B = 8-98098-676-0, D = 8-98140-085-0, H = 8-98157-783-0, I = 8-98157-784-0, J = 8-98202-918-0 		1-51681-650-0 01 1 -
35 SEAL; DUST
ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, F = 8-98157-780-0, H = 8-98157-783-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51177-321-0 04 1 -
çizim 471537
16 20 19 17 18 18 15 29 9 8 7 6 5 19 19 19 19 19 19 17 1 2 18 3 4
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51131-929-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-024-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-026-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-028-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-622-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-025-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-584-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-592-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-614-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-159-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51132-929-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: A = 8-98098-675-0 		8-98140-025-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(C) ASM PART: B = 8-98098-676-0 		8-98140-027-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-029-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-623-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-026-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-585-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-593-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-615-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-160-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51133-929-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-390-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-030-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-624-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: E = 8-98140-086-0 		8-98143-027-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-586-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-594-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-616-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
(B) ASM PART: K = 8-98229-523-0 		8-98232-161-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(A) ASM PART: D = 8-98140-085-0, J = 8-98202-918-0 		1-51134-929-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(C) ASM PART: B = 8-98098-676-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: A = 8-98098-675-0 		8-97615-391-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: C = 8-98118-962-0 		8-98140-031-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(E) ASM PART: H = 8-98157-783-0 		8-98142-625-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		8-98143-028-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(D) ASM PART: G = 8-98157-782-0 		8-98161-587-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(F) ASM PART: I = 8-98157-784-0 		8-98161-595-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
(B) ASM PART: F = 8-98157-780-0 		8-98161-617-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(B) ASM PART: B = 8-98098-676-0 		1-51135-966-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-392-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(C) ASM PART: H = 8-98157-783-0 		8-98142-626-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-588-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
(D) ASM PART: I = 8-98157-784-0 		8-98161-596-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(B) ASM PART: B = 8-98098-676-0 		1-51136-966-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-393-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-589-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
(C) ASM PART: I = 8-98157-784-0 		8-98161-597-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(B) ASM PART: B = 8-98098-676-0 		1-51137-966-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-394-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-590-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
(C) ASM PART: I = 8-98157-784-0 		8-98161-598-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
(A) ASM PART: A = 8-98098-675-0 		8-97615-395-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
(A) ASM PART: G = 8-98157-782-0 		8-98161-591-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
(B) ASM PART: I = 8-98157-784-0 		8-98161-599-0 01 1 -
9 SPRING; LEAF,NO 9,FRT
ASM PART: I = 8-98157-784-0 		8-98161-600-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=150 ASM PART: C = 8-98118-962-0 		1-51156-328-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=155 ASM PART: E = 8-98140-086-0, K = 8-98229-523-0 		1-51156-336-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=190 ASM PART: H = 8-98157-783-0, J = 8-98202-918-0 		1-51156-342-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(D), L=175 ASM PART: D = 8-98140-085-0, I = 8-98157-784-0 		1-51156-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(B), L=195 ASM PART: B = 8-98098-676-0 		1-51156-358-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(A), L=185 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
(C), L=185 ASM PART: F = 8-98157-780-0 		8-98161-628-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, G = 8-98157-782-0, H = 8-98157-783-0, I = 8-98157-784-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-09400-054-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: F = 8-98157-780-0 		1-09400-061-0 01 1 -
17 BUSHING; LEAF SPR,FRT
(A), OD=38 ASM PART: A = 8-98098-675-0, B = 8-98098-676-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, H = 8-98157-783-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51351-044-0 02 1 -
17 BUSHING; LEAF SPR,FRT
(B), OD=42 ASM PART: F = 8-98157-780-0 		1-51351-046-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: I = 8-98157-784-0 		1-09000-328-0 03 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: B = 8-98098-676-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(D), M10X99 ASM PART: D = 8-98140-085-0, H = 8-98157-783-0, J = 8-98202-918-0 		1-09000-328-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X103 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0 		8-97615-895-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(C), M10X99 ASM PART: F = 8-98157-780-0 		8-98161-627-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: H = 8-98157-783-0 		1-51177-071-0 05 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: C = 8-98118-962-0, D = 8-98140-085-0, E = 8-98140-086-0, J = 8-98202-918-0, K = 8-98229-523-0 		1-51177-071-0 04 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, I = 8-98157-784-0 		1-51177-071-0 07 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 8-98098-676-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: F = 8-98157-780-0 		1-51177-339-0 04 1 -
20 SEAT; LEAF SPR,FRT
(F), T=12 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, H = 8-98157-783-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(G), T=6 ASM PART: J = 8-98202-918-0 		1-51177-070-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: D = 8-98140-085-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-074-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 8-98098-675-0, G = 8-98157-782-0, J = 8-98202-918-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: H = 8-98157-783-0 		1-51177-078-0 02 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 8-98098-676-0, C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: D = 8-98140-085-0 		1-51177-097-0 04 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: C = 8-98118-962-0, E = 8-98140-086-0, K = 8-98229-523-0 		1-51177-097-0 02 1 -
20 SEAT; LEAF SPR,FRT
(A), T=14 ASM PART: J = 8-98202-918-0 		1-51177-097-0 03 1 -
20 SEAT; LEAF SPR,FRT
(I), T=12 ASM PART: I = 8-98157-784-0 		1-51177-107-0 01 1 -
20 SEAT; LEAF SPR,FRT
(J), T=13 ASM PART: F = 8-98157-780-0 		1-51177-311-0 01 1 -
20 SEAT; LEAF SPR,FRT
(K), T=11 ASM PART: F = 8-98157-780-0 		1-51177-340-0 02 1 -
20 SEAT; LEAF SPR,FRT
(H), T=13 ASM PART: H = 8-98157-783-0 		1-51177-346-0 01 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: B = 8-98098-676-0 		1-51177-347-0 04 1 -
20 SEAT; LEAF SPR,FRT
(E), T=11 ASM PART: J = 8-98202-918-0 		1-51177-347-0 02 1 -
20 SEAT; LEAF SPR,FRT
(L), T=10 ASM PART: F = 8-98157-780-0 		1-51377-402-0 02 1 -
20 SEAT; LEAF SPR,FRT
(D), T=7 ASM PART: F = 8-98157-780-0 		8-97618-651-0 01 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: B = 8-98098-676-0, D = 8-98140-085-0, H = 8-98157-783-0, I = 8-98157-784-0, J = 8-98202-918-0 		1-51681-650-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
