Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#69966) — 220 parça

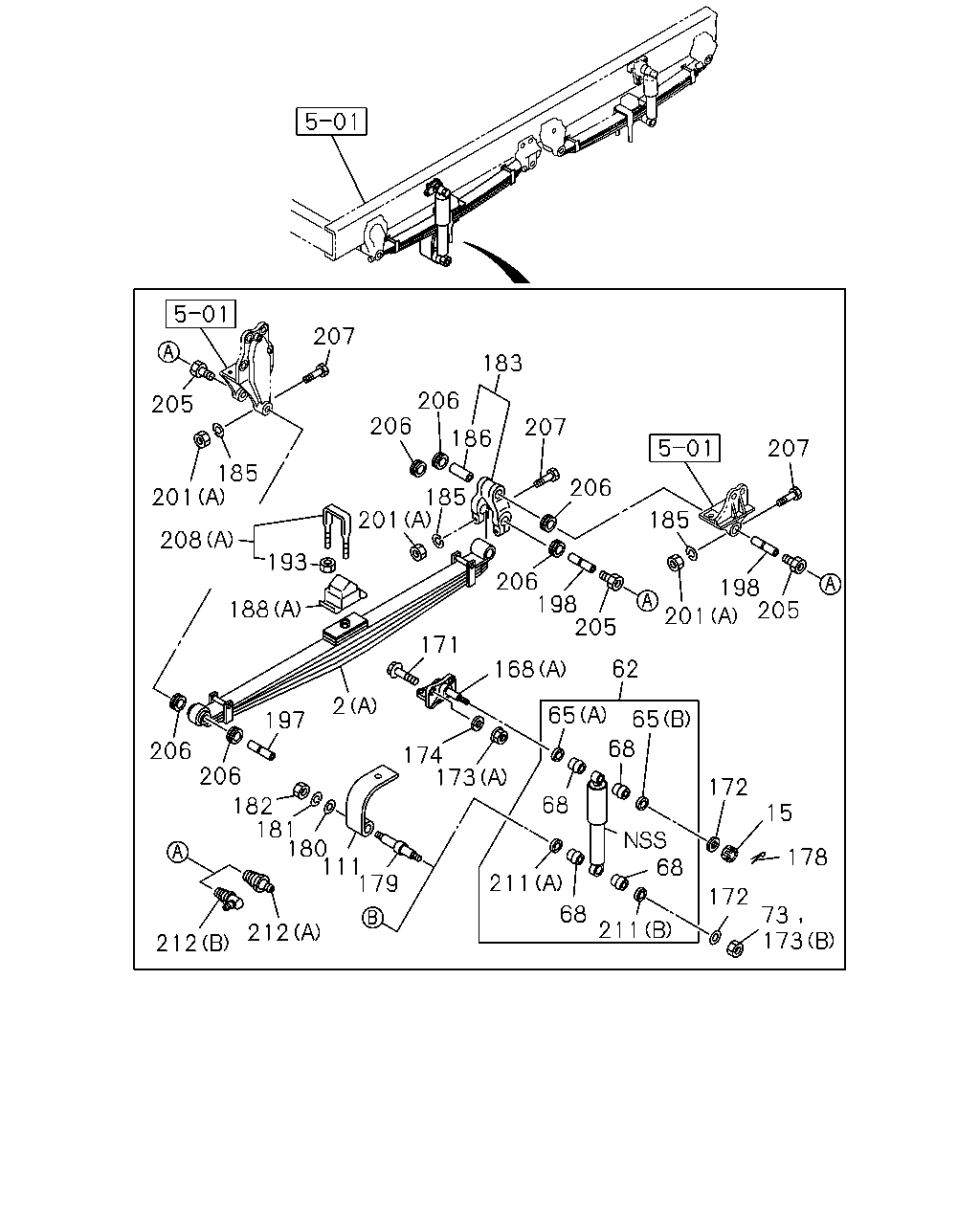

207 183 207 186 206 206 185 201 205 208 193 188 206 185 201 206 198 205 62 201 198 205 168 171 2 174 173 197 206 206 182 181 180 111 179 212 212 68 211 65 65 68 68 68 15 178 173 172 172 73 207 185 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ> (A) 8-LEAF	8-98157-782-0	02	1	1412-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ> (B) 9-LEAF	8-98157-784-0	02	1	1412-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (A) 4-LEAF	8-98157-780-0	02	1	1412-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (B) 5-LEAF	8-98157-783-0	02	1	1412-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) (A) 4-LEAF	8-98118-962-0	02	1	1303-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) (B) 4-LEAF	8-98202-918-0	02	1	1303-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> (B) 4-LEAF	8-98140-085-0	02	1	1009-1302
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (B) 4-LEAF	8-98140-085-0	02	1	1303-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> (A) 4-LEAF	8-98140-086-0	02	1	1009-1302
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (A) 4-LEAF	8-98140-086-0	02	1	1303-1407
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (A) 4-LEAF	8-98229-523-0	02	1	1408-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> (A) 8-LEAF	8-98098-675-0	02	1	1009-1302
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ> (A) 8-LEAF	8-98098-675-0	02	1	1303-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> (B) 7-LEAF	8-98098-676-0	02	1	1009-1302
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ> (B) 7-LEAF	8-98098-676-0	02	1	1303-
15	NUT; S/ABS,UPR M20 SLOTTED	9-99116-420-0	04	1	1009-1107
15	NUT; S/ABS,UPR M20	0-91110-520-0	04	1	1108-
62	ABSORBER ASM; SHOCK,FRT SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR>	8-98162-769-0	02	1	1412-
62	ABSORBER ASM; SHOCK,FRT HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR>	1-51630-805-1	02	1	1303-
62	ABSORBER ASM; SHOCK,FRT FRT TAPER LEAF SUSPENSION<SAR>	1-51630-805-1	02	1	1009-1302
62	ABSORBER ASM; SHOCK,FRT NEW ZEALAND EQUIPMENT(PK5) FRT TAPER LEAF SUSPENSION<SAR>	8-98136-315-0	02	1	1303-
62	ABSORBER ASM; SHOCK,FRT MULTI LEAF SUSPENSION FRT<SAQ>	1-51630-443-0	02	1	1009-
65	WASHER; S/ABS (A) ID=27	9-51631-027-0	02	1	1009-
65	WASHER; S/ABS (B) ID=21	9-51631-028-0	02	1	1009-
68	BUSHING; S/ABS HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1303-1411
68	BUSHING; S/ABS MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1303-1411
68	BUSHING; S/ABS MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1412-
68	BUSHING; S/ABS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1412-
68	BUSHING; S/ABS	9-51631-026-0	16	1	1009-1302
68	BUSHING; S/ABS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR>	9-51631-026-0	16	1	1303-1411
68	BUSHING; S/ABS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR>	9-51631-026-0	16	1	1412-
73	NUT; BRKT,SHOCK M20	0-91110-520-0	04	1	1303-
111	SUPPORTER; S/ABS,FRT SUSP	1-51681-627-0	02	1	1009-1302
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59>	1-51681-627-0	02	1	1303-
168	BRACKET; S/ABS,FRT SUSP (A)	1-51681-745-0	02	1	1009-1012
168	BRACKET; S/ABS,FRT SUSP (A)	8-98182-383-0	02	1	1101-
168	BRACKET; S/ABS,FRT SUSP (B)	1-51681-746-0	02	1	1009-1012
168	BRACKET; S/ABS,FRT SUSP (B)	8-98182-384-0	02	1	1101-
171	BOLT; S/ABS BRKT M14X45	9-92061-445-0	08	1	1009-
172	WASHER; PL,S/ABS BRKT ID=21	0-91610-520-0	04	1	1009-
173	NUT; S/ABS (A) M14	0-91110-514-0	08	1	1009-
173	NUT; S/ABS (B) M20	0-91110-520-0	04	1	1009-1302
174	WASHER; LK,S/ABS ID=14.2	0-91510-614-0	08	1	1009-
178	PIN; SPLIT,S/ABS OD=3.7 L=35	0-81124-035-0	06	1	1009-1011
179	PIN	1-51682-094-1	04	1	1009-1302
179	PIN	1-51682-094-1	02	1	1303-
179	PIN EXC. FRONT STABILIZER SHAFT<F59>	1-51682-094-1	02	1	1303-
180	WASHER; PL,PIN ID=25	1-09503-169-0	04	1	1009-1302
180	WASHER; PL,PIN ID=25	1-09503-169-0	02	1	1303-
180	WASHER; PL,PIN EXC. FRONT STABILIZER SHAFT<F59> ID=25	1-09503-169-0	02	1	1303-
181	WASHER; LK,PIN ID=24.5	0-91510-524-0	04	1	1009-1302
181	WASHER; LK,PIN ID=24.5	0-91510-524-0	02	1	1303-
181	WASHER; LK,PIN EXC. FRONT STABILIZER SHAFT<F59> ID=24.5	0-91510-524-0	02	1	1303-
182	NUT; S/ABS LWR M24	0-91110-524-0	02	1	1009-1302
182	NUT; S/ABS LWR EXC. FRONT STABILIZER SHAFT<F59> M24	0-91110-524-0	02	1	1303-
183	SHACKLE; FRT SUSP	1-51162-029-5	04	1	1009-
185	WASHER; LK,PIN ID=12.2	0-91510-612-0	24	1	1009-
186	BUSHING; SHACKLE OD=38	8-98081-829-0	04	1	1009-
188	RUBBER; CLAMP,U-BOLT,FRT SPR NEW ZEALAND EQUIPMENT(PK5) (A)	1-51172-088-1	02	1	1303-
188	RUBBER; CLAMP,U-BOLT,FRT SPR (B)	1-51172-081-1	02	1	1009-1411
188	RUBBER; CLAMP,U-BOLT,FRT SPR (B)	1-51172-081-1	02	1	1412-
188	RUBBER; CLAMP,U-BOLT,FRT SPR SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (B)	1-51172-081-1	02	1	1412-
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRT TAPER LEAF SUSPENSION<SAR> EXC. MIXER TRUCK<RA2> (A)	1-51172-108-2	02	1	1009-1302
188	RUBBER; CLAMP,U-BOLT,FRT SPR HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (A)	1-51172-108-2	02	1	1303-
188	RUBBER; CLAMP,U-BOLT,FRT SPR MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> (A)	1-51172-085-2	02	1	1009-1302
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> (A)	1-51172-085-2	02	1	1009-1302
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> (A)	1-51172-085-2	02	1	1303-
193	NUT; U BOLT M22	0-91112-822-0	16	1	1009-1206
193	NUT; U BOLT M22	8-98179-318-0	16	1	1207-
197	PIN; FRT SPR,FRT	1-51161-031-0	04	1	1009-
198	PIN; FRT SPR & SHACKLE,FWD FRT	1-51161-031-0	08	1	1009-
201	NUT; PIN LK (A) M12	0-91110-512-0	24	1	1009-
201	NUT; PIN LK (B) M24	0-91110-524-0	02	1	1009-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	12	1	1009-
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	24	1	1009-
207	BOLT; SPR TO SHACKLE M12X80	0-10856-280-0	24	1	1009-
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> EXC. MIXER TRUCK<RA2> (B) L=240	1-87870-376-2	04	1	1009-1302
208	U-BOLT SET; FRT SPRING NEW ZEALAND EQUIPMENT(PK5) MULTI LEAF SUSPENSION FRT<SAQ> (B) L=240	1-87870-376-2	04	1	1303-1411
208	U-BOLT SET; FRT SPRING HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (B) L=240	1-87870-376-2	04	1	1303-1411
208	U-BOLT SET; FRT SPRING NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ> (B) L=240	1-87870-376-2	04	1	1412-
208	U-BOLT SET; FRT SPRING HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (B) L=240	1-87870-376-2	04	1	1412-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> (B) L=270	1-87870-327-2	04	1	1009-1302
208	U-BOLT SET; FRT SPRING NEW ZEALAND EQUIPMENT(PK5) FRT TAPER LEAF SUSPENSION<SAR> (B) L=270	1-87870-327-2	04	1	1303-1411
208	U-BOLT SET; FRT SPRING HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ> (B) L=270	1-87870-327-2	04	1	1303-1411
208	U-BOLT SET; FRT SPRING SINGAPORE EQUIPMENT(WQ3) (B) L=270	1-87870-327-2	04	1	1412-
208	U-BOLT SET; FRT SPRING NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (B) L=270	1-87870-327-2	04	1	1412-
208	U-BOLT SET; FRT SPRING HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ> (B) L=270	1-87870-327-2	04	1	1412-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> (A) L=250	1-87870-343-1	04	1	1009-1206
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> (A) L=250	1-87870-494-0	04	1	1207-1302
208	U-BOLT SET; FRT SPRING HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ> (A) L=250	1-87870-494-0	04	1	1303-
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> (A) L=230	1-87870-269-2	04	1	1009-1206
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> (A) L=230	1-87870-493-0	04	1	1207-1302
208	U-BOLT SET; FRT SPRING MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> (B) L=230	1-87870-269-2	04	1	1009-1206
208	U-BOLT SET; FRT SPRING MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> (B) L=230	1-87870-493-0	04	1	1207-1302
211	WASHER; BRKT,SHOCK (A) ID=27	9-51631-027-0	02	1	1009-
211	WASHER; BRKT,SHOCK (B) ID=21	9-51631-028-0	02	1	1009-
212	NIPPLE; GREASE,ELBOW HONG KONG EQUIPMENT(PQ1) (A) PT1/8 STRAIGHT	0-90301-410-0	05	1	1303-1411
212	NIPPLE; GREASE,ELBOW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) PT1/8 STRAIGHT	0-90301-410-0	05	1	1412-
212	NIPPLE; GREASE,ELBOW HONG KONG EQUIPMENT(PQ1) (B) PT1/8 ELBOW	0-90301-610-0	07	1	1303-1411
212	NIPPLE; GREASE,ELBOW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) PT1/8 ELBOW	0-90301-610-0	07	1	1412-
212	NIPPLE; GREASE,ELBOW (A) PT1/8 STRAIGHT	0-90301-410-0	05	1	1009-1302
212	NIPPLE; GREASE,ELBOW NEW ZEALAND EQUIPMENT(PK5) (A) PT1/8 STRAIGHT	0-90301-410-0	07	1	1303-
212	NIPPLE; GREASE,ELBOW (B) PT1/8 ELBOW	0-90301-610-0	07	1	1009-1302
212	NIPPLE; GREASE,ELBOW NEW ZEALAND EQUIPMENT(PK5) (B) PT1/8 ELBOW	0-90301-610-0	05	1	1303-

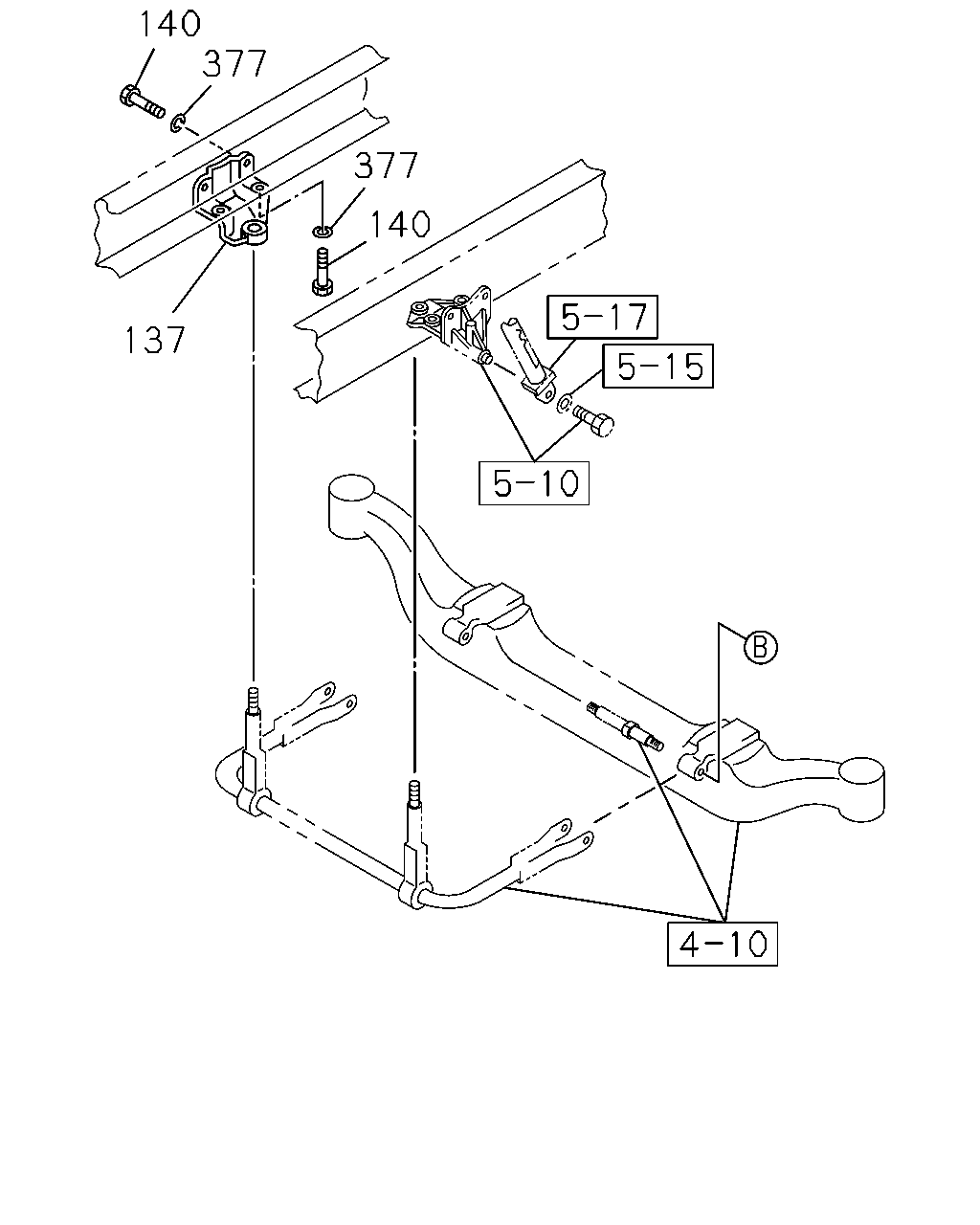

140 377 377 140 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; STAB BAR TO FRAME FRONT STABILIZER SHAFT<F59>	1-51781-111-0	01	1	1303-
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M14X50	0-20951-450-0	04	1	1303-
377	WASHER; LK,BRKT FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	04	1	1303-

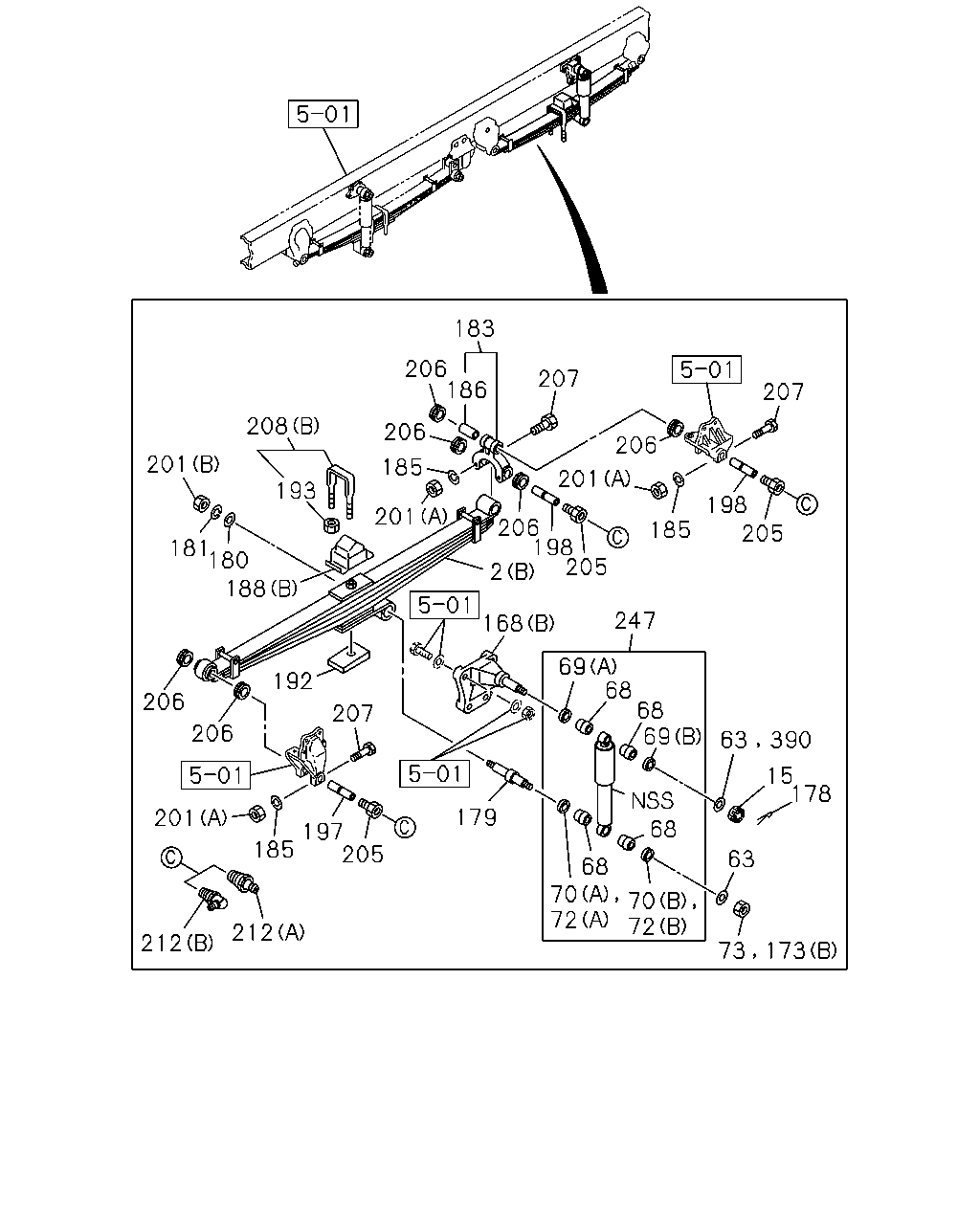

207 207 205 198 185 201 206 183 206 206 186 185 208 201 181 201 193 206 188 180 198 2 205 247 168 69 68 390 63 178 15 69 68 68 63 173 73 72 72 70 70 179 68 205 197 185 201 212 212 206 207 192 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ> (A) 8-LEAF	8-98157-782-0	02	1	1412-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ> (B) 9-LEAF	8-98157-784-0	02	1	1412-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (A) 4-LEAF	8-98157-780-0	02	1	1412-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (B) 5-LEAF	8-98157-783-0	02	1	1412-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) (A) 4-LEAF	8-98118-962-0	02	1	1303-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) (B) 4-LEAF	8-98202-918-0	02	1	1303-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> (B) 4-LEAF	8-98140-085-0	02	1	1009-1302
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (B) 4-LEAF	8-98140-085-0	02	1	1303-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> (A) 4-LEAF	8-98140-086-0	02	1	1009-1302
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (A) 4-LEAF	8-98140-086-0	02	1	1303-1407
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (A) 4-LEAF	8-98229-523-0	02	1	1408-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> (A) 8-LEAF	8-98098-675-0	02	1	1009-1302
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ> (A) 8-LEAF	8-98098-675-0	02	1	1303-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> (B) 7-LEAF	8-98098-676-0	02	1	1009-1302
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ> (B) 7-LEAF	8-98098-676-0	02	1	1303-
15	NUT; S/ABS,UPR M20 SLOTTED	9-99116-420-0	04	1	1009-1107
15	NUT; S/ABS,UPR M20	0-91110-520-0	04	1	1108-
63	WASHER; PL,S/ABS,LWR ID=21	0-91610-520-0	02	1	1009-1302
63	WASHER; PL,S/ABS,LWR ID=21	0-91610-520-0	04	1	1303-
68	BUSHING; S/ABS HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1303-1411
68	BUSHING; S/ABS MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1303-1411
68	BUSHING; S/ABS MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1412-
68	BUSHING; S/ABS HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ>	9-51631-026-0	08	1	1412-
68	BUSHING; S/ABS	9-51631-026-0	16	1	1009-1302
68	BUSHING; S/ABS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR>	9-51631-026-0	16	1	1303-1411
68	BUSHING; S/ABS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR>	9-51631-026-0	16	1	1412-
69	WASHER; UPR,S/ABS (A) ID=27	9-51631-027-0	02	1	1009-1411
69	WASHER; UPR,S/ABS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) ID=27	9-51631-027-0	02	1	1412-
69	WASHER; UPR,S/ABS SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27	9-51631-027-0	02	1	1412-
69	WASHER; UPR,S/ABS (B) ID=21	9-51631-028-0	02	1	1009-1411
69	WASHER; UPR,S/ABS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) ID=21	9-51631-028-0	02	1	1412-
69	WASHER; UPR,S/ABS SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21	9-51631-028-0	02	1	1412-
70	WASHER; LWR,S/ABS (A) ID=27	9-51631-027-0	02	1	1009-1411
70	WASHER; LWR,S/ABS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) ID=27	9-51631-027-0	02	1	1412-
70	WASHER; LWR,S/ABS SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (A) ID=27	9-51631-027-0	02	1	1412-
70	WASHER; LWR,S/ABS (B) ID=21	9-51631-028-0	02	1	1009-1411
70	WASHER; LWR,S/ABS NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) ID=21	9-51631-028-0	02	1	1412-
70	WASHER; LWR,S/ABS SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (B) ID=21	9-51631-028-0	02	1	1412-
72	WASHER; CENTER,S/ABS UPR BUSHING SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ> ID=27	9-51631-027-0	02	1	1412-
72	WASHER; CENTER,S/ABS UPR BUSHING SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ> ID=21	9-51631-028-0	02	1	1412-
73	NUT; BRKT,SHOCK M20	0-91110-520-0	04	1	1303-
168	BRACKET; S/ABS,FRT SUSP (A)	1-51681-745-0	02	1	1009-1012
168	BRACKET; S/ABS,FRT SUSP (A)	8-98182-383-0	02	1	1101-
168	BRACKET; S/ABS,FRT SUSP (B)	1-51681-746-0	02	1	1009-1012
168	BRACKET; S/ABS,FRT SUSP (B)	8-98182-384-0	02	1	1101-
173	NUT; S/ABS (A) M14	0-91110-514-0	08	1	1009-
173	NUT; S/ABS (B) M20	0-91110-520-0	04	1	1009-1302
178	PIN; SPLIT,S/ABS OD=3.7 L=35	0-81124-035-0	06	1	1009-1011
179	PIN	1-51682-094-1	04	1	1009-1302
179	PIN	1-51682-094-1	02	1	1303-
179	PIN EXC. FRONT STABILIZER SHAFT<F59>	1-51682-094-1	02	1	1303-
180	WASHER; PL,PIN ID=25	1-09503-169-0	04	1	1009-1302
180	WASHER; PL,PIN ID=25	1-09503-169-0	02	1	1303-
180	WASHER; PL,PIN EXC. FRONT STABILIZER SHAFT<F59> ID=25	1-09503-169-0	02	1	1303-
181	WASHER; LK,PIN ID=24.5	0-91510-524-0	04	1	1009-1302
181	WASHER; LK,PIN ID=24.5	0-91510-524-0	02	1	1303-
181	WASHER; LK,PIN EXC. FRONT STABILIZER SHAFT<F59> ID=24.5	0-91510-524-0	02	1	1303-
183	SHACKLE; FRT SUSP	1-51162-029-5	04	1	1009-
185	WASHER; LK,PIN ID=12.2	0-91510-612-0	24	1	1009-
186	BUSHING; SHACKLE OD=38	8-98081-829-0	04	1	1009-
188	RUBBER; CLAMP,U-BOLT,FRT SPR NEW ZEALAND EQUIPMENT(PK5) (A)	1-51172-088-1	02	1	1303-
188	RUBBER; CLAMP,U-BOLT,FRT SPR (B)	1-51172-081-1	02	1	1009-1411
188	RUBBER; CLAMP,U-BOLT,FRT SPR (B)	1-51172-081-1	02	1	1412-
188	RUBBER; CLAMP,U-BOLT,FRT SPR SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (B)	1-51172-081-1	02	1	1412-
188	RUBBER; CLAMP,U-BOLT,FRT SPR FRT TAPER LEAF SUSPENSION<SAR> EXC. MIXER TRUCK<RA2> (A)	1-51172-108-2	02	1	1009-1302
188	RUBBER; CLAMP,U-BOLT,FRT SPR HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (A)	1-51172-108-2	02	1	1303-
188	RUBBER; CLAMP,U-BOLT,FRT SPR MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> (A)	1-51172-085-2	02	1	1009-1302
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> (A)	1-51172-085-2	02	1	1009-1302
188	RUBBER; CLAMP,U-BOLT,FRT SPR MULTI LEAF SUSPENSION FRT<SAQ> (A)	1-51172-085-2	02	1	1303-
192	PIECE; DIST	1-51177-281-1	02	1	1009-
193	NUT; U BOLT M22	0-91112-822-0	16	1	1009-1206
193	NUT; U BOLT M22	8-98179-318-0	16	1	1207-
197	PIN; FRT SPR,FRT	1-51161-031-0	04	1	1009-
198	PIN; FRT SPR & SHACKLE,FWD FRT	1-51161-031-0	08	1	1009-
201	NUT; PIN LK (A) M12	0-91110-512-0	24	1	1009-
201	NUT; PIN LK (B) M24	0-91110-524-0	02	1	1009-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	12	1	1009-
206	WASHER; LK,SPRING PIN ID=32.4	1-51169-018-0	24	1	1009-
207	BOLT; SPR TO SHACKLE M12X80	0-10856-280-0	24	1	1009-
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> EXC. MIXER TRUCK<RA2> (B) L=240	1-87870-376-2	04	1	1009-1302
208	U-BOLT SET; FRT SPRING NEW ZEALAND EQUIPMENT(PK5) MULTI LEAF SUSPENSION FRT<SAQ> (B) L=240	1-87870-376-2	04	1	1303-1411
208	U-BOLT SET; FRT SPRING HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (B) L=240	1-87870-376-2	04	1	1303-1411
208	U-BOLT SET; FRT SPRING NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ> (B) L=240	1-87870-376-2	04	1	1412-
208	U-BOLT SET; FRT SPRING HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR> (B) L=240	1-87870-376-2	04	1	1412-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> (B) L=270	1-87870-327-2	04	1	1009-1302
208	U-BOLT SET; FRT SPRING NEW ZEALAND EQUIPMENT(PK5) FRT TAPER LEAF SUSPENSION<SAR> (B) L=270	1-87870-327-2	04	1	1303-1411
208	U-BOLT SET; FRT SPRING HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ> (B) L=270	1-87870-327-2	04	1	1303-1411
208	U-BOLT SET; FRT SPRING SINGAPORE EQUIPMENT(WQ3) (B) L=270	1-87870-327-2	04	1	1412-
208	U-BOLT SET; FRT SPRING NEW ZEALAND EQUIPMENT(PK5),SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR> (B) L=270	1-87870-327-2	04	1	1412-
208	U-BOLT SET; FRT SPRING HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ> (B) L=270	1-87870-327-2	04	1	1412-
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> (A) L=250	1-87870-343-1	04	1	1009-1206
208	U-BOLT SET; FRT SPRING MULTI LEAF SUSPENSION FRT<SAQ> (A) L=250	1-87870-494-0	04	1	1207-1302
208	U-BOLT SET; FRT SPRING HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ> (A) L=250	1-87870-494-0	04	1	1303-
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> (A) L=230	1-87870-269-2	04	1	1009-1206
208	U-BOLT SET; FRT SPRING FRT TAPER LEAF SUSPENSION<SAR> (A) L=230	1-87870-493-0	04	1	1207-1302
208	U-BOLT SET; FRT SPRING MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> (B) L=230	1-87870-269-2	04	1	1009-1206
208	U-BOLT SET; FRT SPRING MIXER TRUCK<RA2> FRT TAPER LEAF SUSPENSION<SAR> (B) L=230	1-87870-493-0	04	1	1207-1302
212	NIPPLE; GREASE,ELBOW HONG KONG EQUIPMENT(PQ1) (A) PT1/8 STRAIGHT	0-90301-410-0	05	1	1303-1411
212	NIPPLE; GREASE,ELBOW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) PT1/8 STRAIGHT	0-90301-410-0	05	1	1412-
212	NIPPLE; GREASE,ELBOW HONG KONG EQUIPMENT(PQ1) (B) PT1/8 ELBOW	0-90301-610-0	07	1	1303-1411
212	NIPPLE; GREASE,ELBOW HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) PT1/8 ELBOW	0-90301-610-0	07	1	1412-
212	NIPPLE; GREASE,ELBOW (A) PT1/8 STRAIGHT	0-90301-410-0	05	1	1009-1302
212	NIPPLE; GREASE,ELBOW NEW ZEALAND EQUIPMENT(PK5) (A) PT1/8 STRAIGHT	0-90301-410-0	07	1	1303-
212	NIPPLE; GREASE,ELBOW (B) PT1/8 ELBOW	0-90301-610-0	07	1	1009-1302
212	NIPPLE; GREASE,ELBOW NEW ZEALAND EQUIPMENT(PK5) (B) PT1/8 ELBOW	0-90301-610-0	05	1	1303-
247	ABSORBER ASM; SHOCK,RWD FRT SINGAPORE EQUIPMENT(WQ3) MULTI LEAF SUSPENSION FRT<SAQ>	1-51630-783-0	02	1	1412-
247	ABSORBER ASM; SHOCK,RWD FRT SINGAPORE EQUIPMENT(WQ3) FRT TAPER LEAF SUSPENSION<SAR>	8-98162-765-0	02	1	1412-
247	ABSORBER ASM; SHOCK,RWD FRT HONG KONG EQUIPMENT(PQ1) FRT TAPER LEAF SUSPENSION<SAR>	1-51630-809-1	02	1	1303-
247	ABSORBER ASM; SHOCK,RWD FRT FRT TAPER LEAF SUSPENSION<SAR>	1-51630-809-1	02	1	1009-1302
247	ABSORBER ASM; SHOCK,RWD FRT NEW ZEALAND EQUIPMENT(PK5) FRT TAPER LEAF SUSPENSION<SAR>	1-51630-810-0	02	1	1303-
247	ABSORBER ASM; SHOCK,RWD FRT MULTI LEAF SUSPENSION FRT<SAQ>	1-51630-444-0	02	1	1009-1302
247	ABSORBER ASM; SHOCK,RWD FRT HONG KONG EQUIPMENT(PQ1) MULTI LEAF SUSPENSION FRT<SAQ>	1-51630-444-0	02	1	1303-
390	WASHER; PL,S/ABS,UPR ID=21	0-91610-520-0	02	1	1009-1302

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
