Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#69961) — 390 parça

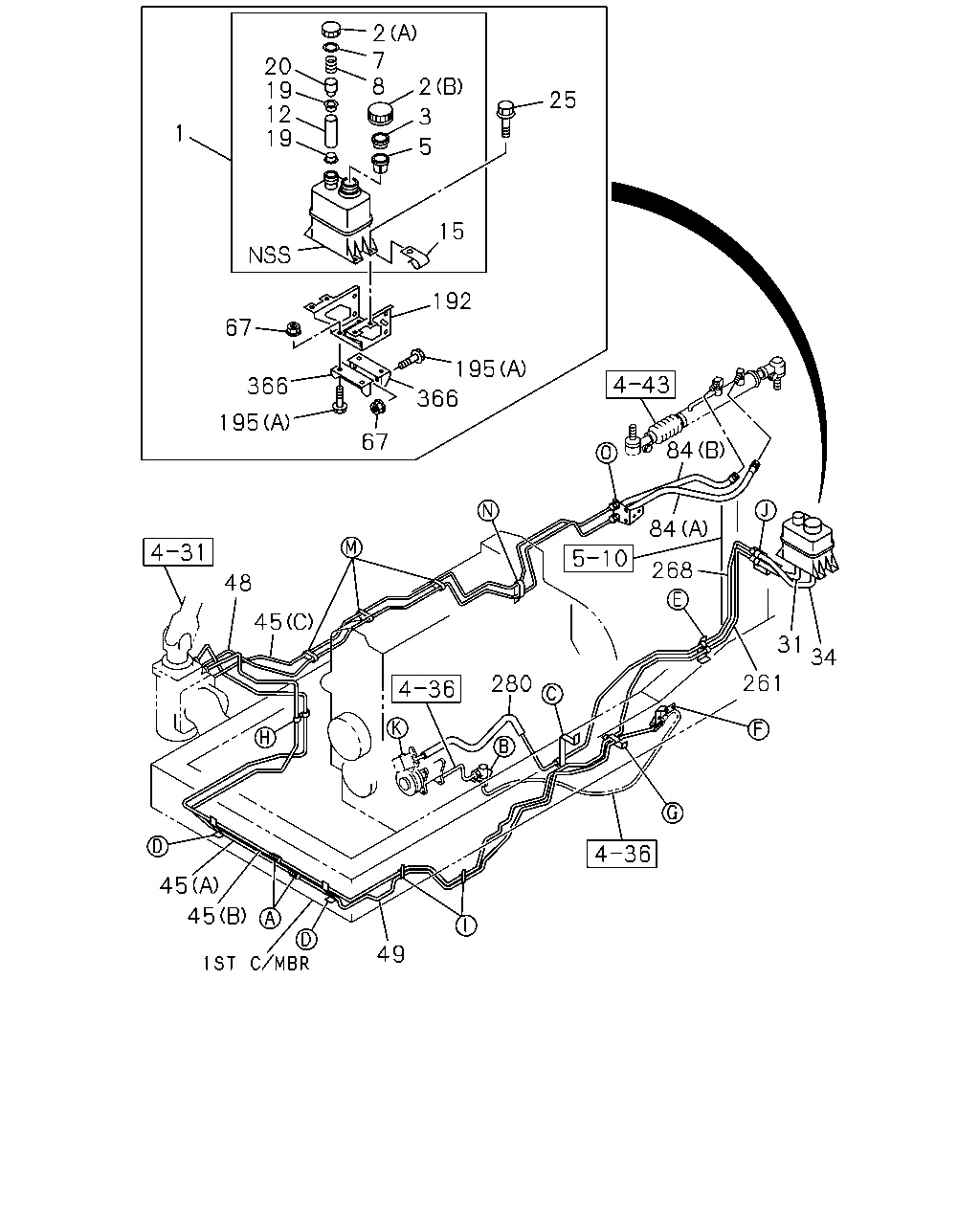

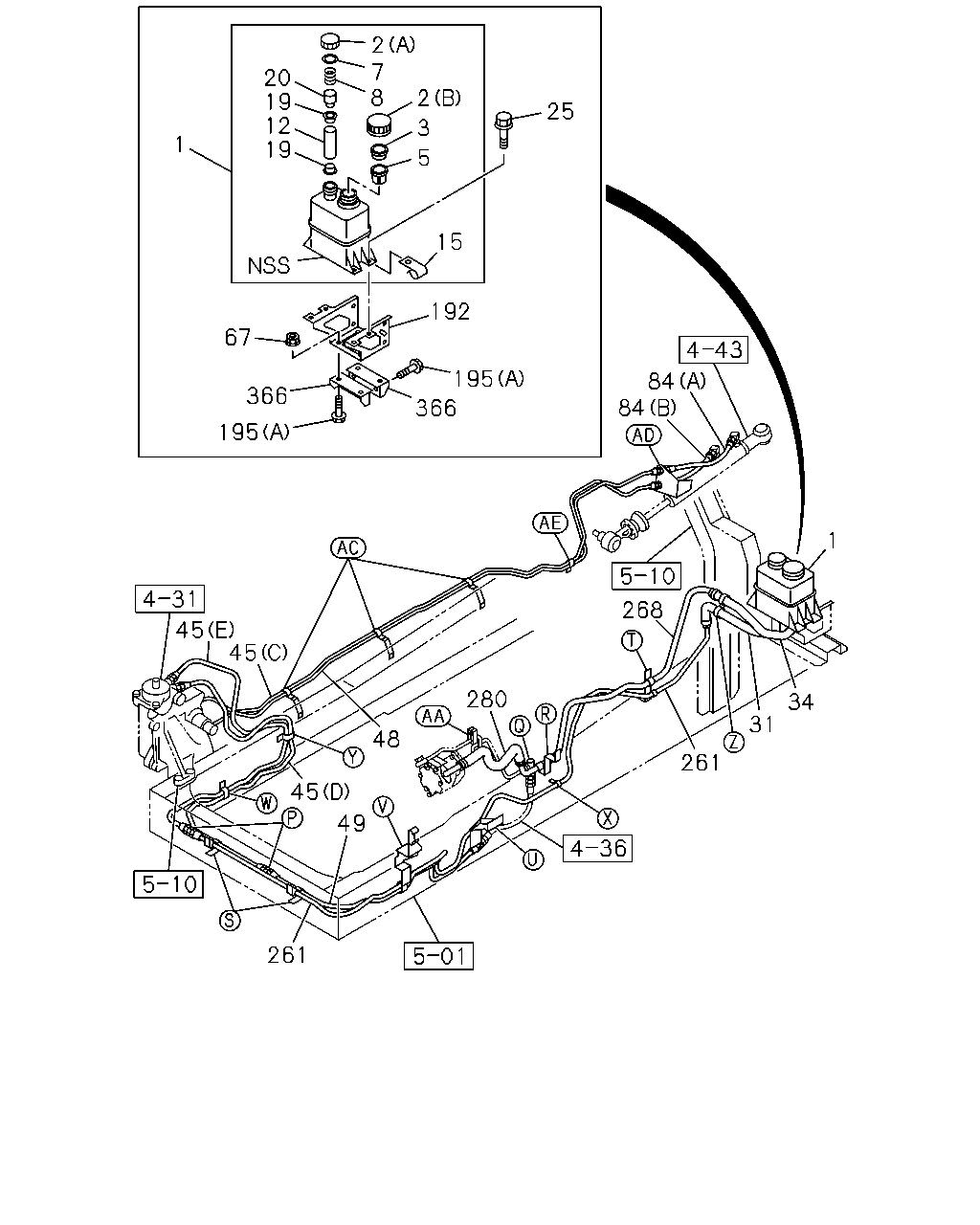

2 20 19 12 19 7 3 2 8 25 15 192 195 366 67 195 366 67 1 84 84 268 31 34 261 280 45 48 45 45 49 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1009-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1009-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1009-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1009-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1009-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1009-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1009-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1009-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1009-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1009-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E)	8-98240-515-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-515-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98240-512-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-512-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E)	8-98240-514-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-514-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98043-416-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	8-98043-416-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98139-031-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5) (C) L=2539	1-21117-744-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98139-032-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98240-513-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-513-0	01	1	1412-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT NEW ZEALAND EQUIPMENT(PK5)	8-98233-186-0	01	1	1303-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2490 SERVICED BY L=2500	1-49115-494-0	01	1	1009-1302
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. NEW ZEALAND EQUIPMENT(PK5) L=2490 SERVICED BY L=2500	1-49115-494-0	01	1	1303-
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1009-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1009-
192	BRACKET; P/S OIL TANK NEW ZEALAND EQUIPMENT(PK5)	8-98137-323-0	01	1	1303-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1009-1302
192	BRACKET; P/S OIL TANK EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21489-200-1	01	1	1303-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1009-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1009-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1009-
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1009-

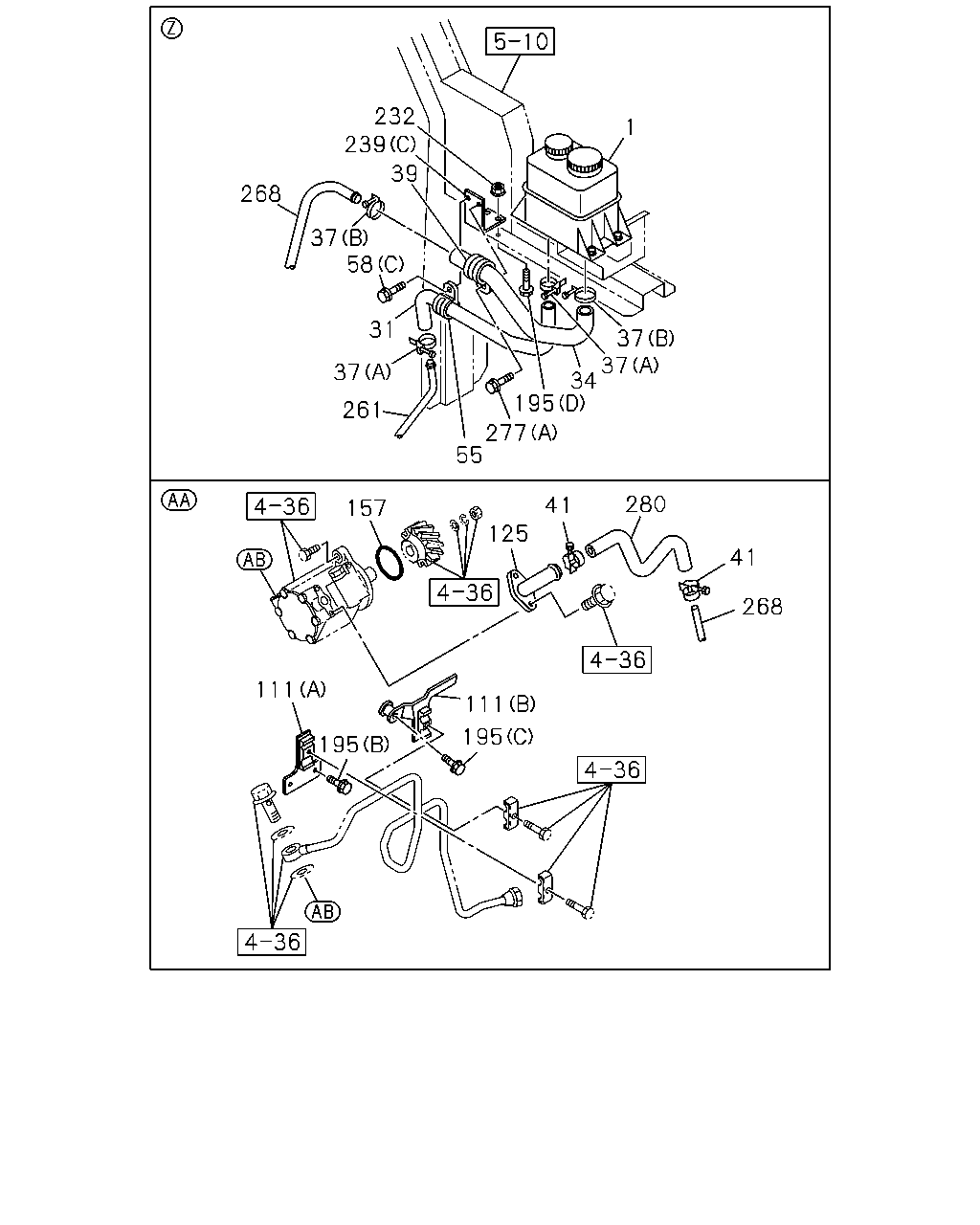

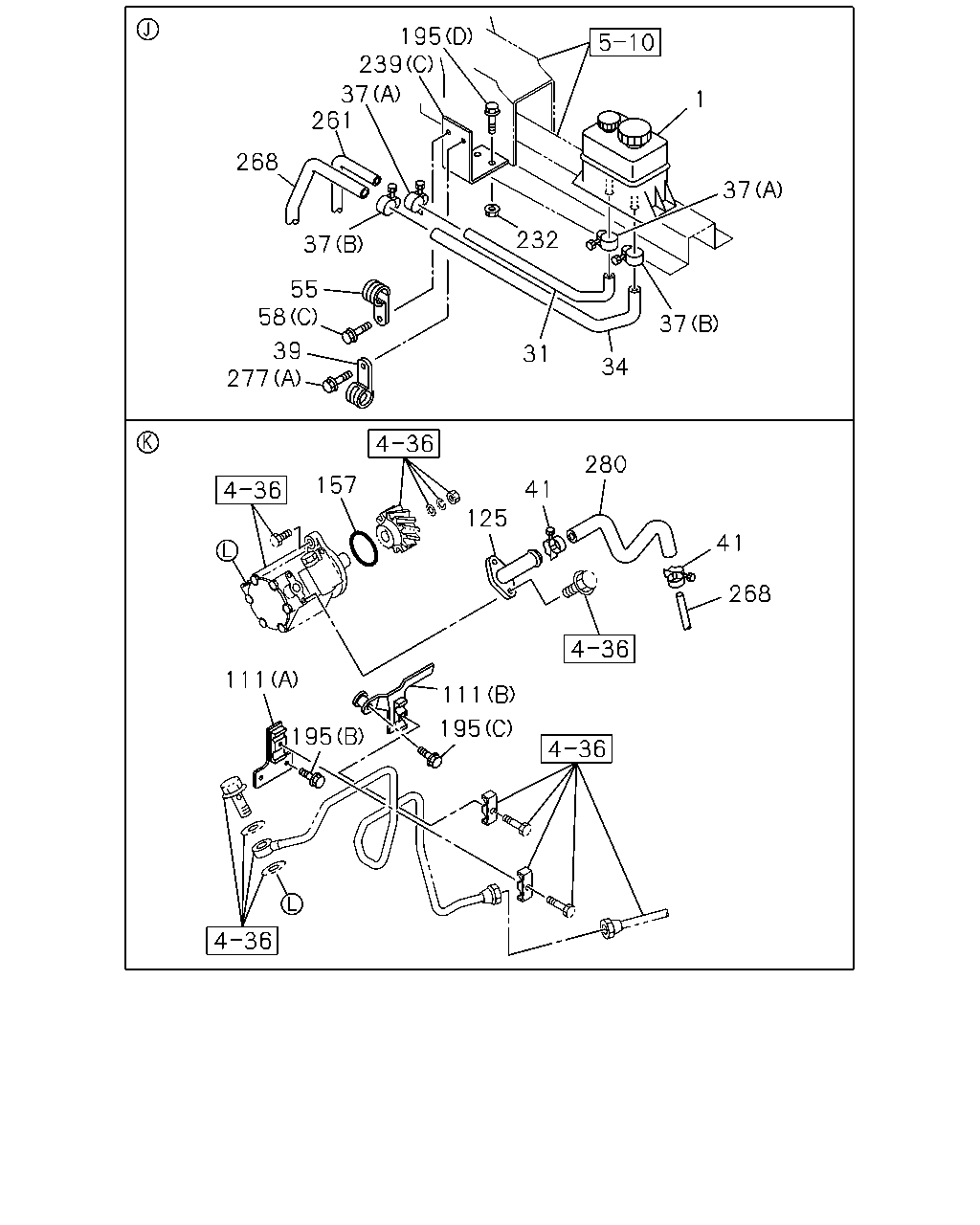

195 239 37 261 268 37 55 58 277 31 232 1 37 37 34 157 111 125 41 280 41 111 195 195 268 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1009-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1009-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1009-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1009-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1009-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1009-
58	BOLT; CLIP (B) M8X60 FLANGE	0-28050-860-0	01	1	1009-1302
58	BOLT; CLIP (B) M8X50 FLANGE	0-28050-850-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (D) M10X20 FLANGE	0-28651-020-0	01	1	1009-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1009-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1009-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1009-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1009-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1009-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1009-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1009-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
239	BRACKET; FLEX HOSE (C)	1-21464-780-0	01	1	1009-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-

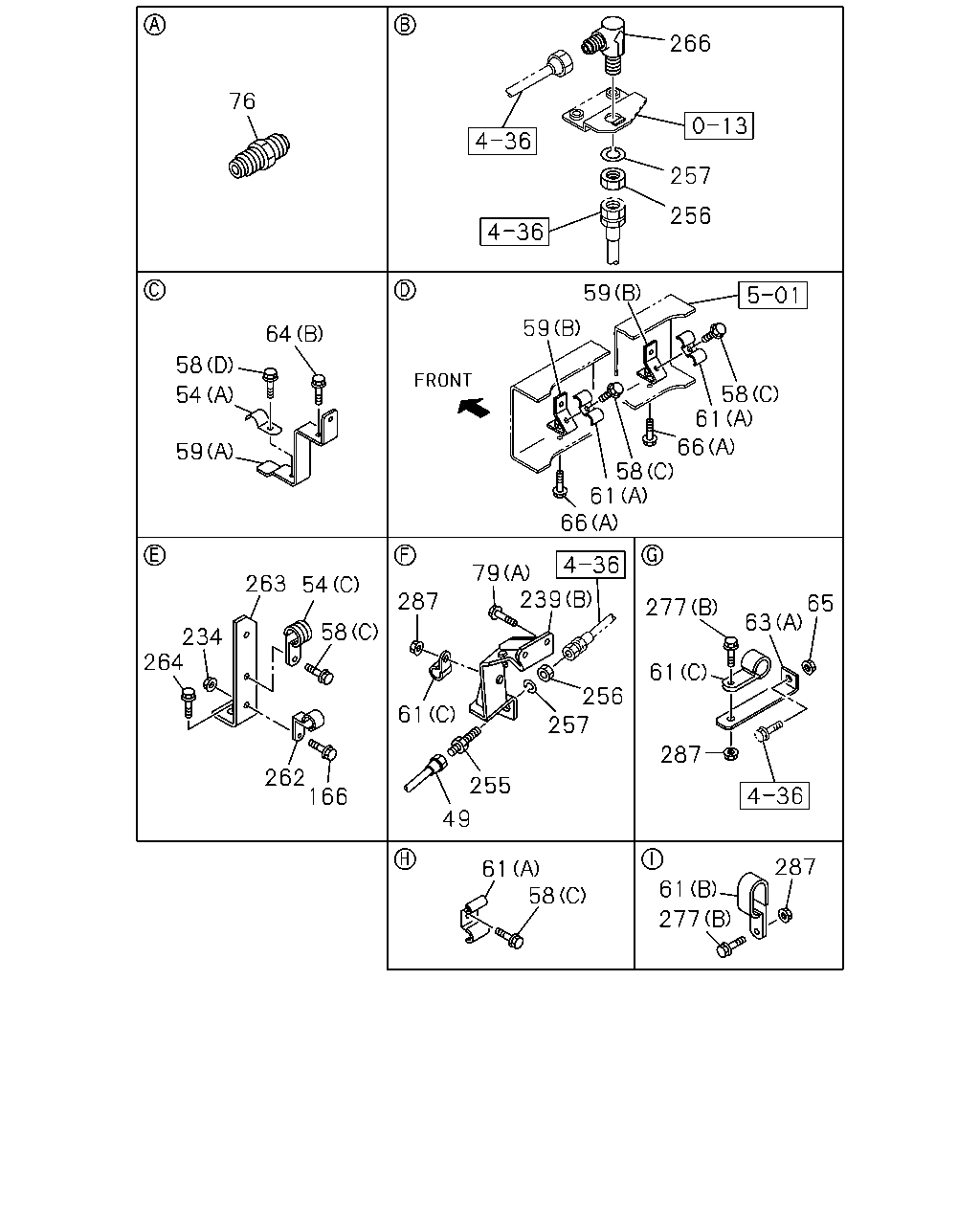

63 58 54 62 79 258 54 58 84 239 64 81 81 84 238 238 45 48 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E)	8-98240-515-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-515-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98240-512-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-512-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E)	8-98240-514-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-514-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98043-416-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	8-98043-416-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98139-031-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5) (C) L=2539	1-21117-744-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98139-032-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98240-513-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-513-0	01	1	1412-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT NEW ZEALAND EQUIPMENT(PK5)	8-98233-186-0	01	1	1303-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2490 SERVICED BY L=2500	1-49115-494-0	01	1	1009-1302
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. NEW ZEALAND EQUIPMENT(PK5) L=2490 SERVICED BY L=2500	1-49115-494-0	01	1	1303-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	1009-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1009-
54	CLIP; OIL PIPE (C) ID=26 L=27	1-09701-006-0	01	1	1009-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1009-
58	BOLT; CLIP (B) M8X60 FLANGE	0-28050-860-0	01	1	1009-1302
58	BOLT; CLIP (B) M8X50 FLANGE	0-28050-850-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (D) M10X20 FLANGE	0-28651-020-0	01	1	1009-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1009-
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	1009-1302
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	1009-
64	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X35 FLANGE	0-28650-835-0	02	1	1303-1411
64	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X35 FLANGE	0-28650-835-0	02	1	1412-
64	BOLT; CLIP BRKT (B) M8X30 FLANGE	0-28050-830-0	01	1	1009-1302
64	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-1411
64	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	02	1	1412-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
64	BOLT; CLIP BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	1009-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1009-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1009-
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	1009-
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91180-108-0	02	1	1009-
239	BRACKET; FLEX HOSE (C)	1-21464-780-0	01	1	1009-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	1009-

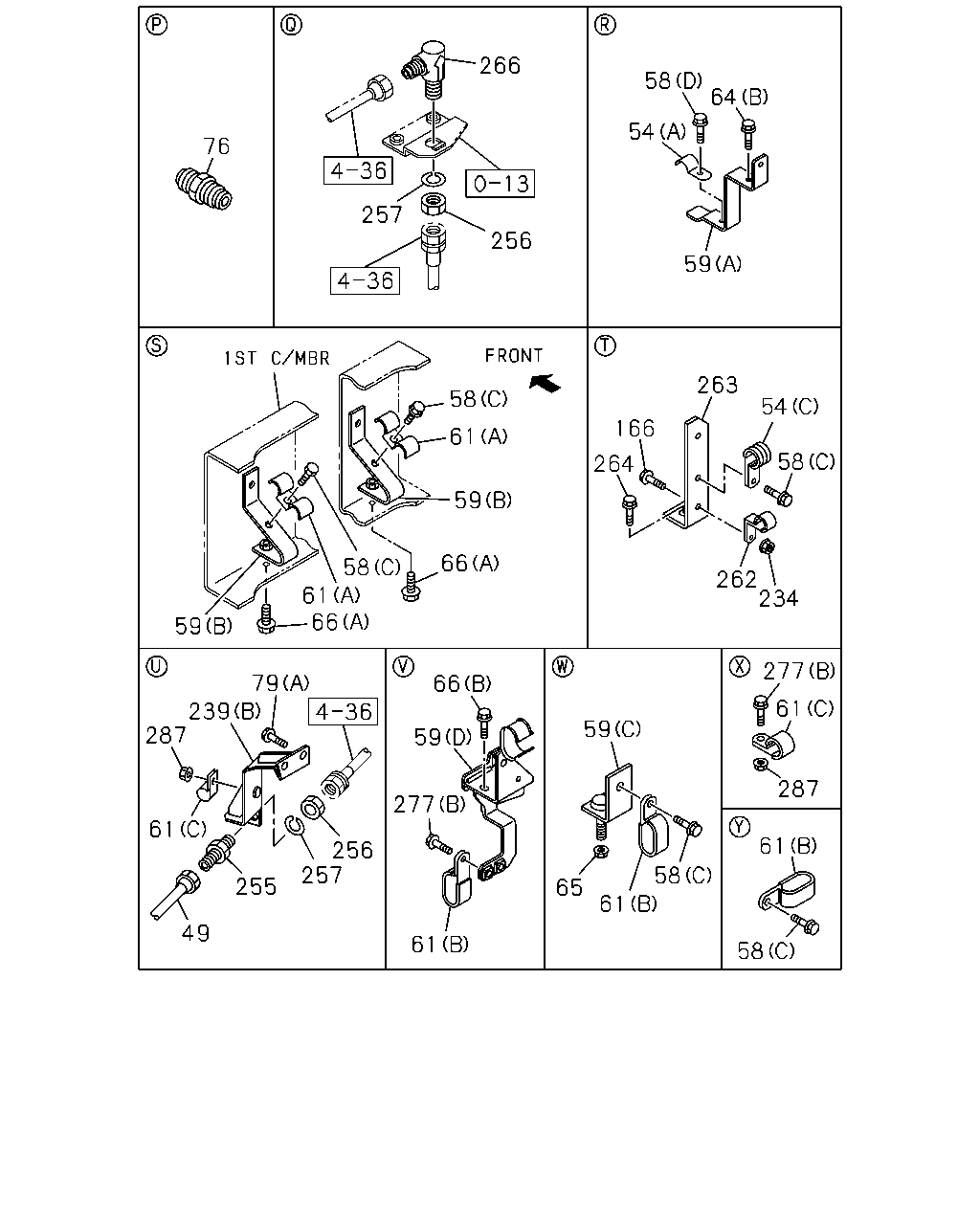

76 266 257 256 59 59 58 61 66 58 61 66 79 287 239 61 257 255 256 287 61 277 63 65 287 61 277 58 61 49 166 262 58 54 263 234 264 64 58 59 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	1009-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1009-
54	CLIP; OIL PIPE (C) ID=26 L=27	1-09701-006-0	01	1	1009-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1009-
58	BOLT; CLIP (B) M8X60 FLANGE	0-28050-860-0	01	1	1009-1302
58	BOLT; CLIP (B) M8X50 FLANGE	0-28050-850-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (D) M10X20 FLANGE	0-28651-020-0	01	1	1009-
59	BRACKET; CLIP,OIL PIPE (D)	8-98239-922-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (C)	8-98240-516-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	1009-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	1009-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1303-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1009-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1009-1302
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1303-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	1009-1302
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1303-
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	1009-1302
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	1009-
64	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X35 FLANGE	0-28650-835-0	02	1	1303-1411
64	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X35 FLANGE	0-28650-835-0	02	1	1412-
64	BOLT; CLIP BRKT (B) M8X30 FLANGE	0-28050-830-0	01	1	1009-1302
64	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-1411
64	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	02	1	1412-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
64	BOLT; CLIP BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1009-1302
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1009-
239	BRACKET; FLEX HOSE (C)	1-21464-780-0	01	1	1009-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1009-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1009-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1009-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1009-1302
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-

20 12 19 19 1 2 8 7 3 5 2 25 15 192 67 366 195 266 195 45 45 45 48 280 49 268 84 84 31 261 34 1 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1009-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1009-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1009-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1009-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1009-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1009-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1009-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1009-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1009-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1009-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1009-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E)	8-98240-515-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-515-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98240-512-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-512-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E)	8-98240-514-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-514-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98043-416-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	8-98043-416-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98139-031-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5) (C) L=2539	1-21117-744-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98139-032-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98240-513-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-513-0	01	1	1412-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT NEW ZEALAND EQUIPMENT(PK5)	8-98233-186-0	01	1	1303-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2490 SERVICED BY L=2500	1-49115-494-0	01	1	1009-1302
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. NEW ZEALAND EQUIPMENT(PK5) L=2490 SERVICED BY L=2500	1-49115-494-0	01	1	1303-
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1009-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1009-
192	BRACKET; P/S OIL TANK NEW ZEALAND EQUIPMENT(PK5)	8-98137-323-0	01	1	1303-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	1009-1302
192	BRACKET; P/S OIL TANK EXC. NEW ZEALAND EQUIPMENT(PK5)	1-21489-200-1	01	1	1303-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1009-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1009-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1009-
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1009-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1009-

111 195 195 111 125 157 41 280 41 268 55 277 195 34 37 37 1 261 37 31 58 37 268 239 232 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1009-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	1009-1302
31	HOSE; P/S OIL TANK,INL	8-98203-561-0	01	1	1303-
34	HOSE; P/S OIL TANK,OUTLET	8-98127-737-0	01	1	1009-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	1009-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	1009-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1009-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1009-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1009-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1009-
58	BOLT; CLIP (B) M8X60 FLANGE	0-28050-860-0	01	1	1009-1302
58	BOLT; CLIP (B) M8X50 FLANGE	0-28050-850-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (D) M10X20 FLANGE	0-28651-020-0	01	1	1009-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1009-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1009-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1009-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1009-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	1009-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	1009-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	1009-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	1009-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
239	BRACKET; FLEX HOSE (C)	1-21464-780-0	01	1	1009-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-
261	PIPE; OIL,UNION TO HOSE	8-98155-327-0	01	1	1009-1302
261	PIPE; OIL,UNION TO HOSE	8-98230-062-0	01	1	1303-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98142-365-0	01	1	1009-1302
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98229-070-0	01	1	1303-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1009-1302
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1303-

54 258 58 79 67 63 58 54 62 45 238 81 239 64 84 84 238 238 81 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E)	8-98240-515-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-515-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98240-512-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-512-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (E)	8-98240-514-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98240-514-0	01	1	1412-
45	PIPE; OIL,P/S UNIT TO UNION (C)	8-98043-416-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5) (C)	8-98043-416-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98139-031-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5) (C) L=2539	1-21117-744-0	01	1	1303-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98139-032-0	01	1	1009-1302
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98240-513-0	01	1	1303-1411
45	PIPE; OIL,P/S UNIT TO UNION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (D)	8-98240-513-0	01	1	1412-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT NEW ZEALAND EQUIPMENT(PK5)	8-98233-186-0	01	1	1303-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L=2490 SERVICED BY L=2500	1-49115-494-0	01	1	1009-1302
48	PIPE; OIL,FLEX HOSE TO STRG UNIT EXC. NEW ZEALAND EQUIPMENT(PK5) L=2490 SERVICED BY L=2500	1-49115-494-0	01	1	1303-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	1009-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1009-
54	CLIP; OIL PIPE (C) ID=26 L=27	1-09701-006-0	01	1	1009-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1009-
58	BOLT; CLIP (B) M8X60 FLANGE	0-28050-860-0	01	1	1009-1302
58	BOLT; CLIP (B) M8X50 FLANGE	0-28050-850-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (D) M10X20 FLANGE	0-28651-020-0	01	1	1009-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1009-
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	1009-1302
63	BRACKET; CLIP,P/S (B)	1-47478-371-0	03	1	1009-
64	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X35 FLANGE	0-28650-835-0	02	1	1303-1411
64	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X35 FLANGE	0-28650-835-0	02	1	1412-
64	BOLT; CLIP BRKT (B) M8X30 FLANGE	0-28050-830-0	01	1	1009-1302
64	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-1411
64	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	02	1	1412-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
64	BOLT; CLIP BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1009-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	1009-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1009-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1009-
238	NUT; FLEX HOSE (B) M20	0-91111-520-0	02	1	1009-
238	NUT; FLEX HOSE (A) M8 FLANGE	0-91180-108-0	02	1	1009-
239	BRACKET; FLEX HOSE (C)	1-21464-780-0	01	1	1009-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-
258	TUBE; DISTANCE,BRKT L=22	9-22159-024-0	01	1	1009-

76 266 256 257 59 54 58 64 263 166 264 54 58 262 234 277 61 287 61 61 65 59 58 277 59 66 61 256 257 255 49 61 287 79 239 66 59 61 66 59 61 58 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=1358	8-98155-326-0	01	1	1009-1302
49	PIPE; OIL,FLEX HOSE TO UNION L=1349	8-98230-061-0	01	1	1303-
54	CLIP; OIL PIPE (B) ID=13X2 L=20	0-95325-236-0	04	1	1009-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1009-
54	CLIP; OIL PIPE (C) ID=26 L=27	1-09701-006-0	01	1	1009-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	01	1	1303-
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	1009-
58	BOLT; CLIP (B) M8X60 FLANGE	0-28050-860-0	01	1	1009-1302
58	BOLT; CLIP (B) M8X50 FLANGE	0-28050-850-0	01	1	1303-
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
58	BOLT; CLIP (C) M8X20 FLANGE	0-28650-820-0	04	1	1303-
58	BOLT; CLIP (D) M10X20 FLANGE	0-28651-020-0	01	1	1009-
59	BRACKET; CLIP,OIL PIPE (D)	8-98239-922-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (C)	8-98240-516-0	01	1	1303-
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	1009-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	1009-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1303-
61	CLIP; OIL PIPE (C) ID=16 L=20	0-95235-535-0	02	1	1009-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1009-1302
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	01	1	1303-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	1009-1302
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1303-
64	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X35 FLANGE	0-28650-835-0	02	1	1303-1411
64	BOLT; CLIP BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X35 FLANGE	0-28650-835-0	02	1	1412-
64	BOLT; CLIP BRKT (B) M8X30 FLANGE	0-28050-830-0	01	1	1009-1302
64	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	02	1	1303-1411
64	BOLT; CLIP BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	02	1	1412-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
64	BOLT; CLIP BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1303-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1009-1302
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1303-
79	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1009-
239	BRACKET; FLEX HOSE (C)	1-21464-780-0	01	1	1009-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	1009-
239	BRACKET; FLEX HOSE (B)	8-97618-278-1	01	1	1009-
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
256	NUT; UNION M22	0-91111-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1009-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1009-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-
266	UNION; OIL PIPE,P/S M20 & M22 ELBOW	1-09654-154-1	01	1	1009-
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1009-1302
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
