◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10820 - CXZ LHD CHINA ▶ 3 - Brakes, Brake System ▶ 3-34 - BRAKE VALVE; AIR ▶
3-34 — BRAKE VALVE; AIR (#6996) — 32 parça

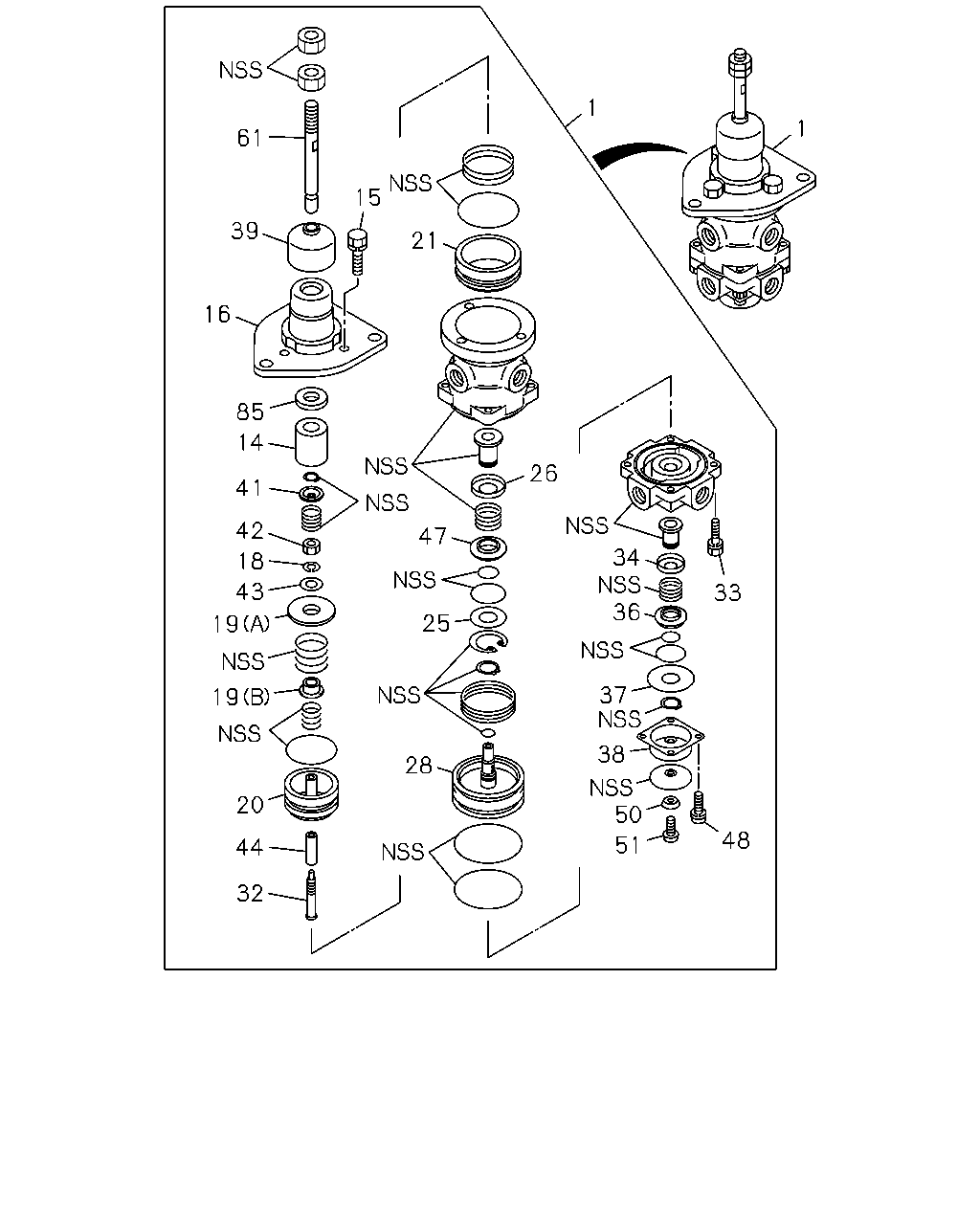

çizim 43849
1 1 61 15 39 21 16 85 14 26 41 42 47 34 36 18 43 33 25 19 37 19 38 28 50 20 48 51 44 32
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; BRK 1-48100-740-3 01 1 9908-
14 PLUNGER; BRK VLV 1-48119-365-0 01 1 9908-
15 BOLT; PLATE,BRK VLV 1-48119-232-0 03 1 9908-
16 PLATE; MTG,BRKT VLV 1-48119-364-1 01 1 9908-
18 WASHER; LK,SEAT,BRK VLV 1-48199-024-0 01 1 9908-
19 SEAT; SPRING,BRK VLV
(B) 		1-48119-370-0 01 1 9908-
19 SEAT; SPRING,BRK VLV
(A) 		1-48119-371-0 01 1 9908-
20 PISTON; UPR,BRK VLV 1-48119-318-0 01 1 9908-
21 BUSHING; UPR BODY 1-48119-317-0 01 1 9908-
25 WASHER; PISTON,BRK VLV 1-48129-149-0 01 1 9908-
26 RETAINER; VLV,BRK VLV 1-48122-003-0 01 1 9908-
28 PISTON; LWR,BRK VLV 1-48123-050-0 01 1 9908-
32 SCREW; BRK VLV 1-48119-323-0 01 1 9908-
33 BOLT; BODY,BRK VLV 1-48129-068-0 04 1 9908-
34 RETAINER; VLV,BRK VLV 1-48122-010-0 01 1 9908-
36 RETAINER; GASKET,BRK VLV 1-48129-298-0 01 1 9908-
37 WASHER; VLV LWR,BRK VLV 1-48129-166-0 01 1 9908-
38 COVER; EXH,BRK VLV 1-48119-217-0 01 1 9908-
39 BOOT; PLUNGER,BRK VLV 1-48119-438-0 01 1 9908-
41 PLATE; STEM,BRK VLV 1-48129-167-0 01 1 9908-
42 NUT; SPR SEAT,BRK VLV 1-48199-025-0 01 1 9908-
43 WASHER; SPR SEAT,BRK VLV 1-48129-170-0 01 1 9908-
44 SLEEVE; PISTON,BRK VLV 1-48119-322-0 01 1 9908-
47 RETAINER; GASKET,BRK VLV 1-48129-297-0 01 1 9908-
48 BOLT; COVER,BRK VLV 1-48119-216-0 04 1 9908-
50 WASHER; RET,BRK VLV 1-48129-112-0 01 1 9908-
51 SCREW; FORMING,BRK VLV 1-48129-111-0 01 1 9908-
61 ROD; PUSH,BRK VLV 1-48119-363-0 01 1 9908-
85 WASHER; PUSH ROD 1-48119-366-0 01 1 9908-

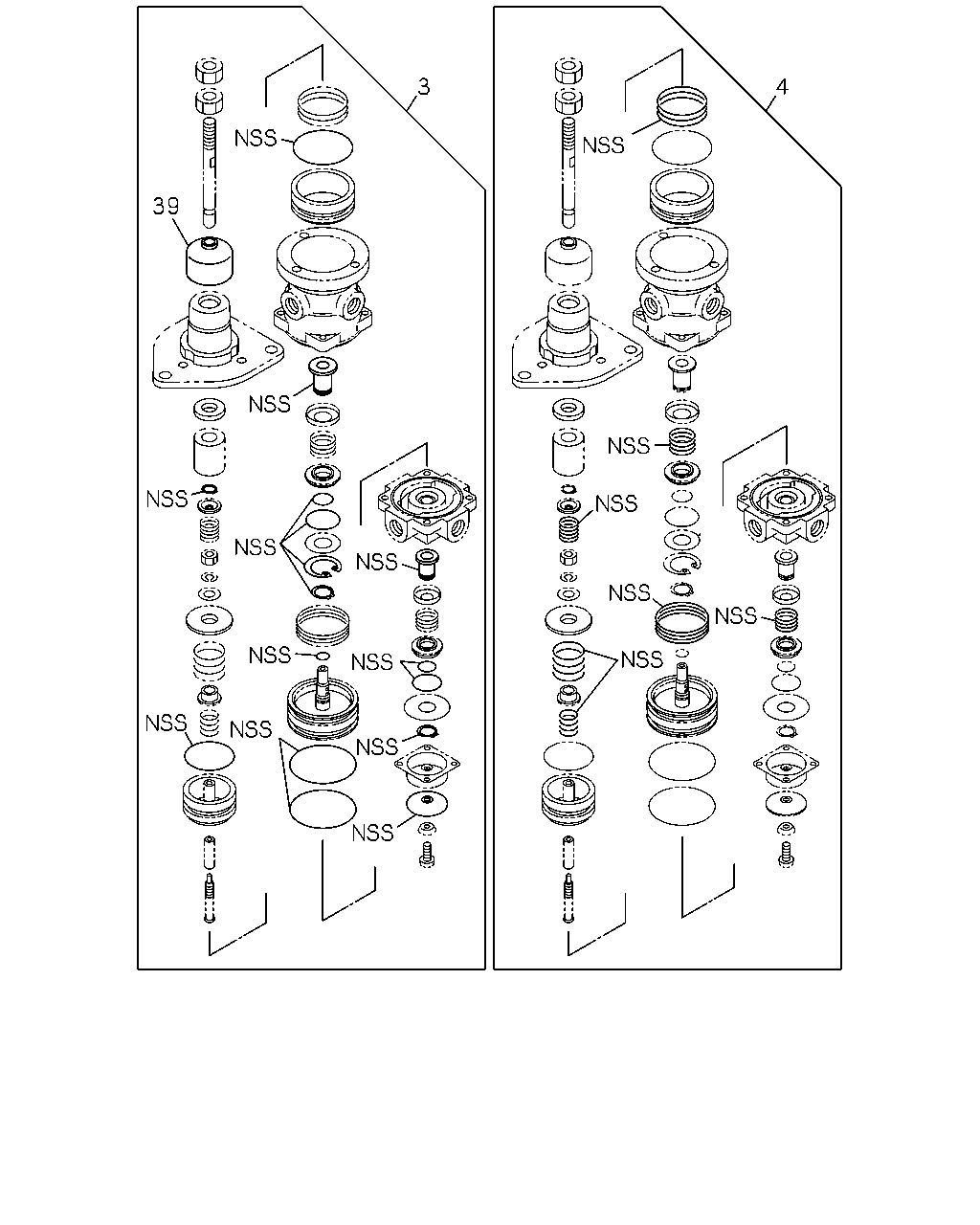

çizim 44600
3 4 39
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; RUBBER,BRK VLV 1-85576-143-0 01 1 9908-
4 REPAIR KIT; SPRING,BRK VLV 1-85576-179-0 01 1 9908-
39 BOOT; PLUNGER,BRK VLV 1-48119-438-0 01 1 9908-
