4-20 — REAR AXLE CASE AND SHAFT (#69956) — 142 parça

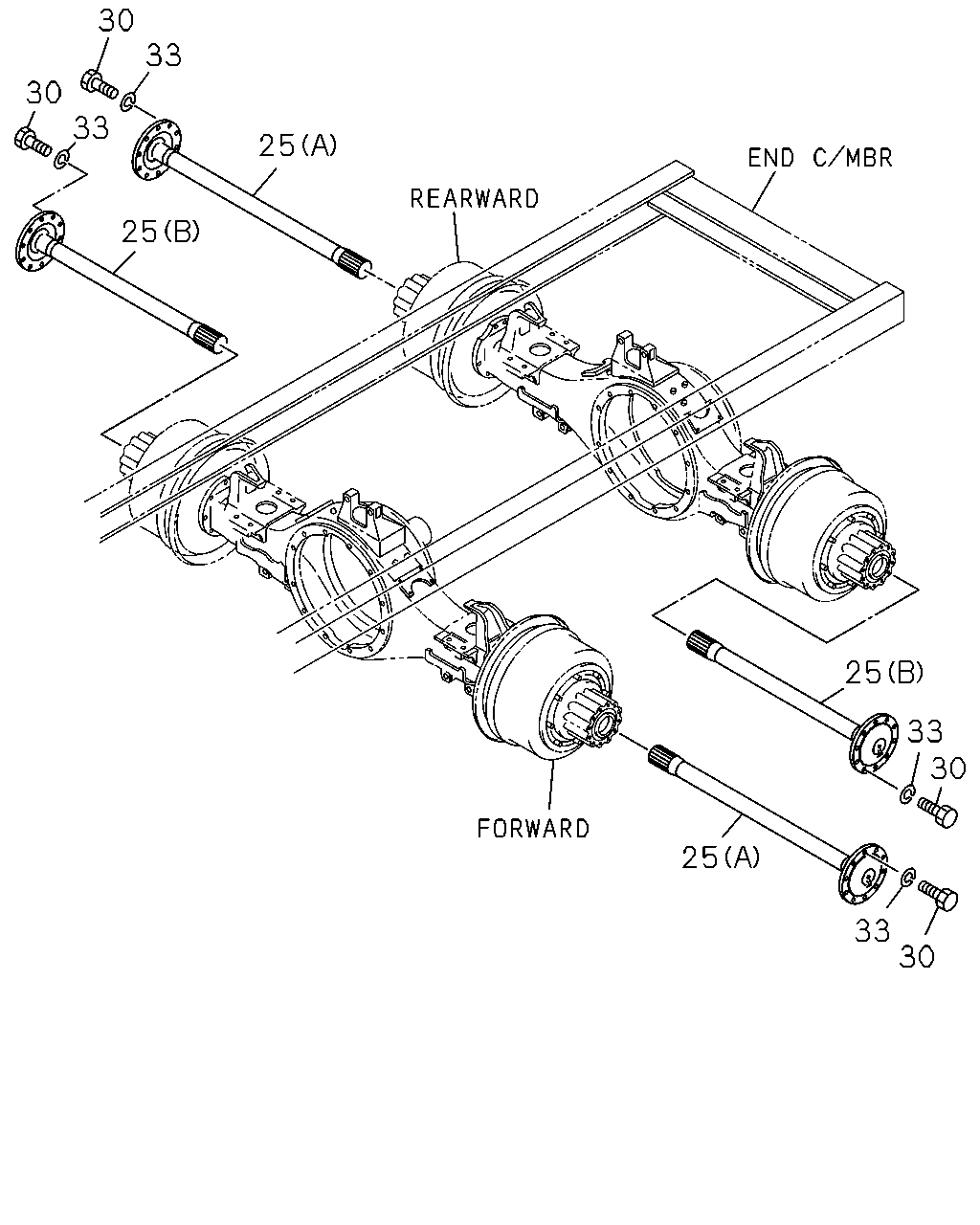

30 30 33 33 25 25 25 33 30 30 33 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SHAFT; AXLE,RR FINAL GEAR 39/9 16.5"(W4Q) (A) L=1121	8-98146-160-0	02	1	1009-1302
25	SHAFT; AXLE,RR FINAL GEAR 39/9 16.5"(W4Q) (A) L=1121	8-98146-160-0	01	1	1303-
25	SHAFT; AXLE,RR FINAL GEAR 39/9 16.5"(W4Q) (A) L=1121	8-98146-160-0	01	1	1303-
25	SHAFT; AXLE,RR FINAL GEAR 39/9 16.5"(W4Q) (B) L=976	8-98146-161-0	02	1	1009-1302
25	SHAFT; AXLE,RR FINAL GEAR 39/9 16.5"(W4Q) (B) L=976	8-98146-161-0	01	1	1303-
25	SHAFT; AXLE,RR FINAL GEAR 39/9 16.5"(W4Q) (B) L=976	8-98146-161-0	01	1	1303-
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) (B) L=990	8-98146-166-0	02	1	1009-1302
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) (B) L=990	8-98146-166-0	01	1	1303-
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) (B) L=990	8-98146-166-0	01	1	1303-
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) (A) L=1110	8-98146-167-0	02	1	1009-1302
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) (A) L=1110	8-98146-167-0	01	1	1303-
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) (A) L=1110	8-98146-167-0	01	1	1303-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	40	1	1009-1302
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1303-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1303-
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	40	1	1009-1302
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1303-
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1303-

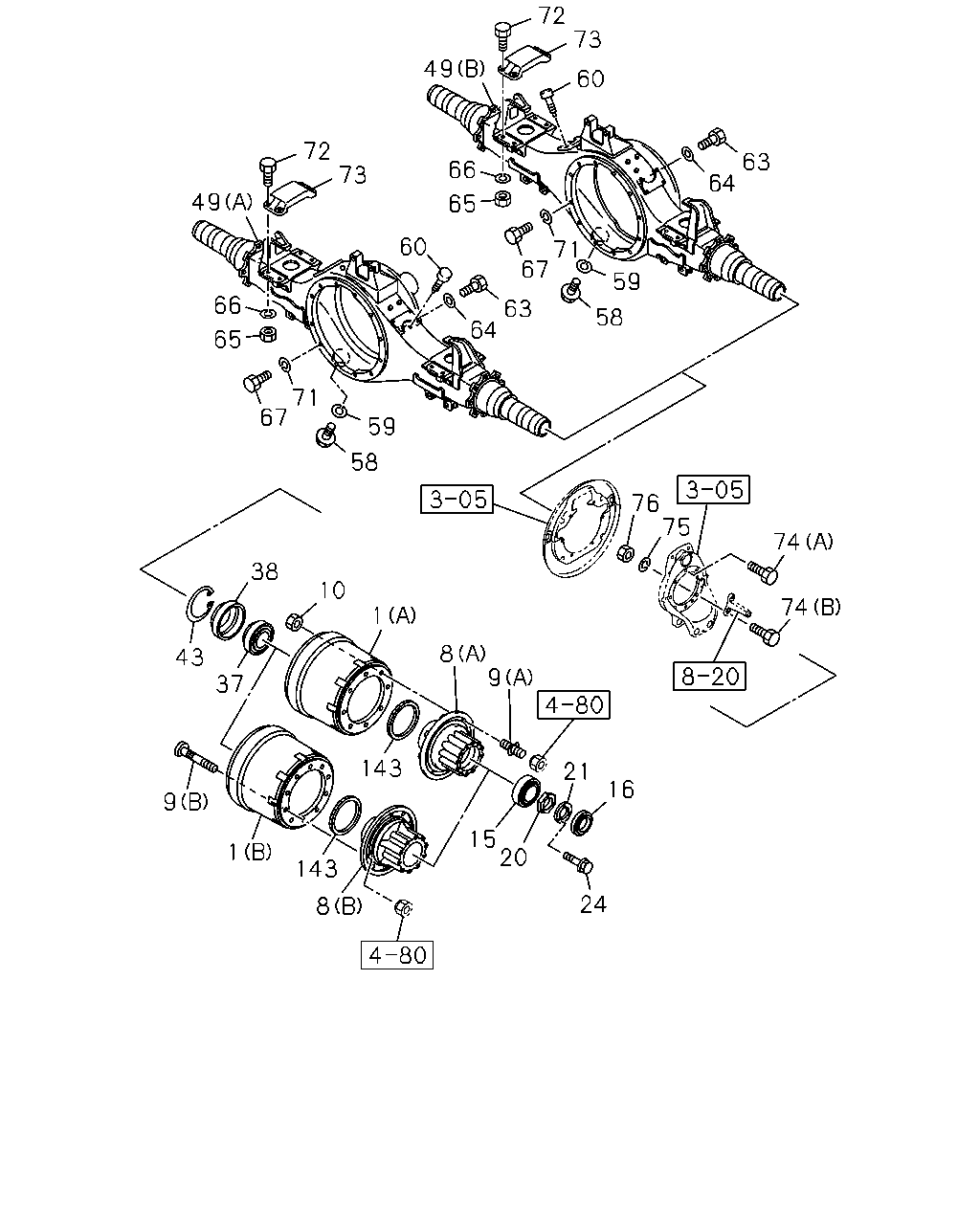

72 49 73 60 66 65 63 64 59 71 67 58 63 72 76 75 74 74 8 9 73 60 64 66 49 65 67 71 59 58 38 10 1 21 16 24 15 20 143 43 37 9 1 143 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	04	1	1009-1302
1	DRUM; BRK,RR (B)	1-42315-377-2	02	1	1303-
1	DRUM; BRK,RR (B)	1-42315-377-2	02	1	1303-
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42315-358-0	04	1	1009-1302
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) FORWARD	1-42311-085-0	02	1	1009-1302
8	HUB; RR AXLE (B) FORWARD	1-42311-085-0	02	1	1303-
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) REARWARD	1-42311-094-0	02	1	1009-1302
8	HUB; RR AXLE (B) REARWARD	1-42311-094-0	02	1	1303-
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) FORWARD	1-42311-104-0	02	1	1009-1302
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) REARWARD	1-42311-105-0	02	1	1009-1302
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M22X93 RH THREAD	1-42337-066-2	40	1	1009-1302
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN> (B) M22X93 RH THREAD	1-42337-066-2	20	1	1303-
9	PIN; WHEEL,RR AXLE DISC WHEEL STEEL<SDN> (B) M22X93 RH THREAD	1-42337-066-2	20	1	1303-
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	16	1	1009-1302
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> (B) M22X109 RH THREAD	1-42337-076-1	20	1	1303-
9	PIN; WHEEL,RR AXLE DISC WHEEL AL<SDM> (B) M22X109 RH THREAD	1-42337-076-1	20	1	1303-
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	16	1	1009-1302
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	32	1	1009-1302
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	04	1	1209-1302
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1303-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1303-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	04	1	1009-1302
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1303-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1303-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	04	1	1009-1302
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1303-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1303-
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A) MULTI LEAF SUSP RR<SAS> M88	9-09843-062-2	04	1	1009-1302
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1303-
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1303-
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> M88	9-09843-062-2	02	1	1009-1302
20	NUT; BRG,RR HUB FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) M88	9-09843-062-2	02	1	1009-1302
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> M88	9-09843-062-2	02	1	1009-1302
20	NUT; BRG,RR HUB FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) M88	9-09843-062-2	02	1	1009-1302
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	04	1	1009-1302
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1303-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1303-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	12	1	1009-1302
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1303-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1303-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1303-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1303-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	04	1	1209-1302
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1303-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1303-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	04	1	1009-1302
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1303-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1303-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	04	1	1009-1302
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1303-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1303-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	04	1	1009-1302
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1303-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1303-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	04	1	1009-1302
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1303-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1303-
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) (B)	1-42190-287-5	01	1	1303-
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42190-483-1	01	1	1303-
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42190-330-4	01	1	1303-
49	CASE; RR AXLE FINAL GEAR 39/9 16.5"(W4Q) (A)	1-42190-670-1	01	1	1009-
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) MULTI LEAF SUSP RR<SAS> (A)	1-42190-489-2	01	1	1009-
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) MULTI LEAF SUSP RR<SAS> (B)	1-42190-538-2	01	1	1009-
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> (A)	1-42190-477-0	01	1	1009-1302
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B) (A)	1-42190-477-0	01	1	1009-1302
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B) HONG KONG EQUIPMENT(PQ1) (A)	1-42190-477-1	01	1	1303-1411
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> (A)	1-42190-477-1	01	1	1412-
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B) HONG KONG EQUIPMENT(PQ1) (A)	1-42190-477-1	01	1	1412-
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> (B)	1-42190-565-0	01	1	1009-1302
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) (B)	1-42190-565-0	01	1	1009-1302
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1) (B)	1-42190-565-1	01	1	1303-1411
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> (B)	1-42190-565-1	01	1	1412-
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1) (B)	1-42190-565-1	01	1	1412-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	02	1	1009-1302
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1303-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1303-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	02	1	1009-1302
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1303-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1303-
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	1009-1412
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	1501-1509
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	1510-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	02	1	1009-1302
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1303-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1303-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	02	1	1009-1302
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1303-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1303-
65	NUT M14	0-91110-514-0	16	1	1009-1302
65	NUT M14	0-91110-514-0	08	1	1303-
65	NUT M14	0-91110-514-0	08	1	1303-
66	WASHER; LK ID=14.2	0-91510-814-0	16	1	1009-1302
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1303-
66	WASHER; LK ID=14.2	0-91510-814-0	08	1	1303-
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	08	1	1009-1302
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1303-
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1303-
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	1009-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/9 16.5"(W4Q) M16X40	0-20951-640-0	06	1	1009-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) M16X40	0-20951-640-0	07	1	1009-1302
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) M16X40	0-20951-640-0	07	1	1303-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	24	1	1009-1302
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1303-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1303-
72	BOLT; PAD FIX M14X40	0-20951-440-0	16	1	1009-1302
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1303-
72	BOLT; PAD FIX M14X40	0-20951-440-0	08	1	1303-
73	PAD; RR SPR CONTACT	1-42124-101-0	04	1	1009-1302
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1303-
73	PAD; RR SPR CONTACT	1-42124-101-0	02	1	1303-
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	16	1	1303-
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	28	1	1009-1302
74	BOLT; RR BRK ASM SETTING (A) M14X50	1-09040-066-0	12	1	1303-
74	BOLT; RR BRK ASM SETTING (B) M14X80	9-92621-480-0	04	1	1009-1504
74	BOLT; RR BRK ASM SETTING (B) M14X60	1-09040-084-0	04	1	1505-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	32	1	1009-1302
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1303-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1303-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	32	1	1009-1302
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1303-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1303-
143	RING; EXCITER	1-42319-173-0	02	1	1009-
