Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#69954) — 319 parça

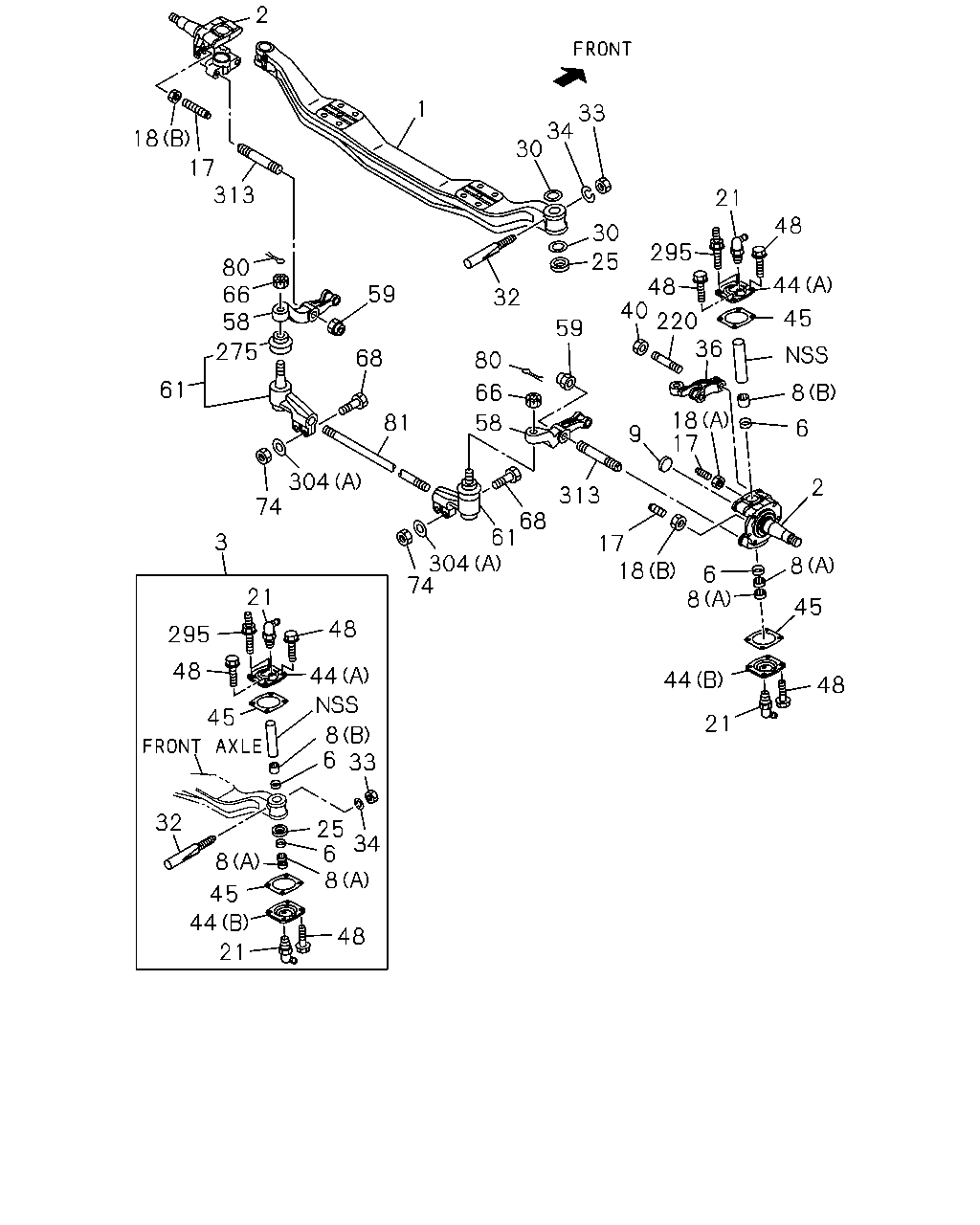

2 18 17 313 80 66 58 275 61 59 68 81 304 74 3 74 304 61 68 313 58 66 80 32 59 25 30 30 34 33 21 295 48 48 40 220 36 18 17 9 17 18 6 8 44 21 48 45 8 2 6 8 45 44 21 295 48 45 48 44 8 6 33 25 34 6 8 48 21 44 45 8 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1009-
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1009-
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1009-
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1009-
3	KING PIN SET	1-87831-349-2	02	1	1009-
3	KING PIN SET	1-87831-349-2	02	1	1009-
6	SEAL; KING PIN	9-09926-024-0	04	1	1009-
6	SEAL; KING PIN	9-09926-024-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1009-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1009-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	01	1	1009-1302
9	PLUG; KNUCKLE OD=22	1-09600-011-2	01	1	1009-1302
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1303-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F075(FH5) SINGAPORE EQUIPMENT(WQ3) M18X56	1-09009-108-0	01	1	1412-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	1303-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU) M18X53	1-09009-066-0	01	1	1303-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	01	1	1009-1302
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	01	1	1009-1302
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	1303-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU) M18X53	1-09009-066-0	02	1	1009-1302
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU) M18X53	1-09009-066-0	02	1	1009-1302
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU) M18X53	1-09009-066-0	02	1	1303-1411
17	BOLT; STOPPER KNUCKLE FRONT AXLE F075(FH5) SINGAPORE EQUIPMENT(WQ3) M18X53	1-09009-066-0	02	1	1412-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU) M18X53	1-09009-066-0	02	1	1412-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F075(FH5) M18X53	1-09009-066-0	02	1	1009-1302
17	BOLT; STOPPER KNUCKLE FRONT AXLE F075(FH5) M18X53	1-09009-066-0	02	1	1009-1302
17	BOLT; STOPPER KNUCKLE FRONT AXLE F075(FH5) M18X53	1-09009-066-0	03	1	1303-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1009-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1009-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1009-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1009-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1009-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1009-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1009-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1009-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1009-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1009-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1009-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1009-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1303-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1303-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1009-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1009-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1009-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1009-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1009-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1009-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1009-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1009-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	14	1	1009-1302
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	14	1	1009-1302
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	16	1	1303-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1303-
58	ARM; TIE ROD FORWARD	1-43134-049-4	01	1	1009-1411
58	ARM; TIE ROD NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FORWARD	1-43134-049-4	01	1	1412-
58	ARM; TIE ROD FRONT AXLE F075(FH5) SINGAPORE EQUIPMENT(WQ3) FORWARD	8-98145-592-0	01	1	1412-
58	ARM; TIE ROD REARWARD	1-43134-060-2	01	1	1009-
58	ARM; TIE ROD FORWARD	1-43135-049-4	01	1	1009-1411
58	ARM; TIE ROD NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FORWARD	1-43135-049-4	01	1	1009-
58	ARM; TIE ROD FRONT AXLE F075(FH5) SINGAPORE EQUIPMENT(WQ3) FORWARD	8-98145-593-0	01	1	1412-
58	ARM; TIE ROD REARWARD	1-43135-060-2	01	1	1009-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1009-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1009-
61	ROD END; TIE ROD	8-98054-851-0	02	1	1009-1009
61	ROD END; TIE ROD	8-98096-753-0	02	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	02	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	02	1	1009-1009
61	ROD END; TIE ROD	8-98096-754-0	02	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	02	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1009-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1009-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1412-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1412-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	08	1	1009-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1412-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1412-
74	NUT; TIE ROD END M12	0-91110-512-0	08	1	1009-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1009-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1009-
81	ROD; TIE	8-98105-064-0	01	1	1412-
81	ROD; TIE	8-98105-064-0	01	1	1412-
81	ROD; TIE	1-43151-154-0	02	1	1009-1009
81	ROD; TIE	8-98105-064-0	02	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1009-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1009-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
275	BOOT; ROD END,TIE	1-43159-107-0	04	1	1009-1009
275	BOOT; ROD END,TIE	1-43159-131-0	04	1	1010-1306
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1303-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	08	1	1009-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1009-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1009-

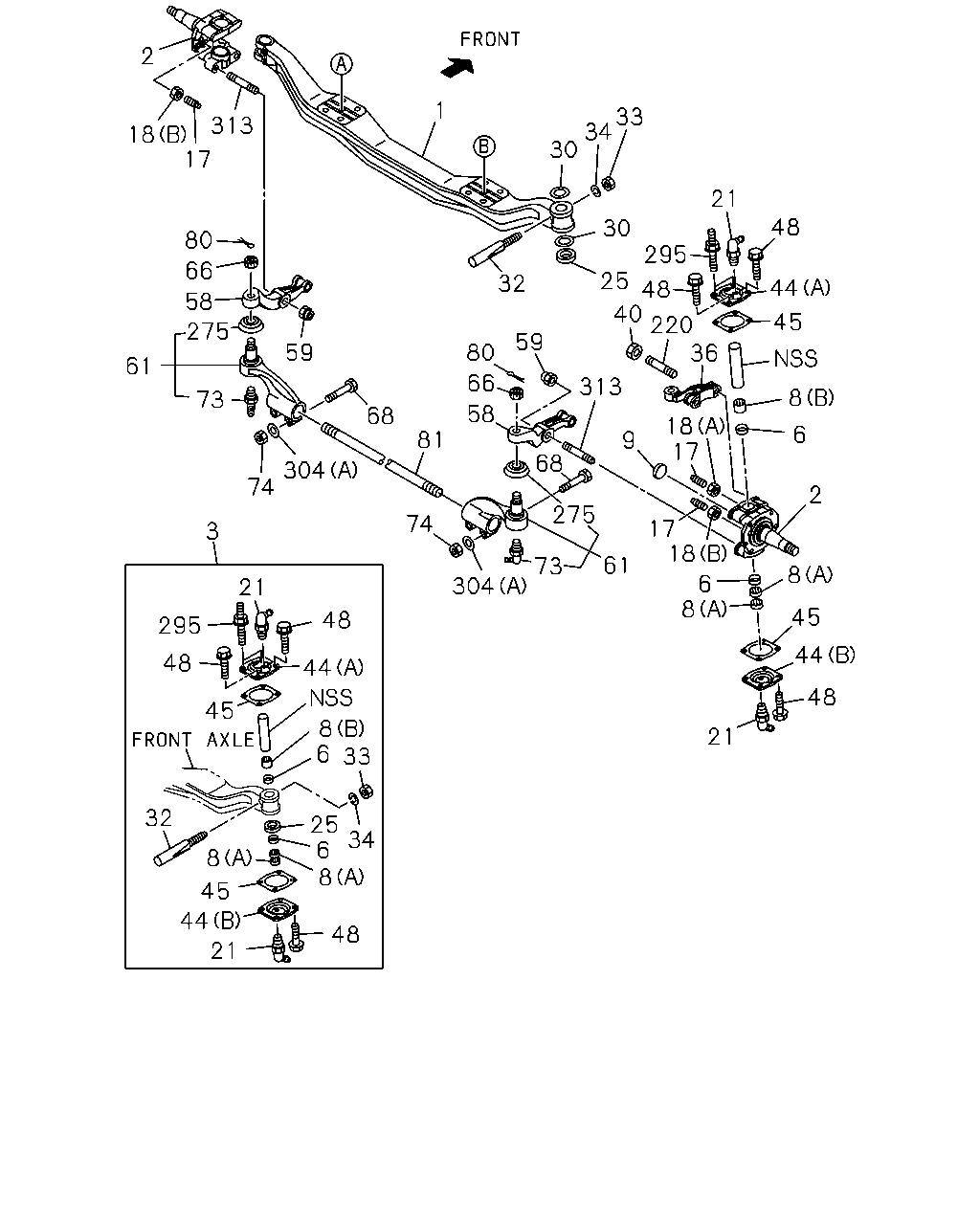

2 18 313 17 1 30 34 33 30 21 48 295 25 48 40 220 36 44 45 8 6 2 18 17 313 32 80 66 58 275 61 73 59 74 304 68 81 58 66 80 59 68 275 304 73 61 74 3 21 17 18 6 8 48 44 45 8 9 21 48 295 48 44 8 6 33 45 32 8 45 44 21 48 8 6 34 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1009-
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1009-
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1009-
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1009-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1009-
3	KING PIN SET	1-87831-349-2	02	1	1009-
3	KING PIN SET	1-87831-349-2	02	1	1009-
6	SEAL; KING PIN	9-09926-024-0	04	1	1009-
6	SEAL; KING PIN	9-09926-024-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1009-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1009-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1009-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	01	1	1009-1302
9	PLUG; KNUCKLE OD=22	1-09600-011-2	01	1	1009-1302
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1303-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F075(FH5) SINGAPORE EQUIPMENT(WQ3) M18X56	1-09009-108-0	01	1	1412-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	01	1	1303-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU) M18X53	1-09009-066-0	01	1	1303-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	01	1	1009-1302
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	01	1	1009-1302
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	1303-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU) M18X53	1-09009-066-0	02	1	1009-1302
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU) M18X53	1-09009-066-0	02	1	1009-1302
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU) M18X53	1-09009-066-0	02	1	1303-1411
17	BOLT; STOPPER KNUCKLE FRONT AXLE F075(FH5) SINGAPORE EQUIPMENT(WQ3) M18X53	1-09009-066-0	02	1	1412-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F066(FAU) M18X53	1-09009-066-0	02	1	1412-
17	BOLT; STOPPER KNUCKLE FRONT AXLE F075(FH5) M18X53	1-09009-066-0	02	1	1009-1302
17	BOLT; STOPPER KNUCKLE FRONT AXLE F075(FH5) M18X53	1-09009-066-0	02	1	1009-1302
17	BOLT; STOPPER KNUCKLE FRONT AXLE F075(FH5) M18X53	1-09009-066-0	03	1	1303-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1009-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1009-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1009-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1009-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1009-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1009-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1009-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1009-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1009-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1009-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1009-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1009-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1009-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1009-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1303-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1303-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1009-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1009-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1009-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1009-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1009-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1009-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1009-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1009-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	14	1	1009-1302
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	14	1	1009-1302
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	16	1	1303-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1303-
58	ARM; TIE ROD FORWARD	1-43134-049-4	01	1	1009-1411
58	ARM; TIE ROD NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FORWARD	1-43134-049-4	01	1	1412-
58	ARM; TIE ROD FRONT AXLE F075(FH5) SINGAPORE EQUIPMENT(WQ3) FORWARD	8-98145-592-0	01	1	1412-
58	ARM; TIE ROD REARWARD	1-43134-060-2	01	1	1009-
58	ARM; TIE ROD FORWARD	1-43135-049-4	01	1	1009-1411
58	ARM; TIE ROD NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FORWARD	1-43135-049-4	01	1	1009-
58	ARM; TIE ROD FRONT AXLE F075(FH5) SINGAPORE EQUIPMENT(WQ3) FORWARD	8-98145-593-0	01	1	1412-
58	ARM; TIE ROD REARWARD	1-43135-060-2	01	1	1009-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1009-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1009-
61	ROD END; TIE ROD	8-98054-851-0	02	1	1009-1009
61	ROD END; TIE ROD	8-98096-753-0	02	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	02	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	02	1	1009-1009
61	ROD END; TIE ROD	8-98096-754-0	02	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	02	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1009-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1009-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1412-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1412-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	08	1	1009-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1412-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1412-
74	NUT; TIE ROD END M12	0-91110-512-0	08	1	1009-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1009-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1009-
81	ROD; TIE	8-98105-064-0	01	1	1412-
81	ROD; TIE	8-98105-064-0	01	1	1412-
81	ROD; TIE	1-43151-154-0	02	1	1009-1009
81	ROD; TIE	8-98105-064-0	02	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1009-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1009-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
275	BOOT; ROD END,TIE	1-43159-107-0	04	1	1009-1009
275	BOOT; ROD END,TIE	1-43159-131-0	04	1	1010-1306
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1303-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	08	1	1009-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1009-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1009-

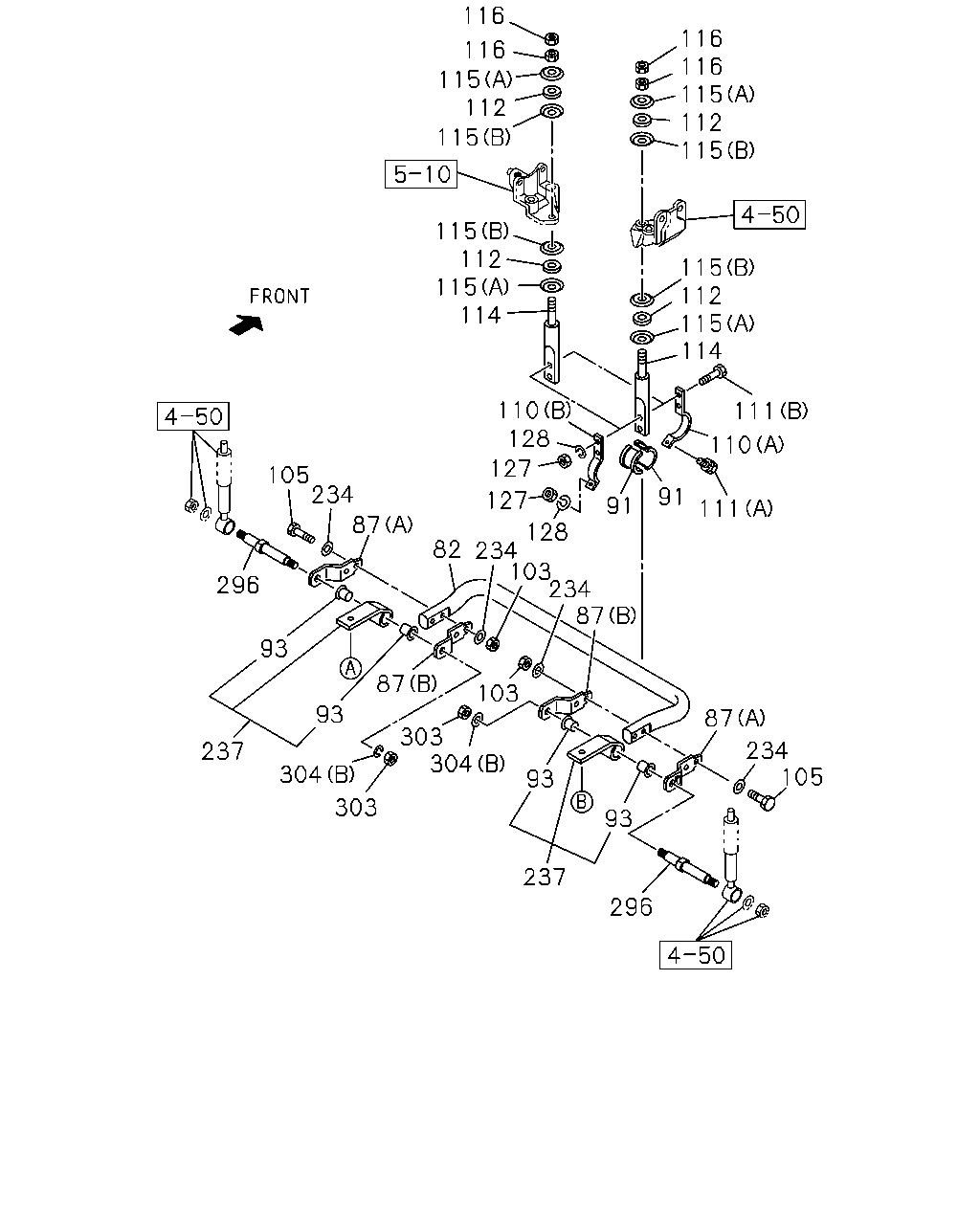

116 116 115 112 115 115 112 115 116 116 115 112 115 114 115 112 115 114 110 128 111 110 91 111 91 127 127 128 105 234 87 296 82 234 103 234 87 93 237 93 304 303 303 304 87 103 93 237 296 93 87 234 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-136-1	01	1	1303-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1303-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1303-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	1303-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1303-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1303-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1303-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1303-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1303-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1303-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1303-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1303-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-083-2	02	1	1303-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1303-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1303-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1303-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1303-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1303-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1303-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-842-0	02	1	1303-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1303-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1303-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1303-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	08	1	1009-

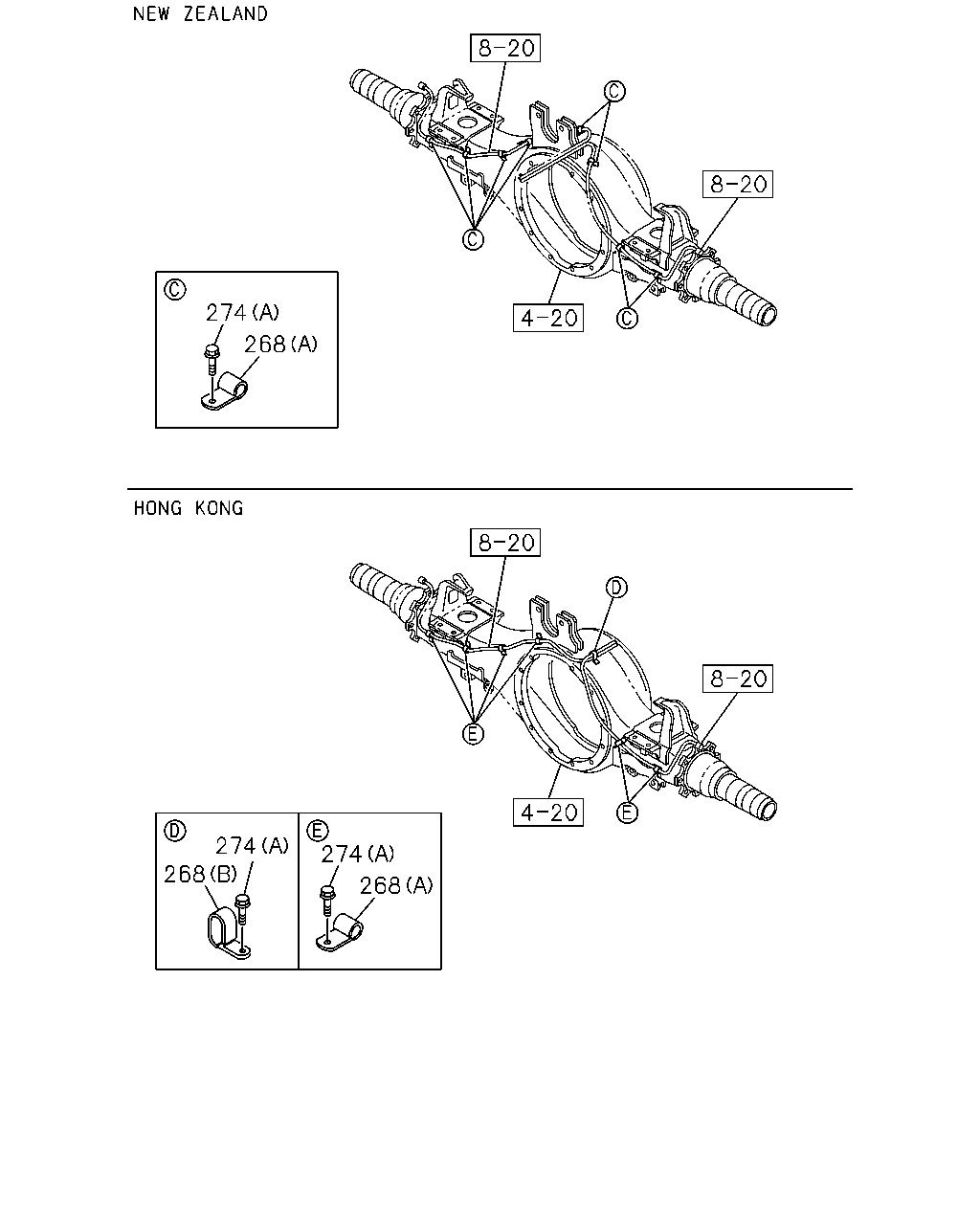

274 268 274 268 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
268	CLIP; HARNESS FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) (A) ID=11 L=20	0-95235-035-0	08	1	1303-
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	06	1	1009-1302
268	CLIP; HARNESS FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1) (A) ID=11 L=20	0-95235-035-0	06	1	1303-1411
268	CLIP; HARNESS FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=11 L=20	0-95235-035-0	06	1	1412-
268	CLIP; HARNESS (B) ID=11X2 L=20	1-09700-871-0	01	1	1009-1302
268	CLIP; HARNESS FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1) (B) ID=11X2 L=20	1-09700-871-0	01	1	1303-1411
268	CLIP; HARNESS FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=11X2 L=20	1-09700-871-0	01	1	1412-
274	BOLT; CLIP FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) (A) M8X10 FLANGE	0-28050-810-0	08	1	1303-
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	07	1	1009-1302
274	BOLT; CLIP FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1) (A) M8X10 FLANGE	0-28050-810-0	07	1	1303-1411
274	BOLT; CLIP FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X10 FLANGE	0-28050-810-0	07	1	1412-
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1303-

267 274 272 265 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1009-
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1009-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1412-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1009-
272	NUT; CLIP M10 FLANGE	0-91180-110-0	02	1	1009-1302
272	NUT; CLIP M10 FLANGE	0-91180-110-0	02	1	1009-1302
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	1303-
274	BOLT; CLIP FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C),FINAL GEAR 39/9 17.5"(W4R) NEW ZEALAND EQUIPMENT(PK5) (A) M8X10 FLANGE	0-28050-810-0	08	1	1303-
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	07	1	1009-1302
274	BOLT; CLIP FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1) (A) M8X10 FLANGE	0-28050-810-0	07	1	1303-1411
274	BOLT; CLIP FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X10 FLANGE	0-28050-810-0	07	1	1412-
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1303-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
