◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#69953) — 94 parça

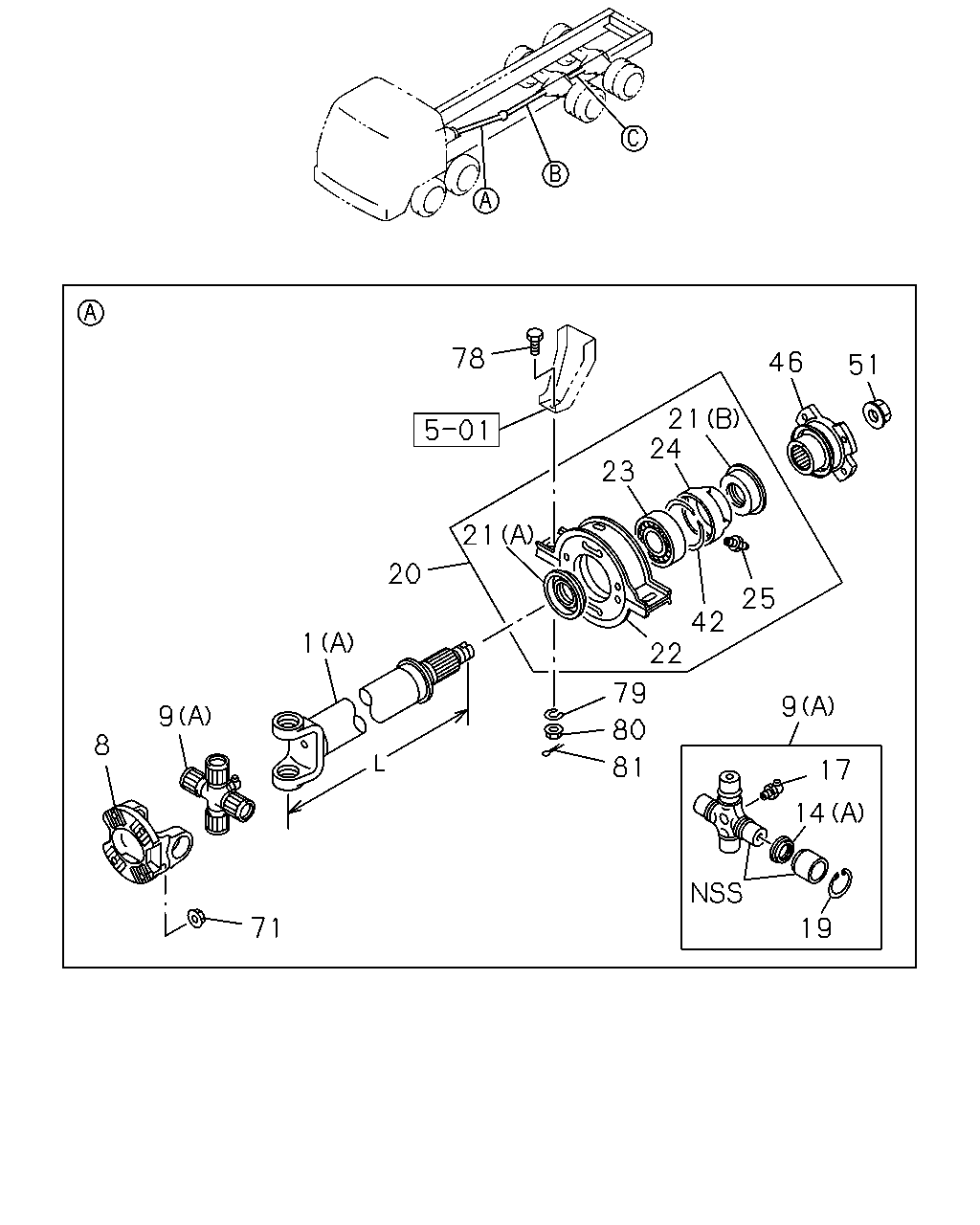

çizim 122760
78 46 51 21 24 23 25 42 22 21 20 1 9 8 79 80 81 9 71 17 19 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) ENGINE REAR PTO(SV1) (A) L=804 		8-98030-329-0 01 1 1009-1302 ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=939 		1-37153-673-0 01 1 1303- ●
1 SHAFT; PROP
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. ENGINE REAR PTO(SV1) (A) L=874 		8-98030-327-0 01 1 1009-1302 ● ●
1 SHAFT; PROP
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (A) L=874 		8-98030-327-0 01 1 1303- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (B) L=1395 		1-37125-383-0 01 1 1009-1302 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> (B) L=1465 		1-37125-396-0 01 1 1009-1302 ●
1 SHAFT; PROP
(B) L=1465 		1-37125-396-0 01 1 1303- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (B) L=1685 		1-37125-401-0 01 1 1009- ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> (B) L=1795 		1-37125-422-0 01 1 1009- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1009- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1009- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1009- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1009- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1009- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1009- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1009- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1009- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1009- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1009- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1009- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1009- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1009- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1009- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1009- ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-1 01 1 1009- ● ●
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 1009- ● ●
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 1009- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 1009- ● ●
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 1009- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 1009- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1009- ● ●
42 RING; SNAP,CTR BRG 1-09587-085-1 01 1 1009- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 1009- ● ●
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 1009- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1009-1302 ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1303- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1009-1302 ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1303- ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1009-1302 ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1303- ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 1009-1204 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205-1302 ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1303- ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1009-1302 ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1303- ● ●

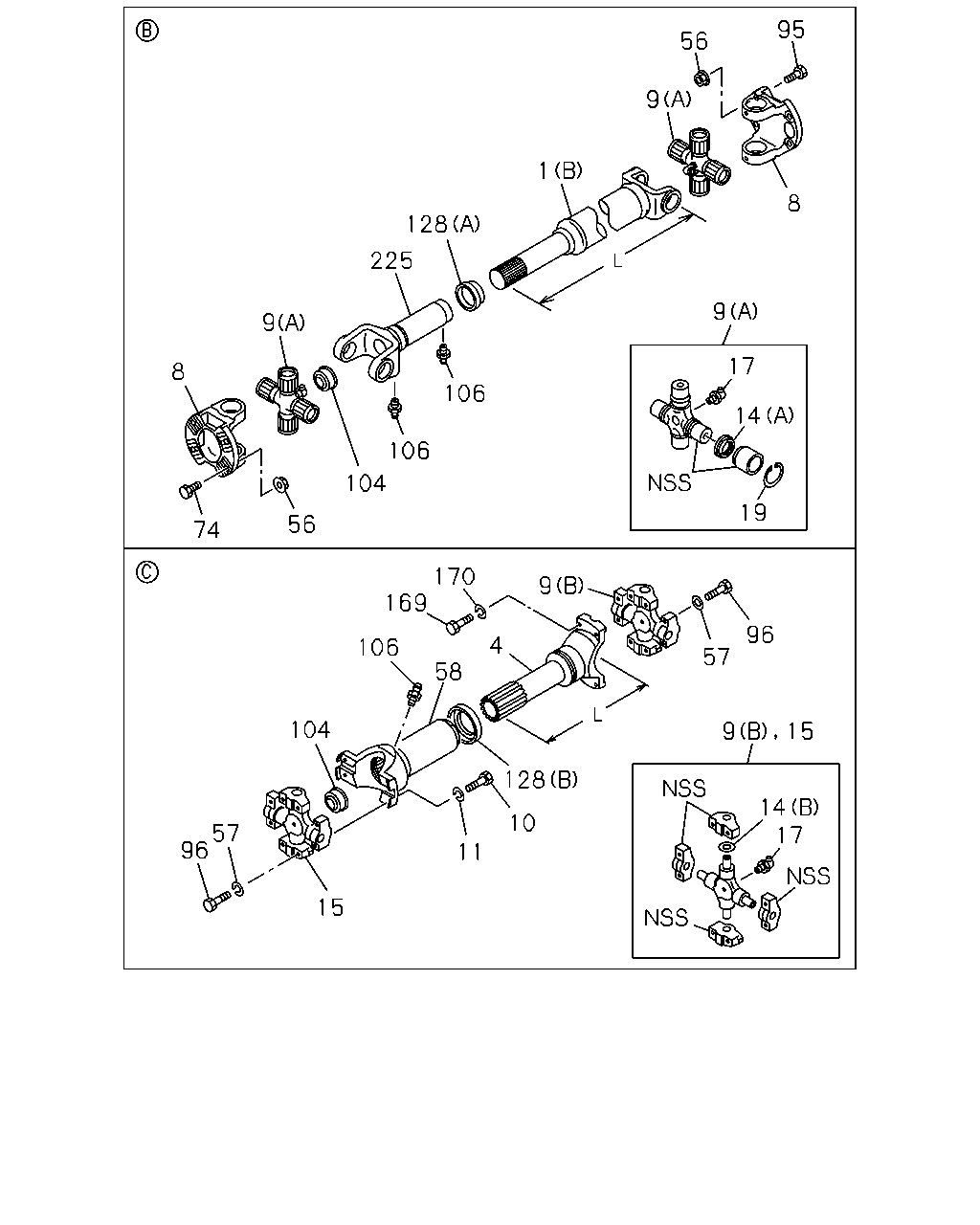

çizim 188427
56 95 9 8 9 1 128 225 9 106 106 104 8 74 56 170 19 14 17 96 57 9 15 14 17 128 10 11 15 104 57 96 106 58 169 9 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) ENGINE REAR PTO(SV1) (A) L=804 		8-98030-329-0 01 1 1009-1302 ●
1 SHAFT; PROP
TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=939 		1-37153-673-0 01 1 1303- ●
1 SHAFT; PROP
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. ENGINE REAR PTO(SV1) (A) L=874 		8-98030-327-0 01 1 1009-1302 ● ●
1 SHAFT; PROP
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (A) L=874 		8-98030-327-0 01 1 1303- ● ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (B) L=1395 		1-37125-383-0 01 1 1009-1302 ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> (B) L=1465 		1-37125-396-0 01 1 1009-1302 ●
1 SHAFT; PROP
(B) L=1465 		1-37125-396-0 01 1 1303- ●
1 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> (B) L=1685 		1-37125-401-0 01 1 1009- ●
1 SHAFT; PROP
FINAL GEAR 17.5"<B5D> (B) L=1795 		1-37125-422-0 01 1 1009- ●
4 SHAFT; PROP
FINAL GEAR 16.5"<B2Y> L=406 		1-37171-157-2 01 1 1009- ● ●
4 SHAFT; PROP
FINAL GEAR 17.5"<B5D> L=348 		1-37171-127-2 01 1 1009- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 1009- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 1009- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 1009- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 1009- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 1009- ● ●
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 1009- ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 1009- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 1009- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 1009- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 1009- ● ●
15 UNIVERSAL CENTER 1-37300-100-1 01 1 1009- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1009- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1009- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1009- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 1009- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 1009- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 1009- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 1009- ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1009-1302 ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1303- ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1009-1302 ● ●
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 1303- ● ●
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 1009- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1009-1302 ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1303- ● ●
95 BOLT; YOKE,FINAL
M14X50 		1-09000-645-0 04 1 1009-1302 ● ●
95 BOLT; YOKE,FINAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 1303- ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1009-1302 ● ●
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 1303- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1009- ● ●
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 1009- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1009- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1009- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 1009- ● ●
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 1009- ● ●
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 1009- ● ●
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 1009- ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
