3-77 — BRAKE PIPING; AIR,REAR (#69951) — 301 parça

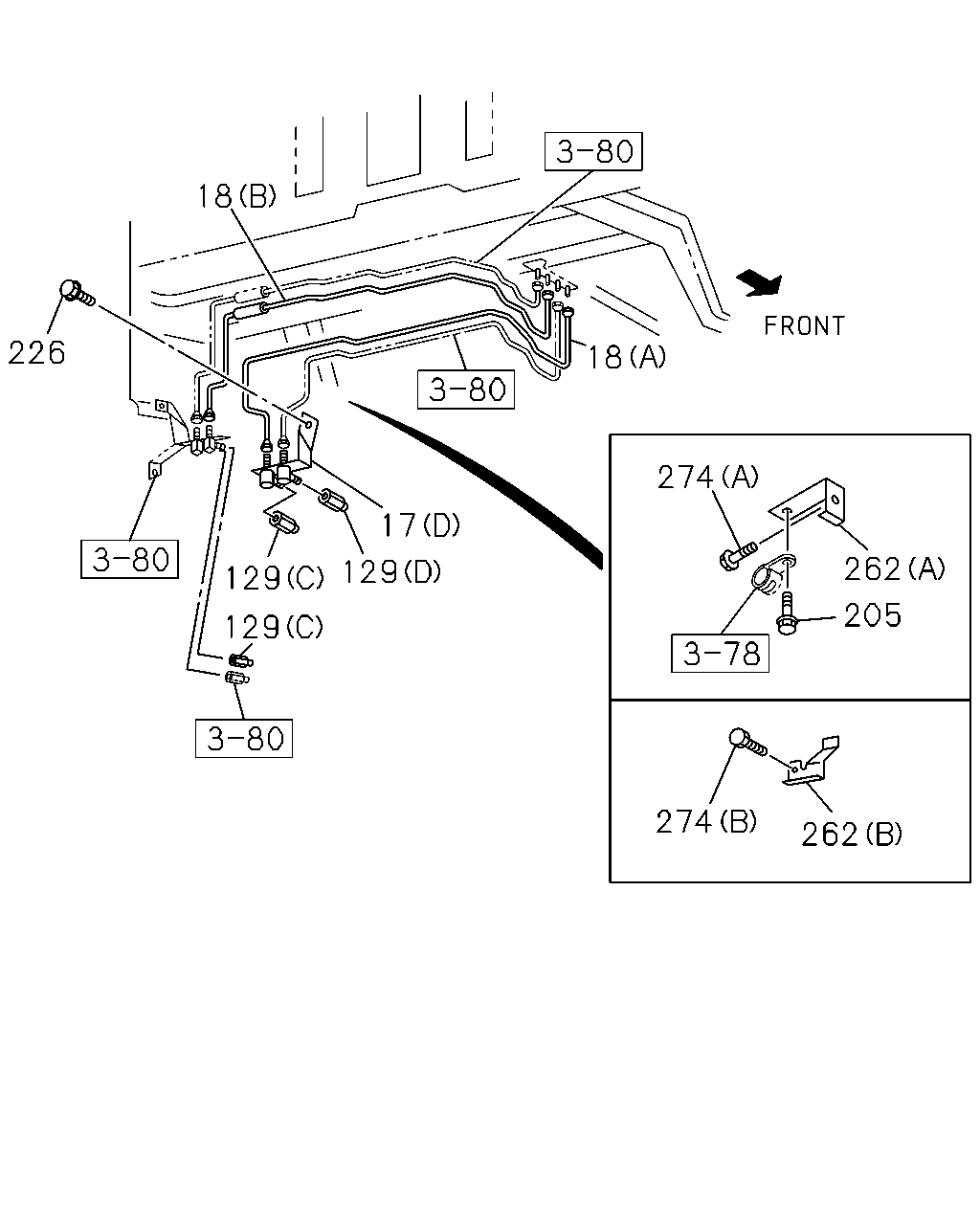

çizim 121769
18 226 129 17 129 129 18 274 262 205 274 262
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1303-1304
17 UNION; AIR PIPE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1305-
17 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) 		1-47470-609-0 01 1 1303-1304
17 UNION; AIR PIPE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) 		1-47470-609-0 01 1 1305-
17 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) 		8-97633-775-0 01 1 1303-1304
17 UNION; AIR PIPE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) 		8-97633-775-0 01 1 1305-
17 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) 		8-97633-777-0 01 1 1303-1304
17 UNION; AIR PIPE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) 		8-97633-777-0 01 1 1305-
18 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=1885 		1-49121-759-1 01 1 1303-1304
18 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=1885 		1-49121-759-1 01 1 1305-
18 PIPE; AIR,UNION TO UNION
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) L=1937 		1-49122-060-1 01 1 1303-1304
18 PIPE; AIR,UNION TO UNION
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) L=1937 		1-49122-060-1 01 1 1305-
129 CONNECTOR; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 1303-1304
129 CONNECTOR; NYLON TUBE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 1305-
129 CONNECTOR; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1305-
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 02 1 1303-1304
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1009-1302
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1305-
129 CONNECTOR; NYLON TUBE
(A) L=61 DIN8 & M20 ELBOW 		1-09661-015-0 01 1 1009-1302
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=61 DIN8 & M20 ELBOW 		1-09661-015-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=61 DIN8 & M20 ELBOW 		1-09661-015-0 01 1 1305-
129 CONNECTOR; NYLON TUBE
(A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 01 1 1009-1302
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 01 1 1305-
205 BOLT; TUBE CLIP
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X16 FLANGE 		0-28050-816-0 02 1 1303-1304
205 BOLT; TUBE CLIP
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X16 FLANGE 		0-28050-816-0 02 1 1305-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303-1304
226 BOLT; UNION
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1305-
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE 		0-28050-816-0 04 1 1303-1411
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE 		0-28050-816-0 04 1 1412-
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X45 FLANGE 		0-28050-845-0 02 1 1303-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 06 1 1009-1302
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1411
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1411
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 01 1 1412-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE 		0-28050-816-0 01 1 1412-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1009-1302
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8X45 FLANGE 		0-28050-845-0 06 1 1303-
262 BRACKET
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) 		1-79996-143-0 01 1 1303-1304
262 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) 		1-79996-143-0 01 1 1305-
262 BRACKET
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) 		1-79996-144-0 01 1 1303-1304
262 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) 		1-79996-144-0 01 1 1305-
274 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1304
274 BOLT; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) M8X16 FLANGE 		0-28050-816-0 01 1 1305-
274 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1303-1304
274 BOLT; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 1305-

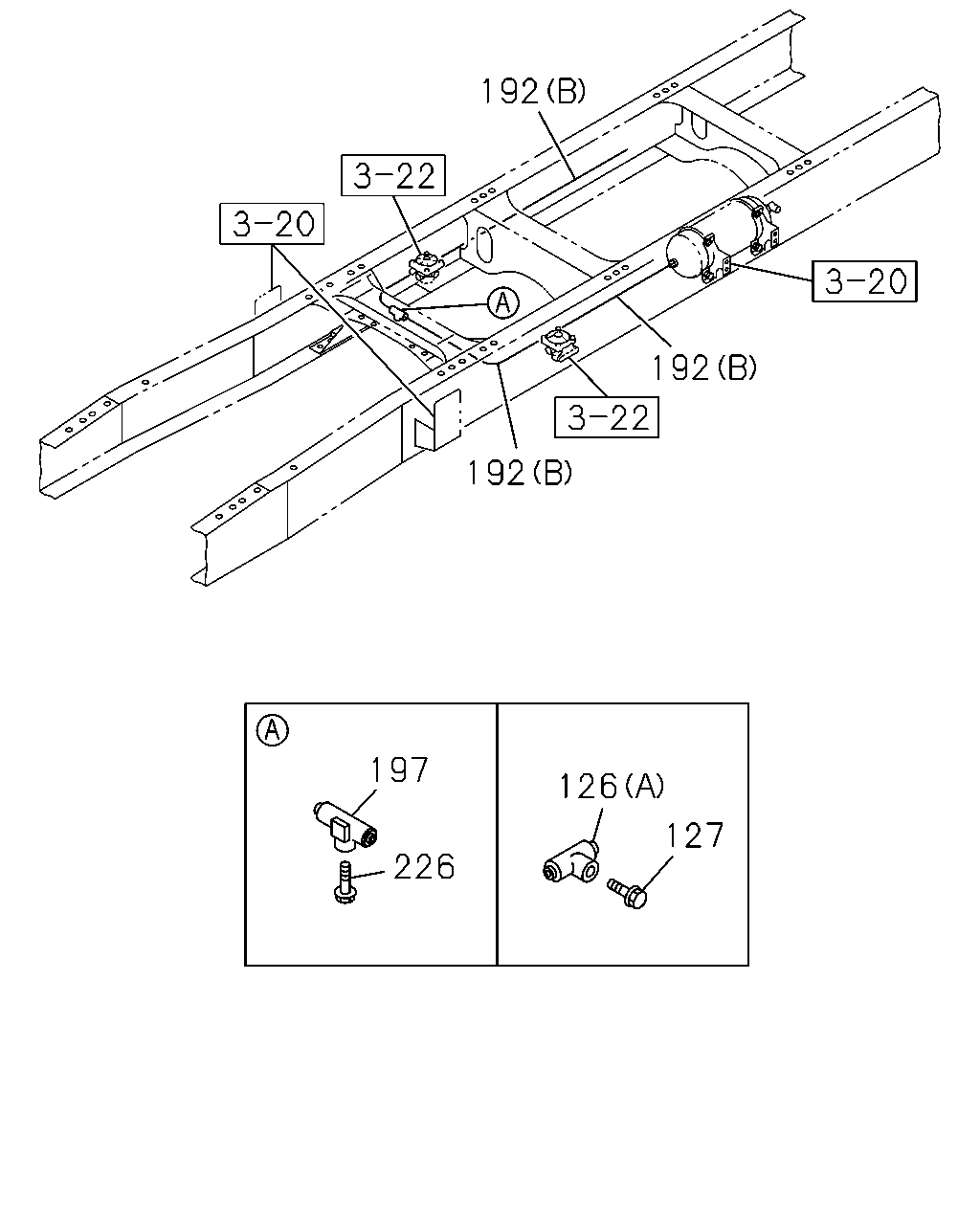

çizim 121811
192 192 192 197 126 226 127
BalonParca AdiParca NoAdetTipApplied Date
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-09661-610-1 01 1 1303-
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (E) 		1-09661-611-0 01 1 1303-
126 UNION; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1303-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1009-1302
126 UNION; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1303-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1009-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1009-1302
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (C) M22X2 STRAIGHT 		8-98107-103-0 03 1 1303-
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (E) 		1-09661-611-0 01 1 1302-
127 NUT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1303-
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
127 NUT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 04 1 1303-
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1303-1304
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1305-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
197 UNION ASM; NYLON TUBE
DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1009-1302
197 UNION ASM; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1303-1411
197 UNION ASM; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1412-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303-1304
226 BOLT; UNION
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1305-
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE 		0-28050-816-0 04 1 1303-1411
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE 		0-28050-816-0 04 1 1412-
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X45 FLANGE 		0-28050-845-0 02 1 1303-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 06 1 1009-1302
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1411
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1411
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 01 1 1412-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE 		0-28050-816-0 01 1 1412-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1009-1302
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8X45 FLANGE 		0-28050-845-0 06 1 1303-

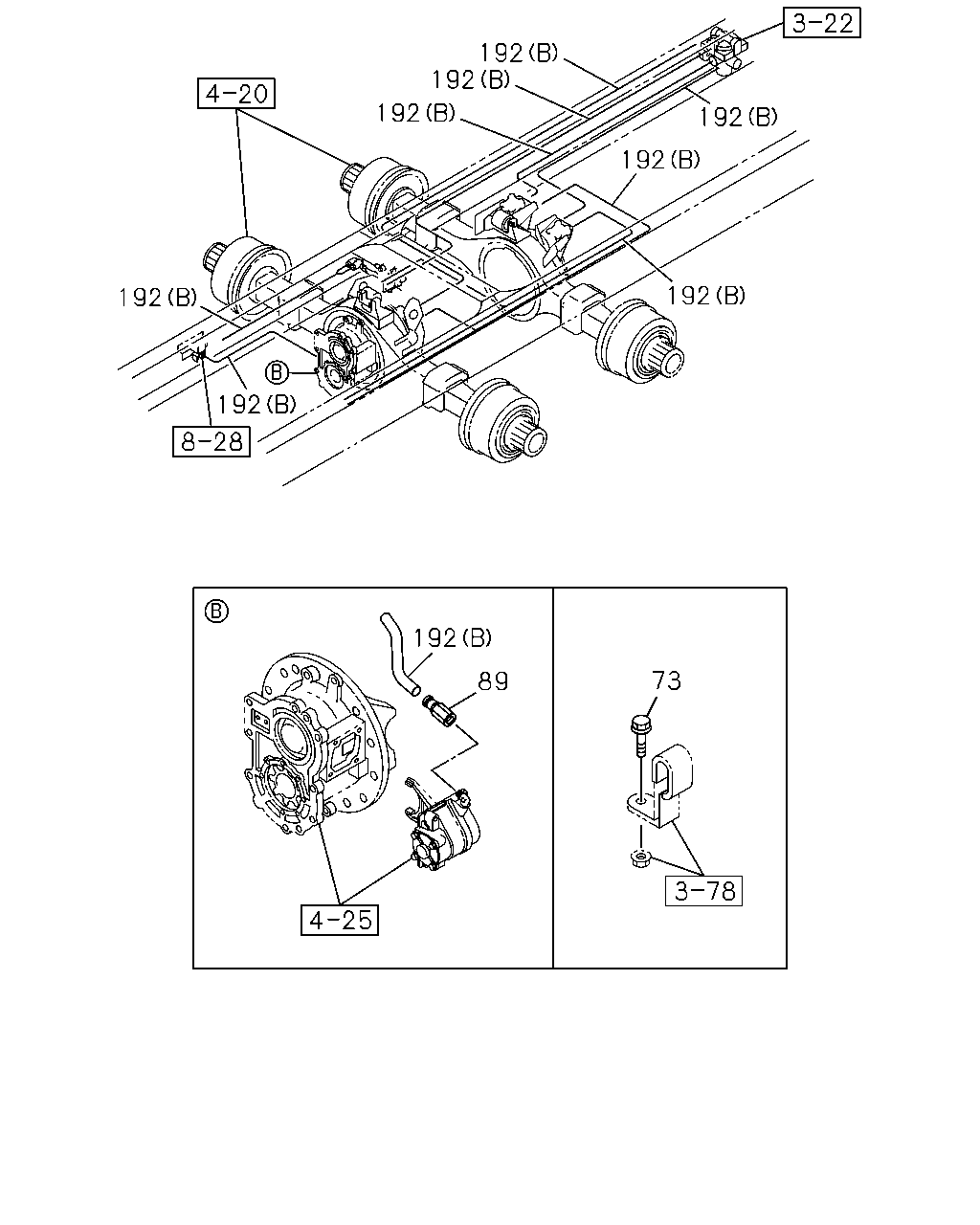

çizim 121814
192 192 192 192 192 192 192 192 192 89 73
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
89 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1303-1304
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1305-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-

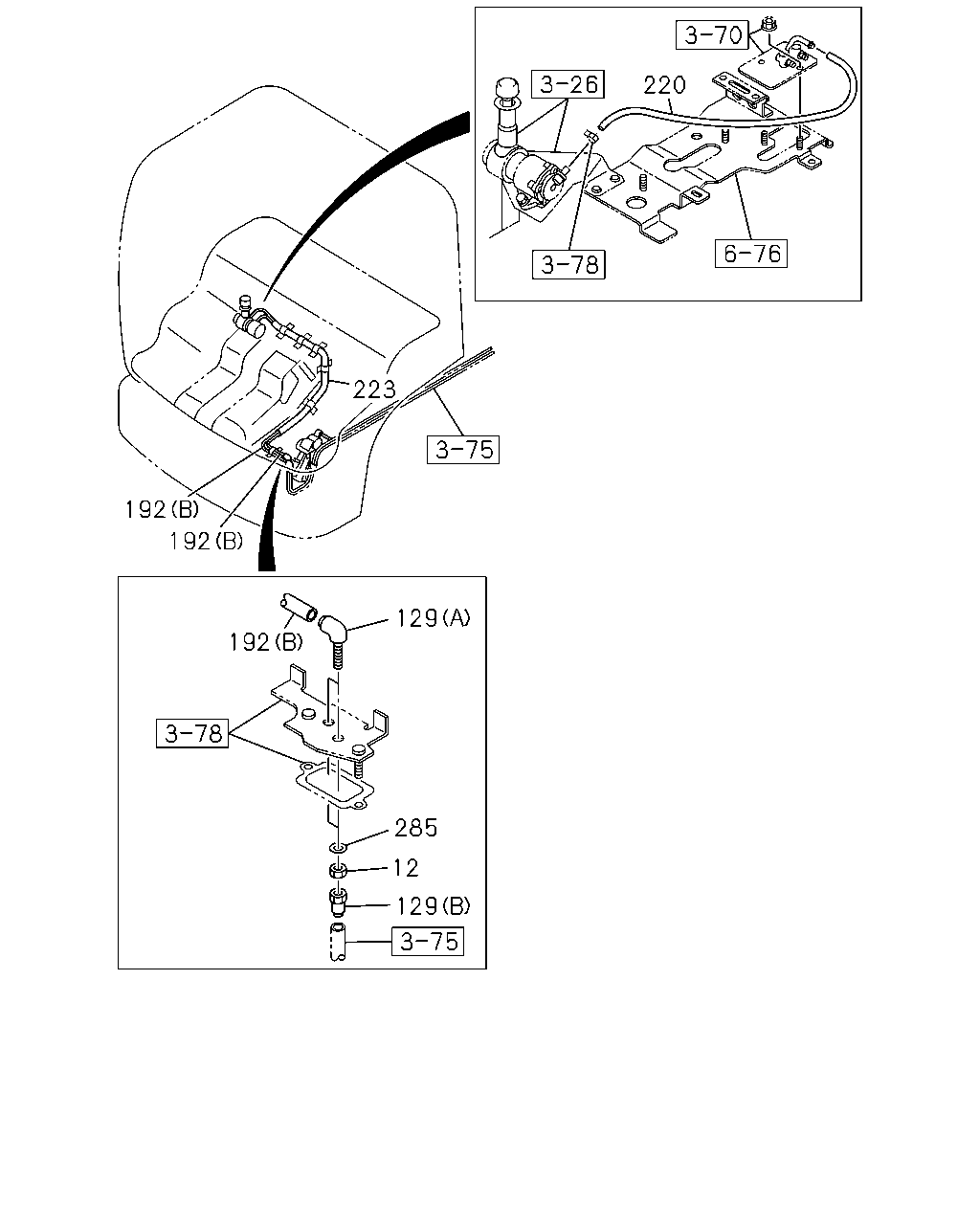

çizim 188423
220 223 192 129 192 192 285 12 129
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; CONNECTOR
M20 		0-91111-520-0 02 1 1009-1302
12 NUT; CONNECTOR
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M20 		0-91111-520-0 02 1 1303-1304
12 NUT; CONNECTOR
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M20 		0-91111-520-0 02 1 1305-
129 CONNECTOR; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 1303-1304
129 CONNECTOR; NYLON TUBE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 1305-
129 CONNECTOR; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1305-
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 02 1 1303-1304
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1009-1302
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1305-
129 CONNECTOR; NYLON TUBE
(A) L=61 DIN8 & M20 ELBOW 		1-09661-015-0 01 1 1009-1302
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=61 DIN8 & M20 ELBOW 		1-09661-015-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=61 DIN8 & M20 ELBOW 		1-09661-015-0 01 1 1305-
129 CONNECTOR; NYLON TUBE
(A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 01 1 1009-1302
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 01 1 1305-
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1303-1304
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1305-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
220 HOSE; VINYL,EXH,PARKING BRK VLV
TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 1303-1304
220 HOSE; VINYL,EXH,PARKING BRK VLV
TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 1305-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 1009-1302
220 HOSE; VINYL,EXH,PARKING BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 1303-1304
220 HOSE; VINYL,EXH,PARKING BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 1303-1304
220 HOSE; VINYL,EXH,PARKING BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 1305-
220 HOSE; VINYL,EXH,PARKING BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 1305-
223 TUBE; CORRUGATE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1412-
223 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1412-
223 TUBE; CORRUGATE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1412-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1009-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1009-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1009-
285 WASHER; PL,CONNECTOR
ID=21 		0-91610-520-0 02 1 1009-1302
285 WASHER; PL,CONNECTOR
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> ID=21 		0-91610-520-0 02 1 1303-1304
285 WASHER; PL,CONNECTOR
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> ID=21 		0-91610-520-0 02 1 1305-

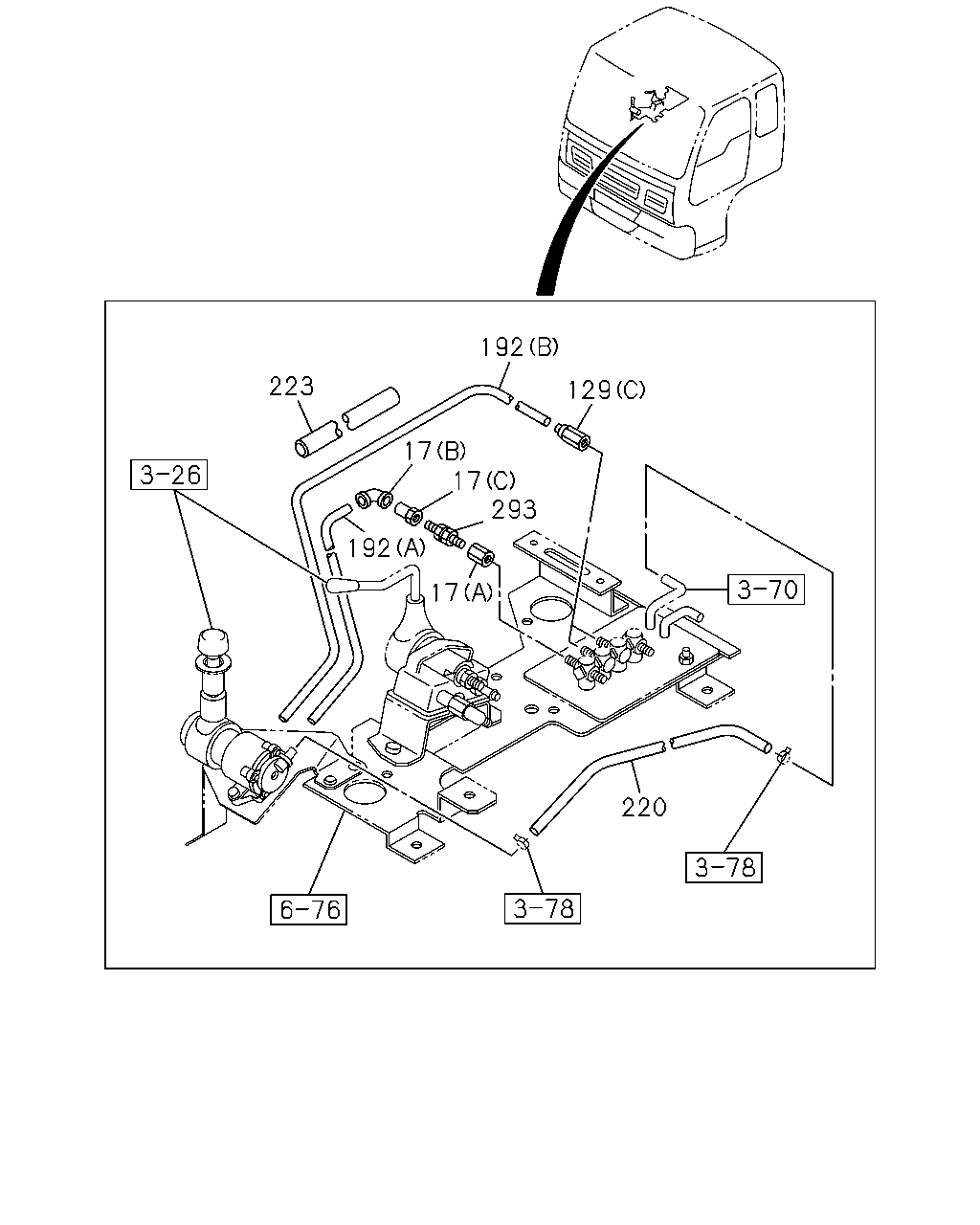

çizim 188428
192 223 129 17 17 293 192 17 220
BalonParca AdiParca NoAdetTipApplied Date
17 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1303-1304
17 UNION; AIR PIPE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1305-
17 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) 		1-47470-609-0 01 1 1303-1304
17 UNION; AIR PIPE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) 		1-47470-609-0 01 1 1305-
17 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) 		8-97633-775-0 01 1 1303-1304
17 UNION; AIR PIPE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) 		8-97633-775-0 01 1 1305-
17 UNION; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) 		8-97633-777-0 01 1 1303-1304
17 UNION; AIR PIPE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) 		8-97633-777-0 01 1 1305-
129 CONNECTOR; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 1303-1304
129 CONNECTOR; NYLON TUBE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT 		1-09660-874-0 04 1 1305-
129 CONNECTOR; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 1305-
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 02 1 1303-1304
129 CONNECTOR; NYLON TUBE
(B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1009-1302
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1305-
129 CONNECTOR; NYLON TUBE
(A) L=61 DIN8 & M20 ELBOW 		1-09661-015-0 01 1 1009-1302
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=61 DIN8 & M20 ELBOW 		1-09661-015-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=61 DIN8 & M20 ELBOW 		1-09661-015-0 01 1 1305-
129 CONNECTOR; NYLON TUBE
(A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 01 1 1009-1302
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 01 1 1303-1304
129 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) L=92 DIN8 & M20 ELBOW 		8-98078-117-0 01 1 1305-
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1303-1304
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1305-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
220 HOSE; VINYL,EXH,PARKING BRK VLV
TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 1303-1304
220 HOSE; VINYL,EXH,PARKING BRK VLV
TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> L=480 SERVICED BY L=10000 		9-09914-701-0 01 1 1305-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 1009-1302
220 HOSE; VINYL,EXH,PARKING BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 1303-1304
220 HOSE; VINYL,EXH,PARKING BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 1303-1304
220 HOSE; VINYL,EXH,PARKING BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 1305-
220 HOSE; VINYL,EXH,PARKING BRK VLV
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 1305-
223 TUBE; CORRUGATE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 1412-
223 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1412-
223 TUBE; CORRUGATE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1412-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1009-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1009-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1009-
293 VALVE; CHECK
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> 		1-48410-479-1 01 1 1303-1304
293 VALVE; CHECK
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> 		1-48410-479-1 01 1 1305-

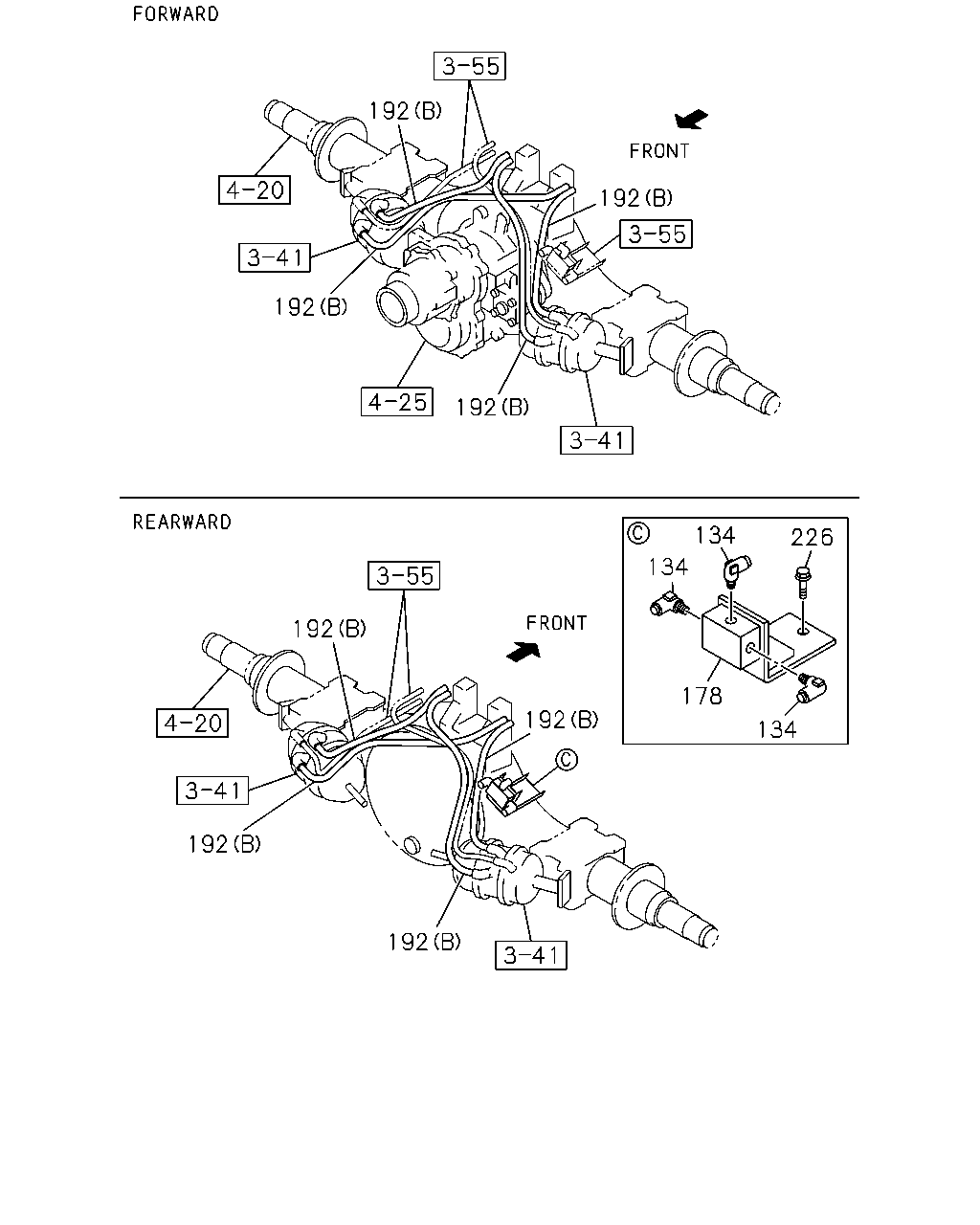

çizim 336377
192 192 192 192 192 192 192 192 134 134 226 178 134
BalonParca AdiParca NoAdetTipApplied Date
134 CONNECTOR
DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1009-1302
134 CONNECTOR
HONG KONG EQUIPMENT(PQ1) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1303-1411
134 CONNECTOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1412-
178 BRACKET; UNION 8-98153-830-0 01 1 1009-1302
178 BRACKET; UNION
HONG KONG EQUIPMENT(PQ1) 		8-98153-830-0 01 1 1303-1411
178 BRACKET; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98153-830-0 01 1 1412-
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1303-1304
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1305-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303-1304
226 BOLT; UNION
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1305-
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE 		0-28050-816-0 04 1 1303-1411
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE 		0-28050-816-0 04 1 1412-
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X45 FLANGE 		0-28050-845-0 02 1 1303-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 06 1 1009-1302
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1411
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1411
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 01 1 1412-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE 		0-28050-816-0 01 1 1412-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1009-1302
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8X45 FLANGE 		0-28050-845-0 06 1 1303-

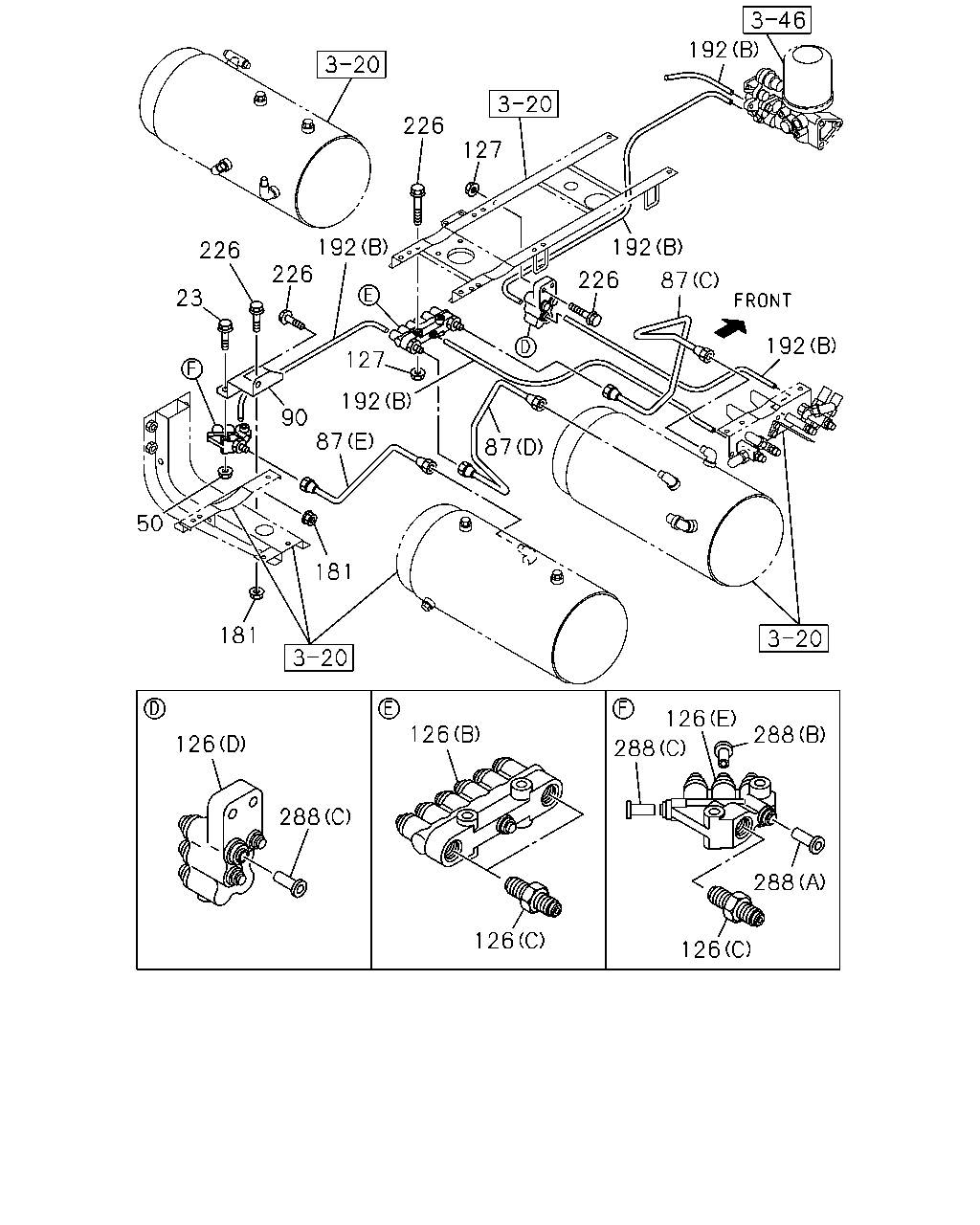

çizim 336380
226 192 226 127 192 226 192 226 87 23 127 192 192 90 87 87 50 181 181 126 126 126 288 288 288 126 288 126
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; UNION BRKT
NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
50 NUT; UNION BRKT
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1303-
87 PIPE; AIR,AIR TANK TO UNION
NEW ZEALAND EQUIPMENT(PK5) (C) L=688 		1-49123-981-0 01 1 1303-
87 PIPE; AIR,AIR TANK TO UNION
NEW ZEALAND EQUIPMENT(PK5) (D) L=643 		1-49123-984-0 01 1 1303-
87 PIPE; AIR,AIR TANK TO UNION
NEW ZEALAND EQUIPMENT(PK5) (E) L=480 		1-49124-846-0 01 1 1303-
87 PIPE; AIR,AIR TANK TO UNION
(A) L=561 		1-49124-520-0 01 1 1009-1302
87 PIPE; AIR,AIR TANK TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=559 		8-98239-051-0 01 1 1303-
87 PIPE; AIR,AIR TANK TO UNION
(B) L=426 		1-49124-521-0 01 1 1009-1302
87 PIPE; AIR,AIR TANK TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=424 		8-98239-052-0 01 1 1303-
90 BRACKET; PIPE UNION
NEW ZEALAND EQUIPMENT(PK5) 		1-47479-678-0 01 1 1303-
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-09661-610-1 01 1 1303-
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (E) 		1-09661-611-0 01 1 1303-
126 UNION; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1303-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1009-1302
126 UNION; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1303-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1009-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1009-1302
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (C) M22X2 STRAIGHT 		8-98107-103-0 03 1 1303-
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (E) 		1-09661-611-0 01 1 1302-
127 NUT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1303-
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
127 NUT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 04 1 1303-
181 NUT; TUBE UNION
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1303-
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1303-1304
192 TUBE; NYLON
TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) L=200 OD=12 		1-49216-861-1 01 1 1305-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303-1304
226 BOLT; UNION
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1305-
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE 		0-28050-816-0 04 1 1303-1411
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE 		0-28050-816-0 04 1 1412-
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X45 FLANGE 		0-28050-845-0 02 1 1303-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 06 1 1009-1302
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1411
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1411
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 01 1 1412-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE 		0-28050-816-0 01 1 1412-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1009-1302
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8X45 FLANGE 		0-28050-845-0 06 1 1303-
288 PLUG
NEW ZEALAND EQUIPMENT(PK5) (C) OD=12 		1-09661-617-0 02 1 1303-
288 PLUG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) OD=6 L=27 		1-09661-615-0 01 1 1303-
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1009-1302
288 PLUG
NEW ZEALAND EQUIPMENT(PK5) (A) OD=6 L=27 		1-09661-615-0 02 1 1303-
288 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1009-

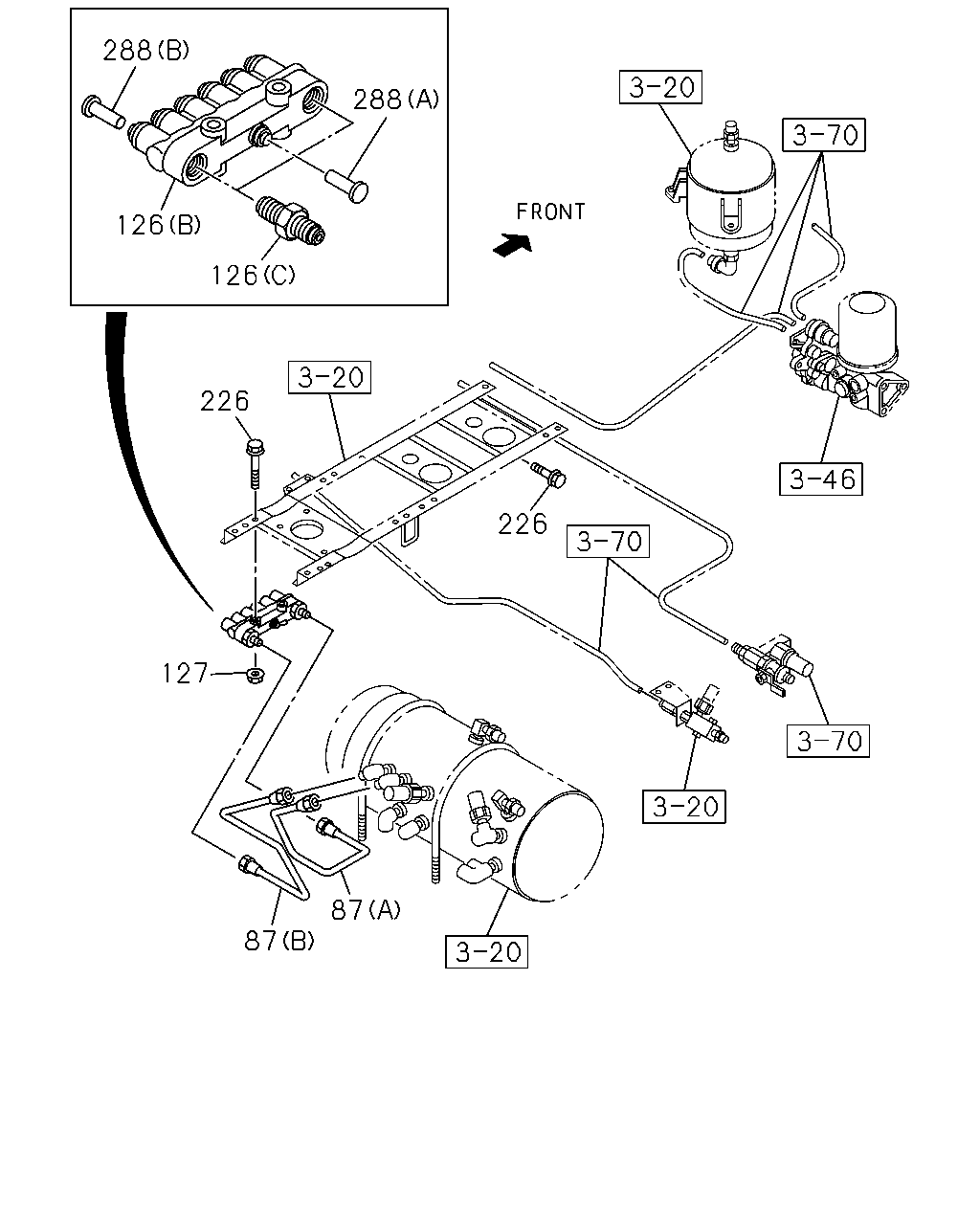

çizim 337274
288 288 126 126 226 226 127 87 87
BalonParca AdiParca NoAdetTipApplied Date
87 PIPE; AIR,AIR TANK TO UNION
NEW ZEALAND EQUIPMENT(PK5) (C) L=688 		1-49123-981-0 01 1 1303-
87 PIPE; AIR,AIR TANK TO UNION
NEW ZEALAND EQUIPMENT(PK5) (D) L=643 		1-49123-984-0 01 1 1303-
87 PIPE; AIR,AIR TANK TO UNION
NEW ZEALAND EQUIPMENT(PK5) (E) L=480 		1-49124-846-0 01 1 1303-
87 PIPE; AIR,AIR TANK TO UNION
(A) L=561 		1-49124-520-0 01 1 1009-1302
87 PIPE; AIR,AIR TANK TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) L=559 		8-98239-051-0 01 1 1303-
87 PIPE; AIR,AIR TANK TO UNION
(B) L=426 		1-49124-521-0 01 1 1009-1302
87 PIPE; AIR,AIR TANK TO UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=424 		8-98239-052-0 01 1 1303-
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (D) 		1-09661-610-1 01 1 1303-
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (E) 		1-09661-611-0 01 1 1303-
126 UNION; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1303-
126 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1009-1302
126 UNION; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1303-
126 UNION; NYLON TUBE
(B) 		1-09661-612-1 01 1 1009-
126 UNION; NYLON TUBE
(C) M22X2 STRAIGHT 		8-98107-103-0 02 1 1009-1302
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (C) M22X2 STRAIGHT 		8-98107-103-0 03 1 1303-
126 UNION; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (E) 		1-09661-611-0 01 1 1302-
127 NUT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1303-
127 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
127 NUT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 04 1 1303-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1303-1304
226 BOLT; UNION
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 1305-
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE 		0-28050-816-0 04 1 1303-1411
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE 		0-28050-816-0 04 1 1412-
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X45 FLANGE 		0-28050-845-0 02 1 1303-
226 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 06 1 1009-1302
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1411
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X16 FLANGE 		0-28050-816-0 01 1 1303-1411
226 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X16 FLANGE 		0-28050-816-0 01 1 1412-
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8X16 FLANGE 		0-28050-816-0 01 1 1412-
226 BOLT; UNION
M8X45 FLANGE 		0-28050-845-0 02 1 1009-1302
226 BOLT; UNION
NEW ZEALAND EQUIPMENT(PK5) M8X45 FLANGE 		0-28050-845-0 06 1 1303-
288 PLUG
NEW ZEALAND EQUIPMENT(PK5) (C) OD=12 		1-09661-617-0 02 1 1303-
288 PLUG
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) OD=6 L=27 		1-09661-615-0 01 1 1303-
288 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1009-1302
288 PLUG
NEW ZEALAND EQUIPMENT(PK5) (A) OD=6 L=27 		1-09661-615-0 02 1 1303-
288 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
