Sayfa 3-75 - Isuzu EPC

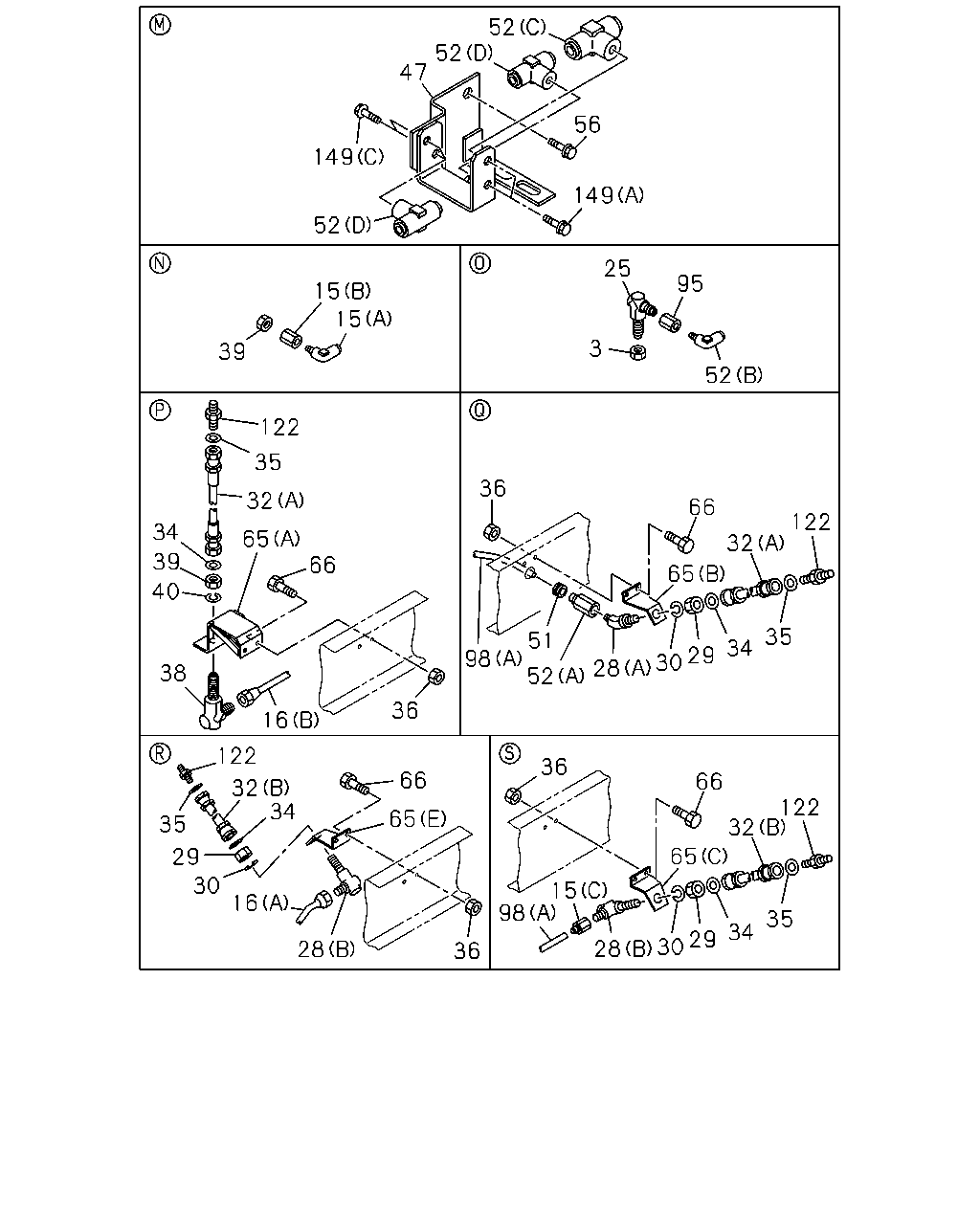

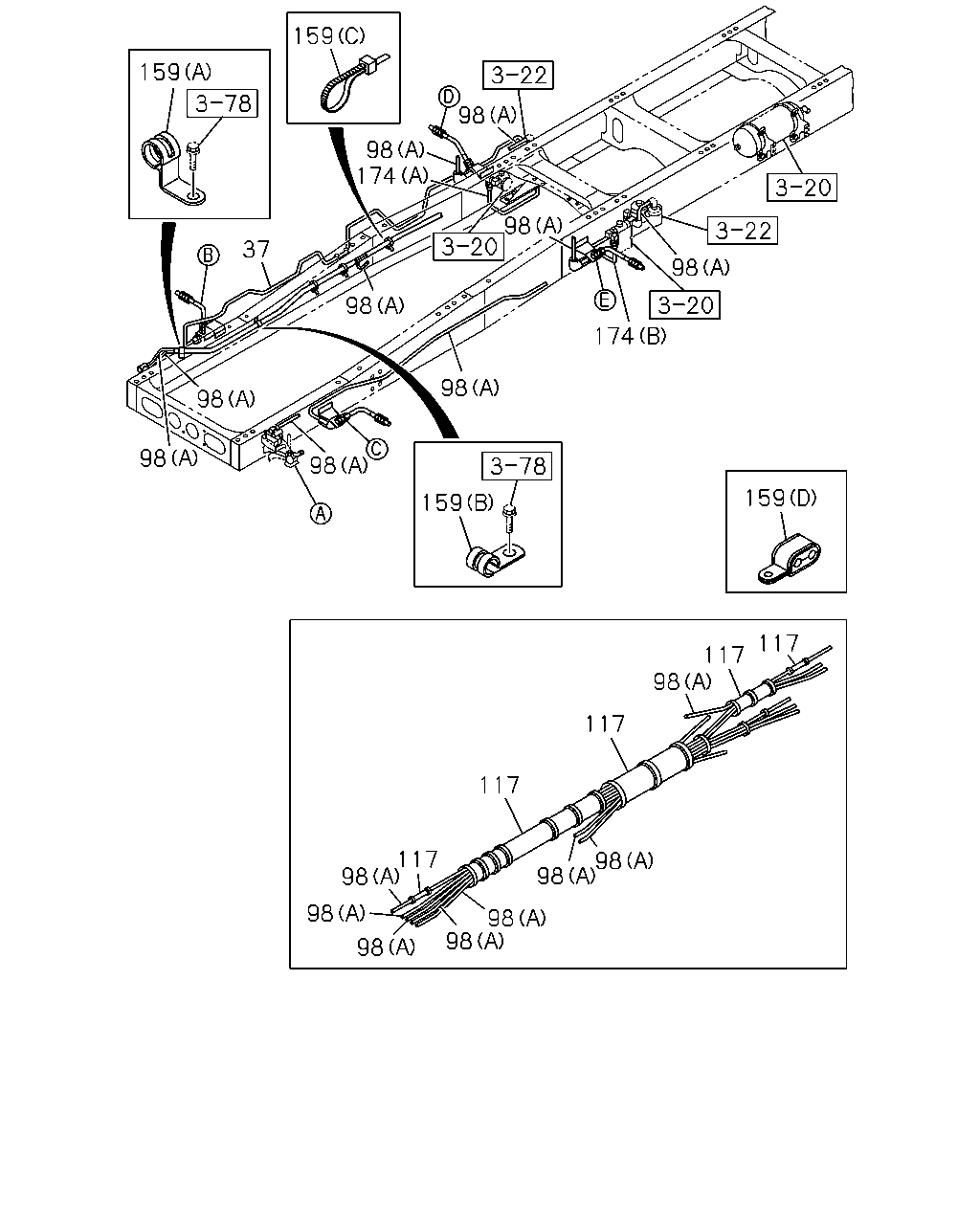

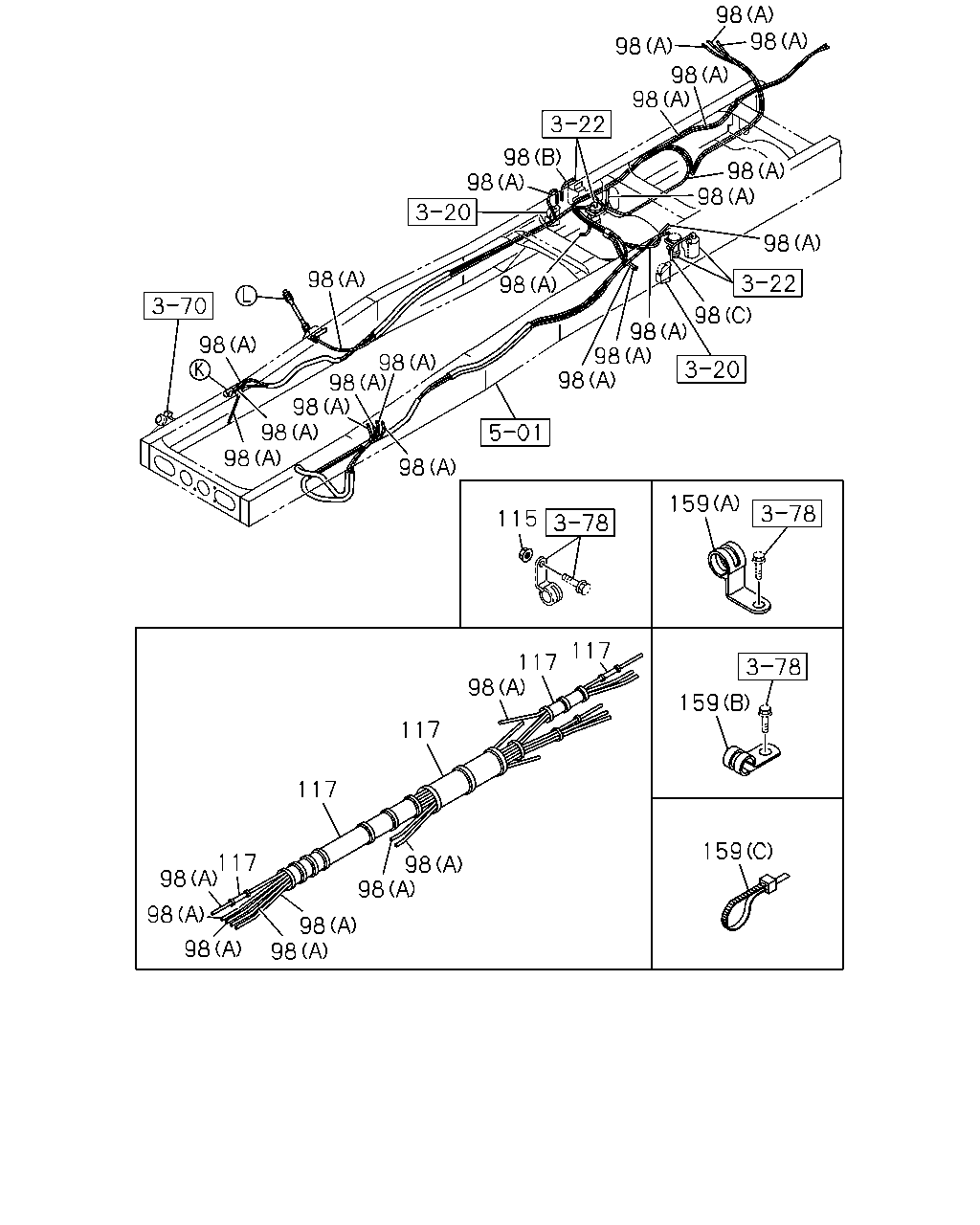

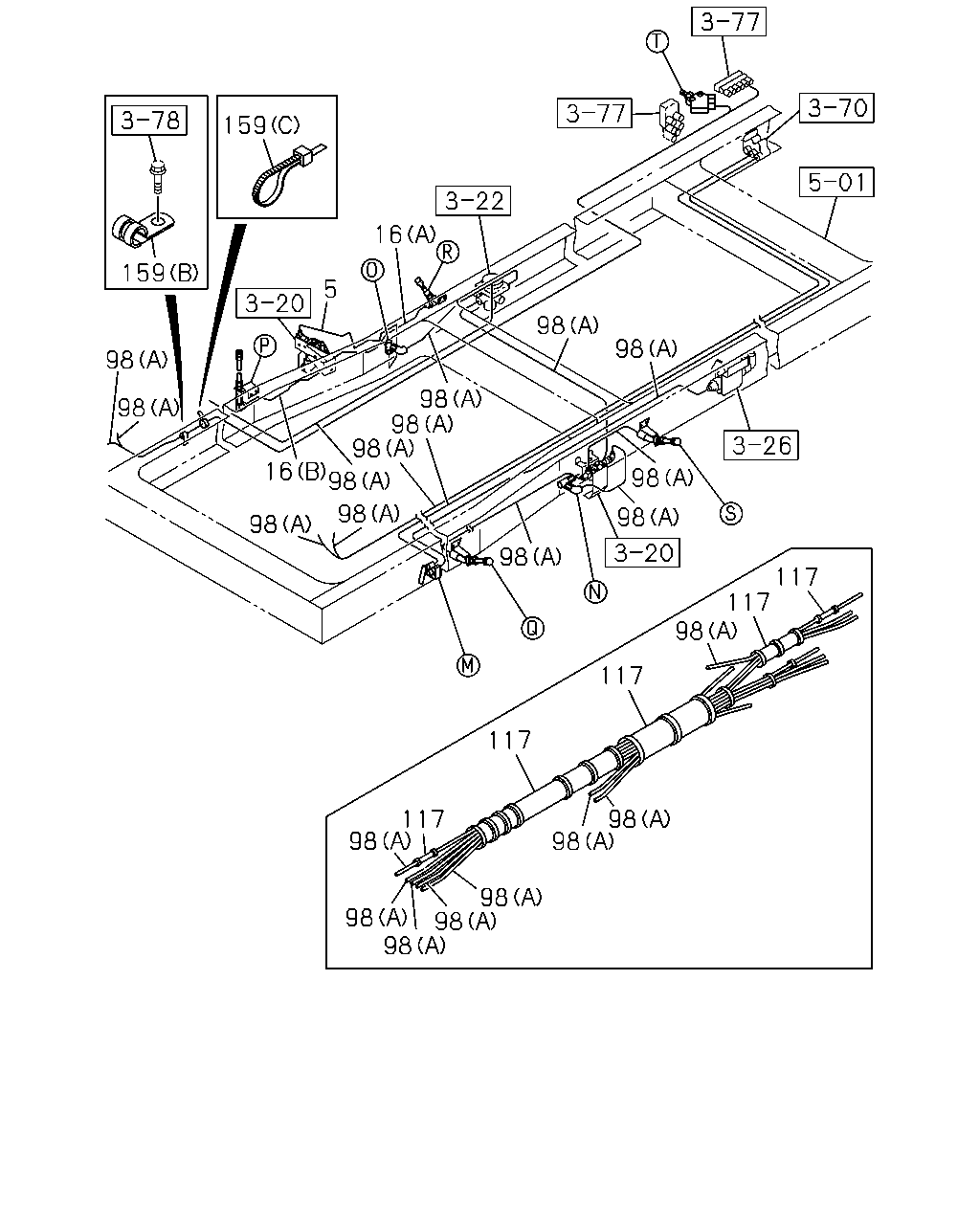

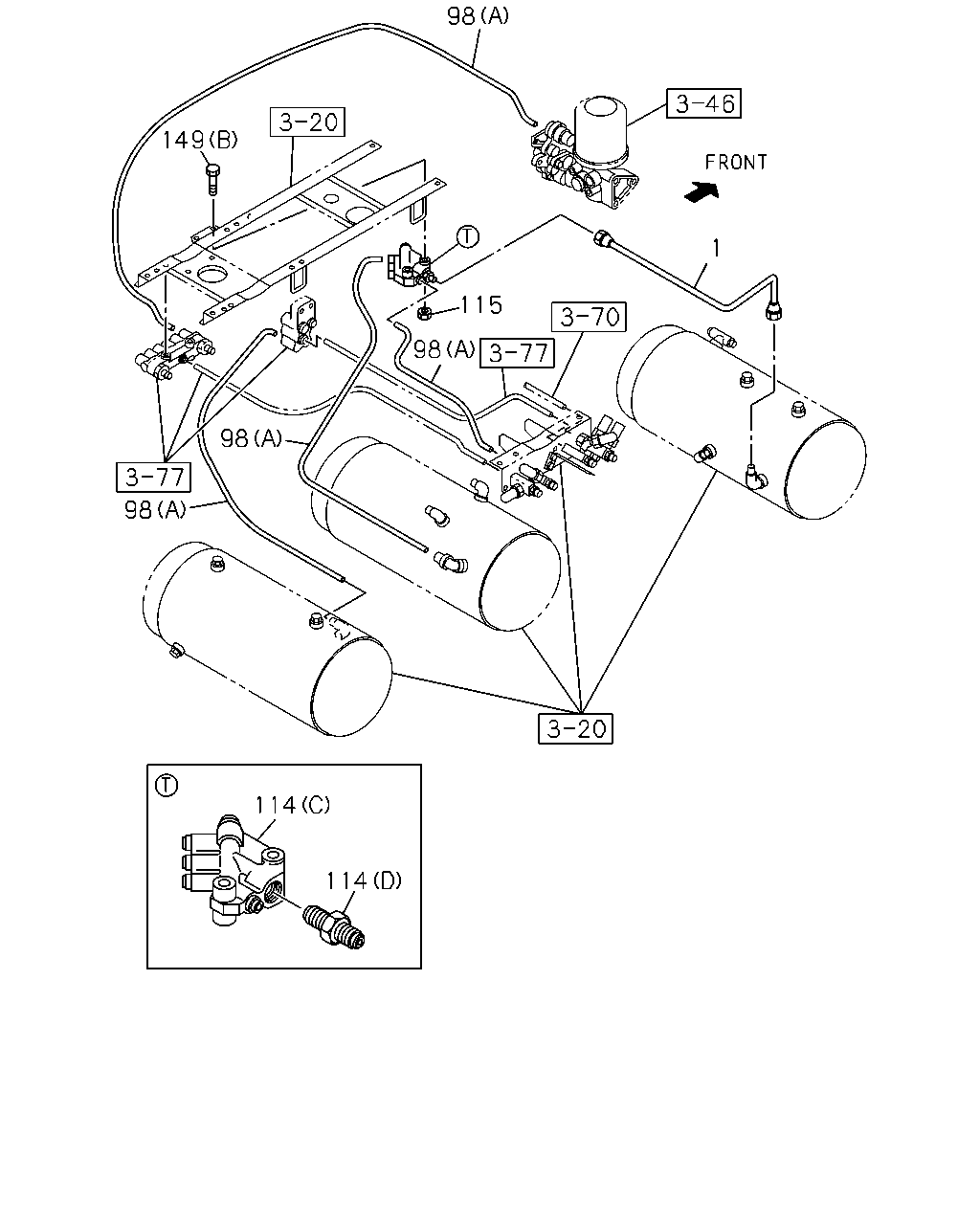

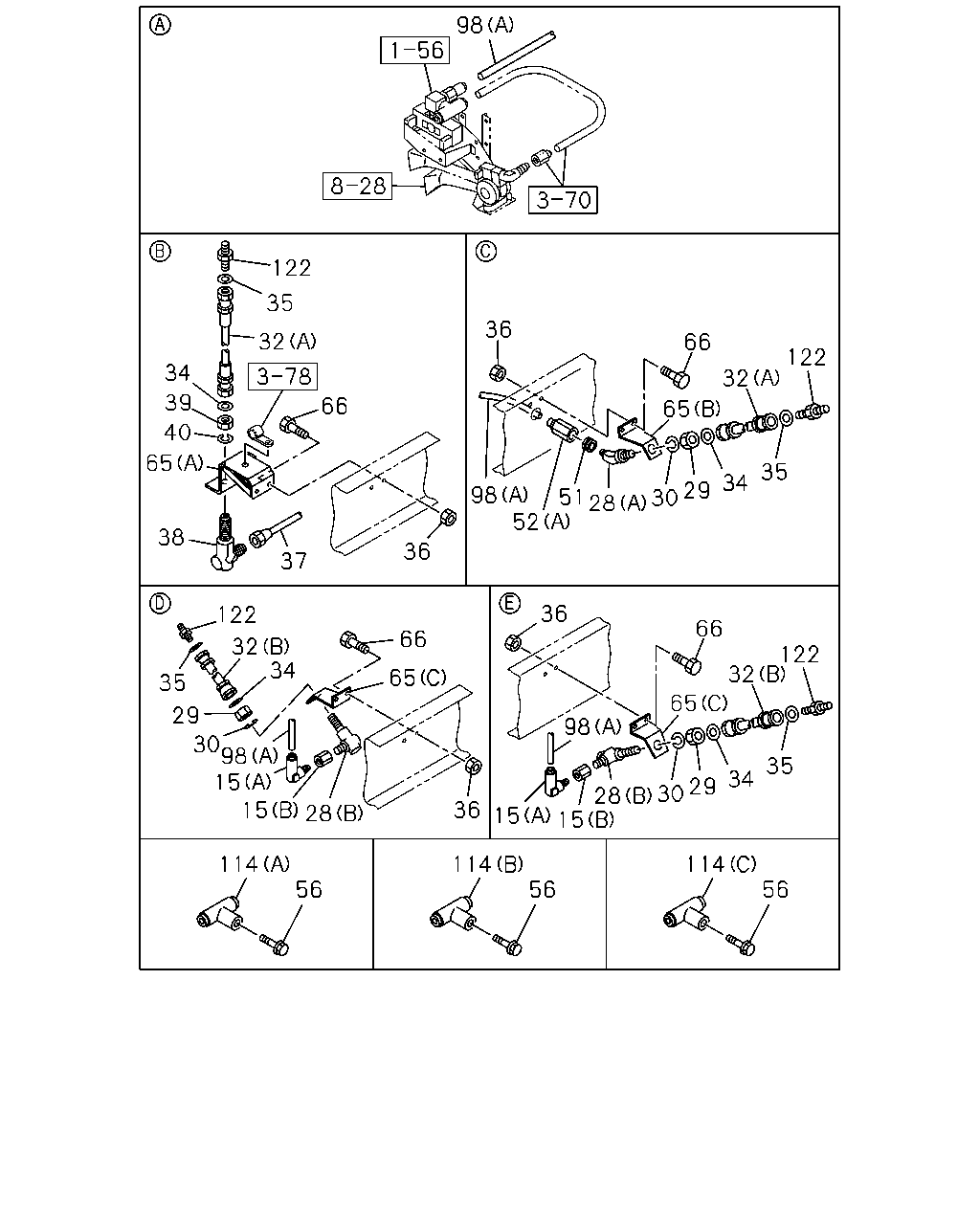

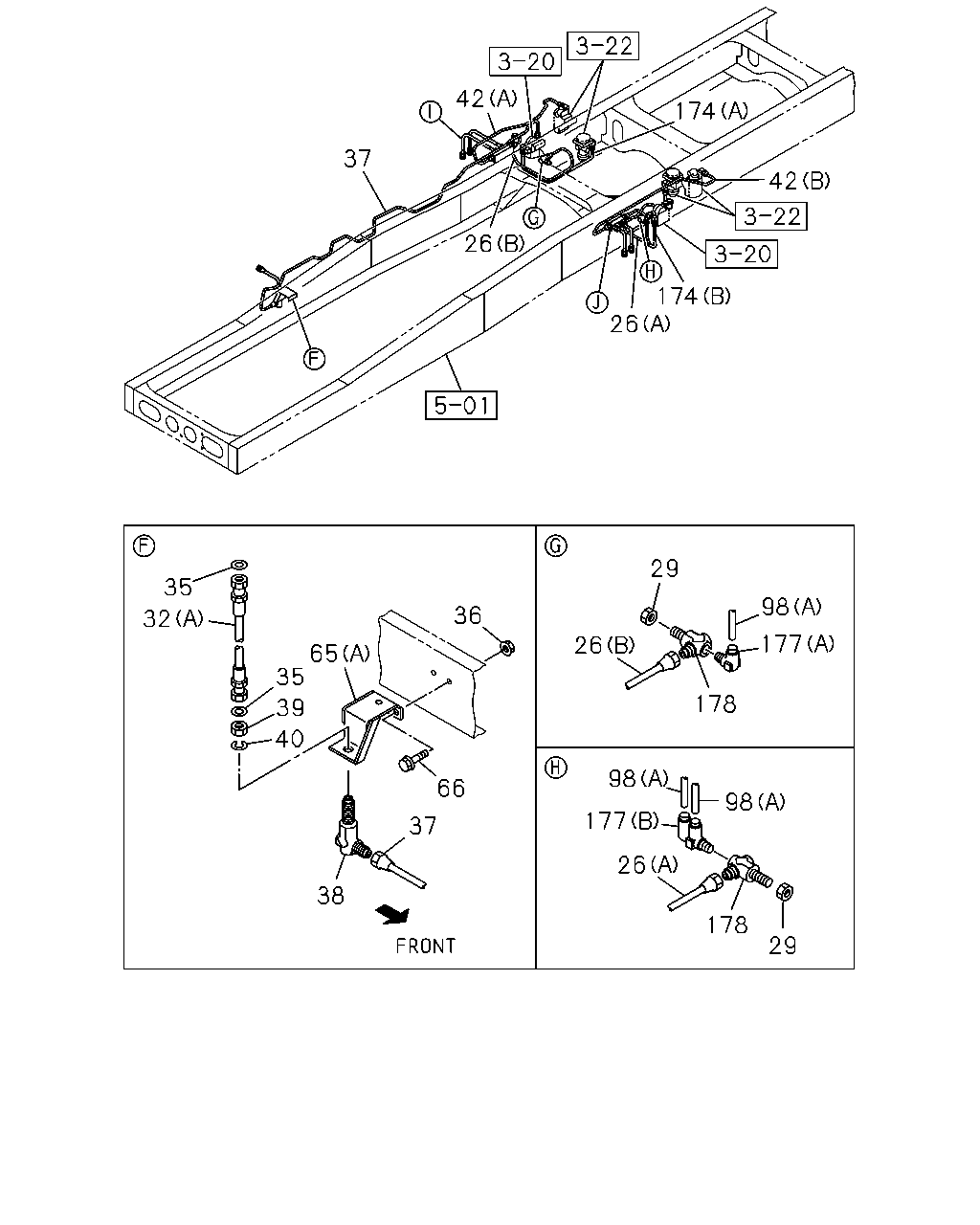

3-75 — BRAKE PIPING; AIR,FRONT (#69950) — 705 parça

159 159 98 98 174 37 98 98 98 98 98 174 98 159 98 159 117 117 98 117 117 117 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=3119 SERVICED BY L=2800	1-49115-496-0	01	1	1303-1411
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3119 SERVICED BY L=2800	1-49115-496-0	01	1	1412-1504
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3120 SERVICED BY L=2800	1-49115-496-0	01	1	1505-
37	PIPE; AIR,UNION TO FLEX HOSE L=3095 SERVICED BY L=2800	1-49115-496-0	01	1	1009-1302
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=3095 SERVICED BY L=2800	1-49115-496-0	01	1	1303-1411
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3095 SERVICED BY L=2800	1-49115-496-0	01	1	1412-1504
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3096 SERVICED BY L=2800	1-49115-496-0	01	1	1505-
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=160 OD=12	8-98054-251-0	01	1	1303-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=220 OD=12	8-98054-252-0	01	1	1303-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-
117	TUBE; CORRUGATE EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	05	1	1306-
117	TUBE; CORRUGATE WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1306-
117	TUBE; CORRUGATE BRAKE SYSTEM HSA<SLD> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1306-
117	TUBE; CORRUGATE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1412-
117	TUBE; CORRUGATE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1412-
117	TUBE; CORRUGATE BRAKE SYSTEM HSA<SLD> SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1412-
117	TUBE; CORRUGATE NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	03	1	1306-
117	TUBE; CORRUGATE NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	03	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1009-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) ID=35 L=33	1-09700-945-0	02	1	1303-1411
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	02	1	1412-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	01	1	1303-1411
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	01	1	1412-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) ID=39 L=33	8-98009-359-0	02	1	1303-1411
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=39 L=33	8-98009-359-0	02	1	1412-
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=28 L=40	1-09701-261-0	01	1	1303-
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	14	1	1303-1305
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	15	1	1306-1411
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	15	1	1412-
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	1009-1302
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	03	1	1009-1302
159	CLIP; NYLON TUBE MJT7S M/T(Y3E) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 L=33	1-09700-945-0	04	1	1303-1411
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (B) ID=35 L=33	1-09700-945-0	04	1	1303-1411
159	CLIP; NYLON TUBE MJT7S M/T(Y3E) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	04	1	1412-
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	04	1	1412-
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-1302
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1303-
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	1009-1302
159	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) ID=28 L=40	1-09701-261-0	04	1	1303-
159	CLIP; NYLON TUBE (D) ID=11X2 L=42	1-09701-306-0	02	1	1009-1302
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	13	1	1303-1411
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	13	1	1412-
159	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	09	1	1303-
174	PIPE; AIR,RELAY VLV TO MODULATOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=750	8-98169-332-0	01	1	1303-1411
174	PIPE; AIR,RELAY VLV TO MODULATOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=750	8-98169-332-0	01	1	1412-
174	PIPE; AIR,RELAY VLV TO MODULATOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=774	8-98241-579-0	01	1	1303-1411
174	PIPE; AIR,RELAY VLV TO MODULATOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=774	8-98241-579-0	01	1	1412-
174	PIPE; AIR,RELAY VLV TO MODULATOR (B) L=799	8-98043-332-0	01	1	1009-1302
174	PIPE; AIR,RELAY VLV TO MODULATOR HONG KONG EQUIPMENT(PQ1) (B) L=799	8-98043-332-0	01	1	1303-1411
174	PIPE; AIR,RELAY VLV TO MODULATOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=799	8-98043-332-0	01	1	1412-
174	PIPE; AIR,RELAY VLV TO MODULATOR (A) L=798	8-98054-253-0	01	1	1009-1302
174	PIPE; AIR,RELAY VLV TO MODULATOR HONG KONG EQUIPMENT(PQ1) (A) L=798	8-98054-253-0	01	1	1303-1411
174	PIPE; AIR,RELAY VLV TO MODULATOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=798	8-98054-253-0	01	1	1412-

122 35 34 32 39 66 40 65 38 37 36 36 66 122 32 65 35 34 29 30 28 51 98 52 66 122 32 34 35 29 30 98 15 15 28 36 66 32 65 122 35 34 29 30 28 15 15 98 114 56 56 114 114 56 98 65 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CONNECTOR; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1303-
15	CONNECTOR; AIR PIPE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	1009-1302
15	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	1303-1411
15	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	1412-
15	CONNECTOR; AIR PIPE (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1302
15	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1303-1411
15	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1412-
28	NIPPLE; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M20 & M20 ELBOW	1-09654-397-1	02	1	1303-1411
28	NIPPLE; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M20 & M20 ELBOW	1-09654-397-1	02	1	1412-
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	1009-
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	1009-
29	NUT; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M20	0-91111-520-0	02	1	1303-1411
29	NUT; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	02	1	1412-
29	NUT; NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M20	0-91111-520-0	06	1	1303-1411
29	NUT; NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	06	1	1412-
29	NUT; NIPPLE M20	0-91111-520-0	03	1	1009-1302
29	NUT; NIPPLE M20	0-91111-520-0	01	1	1303-
30	WASHER; LK,NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=20.2	0-91510-520-0	02	1	1303-1411
30	WASHER; LK,NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	02	1	1412-
30	WASHER; LK,NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=20.2	0-91510-520-0	04	1	1303-1411
30	WASHER; LK,NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	04	1	1412-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	03	1	1009-1302
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	01	1	1303-
32	HOSE; FLEX,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=550	0-57847-550-1	04	1	1303-1411
32	HOSE; FLEX,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=550	0-57847-550-1	04	1	1412-
32	HOSE; FLEX,FRT (B) L=430	0-57847-430-1	02	1	1009-1409
32	HOSE; FLEX,FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=450 W/SPRING	0-57847-450-1	02	1	1410-1411
32	HOSE; FLEX,FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (B) L=450 W/SPRING	0-57847-450-1	02	1	1412-
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) (A) L=500	0-57847-500-1	02	1	1009-1302
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) (A) L=470	0-57847-470-1	02	1	1009-1302
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) L=470	0-57847-470-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) L=470	0-57847-470-1	01	1	1303-
34	GASKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	08	1	1303-1411
34	GASKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=11 OD=18	9-09572-510-0	08	1	1412-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-1302
34	GASKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	04	1	1303-1411
34	GASKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) ID=11 OD=18	9-09572-510-0	04	1	1412-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	08	1	1009-1302
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=3119 SERVICED BY L=2800	1-49115-496-0	01	1	1303-1411
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3119 SERVICED BY L=2800	1-49115-496-0	01	1	1412-1504
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3120 SERVICED BY L=2800	1-49115-496-0	01	1	1505-
37	PIPE; AIR,UNION TO FLEX HOSE L=3095 SERVICED BY L=2800	1-49115-496-0	01	1	1009-1302
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=3095 SERVICED BY L=2800	1-49115-496-0	01	1	1303-1411
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3095 SERVICED BY L=2800	1-49115-496-0	01	1	1412-1504
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3096 SERVICED BY L=2800	1-49115-496-0	01	1	1505-
38	UNION; AIR PIPE M20 & M20 ELBOW	1-09654-128-1	01	1	1009-
39	NUT; PIPE UNION M20	0-91111-520-0	01	1	1009-
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	01	1	1009-
51	GROMMET; NYLON TUBE ID=24 OD=30 T=17	9-09956-092-1	01	1	1009-
52	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (C) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (D) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1303-
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-
56	BOLT; UNION BRKT FULL TRAILER PIPING<Z25> M12X30 FLANGE	0-28051-230-0	02	1	1303-
56	BOLT; UNION BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28650-825-0	02	1	1303-1411
56	BOLT; UNION BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	02	1	1412-
56	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
56	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
56	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	02	1	1412-
56	BOLT; UNION BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302
56	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28650-825-0	01	1	1303-1411
56	BOLT; UNION BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28650-825-0	01	1	1303-1411
56	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	01	1	1412-
56	BOLT; UNION BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	01	1	1412-
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5) (E)	1-47479-605-0	01	1	1303-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98176-155-0	01	1	1303-1411
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98176-155-0	01	1	1412-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98179-015-0	01	1	1303-1411
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98179-015-0	01	1	1412-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	1009-
65	BRACKET; FLEX HOSE (B)	1-47477-369-1	01	1	1009-
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	02	1	1009-1302
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (C)	1-47479-676-0	01	1	1303-1411
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C)	1-47479-676-0	01	1	1303-1411
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-47479-676-0	01	1	1412-
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C)	1-47479-676-0	01	1	1412-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28650-840-0	05	1	1303-1411
66	BOLT; HOSE BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 FLANGE	0-28650-840-0	05	1	1412-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	08	1	1009-1302
66	BOLT; HOSE BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28650-830-0	04	1	1303-1411
66	BOLT; HOSE BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	04	1	1412-
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=160 OD=12	8-98054-251-0	01	1	1303-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=220 OD=12	8-98054-252-0	01	1	1303-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-
114	UNION; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (C)	1-09661-611-0	01	1	1303-
114	UNION; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (D) M22X2 STRAIGHT	8-98107-103-0	01	1	1303-
114	UNION; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1303-1411
114	UNION; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1412-
114	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1009-1302
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-1411
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1412-
114	UNION; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1009-1302
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-1411
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1412-
114	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 2WAY	1-09661-518-0	01	1	1009-1302
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) 2WAY	1-09661-518-0	01	1	1303-1411
114	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 2WAY	1-09661-518-0	01	1	1303-1411
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 2WAY	1-09661-518-0	01	1	1412-
114	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 2WAY	1-09661-518-0	01	1	1412-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	1009-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	1009-

37 26 26 174 42 174 42 35 32 36 65 35 39 40 66 37 38 29 26 98 177 178 98 98 177 26 178 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=1132	8-98241-290-0	01	1	1303-1411
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=1132	8-98241-290-0	01	1	1412-
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=1081	8-98241-338-1	01	1	1303-1411
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=1081	8-98241-338-1	01	1	1412-
29	NUT; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M20	0-91111-520-0	02	1	1303-1411
29	NUT; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	02	1	1412-
29	NUT; NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M20	0-91111-520-0	06	1	1303-1411
29	NUT; NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	06	1	1412-
29	NUT; NIPPLE M20	0-91111-520-0	03	1	1009-1302
29	NUT; NIPPLE M20	0-91111-520-0	01	1	1303-
32	HOSE; FLEX,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=550	0-57847-550-1	04	1	1303-1411
32	HOSE; FLEX,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=550	0-57847-550-1	04	1	1412-
32	HOSE; FLEX,FRT (B) L=430	0-57847-430-1	02	1	1009-1409
32	HOSE; FLEX,FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=450 W/SPRING	0-57847-450-1	02	1	1410-1411
32	HOSE; FLEX,FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (B) L=450 W/SPRING	0-57847-450-1	02	1	1412-
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) (A) L=500	0-57847-500-1	02	1	1009-1302
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) (A) L=470	0-57847-470-1	02	1	1009-1302
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) L=470	0-57847-470-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) L=470	0-57847-470-1	01	1	1303-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	08	1	1009-1302
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=3119 SERVICED BY L=2800	1-49115-496-0	01	1	1303-1411
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3119 SERVICED BY L=2800	1-49115-496-0	01	1	1412-1504
37	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3120 SERVICED BY L=2800	1-49115-496-0	01	1	1505-
37	PIPE; AIR,UNION TO FLEX HOSE L=3095 SERVICED BY L=2800	1-49115-496-0	01	1	1009-1302
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1) L=3095 SERVICED BY L=2800	1-49115-496-0	01	1	1303-1411
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3095 SERVICED BY L=2800	1-49115-496-0	01	1	1412-1504
37	PIPE; AIR,UNION TO FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=3096 SERVICED BY L=2800	1-49115-496-0	01	1	1505-
38	UNION; AIR PIPE M20 & M20 ELBOW	1-09654-128-1	01	1	1009-
39	NUT; PIPE UNION M20	0-91111-520-0	01	1	1009-
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	01	1	1009-
42	PIPE; AIR,QUICK RELAY VALVE TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=1109	8-98241-297-1	01	1	1303-1411
42	PIPE; AIR,QUICK RELAY VALVE TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=1109	8-98241-297-1	01	1	1412-
42	PIPE; AIR,QUICK RELAY VALVE TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=1223 SERVICED BY L=1300	1-49115-488-0	01	1	1303-1411
42	PIPE; AIR,QUICK RELAY VALVE TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=1223 SERVICED BY L=1300	1-49115-488-0	01	1	1412-
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5) (E)	1-47479-605-0	01	1	1303-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98176-155-0	01	1	1303-1411
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98176-155-0	01	1	1412-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98179-015-0	01	1	1303-1411
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98179-015-0	01	1	1412-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	1009-
65	BRACKET; FLEX HOSE (B)	1-47477-369-1	01	1	1009-
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	02	1	1009-1302
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (C)	1-47479-676-0	01	1	1303-1411
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C)	1-47479-676-0	01	1	1303-1411
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-47479-676-0	01	1	1412-
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C)	1-47479-676-0	01	1	1412-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28650-840-0	05	1	1303-1411
66	BOLT; HOSE BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 FLANGE	0-28650-840-0	05	1	1412-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	08	1	1009-1302
66	BOLT; HOSE BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28650-830-0	04	1	1303-1411
66	BOLT; HOSE BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	04	1	1412-
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=160 OD=12	8-98054-251-0	01	1	1303-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=220 OD=12	8-98054-252-0	01	1	1303-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-
174	PIPE; AIR,RELAY VLV TO MODULATOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=750	8-98169-332-0	01	1	1303-1411
174	PIPE; AIR,RELAY VLV TO MODULATOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=750	8-98169-332-0	01	1	1412-
174	PIPE; AIR,RELAY VLV TO MODULATOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=774	8-98241-579-0	01	1	1303-1411
174	PIPE; AIR,RELAY VLV TO MODULATOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=774	8-98241-579-0	01	1	1412-
174	PIPE; AIR,RELAY VLV TO MODULATOR (B) L=799	8-98043-332-0	01	1	1009-1302
174	PIPE; AIR,RELAY VLV TO MODULATOR HONG KONG EQUIPMENT(PQ1) (B) L=799	8-98043-332-0	01	1	1303-1411
174	PIPE; AIR,RELAY VLV TO MODULATOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=799	8-98043-332-0	01	1	1412-
174	PIPE; AIR,RELAY VLV TO MODULATOR (A) L=798	8-98054-253-0	01	1	1009-1302
174	PIPE; AIR,RELAY VLV TO MODULATOR HONG KONG EQUIPMENT(PQ1) (A) L=798	8-98054-253-0	01	1	1303-1411
174	PIPE; AIR,RELAY VLV TO MODULATOR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=798	8-98054-253-0	01	1	1412-
177	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-1411
177	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1412-
177	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1303-1411
177	CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1412-
178	UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-09650-251-1	02	1	1303-1411
178	UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-09650-251-1	02	1	1412-

114 149 114 122 32 35 66 65 36 35 29 30 28 52 51 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
28	NIPPLE; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M20 & M20 ELBOW	1-09654-397-1	02	1	1303-1411
28	NIPPLE; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M20 & M20 ELBOW	1-09654-397-1	02	1	1412-
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	1009-
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	1009-
29	NUT; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M20	0-91111-520-0	02	1	1303-1411
29	NUT; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	02	1	1412-
29	NUT; NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M20	0-91111-520-0	06	1	1303-1411
29	NUT; NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	06	1	1412-
29	NUT; NIPPLE M20	0-91111-520-0	03	1	1009-1302
29	NUT; NIPPLE M20	0-91111-520-0	01	1	1303-
30	WASHER; LK,NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=20.2	0-91510-520-0	02	1	1303-1411
30	WASHER; LK,NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	02	1	1412-
30	WASHER; LK,NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=20.2	0-91510-520-0	04	1	1303-1411
30	WASHER; LK,NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	04	1	1412-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	03	1	1009-1302
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	01	1	1303-
32	HOSE; FLEX,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=550	0-57847-550-1	04	1	1303-1411
32	HOSE; FLEX,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=550	0-57847-550-1	04	1	1412-
32	HOSE; FLEX,FRT (B) L=430	0-57847-430-1	02	1	1009-1409
32	HOSE; FLEX,FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=450 W/SPRING	0-57847-450-1	02	1	1410-1411
32	HOSE; FLEX,FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (B) L=450 W/SPRING	0-57847-450-1	02	1	1412-
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) (A) L=500	0-57847-500-1	02	1	1009-1302
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) (A) L=470	0-57847-470-1	02	1	1009-1302
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) L=470	0-57847-470-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) L=470	0-57847-470-1	01	1	1303-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	08	1	1009-1302
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
51	GROMMET; NYLON TUBE ID=24 OD=30 T=17	9-09956-092-1	01	1	1009-
52	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (C) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (D) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1303-
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5) (E)	1-47479-605-0	01	1	1303-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98176-155-0	01	1	1303-1411
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98176-155-0	01	1	1412-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98179-015-0	01	1	1303-1411
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98179-015-0	01	1	1412-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	1009-
65	BRACKET; FLEX HOSE (B)	1-47477-369-1	01	1	1009-
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	02	1	1009-1302
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (C)	1-47479-676-0	01	1	1303-1411
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C)	1-47479-676-0	01	1	1303-1411
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-47479-676-0	01	1	1412-
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C)	1-47479-676-0	01	1	1412-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28650-840-0	05	1	1303-1411
66	BOLT; HOSE BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 FLANGE	0-28650-840-0	05	1	1412-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	08	1	1009-1302
66	BOLT; HOSE BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28650-830-0	04	1	1303-1411
66	BOLT; HOSE BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	04	1	1412-
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=160 OD=12	8-98054-251-0	01	1	1303-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=220 OD=12	8-98054-252-0	01	1	1303-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-
114	UNION; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (C)	1-09661-611-0	01	1	1303-
114	UNION; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (D) M22X2 STRAIGHT	8-98107-103-0	01	1	1303-
114	UNION; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1303-1411
114	UNION; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1412-
114	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1009-1302
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-1411
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1412-
114	UNION; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1009-1302
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-1411
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1412-
114	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 2WAY	1-09661-518-0	01	1	1009-1302
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) 2WAY	1-09661-518-0	01	1	1303-1411
114	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 2WAY	1-09661-518-0	01	1	1303-1411
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 2WAY	1-09661-518-0	01	1	1412-
114	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 2WAY	1-09661-518-0	01	1	1412-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	1009-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	1009-
149	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5) (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-
149	BOLT; UNION FULL TRAILER PIPING<Z25> (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-
149	BOLT; UNION FULL TRAILER PIPING<Z25> (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-

98 98 115 149 98 98 114 114 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION NEW ZEALAND EQUIPMENT(PK5)	1-49123-983-0	01	1	1303-
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=160 OD=12	8-98054-251-0	01	1	1303-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=220 OD=12	8-98054-252-0	01	1	1303-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-
114	UNION; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (C)	1-09661-611-0	01	1	1303-
114	UNION; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (D) M22X2 STRAIGHT	8-98107-103-0	01	1	1303-
114	UNION; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1303-1411
114	UNION; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1412-
114	UNION; NYLON TUBE (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1009-1302
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-1411
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1412-
114	UNION; NYLON TUBE (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1009-1302
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1303-1411
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1412-
114	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 2WAY	1-09661-518-0	01	1	1009-1302
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) 2WAY	1-09661-518-0	01	1	1303-1411
114	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 2WAY	1-09661-518-0	01	1	1303-1411
114	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 2WAY	1-09661-518-0	01	1	1412-
114	UNION; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 2WAY	1-09661-518-0	01	1	1412-
115	NUT; TUBE UNION NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	02	1	1303-
149	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5) (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-
149	BOLT; UNION FULL TRAILER PIPING<Z25> (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-
149	BOLT; UNION FULL TRAILER PIPING<Z25> (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-

16 98 159 159 98 98 5 98 98 98 98 117 117 117 117 117 98 98 98 98 98 98 98 98 98 98 98 98 98 98 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO UNION NEW ZEALAND EQUIPMENT(PK5) L=1438 SERVICED BY L=1450	1-49115-466-0	01	1	1303-
16	PIPE; AIR,UNION TO MODULATOR NEW ZEALAND EQUIPMENT(PK5) (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	1303-
16	PIPE; AIR,UNION TO MODULATOR NEW ZEALAND EQUIPMENT(PK5) (A) L=1590 SERVICED BY L=1600	1-49115-467-0	01	1	1303-1504
16	PIPE; AIR,UNION TO MODULATOR NEW ZEALAND EQUIPMENT(PK5) (A) L=1592 SERVICED BY L=1600	1-49115-490-0	01	1	1505-
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=160 OD=12	8-98054-251-0	01	1	1303-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=220 OD=12	8-98054-252-0	01	1	1303-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-
117	TUBE; CORRUGATE EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	05	1	1306-
117	TUBE; CORRUGATE WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1306-
117	TUBE; CORRUGATE BRAKE SYSTEM HSA<SLD> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1306-
117	TUBE; CORRUGATE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1412-
117	TUBE; CORRUGATE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1412-
117	TUBE; CORRUGATE BRAKE SYSTEM HSA<SLD> SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1412-
117	TUBE; CORRUGATE NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	03	1	1306-
117	TUBE; CORRUGATE NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	03	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1009-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) ID=35 L=33	1-09700-945-0	02	1	1303-1411
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	02	1	1412-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	01	1	1303-1411
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	01	1	1412-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) ID=39 L=33	8-98009-359-0	02	1	1303-1411
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=39 L=33	8-98009-359-0	02	1	1412-
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=28 L=40	1-09701-261-0	01	1	1303-
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	14	1	1303-1305
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	15	1	1306-1411
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	15	1	1412-
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	1009-1302
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	03	1	1009-1302
159	CLIP; NYLON TUBE MJT7S M/T(Y3E) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 L=33	1-09700-945-0	04	1	1303-1411
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (B) ID=35 L=33	1-09700-945-0	04	1	1303-1411
159	CLIP; NYLON TUBE MJT7S M/T(Y3E) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	04	1	1412-
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	04	1	1412-
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-1302
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1303-
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	1009-1302
159	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) ID=28 L=40	1-09701-261-0	04	1	1303-
159	CLIP; NYLON TUBE (D) ID=11X2 L=42	1-09701-306-0	02	1	1009-1302
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	13	1	1303-1411
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	13	1	1412-
159	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	09	1	1303-

34 32 34 29 30 66 34 32 34 28 30 29 42 26 28 36 65 36 66 65 34 32 34 30 39 28 26 42 29 30 28 34 32 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=1132	8-98241-290-0	01	1	1303-1411
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=1132	8-98241-290-0	01	1	1412-
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=1081	8-98241-338-1	01	1	1303-1411
26	PIPE; AIR,UNION TO FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=1081	8-98241-338-1	01	1	1412-
28	NIPPLE; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M20 & M20 ELBOW	1-09654-397-1	02	1	1303-1411
28	NIPPLE; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M20 & M20 ELBOW	1-09654-397-1	02	1	1412-
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	1009-
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	1009-
29	NUT; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M20	0-91111-520-0	02	1	1303-1411
29	NUT; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	02	1	1412-
29	NUT; NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M20	0-91111-520-0	06	1	1303-1411
29	NUT; NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	06	1	1412-
29	NUT; NIPPLE M20	0-91111-520-0	03	1	1009-1302
29	NUT; NIPPLE M20	0-91111-520-0	01	1	1303-
30	WASHER; LK,NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=20.2	0-91510-520-0	02	1	1303-1411
30	WASHER; LK,NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	02	1	1412-
30	WASHER; LK,NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=20.2	0-91510-520-0	04	1	1303-1411
30	WASHER; LK,NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	04	1	1412-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	03	1	1009-1302
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	01	1	1303-
32	HOSE; FLEX,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=550	0-57847-550-1	04	1	1303-1411
32	HOSE; FLEX,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=550	0-57847-550-1	04	1	1412-
32	HOSE; FLEX,FRT (B) L=430	0-57847-430-1	02	1	1009-1409
32	HOSE; FLEX,FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=450 W/SPRING	0-57847-450-1	02	1	1410-1411
32	HOSE; FLEX,FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (B) L=450 W/SPRING	0-57847-450-1	02	1	1412-
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) (A) L=500	0-57847-500-1	02	1	1009-1302
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) (A) L=470	0-57847-470-1	02	1	1009-1302
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) L=470	0-57847-470-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) L=470	0-57847-470-1	01	1	1303-
34	GASKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	08	1	1303-1411
34	GASKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=11 OD=18	9-09572-510-0	08	1	1412-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-1302
34	GASKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	04	1	1303-1411
34	GASKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) ID=11 OD=18	9-09572-510-0	04	1	1412-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	08	1	1009-1302
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
39	NUT; PIPE UNION M20	0-91111-520-0	01	1	1009-
42	PIPE; AIR,QUICK RELAY VALVE TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=1109	8-98241-297-1	01	1	1303-1411
42	PIPE; AIR,QUICK RELAY VALVE TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=1109	8-98241-297-1	01	1	1412-
42	PIPE; AIR,QUICK RELAY VALVE TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=1223 SERVICED BY L=1300	1-49115-488-0	01	1	1303-1411
42	PIPE; AIR,QUICK RELAY VALVE TO UNION EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=1223 SERVICED BY L=1300	1-49115-488-0	01	1	1412-
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5) (E)	1-47479-605-0	01	1	1303-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98176-155-0	01	1	1303-1411
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98176-155-0	01	1	1412-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98179-015-0	01	1	1303-1411
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98179-015-0	01	1	1412-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	1009-
65	BRACKET; FLEX HOSE (B)	1-47477-369-1	01	1	1009-
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	02	1	1009-1302
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (C)	1-47479-676-0	01	1	1303-1411
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C)	1-47479-676-0	01	1	1303-1411
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-47479-676-0	01	1	1412-
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C)	1-47479-676-0	01	1	1412-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28650-840-0	05	1	1303-1411
66	BOLT; HOSE BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 FLANGE	0-28650-840-0	05	1	1412-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	08	1	1009-1302
66	BOLT; HOSE BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28650-830-0	04	1	1303-1411
66	BOLT; HOSE BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	04	1	1412-

52 52 47 149 56 149 52 15 15 39 25 95 52 3 122 35 32 65 34 39 40 66 38 16 36 36 66 122 32 65 51 98 52 28 30 29 34 35 122 32 66 65 34 35 29 30 16 28 36 36 66 122 32 65 15 98 28 30 29 34 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; PIPE UNION NEW ZEALAND EQUIPMENT(PK5) M20	0-91111-520-0	01	1	1303-
15	CONNECTOR; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1303-
15	CONNECTOR; AIR PIPE (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	1009-1302
15	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	1303-1411
15	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	1412-
15	CONNECTOR; AIR PIPE (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1302
15	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1303-1411
15	CONNECTOR; AIR PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1412-
16	PIPE; AIR,UNION TO MODULATOR NEW ZEALAND EQUIPMENT(PK5) (B) L=1205 SERVICED BY L=1300	1-49115-465-0	01	1	1303-
16	PIPE; AIR,UNION TO MODULATOR NEW ZEALAND EQUIPMENT(PK5) (A) L=1590 SERVICED BY L=1600	1-49115-467-0	01	1	1303-1504
16	PIPE; AIR,UNION TO MODULATOR NEW ZEALAND EQUIPMENT(PK5) (A) L=1592 SERVICED BY L=1600	1-49115-490-0	01	1	1505-
25	UNION; AIR PIPE NEW ZEALAND EQUIPMENT(PK5) M20	0-92135-212-0	01	1	1303-
28	NIPPLE; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M20 & M20 ELBOW	1-09654-397-1	02	1	1303-1411
28	NIPPLE; AIR PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) M20 & M20 ELBOW	1-09654-397-1	02	1	1412-
28	NIPPLE; AIR PIPE (B) M20 & M20 ELBOW	1-09654-128-1	02	1	1009-
28	NIPPLE; AIR PIPE (A) M20	1-09654-199-2	01	1	1009-
29	NUT; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M20	0-91111-520-0	02	1	1303-1411
29	NUT; NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	02	1	1412-
29	NUT; NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M20	0-91111-520-0	06	1	1303-1411
29	NUT; NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M20	0-91111-520-0	06	1	1412-
29	NUT; NIPPLE M20	0-91111-520-0	03	1	1009-1302
29	NUT; NIPPLE M20	0-91111-520-0	01	1	1303-
30	WASHER; LK,NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=20.2	0-91510-520-0	02	1	1303-1411
30	WASHER; LK,NIPPLE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	02	1	1412-
30	WASHER; LK,NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=20.2	0-91510-520-0	04	1	1303-1411
30	WASHER; LK,NIPPLE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=20.2	0-91510-520-0	04	1	1412-
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	03	1	1009-1302
30	WASHER; LK,NIPPLE ID=20.2	0-91510-520-0	01	1	1303-
32	HOSE; FLEX,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=550	0-57847-550-1	04	1	1303-1411
32	HOSE; FLEX,FRT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=550	0-57847-550-1	04	1	1412-
32	HOSE; FLEX,FRT (B) L=430	0-57847-430-1	02	1	1009-1409
32	HOSE; FLEX,FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) L=450 W/SPRING	0-57847-450-1	02	1	1410-1411
32	HOSE; FLEX,FRT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (B) L=450 W/SPRING	0-57847-450-1	02	1	1412-
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) (A) L=500	0-57847-500-1	02	1	1009-1302
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6300MM(63W) HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) EXC. HONG KONG EQUIPMENT(PQ1) (A) L=500	0-57847-500-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) (A) L=470	0-57847-470-1	02	1	1009-1302
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) L=470	0-57847-470-1	01	1	1303-
32	HOSE; FLEX,FRT WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1) (A) L=470	0-57847-470-1	01	1	1303-
34	GASKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	08	1	1303-1411
34	GASKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=11 OD=18	9-09572-510-0	08	1	1412-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-1302
34	GASKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=11 OD=18	9-09572-510-0	04	1	1303-1411
34	GASKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) ID=11 OD=18	9-09572-510-0	04	1	1412-
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	08	1	1009-1302
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
38	UNION; AIR PIPE M20 & M20 ELBOW	1-09654-128-1	01	1	1009-
39	NUT; PIPE UNION M20	0-91111-520-0	01	1	1009-
40	WASHER; LK,PIPE UNION ID=20.2	0-91510-520-0	01	1	1009-
47	BRACKET; PIPE UNION FULL TRAILER PIPING<Z25>	8-97636-508-0	01	1	1303-
51	GROMMET; NYLON TUBE ID=24 OD=30 T=17	9-09956-092-1	01	1	1009-
52	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1303-
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (C) DIN7.5X2 & M8 2WAY	1-09661-128-0	01	1	1303-
52	CONNECTOR; NYLON TUBE FULL TRAILER PIPING<Z25> (D) DIN8X2 & M8 2WAY	1-09661-133-0	03	1	1303-
52	CONNECTOR; NYLON TUBE (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1009-
56	BOLT; UNION BRKT FULL TRAILER PIPING<Z25> M12X30 FLANGE	0-28051-230-0	02	1	1303-
56	BOLT; UNION BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28650-825-0	02	1	1303-1411
56	BOLT; UNION BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	02	1	1412-
56	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
56	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28650-820-0	02	1	1303-1411
56	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE	0-28650-820-0	02	1	1412-
56	BOLT; UNION BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302
56	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28650-825-0	01	1	1303-1411
56	BOLT; UNION BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28650-825-0	01	1	1303-1411
56	BOLT; UNION BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	01	1	1412-
56	BOLT; UNION BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	01	1	1412-
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5) (E)	1-47479-605-0	01	1	1303-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98176-155-0	01	1	1303-1411
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98176-155-0	01	1	1412-
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D)	8-98179-015-0	01	1	1303-1411
65	BRACKET; FLEX HOSE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98179-015-0	01	1	1412-
65	BRACKET; FLEX HOSE (A)	1-47471-247-1	01	1	1009-
65	BRACKET; FLEX HOSE (B)	1-47477-369-1	01	1	1009-
65	BRACKET; FLEX HOSE (C)	1-47479-676-0	02	1	1009-1302
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (C)	1-47479-676-0	01	1	1303-1411
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C)	1-47479-676-0	01	1	1303-1411
65	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	1-47479-676-0	01	1	1412-
65	BRACKET; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C)	1-47479-676-0	01	1	1412-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1303-
66	BOLT; HOSE BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X40 FLANGE	0-28650-840-0	05	1	1303-1411
66	BOLT; HOSE BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X40 FLANGE	0-28650-840-0	05	1	1412-
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	08	1	1009-1302
66	BOLT; HOSE BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28650-830-0	04	1	1303-1411
66	BOLT; HOSE BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE	0-28650-830-0	04	1	1412-
95	ADAPTER; BRKT NEW ZEALAND EQUIPMENT(PK5) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1303-
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=160 OD=12	8-98054-251-0	01	1	1303-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=220 OD=12	8-98054-252-0	01	1	1303-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	1009-
122	CONNECTOR; FLEX HOSE M20 & PT3/8	1-09660-731-1	02	1	1009-
149	BOLT; UNION NEW ZEALAND EQUIPMENT(PK5) (B) M8X45 FLANGE	0-28050-845-0	02	1	1303-
149	BOLT; UNION FULL TRAILER PIPING<Z25> (A) M8X16 FLANGE	0-28050-816-0	02	1	1303-
149	BOLT; UNION FULL TRAILER PIPING<Z25> (C) M8X20 FLANGE	0-28050-820-0	02	1	1303-

98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 115 159 159 159 117 117 98 117 117 117 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	TUBE; NYLON (B) L=160 OD=12	8-98054-251-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (B) L=160 OD=12	8-98054-251-0	01	1	1303-
98	TUBE; NYLON (C) L=220 OD=12	8-98054-252-0	01	1	1009-1302
98	TUBE; NYLON EXC. NEW ZEALAND EQUIPMENT(PK5) (C) L=220 OD=12	8-98054-252-0	01	1	1303-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=6	1-87411-003-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=6	1-87411-004-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-
98	TUBE; NYLON (A) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-
115	NUT; TUBE UNION NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	02	1	1303-
117	TUBE; CORRUGATE EXC. NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	05	1	1306-
117	TUBE; CORRUGATE WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1306-
117	TUBE; CORRUGATE BRAKE SYSTEM HSA<SLD> SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	1306-
117	TUBE; CORRUGATE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 ID=19	1-87411-027-0	01	1	1412-
117	TUBE; CORRUGATE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1412-
117	TUBE; CORRUGATE BRAKE SYSTEM HSA<SLD> SERVICED BY L=2000 ID=25	1-87411-031-0	01	1	1412-
117	TUBE; CORRUGATE NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	03	1	1306-
117	TUBE; CORRUGATE NEW ZEALAND EQUIPMENT(PK5) SERVICED BY L=2000 ID=13	1-87411-022-0	03	1	1306-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87411-030-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1009-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) ID=35 L=33	1-09700-945-0	02	1	1303-1411
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	02	1	1412-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	01	1	1303-1411
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	01	1	1412-
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) ID=39 L=33	8-98009-359-0	02	1	1303-1411
159	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=39 L=33	8-98009-359-0	02	1	1412-
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (B) ID=28 L=40	1-09701-261-0	01	1	1303-
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	14	1	1303-1305
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	15	1	1306-1411
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	15	1	1412-
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	15	1	1009-1302
159	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	03	1	1009-1302
159	CLIP; NYLON TUBE MJT7S M/T(Y3E) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=35 L=33	1-09700-945-0	04	1	1303-1411
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (B) ID=35 L=33	1-09700-945-0	04	1	1303-1411
159	CLIP; NYLON TUBE MJT7S M/T(Y3E) EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	04	1	1412-
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=35 L=33	1-09700-945-0	04	1	1412-
159	CLIP; NYLON TUBE (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1009-1302
159	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1303-
159	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	1009-1302
159	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (B) ID=28 L=40	1-09701-261-0	04	1	1303-
159	CLIP; NYLON TUBE (D) ID=11X2 L=42	1-09701-306-0	02	1	1009-1302
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (C) L=350	1-09707-183-0	13	1	1303-1411
159	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350	1-09707-183-0	13	1	1412-
159	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	09	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
