3-70 — BRAKE PIPING; AIR,AIR MASTER (#69949) — 365 parça

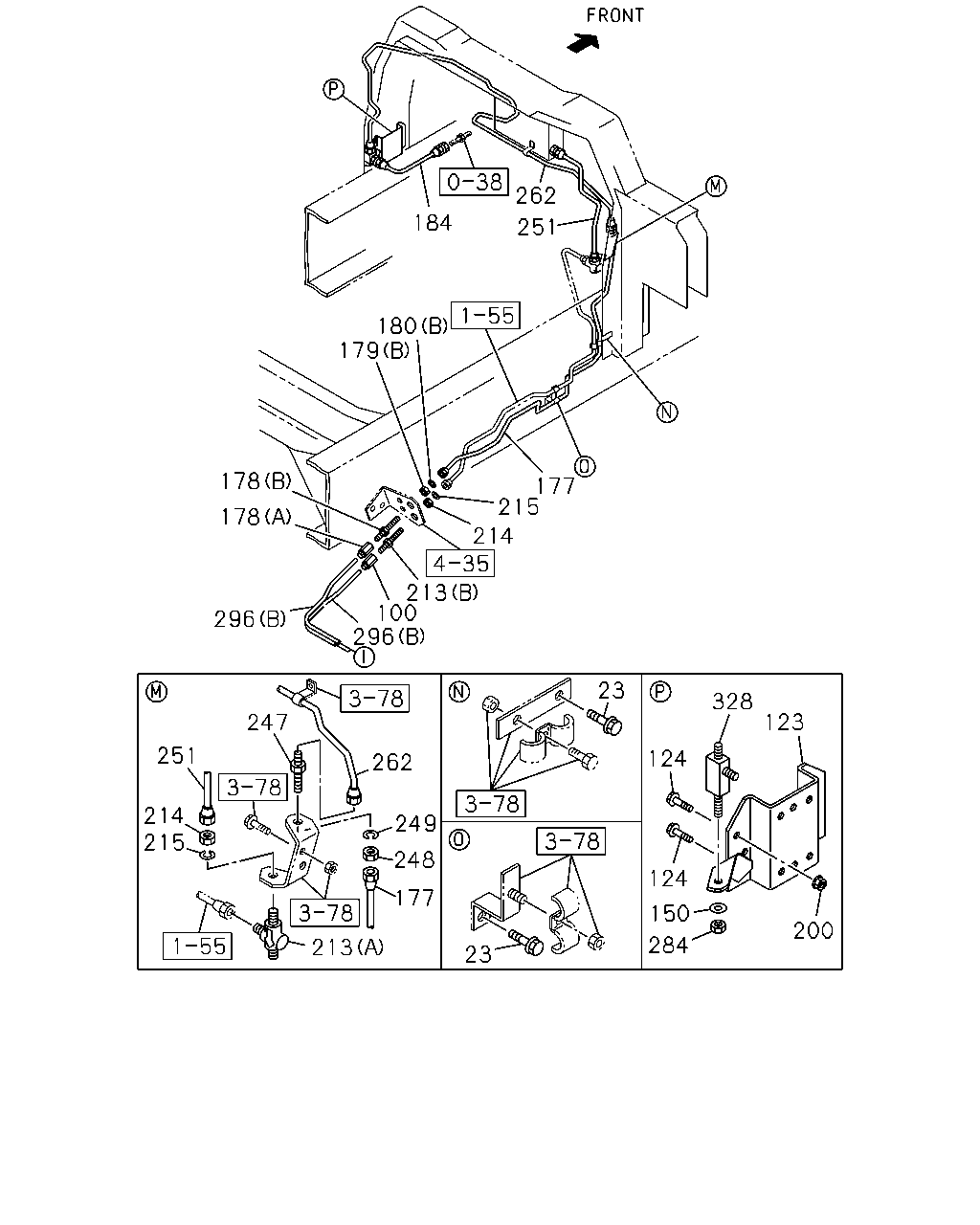

çizim 121289
262 251 184 180 179 178 178 296 100 296 215 214 213 247 251 214 215 262 249 248 123 124 124 150 284 200 213 177 23 328 177 23
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-
123 BRACKET; UNION
MIXER TRUCK<RA2> 		1-82569-367-1 01 1 1009-1302
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 1009-1302
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 1009-1302
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 1009-1302
177 PIPE; AIR,UNION TO UNION
L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 1303-
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 1009-1302
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1009-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 1009-1302
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1009-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1009-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 1009-1302
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 01 1 1303-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 01 1 1303-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1009-1302
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1009-1302
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1303-
200 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 04 1 1009-1302
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (C) M12 ELBOW 		0-92125-206-0 01 1 1303-
213 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1009-
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1009-1302
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (A) M12 3WAY 		0-92138-906-0 01 1 1303-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 1009-1302
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1303-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1303-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 1009-1302
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1303-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1303-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 1009-1302
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 1009-1302
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1303-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1009-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1009-
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> L=346 		8-98059-952-0 01 1 1009-1302
251 PIPE; AIR,UNION TO MAG VLV
EXC. MIXER TRUCK<RA2> L=375 		1-49124-511-0 01 1 1009-1302
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1303-
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		8-98130-033-0 01 1 1009-1302
284 NUT; UNION
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 1009-1302
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD> (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
328 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 2WAY 		1-09654-059-2 01 1 1009-1302

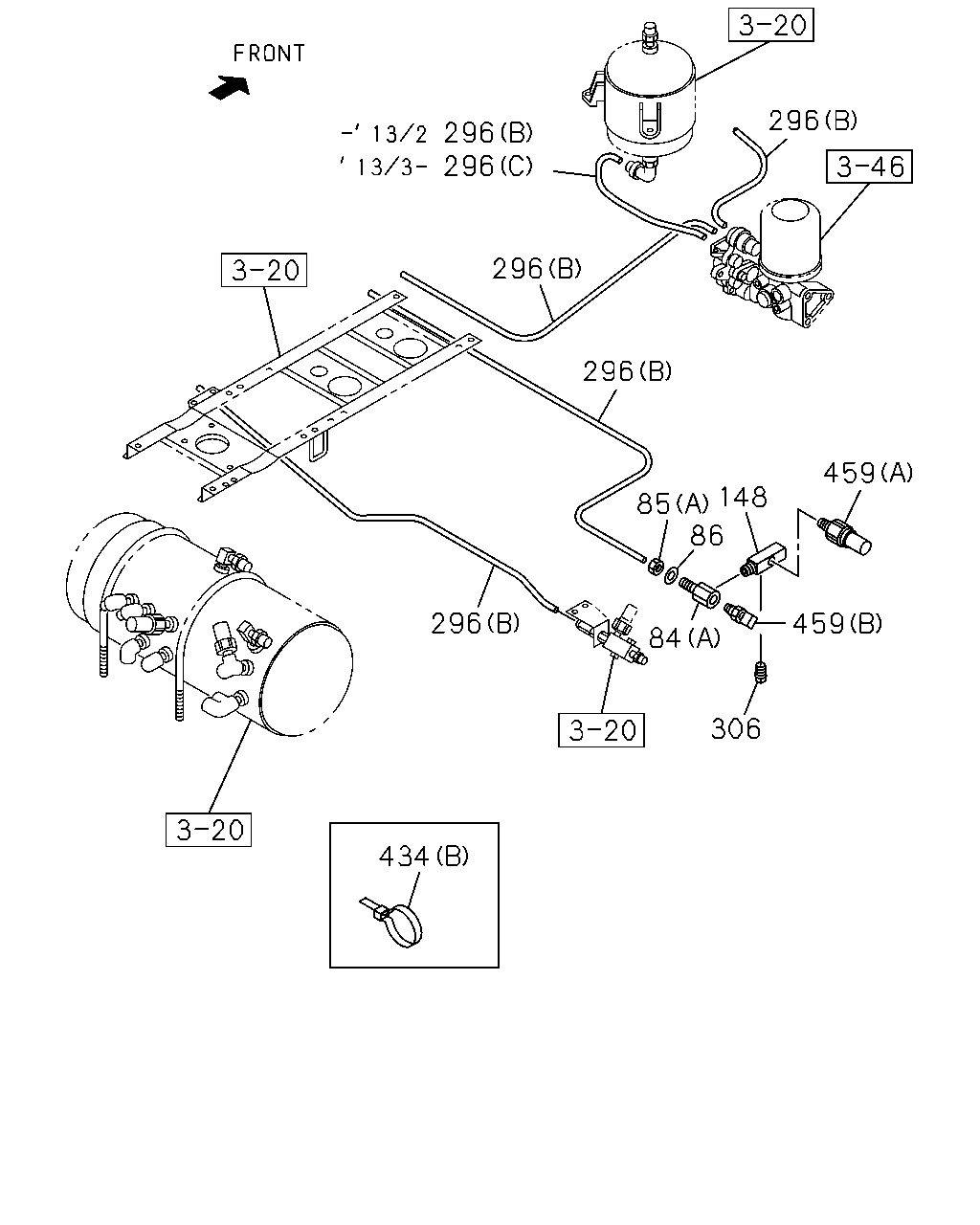

çizim 121497
296 296 296 296 296 85 459 459 86 148 434 296 84 306
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 1009-1302
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1303-
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1303-
85 NUT; UNION
(A) M18 		0-91110-518-0 01 1 1009-1302
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 1009-1302
148 CONNECTOR; UNION
DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1009-1302
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD> (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 1009-1302
434 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1009-1302
434 CLIP
EXC. HONG KONG EQUIPMENT(PQ1) (B) L=350 		1-09707-183-0 01 1 1303-1411
434 CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=350 		1-09707-183-0 01 1 1412-
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 1009-1302
459 SWITCH; PRESS
(A) STAMP 5.5 		8-97609-249-0 01 1 1009-1302
459 SWITCH; PRESS
SMOOTHER-G(C1W) (A) STAMP 6.5 		8-97609-252-0 01 1 1009-1302

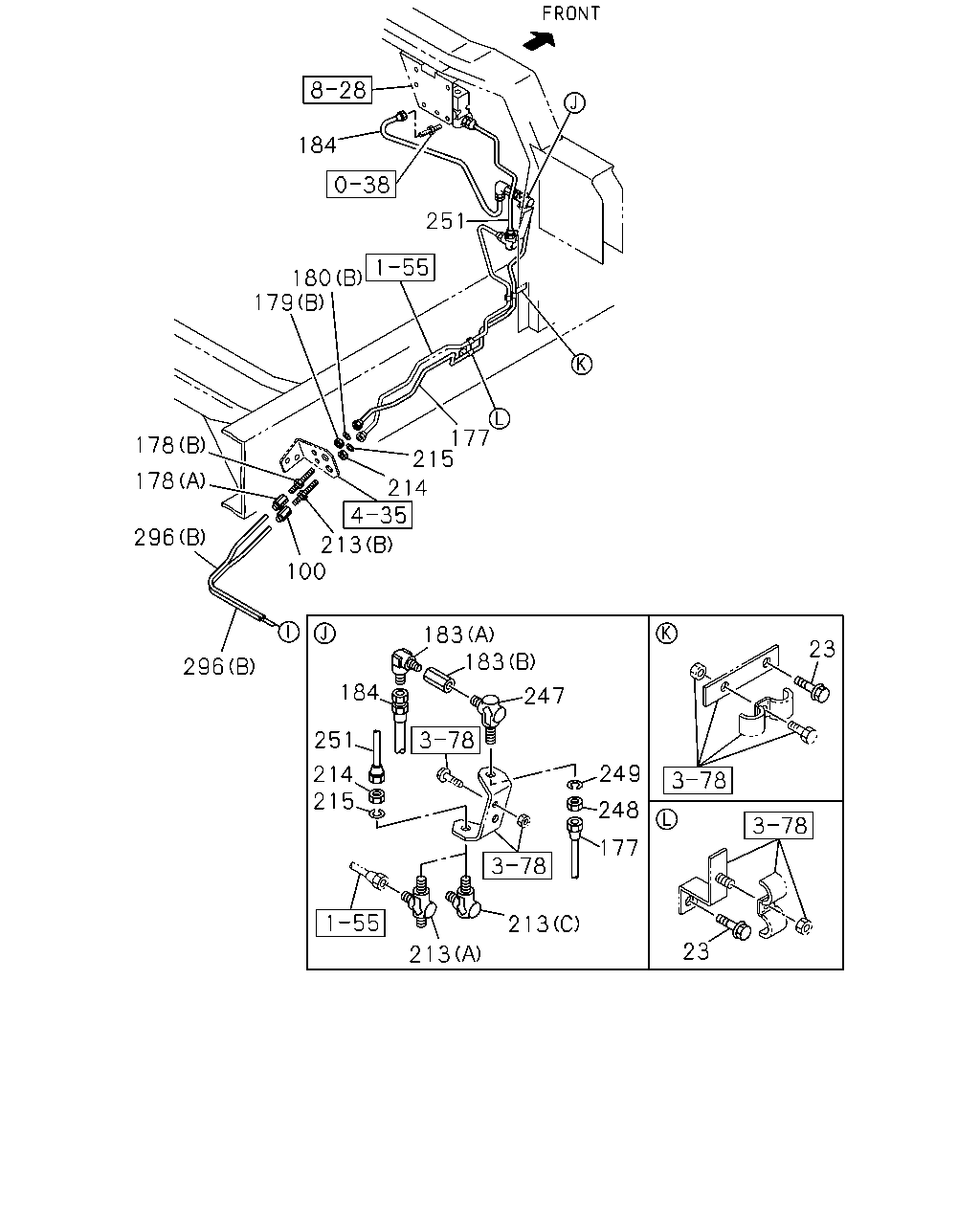

çizim 121567
184 251 180 177 215 179 178 296 178 214 213 296 100 183 184 251 214 215 249 248 177 213 213 23 23 247 183
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 1009-1302
177 PIPE; AIR,UNION TO UNION
L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 1303-
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 1009-1302
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1009-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 1009-1302
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1009-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1009-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 1009-1302
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 01 1 1303-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 01 1 1303-
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1009-1302
183 UNION; FLEX HOSE,GOV
(A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1303-
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1009-1302
183 UNION; FLEX HOSE,GOV
(B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1303-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1009-1302
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1009-1302
184 HOSE; FLEX,AIR GOV
L=740 		1-09363-675-0 01 1 1303-
213 UNION; AIR PIPE
CAB SUSPENSION-FULL FLOATING(SMK) (C) M12 ELBOW 		0-92125-206-0 01 1 1303-
213 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1009-
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1009-1302
213 UNION; AIR PIPE
FULL FLOATING CAB(W16) (A) M12 3WAY 		0-92138-906-0 01 1 1303-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 1009-1302
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1303-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1303-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 1009-1302
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1303-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 1303-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 1009-1302
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 1009-1302
247 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1303-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1009-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1009-
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> L=346 		8-98059-952-0 01 1 1009-1302
251 PIPE; AIR,UNION TO MAG VLV
EXC. MIXER TRUCK<RA2> L=375 		1-49124-511-0 01 1 1009-1302
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1303-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD> (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-

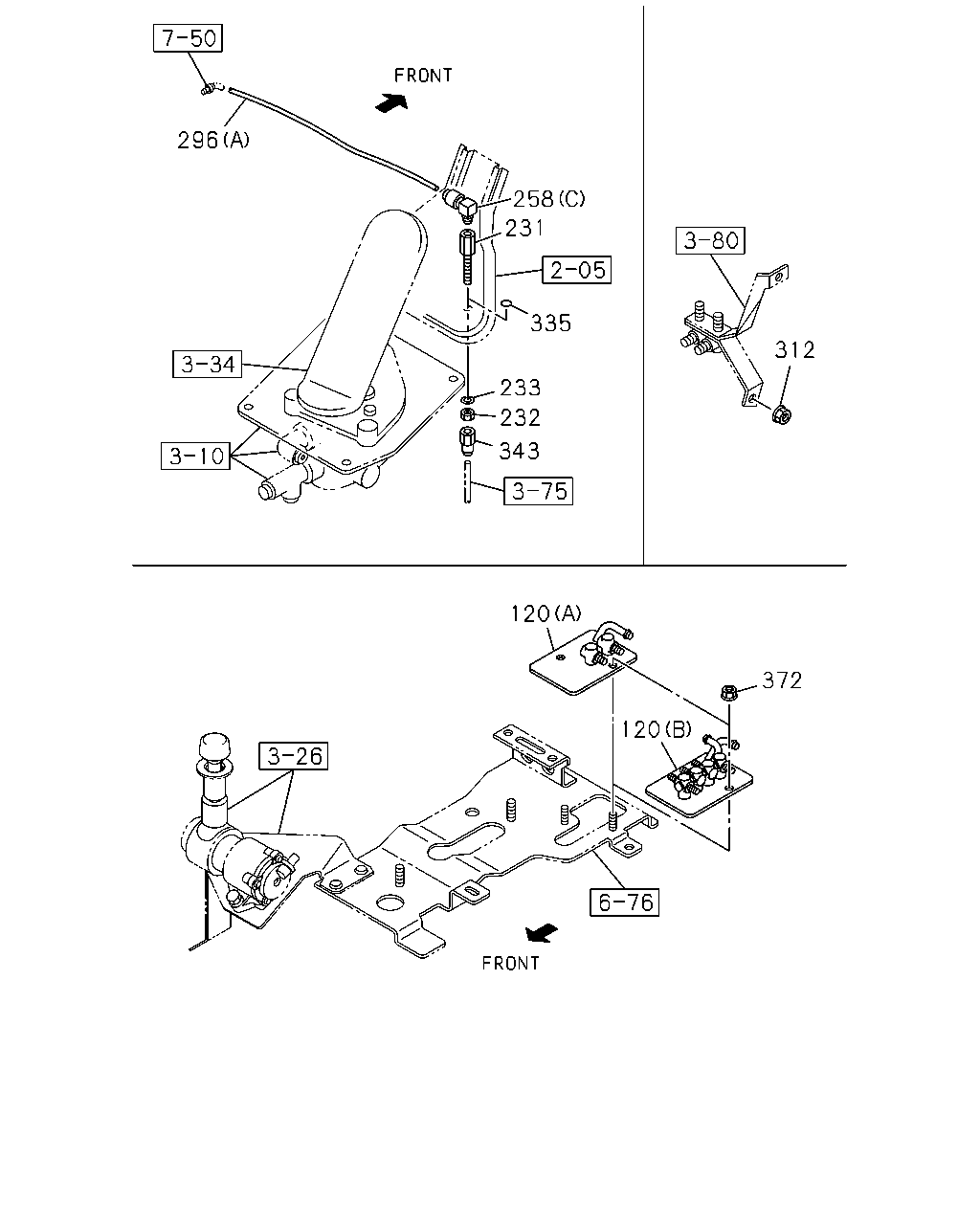

çizim 121729
296 258 231 335 233 343 232 312 120 372 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) 		1-47470-604-0 01 1 1303-1304
120 CONNECTOR; AIR PIPE
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) 		1-47470-604-0 01 1 1305-
120 CONNECTOR; AIR PIPE
(A) 		1-47470-547-0 01 1 1009-1302
120 CONNECTOR; AIR PIPE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) 		1-47470-547-0 01 1 1303-1304
120 CONNECTOR; AIR PIPE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) 		1-47470-547-0 01 1 1305-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1009-1302
231 UNION; AIR PIPE
EXC. BRAKE SYSTEM HSA<SLD> PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1303-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 1009-1302
232 NUT; UNION,AIR PIPE
EXC. BRAKE SYSTEM HSA<SLD> M10 H=8 		1-09400-029-0 01 1 1303-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 1009-1302
233 WASHER; LK,UNION,AIR PIPE
EXC. BRAKE SYSTEM HSA<SLD> ID=10.2 		0-91510-510-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (G) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1303-1411
258 CONNECTOR; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1412-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD> (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
HONG KONG EQUIPMENT(PQ1) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1303-1411
258 CONNECTOR; NYLON TUBE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1412-
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD> (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
312 NUT; UNION
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 		0-91110-508-0 01 1 1303-1304
312 NUT; UNION
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 		0-91110-508-0 01 1 1305-
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 1009-1302
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1009-1302
343 UNION; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1303-
343 UNION; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A), SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD> DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1303-
343 UNION; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 1303-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
372 NUT
NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 02 1 1303-1304
372 NUT
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 02 1 1303-1304
372 NUT
BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 02 1 1305-
372 NUT
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M8 FLANGE 		0-91180-108-0 02 1 1305-

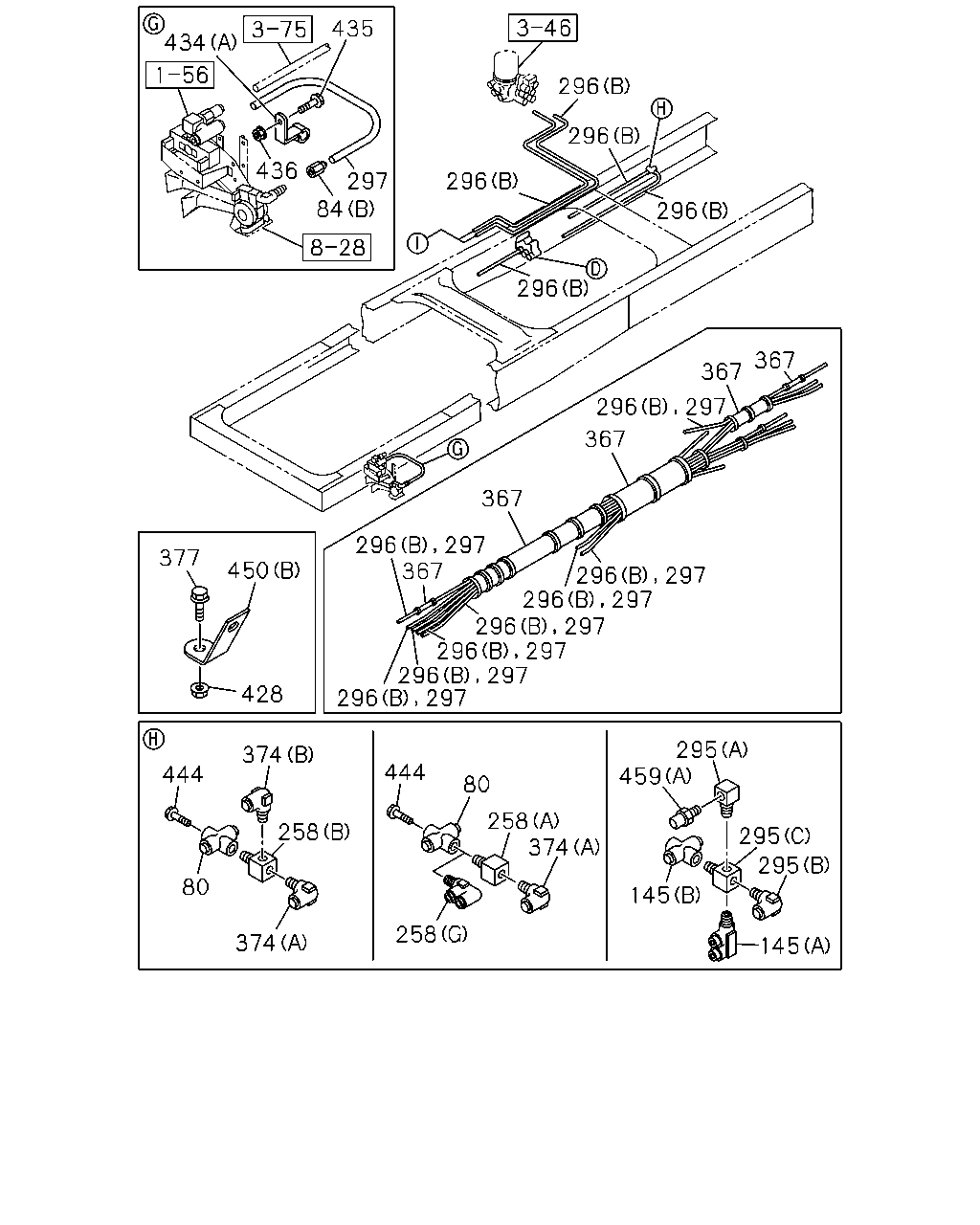

çizim 188420
434 435 297 84 436 296 296 296 296 296 367 367 296 297 367 367 297 296 367 296 297 297 296 297 297 297 297 296 296 296 296 374 444 80 258 374 459 295 295 295 145 145 258 258 80 374 444 450 428 377
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
MJT7S M/T(Y3E) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1009-1302
80 UNION; 3 WAY
HONG KONG EQUIPMENT(PQ1) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1303-1411
80 UNION; 3 WAY
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1412-
80 UNION; 3 WAY
MJT7S M/T(Y3E) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1009-1302
80 UNION; 3 WAY
EXC. NEW ZEALAND EQUIPMENT(PK5) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1303-
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 1009-1302
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302
145 UNION; NYLON TUBE
SMOOTHER-G(C1W) (A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1009-1302
145 UNION; NYLON TUBE
SMOOTHER-G(C1W) (B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (G) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1303-1411
258 CONNECTOR; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1412-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD> (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
HONG KONG EQUIPMENT(PQ1) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1303-1411
258 CONNECTOR; NYLON TUBE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1412-
295 CONNECTOR; NYLON TUBE
SMOOTHER-G(C1W) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1009-1302
295 CONNECTOR; NYLON TUBE
SMOOTHER-G(C1W) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-1302
295 CONNECTOR; NYLON TUBE
SMOOTHER-G(C1W) (C) PT3/8 4WAY 		1-09661-489-0 01 1 1009-1302
296 TUBE; NYLON
(C) 		8-98241-072-0 01 1 1303-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1009-1302
296 TUBE; NYLON
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD> (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (A) L=1200 OD=6 		1-09366-256-1 01 1 1303-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
296 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009-
297 TUBE; NYLON
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1412-
297 TUBE; NYLON
MJT7S M/T(Y3E) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1412-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1009-
374 CONNECTOR
MJT7S M/T(Y3E) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1009-1302
374 CONNECTOR
HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1303-1411
374 CONNECTOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1412-
374 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1009-1302
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1302
377 BOLT; BRKT FIX
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE 		0-28650-830-0 02 1 1303-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
377 BOLT; BRKT FIX
NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE 		0-28650-830-0 01 1 1303-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1303-
428 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 01 1 1303-
434 CLIP
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1009-1302
434 CLIP
EXC. HONG KONG EQUIPMENT(PQ1) (B) L=350 		1-09707-183-0 01 1 1303-1411
434 CLIP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=350 		1-09707-183-0 01 1 1412-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1303-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
436 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1303-1411
436 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 01 1 1412-
444 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE 		0-28650-830-0 01 1 1303-1411
444 BOLT; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X30 FLANGE 		0-28650-830-0 01 1 1412-
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
444 BOLT; UNION
HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE 		0-28650-820-0 01 1 1303-1411
444 BOLT; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X20 FLANGE 		0-28650-820-0 01 1 1412-
450 BRACKET; CLIP
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-47477-571-3 01 1 1303-
450 BRACKET; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-46147-101-0 01 1 1303-1411
450 BRACKET; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 		1-46147-101-0 01 1 1412-
450 BRACKET; CLIP
(A) 		1-82698-358-0 01 1 1009-1302
450 BRACKET; CLIP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 		1-82698-358-0 01 1 1303-1411
450 BRACKET; CLIP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) 		1-82698-358-0 01 1 1412-
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 1009-1302
459 SWITCH; PRESS
(A) STAMP 5.5 		8-97609-249-0 01 1 1009-1302
459 SWITCH; PRESS
SMOOTHER-G(C1W) (A) STAMP 6.5 		8-97609-252-0 01 1 1009-1302

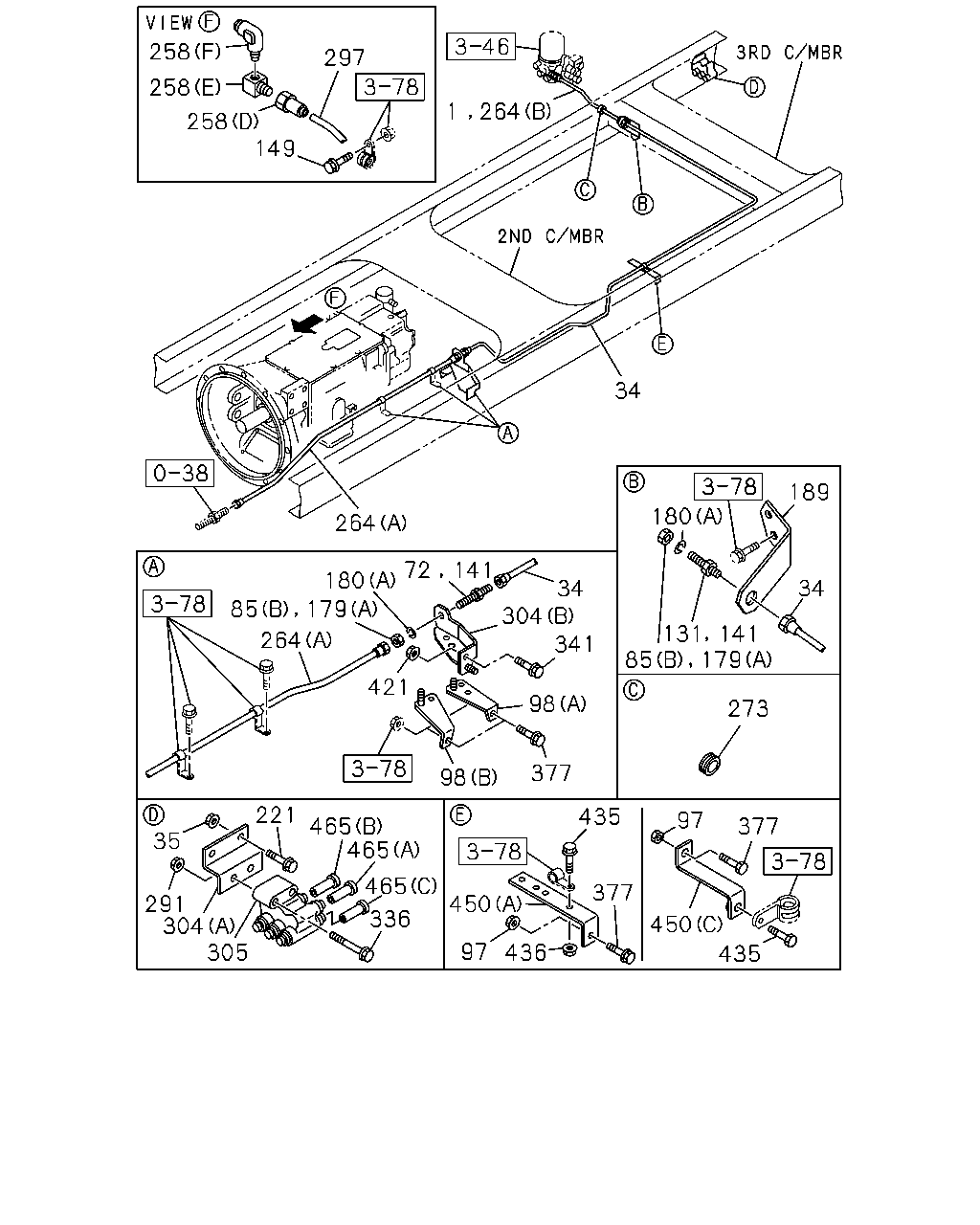

çizim 188426
297 258 149 258 258 1 264 264 180 189 131 141 85 179 34 273 97 377 435 450 305 304 291 221 35 465 465 465 336 97 436 377 435 450 85 264 180 141 304 98 98 377 341 421 72 34 34 179
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=880 		1-09363-920-0 01 1 1009-1302
34 PIPE; AIR
NEW ZEALAND EQUIPMENT(PK5) L=1178 		8-98235-049-0 01 1 1303-
34 PIPE; AIR
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=1237 		8-98207-961-0 01 1 1303-1411
34 PIPE; AIR
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1237 		8-98207-961-0 01 1 1412-
34 PIPE; AIR
L=1217 		8-98043-255-0 01 1 1009-1302
34 PIPE; AIR
HONG KONG EQUIPMENT(PQ1) L=1217 		8-98043-255-0 01 1 1303-1411
34 PIPE; AIR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1217 		8-98043-255-0 01 1 1412-
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
72 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1009-1302
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1303-
85 NUT; UNION
(B) M22 		0-91111-522-0 01 1 1303-
85 NUT; UNION
(A) M18 		0-91110-518-0 01 1 1009-1302
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 1009-1302
98 BRACKET; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-47471-283-0 01 1 1303-
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1009-1302
98 BRACKET; AIR PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) 		1-47479-723-0 01 1 1303-
131 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1009-1302
141 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1303-
141 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1303-
149 BOLT; TUBE CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) M8X25 FLANGE 		0-28650-825-0 01 1 1303-
149 BOLT; TUBE CLIP
MJT7 M/T<Y9E> M8X50 FLANGE 		0-28050-850-0 01 1 1009-1302
149 BOLT; TUBE CLIP
MJT7S M/T(Y3E) M8X50 FLANGE 		0-28050-850-0 01 1 1303-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 1009-1302
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1009-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1009-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 1009-1302
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 01 1 1303-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 01 1 1303-
189 BRACKET; FLEX HOSE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		8-98144-753-0 01 1 1303-1411
189 BRACKET; FLEX HOSE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98144-753-0 01 1 1412-
189 BRACKET; FLEX HOSE 1-47479-905-0 01 1 1009-1302
189 BRACKET; FLEX HOSE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) 		1-47479-905-0 01 1 1303-1411
189 BRACKET; FLEX HOSE
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) 		1-47479-905-0 01 1 1412-
221 BOLT; BRKT
NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
221 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
221 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE 		0-28650-830-0 02 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (G) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1303-1411
258 CONNECTOR; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (G) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1412-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1303-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD> (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 1303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 1009-1302
258 CONNECTOR; NYLON TUBE
HONG KONG EQUIPMENT(PQ1) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1303-1411
258 CONNECTOR; NYLON TUBE
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) PT3/8 3WAY 		1-09661-300-0 01 1 1412-
264 HOSE; FLEX
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=980 		1-09363-872-0 01 1 1303-1411
264 HOSE; FLEX
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=980 		1-09363-872-0 01 1 1412-
264 HOSE; FLEX
TRANSMISSION-FULLER RTLO169 18(Y3S) (A) L=1050 		1-09363-789-0 01 1 1303-1303
264 HOSE; FLEX
NEW ZEALAND EQUIPMENT(PK5) (A) L=1050 		1-09363-789-0 01 1 1303-
264 HOSE; FLEX
(B) L=880 		1-09363-920-0 01 1 1303-
264 HOSE; FLEX
(A) L=1000 		1-09363-794-0 01 1 1009-1302
264 HOSE; FLEX
HONG KONG EQUIPMENT(PQ1) (A) L=1000 		1-09363-794-0 01 1 1303-1411
264 HOSE; FLEX
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) L=1000 		1-09363-794-0 01 1 1412-
273 GROMMET
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1303-1411
273 GROMMET
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1412-
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1009-1302
273 GROMMET
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1303-1411
273 GROMMET
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1412-
291 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1009-
297 TUBE; NYLON
MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1412-
297 TUBE; NYLON
MJT7S M/T(Y3E) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1412-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1009-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009-
304 BRACKET; UNION
HONG KONG EQUIPMENT(PQ1) (B) 		8-98171-684-0 01 1 1303-1411
304 BRACKET; UNION
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98171-684-0 01 1 1412-
304 BRACKET; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) 		8-98207-960-0 01 1 1303-1411
304 BRACKET; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) 		8-98207-960-0 01 1 1412-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 1009-
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 1009-1302
304 BRACKET; UNION
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-47471-276-0 01 1 1303-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1009-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 1009-1009
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1009-
341 BOLT; BRKT
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE 		0-28650-835-0 01 1 1303-
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1303-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1302
377 BOLT; BRKT FIX
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE 		0-28650-830-0 02 1 1303-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1302
377 BOLT; BRKT FIX
NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE 		0-28650-830-0 01 1 1303-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1303-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
421 NUT; BRKT
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1303-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1302
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1303-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-1302
436 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1303-1411
436 NUT; CLIP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) M8 FLANGE 		0-91180-108-0 01 1 1412-
450 BRACKET; CLIP
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-47477-571-3 01 1 1303-
450 BRACKET; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) 		1-46147-101-0 01 1 1303-1411
450 BRACKET; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) 		1-46147-101-0 01 1 1412-
450 BRACKET; CLIP
(A) 		1-82698-358-0 01 1 1009-1302
450 BRACKET; CLIP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) 		1-82698-358-0 01 1 1303-1411
450 BRACKET; CLIP
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) 		1-82698-358-0 01 1 1412-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1009-1302
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1009-1302
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1303-
465 PLUG
NEW ZEALAND EQUIPMENT(PK5) (A) OD=6 L=27 		1-09661-615-0 01 1 1303-
465 PLUG
MJT7S M/T(Y3E) CAB SUSPENSION-FULL FLOATING(SMK) EXC. DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 1303-
465 PLUG
EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) OD=6 L=27 		1-09661-615-0 01 1 1303-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1009-1302
465 PLUG
EXC. BRAKE SYSTEM HSA<SLD> (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1009-1302
465 PLUG
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1303-
465 PLUG
NEW ZEALAND EQUIPMENT(PK5) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) OD=8 PLASTIC 		1-09661-616-0 01 1 1303-
465 PLUG
SMOOTHER-G(C1W) (C) OD=12 		1-09661-617-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
