Isuzu WW
▶
TRUCKS
▶
CYH
▶
11289 - CYH RHD EURO5
▶
3 - Brakes, Brake System
▶

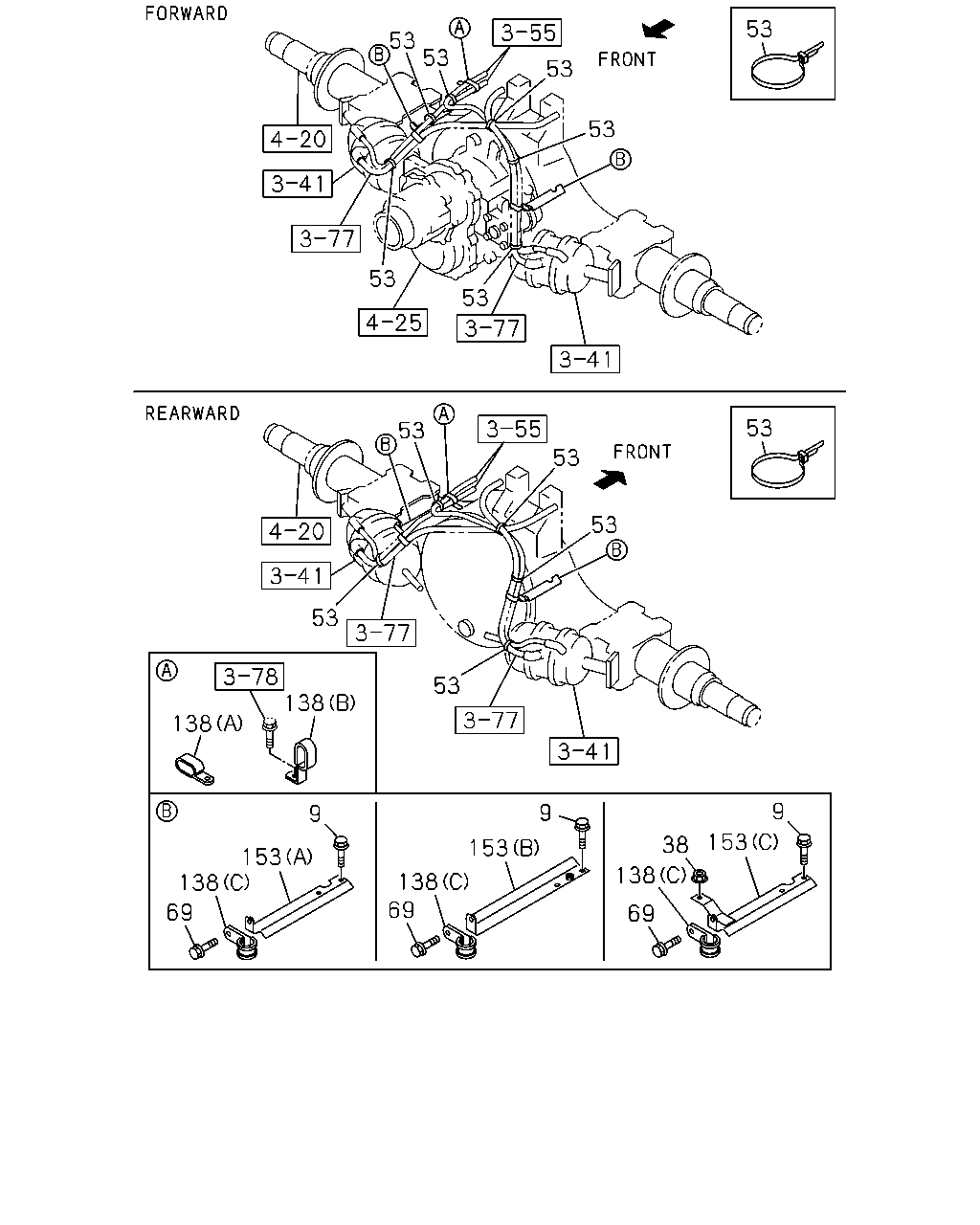

3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#69948) — 21 parça
53
53
53
53
53
53
53
53
53
53
53
53
53
138
138
153
138
69
69
153
138
9
138
69
38
9
153
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
08
1
1009-
38
NUT; CLIP FIX
NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE
0-91180-108-0
01
1
1303-
53
CLIP; UNION
EXC. NEW ZEALAND EQUIPMENT(PK5) L=250
1-09707-126-0
16
1
1303-
53
CLIP; UNION
L=250
1-09707-126-0
16
1
1009-1302
53
CLIP; UNION
NEW ZEALAND EQUIPMENT(PK5) L=250
1-09707-126-0
12
1
1303-
69
BOLT; CLIP
NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE
0-28050-820-0
05
1
1303-
69
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
1009-1302
69
BOLT; CLIP
EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE
0-28650-820-0
04
1
1303-
138
CLIP; TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) ID=35 L=33
1-09700-945-0
04
1
1303-
138
CLIP; TUBE
(A) ID=11X2 L=20
0-95325-035-0
01
1
1009-
138
CLIP; TUBE
(B) ID=11X2 H=35 L=20
1-09700-847-0
01
1
1009-
138
CLIP; TUBE
(C) ID=35 L=33
1-09700-945-0
04
1
1009-1302
138
CLIP; TUBE
NEW ZEALAND EQUIPMENT(PK5) (C) ID=35 L=33
1-09700-945-0
05
1
1303-
153
BRACKET; NYLON TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) FORWARD RH
1-42129-494-0
01
1
1304-
153
BRACKET; NYLON TUBE
NEW ZEALAND EQUIPMENT(PK5) (C) FORWARD LH
1-42129-500-0
01
1
1303-
153
BRACKET; NYLON TUBE
(B) FORWARD RH,REARWARD LH
1-42129-486-1
02
1
1009-1303
153
BRACKET; NYLON TUBE
(A) FORWARD LH,REARWARD RH
1-42129-487-1
02
1
1009-1302
153
BRACKET; NYLON TUBE
(A) REARWARD RH
1-42129-487-1
01
1
1303-
153
BRACKET; NYLON TUBE
EXC. NEW ZEALAND EQUIPMENT(PK5) (A) FORWARD LH
1-42129-487-1
01
1
1303-
153
BRACKET; NYLON TUBE
(B) REARWARD LH
1-42129-486-1
01
1
1304-
153
BRACKET; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) FORWARD RH
1-42129-486-1
01
1
1304-
