1 |

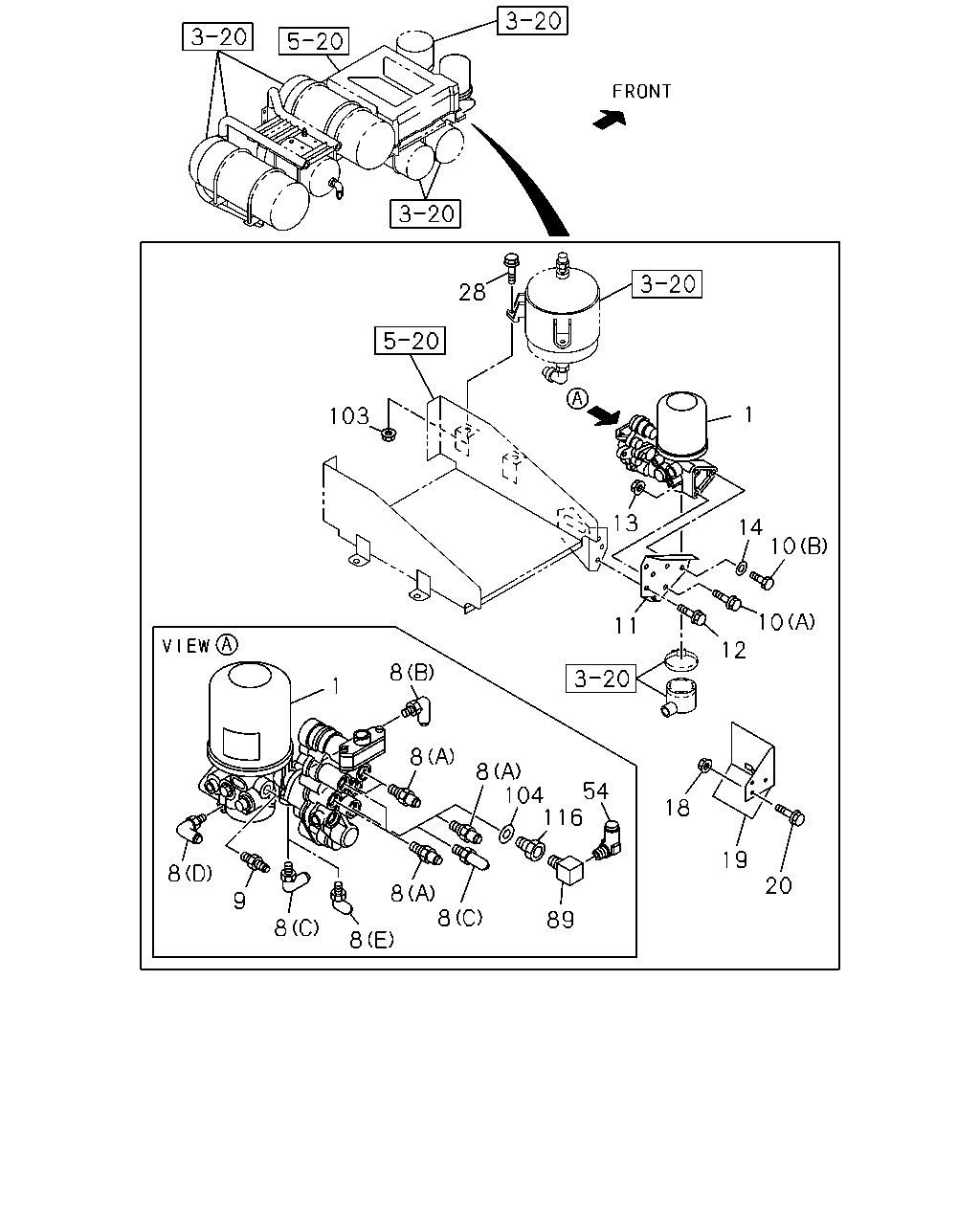

DRYER; AIR
|
1-48190-368-5 |
01 |
1 |
1009-1302 |
| |
1 |
DRYER; AIR
|
8-98180-492-1 |
01 |
1 |
1303- |
| |
8 |
CONNECTOR; OUT,AIR DRYER
EXC. NEW ZEALAND EQUIPMENT(PK5)
(A)
DIN12 & M22 STRAIGHT
|
1-09661-050-0 |
04 |
1 |
1303- |
| |
8 |
CONNECTOR; OUT,AIR DRYER
(A)
DIN12 & M22 STRAIGHT
|
1-09661-050-0 |
04 |
1 |
1009-1302 |
| |
8 |
CONNECTOR; OUT,AIR DRYER
NEW ZEALAND EQUIPMENT(PK5)
(A)
DIN12 & M22 STRAIGHT
|
1-09661-050-0 |
05 |
1 |
1303- |
| |
8 |
CONNECTOR; OUT,AIR DRYER
(E)
|
1-09661-499-0 |
01 |
1 |
1009-1302 |
| |
8 |
CONNECTOR; OUT,AIR DRYER
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1)
(E)
|
1-09661-499-0 |
01 |
1 |
1303-1411 |
| |
8 |
CONNECTOR; OUT,AIR DRYER
EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG
EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)
(E)
|
1-09661-499-0 |
01 |
1 |
1412- |
| |
8 |
CONNECTOR; OUT,AIR DRYER
(B)
DIN8 & M16 ELBOW
|
1-09661-520-0 |
01 |
1 |
1009- |
| |
8 |
CONNECTOR; OUT,AIR DRYER
(C)
DIN12 & M22 ELBOW
|
1-09661-521-0 |
01 |
1 |
1009- |
| |
8 |
CONNECTOR; OUT,AIR DRYER
(D)
DIN6 & M10 ELBOW
|
1-09661-574-0 |
01 |
1 |
1009- |
| |
9 |
CONNECTOR; PIPE,AIR DRYER
M22X2 STRAIGHT
|
8-98107-103-0 |
01 |
1 |
1009- |
| |
10 |
BOLT; AIR DRYER
(A)
M12X50 FLANGE
|
0-28051-250-0 |
01 |
1 |
1009- |
| |
10 |
BOLT; AIR DRYER
(B)
M12X25
|
1-09009-081-0 |
02 |
1 |
1009- |
| |
11 |
BRACKET; AIR DRYER
NEW ZEALAND EQUIPMENT(PK5)
|
1-48316-019-0 |
01 |
1 |
1303- |
| |
11 |
BRACKET; AIR DRYER
|
1-48316-058-1 |
01 |
1 |
1009-1302 |
| |
11 |
BRACKET; AIR DRYER
EXC. NEW ZEALAND EQUIPMENT(PK5)
|
1-48316-058-1 |
01 |
1 |
1303- |
| |
12 |
BOLT; BRKT
M12X30 FLANGE
|
0-28651-230-0 |
03 |
1 |
1009- |
| |
13 |
NUT; AIR DRYER
M12 FLANGE
|
0-91180-212-0 |
01 |
1 |
1009- |
| |
14 |
WASHER; PL,AIR DRYER
ID=12.5 OD=22
|
0-91610-512-0 |
02 |
1 |
1009- |
| |
18 |
NUT; PROTECTOR
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1009-1302 |
| |
18 |
NUT; PROTECTOR
EXC. NEW ZEALAND EQUIPMENT(PK5)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
1303- |
| |
19 |
PROTECTOR; HEAT,AIR DRYER
|
1-47471-234-1 |
01 |
1 |
1009-1302 |
| |
19 |
PROTECTOR; HEAT,AIR DRYER
EXC. NEW ZEALAND EQUIPMENT(PK5)
|
1-47471-234-1 |
01 |
1 |
1303- |
| |
20 |
BOLT; PROTECTOR
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1009-1302 |
| |
20 |
BOLT; PROTECTOR
EXC. NEW ZEALAND EQUIPMENT(PK5)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1303- |
| |
28 |
BOLT; PURGE TANK
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
1009- |
| |
54 |
CONNECTOR
HONG KONG EQUIPMENT(PQ1)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
1303-1411 |
| |
54 |
CONNECTOR
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
1412- |
| |
89 |
ADAPTER
HONG KONG EQUIPMENT(PQ1)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
1303-1411 |
| |
89 |
ADAPTER
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)
PT3/8 ELBOW
|
1-09660-696-0 |
01 |
1 |
1412- |
| |
103 |
NUT; PURGE TANK
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1009- |
| |
104 |
GASKET
HONG KONG EQUIPMENT(PQ1)
ID=22.5
|
9-09571-422-0 |
01 |
1 |
1303-1411 |
| |
104 |
GASKET
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)
ID=22.5
|
9-09571-422-0 |
01 |
1 |
1412- |
| |
116 |
CONNECTOR; STRAIGHT
HONG KONG EQUIPMENT(PQ1)
INNER PT3/8,OUTER M22
|
1-09650-494-1 |
01 |
1 |
1303-1411 |
| |
116 |
CONNECTOR; STRAIGHT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)
INNER PT3/8,OUTER M22
|
1-09650-494-1 |
01 |
1 |
1412- |
