3-41 — REAR BRAKE POWER CHAMBER (#69945) — 51 parça

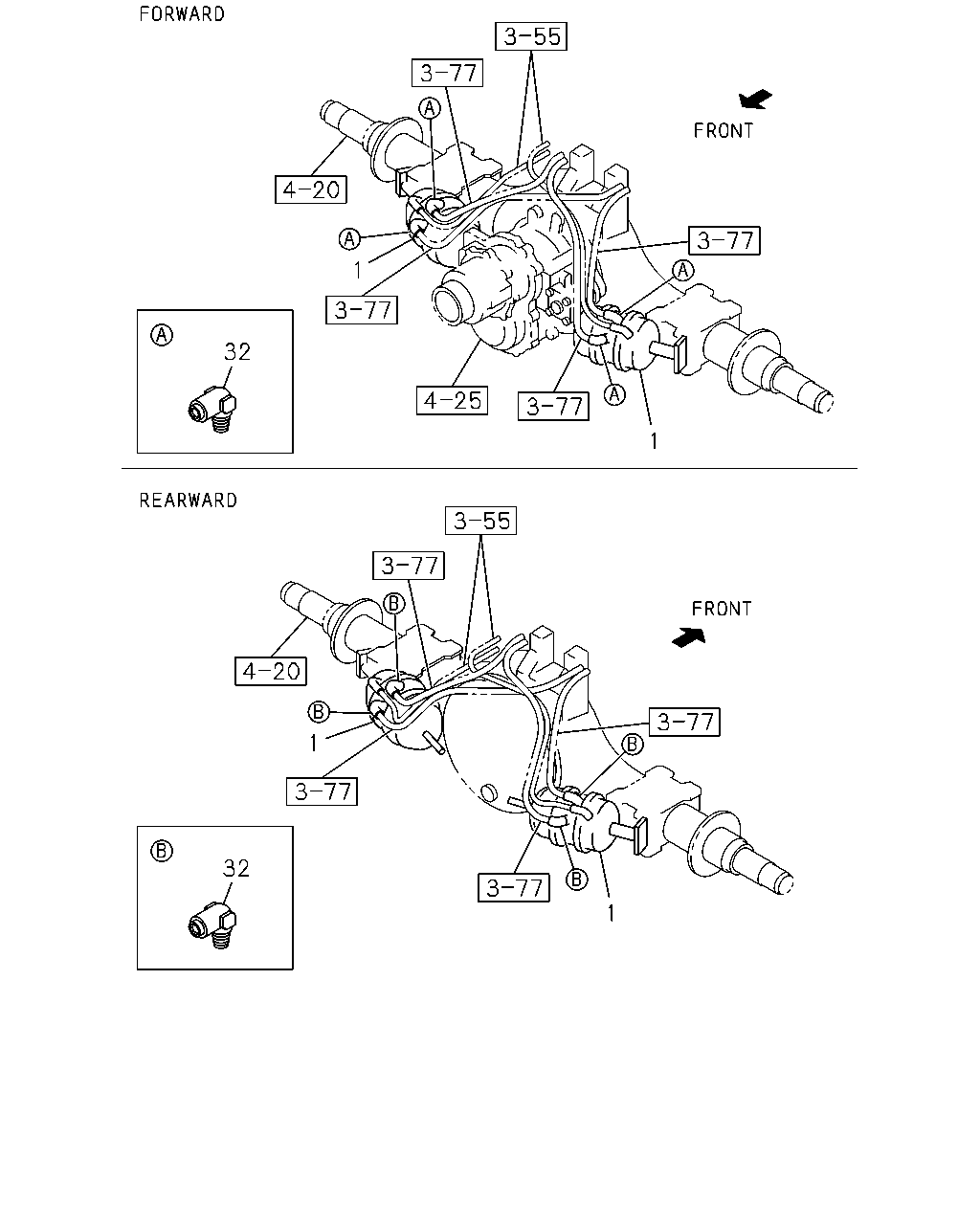

çizim 118437
1 32 1 32 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 02 1 1009-1302
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1303-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1303-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 02 1 1009-1302
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1303-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1303-
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW 		1-09660-959-0 08 1 1009-1302
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1303-
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1303-

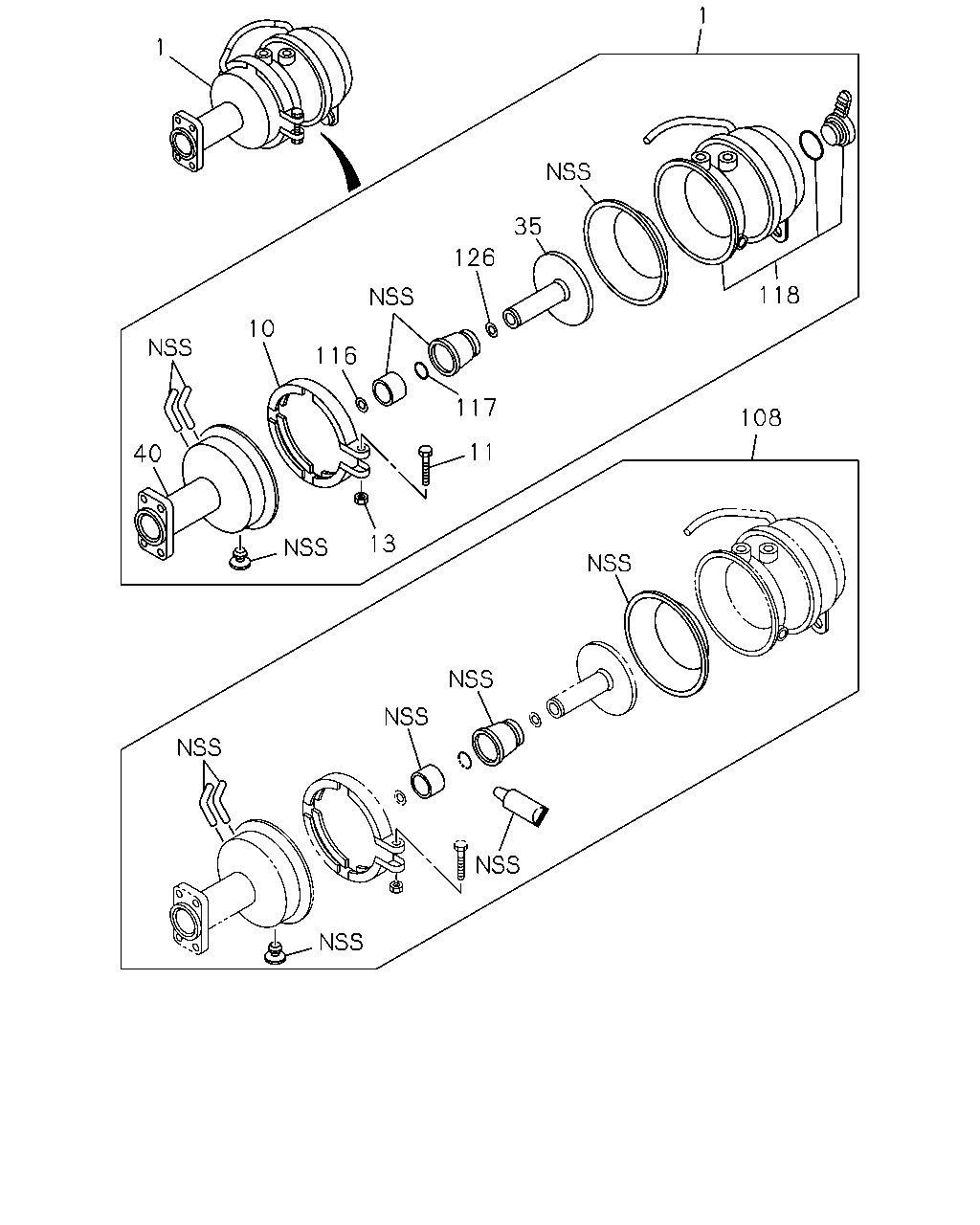

çizim 118472
1 1 118 35 126 117 116 10 40 11 13 108
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 02 1 1009-1302
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1303-
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1303-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 02 1 1009-1302
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1303-
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1303-
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 04 1 1009-1302
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1303-
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1303-
11 BOLT; CLAMP RING 1-48269-257-0 04 1 1009-1302
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1303-
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1303-
13 NUT; CLAMP RING 1-48269-147-0 04 1 1009-1302
13 NUT; CLAMP RING 1-48269-147-0 02 1 1303-
13 NUT; CLAMP RING 1-48269-147-0 02 1 1303-
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 04 1 1009-1302
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 02 1 1303-
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 02 1 1303-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-140-1 02 1 1009-1302
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-140-1 01 1 1303-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-140-1 01 1 1303-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-141-1 02 1 1009-1302
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-141-1 01 1 1303-
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-141-1 01 1 1303-
108 REPAIR KIT; SPR CHAMBER 8-98146-982-0 04 1 1009-1302
108 REPAIR KIT; SPR CHAMBER 8-98146-982-0 02 1 1303-
108 REPAIR KIT; SPR CHAMBER 8-98146-982-0 02 1 1303-
116 GUIDE; SPR CHAMBER 8-98146-963-0 04 1 1009-1302
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1303-
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1303-
117 RING; SPR CHAMBER 8-98146-966-0 04 1 1009-1302
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1303-
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1303-
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-113-0 02 1 1009-1302
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-113-0 01 1 1303-
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-113-0 01 1 1303-
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-114-0 02 1 1009-1302
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-114-0 01 1 1303-
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-114-0 01 1 1303-
126 SHIM 8-98146-965-0 AR 1 1009-1302
126 SHIM 8-98146-965-0 AR 1 1303-
126 SHIM 8-98146-965-0 AR 1 1303-
