Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#69942) — 392 parça

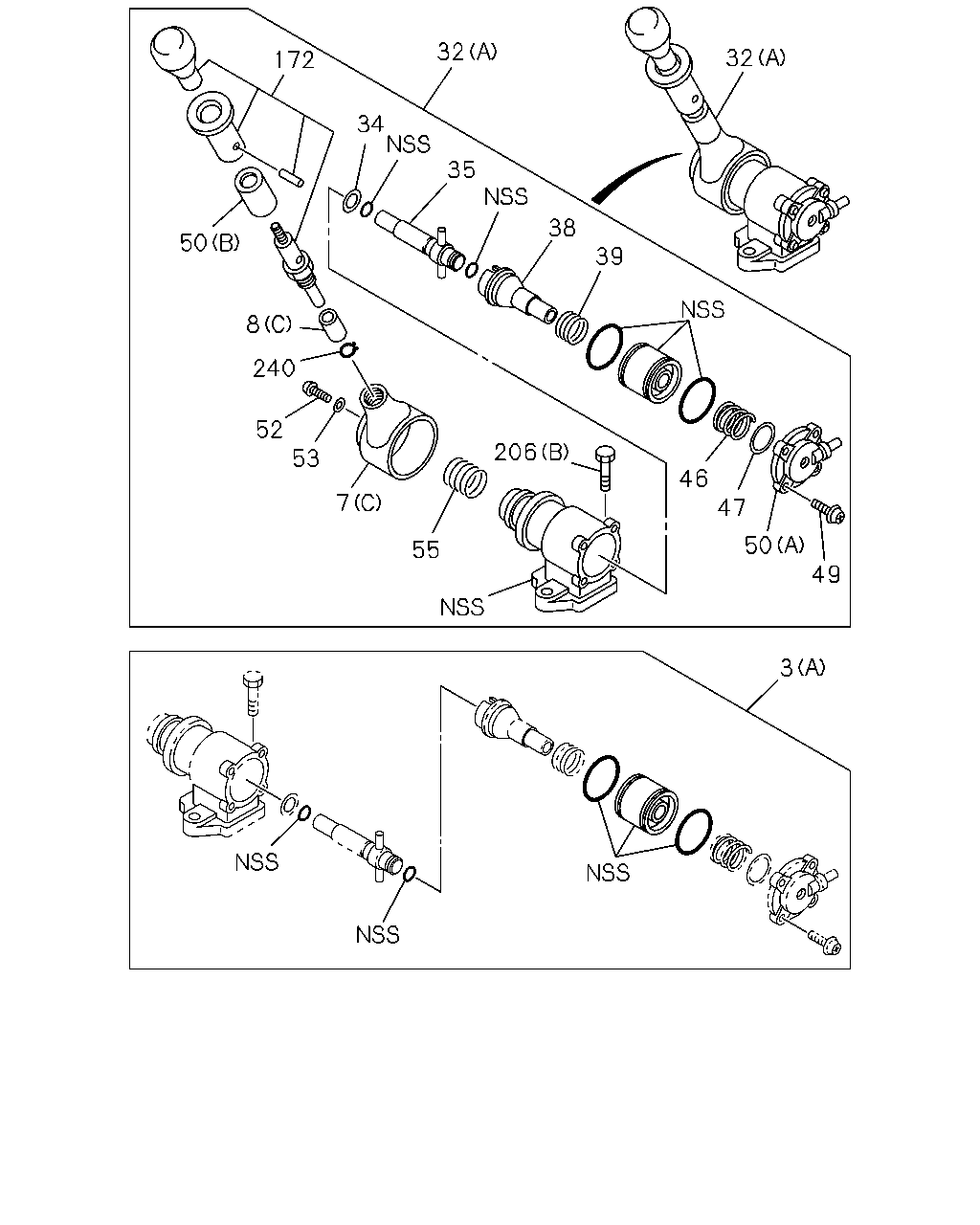

32 32 172 34 35 38 46 47 50 49 206 50 8 240 52 7 55 3 39 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-85576-376-0	01	1	1303-
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48469-083-0	01	1	1303-
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-375-0	01	1	1009-1302
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-375-0	01	1	1303-
7	HEAD; BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1303-
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-577-1	01	1	1303-
7	HEAD; BRK VLV (C)	1-48469-195-0	01	1	1009-1302
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1303-
8	STOPPER; BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1303-
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-327-0	01	1	1303-
8	STOPPER; BRK VLV (C)	1-48469-194-0	01	1	1009-1302
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1303-
32	VALVE; BRK,HAND CONT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1303-
32	VALVE; BRK,HAND CONT TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48460-316-0	01	1	1303-
32	VALVE; BRK,HAND CONT (A)	1-48460-340-1	01	1	1009-1302
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1303-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1009-
35	HOLDER; CAM MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-171-0	01	1	1303-
35	HOLDER; CAM TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-054-0	01	1	1303-
35	HOLDER; CAM	1-48469-148-0	01	1	1009-1302
35	HOLDER; CAM EXC. FULL TRAILER PIPING<Z25>	1-48469-148-0	01	1	1303-
38	SEAT; EXH VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-172-0	01	1	1303-
38	SEAT; EXH VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-057-0	01	1	1303-
38	SEAT; EXH VLV	1-48469-149-0	01	1	1009-1302
38	SEAT; EXH VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-149-0	01	1	1303-
39	SPRING; RETURN,CAM RING TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-063-0	01	1	1303-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1009-1302
39	SPRING; RETURN,CAM RING EXC. FULL TRAILER PIPING<Z25>	1-48469-150-0	01	1	1303-
39	SPRING; RETURN,CAM RING MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-150-0	01	1	1303-
46	SPRING; MAIN,PISTON MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-173-0	01	1	1303-
46	SPRING; MAIN,PISTON TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-119-0	01	1	1303-
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	1009-1302
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-152-0	01	1	1303-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1009-
49	SCREW; COVER TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-120-0	04	1	1303-
49	SCREW; COVER	1-48469-169-0	04	1	1009-1302
49	SCREW; COVER EXC. FULL TRAILER PIPING<Z25>	1-48469-169-0	04	1	1303-
49	SCREW; COVER MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-169-0	04	1	1303-
50	COVER; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48469-073-0	01	1	1303-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1009-1302
50	COVER; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-48469-153-0	01	1	1303-
50	COVER; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (A)	1-48469-153-0	01	1	1303-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1009-1302
50	COVER; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (B)	1-48469-196-0	01	1	1303-
50	COVER; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-196-0	01	1	1303-
52	SCREW; HANDLE	1-48469-062-0	01	1	1009-
53	WASHER; HANDLE	1-48469-061-0	01	1	1009-
55	SPRING; RETURN,HANDLE TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-059-0	01	1	1303-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1009-1302
55	SPRING; RETURN,HANDLE EXC. FULL TRAILER PIPING<Z25>	1-48469-155-0	01	1	1303-
55	SPRING; RETURN,HANDLE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-155-0	01	1	1303-
172	KNOB; VALVE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-203-0	01	1	1303-
172	KNOB; VALVE	1-48469-204-0	01	1	1009-1302
172	KNOB; VALVE EXC. FULL TRAILER PIPING<Z25>	1-48469-204-0	01	1	1303-
206	BOLT; HAND BRK VALVE FULL TRAILER PIPING<Z25> (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1303-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1009-1302
206	BOLT; HAND BRK VALVE EXC. FULL TRAILER PIPING<Z25> (B)	1-48469-160-0	01	1	1303-
206	BOLT; HAND BRK VALVE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-160-0	01	1	1303-
240	RING; STOPPER MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-199-0	01	1	1303-
240	RING; STOPPER	1-48469-193-0	01	1	1009-1302
240	RING; STOPPER EXC. FULL TRAILER PIPING<Z25>	1-48469-193-0	01	1	1303-

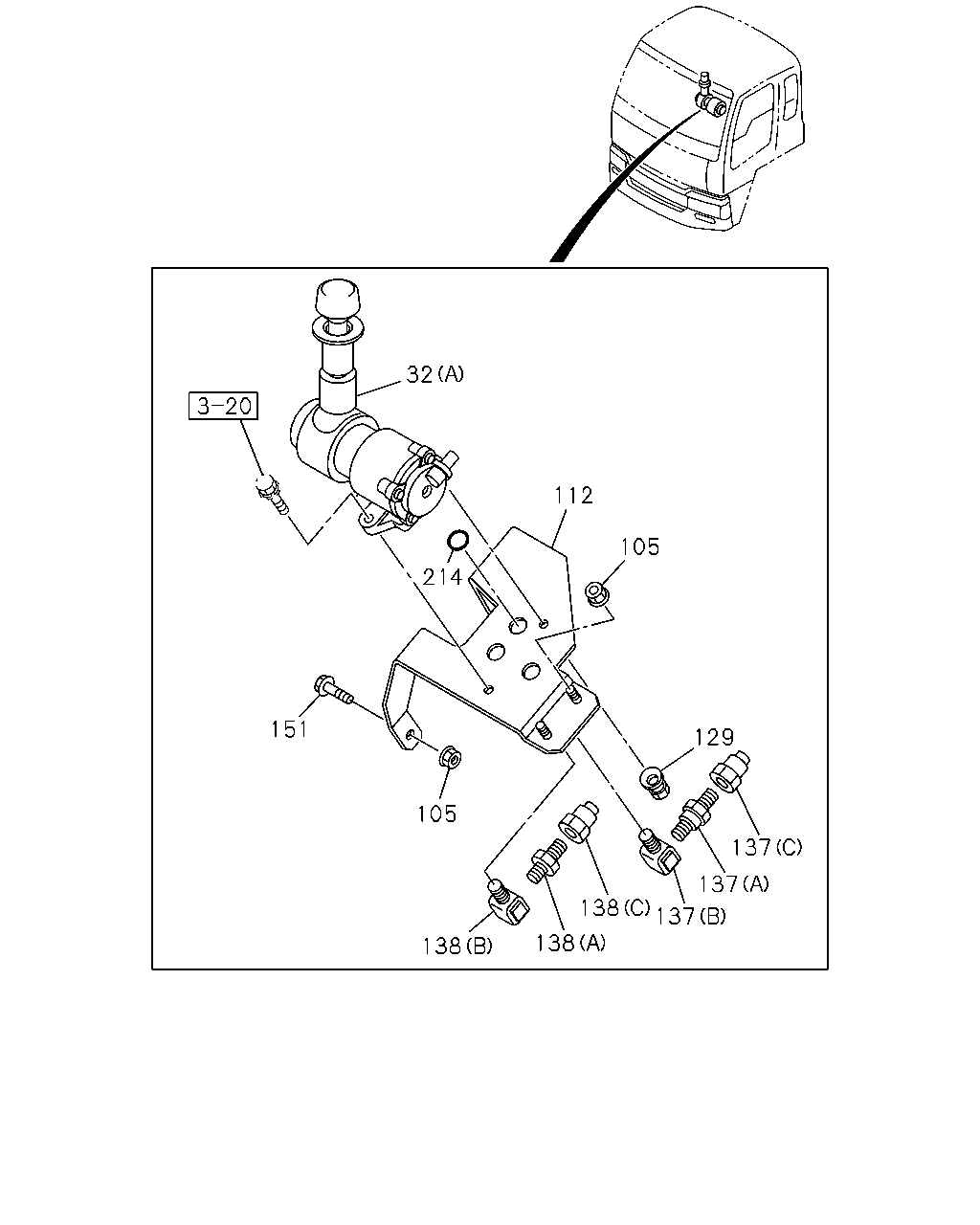

112 105 214 151 105 129 137 137 138 137 138 138 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1303-
32	VALVE; BRK,HAND CONT TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48460-316-0	01	1	1303-
32	VALVE; BRK,HAND CONT (A)	1-48460-340-1	01	1	1009-1302
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1303-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1302
105	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-1304
105	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-1304
105	NUT; BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-1304
105	NUT; BRKT BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1305-
105	NUT; BRKT BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1305-
105	NUT; BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1305-
112	BRACKET; CONT VLV TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25>	1-79996-336-1	01	1	1303-1304
112	BRACKET; CONT VLV TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25>	1-79996-336-1	01	1	1305-
112	BRACKET; CONT VLV	1-79996-387-0	01	1	1009-1302
112	BRACKET; CONT VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1303-1304
112	BRACKET; CONT VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1303-1304
112	BRACKET; CONT VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1305-
112	BRACKET; CONT VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1305-
129	NUT; VLV NEW ZEALAND EQUIPMENT(PK5) FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	03	1	1303-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1009-
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1303-1304
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1305-
137	CONNECTOR; SUPPLY TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1303-1304
137	CONNECTOR; SUPPLY TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1305-
137	CONNECTOR; SUPPLY (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1009-1302
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1303-1304
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1303-1304
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1305-
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1305-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	1009-1302
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1303-1304
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1303-1304
137	CONNECTOR; SUPPLY BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1305-
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1305-
137	CONNECTOR; SUPPLY (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-1302
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1303-1304
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1305-
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1303-1304
138	CONNECTOR; DELIVERY BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1305-
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1303-1304
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1305-
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (F) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1303-1304
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (F) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1305-
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1303-1304
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1305-
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1009-1302
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1303-1304
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1305-
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	1009-1302
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1303-1304
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1303-1304
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1305-
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1305-
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1009-1302
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1303-1304
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1303-1304
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1305-
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1305-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1009-1302
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-1304
151	BOLT; VLV BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-1304
151	BOLT; VLV BRKT BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1305-
151	BOLT; VLV BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1305-
214	SEAL; COVER,HAND BRK MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	02	1	1303-1304
214	SEAL; COVER,HAND BRK MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	02	1	1305-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	02	1	1009-1302
214	SEAL; COVER,HAND BRK NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	01	1	1303-1304
214	SEAL; COVER,HAND BRK BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	01	1	1305-

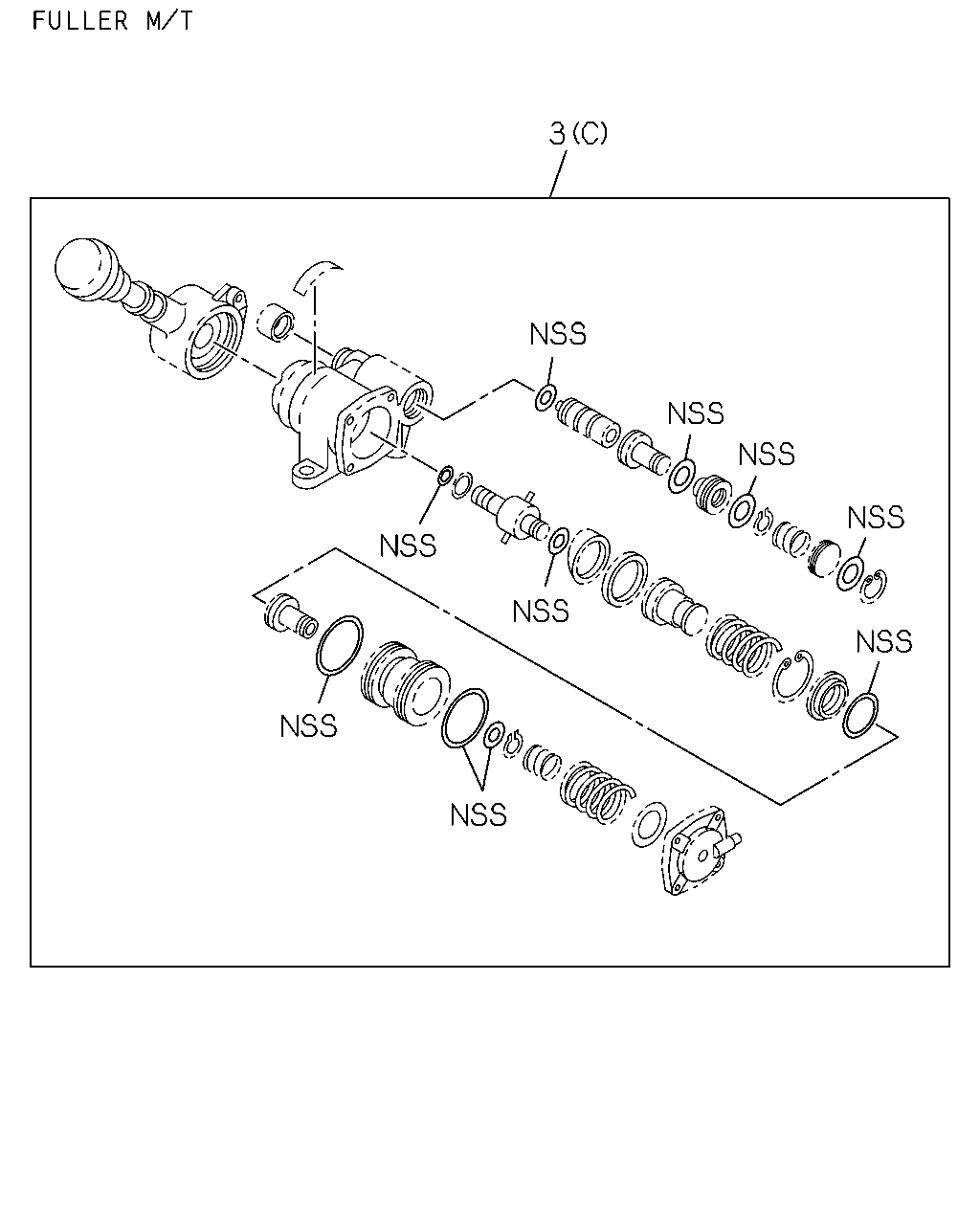

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-85576-376-0	01	1	1303-
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48469-083-0	01	1	1303-
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-375-0	01	1	1009-1302
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-375-0	01	1	1303-

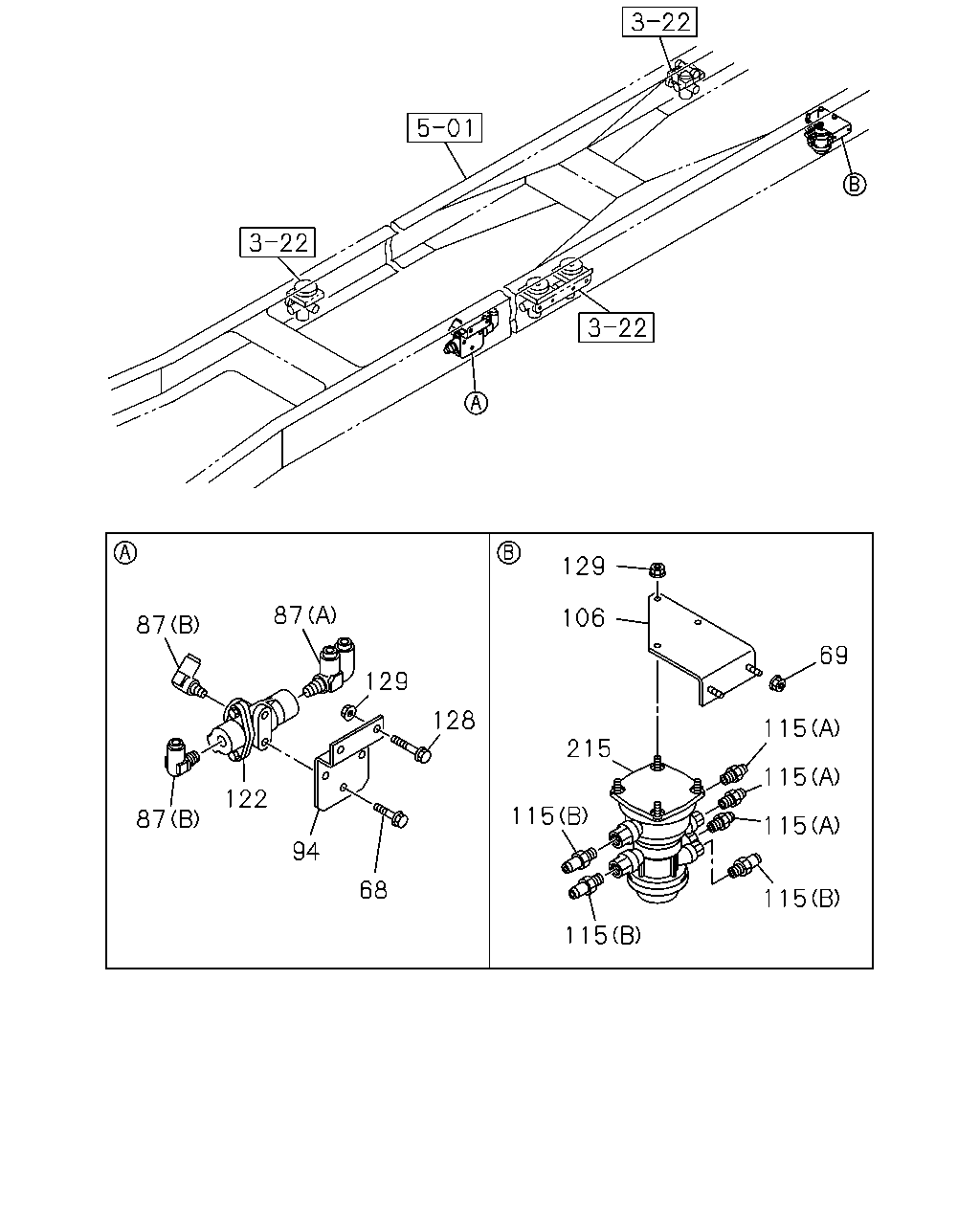

69 115 115 115 115 115 115 215 106 129 128 129 87 68 94 122 87 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	BOLT; DOUBLE CHECK VLV FULL TRAILER PIPING<Z25> M8X14 FLANGE	0-28080-814-0	02	1	1303-
69	NUT; VLV BRKT FULL TRAILER PIPING<Z25> M10 FLANGE	0-91180-210-0	02	1	1303-
87	CONNECTOR; DBL CHECK VLV FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1303-
87	CONNECTOR; DBL CHECK VLV FULL TRAILER PIPING<Z25> (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1303-
94	BRACKET; CHECK VLV FULL TRAILER PIPING<Z25>	1-47479-367-0	01	1	1303-
106	BRACKET; VLV FULL TRAILER PIPING<Z25>	8-98110-679-1	01	1	1303-
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	1303-
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	1303-
122	VALVE ASM; DOUBLE CHECK FULL TRAILER PIPING<Z25>	1-48410-531-1	01	1	1303-
128	BOLT; VLV NEW ZEALAND EQUIPMENT(PK5) FULL TRAILER PIPING<Z25> M8X25 FLANGE	0-28650-825-0	02	1	1303-
129	NUT; VLV NEW ZEALAND EQUIPMENT(PK5) FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	03	1	1303-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1009-
215	VALVE; TRAILER CONT FULL TRAILER PIPING<Z25>	8-98091-694-0	01	1	1303-

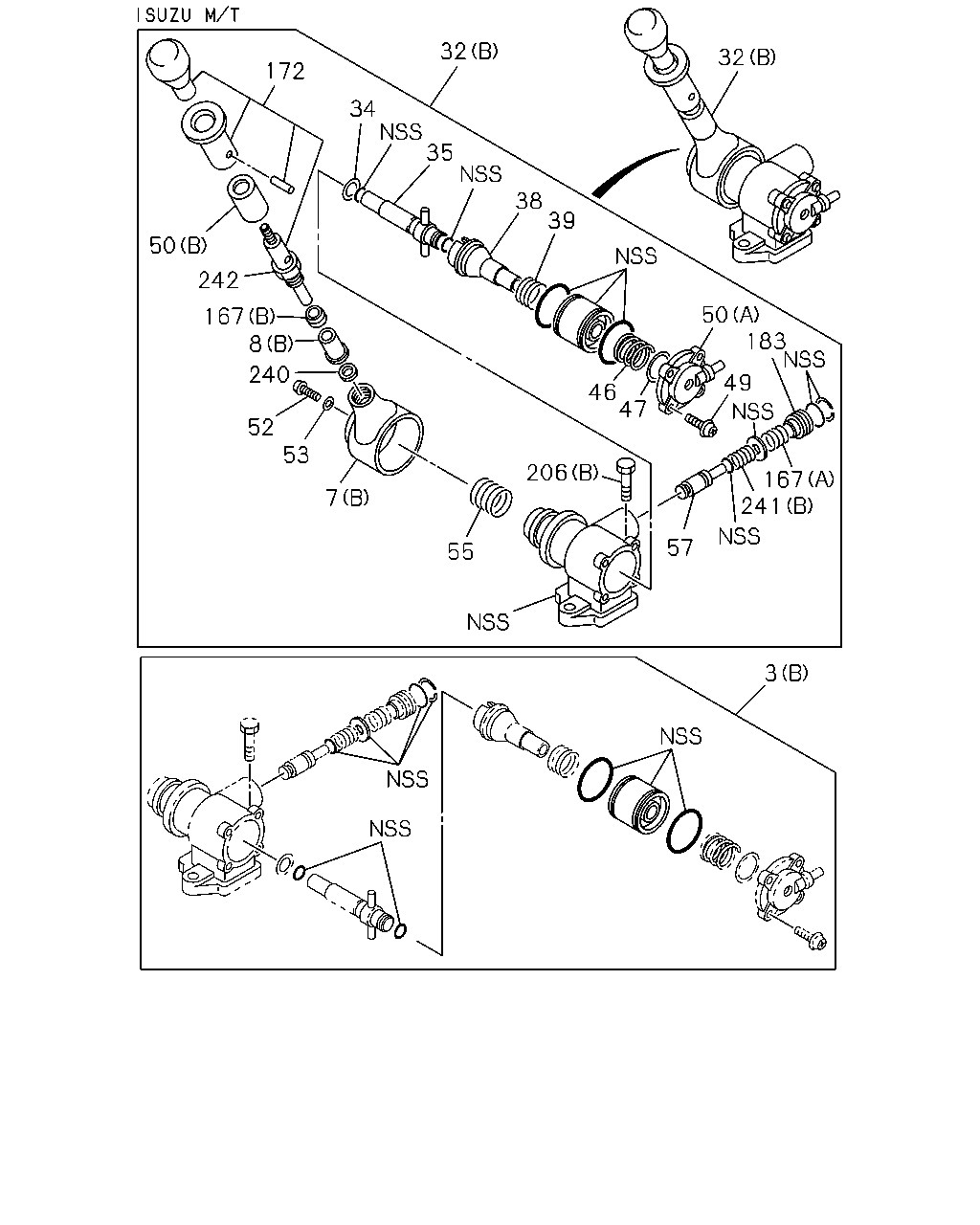

32 32 183 49 50 47 46 39 38 35 34 172 50 167 240 52 7 53 8 242 55 206 57 241 167 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-85576-376-0	01	1	1303-
3	REPAIR KIT; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48469-083-0	01	1	1303-
3	REPAIR KIT; HAND BRK VLV (A)	1-85576-375-0	01	1	1009-1302
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-85576-375-0	01	1	1303-
7	HEAD; BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1303-
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-577-1	01	1	1303-
7	HEAD; BRK VLV (C)	1-48469-195-0	01	1	1009-1302
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1303-
8	STOPPER; BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1303-
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-327-0	01	1	1303-
8	STOPPER; BRK VLV (C)	1-48469-194-0	01	1	1009-1302
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1303-
32	VALVE; BRK,HAND CONT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1303-
32	VALVE; BRK,HAND CONT TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48460-316-0	01	1	1303-

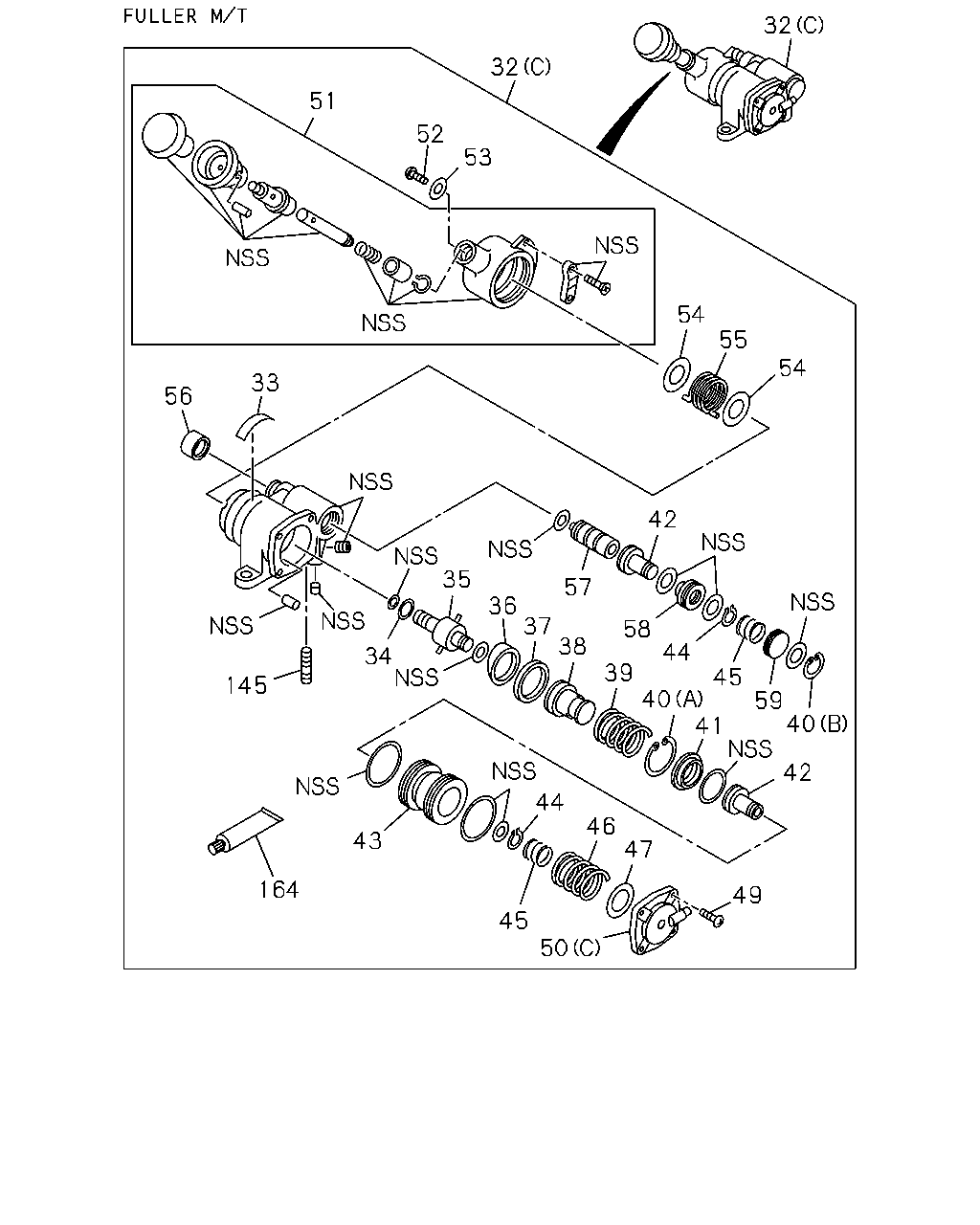

32	VALVE; BRK,HAND CONT (A)	1-48460-340-1	01	1	1009-1302
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1303-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1009-
35	HOLDER; CAM MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-171-0	01	1	1303-
35	HOLDER; CAM TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-054-0	01	1	1303-
35	HOLDER; CAM	1-48469-148-0	01	1	1009-1302
35	HOLDER; CAM EXC. FULL TRAILER PIPING<Z25>	1-48469-148-0	01	1	1303-
38	SEAT; EXH VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-172-0	01	1	1303-
38	SEAT; EXH VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-057-0	01	1	1303-
38	SEAT; EXH VLV	1-48469-149-0	01	1	1009-1302
38	SEAT; EXH VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-149-0	01	1	1303-
39	SPRING; RETURN,CAM RING TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-063-0	01	1	1303-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1009-1302
39	SPRING; RETURN,CAM RING EXC. FULL TRAILER PIPING<Z25>	1-48469-150-0	01	1	1303-
39	SPRING; RETURN,CAM RING MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-150-0	01	1	1303-
46	SPRING; MAIN,PISTON MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-173-0	01	1	1303-
46	SPRING; MAIN,PISTON TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-119-0	01	1	1303-
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	1009-1302
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-152-0	01	1	1303-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1009-
49	SCREW; COVER TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-120-0	04	1	1303-
49	SCREW; COVER	1-48469-169-0	04	1	1009-1302
49	SCREW; COVER EXC. FULL TRAILER PIPING<Z25>	1-48469-169-0	04	1	1303-
49	SCREW; COVER MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-169-0	04	1	1303-
50	COVER; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48469-073-0	01	1	1303-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1009-1302
50	COVER; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-48469-153-0	01	1	1303-
50	COVER; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (A)	1-48469-153-0	01	1	1303-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1009-1302
50	COVER; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (B)	1-48469-196-0	01	1	1303-
50	COVER; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-196-0	01	1	1303-
52	SCREW; HANDLE	1-48469-062-0	01	1	1009-
53	WASHER; HANDLE	1-48469-061-0	01	1	1009-
55	SPRING; RETURN,HANDLE TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-059-0	01	1	1303-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1009-1302
55	SPRING; RETURN,HANDLE EXC. FULL TRAILER PIPING<Z25>	1-48469-155-0	01	1	1303-
55	SPRING; RETURN,HANDLE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-155-0	01	1	1303-
57	PLUNGER; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-180-0	01	1	1303-
57	PLUNGER; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-076-0	01	1	1303-
167	SPRING; VALVE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (A)	1-48469-177-0	01	1	1303-
167	SPRING; VALVE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-184-0	01	1	1303-
172	KNOB; VALVE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-203-0	01	1	1303-
172	KNOB; VALVE	1-48469-204-0	01	1	1009-1302
172	KNOB; VALVE EXC. FULL TRAILER PIPING<Z25>	1-48469-204-0	01	1	1303-
183	RETAINER; VALVE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-185-0	01	1	1303-
206	BOLT; HAND BRK VALVE FULL TRAILER PIPING<Z25> (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1303-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1009-1302
206	BOLT; HAND BRK VALVE EXC. FULL TRAILER PIPING<Z25> (B)	1-48469-160-0	01	1	1303-
206	BOLT; HAND BRK VALVE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-160-0	01	1	1303-
240	RING; STOPPER MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-199-0	01	1	1303-
240	RING; STOPPER	1-48469-193-0	01	1	1009-1302
240	RING; STOPPER EXC. FULL TRAILER PIPING<Z25>	1-48469-193-0	01	1	1303-
241	SPRING; RETURN MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-182-0	01	1	1303-
241	SPRING; RETURN FULL TRAILER PIPING<Z25> (A)	1-48119-576-0	01	1	1303-
242	NUT; LK MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-179-0	01	1	1303-

1 31 31 31 31 105 29 206 214 105 32 32 138 138 138 138 138 151 112 138 137 137 137 129

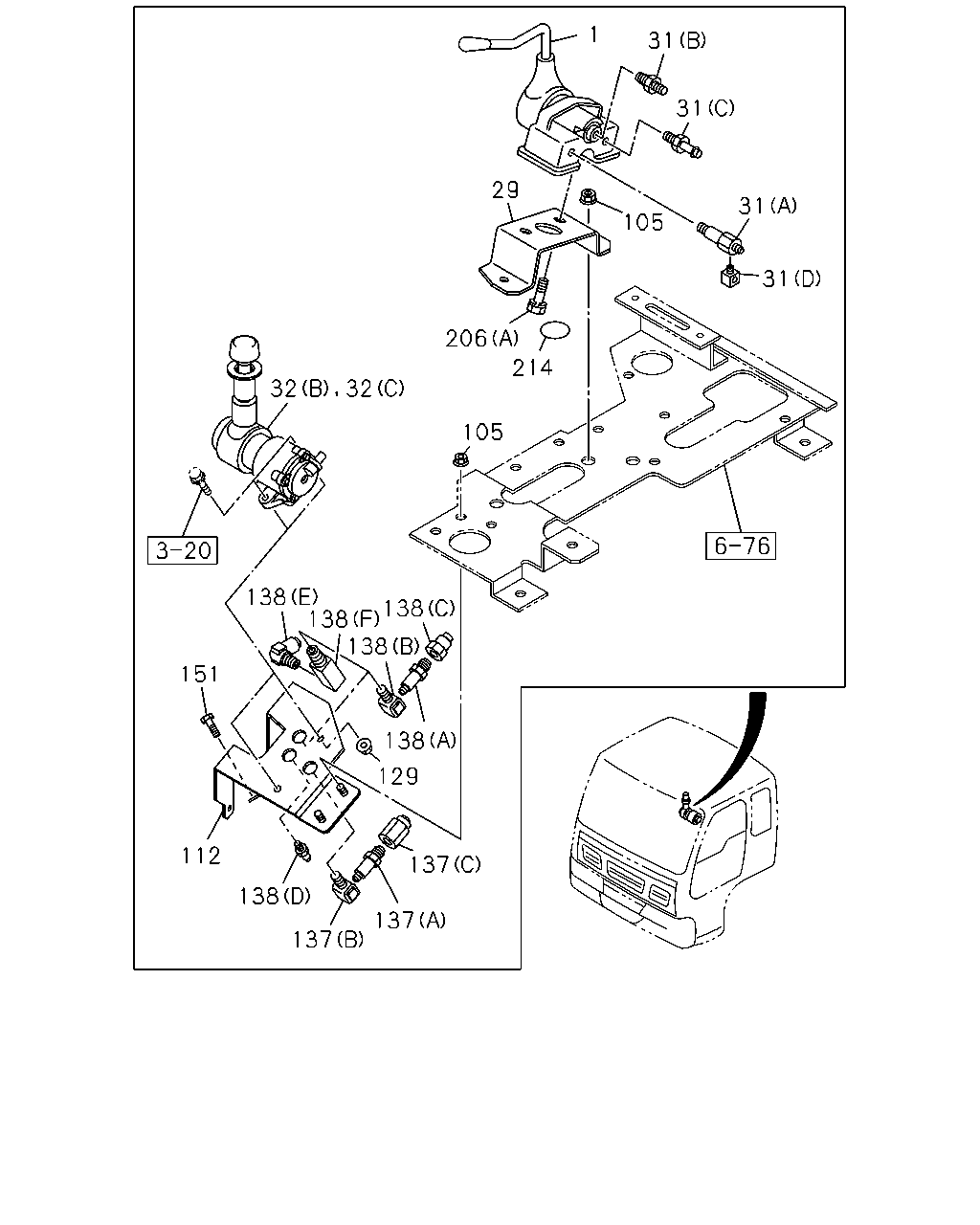

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK FULL TRAILER PIPING<Z25>	1-48100-859-0	01	1	1303-
29	BRACKET; HAND BRK NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25>	1-79997-357-1	01	1	1303-1304
29	BRACKET; HAND BRK BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25>	1-79997-357-1	01	1	1305-
31	CONNECTOR; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1303-1304
31	CONNECTOR; HAND BRK VLV BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1305-
31	CONNECTOR; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1303-1304
31	CONNECTOR; HAND BRK VLV BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1305-
31	CONNECTOR; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) PT1/4 2WAY	1-09660-693-0	01	1	1303-1304
31	CONNECTOR; HAND BRK VLV BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) PT1/4 2WAY	1-09660-693-0	01	1	1305-
31	CONNECTOR; HAND BRK VLV NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) L=45	8-94338-874-0	01	1	1303-1304
31	CONNECTOR; HAND BRK VLV BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) L=45	8-94338-874-0	01	1	1305-
32	VALVE; BRK,HAND CONT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1303-
32	VALVE; BRK,HAND CONT TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48460-316-0	01	1	1303-
32	VALVE; BRK,HAND CONT (A)	1-48460-340-1	01	1	1009-1302
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1303-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1302
105	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-1304
105	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-1304
105	NUT; BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-1304
105	NUT; BRKT BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1305-
105	NUT; BRKT BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1305-
105	NUT; BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1305-
112	BRACKET; CONT VLV TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25>	1-79996-336-1	01	1	1303-1304
112	BRACKET; CONT VLV TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25>	1-79996-336-1	01	1	1305-
112	BRACKET; CONT VLV	1-79996-387-0	01	1	1009-1302
112	BRACKET; CONT VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1303-1304
112	BRACKET; CONT VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1303-1304
112	BRACKET; CONT VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1305-
112	BRACKET; CONT VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25>	1-79996-387-0	01	1	1305-
129	NUT; VLV NEW ZEALAND EQUIPMENT(PK5) FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1303-
129	NUT; VLV FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	03	1	1303-
129	NUT; VLV M8 FLANGE	0-91180-108-0	01	1	1009-
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1303-1304
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	1305-
137	CONNECTOR; SUPPLY TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1303-1304
137	CONNECTOR; SUPPLY TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1305-
137	CONNECTOR; SUPPLY (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1009-1302
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1303-1304
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1303-1304
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1305-
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1305-
137	CONNECTOR; SUPPLY (B) PT1/4 2WAY	1-09660-693-0	01	1	1009-1302
137	CONNECTOR; SUPPLY NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1303-1304
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1303-1304
137	CONNECTOR; SUPPLY BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1305-
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1305-
137	CONNECTOR; SUPPLY (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1009-1302
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1303-1304
137	CONNECTOR; SUPPLY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	1305-
138	CONNECTOR; DELIVERY NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1303-1304
138	CONNECTOR; DELIVERY BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1305-
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1303-1304
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1305-
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (F) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1303-1304
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (F) DIN14 & R1/4 & RC1/4	1-09661-729-0	01	1	1305-
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1303-1304
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1305-
138	CONNECTOR; DELIVERY (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1009-1302
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1303-1304
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1305-
138	CONNECTOR; DELIVERY (B) PT1/4 2WAY	1-09660-693-0	01	1	1009-1302
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1303-1304
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1303-1304
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1305-
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (B) PT1/4 2WAY	1-09660-693-0	01	1	1305-
138	CONNECTOR; DELIVERY (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1009-1302
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1303-1304
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1303-1304
138	CONNECTOR; DELIVERY MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1305-
138	CONNECTOR; DELIVERY TRANSMISSION-FULLER RTLO169 18(Y3S) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1305-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1009-1302
151	BOLT; VLV BRKT NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-1304
151	BOLT; VLV BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1303-1304
151	BOLT; VLV BRKT BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1305-
151	BOLT; VLV BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1305-
206	BOLT; HAND BRK VALVE FULL TRAILER PIPING<Z25> (A) M10X20 W/LK WASHER	0-50541-020-0	02	1	1303-
206	BOLT; HAND BRK VALVE (B)	1-48469-160-0	01	1	1009-1302
206	BOLT; HAND BRK VALVE EXC. FULL TRAILER PIPING<Z25> (B)	1-48469-160-0	01	1	1303-
206	BOLT; HAND BRK VALVE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-160-0	01	1	1303-
214	SEAL; COVER,HAND BRK MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	02	1	1303-1304
214	SEAL; COVER,HAND BRK MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) EXC. BAGGAGE BOX CAB RR SIDE<TBM>,FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	02	1	1305-
214	SEAL; COVER,HAND BRK OD=25 BLACK	1-76798-019-0	02	1	1009-1302
214	SEAL; COVER,HAND BRK NEW ZEALAND EQUIPMENT(PK5) BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	01	1	1303-1304
214	SEAL; COVER,HAND BRK BAGGAGE BOX CAB RR SIDE<TBM> FULL TRAILER PIPING<Z25> OD=25 BLACK	1-76798-019-0	01	1	1305-

4 6 5 8 7 9 1 1 241 13 25 23 22 21 20 10 24 28 24 25 19 18 17 16 15 14 2 5 13 28 21 18 15 14 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK FULL TRAILER PIPING<Z25>	1-48100-859-0	01	1	1303-
2	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-85576-305-0	01	1	1303-
4	HANDLE ASM; BRK VLV FULL TRAILER PIPING<Z25>	1-48119-580-1	01	1	1303-
5	GASKET; HANDLE FULL TRAILER PIPING<Z25>	1-48119-128-0	01	1	1303-
6	PIN; SPR FULL TRAILER PIPING<Z25>	1-48119-143-0	01	1	1303-
7	HEAD; BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-201-0	01	1	1303-
7	HEAD; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-577-1	01	1	1303-
7	HEAD; BRK VLV (C)	1-48469-195-0	01	1	1009-1302
7	HEAD; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-195-0	01	1	1303-
8	STOPPER; BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-200-0	01	1	1303-
8	STOPPER; BRK VLV FULL TRAILER PIPING<Z25> (A)	1-48119-327-0	01	1	1303-
8	STOPPER; BRK VLV (C)	1-48469-194-0	01	1	1009-1302
8	STOPPER; BRK VLV EXC. FULL TRAILER PIPING<Z25> (C)	1-48469-194-0	01	1	1303-
9	WASHER; LK,ADJ FULL TRAILER PIPING<Z25>	1-48119-123-0	01	1	1303-
10	RING; ADJ FULL TRAILER PIPING<Z25>	1-48119-122-0	01	1	1303-
12	COVER; BRK VLV FULL TRAILER PIPING<Z25>	1-48129-319-1	01	1	1303-
13	GASKET; BODY TO COVER FULL TRAILER PIPING<Z25>	1-48119-120-0	01	1	1303-
14	FOLLOWER; CAM FULL TRAILER PIPING<Z25>	1-48129-135-0	01	1	1303-
15	CAM; FOLLOWER FULL TRAILER PIPING<Z25>	1-48129-134-0	01	1	1303-
16	SPRING; GRUDUATING FULL TRAILER PIPING<Z25>	1-48129-101-0	01	1	1303-
17	PISTON; SPR FULL TRAILER PIPING<Z25>	1-48129-095-0	01	1	1303-
18	GASKET; BODY FULL TRAILER PIPING<Z25>	1-48129-096-0	01	1	1303-
19	SPRING; PISTON FULL TRAILER PIPING<Z25>	1-48129-094-0	01	1	1303-
20	GUIDE; VLV FULL TRAILER PIPING<Z25>	1-48129-090-0	01	1	1303-
21	VALVE; IN & EXH FULL TRAILER PIPING<Z25>	1-48121-017-0	01	1	1303-
22	SPRING; VLV FULL TRAILER PIPING<Z25>	1-48123-024-0	01	1	1303-
23	BODY; BRK VLV FULL TRAILER PIPING<Z25>	1-48111-060-1	01	1	1303-
24	BOLT; EXH VLV FULL TRAILER PIPING<Z25>	1-48129-092-0	02	1	1303-
25	WASHER; LK,EXH VLV FULL TRAILER PIPING<Z25>	1-48129-093-0	02	1	1303-
28	STEM ASM; BRK VLV FULL TRAILER PIPING<Z25>	1-48129-089-0	01	1	1303-
241	SPRING; RETURN MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-182-0	01	1	1303-
241	SPRING; RETURN FULL TRAILER PIPING<Z25> (A)	1-48119-576-0	01	1	1303-

55 54 54 32 32 53 52 51 33 56 145 34 35 36 37 38 39 40 58 57 42 44 45 59 40 42 41 49 47 46 44 45 50 43 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48460-339-1	01	1	1303-
32	VALVE; BRK,HAND CONT TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48460-316-0	01	1	1303-
32	VALVE; BRK,HAND CONT (A)	1-48460-340-1	01	1	1009-1302
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-340-1	01	1	1303-
33	PLATE; CAUTION TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-121-0	01	1	1303-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1009-
35	HOLDER; CAM MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-171-0	01	1	1303-
35	HOLDER; CAM TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-054-0	01	1	1303-
35	HOLDER; CAM	1-48469-148-0	01	1	1009-1302
35	HOLDER; CAM EXC. FULL TRAILER PIPING<Z25>	1-48469-148-0	01	1	1303-
36	RING; CAM TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-056-0	01	1	1303-
37	GUIDE; CAM RING TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-058-0	01	1	1303-
38	SEAT; EXH VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-172-0	01	1	1303-
38	SEAT; EXH VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-057-0	01	1	1303-
38	SEAT; EXH VLV	1-48469-149-0	01	1	1009-1302
38	SEAT; EXH VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-149-0	01	1	1303-
39	SPRING; RETURN,CAM RING TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-063-0	01	1	1303-
39	SPRING; RETURN,CAM RING	1-48469-150-0	01	1	1009-1302
39	SPRING; RETURN,CAM RING EXC. FULL TRAILER PIPING<Z25>	1-48469-150-0	01	1	1303-
39	SPRING; RETURN,CAM RING MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-150-0	01	1	1303-
40	RING; SNAP TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (A)	1-48469-067-0	01	1	1303-
40	RING; SNAP TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (B)	1-48469-079-0	01	1	1303-
41	SEAT; FEED VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-066-0	01	1	1303-
42	VALVE; FEED TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-065-0	02	1	1303-
43	PISTON; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-064-0	01	1	1303-
44	RING; SNAP,FEED VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1303-
45	SPRING; FEED VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-070-0	02	1	1303-
46	SPRING; MAIN,PISTON MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-173-0	01	1	1303-
46	SPRING; MAIN,PISTON TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-119-0	01	1	1303-
46	SPRING; MAIN,PISTON	1-48469-152-0	01	1	1009-1302
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-152-0	01	1	1303-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1009-
49	SCREW; COVER TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-120-0	04	1	1303-
49	SCREW; COVER	1-48469-169-0	04	1	1009-1302
49	SCREW; COVER EXC. FULL TRAILER PIPING<Z25>	1-48469-169-0	04	1	1303-
49	SCREW; COVER MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-169-0	04	1	1303-
50	COVER; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25> (C)	1-48469-073-0	01	1	1303-
50	COVER; HAND BRK VLV (A)	1-48469-153-0	01	1	1009-1302
50	COVER; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-48469-153-0	01	1	1303-
50	COVER; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (A)	1-48469-153-0	01	1	1303-
50	COVER; HAND BRK VLV (B)	1-48469-196-0	01	1	1009-1302
50	COVER; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (B)	1-48469-196-0	01	1	1303-
50	COVER; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25> (B)	1-48469-196-0	01	1	1303-
51	HANDLE ASM; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-060-0	01	1	1303-
52	SCREW; HANDLE	1-48469-062-0	01	1	1009-
53	WASHER; HANDLE	1-48469-061-0	01	1	1009-
54	SEAT; SPRING TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-082-0	02	1	1303-
55	SPRING; RETURN,HANDLE TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-059-0	01	1	1303-
55	SPRING; RETURN,HANDLE	1-48469-155-0	01	1	1009-1302
55	SPRING; RETURN,HANDLE EXC. FULL TRAILER PIPING<Z25>	1-48469-155-0	01	1	1303-
55	SPRING; RETURN,HANDLE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-155-0	01	1	1303-
56	BOOT; PLUNGER TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-080-0	01	1	1303-
57	PLUNGER; HAND BRK VLV MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) FULL TRAILER PIPING<Z25>	1-48469-180-0	01	1	1303-
57	PLUNGER; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-076-0	01	1	1303-
58	HOLDER; FEED VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-077-0	01	1	1303-
59	HOLDER; SPRING TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-078-0	01	1	1303-
145	STUD; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-069-0	01	1	1303-
164	GREASE; HAND BRK VLV TRANSMISSION-FULLER RTLO169 18(Y3S) FULL TRAILER PIPING<Z25>	1-48469-084-0	01	1	1303-

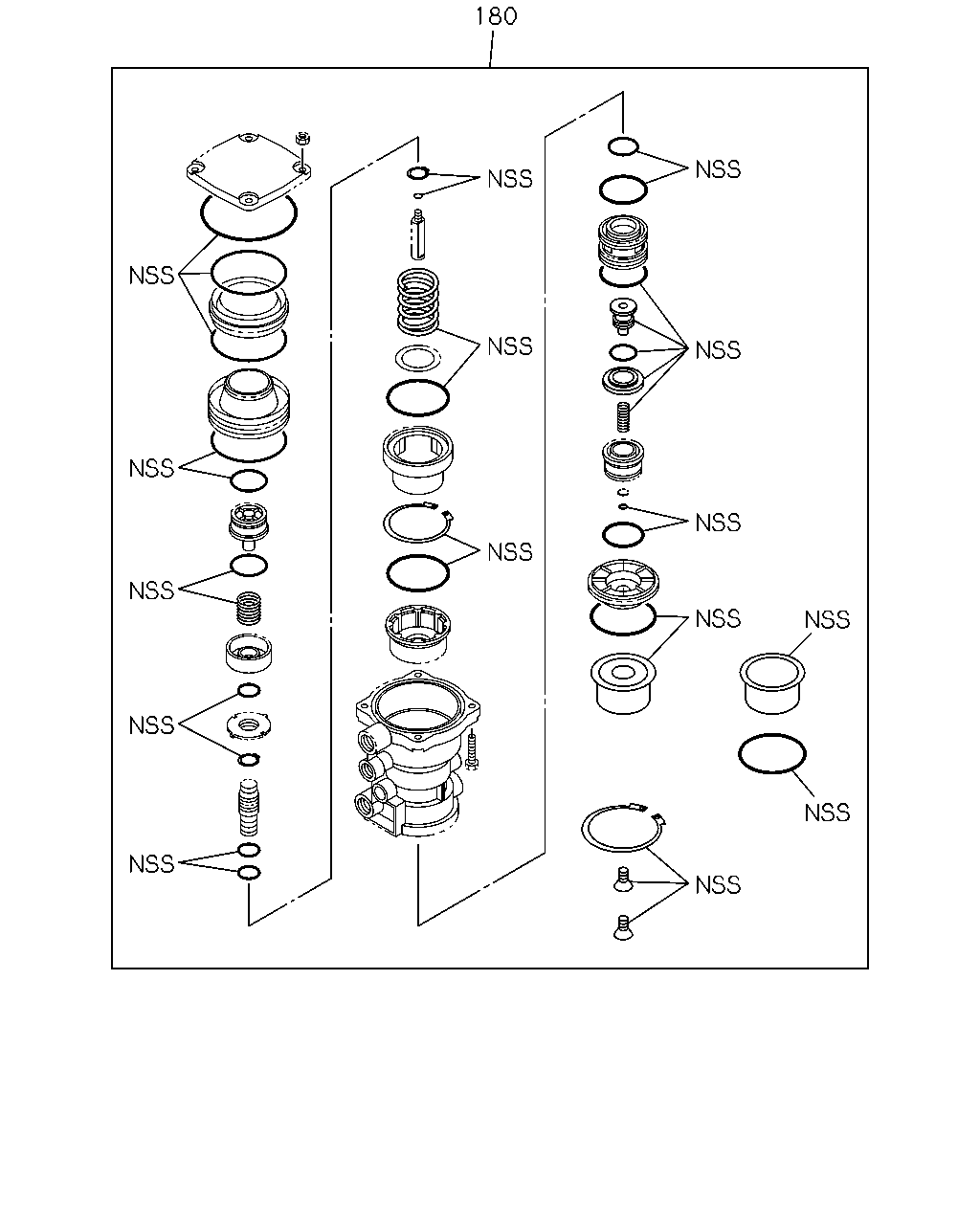

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	180	REPAIR KIT; RELAY VLV FULL TRAILER PIPING<Z25>	1-85576-449-0	01	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
