◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11289 - CYH RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#69935) — 45 parça

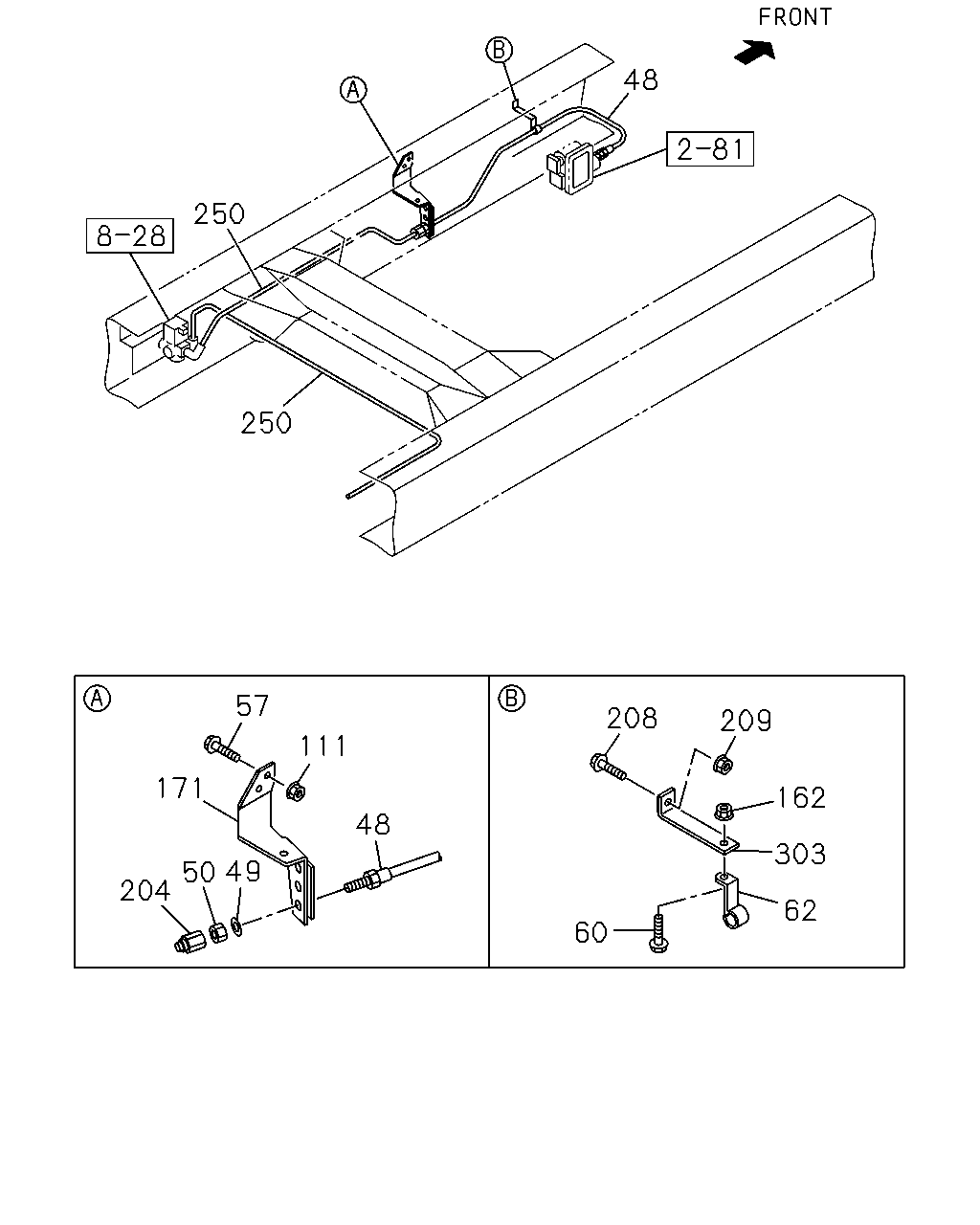

çizim 114493
250 48 250 57 111 48 171 204 50 49 60 62 303 162 209 208
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=760 		1-09363-715-0 01 1 1009-1302
48 HOSE; FLEX,PTO
MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=370 		1-09363-621-0 01 1 1303-
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1009-1302
49 WASHER; LK,FLEX HOSE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) ID=12.2 		0-91510-512-0 01 1 1303-
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1009-1302
50 NUT; FLEX HOSE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 		9-09840-280-0 01 1 1303-
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE 		0-28650-835-0 02 1 1303-1411
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE 		0-28650-835-0 02 1 1412-
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1302
57 BOLT; BRKT
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28650-825-0 02 1 1303-
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1009-1302
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1009-1302
111 NUT; BRKT
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8 FLANGE 		0-91180-108-0 02 1 1303-1305
111 NUT; BRKT
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 02 1 1306-
162 NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) 		8-98171-734-0 01 1 1303-1411
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98171-734-0 01 1 1412-
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47479-634-1 01 1 1009-1302
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) HONG KONG EQUIPMENT(PQ1) 		1-47479-634-1 01 1 1303-
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1302
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1303-
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1302
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1009-1302
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1009-1302
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1303-1411
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1303-1411
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1412-
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1412-
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1009-1302
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1303-1411
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1303-1411
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1412-
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HEAVY DUTY(B4P) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1412-
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 1009-1302
çizim 188542
1 3 246 217 3 3 132 1 139 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) (B) 		1-79907-048-1 01 1 1303-
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 1009-
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1303-
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1009-
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 1009-1302
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 1303-
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 1009-
139 BRACKET; CONT BOX
PTO CONTROL(SV6) 		1-79907-044-0 01 1 1303-
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 1009-
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71240-408-0 02 1 1009-
