Sayfa 2-53 - Isuzu EPC

2-53 — TRANSMISSION OIL COOLER SYSTEM (#69933) — 515 parça

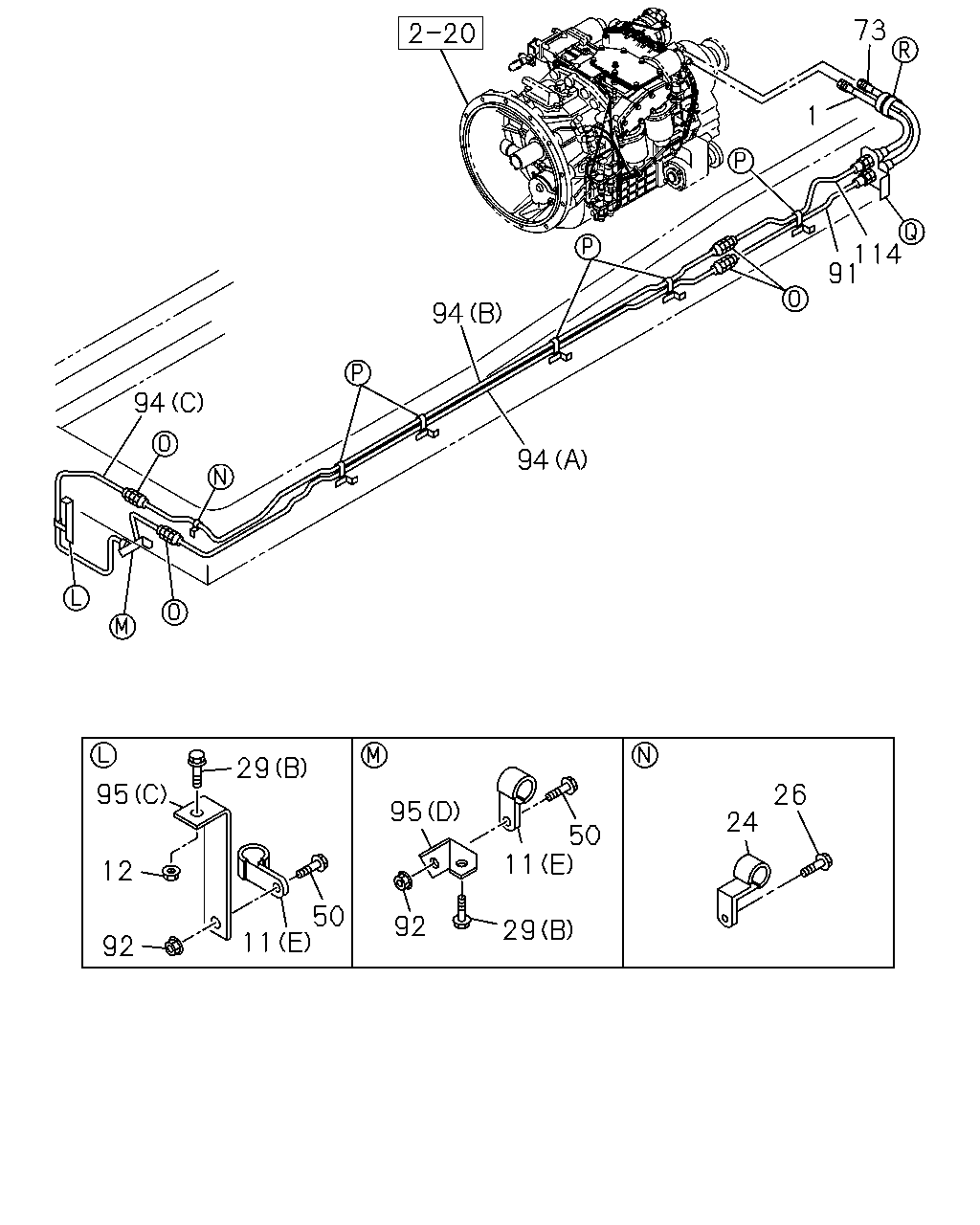

73 1 91 114 94 94 94 50 11 24 26 92 29 95 29 11 50 12 92 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
1	HOSE; ATF SMOOTHER-G(C1W) L=585	1-09365-348-0	01	1	1009-1302
1	HOSE; ATF SMOOTHER-G(C1W) L=620	1-09365-350-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	04	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	1009-1302
11	CLIP; PIPE SMOOTHER-G(C1W) (E) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE SMOOTHER-G(C1W) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-1302
11	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-
24	CLIP; OIL PIPE SMOOTHER-G(C1W) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-1302
24	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1303-
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
26	BOLT; PIPE CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
29	BOLT; FILTER TO BRKT SMOOTHER-G(C1W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
29	BOLT; FILTER TO BRKT SMOOTHER-G(C1W) (B) M10X20 FLANGE	0-28651-020-0	01	1	1009-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	1009-1302
50	BOLT; CLIP MJT7 M/T<Y9E> M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
50	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
73	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=530	1-09365-248-0	01	1	1009-1302
73	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=560	1-09365-369-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) L=792	8-98234-202-0	01	1	1303-1411
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=792	8-98234-202-0	01	1	1412-
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) L=916	8-98233-184-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=918	8-98100-825-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-1411
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1412-
91	PIPE; OIL,FLEX HOSE TO UNION SMOOTHER-G(C1W) L=897	8-98042-990-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION SMOOTHER-G(C1W) L=917	8-98043-391-0	01	1	1303-
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
92	NUT; CLIP SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	1009-1302
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1303-
94	PIPE; OIL,UNION TO UNION SMOOTHER-G(C1W) (B) L=2045	1-49167-291-0	01	1	1009-1302
94	PIPE; OIL,UNION TO UNION SMOOTHER-G(C1W) (B) L=2001	8-98240-385-0	01	1	1303-
94	PIPE; OIL,UNION TO UNION SMOOTHER-G(C1W) (A) L=1610	1-49167-565-0	01	1	1009-1302
94	PIPE; OIL,UNION TO UNION SMOOTHER-G(C1W) (A) L=1592	8-98240-376-0	01	1	1303-
94	PIPE; OIL,UNION TO UNION SMOOTHER-G(C1W) (C) L=1010	1-49167-738-0	01	1	1009-
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-
95	BRACKET; CLIP SMOOTHER-G(C1W) (C)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP SMOOTHER-G(C1W) (D)	8-97610-664-0	01	1	1009-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) L=853	8-98234-203-0	01	1	1303-1411
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=853	8-98234-203-0	01	1	1412-
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S) L=835	8-98233-185-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=856	8-98100-976-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) L=841	8-98100-827-0	01	1	1303-1411
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=841	8-98100-827-0	01	1	1412-
114	PIPE; OIL,UNION TO FLEX HOSE SMOOTHER-G(C1W) L=825	8-98042-991-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE SMOOTHER-G(C1W) L=838	8-98043-392-0	01	1	1303-

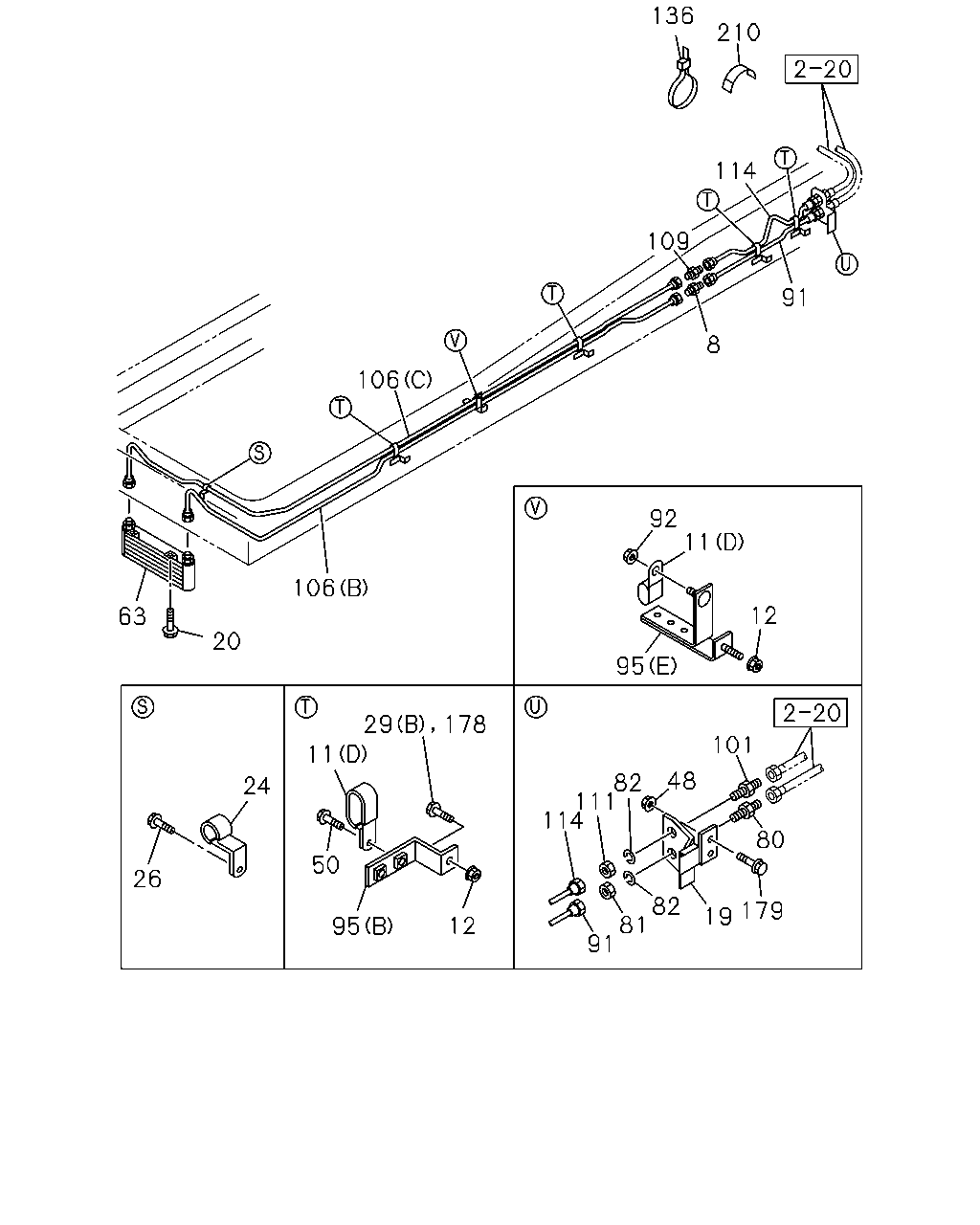

106 106 20 63 109 73 1 8 114 91 136 210 24 26 11 178 48 50 95 11 50 92 11 12 95 73 1 179 19 77 76 91 114 48 117 116 29 11 50 95 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
1	HOSE; ATF SMOOTHER-G(C1W) L=585	1-09365-348-0	01	1	1009-1302
1	HOSE; ATF SMOOTHER-G(C1W) L=620	1-09365-350-0	01	1	1303-
8	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
8	UNION SMOOTHER-G(C1W) M22 L=51	0-92123-015-0	02	1	1009-1302
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
8	UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	04	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	1009-1302
11	CLIP; PIPE SMOOTHER-G(C1W) (E) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE SMOOTHER-G(C1W) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-1302
11	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
19	BRACKET; FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S)	1-47479-613-1	01	1	1303-
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-559-0	01	1	1009-
19	BRACKET; FLEX HOSE SMOOTHER-G(C1W)	1-47479-613-1	01	1	1009-1302
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1303-
20	BOLT; COOLER TO BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28051-020-0	02	1	1009-1302
20	BOLT; COOLER TO BRKT MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) M10X20 FLANGE	0-28051-020-0	02	1	1303-
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-
24	CLIP; OIL PIPE SMOOTHER-G(C1W) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-1302
24	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1303-
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
26	BOLT; PIPE CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
29	BOLT; FILTER TO BRKT SMOOTHER-G(C1W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
29	BOLT; FILTER TO BRKT SMOOTHER-G(C1W) (B) M10X20 FLANGE	0-28651-020-0	01	1	1009-
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	1009-1302
50	BOLT; CLIP MJT7 M/T<Y9E> M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
50	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-
63	COOLER; OIL TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98240-507-0	01	1	1303-
63	COOLER; OIL MJT7 M/T<Y9E>	1-21700-394-0	01	1	1009-1302
63	COOLER; OIL MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98199-221-0	01	1	1303-1303
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1303-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
73	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=530	1-09365-248-0	01	1	1009-1302
73	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=560	1-09365-369-0	01	1	1303-
76	NUT; FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	1009-1302
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-
76	NUT; FLEX HOSE SMOOTHER-G(C1W) M22	0-91111-522-0	01	1	1009-1302
77	WASHER; LK MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	1009-1302
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-
77	WASHER; LK SMOOTHER-G(C1W) ID=22.5	0-91510-522-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) L=792	8-98234-202-0	01	1	1303-1411
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=792	8-98234-202-0	01	1	1412-
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) L=916	8-98233-184-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=918	8-98100-825-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-1411
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1412-
91	PIPE; OIL,FLEX HOSE TO UNION SMOOTHER-G(C1W) L=897	8-98042-990-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION SMOOTHER-G(C1W) L=917	8-98043-391-0	01	1	1303-
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
92	NUT; CLIP SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	1009-1302
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1303-
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-
95	BRACKET; CLIP SMOOTHER-G(C1W) (C)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP SMOOTHER-G(C1W) (D)	8-97610-664-0	01	1	1009-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (C)	8-98240-381-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98240-381-0	01	1	1412-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (D)	8-98233-616-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98233-616-0	01	1	1412-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (E)	8-98233-617-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98233-617-0	01	1	1412-
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) (B)	8-98240-378-0	01	1	1303-
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) (C)	8-98240-382-0	01	1	1303-
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (A)	8-98034-834-0	01	1	1009-1302
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (B)	8-98240-377-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98240-377-0	01	1	1412-
109	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
109	UNION SMOOTHER-G(C1W) M22 L=51	0-92123-015-0	02	1	1009-1302
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
109	UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) L=853	8-98234-203-0	01	1	1303-1411
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=853	8-98234-203-0	01	1	1412-
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S) L=835	8-98233-185-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=856	8-98100-976-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) L=841	8-98100-827-0	01	1	1303-1411
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=841	8-98100-827-0	01	1	1412-
114	PIPE; OIL,UNION TO FLEX HOSE SMOOTHER-G(C1W) L=825	8-98042-991-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE SMOOTHER-G(C1W) L=838	8-98043-392-0	01	1	1303-
116	NUT; BRKT,FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	1009-1302
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-
116	NUT; BRKT,FLEX HOSE SMOOTHER-G(C1W) M22	0-91111-522-0	01	1	1009-1302
117	WASHER; LK,FLEX HOSE MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	1009-1302
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-
117	WASHER; LK,FLEX HOSE SMOOTHER-G(C1W) ID=22.5	0-91510-522-0	01	1	1009-1302
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302
136	CLIP; FLEX HOSE MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) L=350	1-09707-183-0	01	1	1303-
178	BOLT; BRKT,CLIP MJT7 M/T<Y9E> M8X35 FLANGE	0-28650-835-0	01	1	1009-1302
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-
178	BOLT; BRKT,CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
179	BOLT; BRKT MJT7 M/T<Y9E> M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
179	BOLT; BRKT SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302
210	BAND; FLEX HOSE MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) L=175	1-09707-178-0	01	1	1303-

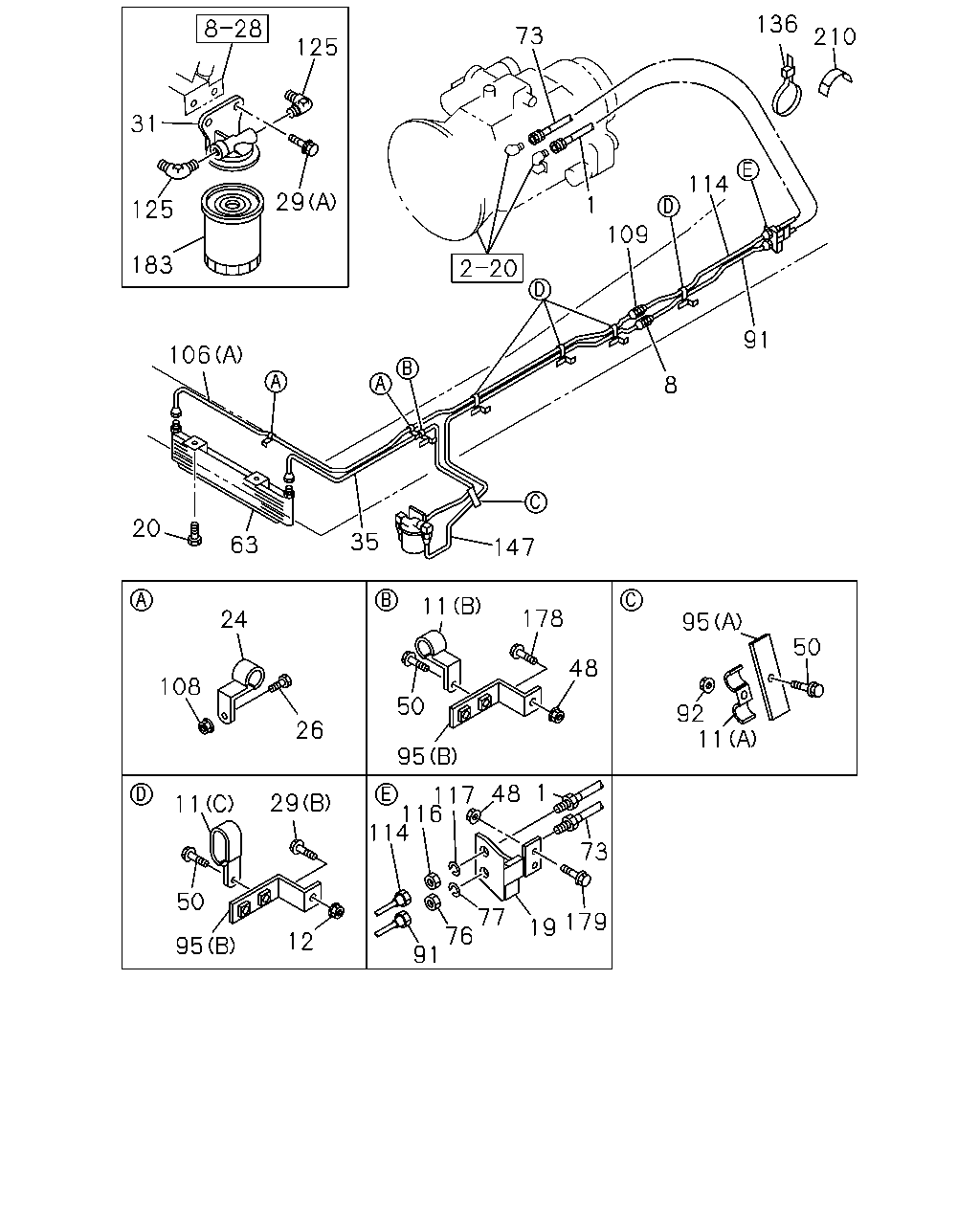

31 125 29 125 183 106 20 63 35 147 109 114 91 8 136 178 210 24 108 26 50 11 95 48 95 50 92 11 48 73 1 117 116 114 76 91 19 77 179 29 11 50 95 12 73 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
1	HOSE; ATF SMOOTHER-G(C1W) L=585	1-09365-348-0	01	1	1009-1302
1	HOSE; ATF SMOOTHER-G(C1W) L=620	1-09365-350-0	01	1	1303-
8	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
8	UNION SMOOTHER-G(C1W) M22 L=51	0-92123-015-0	02	1	1009-1302
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
8	UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	04	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	1009-1302
11	CLIP; PIPE SMOOTHER-G(C1W) (E) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE SMOOTHER-G(C1W) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-1302
11	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
19	BRACKET; FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S)	1-47479-613-1	01	1	1303-
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-559-0	01	1	1009-
19	BRACKET; FLEX HOSE SMOOTHER-G(C1W)	1-47479-613-1	01	1	1009-1302
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1303-
20	BOLT; COOLER TO BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28051-020-0	02	1	1009-1302
20	BOLT; COOLER TO BRKT MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) M10X20 FLANGE	0-28051-020-0	02	1	1303-
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-
24	CLIP; OIL PIPE SMOOTHER-G(C1W) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-1302
24	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1303-
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
26	BOLT; PIPE CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
29	BOLT; FILTER TO BRKT SMOOTHER-G(C1W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
29	BOLT; FILTER TO BRKT SMOOTHER-G(C1W) (B) M10X20 FLANGE	0-28651-020-0	01	1	1009-
31	BRACKET; OIL FILTER MJT7 M/T<Y9E>	1-33119-222-0	01	1	1009-1302
35	PIPE; OIL,OIL COOLER TO FILTER MJT7 M/T<Y9E> L=1328 SERVICED BY L=1400	1-47428-878-0	01	1	1009-1302
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	1009-1302
50	BOLT; CLIP MJT7 M/T<Y9E> M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
50	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-
63	COOLER; OIL TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98240-507-0	01	1	1303-
63	COOLER; OIL MJT7 M/T<Y9E>	1-21700-394-0	01	1	1009-1302
63	COOLER; OIL MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98199-221-0	01	1	1303-1303
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1303-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
73	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=530	1-09365-248-0	01	1	1009-1302
73	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=560	1-09365-369-0	01	1	1303-
76	NUT; FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	1009-1302
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-
76	NUT; FLEX HOSE SMOOTHER-G(C1W) M22	0-91111-522-0	01	1	1009-1302
77	WASHER; LK MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	1009-1302
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-
77	WASHER; LK SMOOTHER-G(C1W) ID=22.5	0-91510-522-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) L=792	8-98234-202-0	01	1	1303-1411
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=792	8-98234-202-0	01	1	1412-
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) L=916	8-98233-184-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=918	8-98100-825-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-1411
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1412-
91	PIPE; OIL,FLEX HOSE TO UNION SMOOTHER-G(C1W) L=897	8-98042-990-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION SMOOTHER-G(C1W) L=917	8-98043-391-0	01	1	1303-
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
92	NUT; CLIP SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	1009-1302
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1303-
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-
95	BRACKET; CLIP SMOOTHER-G(C1W) (C)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP SMOOTHER-G(C1W) (D)	8-97610-664-0	01	1	1009-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (C)	8-98240-381-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98240-381-0	01	1	1412-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (D)	8-98233-616-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98233-616-0	01	1	1412-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (E)	8-98233-617-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98233-617-0	01	1	1412-
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) (B)	8-98240-378-0	01	1	1303-
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) (C)	8-98240-382-0	01	1	1303-
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (A)	8-98034-834-0	01	1	1009-1302
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (B)	8-98240-377-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98240-377-0	01	1	1412-
108	NUT; PIPE CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
109	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
109	UNION SMOOTHER-G(C1W) M22 L=51	0-92123-015-0	02	1	1009-1302
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
109	UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) L=853	8-98234-203-0	01	1	1303-1411
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=853	8-98234-203-0	01	1	1412-
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S) L=835	8-98233-185-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=856	8-98100-976-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) L=841	8-98100-827-0	01	1	1303-1411
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=841	8-98100-827-0	01	1	1412-
114	PIPE; OIL,UNION TO FLEX HOSE SMOOTHER-G(C1W) L=825	8-98042-991-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE SMOOTHER-G(C1W) L=838	8-98043-392-0	01	1	1303-
116	NUT; BRKT,FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	1009-1302
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-
116	NUT; BRKT,FLEX HOSE SMOOTHER-G(C1W) M22	0-91111-522-0	01	1	1009-1302
117	WASHER; LK,FLEX HOSE MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	1009-1302
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-
117	WASHER; LK,FLEX HOSE SMOOTHER-G(C1W) ID=22.5	0-91510-522-0	01	1	1009-1302
125	CONNECTOR; OIL FILTER MJT7 M/T<Y9E> M16 & PT1/4 ELBOW	0-92134-310-0	02	1	1009-1302
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302
136	CLIP; FLEX HOSE MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) L=350	1-09707-183-0	01	1	1303-
147	PIPE; OIL,UNION TO FILTER MJT7 M/T<Y9E> L=1764	8-98069-775-0	01	1	1009-1302
178	BOLT; BRKT,CLIP MJT7 M/T<Y9E> M8X35 FLANGE	0-28650-835-0	01	1	1009-1302
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-
178	BOLT; BRKT,CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
179	BOLT; BRKT MJT7 M/T<Y9E> M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
179	BOLT; BRKT SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
183	CARTRIDGE; OIL FILTER MJT7 M/T<Y9E>	8-94459-700-1	01	1	1009-1302
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302
210	BAND; FLEX HOSE MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) L=175	1-09707-178-0	01	1	1303-

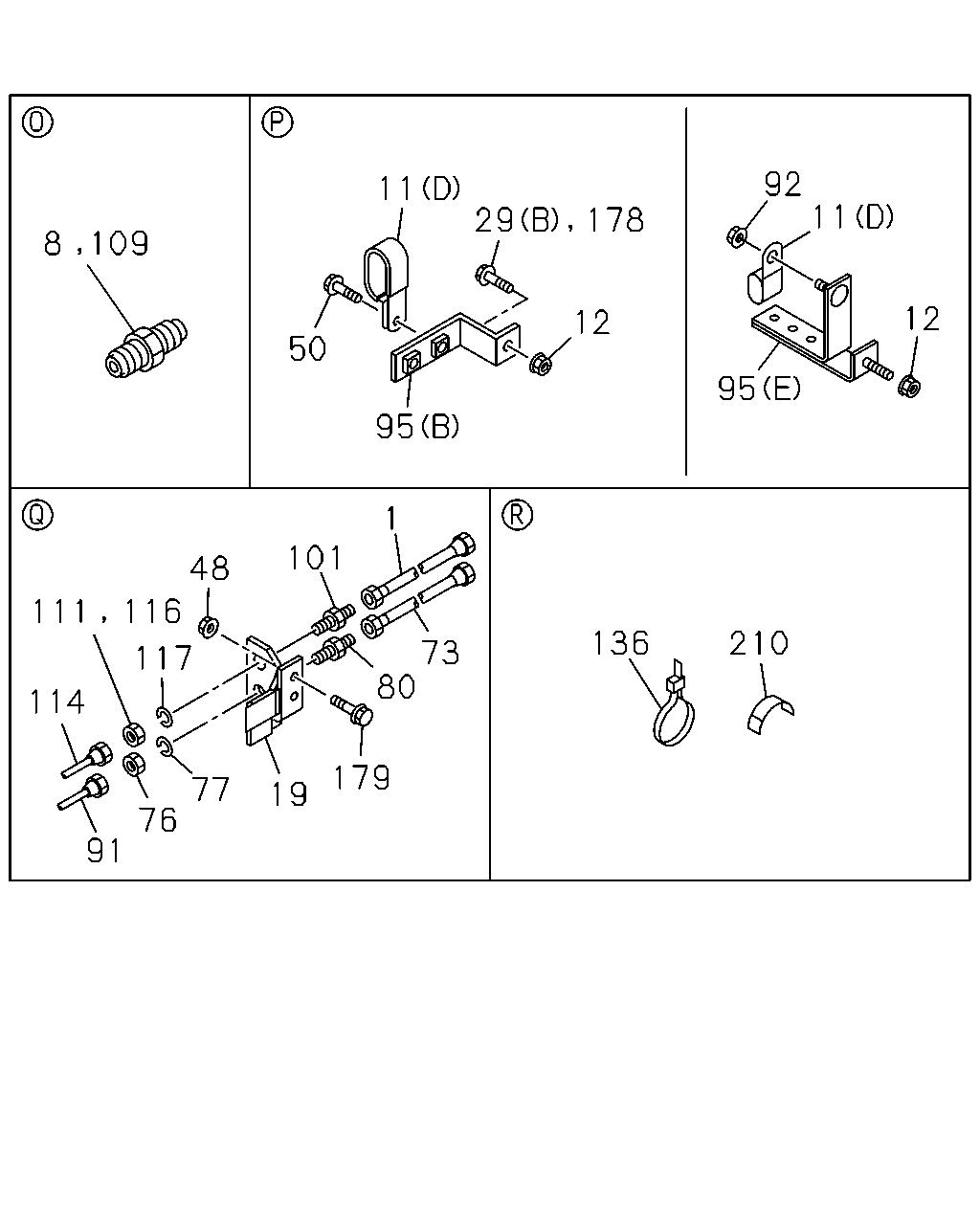

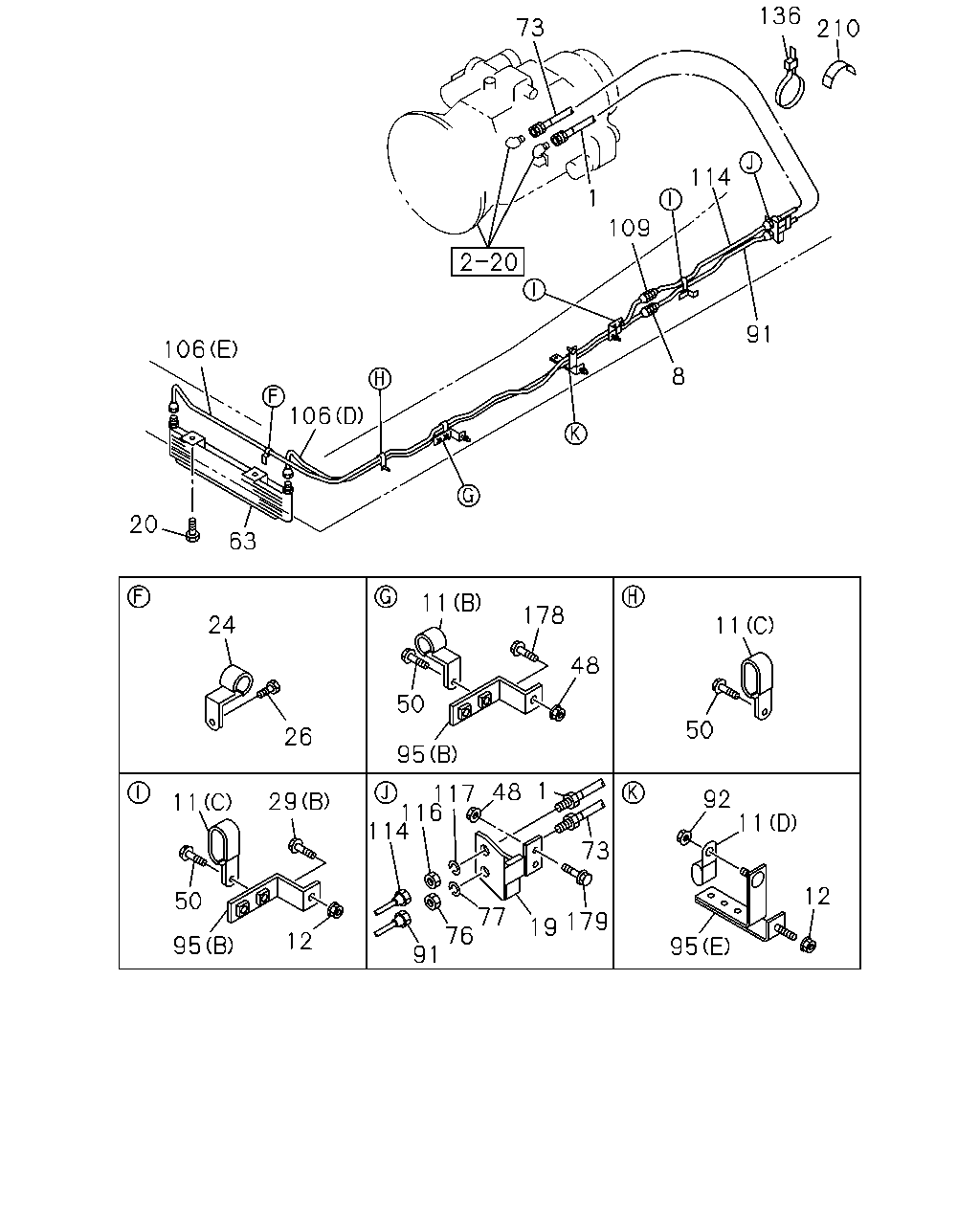

8 109 11 95 50 29 12 178 92 12 95 11 210 136 1 73 80 179 19 77 76 91 114 111 116 117 48 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
1	HOSE; ATF MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
1	HOSE; ATF SMOOTHER-G(C1W) L=585	1-09365-348-0	01	1	1009-1302
1	HOSE; ATF SMOOTHER-G(C1W) L=620	1-09365-350-0	01	1	1303-
8	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
8	UNION SMOOTHER-G(C1W) M22 L=51	0-92123-015-0	02	1	1009-1302
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
8	UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	04	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	1009-1302
11	CLIP; PIPE SMOOTHER-G(C1W) (E) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE SMOOTHER-G(C1W) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-1302
11	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
19	BRACKET; FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S)	1-47479-613-1	01	1	1303-
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-559-0	01	1	1009-
19	BRACKET; FLEX HOSE SMOOTHER-G(C1W)	1-47479-613-1	01	1	1009-1302
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1303-
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
29	BOLT; FILTER TO BRKT SMOOTHER-G(C1W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
29	BOLT; FILTER TO BRKT SMOOTHER-G(C1W) (B) M10X20 FLANGE	0-28651-020-0	01	1	1009-
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	1009-1302
50	BOLT; CLIP MJT7 M/T<Y9E> M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
50	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-
73	HOSE; FLEX,TRANS MJT7 M/T<Y9E> L=430	1-09364-872-0	01	1	1009-1302
73	HOSE; FLEX,TRANS MJT7S M/T(Y3E) L=430	1-09364-872-0	01	1	1303-
73	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=530	1-09365-248-0	01	1	1009-1302
73	HOSE; FLEX,TRANS SMOOTHER-G(C1W) L=560	1-09365-369-0	01	1	1303-
76	NUT; FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	1009-1302
76	NUT; FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-
76	NUT; FLEX HOSE SMOOTHER-G(C1W) M22	0-91111-522-0	01	1	1009-1302
77	WASHER; LK MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	1009-1302
77	WASHER; LK MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-
77	WASHER; LK SMOOTHER-G(C1W) ID=22.5	0-91510-522-0	01	1	1009-1302
80	UNION; FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S)	1-09654-261-1	01	1	1303-
80	UNION; FLEX HOSE SMOOTHER-G(C1W) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-1302
80	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) L=792	8-98234-202-0	01	1	1303-1411
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=792	8-98234-202-0	01	1	1412-
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) L=916	8-98233-184-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=918	8-98100-825-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-1411
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1412-
91	PIPE; OIL,FLEX HOSE TO UNION SMOOTHER-G(C1W) L=897	8-98042-990-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION SMOOTHER-G(C1W) L=917	8-98043-391-0	01	1	1303-
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
92	NUT; CLIP SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	1009-1302
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1303-
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-
95	BRACKET; CLIP SMOOTHER-G(C1W) (C)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP SMOOTHER-G(C1W) (D)	8-97610-664-0	01	1	1009-
101	UNION; FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S)	1-09654-261-1	01	1	1303-
101	UNION; FLEX HOSE SMOOTHER-G(C1W) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-1302
101	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1303-
109	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
109	UNION SMOOTHER-G(C1W) M22 L=51	0-92123-015-0	02	1	1009-1302
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
109	UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
111	NUT; UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) L=853	8-98234-203-0	01	1	1303-1411
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=853	8-98234-203-0	01	1	1412-
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S) L=835	8-98233-185-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=856	8-98100-976-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) L=841	8-98100-827-0	01	1	1303-1411
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=841	8-98100-827-0	01	1	1412-
114	PIPE; OIL,UNION TO FLEX HOSE SMOOTHER-G(C1W) L=825	8-98042-991-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE SMOOTHER-G(C1W) L=838	8-98043-392-0	01	1	1303-
116	NUT; BRKT,FLEX HOSE MJT7 M/T<Y9E> M16	0-91111-516-0	01	1	1009-1302
116	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M16	0-91111-516-0	01	1	1303-
116	NUT; BRKT,FLEX HOSE SMOOTHER-G(C1W) M22	0-91111-522-0	01	1	1009-1302
117	WASHER; LK,FLEX HOSE MJT7 M/T<Y9E> ID=16.2	0-91510-516-0	01	1	1009-1302
117	WASHER; LK,FLEX HOSE MJT7S M/T(Y3E) ID=16.2	0-91510-516-0	01	1	1303-
117	WASHER; LK,FLEX HOSE SMOOTHER-G(C1W) ID=22.5	0-91510-522-0	01	1	1009-1302
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302
136	CLIP; FLEX HOSE MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) L=350	1-09707-183-0	01	1	1303-
178	BOLT; BRKT,CLIP MJT7 M/T<Y9E> M8X35 FLANGE	0-28650-835-0	01	1	1009-1302
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-
178	BOLT; BRKT,CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
179	BOLT; BRKT MJT7 M/T<Y9E> M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
179	BOLT; BRKT SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302
210	BAND; FLEX HOSE MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) L=175	1-09707-178-0	01	1	1303-

136 210 114 91 8 109 106 106 20 63 24 26 11 178 29 95 50 12 114 111 82 48 101 80 179 19 82 81 91 12 11 92 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
8	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
8	UNION SMOOTHER-G(C1W) M22 L=51	0-92123-015-0	02	1	1009-1302
8	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
8	UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	02	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	01	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1009-1302
11	CLIP; PIPE MJT7S M/T(Y3E) (C) ID=11X2 L=20	0-95325-035-0	04	1	1303-
11	CLIP; PIPE MJT7 M/T<Y9E> (C) ID=11X2 L=20	9-09535-036-0	04	1	1009-1302
11	CLIP; PIPE SMOOTHER-G(C1W) (E) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE SMOOTHER-G(C1W) (D) ID=16X2 L=20	0-95325-535-0	05	1	1009-1302
11	CLIP; PIPE TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20	0-95325-535-0	05	1	1303-
12	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1009-1302
12	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1303-
19	BRACKET; FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S)	1-47479-613-1	01	1	1303-
19	BRACKET; FLEX HOSE MJT7 M/T<Y9E>	1-47479-559-0	01	1	1009-
19	BRACKET; FLEX HOSE SMOOTHER-G(C1W)	1-47479-613-1	01	1	1009-1302
19	BRACKET; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S)	1-47479-561-1	01	1	1303-
20	BOLT; COOLER TO BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28051-020-0	02	1	1009-1302
20	BOLT; COOLER TO BRKT MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) M10X20 FLANGE	0-28051-020-0	02	1	1303-
24	CLIP; OIL PIPE MJT7 M/T<Y9E> ID=11 H=20 L=20	8-98033-780-0	02	1	1009-1302
24	CLIP; OIL PIPE MJT7S M/T(Y3E) ID=11 H=20 L=20	8-98033-780-0	01	1	1303-
24	CLIP; OIL PIPE SMOOTHER-G(C1W) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-1302
24	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20	1-09700-606-0	01	1	1303-
26	BOLT; PIPE CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28650-820-0	02	1	1009-1302
26	BOLT; PIPE CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
26	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1303-
29	BOLT; FILTER TO BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
29	BOLT; FILTER TO BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1303-
29	BOLT; FILTER TO BRKT MJT7 M/T<Y9E> (A) M10X30 FLANGE	0-28651-030-0	02	1	1009-1302
29	BOLT; FILTER TO BRKT SMOOTHER-G(C1W) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-
29	BOLT; FILTER TO BRKT SMOOTHER-G(C1W) (B) M10X20 FLANGE	0-28651-020-0	01	1	1009-
48	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-
50	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	02	1	1009-1302
50	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	1303-
50	BOLT; CLIP MJT7 M/T<Y9E> M8X20 FLANGE	0-28050-820-0	01	1	1009-1302
50	BOLT; CLIP MJT7 M/T<Y9E> M8X25 FLANGE	0-28650-825-0	04	1	1009-1302
50	BOLT; CLIP SMOOTHER-G(C1W) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
50	BOLT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	02	1	1303-
63	COOLER; OIL TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98240-507-0	01	1	1303-
63	COOLER; OIL MJT7 M/T<Y9E>	1-21700-394-0	01	1	1009-1302
63	COOLER; OIL MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S)	8-98199-221-0	01	1	1303-1303
63	COOLER; OIL MJT7S M/T(Y3E)	8-98240-506-0	01	1	1303-1405
63	COOLER; OIL MJT7S M/T(Y3E)	8-98269-767-0	01	1	1406-
80	UNION; FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S)	1-09654-261-1	01	1	1303-
80	UNION; FLEX HOSE SMOOTHER-G(C1W) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-1302
80	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1303-
81	NUT; UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1303-
82	WASHER; LK,UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) ID=22.5	0-91510-522-0	02	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) L=792	8-98234-202-0	01	1	1303-1411
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=792	8-98234-202-0	01	1	1412-
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) L=916	8-98233-184-0	01	1	1303-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7 M/T<Y9E> L=918	8-98100-825-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1303-1411
91	PIPE; OIL,FLEX HOSE TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=876 SERVICED BY L=900	1-47428-873-0	01	1	1412-
91	PIPE; OIL,FLEX HOSE TO UNION SMOOTHER-G(C1W) L=897	8-98042-990-0	01	1	1009-1302
91	PIPE; OIL,FLEX HOSE TO UNION SMOOTHER-G(C1W) L=917	8-98043-391-0	01	1	1303-
92	NUT; CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	1009-1302
92	NUT; CLIP SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	1009-1302
92	NUT; CLIP MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	1303-
95	BRACKET; CLIP (B)	1-47479-482-0	05	1	1009-1302
95	BRACKET; CLIP (B)	1-47479-482-0	03	1	1303-
95	BRACKET; CLIP MJT7 M/T<Y9E> (A) L=50	1-47475-299-2	01	1	1009-1302
95	BRACKET; CLIP (E)	8-98199-287-2	01	1	1303-
95	BRACKET; CLIP SMOOTHER-G(C1W) (C)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP SMOOTHER-G(C1W) (D)	8-97610-664-0	01	1	1009-
101	UNION; FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S)	1-09654-261-1	01	1	1303-
101	UNION; FLEX HOSE SMOOTHER-G(C1W) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-1302
101	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT	1-09654-204-2	01	1	1303-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (C)	8-98240-381-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C)	8-98240-381-0	01	1	1412-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (D)	8-98233-616-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D)	8-98233-616-0	01	1	1412-
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (E)	8-98233-617-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (E)	8-98233-617-0	01	1	1412-
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) (B)	8-98240-378-0	01	1	1303-
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION-FULLER RTLO169 18(Y3S) NEW ZEALAND EQUIPMENT(PK5) (C)	8-98240-382-0	01	1	1303-
106	PIPE ASM; OIL,COOLER TO UNION MJT7 M/T<Y9E> (A)	8-98034-834-0	01	1	1009-1302
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (B)	8-98240-377-0	01	1	1303-1411
106	PIPE ASM; OIL,COOLER TO UNION MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-98240-377-0	01	1	1412-
109	UNION MJT7 M/T<Y9E> M16 STRAIGHT L=42	0-92123-010-0	01	1	1009-1302
109	UNION MJT7S M/T(Y3E) M16 STRAIGHT L=42	0-92123-010-0	01	1	1303-
109	UNION SMOOTHER-G(C1W) M22 L=51	0-92123-015-0	02	1	1009-1302
109	UNION MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
109	UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22 L=51	0-92123-015-0	01	1	1303-
111	NUT; UNION TRANSMISSION-FULLER RTLO169 18(Y3S),MJX12P M/T SMOOTHER-G(Y4S) M22	0-91111-522-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) L=853	8-98234-203-0	01	1	1303-1411
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=853	8-98234-203-0	01	1	1412-
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION-FULLER RTLO169 18(Y3S) L=835	8-98233-185-0	01	1	1303-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7 M/T<Y9E> L=856	8-98100-976-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) L=841	8-98100-827-0	01	1	1303-1411
114	PIPE; OIL,UNION TO FLEX HOSE MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=841	8-98100-827-0	01	1	1412-
114	PIPE; OIL,UNION TO FLEX HOSE SMOOTHER-G(C1W) L=825	8-98042-991-0	01	1	1009-1302
114	PIPE; OIL,UNION TO FLEX HOSE SMOOTHER-G(C1W) L=838	8-98043-392-0	01	1	1303-
136	CLIP; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	02	1	1303-
136	CLIP; FLEX HOSE L=350	1-09707-183-0	01	1	1009-1302
136	CLIP; FLEX HOSE MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) L=350	1-09707-183-0	01	1	1303-
178	BOLT; BRKT,CLIP MJT7 M/T<Y9E> M8X35 FLANGE	0-28650-835-0	01	1	1009-1302
178	BOLT; BRKT,CLIP M8X35 FLANGE	0-28650-835-0	01	1	1303-
178	BOLT; BRKT,CLIP SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
179	BOLT; BRKT MJT7 M/T<Y9E> M8X35 FLANGE	0-28650-835-0	02	1	1009-1302
179	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1303-
179	BOLT; BRKT SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	1009-1302
210	BAND; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) L=175	1-09707-178-0	02	1	1303-
210	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1009-1302
210	BAND; FLEX HOSE MJT7S M/T(Y3E),TRANSMISSION-FULLER RTLO169 18(Y3S) L=175	1-09707-178-0	01	1	1303-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
