2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#69929) — 112 parça

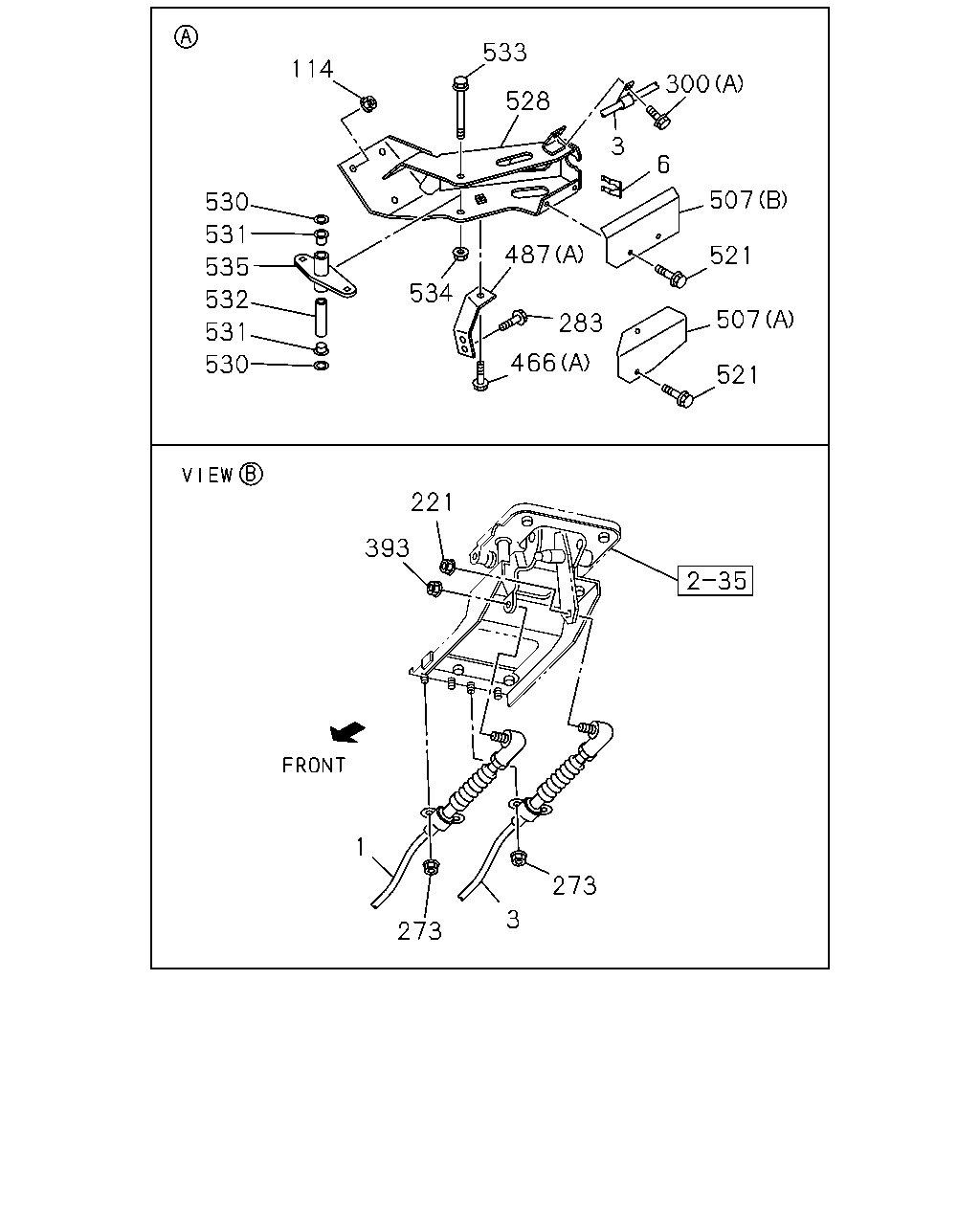

çizim 114072
283 487 528 533 114 530 535 531 532 530 531 534 466 507 521 521 507 6 3 300 221 393 273 3 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) MIXER TRUCK<RA2> L=2855 		8-98127-699-0 01 1 1009-1302
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. MIXER TRUCK<RA2> L=2788 		8-98084-024-0 01 1 1009-1302
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=2776 		8-98216-275-2 01 1 1303-
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) MIXER TRUCK<RA2> L=3440 		8-98127-701-0 01 1 1009-1302
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) L=3391 		8-98216-280-2 01 1 1303-
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. MIXER TRUCK<RA2> L=3375 		8-98084-029-0 01 1 1009-1302
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) L=3394 		8-98222-466-2 01 1 1303-
6 CLIP; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2 		1-09701-209-1 02 1 1009-
114 NUT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE 		0-91180-112-0 03 1 1009-1302
114 NUT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M12 FLANGE 		0-91180-212-0 03 1 1303-
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-061-0 01 1 1009-
273 NUT; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		0-91180-110-0 04 1 1009-
283 BOLT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X20 FLANGE 		0-28151-020-0 02 1 1009-
300 BOLT; CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1303-
300 BOLT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE 		0-28050-820-0 03 1 1009-
393 NUT; SELECT CABLE,CAB
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		1-09440-062-1 01 1 1009-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X16 FLANGE 		0-28050-616-0 04 1 1303-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1009-
487 BRACKET; CONT CABLE
TRANSMISSION-FULLER RTLO169 18(Y3S) (B) 		8-98216-294-1 01 1 1303-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-872-2 01 1 1009-1302
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-872-2 01 1 1303-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98049-854-0 01 1 1009-
507 PROTECTOR; HEAT
MIXER TRUCK<RA2> TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98127-702-0 01 1 1009-1302
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98151-604-0 01 1 1303-
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. MIXER TRUCK<RA2> (B) 		1-14181-357-1 01 1 1009-1302
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98171-722-0 01 1 1303-
521 BOLT; PROTECTOR
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X20 FLANGE 		0-28050-820-0 02 1 1009-
528 BRACKET; LOWER,RELAY LEVER
MIXER TRUCK<RA2> TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98127-718-0 01 1 1009-1302
528 BRACKET; LOWER,RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. MIXER TRUCK<RA2> 		8-98049-809-1 01 1 1009-1302
528 BRACKET; LOWER,RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-809-1 01 1 1303-
530 RING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09623-636-0 02 1 1009-
531 BUSHING; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-09330-119-0 02 1 1009-
532 COLLAR; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-429-0 01 1 1009-
533 BOLT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10X100 FLANGE 		0-28051-000-0 01 1 1009-
534 NUT; RELAY LEVER
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-056-0 01 1 1009-
535 LEVER; RELAY,SHIFT
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98049-430-0 01 1 1009-

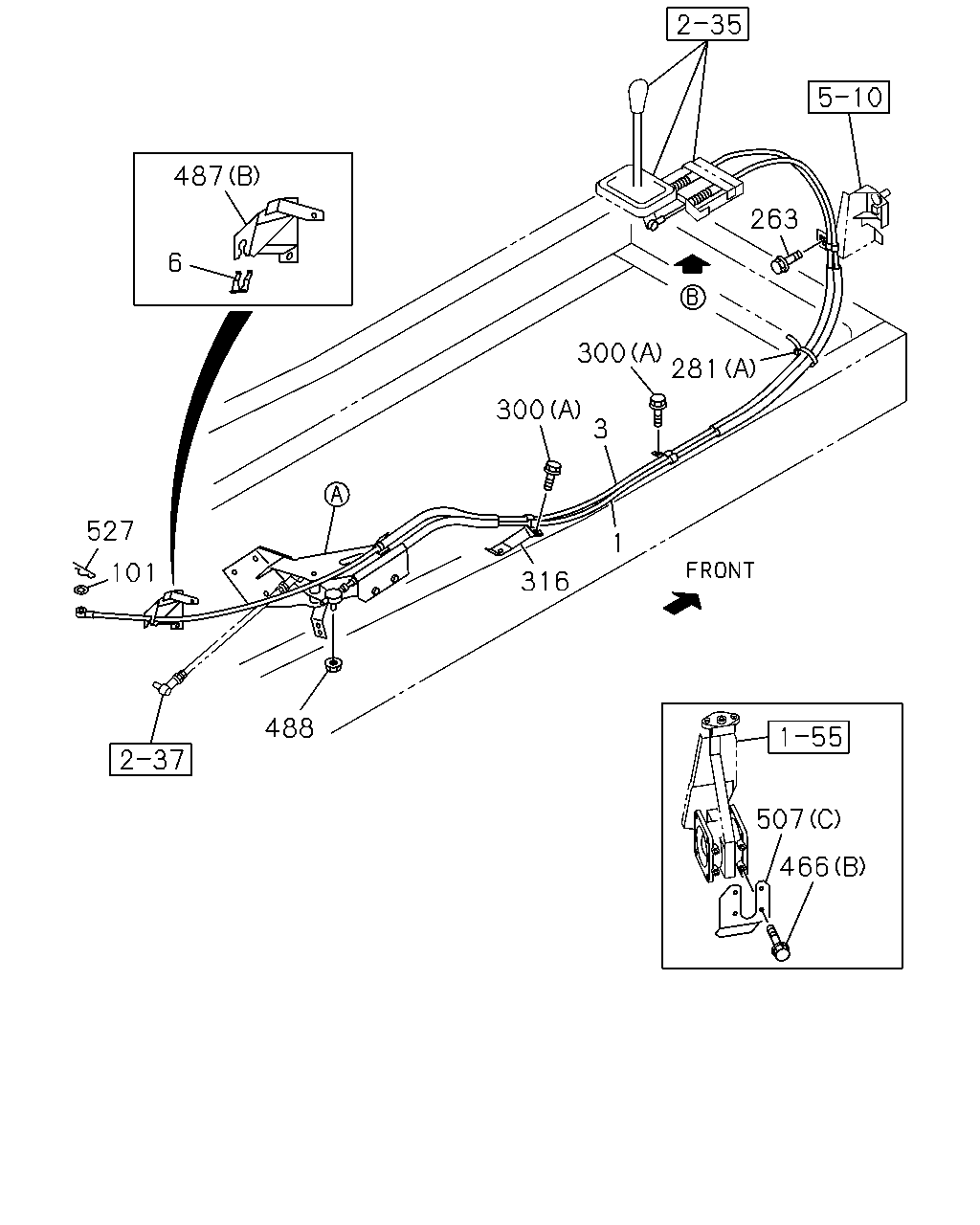

çizim 188540
300 316 300 281 263 3 1 488 527 101 507 466 487 6
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) MIXER TRUCK<RA2> L=2855 		8-98127-699-0 01 1 1009-1302
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. MIXER TRUCK<RA2> L=2788 		8-98084-024-0 01 1 1009-1302
1 CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) L=2776 		8-98216-275-2 01 1 1303-
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) MIXER TRUCK<RA2> L=3440 		8-98127-701-0 01 1 1009-1302
3 CABLE; SELECT,TRANS CONT
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) L=3391 		8-98216-280-2 01 1 1303-
3 CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. MIXER TRUCK<RA2> L=3375 		8-98084-029-0 01 1 1009-1302
3 CABLE; SELECT,TRANS CONT
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) L=3394 		8-98222-466-2 01 1 1303-
6 CLIP; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=22.2 		1-09701-209-1 02 1 1009-
101 WASHER; PL
TRANSMISSION CONTROL CABLE TYPE(C1A) ID=8.4 OD=16 		0-91610-508-0 01 1 1009-
263 BOLT; CLIP,TRANS CONT WIRE
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE 		0-28050-816-0 01 1 1009-1302
263 BOLT; CLIP,TRANS CONT WIRE
TRANSMISSION CONTROL CABLE TYPE(C1A) M8X16 FLANGE 		0-28050-816-0 02 1 1303-
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1303-
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350 		1-09707-183-0 01 1 1009-
300 BOLT; CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1303-
300 BOLT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE 		0-28050-820-0 03 1 1009-
316 BRACKET; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) 		1-33657-870-2 01 1 1009-1302
316 BRACKET; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) 		8-98150-331-0 01 1 1303-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) M6X16 FLANGE 		0-28050-616-0 04 1 1303-
466 BOLT; FIX
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M10X20 FLANGE 		0-28651-020-0 01 1 1009-
487 BRACKET; CONT CABLE
TRANSMISSION-FULLER RTLO169 18(Y3S) (B) 		8-98216-294-1 01 1 1303-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-872-2 01 1 1009-1302
487 BRACKET; CONT CABLE
MJT7S M/T(Y3E) TRANSMISSION CONTROL CABLE TYPE(C1A) (B) 		1-33657-872-2 01 1 1303-
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98049-854-0 01 1 1009-
488 NUT; CABLE
TRANSMISSION CONTROL CABLE TYPE(C1A) M10 FLANGE 		1-09440-056-0 01 1 1009-
507 PROTECTOR; HEAT
MIXER TRUCK<RA2> TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98127-702-0 01 1 1009-1302
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (C) 		8-98151-604-0 01 1 1303-
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) EXC. MIXER TRUCK<RA2> (B) 		1-14181-357-1 01 1 1009-1302
507 PROTECTOR; HEAT
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) 		8-98171-722-0 01 1 1303-
527 PIN; SNAP
TRANSMISSION CONTROL CABLE TYPE(C1A) L=23 		8-94170-378-0 01 1 1009-

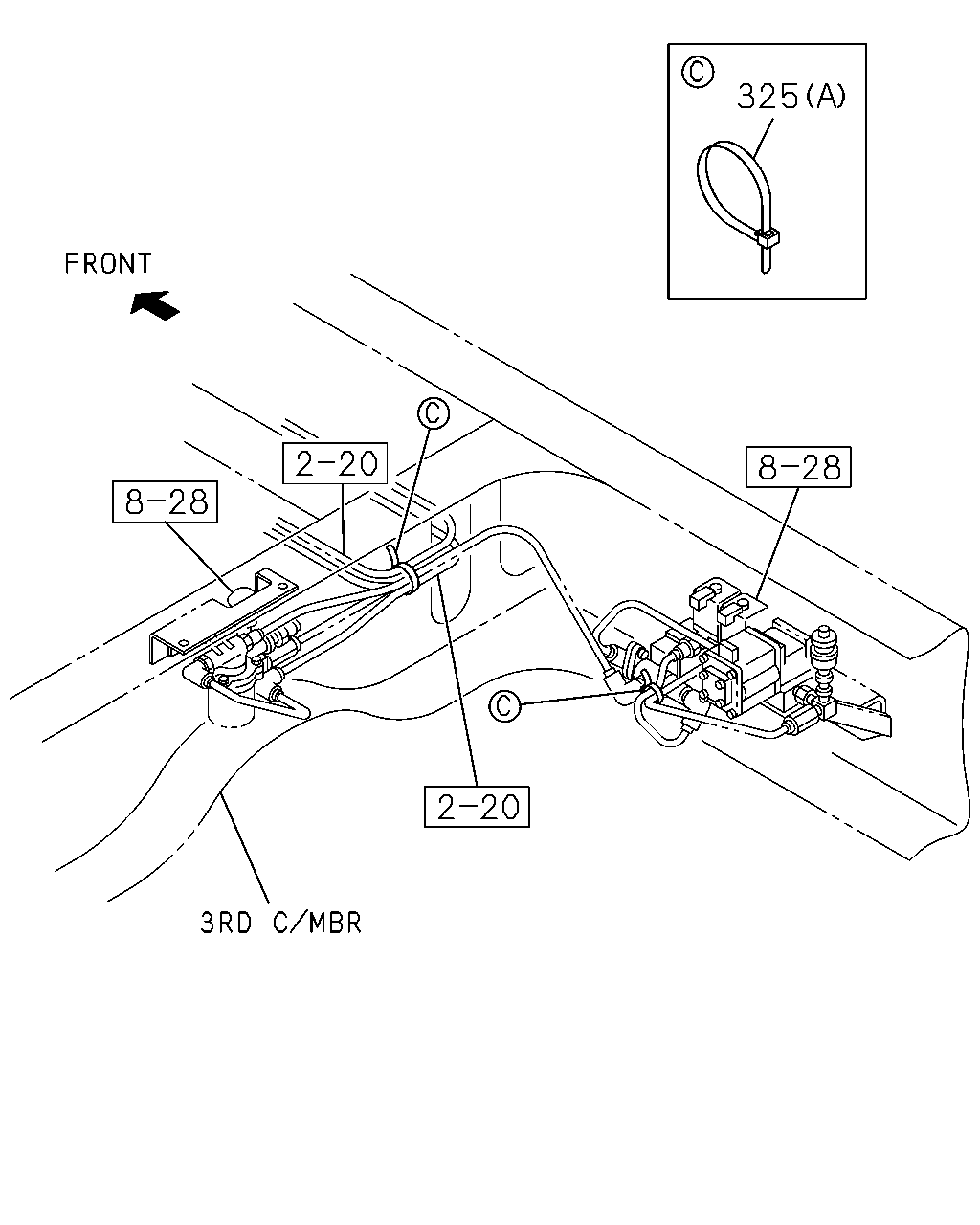

çizim 188543
325
BalonParca AdiParca NoAdetTipApplied Date
325 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=170.3 		1-09987-182-0 01 1 1303-
325 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (B) ID=19 L=28 		0-95235-856-0 01 1 1303-
325 CLIP; NYLON TUBE
SMOOTHER-G(C1W) (A) L=350 		1-09707-183-0 03 1 1009-

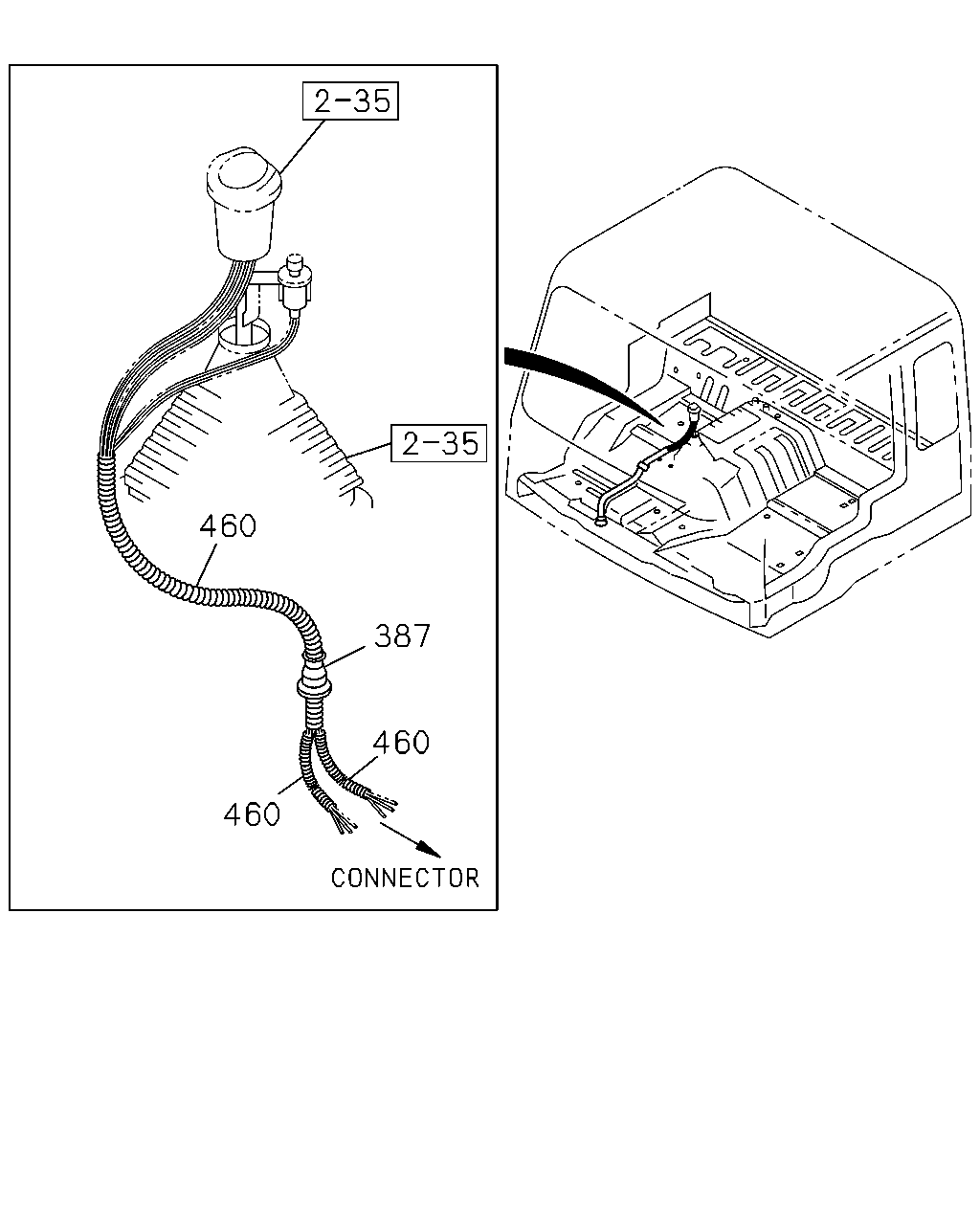

çizim 336240
460 387 460 460
BalonParca AdiParca NoAdetTipApplied Date
387 GROMMET; CONT TUBE,FULLER
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> 		1-09332-135-0 01 1 1303-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1303-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1303-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1303-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) L=50 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1303-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) L=110 SERVICED BY L=2000 ID=7 		1-83129-335-0 01 1 1303-

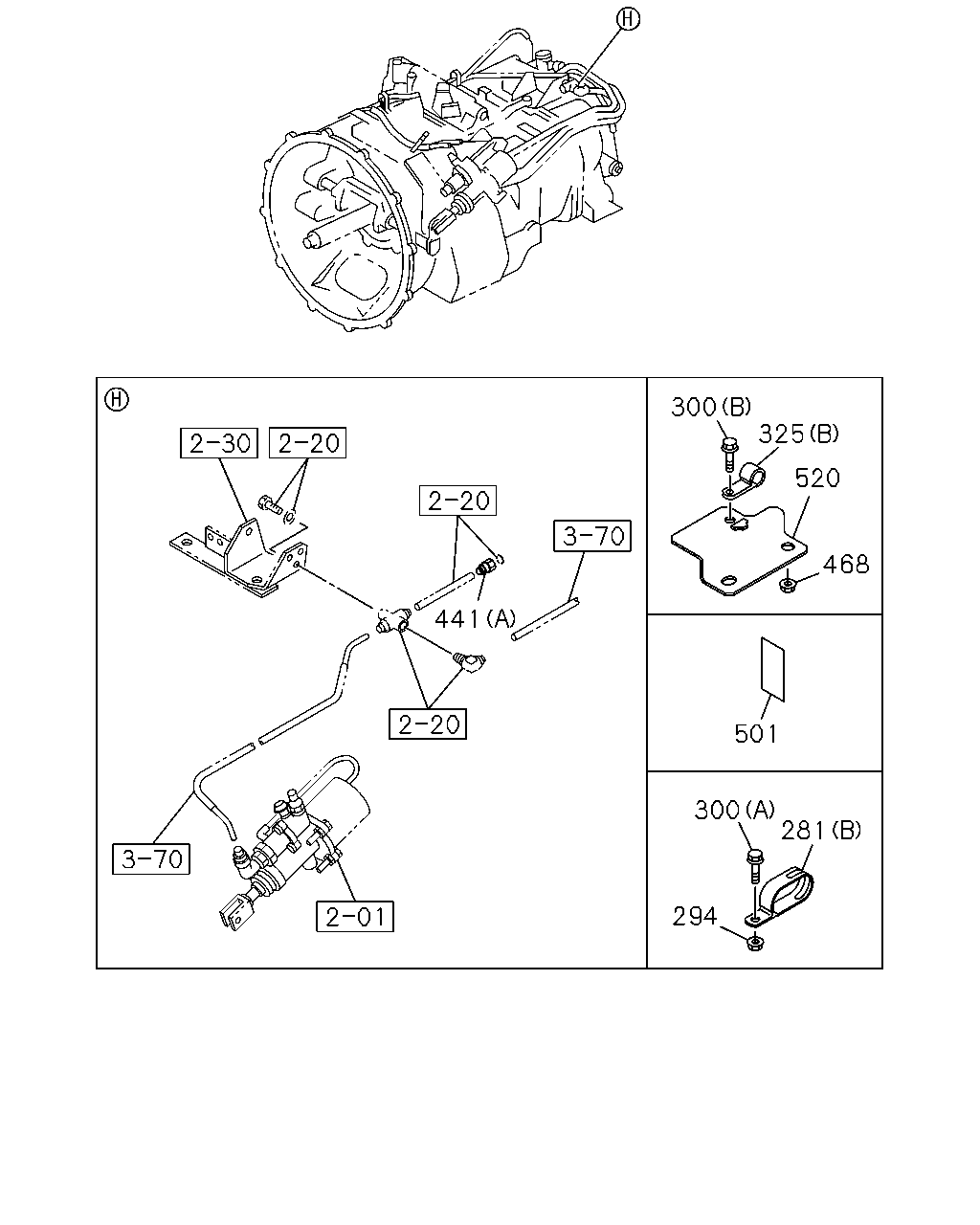

çizim 336245
300 325 468 520 441 501 281 300 294
BalonParca AdiParca NoAdetTipApplied Date
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1303-
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350 		1-09707-183-0 01 1 1009-
294 NUT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) M8 FLANGE 		0-91180-108-0 01 1 1303-
300 BOLT; CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 1303-
300 BOLT; CLIP
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) M8X20 FLANGE 		0-28050-820-0 03 1 1009-
325 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=170.3 		1-09987-182-0 01 1 1303-
325 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (B) ID=19 L=28 		0-95235-856-0 01 1 1303-
325 CLIP; NYLON TUBE
SMOOTHER-G(C1W) (A) L=350 		1-09707-183-0 03 1 1009-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 1303-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) (B) 		8-98120-561-0 06 1 1303-
468 NUT; BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> M10 FLANGE 		0-91180-210-0 02 1 1303-1305
468 NUT; BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> M10 FLANGE 		0-91180-110-0 02 1 1306-
501 SEAL; HARNESS PROTECTOR
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> 180X40 		1-72498-019-1 04 1 1303-
520 BRACKET; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> 		8-98235-633-0 01 1 1303-

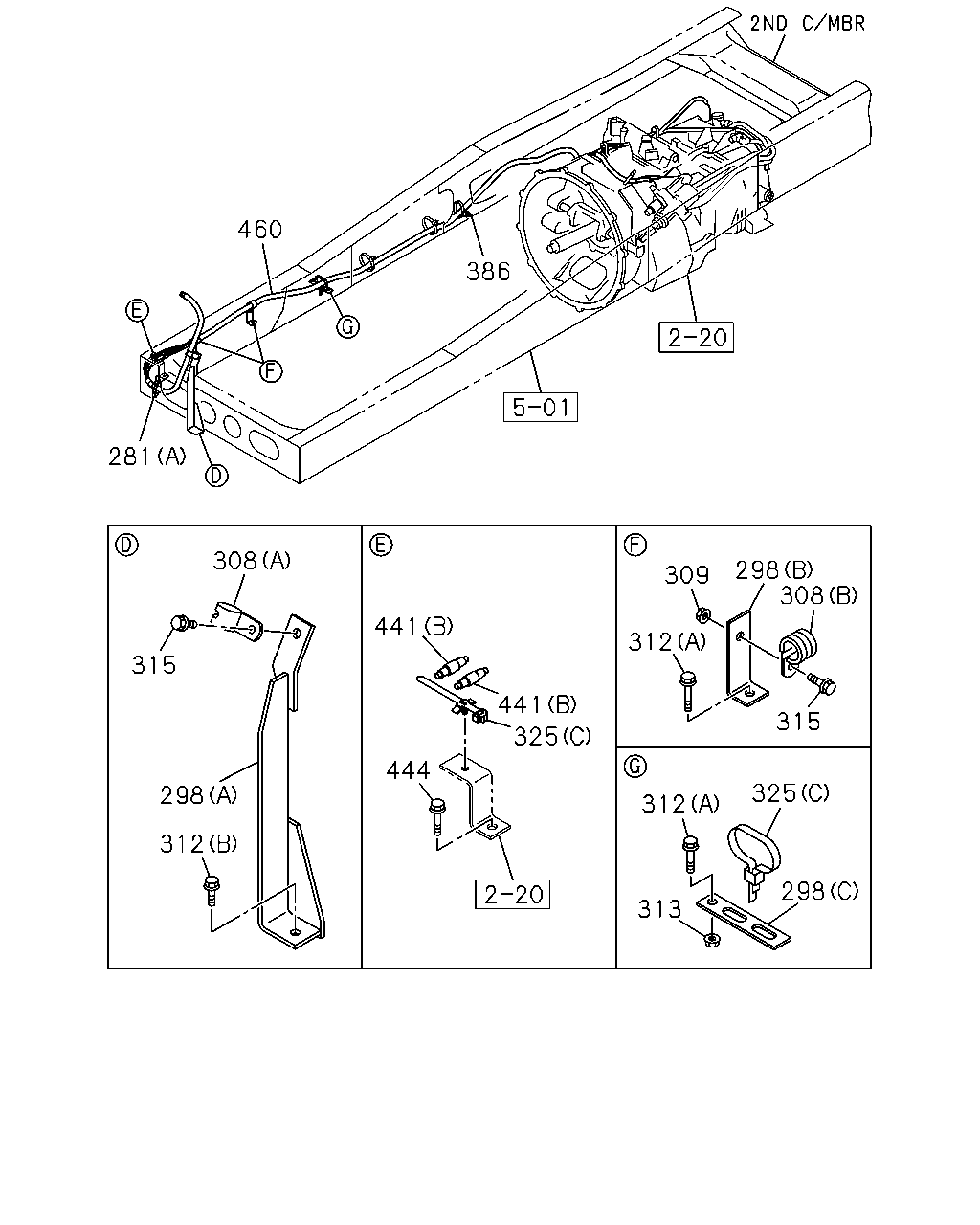

çizim 336249
460 386 281 308 315 298 312 441 444 441 325 312 309 308 298 315 312 325 298 313
BalonParca AdiParca NoAdetTipApplied Date
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (B) ID=13 & 13 L=32 		8-97389-264-0 01 1 1303-
281 CLIP; BAND
TRANSMISSION CONTROL CABLE TYPE(C1A) (A) L=350 		1-09707-183-0 01 1 1009-
298 BRACKET
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) 		1-47477-514-3 01 1 1303-
298 BRACKET
TRANSMISSION-FULLER RTLO169 18(Y3S) (B) L=75 		1-47478-323-0 02 1 1303-
298 BRACKET
TRANSMISSION-FULLER RTLO169 18(Y3S) (A) 		8-98233-259-0 01 1 1303-
308 CLIP; PIPE
TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=19 L=28 		0-95235-856-0 01 1 1303-
308 CLIP; PIPE
TRANSMISSION-FULLER RTLO169 18(Y3S) (B) ID=21 L=24 		8-98019-191-0 02 1 1303-
309 NUT; PIPE CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE 		0-91180-108-0 02 1 1303-
312 BOLT; CLIP BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1303-
312 BOLT; CLIP BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1303-
313 NUT; CLIP BRKT
TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE 		0-91180-108-0 01 1 1303-
315 BOLT; PIPE CLIP
TRANSMISSION-FULLER RTLO169 18(Y3S) M8X20 FLANGE 		0-28650-820-0 03 1 1303-
325 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=170.3 		1-09987-182-0 01 1 1303-
325 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> (B) ID=19 L=28 		0-95235-856-0 01 1 1303-
325 CLIP; NYLON TUBE
SMOOTHER-G(C1W) (A) L=350 		1-09707-183-0 03 1 1009-
386 CLIP; CONT CABLE & TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) L=350 		1-09707-183-0 05 1 1303-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) (A) DIN8 & M20 STRAIGHT 		1-09660-675-1 01 1 1303-
441 CONNECTOR; NYLON TUBE
TRANSMISSION-FULLER RTLO169 18(Y3S) (B) 		8-98120-561-0 06 1 1303-
444 BOLT; BRKT,NIPPLE
TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE 		0-28650-830-0 01 1 1303-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1303-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1303-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1303-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) L=50 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 1303-
460 TUBE; CORRUGATE
TRANSMISSION-FULLER RTLO169 18(Y3S) L=110 SERVICED BY L=2000 ID=7 		1-83129-335-0 01 1 1303-
