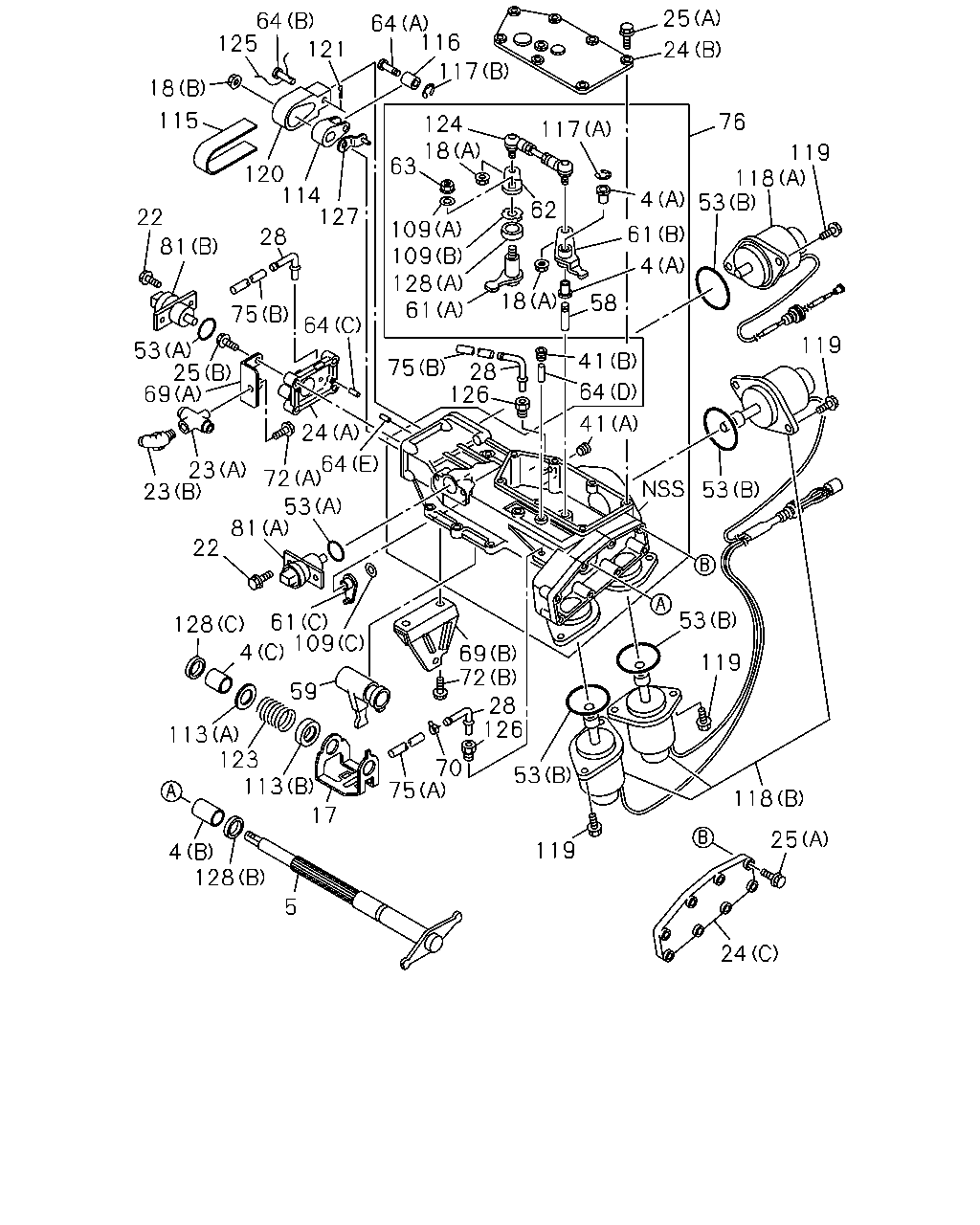

2-31 — AIR CONTROL TRANSMISSION (A.C.T.) (#69927) — 75 parça

5 128 113 119 24 25 118 53 72 17 113 123 75 28 53 119 69 4 128 61 59 53 109 22 72 23 23 81 24 53 64 75 64 75 53 28 81 25 69 119 118 119 76 25 117 24 116 64 121 125 18 120 22 114 127 18 109 63 61 128 109 62 18 124 117 58 4 4 61 53 64 41 28 126 115 4 70 41 64 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BUSHING; SHIFT UNIT (A) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09330-144-0	02	1	-
4	BUSHING; SHIFT UNIT (C), ID=20 OD=23 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-33549-016-0	01	1	-
4	BUSHING; SHIFT UNIT (B), ID=28 OD=32 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-33549-104-0	01	1	-
5	ROD; SHIFT UNIT ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98046-922-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98044-040-0	01	1	-
18	NUT; ROD (A), M6 FLANGE ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0	0-91180-106-0	02	1	-
18	NUT; ROD (B), M10 FLANGE ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-91180-110-0	01	1	-
18	NUT; ROD (A), M8 FLANGE ASM PART: F = 8-98302-715-0	1-09440-062-1	02	1	-
22	BOLT; SW M6X12 FLANGE ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-28050-612-0	04	1	-
23	CONNECTOR; SHIFT UNIT (B), DIN12 & R3/8 ELBOW ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09660-959-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A), DIN8 & RC3/8 3WAY ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09661-129-0	01	1	-
24	COVER; SHIFT UNIT (C) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-34141-023-1	01	1	-
24	COVER; SHIFT UNIT (B) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-34141-028-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98047-742-0	01	1	-
25	BOLT; COVER (A), M8X16 FLANGE ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-28050-816-0	15	1	-
25	BOLT; COVER (B), M6X25 FLANGE ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-28650-625-0	04	1	-
28	PIPE; SHIFT UNIT ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-97358-318-0	03	1	-
41	PLUG; SHIFT UNIT (B), PT3/8 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09605-056-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-94403-163-0	02	1	-
53	GASKET (A), ID=26.8 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09623-058-0	02	1	-
53	GASKET (B) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	9-09561-360-0	04	1	-
58	SHAFT; GEAR SHIFT UNIT ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-33659-240-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-33521-188-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (A) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-33522-194-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: A = 8-98163-035-0	1-33659-251-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0	1-33671-943-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98186-070-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: F = 8-98302-715-0	8-98302-746-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0	1-33671-942-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: F = 8-98302-715-0	8-98302-744-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT M10 FLANGE ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-91180-110-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-82353-827-0	01	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-31424-011-0	01	1	-
64	PIN; GEAR SHIFT UNIT (D), OD=6 L=40 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98036-471-1	01	1	-
64	PIN; GEAR SHIFT UNIT (E), OD=3 L=6.36 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98046-977-0	02	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=5 L=10 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	9-08150-510-0	02	1	-
69	BRACKET; SHIFT UNIT (B) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-82569-396-2	01	1	-
69	BRACKET; SHIFT UNIT (A) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-82698-527-0	01	1	-
70	CLIP; SHIFT UNIT ID=7.8 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-94246-958-0	01	1	-
72	BOLT; BRKT (A), M8X16 FLANGE ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-28050-816-0	01	1	-
72	BOLT; BRKT (B), M12X30 FLANGE ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-28151-230-0	02	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98070-399-0	01	1	-
76	CASE; SHIFT UNIT ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0	8-98147-533-0	01	1	-
76	CASE; SHIFT UNIT ASM PART: F = 8-98302-715-0	8-98302-738-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0	8-97324-827-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0	8-98061-816-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98107-824-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98123-907-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-91610-612-0	01	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-91614-610-0	01	1	-
109	WASHER; PL (B), OD=40 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09532-008-0	01	1	-
113	SEAT; SPRING (B) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-33537-024-0	01	1	-
113	SEAT; SPRING (A) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98147-548-0	01	1	-
114	CAM; GEAR SHIFT UNIT ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98046-921-0	01	1	-
115	GUIDE; PLATE,CAM ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-33549-401-0	01	1	-
116	ROLLER; SHAFT ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-33529-121-0	01	1	-
117	RING; SNAP (B), ID=4 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-91805-504-0	01	1	-
117	RING; SNAP (A), ID=10 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-91805-510-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98162-694-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0	8-98162-740-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: D = 8-98248-187-0	8-98246-833-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: E = 8-98254-317-0, F = 8-98302-715-0	8-98254-312-0	01	1	-
119	BOLT; SOLENOID M10X25 FLANGE ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	0-28751-025-0	08	1	-
120	PLATE; CAM ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-33529-125-0	01	1	-
121	PIN; SPRIT L=27.7 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09747-005-0	01	1	-
123	SPRING; SELECT ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09580-586-1	01	1	-
124	ROD ASM; LINK ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0	1-33671-944-1	01	1	-
124	ROD ASM; LINK ASM PART: F = 8-98302-715-0	8-98302-741-0	01	1	-
125	WIRE L=200 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	9-08351-020-0	01	1	-
126	PLUG; BREATHER ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-33149-023-0	02	1	-
127	PLATE; PIN,CAM TO SHIFT SENSOR ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	8-98046-924-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (A), OD=30 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09625-386-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (C) ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09625-612-1	01	1	-
128	SEAL; OIL,SHIFT UNIT (B), OD=41 ASM PART: A = 8-98163-035-0, B = 8-98186-515-0, C = 8-98186-518-0, D = 8-98248-187-0, E = 8-98254-317-0, F = 8-98302-715-0	1-09625-647-0	01	1	-
