Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#69919) — 288 parça

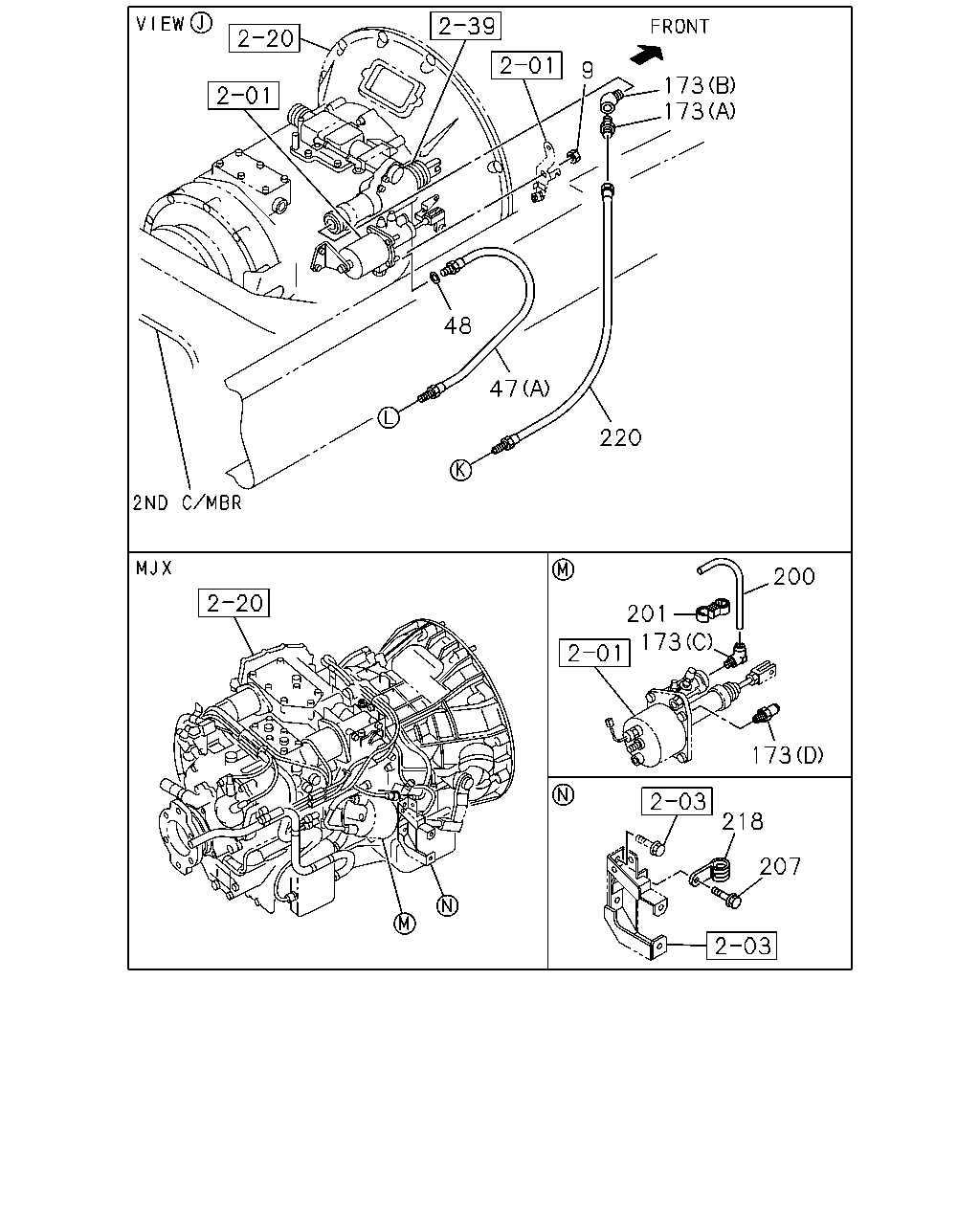

173 173 9 220 47 48 201 200 173 173 218 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE MJT7S M/T(Y3E) M10 FLANGE	0-91180-210-0	02	1	1009-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=445	1-09364-478-0	01	1	1303-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> MIXER TRUCK<RA2> (A) L=550	1-09364-434-0	01	1	1009-1302
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	1303-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (A) L=600	1-09364-705-0	01	1	1009-1302
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) (A) L=600	1-09364-705-0	01	1	1303-
47	HOSE; FLEX,CLU CONT SMOOTHER-G(C1W) (A) L=580	1-09365-349-0	01	1	1009-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	1009-1302
48	GASKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) ID=10.2 OD=16.0	9-09571-410-0	01	1	1303-
173	CONNECTOR MJT7S M/T(Y3E) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-
173	CONNECTOR MJT7S M/T(Y3E) (B) R1/4 & RC1/4	1-09664-211-0	01	1	1009-
173	CONNECTOR SMOOTHER-G(C1W) (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	1009-
173	CONNECTOR SMOOTHER-G(C1W) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	1009-
200	TUBE; NYLON SMOOTHER-G(C1W) SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1009-
201	CLIP; NYLON TUBE SMOOTHER-G(C1W) ID=6.35 & 12	1-09709-275-1	01	1	1009-
207	BOLT; CLIP SMOOTHER-G(C1W) M8X16 FLANGE	0-28050-816-0	01	1	1009-
218	CLIP SMOOTHER-G(C1W) ID=11 L=20	0-95235-035-0	01	1	1009-
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> MIXER TRUCK<RA2> L=300	1-09363-608-0	01	1	1009-1302
220	HOSE; FLEX,POWER ASSIST MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> L=350	1-09363-624-0	01	1	1009-1302
220	HOSE; FLEX,POWER ASSIST MJT7S M/T(Y3E) L=350	1-09363-624-0	01	1	1303-

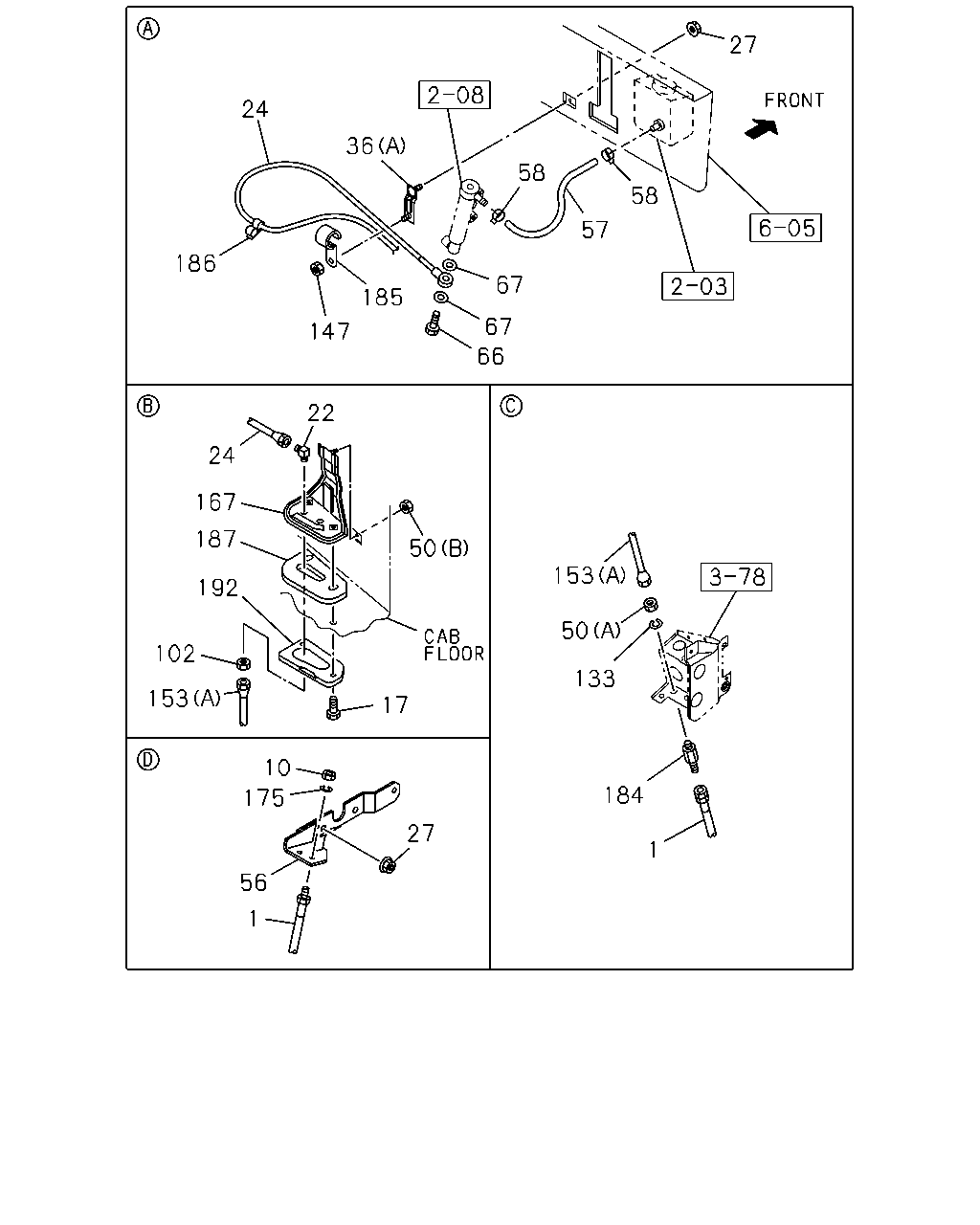

24 186 36 185 147 67 67 57 58 58 27 66 22 24 167 192 187 50 17 153 102 10 175 56 1 27 1 184 133 50 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	1009-1302
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1303-
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	1009-
22	UNION; CLU PIPE M14 ELBOW	0-92125-208-0	01	1	1009-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	1009-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1302
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
27	NUT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1009-1110
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1111-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) (E)	1-47475-774-0	01	1	1303-
36	BRACKET; CLIP (D) L=80 H=20	1-82699-304-0	01	1	1009-1302
36	BRACKET; CLIP MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (D) L=80 H=20	1-82699-304-0	01	1	1303-
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1009-1302
36	BRACKET; CLIP MJT7S M/T(Y3E) (B)	1-47475-689-0	01	1	1303-
36	BRACKET; CLIP SMOOTHER-G(C1W) (C)	8-97610-103-0	01	1	1009-
36	BRACKET; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-191-1	01	1	1009-1110
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1111-
50	NUT; UNION (A) M14	0-91111-514-0	01	1	1009-
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	1009-
56	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1)	8-98151-406-1	01	1	1009-1302
56	BRACKET; FLEX HOSE	8-98151-406-1	01	1	1303-
56	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1)	1-47471-200-0	01	1	1009-1302
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	1009-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	1009-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1009-1302
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1303-1303
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1303-1303
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	1304-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	1009-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	1009-
147	NUT; CLIP FIX SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1009-1110
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	1111-
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=2042 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2042 SERVICED BY L=2150	1-47428-770-0	01	1	1412-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1009-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1412-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	1303-
153	PIPE ASM; CLU,UNION TO FLEX SMOOTHER-G(C1W) (B) L=2049 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX SMOOTHER-G(C1W) (B) L=2050 SERVICED BY L=2150	1-47428-770-0	01	1	1111-
167	BRACKET; UNION	1-71117-183-3	01	1	1009-
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1009-
184	UNION; FLEX HOSE BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) STRAIGHT	1-09656-679-0	01	1	1009-1302
184	UNION; FLEX HOSE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD> STRAIGHT	1-09656-679-0	01	1	1303-
184	UNION; FLEX HOSE MJX12P M/T SMOOTHER-G(Y4S) BRAKE SYSTEM HSA<SLD> STRAIGHT	1-09654-435-0	01	1	1009-1302
184	UNION; FLEX HOSE EXC. BRAKE SYSTEM HSA<SLD> STRAIGHT	1-09654-435-0	01	1	1009-1302
184	UNION; FLEX HOSE TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD> STRAIGHT	1-09654-435-0	01	1	1303-
184	UNION; FLEX HOSE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) STRAIGHT	1-09654-435-0	01	1	1303-
185	CLIP; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=9 L=20	0-95405-308-0	01	1	1009-1110
185	CLIP; BRKT ID=9 L=20	0-95405-308-0	01	1	1111-
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	1009-1302
186	HOLDER; CLIP TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) EXC. BRAKE SYSTEM HSA<SLD>	8-94107-710-0	02	1	1303-
186	HOLDER; CLIP MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) TRANSMISSION CONTROL CABLE TYPE(C1A) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL) BRAKE SYSTEM HSA<SLD>	8-94107-710-0	02	1	1303-
186	HOLDER; CLIP MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) DRIVER ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVELAUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	1303-
187	SEAL; BRKT	1-71117-222-0	01	1	1009-
192	PLATE	1-71117-221-0	01	1	1009-

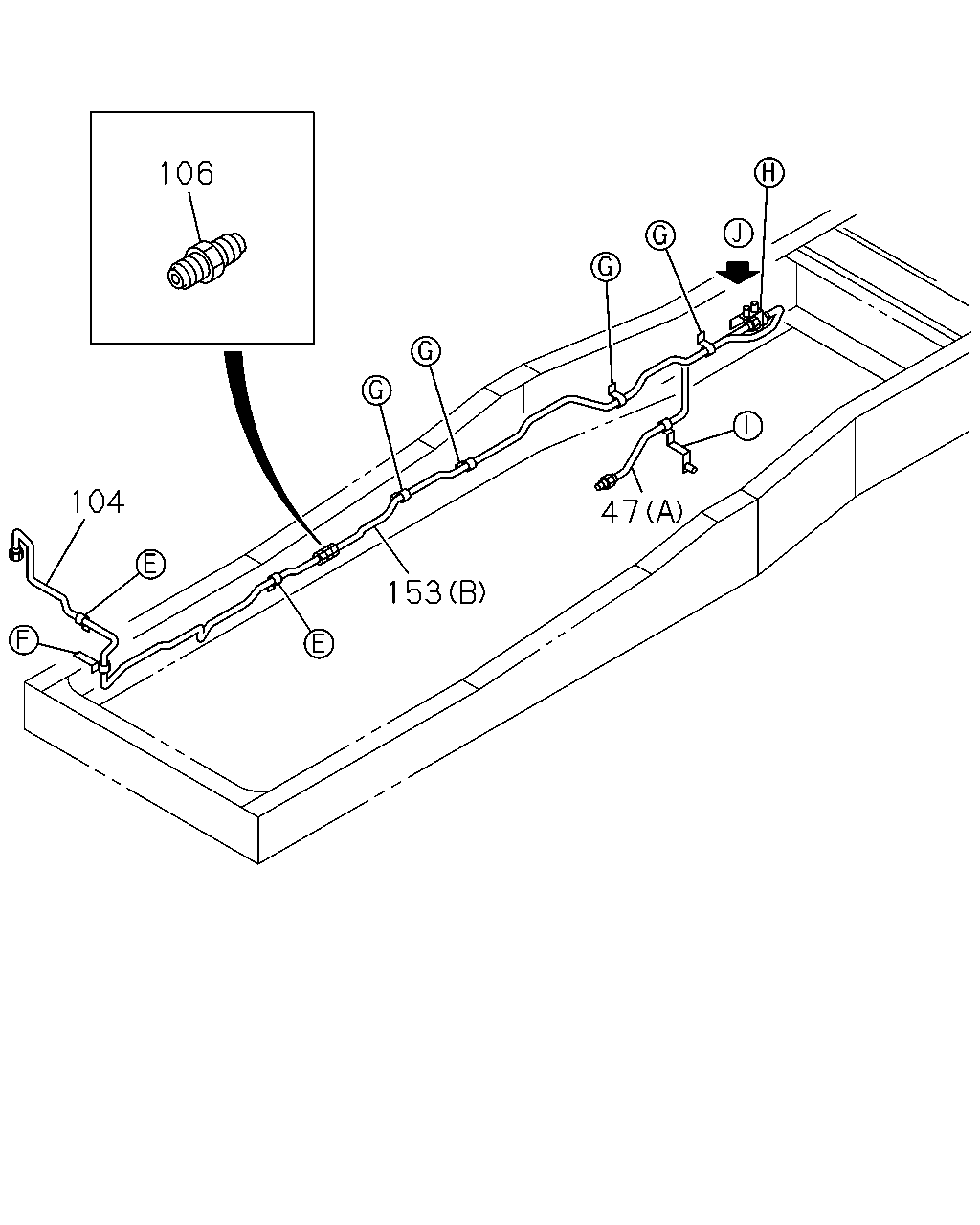

24 153 167 104 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,CLU CONT L=520	8-98072-340-0	01	1	1009-1302
1	HOSE; FLEX,CLU CONT L=620	8-98072-333-0	01	1	1303-
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	1009-
56	BRACKET; FLEX HOSE HONG KONG EQUIPMENT(PQ1)	8-98151-406-1	01	1	1009-1302
56	BRACKET; FLEX HOSE	8-98151-406-1	01	1	1303-
56	BRACKET; FLEX HOSE EXC. HONG KONG EQUIPMENT(PQ1)	1-47471-200-0	01	1	1009-1302
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1303-1411
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1412-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1424 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1303-1411
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1412-
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=2042 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2042 SERVICED BY L=2150	1-47428-770-0	01	1	1412-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1009-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1412-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	1303-
153	PIPE ASM; CLU,UNION TO FLEX SMOOTHER-G(C1W) (B) L=2049 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX SMOOTHER-G(C1W) (B) L=2050 SERVICED BY L=2150	1-47428-770-0	01	1	1111-
167	BRACKET; UNION	1-71117-183-3	01	1	1009-

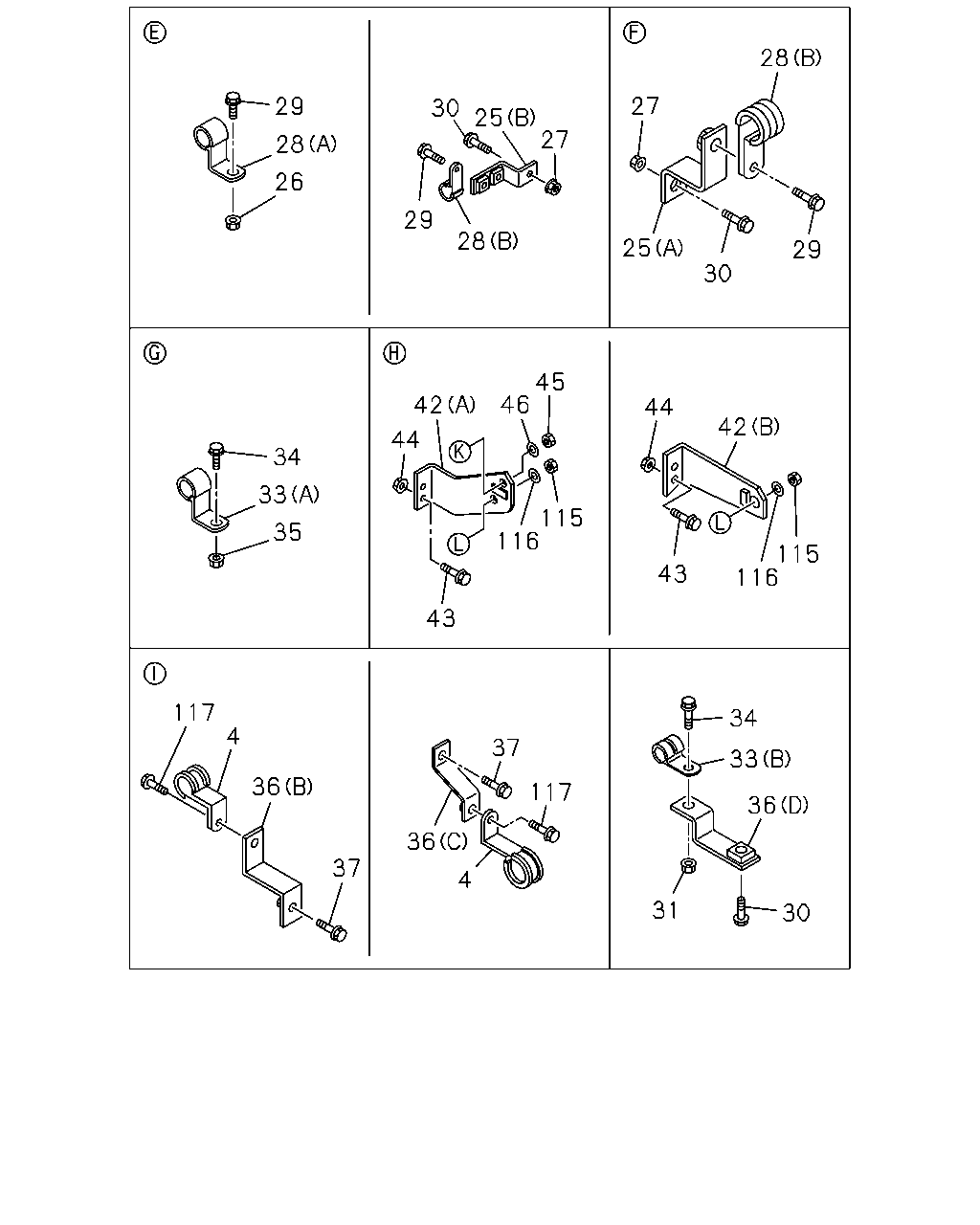

29 26 28 30 29 27 25 27 28 25 29 30 28 34 35 33 42 44 45 46 115 116 43 44 42 43 116 115 117 4 36 37 37 117 36 4 34 33 36 30 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; FLEX HOSE,CLU CONT ID=16 H=25 L=25	1-09701-162-0	01	1	1009-1302
4	CLIP; FLEX HOSE,CLU CONT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) ID=16 H=25 L=25	1-09701-162-0	01	1	1303-
25	BRACKET; OIL PIPE (B)	1-47479-482-0	01	1	1303-
25	BRACKET; OIL PIPE (A)	1-46147-101-0	01	1	1009-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	1009-1302
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1303-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1302
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
27	NUT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1009-1110
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1111-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1009-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1009-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	1009-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1303-
30	BOLT; BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) M8X35 FLANGE	0-28650-835-0	01	1	1303-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1302
31	NUT; BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	01	1	1303-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1303-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S) (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	1303-
33	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	1009-1302
33	CLIP; OIL PIPE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (B) ID=9 L=20	0-95234-835-0	01	1	1303-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	1009-1302
33	CLIP; OIL PIPE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	1303-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	1303-
34	BOLT; PIPE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28650-835-0	03	1	1303-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1009-1302
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	02	1	1303-
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	02	1	1303-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1009-1302
35	NUT; PIPE CLIP MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	03	1	1303-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) (E)	1-47475-774-0	01	1	1303-
36	BRACKET; CLIP (D) L=80 H=20	1-82699-304-0	01	1	1009-1302
36	BRACKET; CLIP MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (D) L=80 H=20	1-82699-304-0	01	1	1303-
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1009-1302
36	BRACKET; CLIP MJT7S M/T(Y3E) (B)	1-47475-689-0	01	1	1303-
36	BRACKET; CLIP SMOOTHER-G(C1W) (C)	8-97610-103-0	01	1	1009-
36	BRACKET; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-191-1	01	1	1009-1110
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1111-
37	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO169 18(Y3S) M8X35 FLANGE	0-28650-835-0	01	1	1303-
37	BOLT; CLIP BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28151-020-0	01	1	1009-1302
37	BOLT; CLIP BRKT MJT7S M/T(Y3E) M10X20 FLANGE	0-28151-020-0	01	1	1303-
37	BOLT; CLIP BRKT SMOOTHER-G(C1W) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
37	BOLT; CLIP BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	1303-
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) (C)	1-47478-511-0	01	1	1303-
42	BRACKET; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> (A)	1-47471-203-0	01	1	1009-1302
42	BRACKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A)	1-47471-203-0	01	1	1303-
42	BRACKET; FLEX HOSE,CLU CONT SMOOTHER-G(C1W) (B)	1-47479-650-0	01	1	1009-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	1009-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1009-
45	NUT; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> M12	9-09840-280-0	01	1	1009-1302
45	NUT; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) M12	9-09840-280-0	01	1	1303-
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7 M/T<Y9E> ID=12.2	0-91510-512-0	01	1	1009-1302
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7S M/T(Y3E) ID=12.2	0-91510-512-0	01	1	1303-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1009-
117	BOLT; CLIP,FLEX HOSE M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
117	BOLT; CLIP,FLEX HOSE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	1303-

153 106 104 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=445	1-09364-478-0	01	1	1303-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> MIXER TRUCK<RA2> (A) L=550	1-09364-434-0	01	1	1009-1302
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	1303-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (A) L=600	1-09364-705-0	01	1	1009-1302
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) (A) L=600	1-09364-705-0	01	1	1303-
47	HOSE; FLEX,CLU CONT SMOOTHER-G(C1W) (A) L=580	1-09365-349-0	01	1	1009-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1303-1411
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1412-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1424 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1303-1411
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1412-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1009-
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=2042 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2042 SERVICED BY L=2150	1-47428-770-0	01	1	1412-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1009-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1412-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	1303-
153	PIPE ASM; CLU,UNION TO FLEX SMOOTHER-G(C1W) (B) L=2049 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX SMOOTHER-G(C1W) (B) L=2050 SERVICED BY L=2150	1-47428-770-0	01	1	1111-

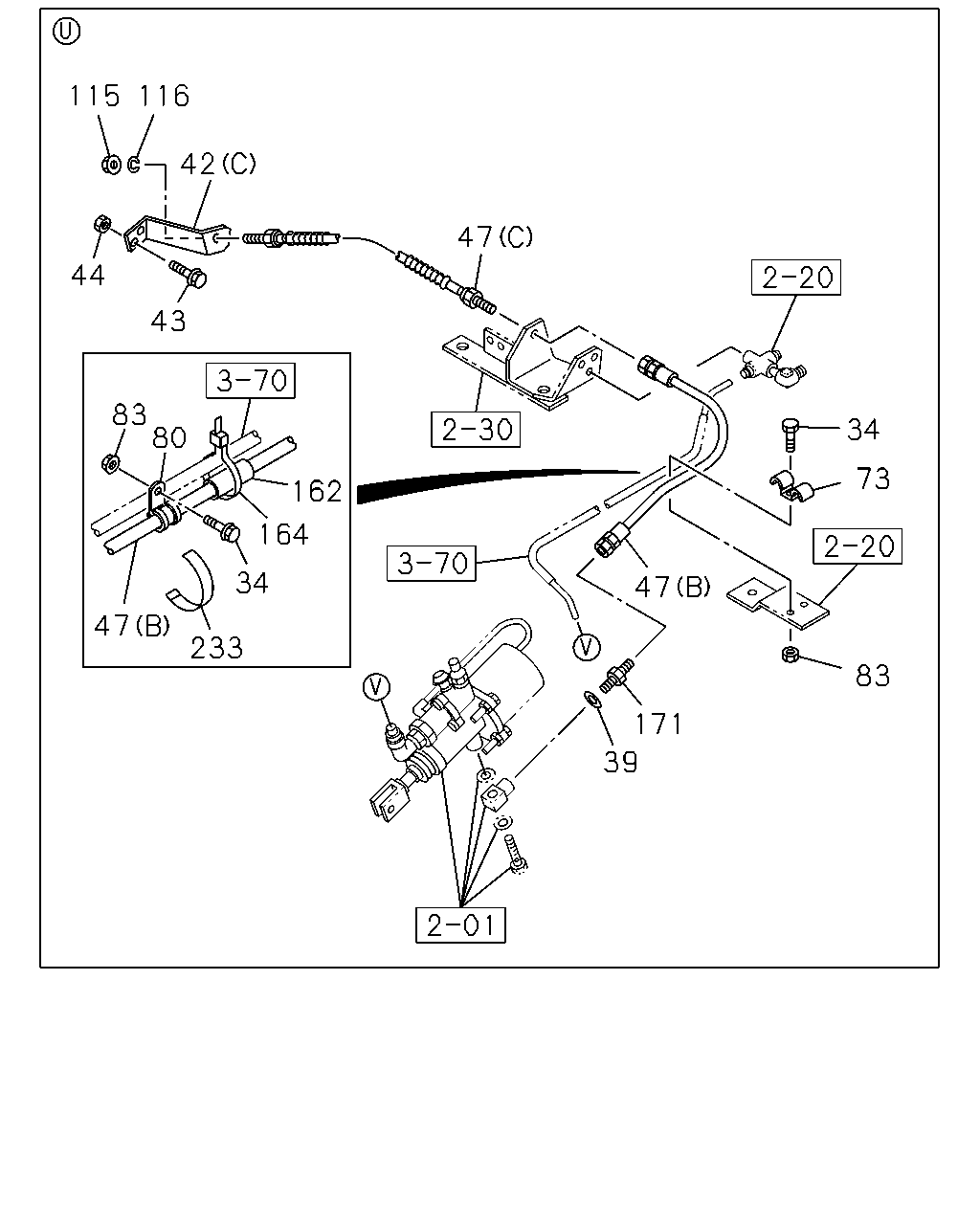

115 116 42 44 43 83 80 162 164 34 233 47 47 34 73 47 83 171 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	1303-
34	BOLT; PIPE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28650-835-0	03	1	1303-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1009-1302
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	02	1	1303-
39	GASKET; CONNECTOR FULLER M/T<X9B> ID=10.2 OD=16.0	9-09571-410-0	01	1	1303-
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) (C)	1-47478-511-0	01	1	1303-
42	BRACKET; FLEX HOSE,CLU CONT MJT7 M/T<Y9E> (A)	1-47471-203-0	01	1	1009-1302
42	BRACKET; FLEX HOSE,CLU CONT MJT7S M/T(Y3E) (A)	1-47471-203-0	01	1	1303-
42	BRACKET; FLEX HOSE,CLU CONT SMOOTHER-G(C1W) (B)	1-47479-650-0	01	1	1009-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28650-835-0	02	1	1009-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1009-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=445	1-09364-478-0	01	1	1303-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> MIXER TRUCK<RA2> (A) L=550	1-09364-434-0	01	1	1009-1302
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	1303-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (A) L=600	1-09364-705-0	01	1	1009-1302
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) (A) L=600	1-09364-705-0	01	1	1303-
47	HOSE; FLEX,CLU CONT SMOOTHER-G(C1W) (A) L=580	1-09365-349-0	01	1	1009-
73	CLIP; OIL PIPE FULLER M/T<X9B> ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	1303-
80	CLIP; HOSE FULLER M/T<X9B> ID=16 L=50	1-09701-158-0	01	1	1303-
83	NUT; PIPE CLIP FULLER M/T<X9B> M8	0-91110-508-0	02	1	1303-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1009-
162	COVER; RUBBER,FLEX HOSE FULLER M/T<X9B> ID=14 OD=18 L=60	1-09337-030-0	01	1	1303-
164	CLIP; BAND,FLEX HOSE FULLER M/T<X9B> L=250	5-09707-030-1	01	1	1303-
171	CONNECTOR; CLU BOOSTER FULLER M/T<X9B>	1-09650-256-2	01	1	1303-
233	BAND; FLEX HOSE FULLER M/T<X9B> L=175	1-09707-178-0	01	1	1303-

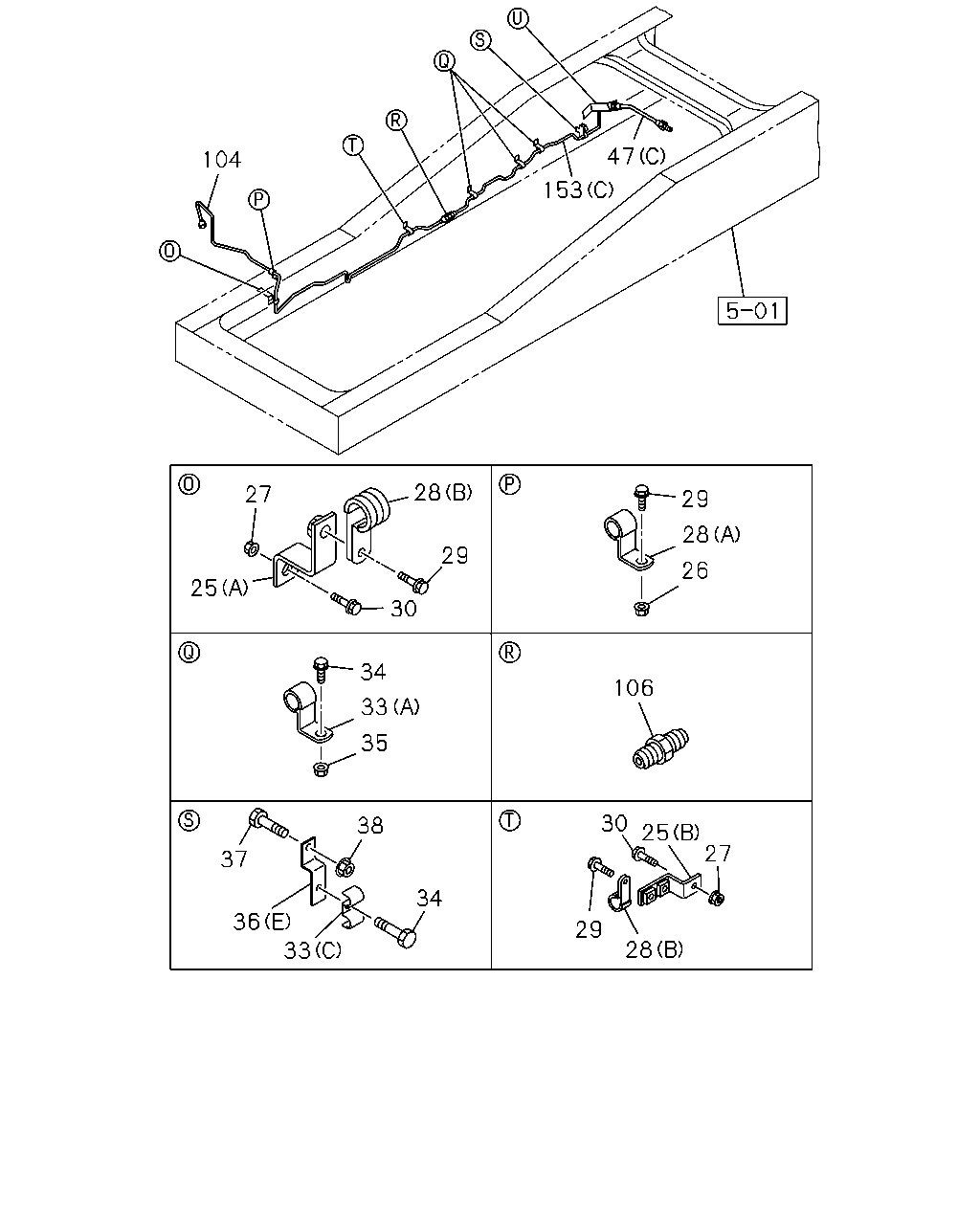

104 153 47 27 28 29 30 25 29 26 28 34 33 35 106 30 25 27 29 28 34 38 37 36 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BRACKET; OIL PIPE (B)	1-47479-482-0	01	1	1303-
25	BRACKET; OIL PIPE (A)	1-46147-101-0	01	1	1009-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	1009-1302
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1303-
27	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1302
27	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1303-
27	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
27	NUT; BRKT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1009-1110
27	NUT; BRKT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	1111-
28	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	02	1	1009-
28	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	1009-
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	1009-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	1303-
30	BOLT; BRKT MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) M8X35 FLANGE	0-28650-835-0	01	1	1303-
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	1303-
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTLO169 18(Y3S) (C) ID=19 & 9 L=22 & 18	1-09701-298-0	01	1	1303-
33	CLIP; OIL PIPE (B) ID=9 L=20	0-95234-835-0	01	1	1009-1302
33	CLIP; OIL PIPE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (B) ID=9 L=20	0-95234-835-0	01	1	1303-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	03	1	1009-1302
33	CLIP; OIL PIPE MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	1303-
34	BOLT; PIPE CLIP FULLER M/T<X9B> M8X20 FLANGE	0-28050-820-0	02	1	1303-
34	BOLT; PIPE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28650-835-0	03	1	1303-
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1009-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1009-1302
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8X30 FLANGE	0-28650-830-0	02	1	1303-
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	02	1	1303-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1009-1302
35	NUT; PIPE CLIP MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	03	1	1303-
36	BRACKET; CLIP TRANSMISSION-FULLER RTLO169 18(Y3S) (E)	1-47475-774-0	01	1	1303-
36	BRACKET; CLIP (D) L=80 H=20	1-82699-304-0	01	1	1009-1302
36	BRACKET; CLIP MJT7S M/T(Y3E),MJX12P M/T SMOOTHER-G(Y4S) (D) L=80 H=20	1-82699-304-0	01	1	1303-
36	BRACKET; CLIP MJT7 M/T<Y9E> (B)	1-47475-689-0	01	1	1009-1302
36	BRACKET; CLIP MJT7S M/T(Y3E) (B)	1-47475-689-0	01	1	1303-
36	BRACKET; CLIP SMOOTHER-G(C1W) (C)	8-97610-103-0	01	1	1009-
36	BRACKET; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-71117-191-1	01	1	1009-1110
36	BRACKET; CLIP (A)	1-71117-191-1	01	1	1111-
37	BOLT; CLIP BRKT TRANSMISSION-FULLER RTLO169 18(Y3S) M8X35 FLANGE	0-28650-835-0	01	1	1303-
37	BOLT; CLIP BRKT MJT7 M/T<Y9E> M10X20 FLANGE	0-28151-020-0	01	1	1009-1302
37	BOLT; CLIP BRKT MJT7S M/T(Y3E) M10X20 FLANGE	0-28151-020-0	01	1	1303-
37	BOLT; CLIP BRKT SMOOTHER-G(C1W) M8X16 FLANGE	0-28050-816-0	01	1	1009-1302
37	BOLT; CLIP BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE	0-28050-816-0	01	1	1303-
38	NUT; CLIP BRKT TRANSMISSION-FULLER RTLO169 18(Y3S) M8 FLANGE	0-91180-108-0	01	1	1303-
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=445	1-09364-478-0	01	1	1303-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> MIXER TRUCK<RA2> (A) L=550	1-09364-434-0	01	1	1009-1302
47	HOSE; FLEX,CLU CONT FULLER M/T<X9B> (B) L=550	1-09365-377-1	01	1	1303-
47	HOSE; FLEX,CLU CONT MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (A) L=600	1-09364-705-0	01	1	1009-1302
47	HOSE; FLEX,CLU CONT MJT7S M/T(Y3E) (A) L=600	1-09364-705-0	01	1	1303-
47	HOSE; FLEX,CLU CONT SMOOTHER-G(C1W) (A) L=580	1-09365-349-0	01	1	1009-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1303-1411
104	PIPE; OIL,FLEX HOSE TO CONNECTOR EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) L=1366 SERVICED BY L=1400	1-47428-765-0	01	1	1412-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1424 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1302
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1303-1411
104	PIPE; OIL,FLEX HOSE TO CONNECTOR NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) L=1363 SERVICED BY L=1400	1-47428-765-0	01	1	1412-
106	UNION; OIL PIPE M14 STRAIGHT	0-92113-008-0	01	1	1009-
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1) (B) L=2042 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2042 SERVICED BY L=2150	1-47428-770-0	01	1	1412-
153	PIPE ASM; CLU,UNION TO FLEX (A) L=537	8-98085-164-0	01	1	1009-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1) (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1303-1411
153	PIPE ASM; CLU,UNION TO FLEX MJT7S M/T(Y3E) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1412-
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX MJT7 M/T<Y9E> EXC. MIXER TRUCK<RA2> (B) L=2067 SERVICED BY L=2150	1-47428-770-0	01	1	1111-1302
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTLO169 18(Y3S) (C) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	1303-
153	PIPE ASM; CLU,UNION TO FLEX SMOOTHER-G(C1W) (B) L=2049 SERVICED BY L=2150	1-47428-770-0	01	1	1009-1110
153	PIPE ASM; CLU,UNION TO FLEX SMOOTHER-G(C1W) (B) L=2050 SERVICED BY L=2150	1-47428-770-0	01	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
