2-03 — CLUTCH PEDAL AND CONTROL (#69918) — 91 parça

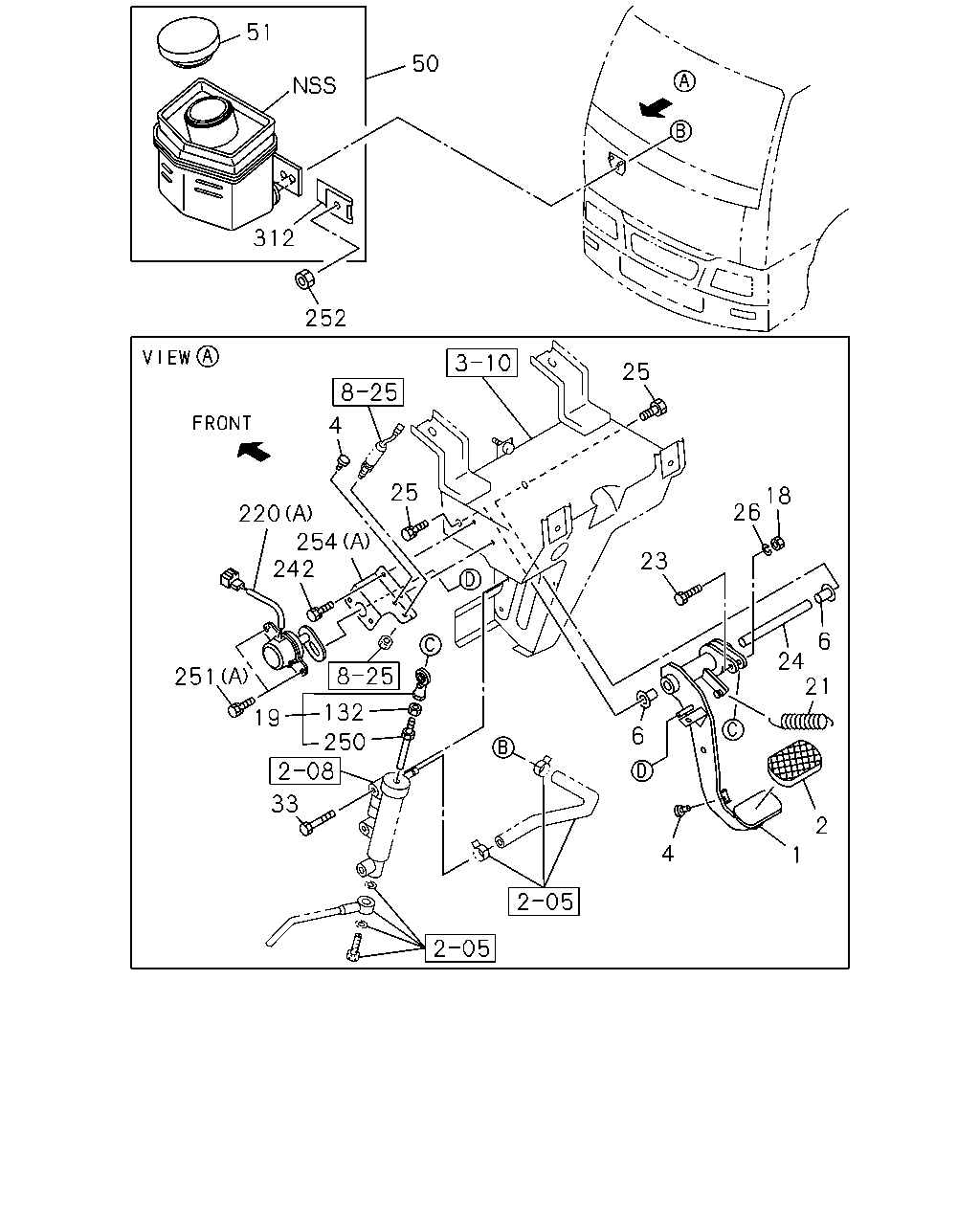

51 50 312 252 4 25 25 220 254 242 26 18 23 6 24 21 2 1 4 6 33 251 19 250 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PEDAL; CLU AIR BAG(TFQ)	1-73907-474-1	01	1	1009-
1	PEDAL; CLU EXC. AIR BAG(TFQ)	1-73907-321-4	01	1	1009-1302
1	PEDAL; CLU MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-73907-321-4	01	1	1303-
2	COVER; CLU PEDAL	8-97893-618-1	01	1	1009-1302
2	COVER; CLU PEDAL AIR BAG(TFQ)	8-97893-618-1	01	1	1303-
2	COVER; CLU PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	8-97893-618-1	01	1	1303-
4	STOPPER; CLU PEDAL	1-47319-014-1	04	1	1009-1302
4	STOPPER; CLU PEDAL AIR BAG(TFQ)	1-47319-014-1	04	1	1303-
4	STOPPER; CLU PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-47319-014-1	04	1	1303-
6	BUSHING; CLU PEDAL	1-09330-045-0	02	1	1009-1302
6	BUSHING; CLU PEDAL AIR BAG(TFQ)	1-09330-045-0	02	1	1303-
6	BUSHING; CLU PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-09330-045-0	02	1	1303-
18	NUT; PUSH ROD M8	0-91110-508-0	01	1	1009-1302
18	NUT; PUSH ROD AIR BAG(TFQ) M8	0-91110-508-0	01	1	1303-
18	NUT; PUSH ROD MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M8	0-91110-508-0	01	1	1303-
19	ROD ASM; PUSH,CLU	1-73907-320-1	01	1	1009-1302
19	ROD ASM; PUSH,CLU AIR BAG(TFQ)	1-73907-320-1	01	1	1303-
19	ROD ASM; PUSH,CLU MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-73907-320-1	01	1	1303-
21	SPRING; RETURN,CLU PEDAL	1-73908-265-0	01	1	1009-1302
21	SPRING; RETURN,CLU PEDAL AIR BAG(TFQ)	1-73908-265-0	01	1	1303-
21	SPRING; RETURN,CLU PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-73908-265-0	01	1	1303-
23	BOLT; PUSH ROD M8X39.7	1-09009-150-0	01	1	1009-1302
23	BOLT; PUSH ROD AIR BAG(TFQ) M8X39.7	1-09009-150-0	01	1	1303-
23	BOLT; PUSH ROD MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M8X39.7	1-09009-150-0	01	1	1303-
24	SHAFT; CLU PEDAL AIR BAG(TFQ)	1-73908-195-1	01	1	1009-
24	SHAFT; CLU PEDAL EXC. AIR BAG(TFQ)	1-73998-936-1	01	1	1009-1302
24	SHAFT; CLU PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-73998-936-1	01	1	1303-
25	BOLT; PEDAL AIR BAG(TFQ) M10X35 W/LK WASHER	0-50051-035-0	02	1	1009-
25	BOLT; PEDAL EXC. AIR BAG(TFQ) M10X25 W/LK WASHER	0-50051-025-0	02	1	1009-1302
25	BOLT; PEDAL MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M10X25 W/LK WASHER	0-50051-025-0	02	1	1303-
26	WASHER; LK,PUSH ROD ID=8.2	0-91510-608-0	01	1	1009-1302
26	WASHER; LK,PUSH ROD AIR BAG(TFQ) ID=8.2	0-91510-608-0	01	1	1303-
26	WASHER; LK,PUSH ROD MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) ID=8.2	0-91510-608-0	01	1	1303-
33	BOLT; CLU M/CYL TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-
50	TANK; OIL,CLU	1-47530-182-0	01	1	1009-
51	CAP; OIL TANK,CLU	8-94136-483-1	01	1	1009-
132	NUT; LK,PUSH ROD M8	0-91110-508-0	01	1	1009-1302
132	NUT; LK,PUSH ROD AIR BAG(TFQ) M8	0-91110-508-0	01	1	1303-
132	NUT; LK,PUSH ROD MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M8	0-91110-508-0	01	1	1303-
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (A)	1-80250-014-0	01	1	1009-
220	SENSOR; CLUTCH BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (A)	1-80250-014-0	01	1	1009-
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	1-81541-109-0	01	1	1009-1302
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	8-98123-908-0	01	1	1303-
242	BOLT; BRKT,CLUTCH AIR BAG(TFQ) M6X16 W/LK WASHER	0-50040-616-0	04	1	1009-
242	BOLT; BRKT,CLUTCH EXC. AIR BAG(TFQ) M6X16 W/LK WASHER	0-50040-616-0	02	1	1009-1302
242	BOLT; BRKT,CLUTCH MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) M6X16 W/LK WASHER	0-50040-616-0	02	1	1303-
250	ROD; PUSH,CLU	1-73996-219-0	01	1	1009-1302
250	ROD; PUSH,CLU AIR BAG(TFQ)	1-73996-219-0	01	1	1303-
250	ROD; PUSH,CLU MJT7S M/T(Y3E) EXC. AIR BAG(TFQ)	1-73996-219-0	01	1	1303-
251	BOLT; SENSOR SMOOTHER-G(C1W) (C) M6X16 FLANGE	0-28650-616-0	02	1	1009-
251	BOLT; SENSOR SMOOTHER-G(C1W) (B) M10X25 FLANGE	0-28751-025-0	02	1	1009-
251	BOLT; SENSOR SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
251	BOLT; SENSOR BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
252	NUT; OIL TANK M8 FLANGE W/RUBBER	1-09984-176-0	02	1	1009-
254	BRACKET; CLU SENSOR (A)	1-73998-979-5	01	1	1009-1302
254	BRACKET; CLU SENSOR AIR BAG(TFQ) (A)	1-73998-979-5	01	1	1303-
254	BRACKET; CLU SENSOR MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) (A)	1-73998-979-5	01	1	1303-
254	BRACKET; CLU SENSOR SMOOTHER-G(C1W) (B)	1-31349-076-1	01	1	1009-
312	PLATE; OIL TANK,CLU	1-21249-007-1	01	1	1009-

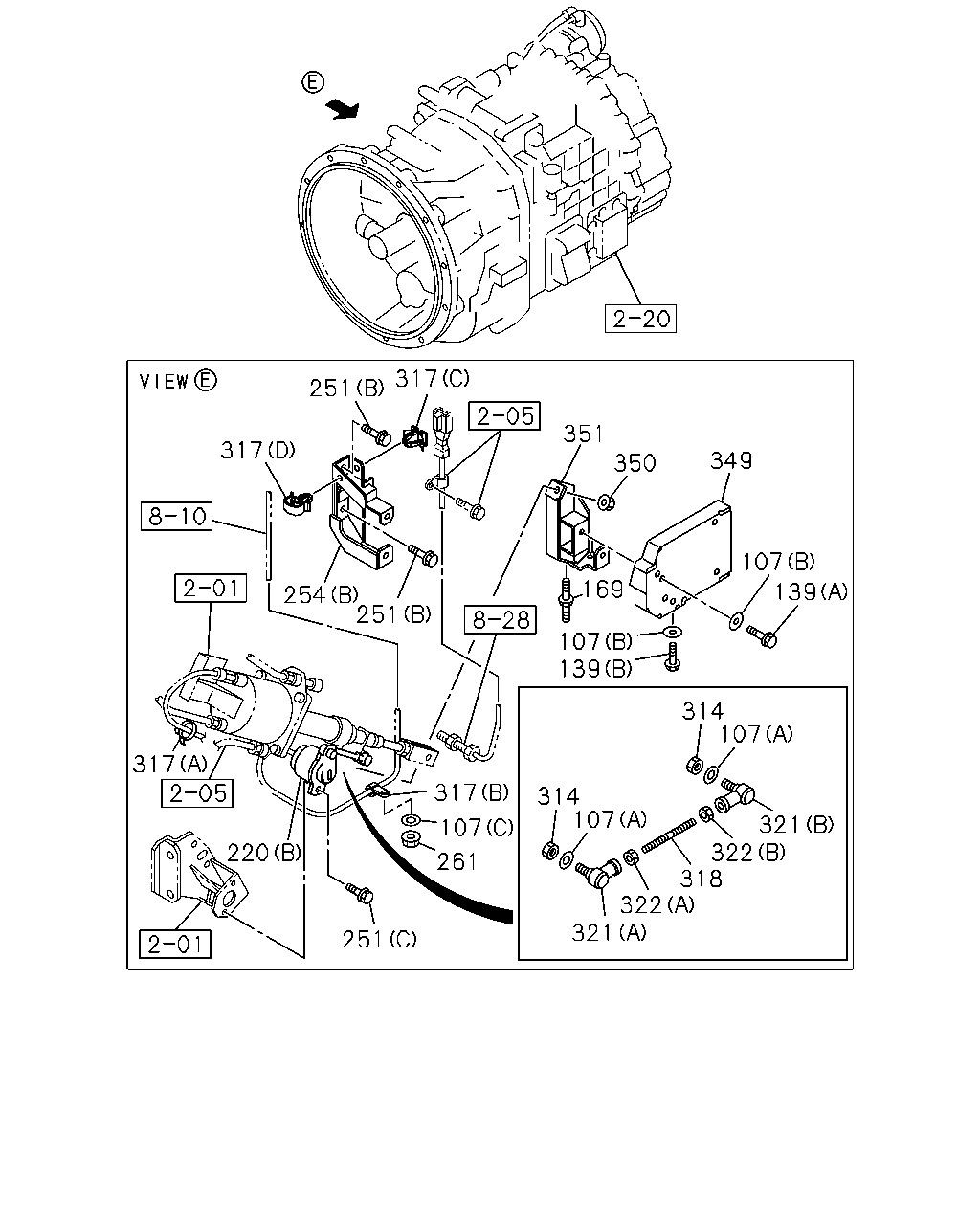

251 317 317 351 350 349 254 251 169 107 139 107 139 317 317 107 220 107 251 261 314 314 107 321 322 318 322 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	WASHER; PL SMOOTHER-G(C1W) (C) ID=8.4 OD=16	0-91610-508-0	01	1	1009-
107	WASHER; PL SMOOTHER-G(C1W) (B) ID=8.4 OD=22	0-91610-708-0	06	1	1009-
107	WASHER; PL SMOOTHER-G(C1W) (A) ID=5.3 OD=16	0-91614-705-0	02	1	1009-
139	BOLT; COVER SMOOTHER-G(C1W) (A) M8X16 FLANGE	0-28050-816-0	05	1	1009-
139	BOLT; COVER SMOOTHER-G(C1W) (B) M8X35 FLANGE	0-28650-835-0	01	1	1009-
169	BOLT; CLIP SMOOTHER-G(C1W) M8X15,M8X17 L=40	8-98009-913-0	01	1	1009-
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (A)	1-80250-014-0	01	1	1009-
220	SENSOR; CLUTCH BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (A)	1-80250-014-0	01	1	1009-
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	1-81541-109-0	01	1	1009-1302
220	SENSOR; CLUTCH SMOOTHER-G(C1W) (B)	8-98123-908-0	01	1	1303-
251	BOLT; SENSOR SMOOTHER-G(C1W) (C) M6X16 FLANGE	0-28650-616-0	02	1	1009-
251	BOLT; SENSOR SMOOTHER-G(C1W) (B) M10X25 FLANGE	0-28751-025-0	02	1	1009-
251	BOLT; SENSOR SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
251	BOLT; SENSOR BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1009-
254	BRACKET; CLU SENSOR (A)	1-73998-979-5	01	1	1009-1302
254	BRACKET; CLU SENSOR AIR BAG(TFQ) (A)	1-73998-979-5	01	1	1303-
254	BRACKET; CLU SENSOR MJT7S M/T(Y3E) EXC. AIR BAG(TFQ) (A)	1-73998-979-5	01	1	1303-
254	BRACKET; CLU SENSOR SMOOTHER-G(C1W) (B)	1-31349-076-1	01	1	1009-
261	NUT; CLIP SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	1009-
314	NUT; ROD SMOOTHER-G(C1W) M5	0-91110-505-0	02	1	1009-
317	CLIP; CABLE SMOOTHER-G(C1W) (B) ID=11 L=32	0-95235-065-0	01	1	1009-
317	CLIP; CABLE SMOOTHER-G(C1W) (A) L=180	1-09707-162-1	01	1	1009-
317	CLIP; CABLE SMOOTHER-G(C1W) (C) OD=9 H=6	1-09709-178-0	01	1	1009-
317	CLIP; CABLE SMOOTHER-G(C1W) (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1009-
318	ROD; CLU SMOOTHER-G(C1W)	0-84100-506-0	01	1	1009-
321	END; ROD SMOOTHER-G(C1W) (A)	1-09760-103-2	01	1	1009-
321	END; ROD SMOOTHER-G(C1W) (B)	1-09760-104-2	01	1	1009-
322	NUT; ROD END SMOOTHER-G(C1W) (A) M5	0-91110-505-0	01	1	1009-
322	NUT; ROD END SMOOTHER-G(C1W) (B) M5 LH THREAD	9-09840-277-0	01	1	1009-
349	COVER; SENSOR SMOOTHER-G(C1W)	1-31349-077-0	01	1	1009-
350	NUT; COVER SMOOTHER-G(C1W) M10 FLANGE	0-91180-210-0	01	1	1009-
351	BRACKET; COVER SMOOTHER-G(C1W)	1-31349-078-1	01	1	1009-
