Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#69914) — 335 parça

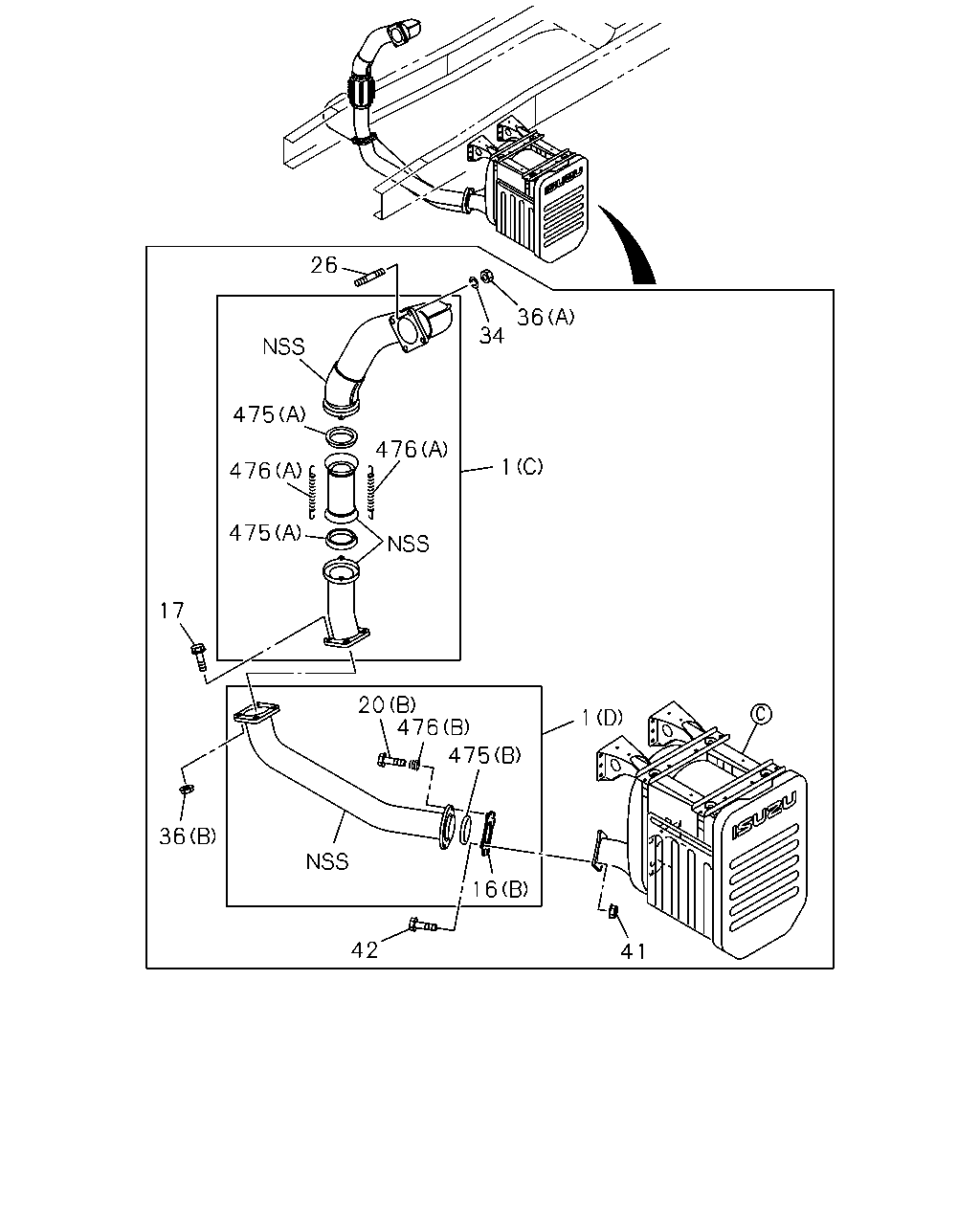

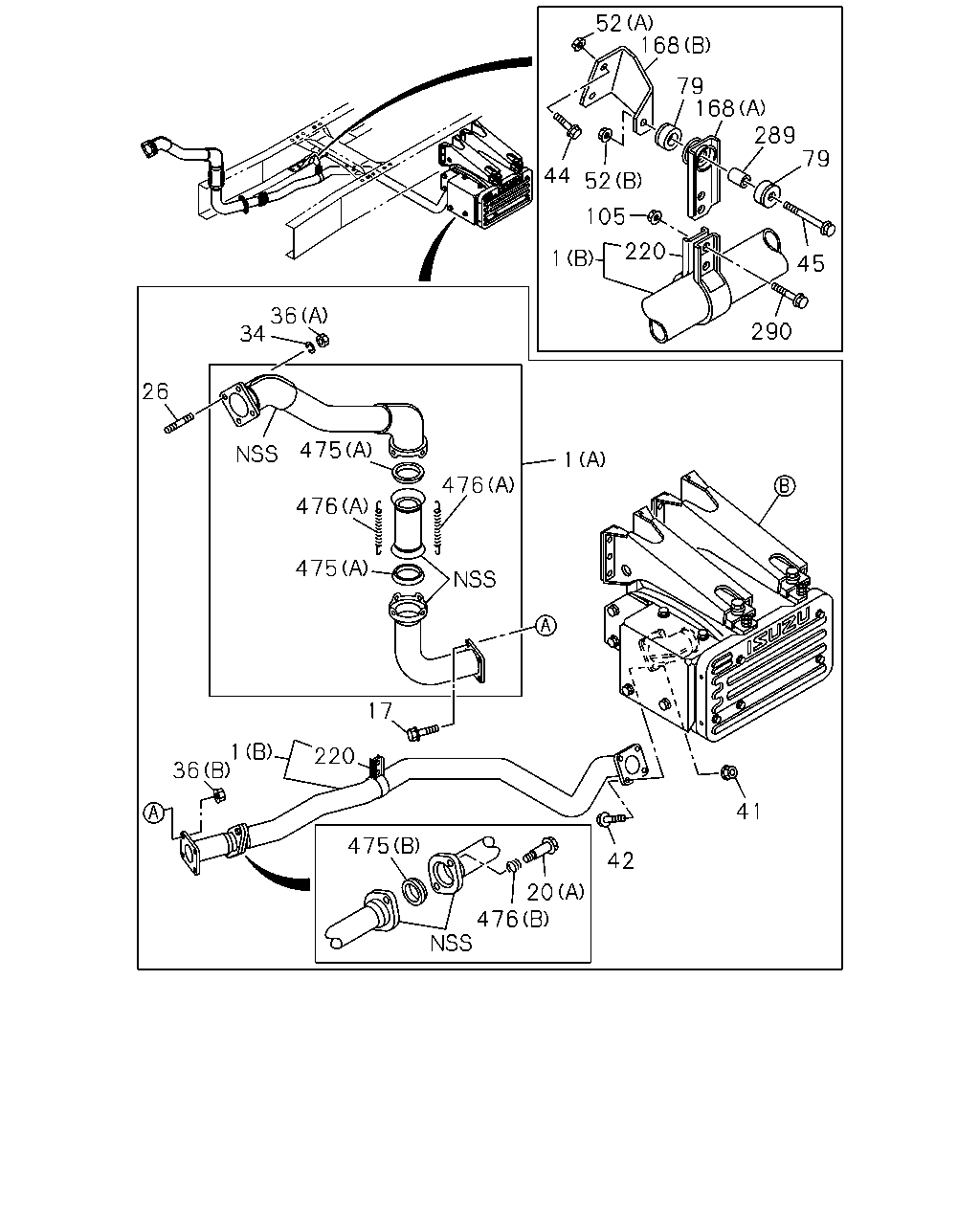

52 168 79 168 289 79 45 290 220 105 52 44 1 36 26 34 475 476 476 475 1 41 42 20 476 475 36 1 220 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH NEW ZEALAND EQUIPMENT(PK5) (D)	1-22123-683-1	01	1	1303-
1	PIPE; EXH NEW ZEALAND EQUIPMENT(PK5) (C)	8-97634-533-0	01	1	1303-
1	PIPE; EXH (B)	8-97632-344-0	01	1	1009-1011
1	PIPE; EXH (B)	8-97639-923-0	01	1	1012-1302
1	PIPE; EXH HONG KONG EQUIPMENT(PQ1) (B)	8-97639-923-0	01	1	1303-1411
1	PIPE; EXH HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-97639-923-0	01	1	1412-
1	PIPE; EXH (A)	8-97634-537-0	01	1	1009-1302
1	PIPE; EXH HONG KONG EQUIPMENT(PQ1) (A)	8-97634-537-0	01	1	1303-1411
1	PIPE; EXH HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-97634-537-0	01	1	1412-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1009-
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B) M10X51.4	8-94436-943-0	03	1	1303-1411
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M10X51.4	8-94436-943-0	03	1	1412-
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	03	1	1009-1302
20	BOLT; FLANGE,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B) M10X51.4	8-94436-943-0	05	1	1303-
20	BOLT; FLANGE,EXH PIPE (A) M10X49.8	8-97039-586-0	02	1	1009-1302
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1) (A) M10X49.8	8-97039-586-0	02	1	1303-1411
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M10X49.8	8-97039-586-0	02	1	1412-
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1009-1402
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1009-
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	1009-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1009-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	1009-1302
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	1009-1302
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	1303-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	1303-
44	BOLT; BRKT M8X30 FLANGE	0-28050-830-0	02	1	1009-1302
44	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M8X30 FLANGE	0-28050-830-0	02	1	1303-
45	BOLT; BRKT M10X50 FLANGE	0-28051-050-0	01	1	1009-1302
45	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M10X50 FLANGE	0-28051-050-0	01	1	1303-
52	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1009-1302
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (A) M8 FLANGE	0-91180-108-0	02	1	1303-
52	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1009-1302
52	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (B) M10 FLANGE	0-91180-210-0	01	1	1303-
79	SUPPORT; BRKT OD=40	1-22159-094-0	02	1	1009-1302
79	SUPPORT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> OD=40	1-22159-094-0	02	1	1303-
105	NUT; CLAMP M8	0-91110-508-0	02	1	1009-1302
105	NUT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> M8 FLANGE	0-91180-108-0	02	1	1303-
168	BRACKET; EXH PIPE,FRT NEW ZEALAND EQUIPMENT(PK5) (C)	1-22131-995-1	01	1	1303-1504
168	BRACKET; EXH PIPE,FRT NEW ZEALAND EQUIPMENT(PK5) (C)	8-98302-583-0	01	1	1505-
168	BRACKET; EXH PIPE,FRT (A)	1-22131-780-0	01	1	1009-1302
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22131-780-0	01	1	1303-
168	BRACKET; EXH PIPE,FRT (B)	1-22134-213-0	01	1	1009-1302
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-22134-213-0	01	1	1303-
220	CLAMP; EXH PIPE D=101.4	1-22133-170-1	01	1	1009-1302
220	CLAMP; EXH PIPE HONG KONG EQUIPMENT(PQ1) D=101.4	1-22133-170-1	01	1	1303-1411
220	CLAMP; EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) D=101.4	1-22133-170-1	01	1	1412-
289	COLLAR; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	1009-1302
289	COLLAR; DIST,SUPPORT RUBBER SILENCER LAYOUT REAR VAR1<JAZ> L=22	9-22159-024-0	01	1	1303-
290	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	1009-1302
290	BOLT; CLAMP SILENCER LAYOUT REAR VAR1<JAZ> M8X40 FLANGE	0-28650-840-0	02	1	1303-
475	BEARING; SEAL,VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B) OD=112	1-22119-294-1	02	1	1303-1411
475	BEARING; SEAL,VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) OD=112	1-22119-294-1	02	1	1412-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	02	1	1009-1302
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B) OD=112	1-22119-294-1	01	1	1303-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	03	1	1009-1302
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) OD=122	1-22119-297-1	03	1	1303-1411
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) OD=122	1-22119-297-1	03	1	1412-
476	SPRING; VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B)	8-94141-851-0	04	1	1303-1411
476	SPRING; VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-94141-851-0	04	1	1412-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1009-1302
476	SPRING; VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-09583-248-0	04	1	1303-1411
476	SPRING; VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A)	1-09583-248-0	04	1	1412-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	04	1	1009-1302
476	SPRING; VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B)	8-94141-851-0	02	1	1303-

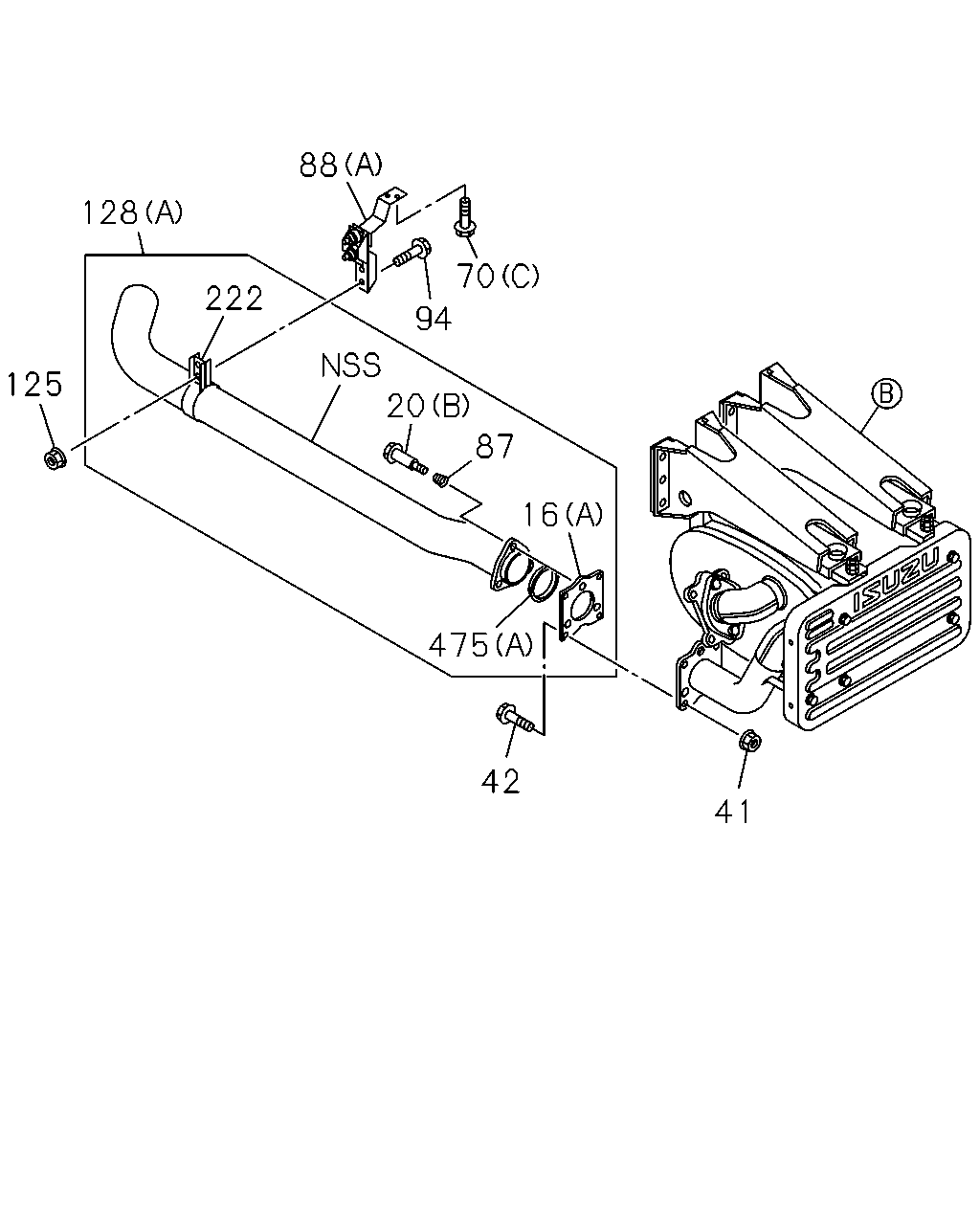

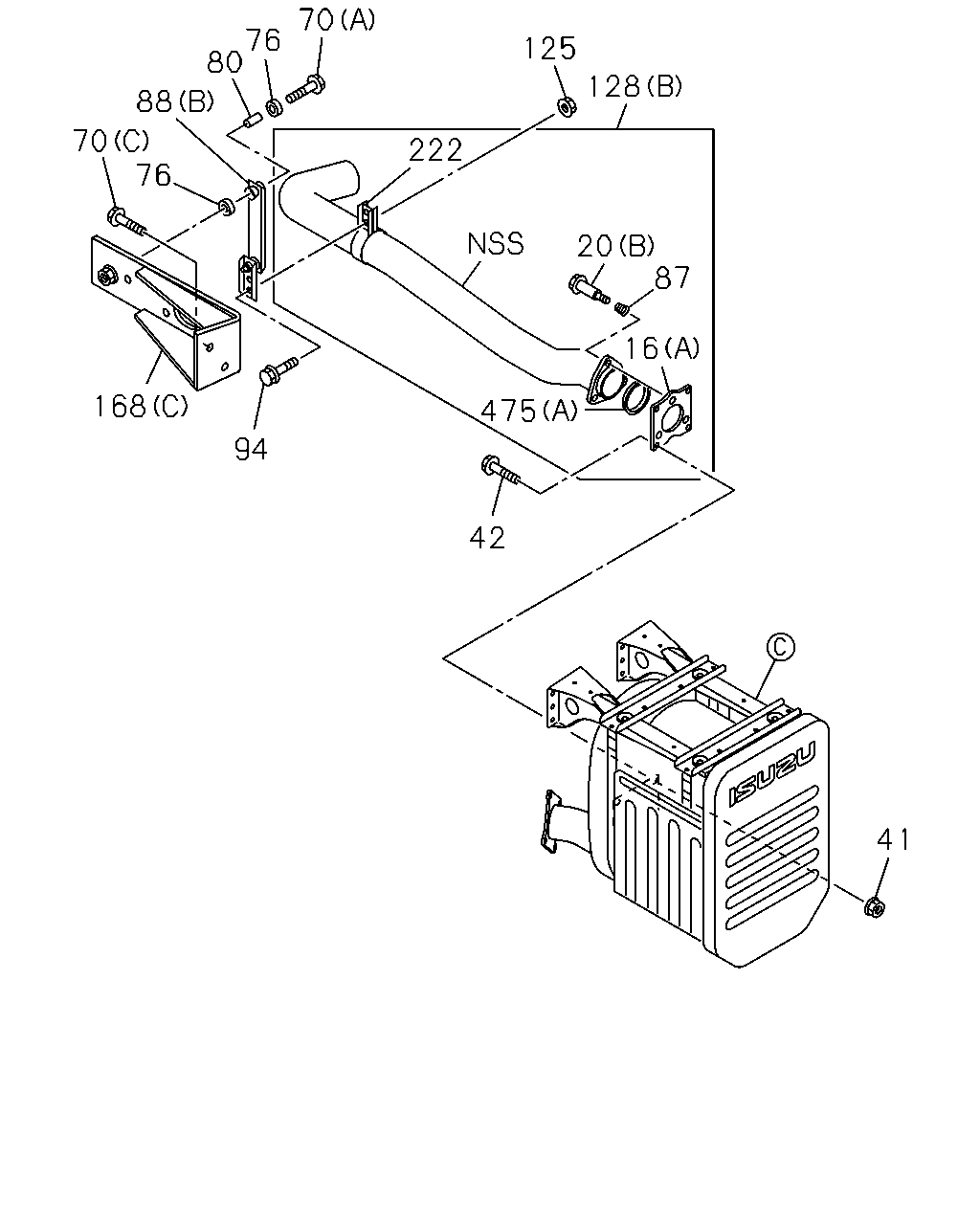

88 128 222 94 70 20 125 87 16 475 42 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	FLANGE; EXH PIPE (A)	1-22115-229-0	01	1	1009-1302
16	FLANGE; EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-22115-229-0	01	1	1303-
16	FLANGE; EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B)	1-22115-217-0	01	1	1303-
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B) M10X51.4	8-94436-943-0	03	1	1303-1411
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M10X51.4	8-94436-943-0	03	1	1412-
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	03	1	1009-1302
20	BOLT; FLANGE,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B) M10X51.4	8-94436-943-0	05	1	1303-
20	BOLT; FLANGE,EXH PIPE (A) M10X49.8	8-97039-586-0	02	1	1009-1302
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1) (A) M10X49.8	8-97039-586-0	02	1	1303-1411
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M10X49.8	8-97039-586-0	02	1	1412-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	1009-1302
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	1009-1302
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	1303-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	1303-
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (D) M10X20 FLANGE	0-28051-020-0	04	1	1303-
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (A) M10X50 FLANGE	0-28051-050-0	01	1	1303-
70	BOLT; BRKT (C) M10X30 FLANGE	0-28051-030-0	02	1	1009-1302
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M10X30 FLANGE	0-28051-030-0	02	1	1303-1411
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C) M10X30 FLANGE	0-28051-030-0	02	1	1412-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28051-035-0	04	1	1009-1302
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X35 FLANGE	0-28051-035-0	04	1	1303-
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	04	1	1009-
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	1009-1302
87	SPRING; PRE SILENCER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	8-94141-851-0	03	1	1303-1411
87	SPRING; PRE SILENCER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	8-94141-851-0	03	1	1412-
88	CLAMP; EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B)	1-22152-070-0	01	1	1303-
88	CLAMP; EXH PIPE (A)	1-22151-976-2	01	1	1009-1302
88	CLAMP; EXH PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-22151-976-2	01	1	1303-1411
88	CLAMP; EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-22151-976-2	01	1	1412-
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	1009-
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1009-
128	PIPE; EXH,RR NEW ZEALAND EQUIPMENT(PK5) (B)	1-22126-524-1	01	1	1303-
128	PIPE; EXH,RR (A)	8-97611-407-1	01	1	1009-1302
128	PIPE; EXH,RR HONG KONG EQUIPMENT(PQ1) (A)	8-97611-407-1	01	1	1303-1411
128	PIPE; EXH,RR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-97611-407-1	01	1	1412-
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	1009-1302
222	CLAMP; EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-22133-276-0	01	1	1303-1411
222	CLAMP; EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-22133-276-0	01	1	1412-
475	BEARING; SEAL,VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B) OD=112	1-22119-294-1	02	1	1303-1411
475	BEARING; SEAL,VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) OD=112	1-22119-294-1	02	1	1412-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	02	1	1009-1302
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B) OD=112	1-22119-294-1	01	1	1303-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	03	1	1009-1302
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) OD=122	1-22119-297-1	03	1	1303-1411
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) OD=122	1-22119-297-1	03	1	1412-

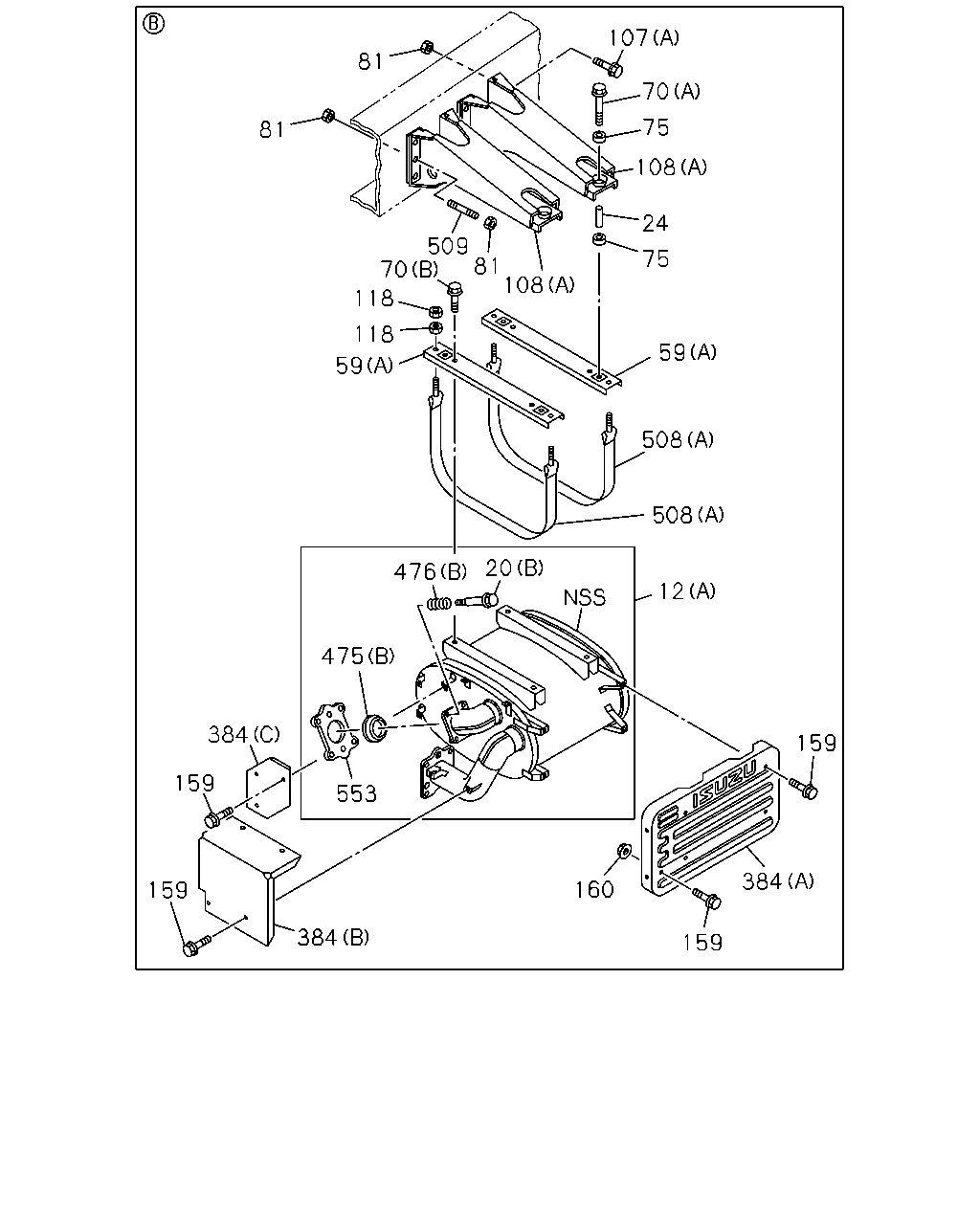

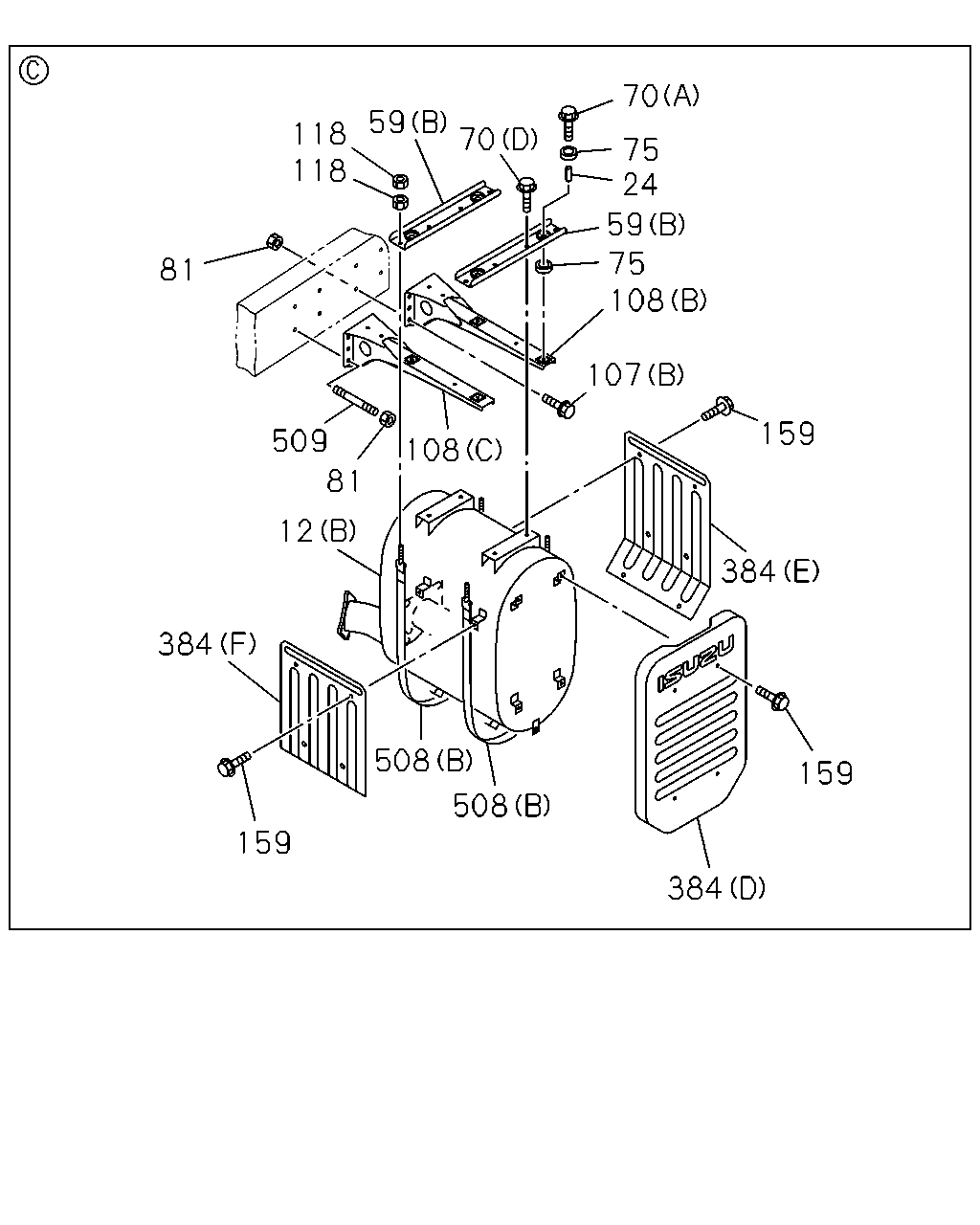

107 70 75 24 108 75 59 508 508 12 159 384 159 160 384 159 159 384 553 475 476 20 59 118 118 70 81 81 509 108 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH NEW ZEALAND EQUIPMENT(PK5) (B)	8-97611-402-0	01	1	1303-
12	SILENCER ASM; EXH (A)	8-97611-401-0	01	1	1009-1302
12	SILENCER ASM; EXH HONG KONG EQUIPMENT(PQ1) (A)	8-97611-401-0	01	1	1303-1411
12	SILENCER ASM; EXH HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-97611-401-0	01	1	1412-
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B) M10X51.4	8-94436-943-0	03	1	1303-1411
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M10X51.4	8-94436-943-0	03	1	1412-
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	03	1	1009-1302
20	BOLT; FLANGE,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B) M10X51.4	8-94436-943-0	05	1	1303-
20	BOLT; FLANGE,EXH PIPE (A) M10X49.8	8-97039-586-0	02	1	1009-1302
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1) (A) M10X49.8	8-97039-586-0	02	1	1303-1411
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M10X49.8	8-97039-586-0	02	1	1412-
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1009-
59	BRACKET; EXH SILENCER,FRT NEW ZEALAND EQUIPMENT(PK5) (B)	1-22151-710-1	02	1	1303-
59	BRACKET; EXH SILENCER,FRT (A)	1-22134-147-1	02	1	1009-1302
59	BRACKET; EXH SILENCER,FRT SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22134-147-1	02	1	1303-
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (D) M10X20 FLANGE	0-28051-020-0	04	1	1303-
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (A) M10X50 FLANGE	0-28051-050-0	01	1	1303-
70	BOLT; BRKT (C) M10X30 FLANGE	0-28051-030-0	02	1	1009-1302
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M10X30 FLANGE	0-28051-030-0	02	1	1303-1411
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C) M10X30 FLANGE	0-28051-030-0	02	1	1412-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28051-035-0	04	1	1009-1302
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X35 FLANGE	0-28051-035-0	04	1	1303-
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	04	1	1009-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1009-
81	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) M12 FLANGE	0-91180-212-0	08	1	1303-
81	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	1009-1302
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M12 FLANGE	0-91180-212-0	12	1	1303-
107	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) M12X35 FLANGE	0-28051-235-0	09	1	1303-
107	BOLT; BRKT (A) M12X45 FLANGE	0-28051-245-0	09	1	1009-1302
107	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (A) M12X45 FLANGE	0-28051-245-0	09	1	1303-1411
107	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M12X45 FLANGE	0-28051-245-0	09	1	1412-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR NEW ZEALAND EQUIPMENT(PK5) (C)	1-22131-774-3	01	1	1303-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR NEW ZEALAND EQUIPMENT(PK5) (B)	1-22131-775-3	01	1	1303-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22134-148-3	02	1	1009-1302
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22134-148-3	02	1	1303-
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	1009-
159	BOLT; HEAT PROTECTOR NEW ZEALAND EQUIPMENT(PK5) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1303-
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1009-1302
159	BOLT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> M8X22 W/LK&PL WASHER	1-09030-042-0	09	1	1303-
160	NUT; HEAT PROTECTOR M8 FLANGE	0-91180-108-0	01	1	1009-1302
160	NUT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> M8 FLANGE	0-91180-108-0	01	1	1303-
384	PROTECTOR; HEAT SILENCER MTG NEW ZEALAND EQUIPMENT(PK5) (E)	1-22119-341-3	01	1	1303-
384	PROTECTOR; HEAT SILENCER MTG NEW ZEALAND EQUIPMENT(PK5) (F)	1-22119-527-0	01	1	1303-
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-556-0	01	1	1009-1302
384	PROTECTOR; HEAT SILENCER MTG SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22119-556-0	01	1	1303-
384	PROTECTOR; HEAT SILENCER MTG (C)	1-22119-562-0	01	1	1009-1302
384	PROTECTOR; HEAT SILENCER MTG NEW ZEALAND EQUIPMENT(PK5) (D)	1-22119-378-4	01	1	1303-
384	PROTECTOR; HEAT SILENCER MTG (B)	8-97611-403-0	01	1	1009-1302
384	PROTECTOR; HEAT SILENCER MTG HONG KONG EQUIPMENT(PQ1) (B)	8-97611-403-0	01	1	1303-1411
384	PROTECTOR; HEAT SILENCER MTG HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-97611-403-0	01	1	1412-
475	BEARING; SEAL,VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B) OD=112	1-22119-294-1	02	1	1303-1411
475	BEARING; SEAL,VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) OD=112	1-22119-294-1	02	1	1412-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	02	1	1009-1302
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B) OD=112	1-22119-294-1	01	1	1303-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	03	1	1009-1302
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) OD=122	1-22119-297-1	03	1	1303-1411
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) OD=122	1-22119-297-1	03	1	1412-
476	SPRING; VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B)	8-94141-851-0	04	1	1303-1411
476	SPRING; VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-94141-851-0	04	1	1412-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1009-1302
476	SPRING; VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-09583-248-0	04	1	1303-1411
476	SPRING; VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A)	1-09583-248-0	04	1	1412-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	04	1	1009-1302
476	SPRING; VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B)	8-94141-851-0	02	1	1303-
508	BAND; EXHAUST SILENCER NEW ZEALAND EQUIPMENT(PK5) (B)	1-22159-382-0	02	1	1303-
508	BAND; EXHAUST SILENCER (A)	1-22159-384-0	02	1	1009-1302
508	BAND; EXHAUST SILENCER SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22159-384-0	02	1	1303-
509	STUD; BRKT NEW ZEALAND EQUIPMENT(PK5) M12X40 L=56	1-09300-123-0	04	1	1303-
509	STUD; BRKT M12X40 L=56	1-09300-123-0	03	1	1009-1302
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M12X40 L=56	1-09300-123-0	03	1	1303-
553	FLANGE; SILENCER	1-22115-148-1	01	1	1009-1302
553	FLANGE; SILENCER HONG KONG EQUIPMENT(PQ1)	1-22115-148-1	01	1	1303-1411
553	FLANGE; SILENCER HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-22115-148-1	01	1	1412-

26 34 36 476 476 475 475 1 475 16 476 20 36 41 42 17 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH NEW ZEALAND EQUIPMENT(PK5) (D)	1-22123-683-1	01	1	1303-
1	PIPE; EXH NEW ZEALAND EQUIPMENT(PK5) (C)	8-97634-533-0	01	1	1303-
1	PIPE; EXH (B)	8-97632-344-0	01	1	1009-1011
1	PIPE; EXH (B)	8-97639-923-0	01	1	1012-1302
1	PIPE; EXH HONG KONG EQUIPMENT(PQ1) (B)	8-97639-923-0	01	1	1303-1411
1	PIPE; EXH HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-97639-923-0	01	1	1412-
1	PIPE; EXH (A)	8-97634-537-0	01	1	1009-1302
1	PIPE; EXH HONG KONG EQUIPMENT(PQ1) (A)	8-97634-537-0	01	1	1303-1411
1	PIPE; EXH HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-97634-537-0	01	1	1412-
16	FLANGE; EXH PIPE (A)	1-22115-229-0	01	1	1009-1302
16	FLANGE; EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-22115-229-0	01	1	1303-
16	FLANGE; EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B)	1-22115-217-0	01	1	1303-
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1009-
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B) M10X51.4	8-94436-943-0	03	1	1303-1411
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M10X51.4	8-94436-943-0	03	1	1412-
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	03	1	1009-1302
20	BOLT; FLANGE,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B) M10X51.4	8-94436-943-0	05	1	1303-
20	BOLT; FLANGE,EXH PIPE (A) M10X49.8	8-97039-586-0	02	1	1009-1302
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1) (A) M10X49.8	8-97039-586-0	02	1	1303-1411
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M10X49.8	8-97039-586-0	02	1	1412-
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1009-1402
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1009-
36	NUT; EXH PIPE (B) M12	0-91110-512-0	04	1	1009-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1009-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	1009-1302
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	1009-1302
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	1303-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	1303-
475	BEARING; SEAL,VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B) OD=112	1-22119-294-1	02	1	1303-1411
475	BEARING; SEAL,VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) OD=112	1-22119-294-1	02	1	1412-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	02	1	1009-1302
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B) OD=112	1-22119-294-1	01	1	1303-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	03	1	1009-1302
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) OD=122	1-22119-297-1	03	1	1303-1411
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) OD=122	1-22119-297-1	03	1	1412-
476	SPRING; VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B)	8-94141-851-0	04	1	1303-1411
476	SPRING; VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-94141-851-0	04	1	1412-
476	SPRING; VIBNON,EXH PIPE (A)	1-09583-248-0	04	1	1009-1302
476	SPRING; VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-09583-248-0	04	1	1303-1411
476	SPRING; VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A)	1-09583-248-0	04	1	1412-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	04	1	1009-1302
476	SPRING; VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B)	8-94141-851-0	02	1	1303-

70 76 125 80 128 222 88 70 20 16 475 42 41 94 168 76 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	FLANGE; EXH PIPE (A)	1-22115-229-0	01	1	1009-1302
16	FLANGE; EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-22115-229-0	01	1	1303-
16	FLANGE; EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B)	1-22115-217-0	01	1	1303-
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B) M10X51.4	8-94436-943-0	03	1	1303-1411
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M10X51.4	8-94436-943-0	03	1	1412-
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	03	1	1009-1302
20	BOLT; FLANGE,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B) M10X51.4	8-94436-943-0	05	1	1303-
20	BOLT; FLANGE,EXH PIPE (A) M10X49.8	8-97039-586-0	02	1	1009-1302
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1) (A) M10X49.8	8-97039-586-0	02	1	1303-1411
20	BOLT; FLANGE,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M10X49.8	8-97039-586-0	02	1	1412-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	08	1	1009-1302
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1303-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	08	1	1009-1302
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	1303-
42	BOLT; EXH PIPE TO EXH SILENCER M12X25 FLANGE	1-09000-604-0	04	1	1303-
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (D) M10X20 FLANGE	0-28051-020-0	04	1	1303-
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (A) M10X50 FLANGE	0-28051-050-0	01	1	1303-
70	BOLT; BRKT (C) M10X30 FLANGE	0-28051-030-0	02	1	1009-1302
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M10X30 FLANGE	0-28051-030-0	02	1	1303-1411
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C) M10X30 FLANGE	0-28051-030-0	02	1	1412-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28051-035-0	04	1	1009-1302
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X35 FLANGE	0-28051-035-0	04	1	1303-
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	04	1	1009-
76	SUPPORT; BRKT NEW ZEALAND EQUIPMENT(PK5) OD=40	1-22159-094-0	02	1	1303-
80	COLLAR; DIST,SUPPORT RUBBER NEW ZEALAND EQUIPMENT(PK5) L=22	9-22159-024-0	01	1	1303-
87	SPRING; PRE SILENCER	8-94141-851-0	03	1	1009-1302
87	SPRING; PRE SILENCER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	8-94141-851-0	03	1	1303-1411
87	SPRING; PRE SILENCER NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	8-94141-851-0	03	1	1412-
88	CLAMP; EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B)	1-22152-070-0	01	1	1303-
88	CLAMP; EXH PIPE (A)	1-22151-976-2	01	1	1009-1302
88	CLAMP; EXH PIPE HONG KONG EQUIPMENT(PQ1) (A)	1-22151-976-2	01	1	1303-1411
88	CLAMP; EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-22151-976-2	01	1	1412-
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	02	1	1009-
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1009-
128	PIPE; EXH,RR NEW ZEALAND EQUIPMENT(PK5) (B)	1-22126-524-1	01	1	1303-
128	PIPE; EXH,RR (A)	8-97611-407-1	01	1	1009-1302
128	PIPE; EXH,RR HONG KONG EQUIPMENT(PQ1) (A)	8-97611-407-1	01	1	1303-1411
128	PIPE; EXH,RR HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-97611-407-1	01	1	1412-
168	BRACKET; EXH PIPE,FRT NEW ZEALAND EQUIPMENT(PK5) (C)	1-22131-995-1	01	1	1303-1504
168	BRACKET; EXH PIPE,FRT NEW ZEALAND EQUIPMENT(PK5) (C)	8-98302-583-0	01	1	1505-
168	BRACKET; EXH PIPE,FRT (A)	1-22131-780-0	01	1	1009-1302
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22131-780-0	01	1	1303-
168	BRACKET; EXH PIPE,FRT (B)	1-22134-213-0	01	1	1009-1302
168	BRACKET; EXH PIPE,FRT SILENCER LAYOUT REAR VAR1<JAZ> (B)	1-22134-213-0	01	1	1303-
222	CLAMP; EXH PIPE	1-22133-276-0	01	1	1009-1302
222	CLAMP; EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-22133-276-0	01	1	1303-1411
222	CLAMP; EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3)	1-22133-276-0	01	1	1412-
475	BEARING; SEAL,VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1) (B) OD=112	1-22119-294-1	02	1	1303-1411
475	BEARING; SEAL,VIBNON,EXH PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) OD=112	1-22119-294-1	02	1	1412-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-0	02	1	1009-1302
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5) (B) OD=112	1-22119-294-1	01	1	1303-
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=122	1-22119-297-0	03	1	1009-1302
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) OD=122	1-22119-297-1	03	1	1303-1411
475	BEARING; SEAL,VIBNON,EXH PIPE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (A) OD=122	1-22119-297-1	03	1	1412-

70 59 118 118 81 70 75 24 59 108 75 107 159 384 159 384 508 508 159 384 12 509 108 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH NEW ZEALAND EQUIPMENT(PK5) (B)	8-97611-402-0	01	1	1303-
12	SILENCER ASM; EXH (A)	8-97611-401-0	01	1	1009-1302
12	SILENCER ASM; EXH HONG KONG EQUIPMENT(PQ1) (A)	8-97611-401-0	01	1	1303-1411
12	SILENCER ASM; EXH HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-97611-401-0	01	1	1412-
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1009-
59	BRACKET; EXH SILENCER,FRT NEW ZEALAND EQUIPMENT(PK5) (B)	1-22151-710-1	02	1	1303-
59	BRACKET; EXH SILENCER,FRT (A)	1-22134-147-1	02	1	1009-1302
59	BRACKET; EXH SILENCER,FRT SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22134-147-1	02	1	1303-
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (D) M10X20 FLANGE	0-28051-020-0	04	1	1303-
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (A) M10X50 FLANGE	0-28051-050-0	01	1	1303-
70	BOLT; BRKT (C) M10X30 FLANGE	0-28051-030-0	02	1	1009-1302
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M10X30 FLANGE	0-28051-030-0	02	1	1303-1411
70	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (C) M10X30 FLANGE	0-28051-030-0	02	1	1412-
70	BOLT; BRKT (B) M10X35 FLANGE	0-28051-035-0	04	1	1009-1302
70	BOLT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> (B) M10X35 FLANGE	0-28051-035-0	04	1	1303-
70	BOLT; BRKT (A) M10X50 FLANGE	0-28051-050-0	04	1	1009-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1009-
81	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) M12 FLANGE	0-91180-212-0	08	1	1303-
81	NUT; BRKT M12 FLANGE	0-91180-212-0	12	1	1009-1302
81	NUT; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M12 FLANGE	0-91180-212-0	12	1	1303-
107	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) M12X35 FLANGE	0-28051-235-0	09	1	1303-
107	BOLT; BRKT (A) M12X45 FLANGE	0-28051-245-0	09	1	1009-1302
107	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (A) M12X45 FLANGE	0-28051-245-0	09	1	1303-1411
107	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M12X45 FLANGE	0-28051-245-0	09	1	1412-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR NEW ZEALAND EQUIPMENT(PK5) (C)	1-22131-774-3	01	1	1303-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR NEW ZEALAND EQUIPMENT(PK5) (B)	1-22131-775-3	01	1	1303-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22134-148-3	02	1	1009-1302
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22134-148-3	02	1	1303-
118	NUT; SILENCER MTG BRKT M10	0-91110-510-0	08	1	1009-
159	BOLT; HEAT PROTECTOR NEW ZEALAND EQUIPMENT(PK5) M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1303-
159	BOLT; HEAT PROTECTOR M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1009-1302
159	BOLT; HEAT PROTECTOR SILENCER LAYOUT REAR VAR1<JAZ> M8X22 W/LK&PL WASHER	1-09030-042-0	09	1	1303-
384	PROTECTOR; HEAT SILENCER MTG NEW ZEALAND EQUIPMENT(PK5) (E)	1-22119-341-3	01	1	1303-
384	PROTECTOR; HEAT SILENCER MTG NEW ZEALAND EQUIPMENT(PK5) (F)	1-22119-527-0	01	1	1303-
384	PROTECTOR; HEAT SILENCER MTG (A)	1-22119-556-0	01	1	1009-1302
384	PROTECTOR; HEAT SILENCER MTG SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22119-556-0	01	1	1303-
384	PROTECTOR; HEAT SILENCER MTG (C)	1-22119-562-0	01	1	1009-1302
384	PROTECTOR; HEAT SILENCER MTG NEW ZEALAND EQUIPMENT(PK5) (D)	1-22119-378-4	01	1	1303-
384	PROTECTOR; HEAT SILENCER MTG (B)	8-97611-403-0	01	1	1009-1302
384	PROTECTOR; HEAT SILENCER MTG HONG KONG EQUIPMENT(PQ1) (B)	8-97611-403-0	01	1	1303-1411
384	PROTECTOR; HEAT SILENCER MTG HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	8-97611-403-0	01	1	1412-
508	BAND; EXHAUST SILENCER NEW ZEALAND EQUIPMENT(PK5) (B)	1-22159-382-0	02	1	1303-
508	BAND; EXHAUST SILENCER (A)	1-22159-384-0	02	1	1009-1302
508	BAND; EXHAUST SILENCER SILENCER LAYOUT REAR VAR1<JAZ> (A)	1-22159-384-0	02	1	1303-
509	STUD; BRKT NEW ZEALAND EQUIPMENT(PK5) M12X40 L=56	1-09300-123-0	04	1	1303-
509	STUD; BRKT M12X40 L=56	1-09300-123-0	03	1	1009-1302
509	STUD; BRKT SILENCER LAYOUT REAR VAR1<JAZ> M12X40 L=56	1-09300-123-0	03	1	1303-

570

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	570	ADAPTER; EXH PIPE M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
