Sayfa 1-41 - Isuzu EPC

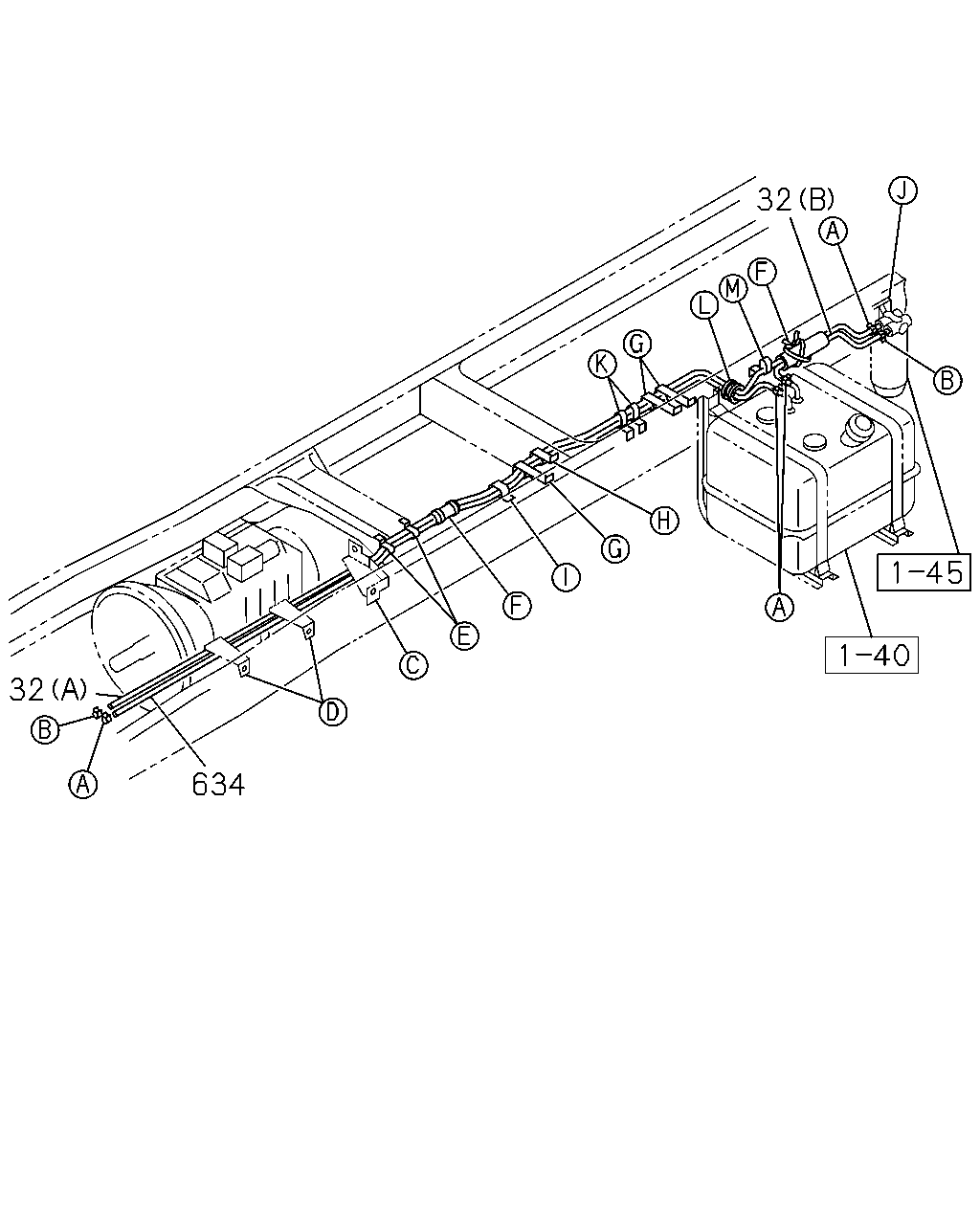

1-41 — FUEL PIPING; CHASSIS (#69912) — 231 parça

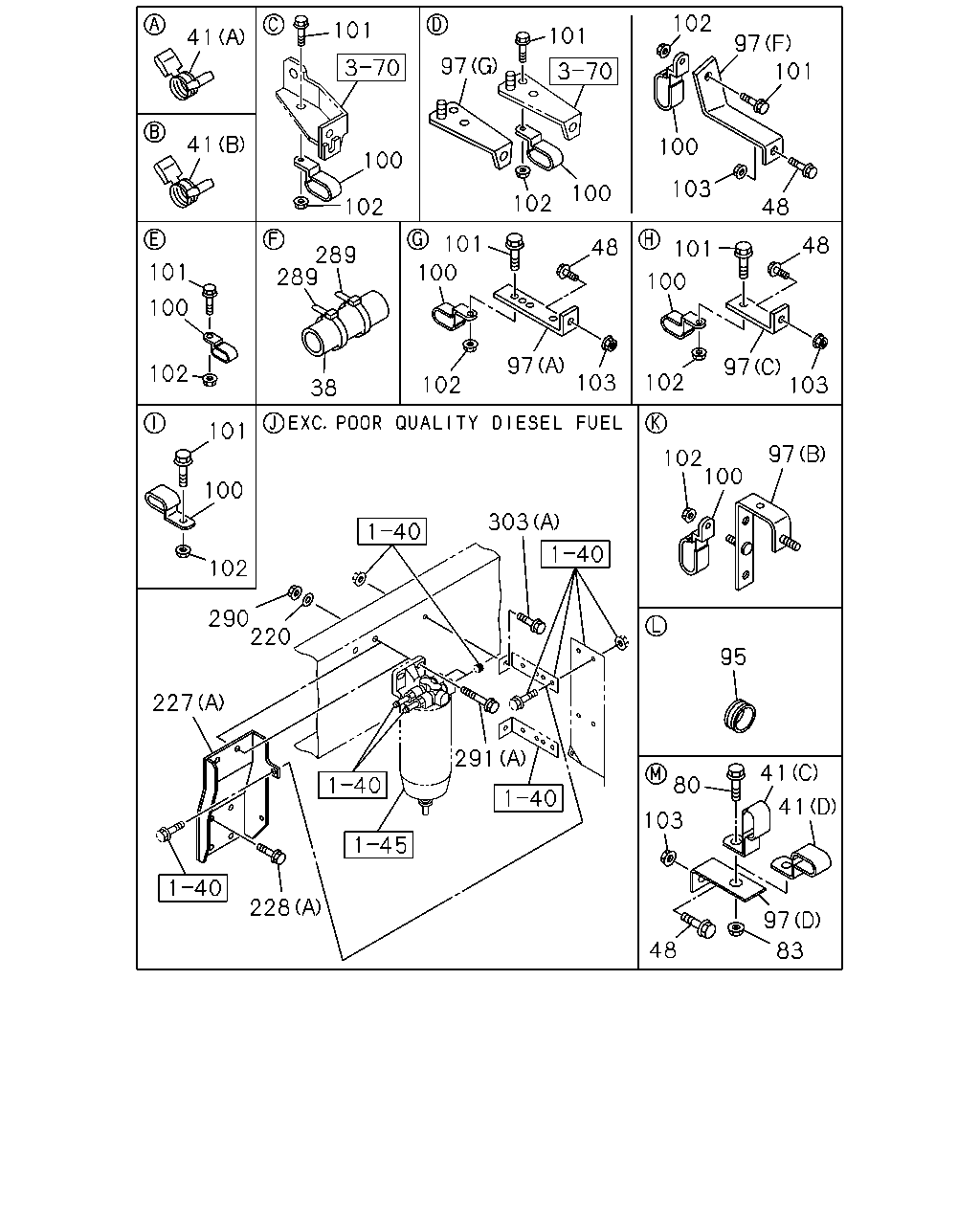

41 41 101 100 102 289 289 101 100 102 101 100 102 290 220 227 38 97 101 102 100 102 97 101 100 103 48 48 101 100 102 97 103 101 100 48 102 97 103 303 102 100 97 95 80 103 41 41 97 291 48 83 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 300L AL<EBF> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1009-1102
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1302
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1302
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1303-
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1009-1102
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	1103-1302
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1103-1302
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1303-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 300L AL<EBF> (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1009-
48	BOLT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28650-835-0	03	1	1303-
48	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1009-
48	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	1009-1302
48	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8X35 FLANGE	0-28650-835-0	04	1	1303-
80	BOLT; CLIP,FUEL TANK FUEL TANK 300L AL<EBF> M8X20 FLANGE	0-28650-820-0	01	1	1009-1102
80	BOLT; CLIP,FUEL TANK FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	01	1	1103-1302
80	BOLT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	01	1	1103-1302
80	BOLT; CLIP,FUEL TANK FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH> EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	01	1	1303-
83	NUT; CLIP,FUEL TANK FUEL TANK 300L AL<EBF> M8 FLANGE	0-91180-108-0	01	1	1009-1102
83	NUT; CLIP,FUEL TANK FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	01	1	1103-1302
83	NUT; CLIP,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	01	1	1103-1302
83	NUT; CLIP,FUEL TANK FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH> EXC. NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	1303-
95	BUSHING; PIPE,FUEL TANK NEW ZEALAND EQUIPMENT(PK5) ID=39 OD=45 T=13	1-09332-076-0	01	1	1303-
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	1009-1302
95	BUSHING; PIPE,FUEL TANK EXC. NEW ZEALAND EQUIPMENT(PK5) ID=32 OD=40 T=23	1-09332-112-0	01	1	1303-
97	BRACKET; CLIP NEW ZEALAND EQUIPMENT(PK5) (F)	1-47479-646-0	01	1	1303-
97	BRACKET; CLIP NEW ZEALAND EQUIPMENT(PK5) (G)	1-47479-723-0	01	1	1303-
97	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1) (A)	1-82698-358-0	03	1	1303-1411
97	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-82698-358-0	03	1	1412-
97	BRACKET; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-47479-797-0	01	1	1303-1411
97	BRACKET; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-797-0	01	1	1412-
97	BRACKET; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	8-98172-059-0	03	1	1303-1411
97	BRACKET; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98172-059-0	03	1	1412-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (E)	8-98186-871-0	01	1	1103-
97	BRACKET; CLIP (C) L=55	1-47475-304-0	01	1	1009-
97	BRACKET; CLIP (B)	1-47479-797-0	02	1	1009-1302
97	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1) (B)	1-47479-797-0	02	1	1303-1411
97	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-797-0	02	1	1412-
97	BRACKET; CLIP (A)	1-82698-358-0	03	1	1009-1302
97	BRACKET; CLIP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82698-358-0	02	1	1303-
97	BRACKET; CLIP FUEL TANK 300L AL<EBF> (D) L=68	1-47475-525-0	01	1	1009-1102
97	BRACKET; CLIP FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=68	1-47475-525-0	01	1	1103-1302
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (D) L=68	1-47475-525-0	01	1	1103-1302
97	BRACKET; CLIP FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) L=68	1-47475-525-0	01	1	1303-
100	CLIP; FUEL PIPE HONG KONG EQUIPMENT(PQ1) ID=19X32 H=17.5 L=22.5	1-09701-315-0	11	1	1303-1411
100	CLIP; FUEL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=19X32 H=17.5 L=22.5	1-09701-315-0	11	1	1412-
100	CLIP; FUEL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ID=19X32 H=17.5 L=22.5	1-09701-315-0	10	1	1303-1411
100	CLIP; FUEL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ID=19X32 H=17.5 L=22.5	1-09701-315-0	10	1	1412-
100	CLIP; FUEL PIPE ID=19X32 H=17.5 L=22.5	1-09701-315-0	11	1	1009-1302
100	CLIP; FUEL PIPE NEW ZEALAND EQUIPMENT(PK5) ID=19X32 H=17.5 L=22.5	1-09701-315-0	09	1	1303-
101	BOLT; CLIP,FUEL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	07	1	1303-
101	BOLT; CLIP,FUEL PIPE M8X25 FLANGE	0-28650-825-0	02	1	1009-
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	07	1	1009-1302
101	BOLT; CLIP,FUEL PIPE NEW ZEALAND EQUIPMENT(PK5) M8X20 FLANGE	0-28650-820-0	06	1	1303-
102	NUT; CLIP,FUEL PIPE HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	11	1	1303-1411
102	NUT; CLIP,FUEL PIPE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	11	1	1412-
102	NUT; CLIP,FUEL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	10	1	1303-1411
102	NUT; CLIP,FUEL PIPE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	10	1	1412-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	11	1	1009-1302
102	NUT; CLIP,FUEL PIPE NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	09	1	1303-
103	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	06	1	1303-1411
103	NUT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	06	1	1412-
103	NUT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	02	1	1303-1411
103	NUT; BRKT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1412-
103	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1009-1302
103	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	05	1	1303-
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1411
220	WASHER; PL WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1412-
220	WASHER; PL WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) ID=10.5 OD=26	0-91614-710-0	04	1	1412-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98184-812-0	01	1	1103-
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98184-813-0	01	1	1103-
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) (A)	1-82698-661-0	01	1	1009-1102
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	1-82698-661-0	01	1	1103-1302
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (B) M8X35 FLANGE	0-28650-835-0	02	1	1103-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) (A) M10X35 FLANGE	0-28051-035-0	04	1	1009-1102
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M10X35 FLANGE	0-28051-035-0	04	1	1103-1302
289	CLIP; BAND,HOSE FUEL TANK 300L AL<EBF> L=250	5-09707-030-1	04	1	1009-1102
289	CLIP; BAND,HOSE FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1302
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1302
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1303-
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> L=250	5-09707-030-1	06	1	1009-1102
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	06	1	1103-1302
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X90 FLANGE	0-28051-090-0	02	1	1103-1411
291	BOLT; FILER TO BRKT WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (B) M10X90 FLANGE	0-28051-090-0	02	1	1412-
291	BOLT; FILER TO BRKT WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (B) M10X90 FLANGE	0-28051-090-0	02	1	1412-
291	BOLT; FILER TO BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	1009-1102
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M10X60 FLANGE	0-28051-060-0	02	1	1103-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X40 FLANGE	0-28051-040-0	04	1	1103-
303	BOLT; BRKT FUEL TANK 300L AL<EBF> (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1102
303	BOLT; BRKT FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	01	1	1103-1302
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	01	1	1103-1302
303	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-1411
303	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
303	BOLT; BRKT WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1102
303	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	02	1	1103-1302
303	BOLT; BRKT FUEL TANK 400L<SDH> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X35 FLANGE	0-28650-835-0	01	1	1303-1411
303	BOLT; BRKT FUEL TANK 400L<SDH> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X35 FLANGE	0-28650-835-0	01	1	1412-

32 634 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (B) L=560 SERVICED BY L=3000	0-01260-300-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (A) SERVICED BY L=5350	0-01262-535-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (B) L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1411
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FUEL TANK 400L<SDH> (B) L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1412-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=3600 SERVICED BY L=5350	0-01262-535-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (A) L=3600 SERVICED BY L=5350	0-01262-535-0	01	1	1303-1411
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FUEL TANK 400L<SDH> (A) L=3600 SERVICED BY L=5350	0-01262-535-0	01	1	1412-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK NEW ZEALAND EQUIPMENT(PK5) (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (A) L=3800 SERVICED BY L=5350	0-01262-535-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3800 SERVICED BY L=5350	0-01262-535-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3950 SERVICED BY L=5050	0-01262-505-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=850 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=850 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK NEW ZEALAND EQUIPMENT(PK5) (A) L=3450 SERVICED BY L=5050	0-01262-505-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=4000 SERVICED BY L=5350	0-01262-535-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=4000 SERVICED BY L=5350	0-01262-535-0	01	1	1103-1302
634	HOSE; RUBBER RETURN NEW ZEALAND EQUIPMENT(PK5) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	1303-
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	1303-
634	HOSE; RUBBER RETURN FUEL TANK 300L AL<EBF> L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	1009-1302
634	HOSE; RUBBER RETURN FUEL TANK 300L AL<EBF> HONG KONG EQUIPMENT(PQ1) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	1303-
634	HOSE; RUBBER RETURN FUEL TANK 400L<SDH> L=3700 SERVICED BY L=8000	0-01260-800-0	01	1	1009-1302
634	HOSE; RUBBER RETURN HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> L=3700 SERVICED BY L=8000	0-01260-800-0	01	1	1303-1411
634	HOSE; RUBBER RETURN HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FUEL TANK 400L<SDH> L=3700 SERVICED BY L=8000	0-01260-800-0	01	1	1412-

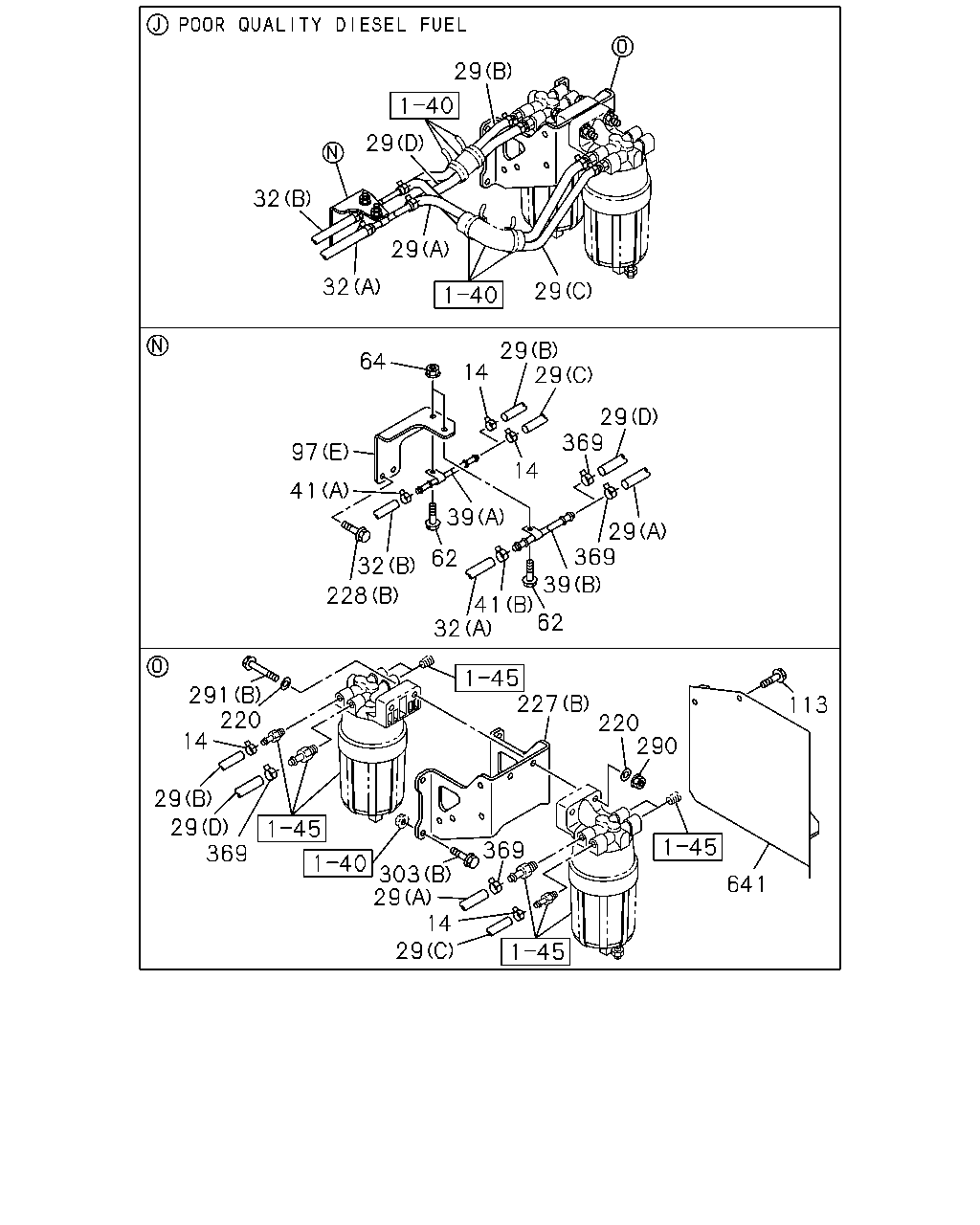

29 32 32 29 29 14 29 64 29 369 29 14 29 369 39 41 62 32 228 41 39 62 32 97 291 14 29 29 369 220 303 29 29 369 641 113 220 290 227 14 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1103-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (A)	8-98186-822-0	01	1	1303-1411
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FUEL TANK 400L<SDH> (A)	8-98186-822-0	01	1	1412-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (B) L=400 OD=14.5	8-98188-447-0	01	1	1303-1411
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FUEL TANK 400L<SDH> (B) L=400 OD=14.5	8-98188-447-0	01	1	1412-
29	HOSE; FUEL FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (B)	8-98188-440-0	01	1	1103-1302
29	HOSE; FUEL FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (B)	8-98188-440-0	01	1	1303-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5) FUEL TANK 400L<SDH> (B)	8-98188-440-0	01	1	1303-
29	HOSE; FUEL FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (C) L=350 OD=14.5	8-98188-445-0	01	1	1103-1302
29	HOSE; FUEL FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (C) L=350 OD=14.5	8-98188-445-0	01	1	1303-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5) FUEL TANK 400L<SDH> (C) L=350 OD=14.5	8-98188-445-0	01	1	1303-
29	HOSE; FUEL FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (D)	8-98188-454-0	01	1	1103-
29	HOSE; FUEL FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (A)	8-98188-458-0	01	1	1103-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A)	8-98186-822-0	01	1	1103-1302
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5) FUEL TANK 400L<SDH> (D)	8-98188-455-0	01	1	1303-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=400 OD=14.5	8-98188-447-0	01	1	1103-1302
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5) FUEL TANK 400L<SDH> (A) L=310 OD=19	8-98188-459-0	01	1	1303-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C)	8-98188-448-0	01	1	1103-1302
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (C)	8-98188-448-0	01	1	1303-1411
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FUEL TANK 400L<SDH> (C)	8-98188-448-0	01	1	1412-
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (D) L=390 OD=19	8-98188-465-0	01	1	1103-1302
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (D) L=390 OD=19	8-98188-465-0	01	1	1303-1411
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FUEL TANK 400L<SDH> (D) L=390 OD=19	8-98188-465-0	01	1	1412-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (B) L=560 SERVICED BY L=3000	0-01260-300-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> POOR QUALITY DIESEL FUEL<KF0> (A) SERVICED BY L=5350	0-01262-535-0	01	1	1103-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (B) L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1303-1411
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FUEL TANK 400L<SDH> (B) L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1412-
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=3600 SERVICED BY L=5350	0-01262-535-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (A) L=3600 SERVICED BY L=5350	0-01262-535-0	01	1	1303-1411
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) FUEL TANK 400L<SDH> (A) L=3600 SERVICED BY L=5350	0-01262-535-0	01	1	1412-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK NEW ZEALAND EQUIPMENT(PK5) (B) L=640 SERVICED BY L=3000	0-01260-300-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> (A) L=3800 SERVICED BY L=5350	0-01262-535-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3800 SERVICED BY L=5350	0-01262-535-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=3950 SERVICED BY L=5050	0-01262-505-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (B) L=850 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=850 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1302
32	PIPE; DELIVERY,FUEL TANK NEW ZEALAND EQUIPMENT(PK5) (A) L=3450 SERVICED BY L=5050	0-01262-505-0	01	1	1303-
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> (A) L=4000 SERVICED BY L=5350	0-01262-535-0	01	1	1009-1102
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=4000 SERVICED BY L=5350	0-01262-535-0	01	1	1103-1302
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1103-
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1103-
41	CLIP; FUEL PIPE,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1103-1302
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1303-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 300L AL<EBF> (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1009-
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1103-
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1103-
97	BRACKET; CLIP NEW ZEALAND EQUIPMENT(PK5) (F)	1-47479-646-0	01	1	1303-
97	BRACKET; CLIP NEW ZEALAND EQUIPMENT(PK5) (G)	1-47479-723-0	01	1	1303-
97	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1) (A)	1-82698-358-0	03	1	1303-1411
97	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-82698-358-0	03	1	1412-
97	BRACKET; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-47479-797-0	01	1	1303-1411
97	BRACKET; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-797-0	01	1	1412-
97	BRACKET; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	8-98172-059-0	03	1	1303-1411
97	BRACKET; CLIP EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	8-98172-059-0	03	1	1412-
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (E)	8-98186-871-0	01	1	1103-
97	BRACKET; CLIP (C) L=55	1-47475-304-0	01	1	1009-
97	BRACKET; CLIP (B)	1-47479-797-0	02	1	1009-1302
97	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1) (B)	1-47479-797-0	02	1	1303-1411
97	BRACKET; CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-47479-797-0	02	1	1412-
97	BRACKET; CLIP (A)	1-82698-358-0	03	1	1009-1302
97	BRACKET; CLIP NEW ZEALAND EQUIPMENT(PK5) (A)	1-82698-358-0	02	1	1303-
97	BRACKET; CLIP FUEL TANK 300L AL<EBF> (D) L=68	1-47475-525-0	01	1	1009-1102
97	BRACKET; CLIP FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (D) L=68	1-47475-525-0	01	1	1103-1302
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> (D) L=68	1-47475-525-0	01	1	1103-1302
97	BRACKET; CLIP FUEL TANK 300L AL<EBF>,FUEL TANK 400L<SDH> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) L=68	1-47475-525-0	01	1	1303-
113	BOLT; PROTECTOR POOR QUALITY DIESEL FUEL<KF0> M8X25 FLANGE	0-28050-825-0	02	1	1103-
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1411
220	WASHER; PL WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1412-
220	WASHER; PL WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) ID=10.5 OD=26	0-91614-710-0	04	1	1412-
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98184-812-0	01	1	1103-
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98184-813-0	01	1	1103-
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) (A)	1-82698-661-0	01	1	1009-1102
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 6300MM(63W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A)	1-82698-661-0	01	1	1103-1302
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> (B) M8X35 FLANGE	0-28650-835-0	02	1	1103-
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) (A) M10X35 FLANGE	0-28051-035-0	04	1	1009-1102
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 6300MM(63W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M10X35 FLANGE	0-28051-035-0	04	1	1103-1302
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X90 FLANGE	0-28051-090-0	02	1	1103-1411
291	BOLT; FILER TO BRKT WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (B) M10X90 FLANGE	0-28051-090-0	02	1	1412-
291	BOLT; FILER TO BRKT WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) ,SINGAPORE EQUIPMENT(WQ3) (B) M10X90 FLANGE	0-28051-090-0	02	1	1412-
291	BOLT; FILER TO BRKT (A) M10X60 FLANGE	0-28051-060-0	02	1	1009-1102
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M10X60 FLANGE	0-28051-060-0	02	1	1103-
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (B) M10X40 FLANGE	0-28051-040-0	04	1	1103-
303	BOLT; BRKT FUEL TANK 300L AL<EBF> (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1102
303	BOLT; BRKT FUEL TANK 300L AL<EBF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	01	1	1103-1302
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	01	1	1103-1302
303	BOLT; BRKT HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-1411
303	BOLT; BRKT HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
303	BOLT; BRKT WHEEL BASE 6600MM(66W) (A) M8X30 FLANGE	0-28650-830-0	02	1	1009-1102
303	BOLT; BRKT WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> (A) M8X30 FLANGE	0-28650-830-0	02	1	1103-1302
303	BOLT; BRKT FUEL TANK 400L<SDH> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) M8X35 FLANGE	0-28650-835-0	01	1	1303-1411
303	BOLT; BRKT FUEL TANK 400L<SDH> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X35 FLANGE	0-28650-835-0	01	1	1412-
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1103-
641	PROTECTOR; SEDIMENTER WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0>	8-98184-816-0	01	1	1103-
641	PROTECTOR; SEDIMENTER WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0>	8-98184-817-0	01	1	1103-1302
641	PROTECTOR; SEDIMENTER WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1)	8-98184-817-0	01	1	1303-1411
641	PROTECTOR; SEDIMENTER WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	8-98184-817-0	01	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
