1-31 — AIR DUCT (#69909) — 107 parça

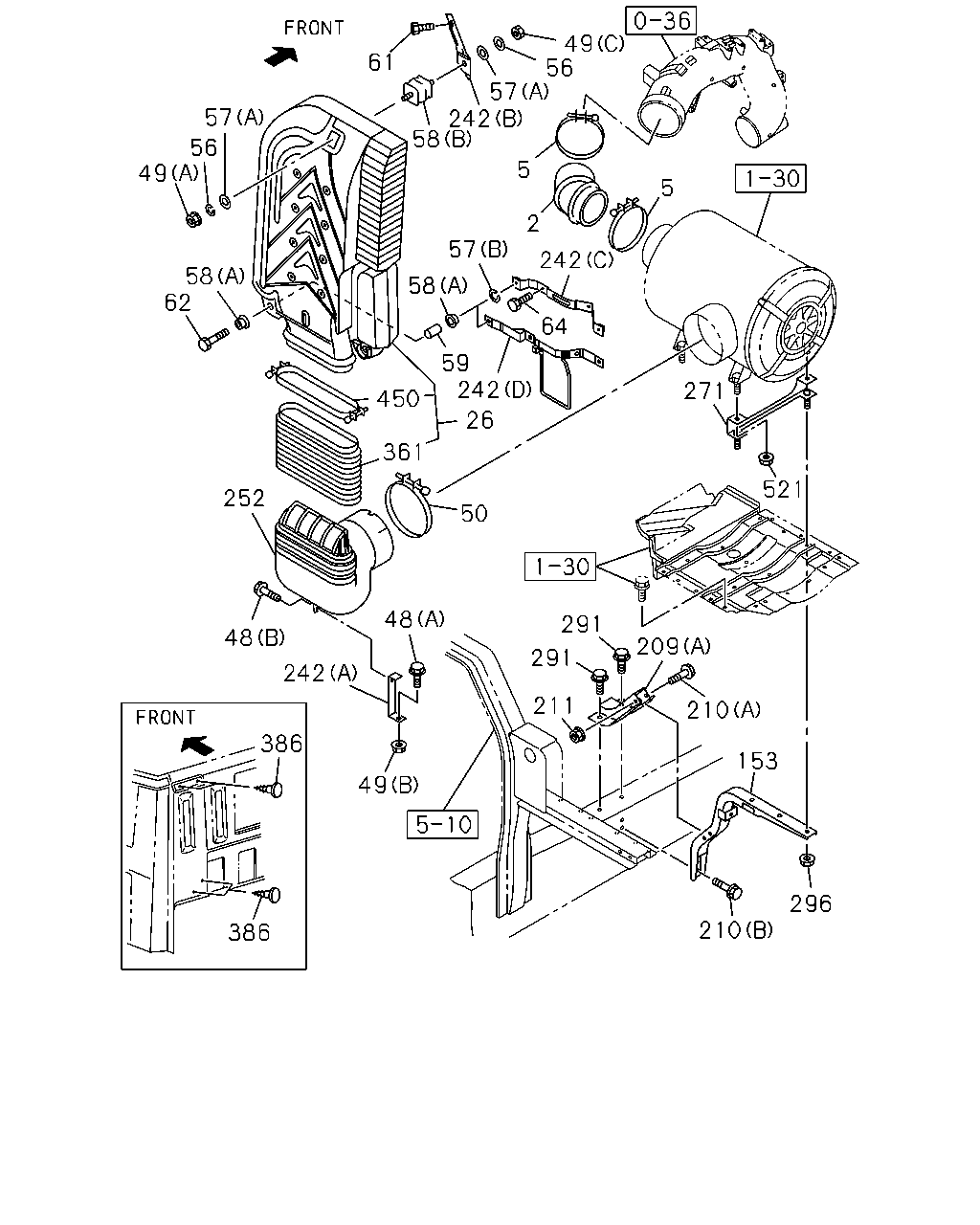

çizim 91482
57 56 49 58 62 252 48 242 48 49 386 386 291 209 210 153 296 210 211 291 50 361 450 59 26 242 64 242 57 58 521 271 5 2 5 58 61 242 57 56 49
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 8-98168-974-0 01 1 1009-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1009-
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1303-
26 DUCT; AIR INT 8-98122-904-2 01 1 1009-1302
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1303-
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1303-
48 BOLT; AIR DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1009-
48 BOLT; AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1009-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 01 1 1303-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1009-
49 NUT; AIR DUCT
(C) M8 FLANGE 		1-09984-122-0 01 1 1009-1302
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1303-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1009-1302
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 04 1 1303-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1009-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1303-
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 02 1 1009-1302
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1303-
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 02 1 1009-1302
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 1303-
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1009-1302
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 1303-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1009-1302
58 SUPPORT; AIR INL DUCT
GRIP OUT SIDE<W52> (B) 		8-98125-944-1 01 1 1009-1302
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1303-
58 SUPPORT; AIR INL DUCT
EXC. GRIP OUT SIDE<W52> (B) 		8-97080-149-0 01 1 1009-1302
58 SUPPORT; AIR INL DUCT
EXC. PRE CLEANER<W17> (B) 		8-97080-149-0 01 1 1303-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1009-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1009-1302
61 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1303-
62 BOLT; AIR INT DUCT
M10X60 		1-09030-044-1 02 1 1009-1302
62 BOLT; AIR INT DUCT
EXC. PRE CLEANER<W17> M10X60 		1-09030-044-1 02 1 1303-
64 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1009-1302
64 BOLT; BRKT,AIR DUCT
EXC. PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 02 1 1303-
153 BRACKET; ACL,FRT 1-53419-309-0 01 1 1009-
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1303-
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1303-
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1009-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1009-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1009-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1009-
242 BRACKET; AIR DUCT
(B) 		1-53419-325-1 01 1 1009-1302
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> (C) 		8-98113-588-1 01 1 1009-1302
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1303-
242 BRACKET; AIR DUCT
EXC. GRIP OUT SIDE<W52> (D) 		8-98041-993-1 01 1 1009-1302
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		8-98041-994-1 01 1 1303-
252 DUCT; AIR INT 1-14230-194-0 01 1 1009-1302
252 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		1-14230-194-0 01 1 1303-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1009-
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1009-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1009-
361 RUBBER; CUSHION,AIR DUCT 1-14230-149-2 01 1 1009-1302
361 RUBBER; CUSHION,AIR DUCT
EXC. PRE CLEANER<W17> 		1-14230-149-2 01 1 1303-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1009-
450 CLAMP; HOSE 1-14239-237-0 01 1 1009-1302
450 CLAMP; HOSE
EXC. PRE CLEANER<W17> 		1-14239-237-0 01 1 1303-
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1009-

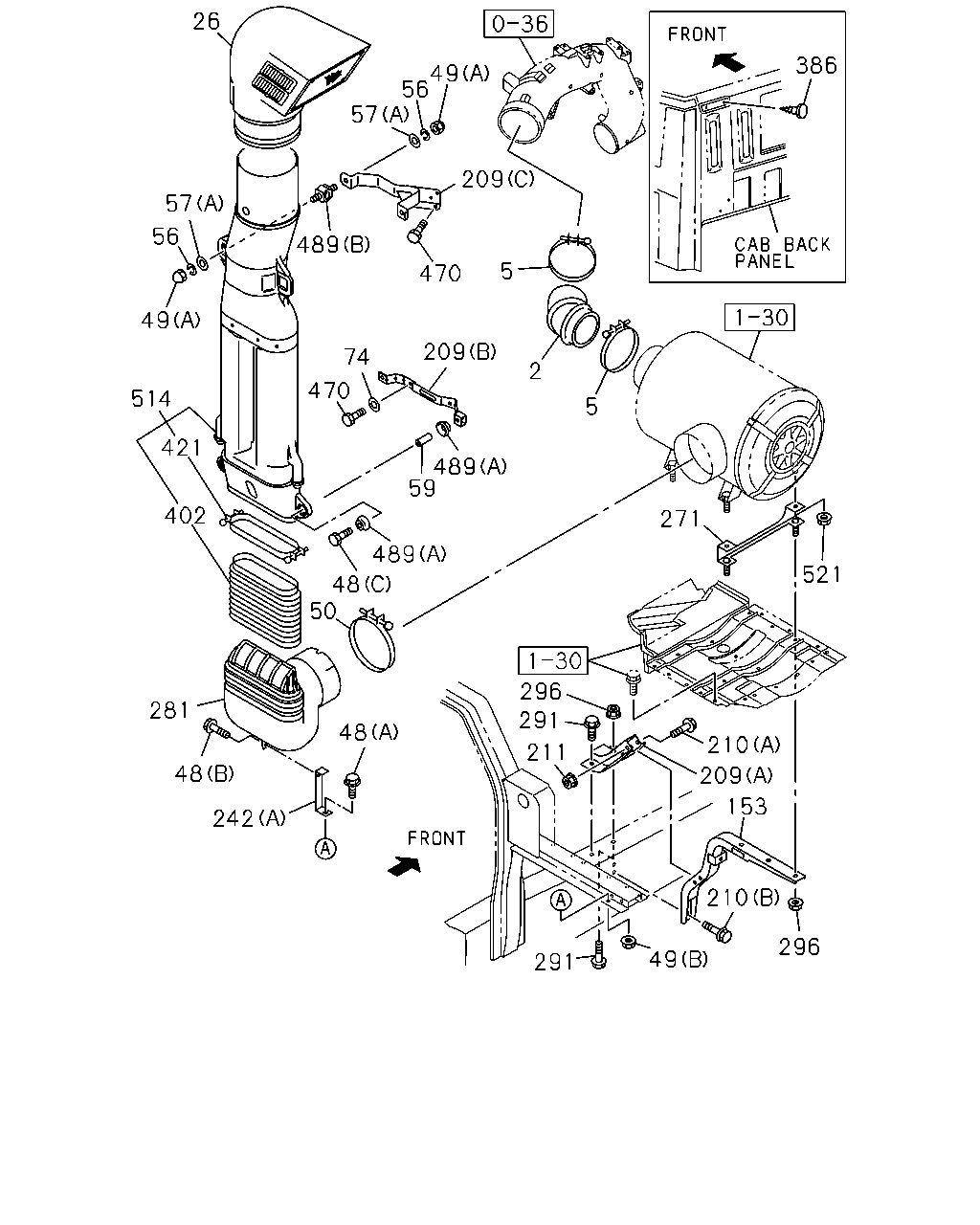

çizim 337009
26 49 56 57 209 489 57 56 470 5 2 209 5 74 470 489 489 59 49 514 421 402 48 50 281 48 48 242 296 291 211 271 521 210 209 153 210 296 49 291 386
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL 8-98168-974-0 01 1 1009-
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 1009-
26 DUCT; AIR INT
PRE CLEANER<W17> 		1-14219-258-1 01 1 1303-
26 DUCT; AIR INT 8-98122-904-2 01 1 1009-1302
26 DUCT; AIR INT
EXC. PRE CLEANER<W17> 		8-98122-904-2 01 1 1303-
48 BOLT; AIR DUCT
PRE CLEANER<W17> (C) M10X60 		1-09030-044-1 02 1 1303-
48 BOLT; AIR DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1009-
48 BOLT; AIR DUCT
(A) M10X25 FLANGE 		0-28651-025-0 01 1 1009-
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 01 1 1303-
49 NUT; AIR DUCT
(B) M10 FLANGE 		0-91180-210-0 01 1 1009-
49 NUT; AIR DUCT
(C) M8 FLANGE 		1-09984-122-0 01 1 1009-1302
49 NUT; AIR DUCT
EXC. PRE CLEANER<W17> (C) M8 FLANGE 		1-09984-122-0 01 1 1303-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1009-1302
49 NUT; AIR DUCT
PRE CLEANER<W17> (A) M8 FLANGE 		1-09984-126-0 04 1 1303-
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 1009-
56 WASHER; LK,AIR INT DUCT
EXC. PRE CLEANER<W17> ID=8.2 		1-09985-177-0 02 1 1303-
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 02 1 1009-1302
56 WASHER; LK,AIR INT DUCT
PRE CLEANER<W17> ID=8.2 		1-09985-177-0 04 1 1303-
57 WASHER; PL,AIR INT DUCT
(A) ID=8.4 OD=22 		1-09985-188-0 02 1 1009-1302
57 WASHER; PL,AIR INT DUCT
EXC. PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 02 1 1303-
57 WASHER; PL,AIR INT DUCT
GRIP OUT SIDE<W52> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1009-1302
57 WASHER; PL,AIR INT DUCT
PRE CLEANER<W17> (A) ID=8.4 OD=22 		1-09985-188-0 04 1 1303-
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 1009-
74 WASHER; PL,ACL
PRE CLEANER<W17> ID=8.4 OD=22 		1-09985-188-0 01 1 1303-
153 BRACKET; ACL,FRT 1-53419-309-0 01 1 1009-
209 BRACKET; ACL
PRE CLEANER<W17> (C) 		1-79990-045-2 01 1 1303-
209 BRACKET; ACL
PRE CLEANER<W17> (B) 		8-98115-405-1 01 1 1303-
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 1009-
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1009-
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 1009-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 1009-
242 BRACKET; AIR DUCT
(B) 		1-53419-325-1 01 1 1009-1302
242 BRACKET; AIR DUCT
GRIP OUT SIDE<W52> (C) 		8-98113-588-1 01 1 1009-1302
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (B) 		1-53419-325-1 01 1 1303-
242 BRACKET; AIR DUCT
EXC. GRIP OUT SIDE<W52> (D) 		8-98041-993-1 01 1 1009-1302
242 BRACKET; AIR DUCT
EXC. PRE CLEANER<W17> (D) 		8-98041-994-1 01 1 1303-
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 1009-
281 DUCT; AIR,VERTICAL INT
PRE CLEANER<W17> 		1-14230-194-0 01 1 1303-
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 1009-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1009-
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 1009-
402 GASKET; RUBBER
PRE CLEANER<W17> 		1-14230-149-2 01 1 1303-
421 CLAMP; AIR DUCT
PRE CLEANER<W17> 		1-14239-237-0 01 1 1303-
470 BOLT; BRKT
PRE CLEANER<W17> M8X25 FLANGE 		8-98074-570-0 04 1 1303-
489 RUBBER; SUPPORT
PRE CLEANER<W17> (A) OD=40 T=18.5 		1-14119-267-0 04 1 1303-
489 RUBBER; SUPPORT
PRE CLEANER<W17> (B) 		8-97080-149-0 02 1 1303-
514 DUCT; PRE CLEANER
PRE CLEANER<W17> 		1-14230-170-1 01 1 1303-
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 1009-
