0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#69901) — 165 parça

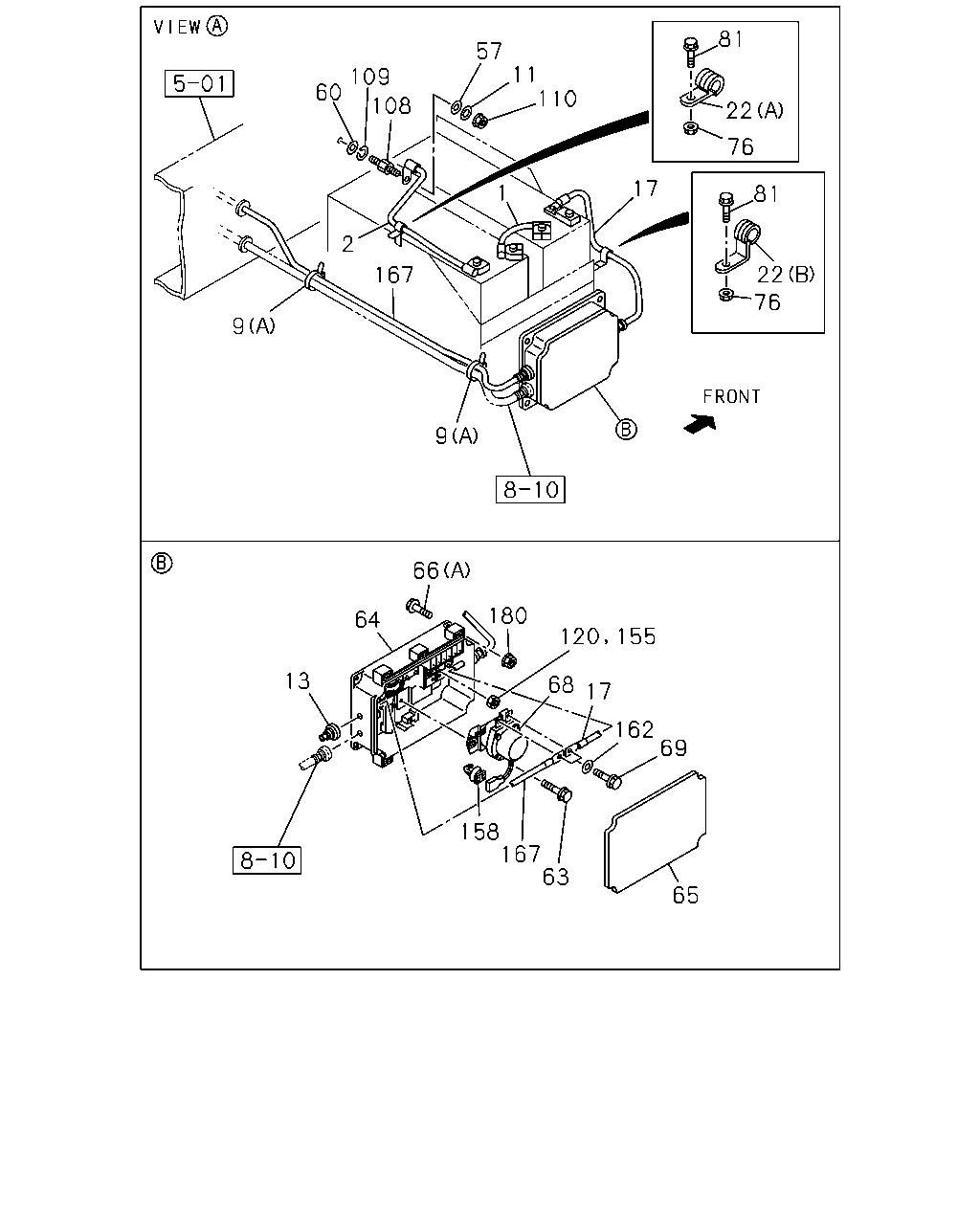

60 109 57 110 11 17 81 22 81 22 76 76 9 167 2 9 64 66 180 68 17 162 69 65 155 120 158 167 63 13 108 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	1009-1302
1	CABLE; BATTERY L=265	1-82650-388-1	01	1	1303-
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> L=450	1-82650-389-1	01	1	1009-1302
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	1009-1302
2	CABLE; BATTERY L=640	8-98223-230-0	01	1	1303-
9	CLIP; BATTERY CABLE (G) ID=18 L=28 H=30	1-09701-110-0	02	1	1009-1302
9	CLIP; BATTERY CABLE (G) ID=18 L=28 H=30	1-09701-110-0	02	1	1303-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	1009-
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-94176-807-1	02	1	1009-1302
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-94176-807-1	02	1	1303-
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	1009-1302
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1303-
9	CLIP; BATTERY CABLE EXC. MIXER TRUCK<RA2> (C) ID=21 L=24	8-98019-191-0	01	1	1009-1302
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1009-
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	1009-
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	1009-1302
17	CABLE; BATTERY (+) TO RELAY L=480	8-98198-310-0	01	1	1303-1303
17	CABLE; BATTERY (+) TO RELAY L=480	8-98239-412-0	01	1	1303-
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-1302
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1009-1302
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1009-1302
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1303-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1009-1302
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1303-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1009-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1009-
64	BOX; BATTERY RELAY SMOOTHER-G(C1W)	1-82510-650-0	01	1	1009-
64	BOX; BATTERY RELAY EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	1009-
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	1009-
66	BOLT; COVER,BATTERY RELAY (A) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302
66	BOLT; COVER,BATTERY RELAY (B) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-
68	RELAY; BATTERY	1-82550-313-0	01	1	1009-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1009-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1009-1302
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	04	1	1303-
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1303-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1009-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1009-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1009-
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-1302
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	02	1	1303-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1009-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1009-
167	CABLE; BATTERY RELAY TO STARTER MIXER TRUCK<RA2>	8-97632-943-0	01	1	1009-1302
167	CABLE; BATTERY RELAY TO STARTER	8-98233-074-0	01	1	1303-
167	CABLE; BATTERY RELAY TO STARTER EXC. MIXER TRUCK<RA2>	8-97632-942-0	01	1	1009-1302
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1009-1302
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1303-

9 9 18 22 9 22 99 25 99 9 9 22 9 22 99 9 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	CLIP; BATTERY CABLE (G) ID=18 L=28 H=30	1-09701-110-0	02	1	1009-1302
9	CLIP; BATTERY CABLE (G) ID=18 L=28 H=30	1-09701-110-0	02	1	1303-
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	02	1	1009-
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-94176-807-1	02	1	1009-1302
9	CLIP; BATTERY CABLE (E) ID=21 L=24	8-94176-807-1	02	1	1303-
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
9	CLIP; BATTERY CABLE (B) ID=21 L=30 H=40	1-09700-991-1	01	1	1009-
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	1009-1302
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	1303-
9	CLIP; BATTERY CABLE EXC. MIXER TRUCK<RA2> (C) ID=21 L=24	8-98019-191-0	01	1	1009-1302
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	1009-
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	1009-
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1009-1302
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	1009-1302
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	1009-1302
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	03	1	1303-
25	CLIP; BATTERY CABLE TO BRKT ID=18 H=23 L=28	1-09701-070-0	03	1	1009-
99	CLIP; BATTERY CABLE HONG KONG EQUIPMENT(PQ1) (A) ID=18 H=23 L=28	1-09701-070-0	01	1	1303-1411
99	CLIP; BATTERY CABLE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) ID=18 H=23 L=28	1-09701-070-0	01	1	1412-
99	CLIP; BATTERY CABLE (B) ID=18 L=54	1-09701-068-0	01	1	1009-
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	04	1	1009-1302
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	03	1	1303-
99	CLIP; BATTERY CABLE (C) ID=18 L=25 H=50	1-09701-096-0	01	1	1009-
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	1009-

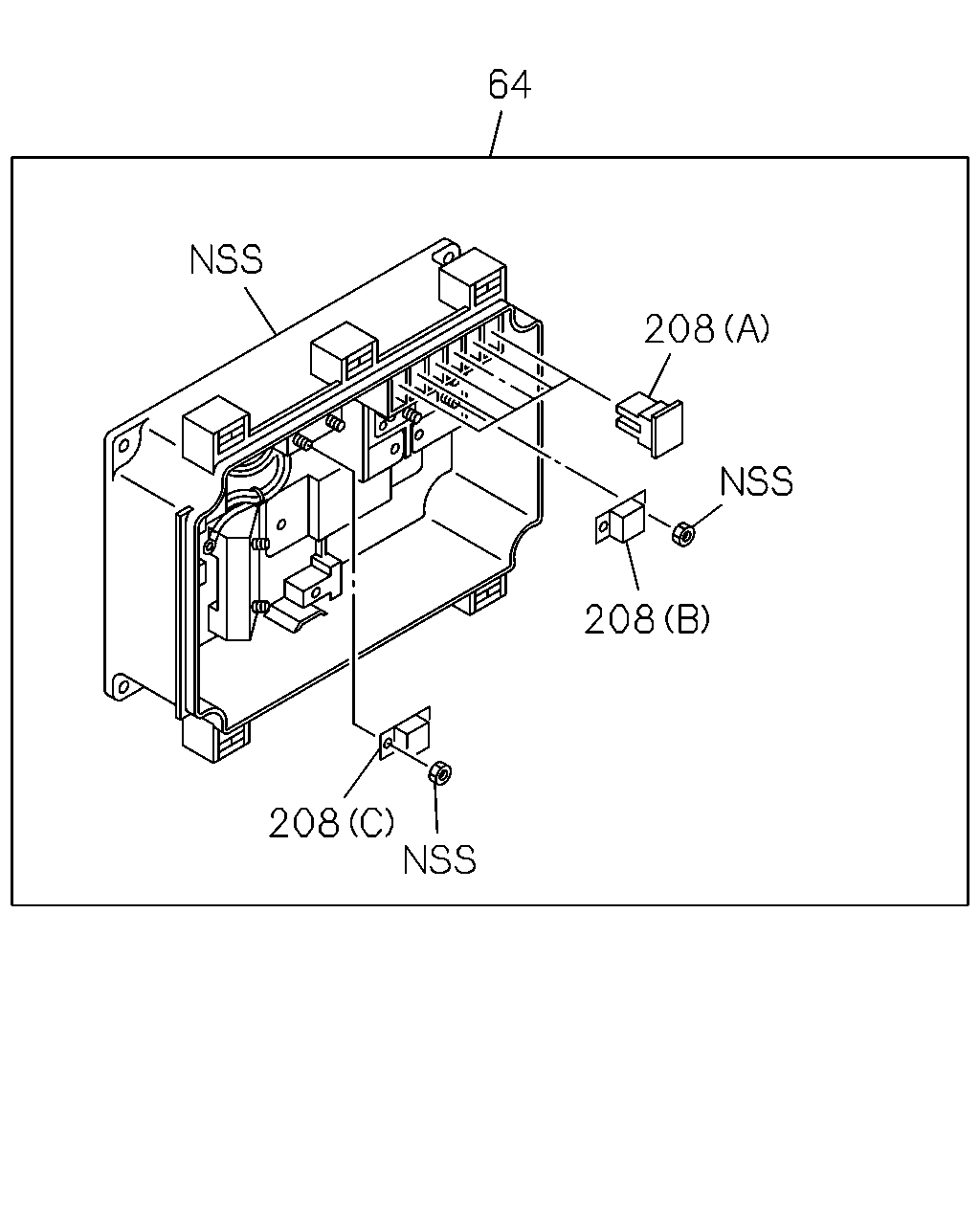

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	BOX; BATTERY RELAY SMOOTHER-G(C1W)	1-82510-650-0	01	1	1009-
64	BOX; BATTERY RELAY EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	1009-
208	FUSE (C) 80A	1-82516-031-0	01	1	1009-
208	FUSE (B) 100A	1-82516-032-0	01	1	1009-
208	FUSE SMOOTHER-G(C1W) (A) 40A GREEN	8-94468-662-0	06	1	1009-
208	FUSE EXC. SMOOTHER-G(C1W) (A) 40A GREEN	8-94468-662-0	05	1	1009-

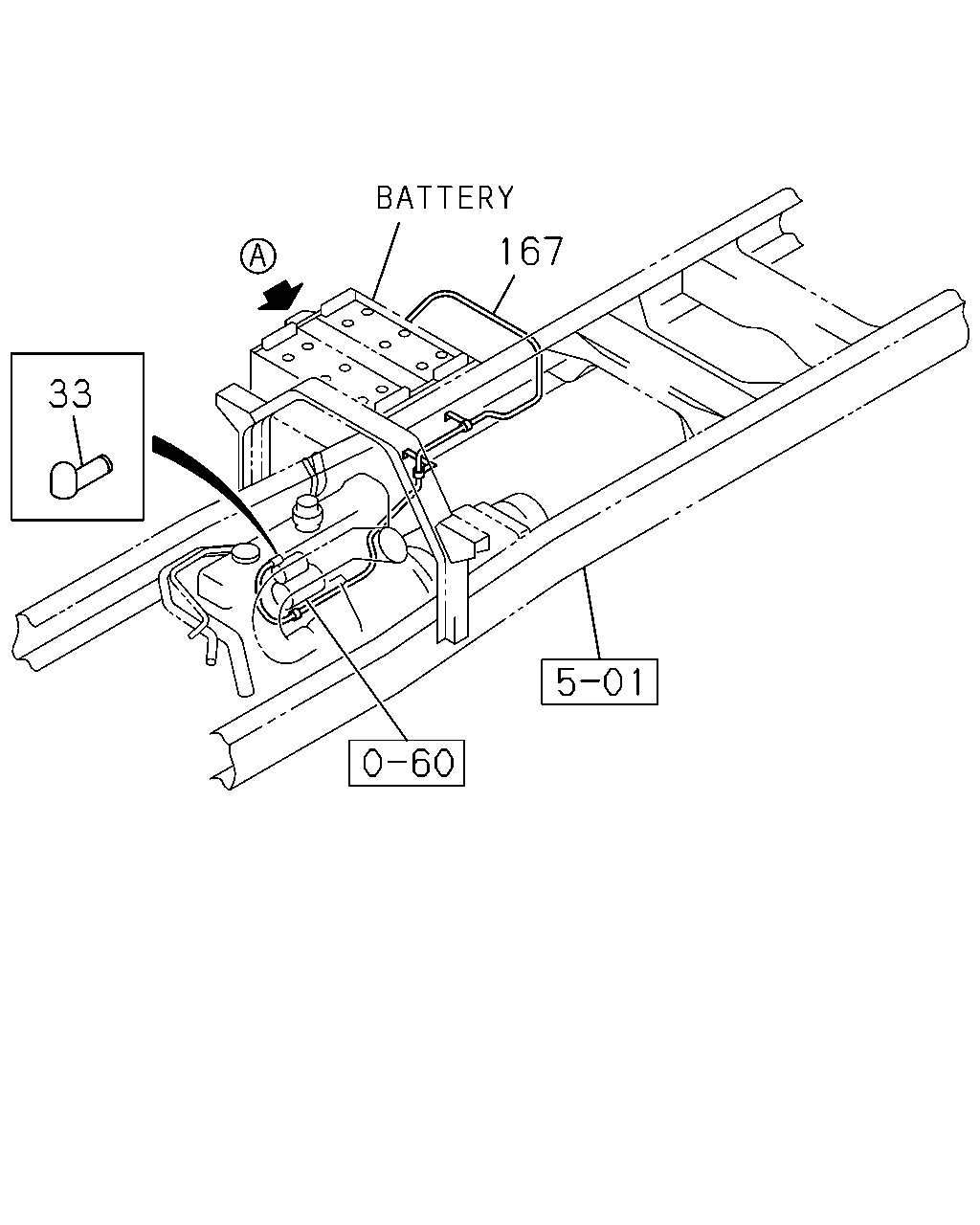

33 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	CAP; INSULATOR	8-97181-965-0	01	1	1009-
167	CABLE; BATTERY RELAY TO STARTER MIXER TRUCK<RA2>	8-97632-943-0	01	1	1009-1302
167	CABLE; BATTERY RELAY TO STARTER	8-98233-074-0	01	1	1303-
167	CABLE; BATTERY RELAY TO STARTER EXC. MIXER TRUCK<RA2>	8-97632-942-0	01	1	1009-1302

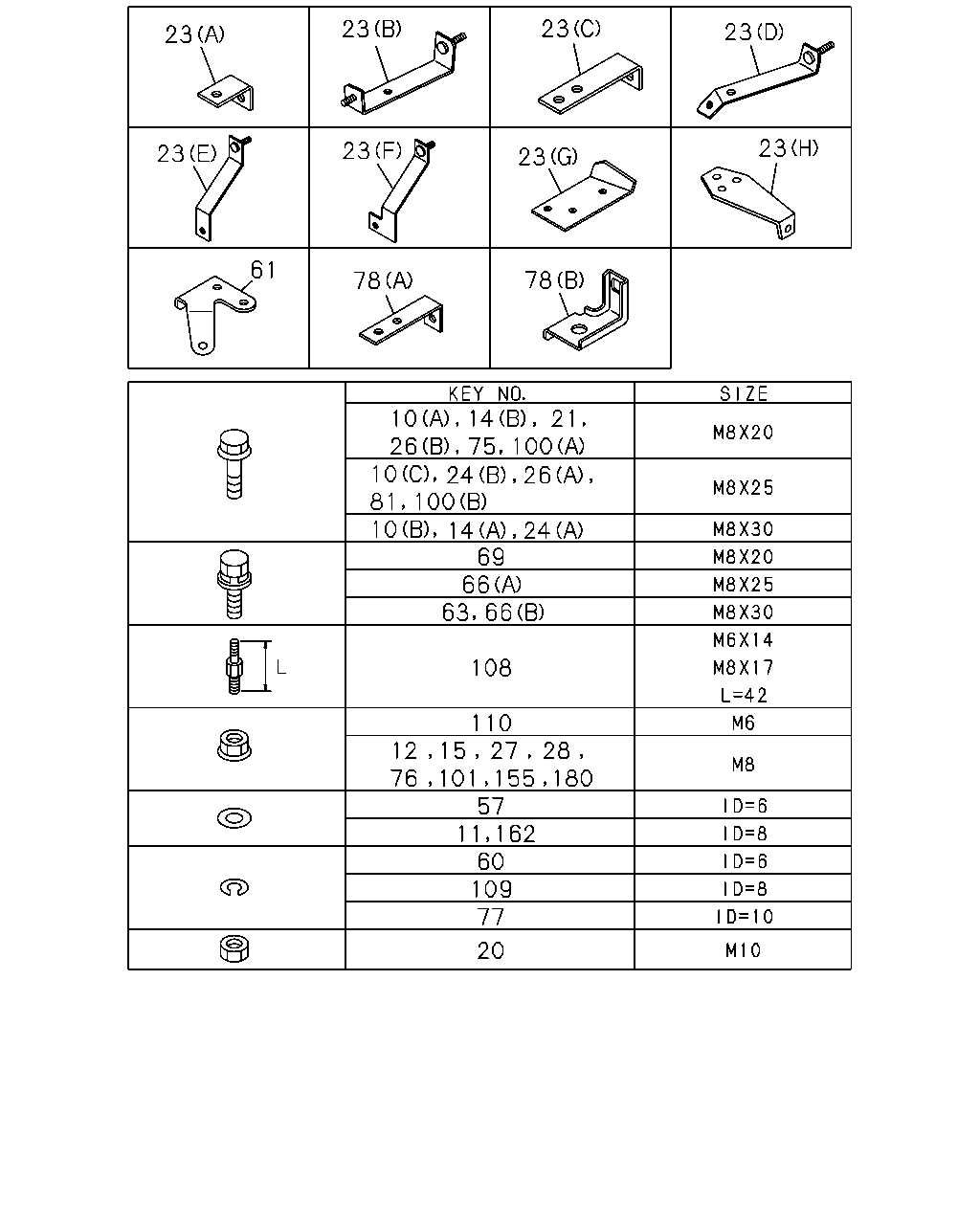

23 23 23 23 23 23 23 61 78 78 10 14 21 26 75 100 10 24 26 81 100 10 14 24 69 66 63 66 108 110 12 15 27 28 76 101 155 180 57 11 162 60 109 77 20 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOLT; BATTERY CABLE CLIP (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-
10	BOLT; BATTERY CABLE CLIP MIXER TRUCK<RA2> (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1302
10	BOLT; BATTERY CABLE CLIP (C) M8X25 FLANGE	0-28650-825-0	05	1	1303-
10	BOLT; BATTERY CABLE CLIP EXC. MIXER TRUCK<RA2> (A) M8X20 FLANGE	0-28650-820-0	05	1	1009-1302
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	1009-
12	NUT; BATTERY CABLE CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	07	1	1009-1302
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	08	1	1303-
12	NUT; BATTERY CABLE CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	08	1	1009-1302
14	BOLT; BRKT CLIP HONG KONG EQUIPMENT(PQ1) (A) M8X30 FLANGE	0-28650-830-0	01	1	1303-1411
14	BOLT; BRKT CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) M8X30 FLANGE	0-28650-830-0	01	1	1412-
14	BOLT; BRKT CLIP (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1302
14	BOLT; BRKT CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1303-1303
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1302
15	NUT; BRKT CLIP HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1303-1411
15	NUT; BRKT CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	1009-
21	BOLT; CLIP CABLE M8X20 FLANGE	0-28650-820-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (A) L=40	1-47478-410-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (B)	1-82698-589-0	01	1	1009-
23	BRACKET; CABLE CLIP TO FRAME (G)	8-98062-598-0	01	1	1009-1302
23	BRACKET; CABLE CLIP TO FRAME (G)	8-98062-598-0	01	1	1303-
23	BRACKET; CABLE CLIP TO FRAME MIXER TRUCK<RA2> (C) L=95	1-82698-557-0	01	1	1009-1302
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	01	1	1303-
23	BRACKET; CABLE CLIP TO FRAME MIXER TRUCK<RA2> (F)	1-82698-628-0	01	1	1009-1302
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (C) L=95	1-82698-557-0	02	1	1009-1302
23	BRACKET; CABLE CLIP TO FRAME (H)	8-98171-604-0	01	1	1303-
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (E)	1-82698-575-1	01	1	1009-1302
23	BRACKET; CABLE CLIP TO FRAME (E)	1-82698-575-1	01	1	1303-
24	BOLT; BRKT TO FRAME EXC. MIXER TRUCK<RA2> (A) M8X30 FLANGE	0-28650-830-0	04	1	1009-1302
24	BOLT; BRKT TO FRAME (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1302
24	BOLT; BRKT TO FRAME (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-
24	BOLT; BRKT TO FRAME MIXER TRUCK<RA2> (A) M8X30 FLANGE	0-28650-830-0	03	1	1009-1302
24	BOLT; BRKT TO FRAME (A) M8X30 FLANGE	0-28650-830-0	04	1	1303-
26	BOLT; BATTERY CABLE CLIP TO BRKT EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X20 FLANGE	0-28650-820-0	03	1	1303-
26	BOLT; BATTERY CABLE CLIP TO BRKT (A) M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
26	BOLT; BATTERY CABLE CLIP TO BRKT NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE	0-28650-825-0	03	1	1303-
27	NUT; BATTERY CABLE CLIP TO BRKT M8 FLANGE	0-91180-108-0	03	1	1009-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	05	1	1009-1302
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	1303-
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	1009-1302
57	WASHER; PL,BATTERY CABLE ID=6.4	0-91614-506-0	01	1	1303-
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	1009-
61	BRACKET; BATTERY CABLE	8-97632-262-1	01	1	1009-
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1009-
66	BOLT; COVER,BATTERY RELAY (A) M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	1009-1302
66	BOLT; COVER,BATTERY RELAY (B) M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	1303-
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	1009-
75	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	1009-
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	1009-1302
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	04	1	1303-
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	1009-
78	BRACKET; CLIP BATTERY HONG KONG EQUIPMENT(PQ1) (A)	1-82698-358-0	01	1	1303-1411
78	BRACKET; CLIP BATTERY HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A)	1-82698-358-0	01	1	1412-
78	BRACKET; CLIP BATTERY (A)	1-82698-358-0	01	1	1009-1302
78	BRACKET; CLIP BATTERY (B)	8-97304-944-0	01	1	1303-1303
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	03	1	1009-1302
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	02	1	1303-
100	BOLT; BATTERY CABLE CLIP EXC. NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	02	1	1303-1304
100	BOLT; BATTERY CABLE CLIP HONG KONG EQUIPMENT(PQ1) (B) M8X25 FLANGE	0-28650-825-0	02	1	1305-1411
100	BOLT; BATTERY CABLE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X25 FLANGE	0-28650-825-0	02	1	1412-
100	BOLT; BATTERY CABLE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1302
100	BOLT; BATTERY CABLE CLIP NEW ZEALAND EQUIPMENT(PK5) (B) M8X25 FLANGE	0-28650-825-0	01	1	1303-1304
100	BOLT; BATTERY CABLE CLIP EXC. HONG KONG EQUIPMENT(PQ1) (B) M8X25 FLANGE	0-28650-825-0	01	1	1305-1411
100	BOLT; BATTERY CABLE CLIP EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) M8X25 FLANGE	0-28650-825-0	01	1	1412-
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	05	1	1009-1302
100	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	04	1	1303-
101	NUT; BATTERY CABLE CLIP HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	1303-1411
101	NUT; BATTERY CABLE CLIP HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	01	1	1412-
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	05	1	1009-1302
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	1303-
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	1009-
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	1009-
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	1009-
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	1009-
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	1009-
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1009-1302
180	NUT; COVER M8 FLANGE	0-91180-108-0	04	1	1303-
