Isuzu WW
▶
TRUCKS
▶
CYH
▶
11289 - CYH RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶
0-42 — FUEL PUMP AND PIPE
(#69895) — 36 parça
◀

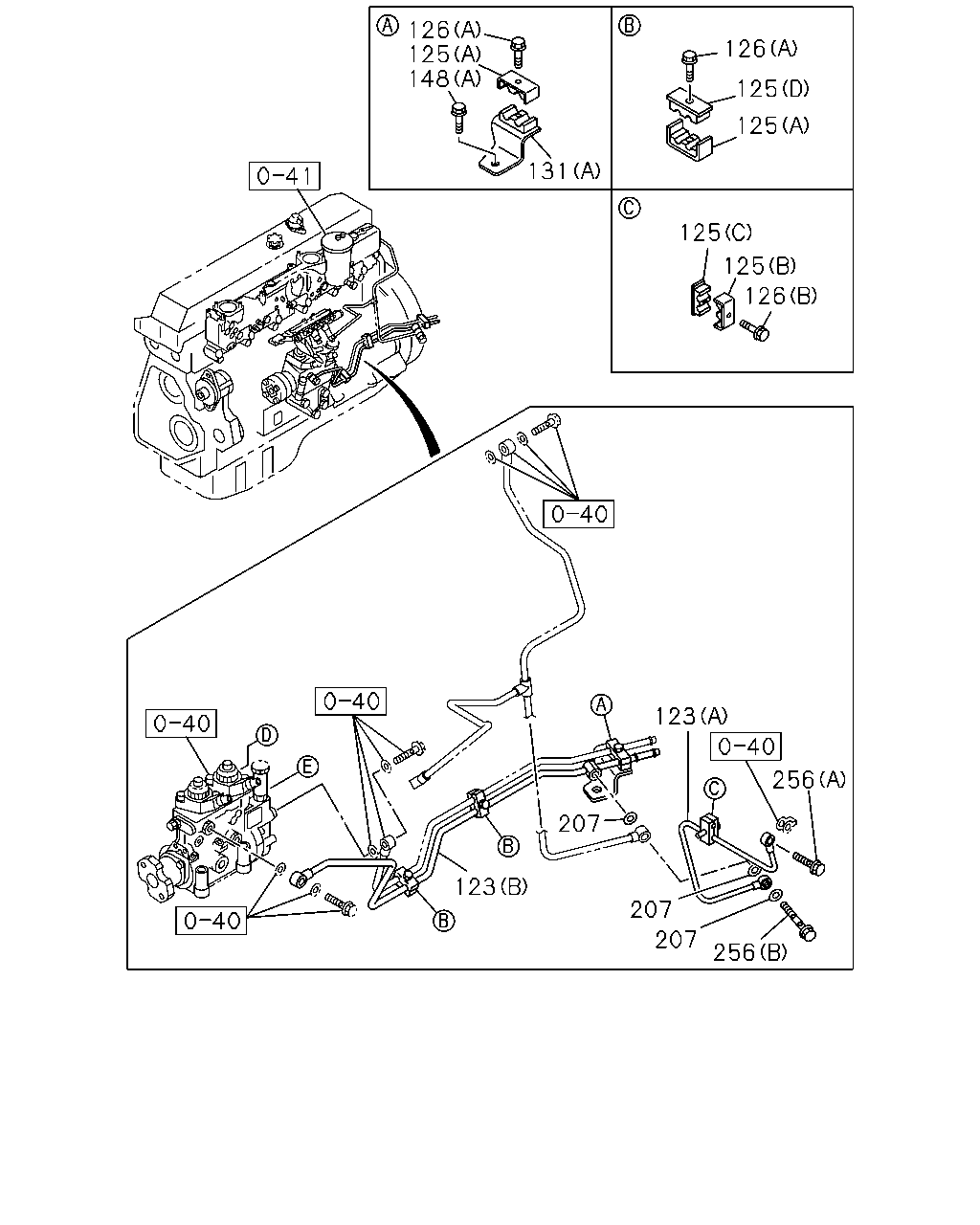

[042A] NO.1 (16 parça)

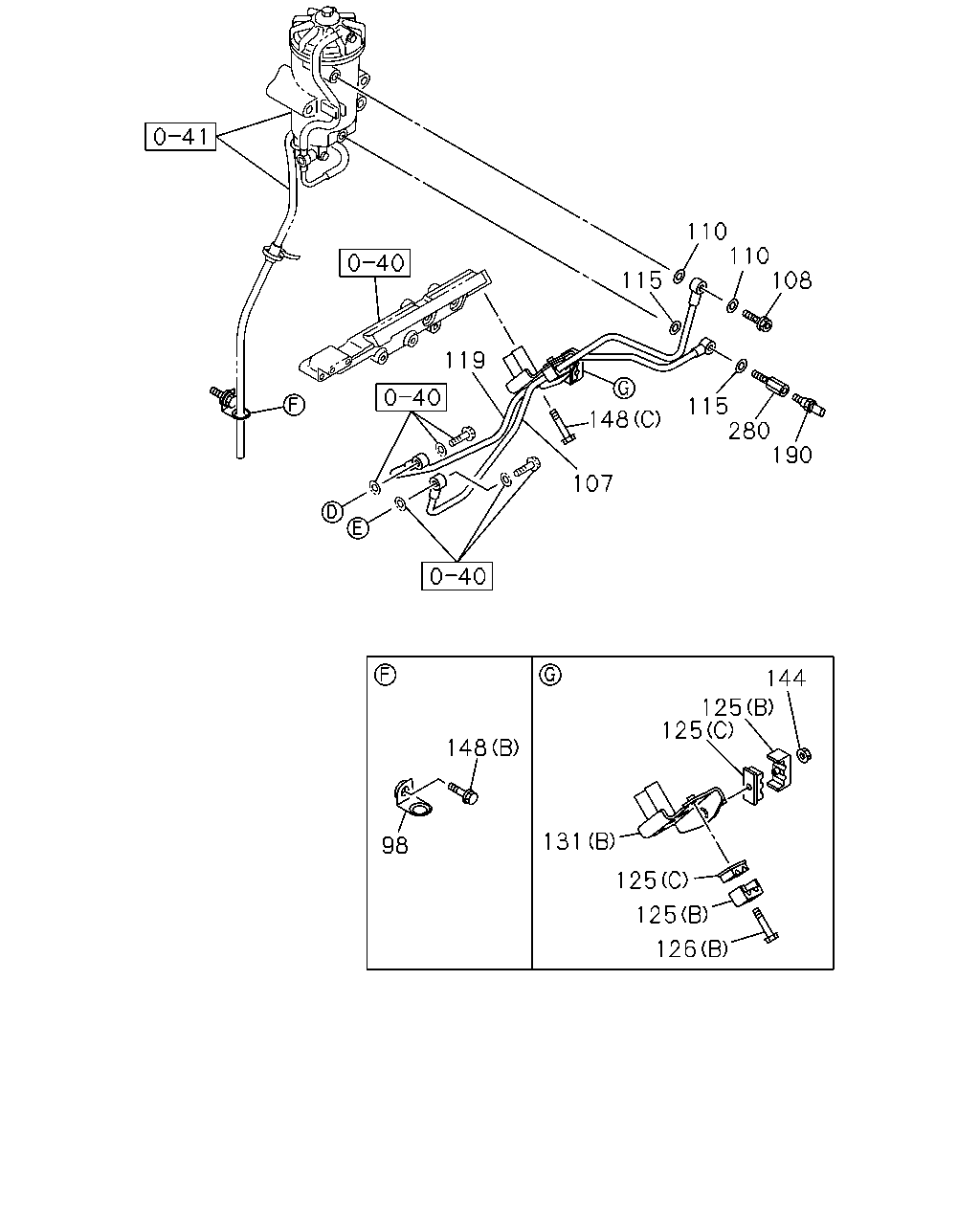

[042A] NO.2 (20 parça)
▶
126
125
125
125
126
125
131
148
125
126
256
123
207
207
207
256
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(B)
8-97629-437-0
01
1
1009-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
(A)
8-98073-695-0
01
1
1009-
125
CLIP; FUEL PIPE
(C) ID=9 & 9 L=25
1-09701-180-0
05
1
1009-
125
CLIP; FUEL PIPE
(A) ID=9 & 11 L=28
1-09701-193-1
03
1
1009-
125
CLIP; FUEL PIPE
(D) ID=9 & 11 L=28
1-09701-194-1
02
1
1009-
125
CLIP; FUEL PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
05
1
1009-
126
BOLT; CLIP,FUEL PIPE
(B) M6X35 FLANGE
0-28050-635-0
02
1
1009-
126
BOLT; CLIP,FUEL PIPE
(A) M6X40 FLANGE
0-28050-640-0
05
1
1009-
131
BRACKET; FUEL PIPE CLIP
(A)
8-97629-194-0
01
1
1009-
131
BRACKET; FUEL PIPE CLIP
(B)
8-98122-431-0
01
1
1009-
148
BOLT; BRKT
(C) M8X70 FLANGE
0-28050-870-0
02
1
1009-
148
BOLT; BRKT
(B) M10X16 FLANGE
0-28151-016-0
01
1
1009-
148
BOLT; BRKT
(A) M10X25 FLANGE
0-28751-025-0
01
1
1009-
207
GASKET; EYE BOLT
ID=14.2 OD=25
1-09630-141-0
03
1
1009-
256
BOLT; EYE,FUEL PIPE
(A) M14X27 FLANGE
1-09675-086-0
01
1
1009-
256
BOLT; EYE,FUEL PIPE
(B) M14X43 EYE-BOLT
8-98037-829-0
01
1
1009-
119
107
148
115
280
190
108
110
110
115
148
98
131
125
144
125
125
126
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
BRACKET; FUEL DRAIN HOSE
8-98132-638-0
01
1
1009-
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
8-98122-429-0
01
1
1009-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
1009-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
1009-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25
1-09630-141-0
02
1
1009-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
8-98167-671-0
01
1
1009-
125
CLIP; FUEL PIPE
(C) ID=9 & 9 L=25
1-09701-180-0
05
1
1009-
125
CLIP; FUEL PIPE
(A) ID=9 & 11 L=28
1-09701-193-1
03
1
1009-
125
CLIP; FUEL PIPE
(D) ID=9 & 11 L=28
1-09701-194-1
02
1
1009-
125
CLIP; FUEL PIPE
(B) ID=9 & 9 L=25
8-94393-280-3
05
1
1009-
126
BOLT; CLIP,FUEL PIPE
(B) M6X35 FLANGE
0-28050-635-0
02
1
1009-
126
BOLT; CLIP,FUEL PIPE
(A) M6X40 FLANGE
0-28050-640-0
05
1
1009-
131
BRACKET; FUEL PIPE CLIP
(A)
8-97629-194-0
01
1
1009-
131
BRACKET; FUEL PIPE CLIP
(B)
8-98122-431-0
01
1
1009-
144
NUT; CLIP
M6 FLANGE
0-91180-106-0
01
1
1009-
148
BOLT; BRKT
(C) M8X70 FLANGE
0-28050-870-0
02
1
1009-
148
BOLT; BRKT
(B) M10X16 FLANGE
0-28151-016-0
01
1
1009-
148
BOLT; BRKT
(A) M10X25 FLANGE
0-28751-025-0
01
1
1009-
190
SENSOR; FUEL TEMP
8-97224-993-0
01
1
1009-
280
ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT
1-15419-716-1
01
1
1009-
