3-01 — FRONT WHEEL BRAKE (#6988) — 78 parça

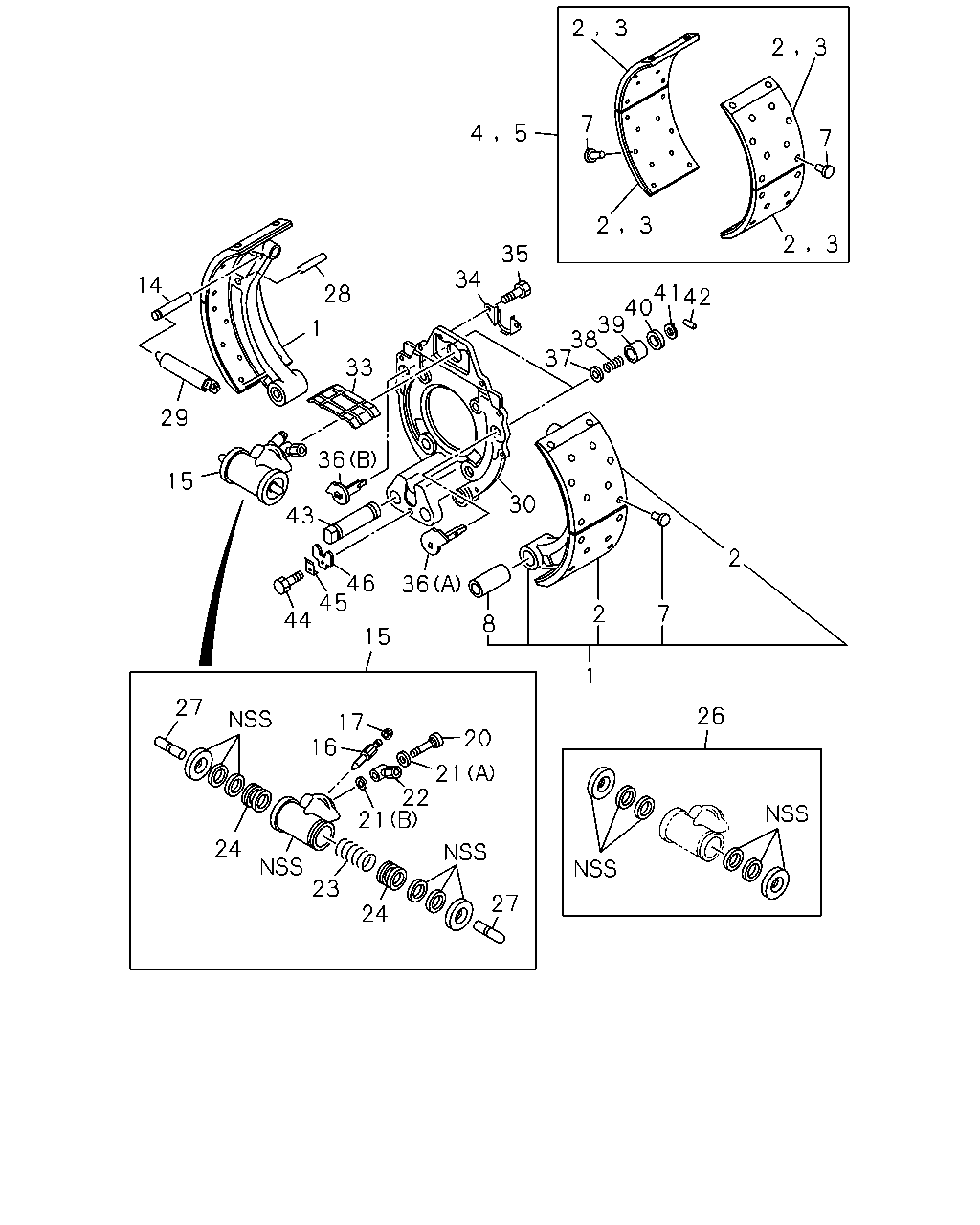

çizim 5990
2 3 2 3 7 5 4 7 2 3 2 3 35 34 14 41 42 40 39 38 37 28 1 33 29 36 15 30 43 2 46 45 44 36 2 7 8 15 1 27 26 17 16 20 21 22 21 24 23 27 24
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT 1-47110-853-0 04 1 9908-9910
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47110-853-0 04 1 9911-0006
1 SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47120-706-0 04 1 0007-
1 SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47120-328-0 04 1 9911-
2 LINING; FRT BRK SHOE,STANDARD 1-47115-771-0 08 1 9908-9910
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47115-771-0 08 1 9911-0006
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47125-811-0 08 1 0007-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> WO/INDICATOR HOLE 		1-47125-431-0 08 1 9911-
2 LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> W/INDICATOR HOLE 		1-47125-443-0 08 1 9911-
3 LINING; FRT BRK SHOE,OVER SIZE 1-47115-772-0 08 1 9908-9910
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47115-772-0 08 1 9911-0006
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47125-812-0 08 1 0007-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> WO/INDICATOR HOLE 		1-47125-433-0 08 1 9911-
3 LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> W/INDICATOR HOLE 		1-47125-444-0 08 1 9911-
4 LINING SET; FRT BRK,STANDARD 1-88302-923-0 02 1 9908-9910
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-88302-923-0 02 1 9911-0006
4 LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-88310-495-0 02 1 0007-
4 LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-88310-309-0 02 1 9911-
5 LINING SET; FRT BRK,OVER SIZE 1-88302-924-0 02 1 9908-9910
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-88302-924-0 02 1 9911-0006
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-88310-496-0 02 1 0007-
5 LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-88310-310-0 02 1 9911-
7 RIVET; LINING,FRT BRK
L=18.5 		1-09732-034-0 80 1 9908-
8 BUSHING; BRK SHOE 1-47112-011-0 04 1 9908-
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 9908-
15 CYLINDER; WHEEL,FRT BRK 1-47600-690-0 01 1 9908-9910
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47600-690-0 01 1 9911-9912
15 CYLINDER; WHEEL,FRT BRK 1-47600-690-0 01 1 0001-0011
15 CYLINDER; WHEEL,FRT BRK
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47600-690-0 01 1 0012-
15 CYLINDER; WHEEL,FRT BRK 1-47600-689-0 01 1 9908-9910
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47600-689-0 01 1 9911-9912
15 CYLINDER; WHEEL,FRT BRK 1-47600-689-0 01 1 0001-0011
15 CYLINDER; WHEEL,FRT BRK
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47600-689-0 01 1 0012-
15 CYLINDER; WHEEL,FRT BRK
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47600-688-0 01 1 9911-9912
15 CYLINDER; WHEEL,FRT BRK
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47600-687-0 01 1 9911-9912
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47601-123-0 01 1 0012-
15 CYLINDER; WHEEL,FRT BRK
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47601-122-0 01 1 0012-
16 SCREW; BLEEDER,FRT BRK
L=66.5 		1-47615-005-0 02 1 9908-
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 9908-
20 BOLT; JOINT 1-47634-006-0 02 1 9908-
21 GASKET; UNION BOLT
(A) ID=15.2 		1-09630-019-0 02 1 9908-
21 GASKET; UNION BOLT
(B) ID=12.2 		1-09630-020-0 02 1 9908-
22 JOINT; PIPE 1-47631-057-1 02 1 9908-
23 SPRING; COIL 9-09940-435-0 02 1 9908-9910
23 SPRING; COIL
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		9-09940-435-0 02 1 9911-9912
23 SPRING; COIL 9-09940-435-0 02 1 0001-
23 SPRING; COIL
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-09580-019-0 02 1 9911-9912
24 PISTON; FRT WHEEL CYL 9-47624-211-0 04 1 9908-9910
24 PISTON; FRT WHEEL CYL
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		9-47624-211-0 04 1 9911-9912
24 PISTON; FRT WHEEL CYL 9-47624-211-0 04 1 0001-0011
24 PISTON; FRT WHEEL CYL
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		9-47624-211-0 04 1 0012-
24 PISTON; FRT WHEEL CYL
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47624-302-0 04 1 9911-9912
24 PISTON; FRT WHEEL CYL
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-47624-389-0 04 1 0012-
26 CUP SET; FRT WHEEL CYL
ID=33.3 		1-87830-525-0 02 1 9908-9910
26 CUP SET; FRT WHEEL CYL
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> ID=33.3 		1-87830-525-0 02 1 9911-9912
26 CUP SET; FRT WHEEL CYL
ID=33.3 		1-87830-525-0 02 1 0001-0011
26 CUP SET; FRT WHEEL CYL
BRAKE LINING MATERIAL NON ASBESTOS<SKR> ID=33.3 		1-87830-525-0 02 1 0012-
26 CUP SET; FRT WHEEL CYL
BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-87830-527-0 02 1 9911-9912
26 CUP SET; FRT WHEEL CYL
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> 		1-87830-676-0 02 1 0012-
27 ROD; PUSH 1-47621-009-0 04 1 9908-
28 PIN; SHOE ADJ CAM GUIDE 1-47116-002-0 04 1 9908-
29 SPRING; RETURN,FRT BRK SHOE 1-09583-269-1 02 1 9908-
30 BRACKET; ANCHOR,FRT 1-47137-435-0 02 1 9908-
33 COVER; WHEEL CYL 1-47159-080-0 02 1 9908-
34 PLATE; DIRECTION,FRT 1-47159-094-0 02 1 9908-
35 BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER 		0-50051-235-0 04 1 9908-
36 CAM ASM; ADJ
(A) 		1-47165-058-1 02 1 9908-
36 CAM ASM; ADJ
(B) 		1-47165-059-1 02 1 9908-
37 WASHER; ADJ CAM 1-47169-033-0 04 1 9908-
38 SPRING; ADJ CAM 1-47169-046-0 04 1 9908-
39 BOOT; ADJ CAM 1-47169-034-0 04 1 9908-
40 COVER; BOOT,ADJ CAM 1-47169-031-0 04 1 9908-
41 INDICATOR 1-47169-032-1 04 1 9908-
42 PIN; SPINDLE 1-47169-030-0 04 1 9908-
43 PIN; ANCHOR
L=106.5 		1-47131-038-0 04 1 9908-
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 9908-
45 WASHER; LK 1-47133-011-0 02 1 9908-
46 PLATE; LOCK 1-47133-005-0 02 1 9908-
