0-12 — CYLINDER BLOCK (#69876) — 55 parça
çizim 188498
2 4
BalonParca AdiParca NoAdetTipApplied Date
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-095-5 06 1 1009-
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-096-5 06 1 1009-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 1009-1411
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 12 1 1412-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 1009-1411
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 12 1 1412-

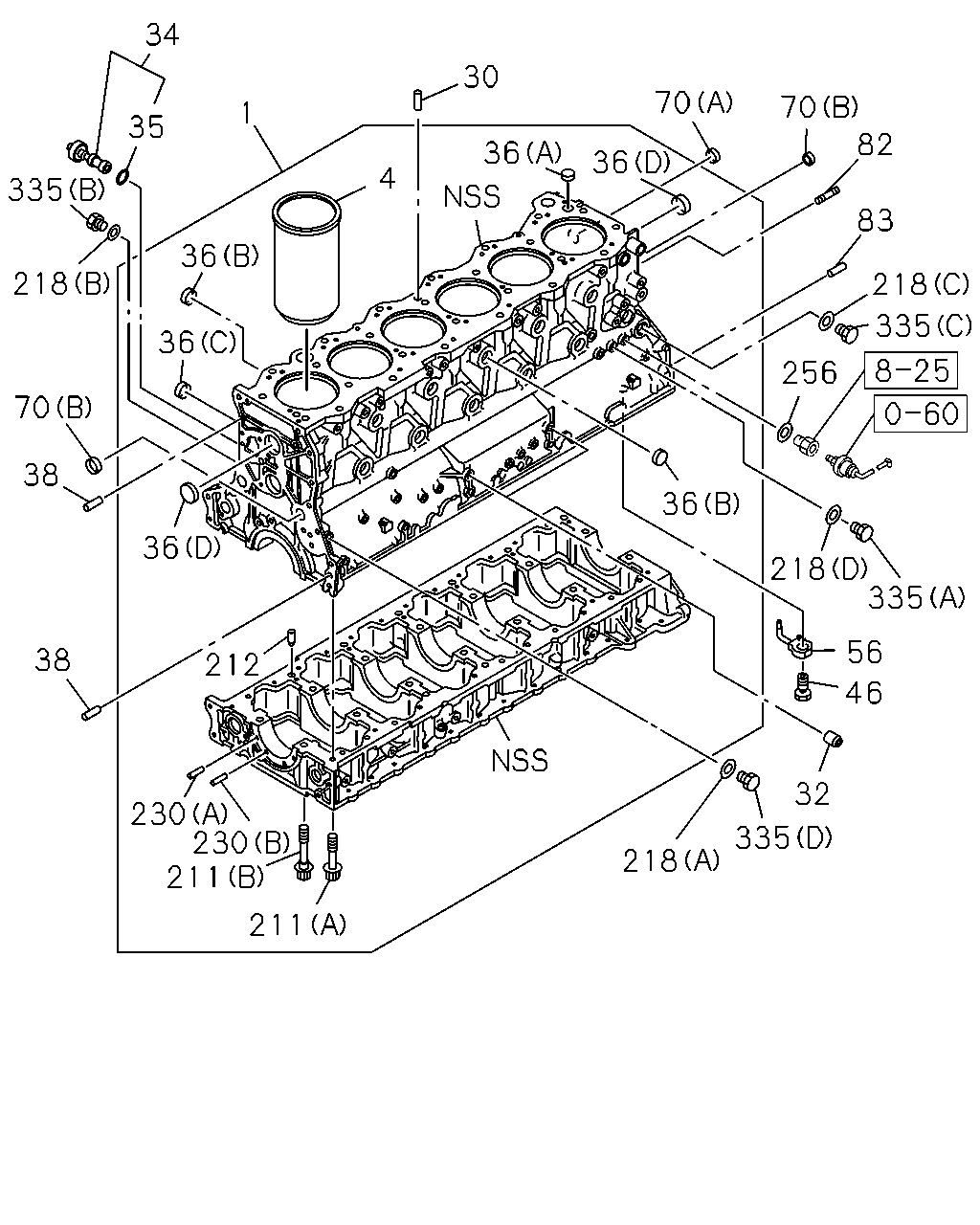

çizim 188501
82 70 70 30 34 35 4 1 335 218 70 38 36 38 230 230 211 211 218 32 335 46 218 56 36 256 218 83 36 36 36 36 212 335 335
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL 8-98180-451-1 01 1 1009-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 1009-1411
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 12 1 1412-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 1009-1411
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 12 1 1412-
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 02 1 1009-
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 1009-
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 1009-
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 1009-
36 CUP; SEALING,WATER JACKET
(A) OD=25 		1-09600-016-0 01 1 1009-1411
36 CUP; SEALING,WATER JACKET
(A) OD=25 		1-09600-016-0 02 1 1412-
36 CUP; SEALING,WATER JACKET
(B) OD=40 		1-09600-065-1 02 1 1009-1411
36 CUP; SEALING,WATER JACKET
(B) OD=40 		1-09600-065-1 04 1 1412-
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94241-637-0 13 1 1009-1411
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94241-637-0 26 1 1412-
36 CUP; SEALING,WATER JACKET
(D) OD=45 		8-97351-451-0 04 1 1009-1411
36 CUP; SEALING,WATER JACKET
(D) OD=45 		8-97351-451-0 08 1 1412-
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 1009-
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 1009-
56 JET; OIL,PISTON COOLING 1-13342-139-2 06 1 1009-
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-2 01 1 1009-
70 CUP; SEALING,FRT & RR
ENGINE REAR PTO(SV1) (B) OD=25 		1-09600-016-0 03 1 1009-1302
70 CUP; SEALING,FRT & RR
EXC. ENGINE REAR PTO(SV1) (B) OD=25 		1-09600-016-0 04 1 1009-1302
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 1303-
82 STUD; FLYWHEEL HSG
EXC. ENGINE REAR PTO(SV1) M14X35 L=56 		0-44011-435-0 01 1 1009-1302
82 STUD; FLYWHEEL HSG
M14X35 L=56 		0-44011-435-0 01 1 1303-
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 1009-
211 BOLT; CRANKCASE
(A) M12X114 		1-09070-087-3 28 1 1009-1411
211 BOLT; CRANKCASE
(A) M12X114 		1-09070-087-3 56 1 1412-
211 BOLT; CRANKCASE
(B) M18X150 		1-09070-151-0 14 1 1009-1411
211 BOLT; CRANKCASE
(B) M18X150 		1-09070-151-0 28 1 1412-
212 PIN; CRANKCASE 1-09740-068-1 02 1 1009-1411
212 PIN; CRANKCASE 1-09740-068-1 04 1 1412-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1009-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 1009-1312
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		8-98251-344-0 01 1 1401-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22 		1-09630-089-0 01 1 1009-
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (D) ID=14.2 OD=25 		1-09630-141-0 01 1 1009-1302
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25 		1-09630-141-0 01 1 1303-
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 1009-1411
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 04 1 1412-
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 1009-1411
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 04 1 1412-
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 02 1 1009-
335 PLUG; C/BL,SIDE
(C) M22X12 		1-09604-035-0 01 1 1009-
335 PLUG; C/BL,SIDE
(D) M10X7 		1-09604-094-0 01 1 1009-
335 PLUG; C/BL,SIDE
(B) M12X9 		8-98047-054-0 01 1 1009-
335 PLUG; C/BL,SIDE
EXC. ENGINE REAR PTO(SV1) (A) M14X9 		8-98042-944-0 01 1 1009-1302
335 PLUG; C/BL,SIDE
(A) M14X9 		8-98042-944-0 01 1 1303-
