8-21 — METER ASM (#69868) — 18 parça

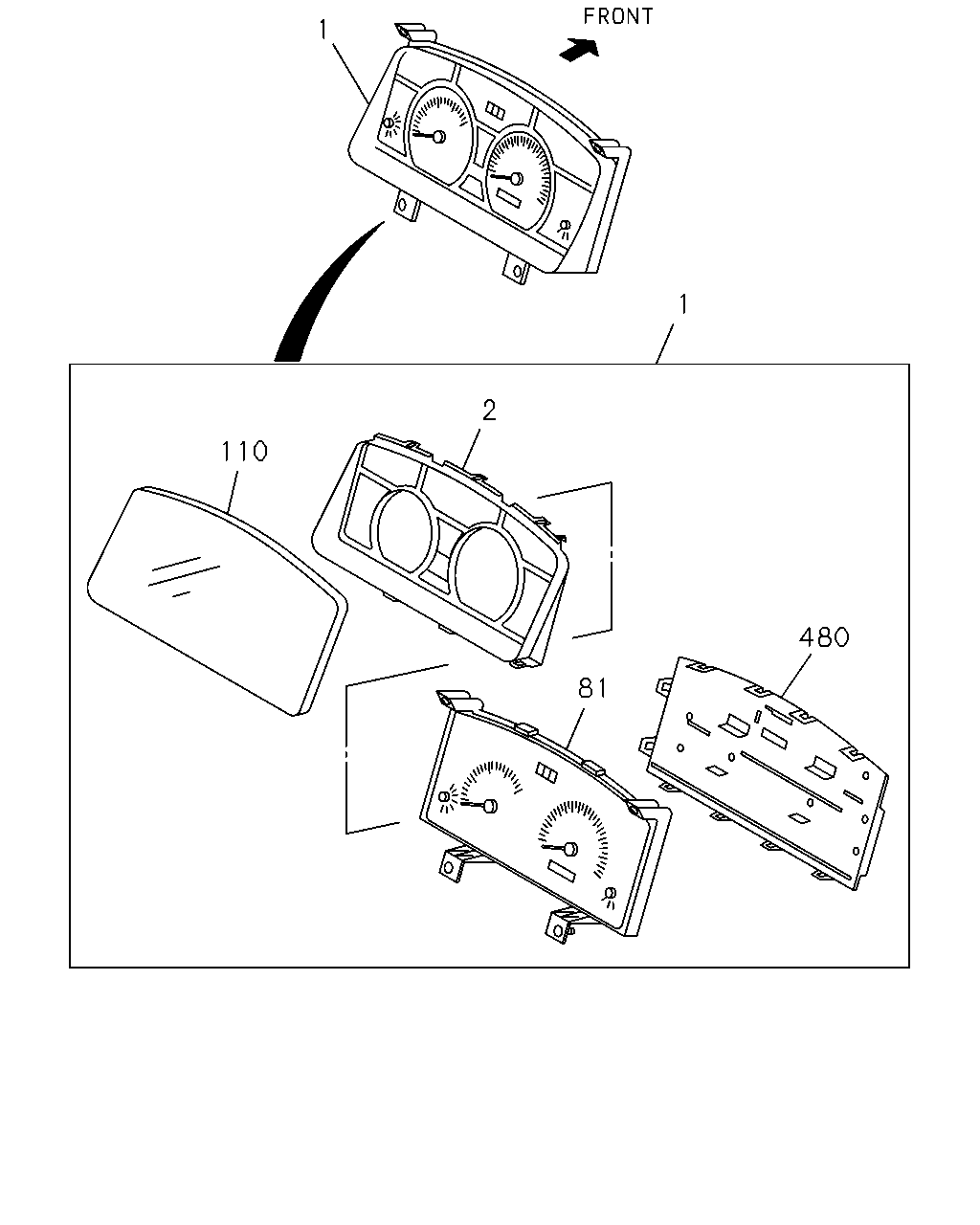

çizim 137370
1 1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
EURO2 SPECIFICATION<NT2> 		8-98064-903-6 01 1 1007-
1 METER COMPL; CLUSTER 8-98064-926-5 01 1 0908-1006
1 METER COMPL; CLUSTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98064-926-6 01 1 1007-
2 PANEL; CLUSTER 8-98054-432-0 01 1 0908-
81 METER SUB ASM
EURO2 SPECIFICATION<NT2> 		8-98079-673-0 01 1 1007-
81 METER SUB ASM 8-98079-674-0 01 1 0908-1006
81 METER SUB ASM
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98079-674-0 01 1 1007-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0908-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 0908-

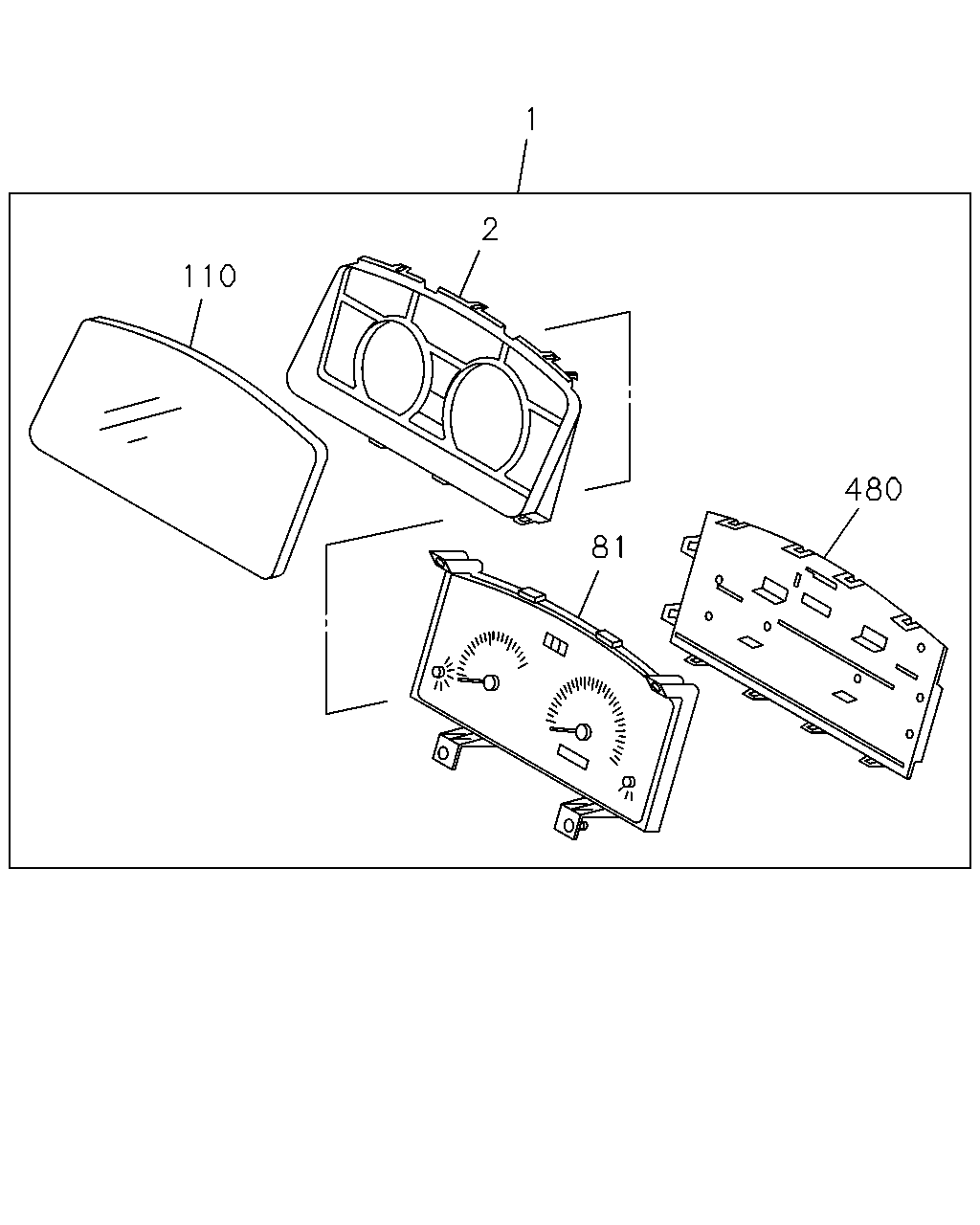

çizim 137711
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
EURO2 SPECIFICATION<NT2> 		8-98064-903-6 01 1 1007-
1 METER COMPL; CLUSTER 8-98064-926-5 01 1 0908-1006
1 METER COMPL; CLUSTER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98064-926-6 01 1 1007-
2 PANEL; CLUSTER 8-98054-432-0 01 1 0908-
81 METER SUB ASM
EURO2 SPECIFICATION<NT2> 		8-98079-673-0 01 1 1007-
81 METER SUB ASM 8-98079-674-0 01 1 0908-1006
81 METER SUB ASM
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98079-674-0 01 1 1007-
110 GLASS; CLUSTER METER 8-98054-431-0 01 1 0908-
480 COVER; METER
BLACK 		8-98054-433-0 01 1 0908-
