8-10 — WIRING HARNESS AND FUSE (#69866) — 29 parça

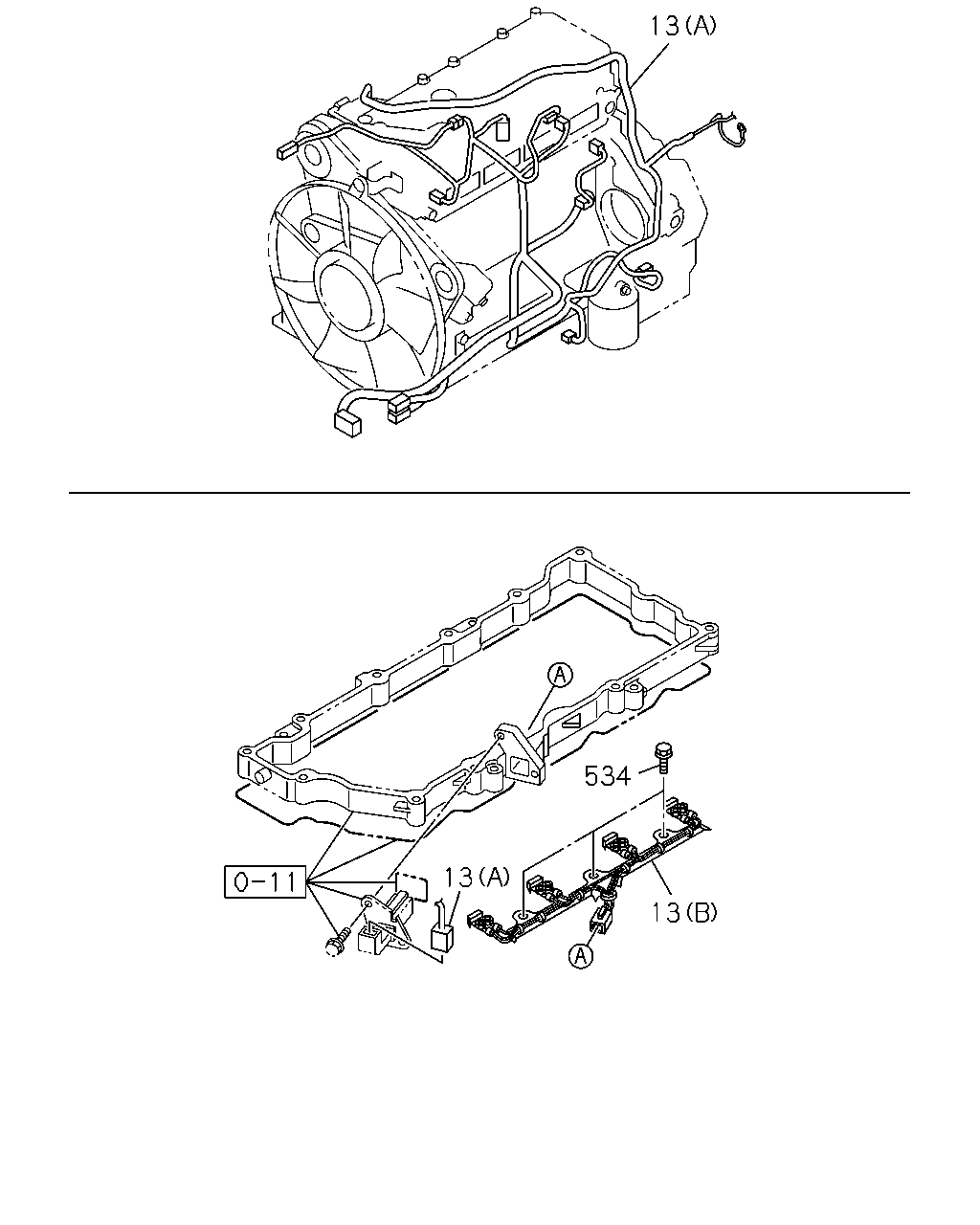

çizim 136267
13 534 13 13
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 0908-0912
13 HARNESS; ENG
EURO5 SPECIFICATION<NT5> (A) 		8-98099-578-4 01 1 1001-1004
13 HARNESS; ENG
EURO5 SPECIFICATION<NT5> (A) 		8-98162-672-0 01 1 1005-1007
13 HARNESS; ENG
EURO5 SPECIFICATION<NT5> (A) 		8-98171-162-1 01 1 1008-1405
13 HARNESS; ENG
EURO5 SPECIFICATION<NT5> (A) 		8-98274-044-0 01 1 1406-
13 HARNESS; ENG
(B) 		8-97332-133-3 01 1 1001-1007
13 HARNESS; ENG
(B) 		8-98171-638-0 01 1 1008-
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> (A) 		8-98077-327-5 01 1 1007-1405
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> (A) 		8-98274-016-0 01 1 1406-
13 HARNESS; ENG
EURO4 SPECIFICATION<NT4> (A) 		8-98096-109-1 01 1 0908-1004
13 HARNESS; ENG
EURO4 SPECIFICATION<NT4> (A) 		8-98162-617-2 01 1 1005-1406
13 HARNESS; ENG
EURO4 SPECIFICATION<NT4> (A) 		8-98274-003-0 01 1 1407-
534 BOLT
M10X55 FLANGE 		8-97365-449-0 03 1 0908-

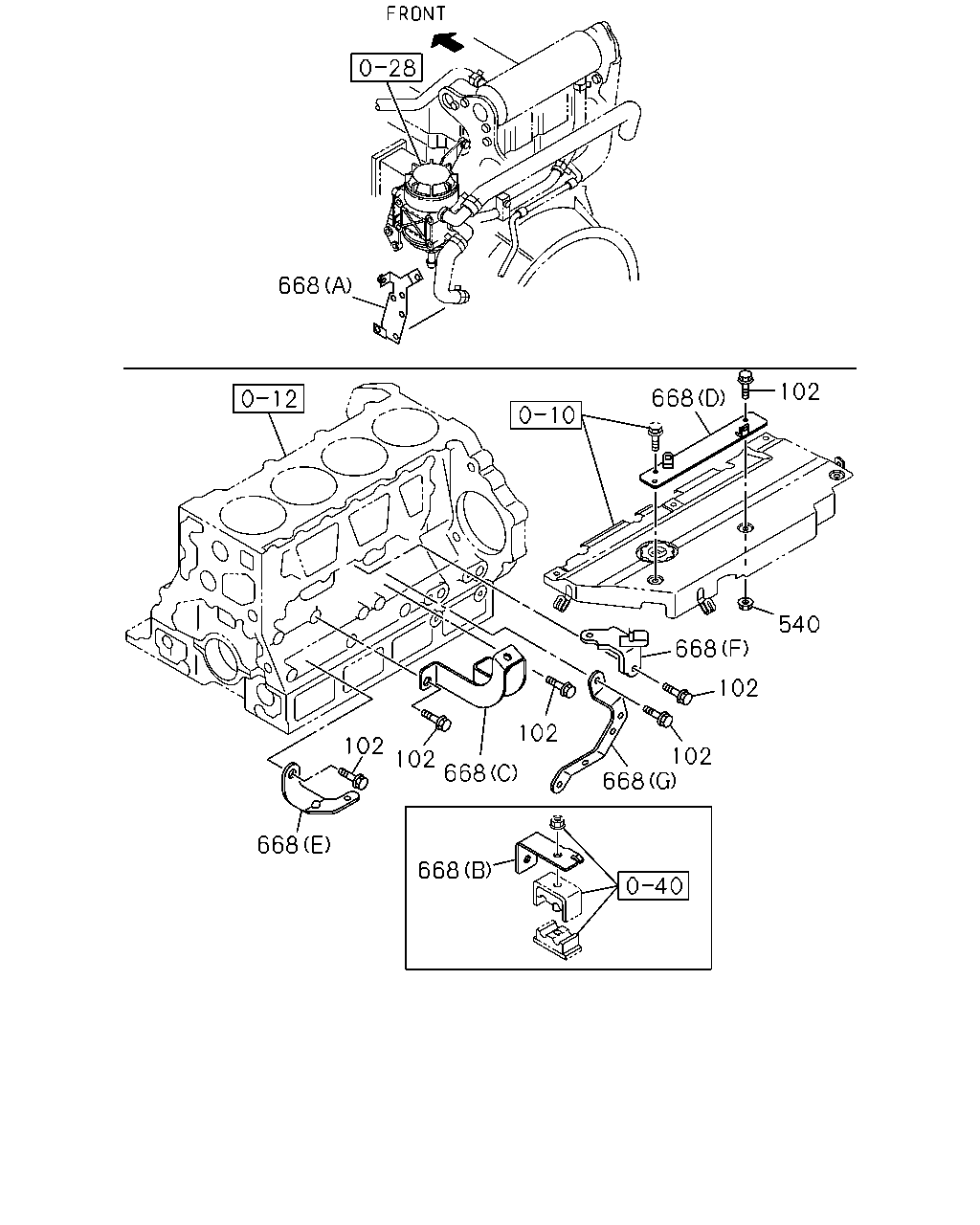

çizim 136271
668 102 668 540 668 102 102 102 102 102 668 668 668 668
BalonParca AdiParca NoAdetTipApplied Date
102 BOLT; BRKT,HARNESS CONNECTOR
EURO2 SPECIFICATION<NT2> M6X25 FLANGE 		0-28050-625-0 01 1 1007-
102 BOLT; BRKT,HARNESS CONNECTOR
M6X25 FLANGE 		0-28050-625-0 01 1 0908-1004
102 BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE 		0-28050-816-0 03 1 0908-
102 BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE 		0-28151-016-0 03 1 0908-
540 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 01 1 0908-
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2> (D) 		8-98022-106-2 01 1 1007-
668 BRACKET; HARNESS
EURO5 SPECIFICATION<NT5> (F) 		8-98061-780-0 01 1 1001-
668 BRACKET; HARNESS
EURO5 SPECIFICATION<NT5> (G) 		8-98097-674-0 01 1 1001-
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (B) 		8-98001-095-0 01 1 0908-1006
668 BRACKET; HARNESS
EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) 		8-98001-095-0 01 1 1007-1408
668 BRACKET; HARNESS
EURO4 SPECIFICATION<NT4> (B) 		8-98001-095-0 01 1 1409-
668 BRACKET; HARNESS
(E) 		8-98009-245-0 01 1 0908-1408
668 BRACKET; HARNESS
(E) 		8-98273-295-0 01 1 1409-
668 BRACKET; HARNESS
(C) 		8-98011-484-0 01 1 0908-
668 BRACKET; HARNESS
(D) 		8-98022-106-2 01 1 0908-1004
668 BRACKET; HARNESS
(A) 		8-98024-765-0 01 1 0908-
