◀ 🏠 ▶ Isuzu WW ▶ COMPO ▶ LR ▶ 11211 - LR COMPOPARTS TURKEY ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#69860) — 19 parça

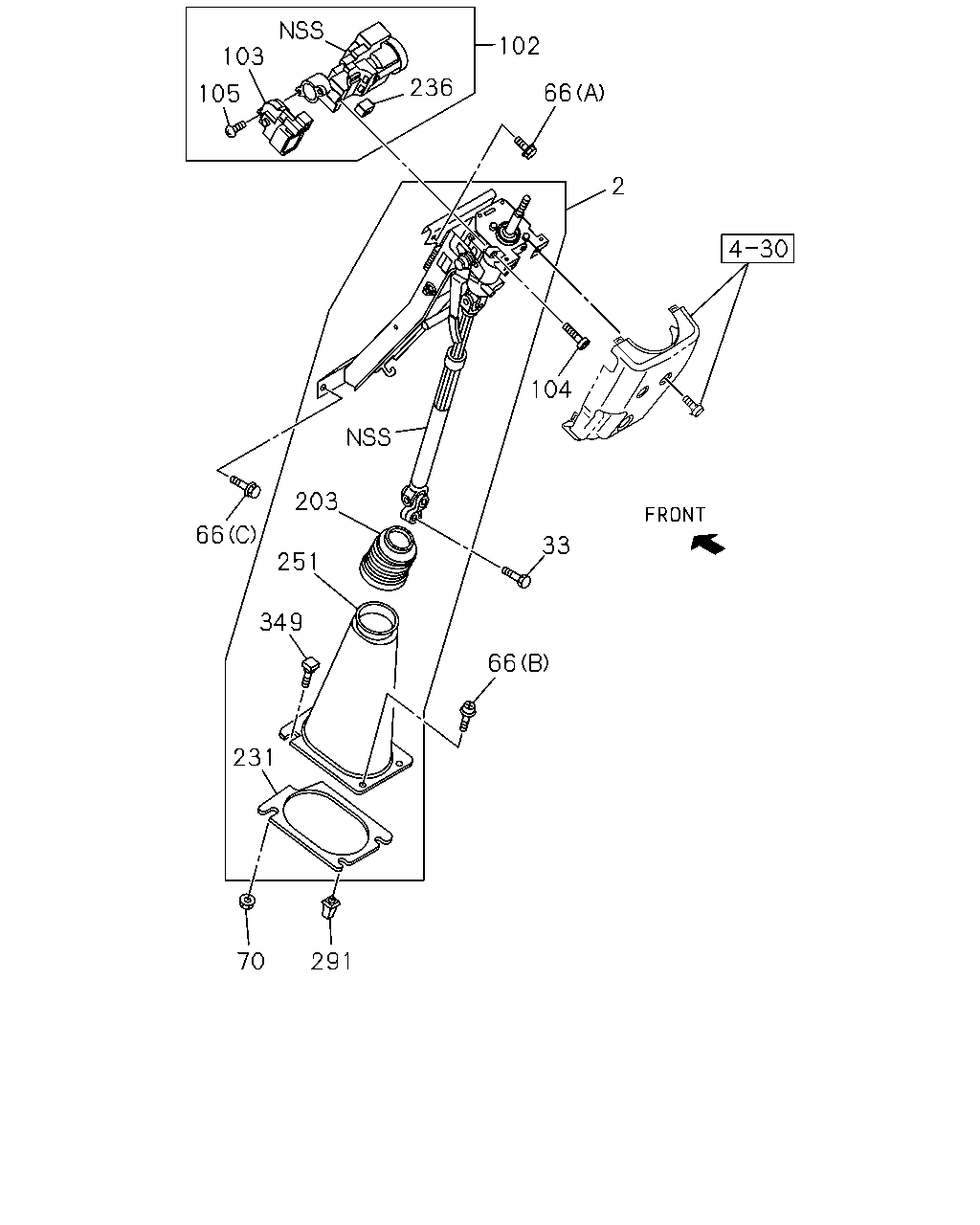

çizim 122910
102 103 236 66 105 2 104 203 66 33 251 349 66 231 70 291
BalonParca AdiParca NoAdetTipApplied Date
2 SHAFT ASM; STRG
BLACK 		8-97415-619-2 01 1 0908-
33 BOLT; STRG SHAFT TO UNIT
M10X35 		1-09009-126-1 01 1 0908-
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0908-
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 0908-
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 0908-
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0908-
102 LOCK ASM; STRG
EURO2 SPECIFICATION<NT2> 		8-98006-150-0 01 1 1007-
102 LOCK ASM; STRG 8-97387-036-0 01 1 0908-1006
102 LOCK ASM; STRG
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97387-036-0 01 1 1007-
103 SWITCH; IGNITION 8-98045-349-0 01 1 0908-
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 0908-
105 SCREW; IGN SW 8-98045-346-0 02 1 0908-
203 BOOT; STRG COLUMN LWR 8-98137-333-0 01 1 0908-
231 SEAL; RUBBER,STRG COLUMN 8-98137-330-0 01 1 0908-
236 SWITCH; DOOR WARNING,STRG LOCK 8-98045-350-0 01 1 0908-1006
236 SWITCH; DOOR WARNING,STRG LOCK
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98045-350-0 01 1 1007-
251 COVER; LWR
BLACK 		8-97417-050-0 01 1 0908-
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0908-
349 BOLT; COVER 8-98137-334-0 02 1 0908-
