4-10 — FRONT AXLE (#69850) — 106 parça

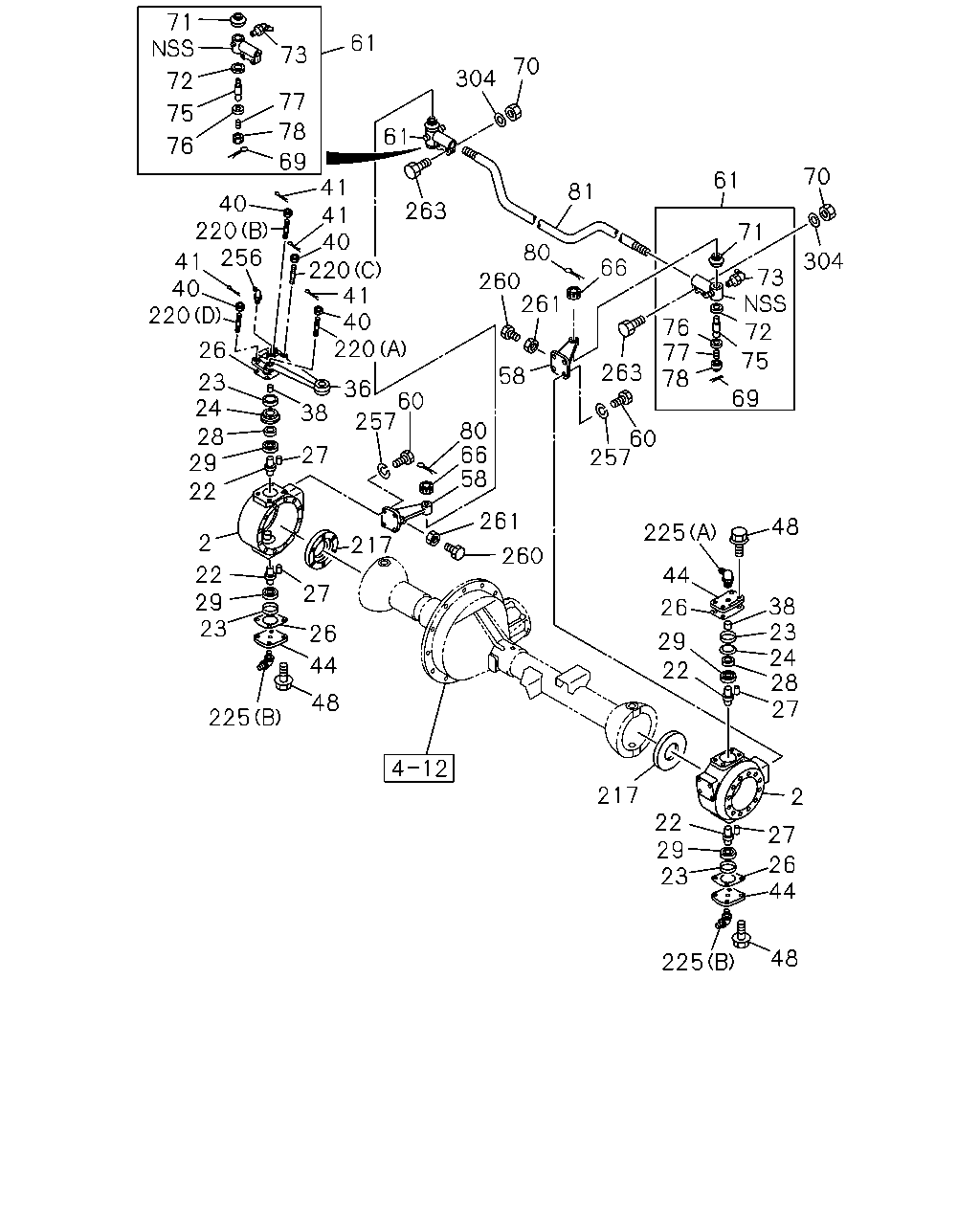

çizim 189140
225 48 44 23 29 22 217 2 27 26 27 28 24 23 38 22 29 26 44 48 225 257 60 263 69 75 72 304 70 61 73 76 77 78 81 80 260 66 261 58 80 66 261 58 260 48 26 27 44 225 23 22 29 2 22 29 28 24 23 26 220 40 41 256 220 40 220 41 40 220 38 217 27 257 36 60 263 61 304 70 61 73 78 77 69 76 75 72 71 41 41 40 71
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE 1-43242-006-3 01 1 1011-1102 ●
2 KNUCKLE; FRT AXLE 1-43242-006-4 01 1 1103- ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-1 01 1 1011-1102 ●
2 KNUCKLE; FRT AXLE 9-43241-037-2 01 1 1103- ● ●
22 PIN; KING,FRT AXLE
H=50 		1-43264-003-0 04 1 1011-1102 ●
22 PIN; KING,FRT AXLE
H=50 		1-43264-003-0 04 1 1103- ● ●
23 COLLAR; DIST BRG 9-43267-004-0 04 1 1011-1102 ●
23 COLLAR; DIST BRG 9-43267-004-0 04 1 1103- ● ●
24 RECEIVER; KING PIN 9-43269-008-0 02 1 1011-1102 ●
24 RECEIVER; KING PIN 9-43269-008-0 02 1 1103- ● ●
26 SHIM; KING PIN,BRG
T=0.1 		9-43266-013-0 AR 1 1011-1102 ●
26 SHIM; KING PIN,BRG
T=0.1 		9-43266-013-0 AR 1 1103- ● ●
26 SHIM; KING PIN,BRG
T=0.2 		9-43266-014-0 AR 1 1011-1102 ●
26 SHIM; KING PIN,BRG
T=0.2 		9-43266-014-0 AR 1 1103- ● ●
26 SHIM; KING PIN,BRG
T=0.5 		9-43266-015-0 AR 1 1011-1102 ●
26 SHIM; KING PIN,BRG
T=0.5 		9-43266-015-0 AR 1 1103- ● ●
27 PIN; STRAIGHT,KING PIN
OD=5 L=10 		9-08160-510-0 04 1 1011-1102 ●
27 PIN; STRAIGHT,KING PIN
OD=5 L=10 		9-08160-510-0 04 1 1103- ● ●
28 WASHER; KING PIN 9-43269-007-0 02 1 1011-1102 ●
28 WASHER; KING PIN 9-43269-007-0 02 1 1103- ● ●
29 BEARING; KING PIN 9-00093-181-0 04 1 1011-1102 ●
29 BEARING; KING PIN 9-00093-181-0 04 1 1103- ● ●
36 ARM; KNUCKLE 1-43261-025-0 01 1 1011-1102 ●
36 ARM; KNUCKLE 1-43261-025-0 01 1 1103- ● ●
38 KNOCK; KNUCKLE ARM 9-43269-009-1 02 1 1011-1102 ●
38 KNOCK; KNUCKLE ARM 9-43269-009-1 02 1 1103- ● ●
40 NUT; KNUCKLE ARM
M14 SLOTTED 		0-91116-514-0 04 1 1011-1102 ●
40 NUT; KNUCKLE ARM
M14 SLOTTED 		0-91116-514-0 04 1 1103- ● ●
41 PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25 		0-81123-025-0 04 1 1011-1102 ●
41 PIN; KNOCK,KNUCKLE ARM
OD=2.8 L=25 		0-81123-025-0 04 1 1103- ● ●
44 COVER; KING PIN 9-43265-007-1 03 1 1011-1102 ●
44 COVER; KING PIN 9-43265-007-1 03 1 1103- ● ●
48 BOLT; COVER
M14X35 FLANGE 		0-28861-435-0 12 1 1011-1102 ●
48 BOLT; COVER
M14X35 FLANGE 		0-28861-435-0 12 1 1103- ● ●
58 ARM; TIE ROD 9-43262-017-1 01 1 1011-1102 ●
58 ARM; TIE ROD 9-43262-017-1 01 1 1103- ● ●
58 ARM; TIE ROD 9-43263-011-1 01 1 1011-1102 ●
58 ARM; TIE ROD 9-43263-011-1 01 1 1103- ● ●
60 BOLT; TIE ROD ARM
M16X40 		0-20951-640-0 08 1 1011-1102 ●
60 BOLT; TIE ROD ARM
M16X40 		0-20951-640-0 08 1 1103- ● ●
61 ROD END; TIE ROD 1-43150-191-0 01 1 1011-1102 ●
61 ROD END; TIE ROD 1-43150-191-0 01 1 1103- ● ●
61 ROD END; TIE ROD 1-43150-192-0 01 1 1011-1102 ●
61 ROD END; TIE ROD 1-43150-192-0 01 1 1103- ● ●
66 NUT; TIE ROD END
M16 		9-09841-068-0 02 1 1011-1102 ●
66 NUT; TIE ROD END
M16 		9-09841-068-0 02 1 1103- ● ●
69 PIN; SPLIT,TIE ROD END 0-81124-065-0 02 1 1011-1102 ●
69 PIN; SPLIT,TIE ROD END 0-81124-065-0 02 1 1103- ● ●
70 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1011-1102 ●
70 NUT; TIE ROD END
M12 		0-91110-512-0 04 1 1103- ● ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 1011-1102 ●
71 BOOT; TIE ROD END 1-43159-009-0 02 1 1103- ● ●
72 SEAT; BALL,TIE ROD JOINT 9-44371-133-0 02 1 1011-1102 ●
72 SEAT; BALL,TIE ROD JOINT 9-44371-133-0 02 1 1103- ● ●
73 NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
73 NIPPLE; GREASE,TIE ROD END
PT1/8 ELBOW 		0-90301-610-0 02 1 1103- ● ●
75 JOINT; BALL,DRAG LINK 1-44361-042-2 02 1 1011-1102 ●
75 JOINT; BALL,DRAG LINK 1-44361-042-2 02 1 1103- ● ●
76 SEAT; SPR,DRAG LINK 9-44373-006-0 02 1 1011-1102 ●
76 SEAT; SPR,DRAG LINK 9-44373-006-0 02 1 1103- ● ●
77 SPRING; TIE ROD END 9-09940-057-0 02 1 1011-1102 ●
77 SPRING; TIE ROD END 9-09940-057-0 02 1 1103- ● ●
78 PLUG; ADJ,ROD END 1-44375-017-0 02 1 1011-1102 ●
78 PLUG; ADJ,ROD END 1-44375-017-0 02 1 1103- ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=30 		0-81124-030-0 02 1 1011-1102 ●
80 PIN; SPLIT,ROD END
OD=3.7 L=30 		0-81124-030-0 02 1 1103- ● ●
81 ROD; TIE 1-43151-048-0 01 1 1011-1102 ●
81 ROD; TIE 1-43151-048-0 01 1 1103- ● ●
217 WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71 		1-43321-009-0 02 1 1011-1102 ●
217 WASHER; THRUST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) OD=100 ID=71 		1-43321-009-0 02 1 1103- ● ●
220 STUD; KNUCKLE ARM
(A) M14X54.5 L=72 		9-09830-131-0 01 1 1011-1102 ●
220 STUD; KNUCKLE ARM
(A) M14X54.5 L=72 		9-09830-131-0 01 1 1103- ● ●
220 STUD; KNUCKLE ARM
(B) M14X41.5 L=60.5 		9-09830-132-0 01 1 1011-1102 ●
220 STUD; KNUCKLE ARM
(B) M14X41.5 L=60.5 		9-09830-132-0 01 1 1103- ● ●
220 STUD; KNUCKLE ARM
(C) M14X46.5 L=72 		9-09830-133-0 01 1 1011-1102 ●
220 STUD; KNUCKLE ARM
(C) M14X46.5 L=72 		9-09830-133-0 01 1 1103- ● ●
220 STUD; KNUCKLE ARM
(D) M14X33.5 L=60.5 		9-09830-134-0 01 1 1011-1102 ●
220 STUD; KNUCKLE ARM
(D) M14X33.5 L=60.5 		9-09830-134-0 01 1 1103- ● ●
225 NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1011-1102 ●
225 NIPPLE; GREASE,COVER
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103- ● ●
225 NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
225 NIPPLE; GREASE,COVER
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1103- ● ●
256 NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1011-1102 ●
256 NIPPLE; GREASE,KNUCKLE ARM
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1103- ● ●
257 WASHER; LK,TIE ROD ARM
ID=16.2 		0-91510-516-0 08 1 1011-1102 ●
257 WASHER; LK,TIE ROD ARM
ID=16.2 		0-91510-516-0 08 1 1103- ● ●
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20851-435-0 02 1 1011-1102 ●
260 BOLT; STOPPER,TIE ROD ARM
M14X35 		0-20851-435-0 02 1 1103- ● ●
261 NUT; STOPPER BOLT
M14 		0-91111-514-0 02 1 1011-1102 ●
261 NUT; STOPPER BOLT
M14 		0-91111-514-0 02 1 1103- ● ●
263 BOLT; ROD END
M12X50 		0-20951-250-0 04 1 1011-1102 ●
263 BOLT; ROD END
M12X50 		0-20951-250-0 04 1 1103- ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1011-1102 ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 04 1 1103- ● ●

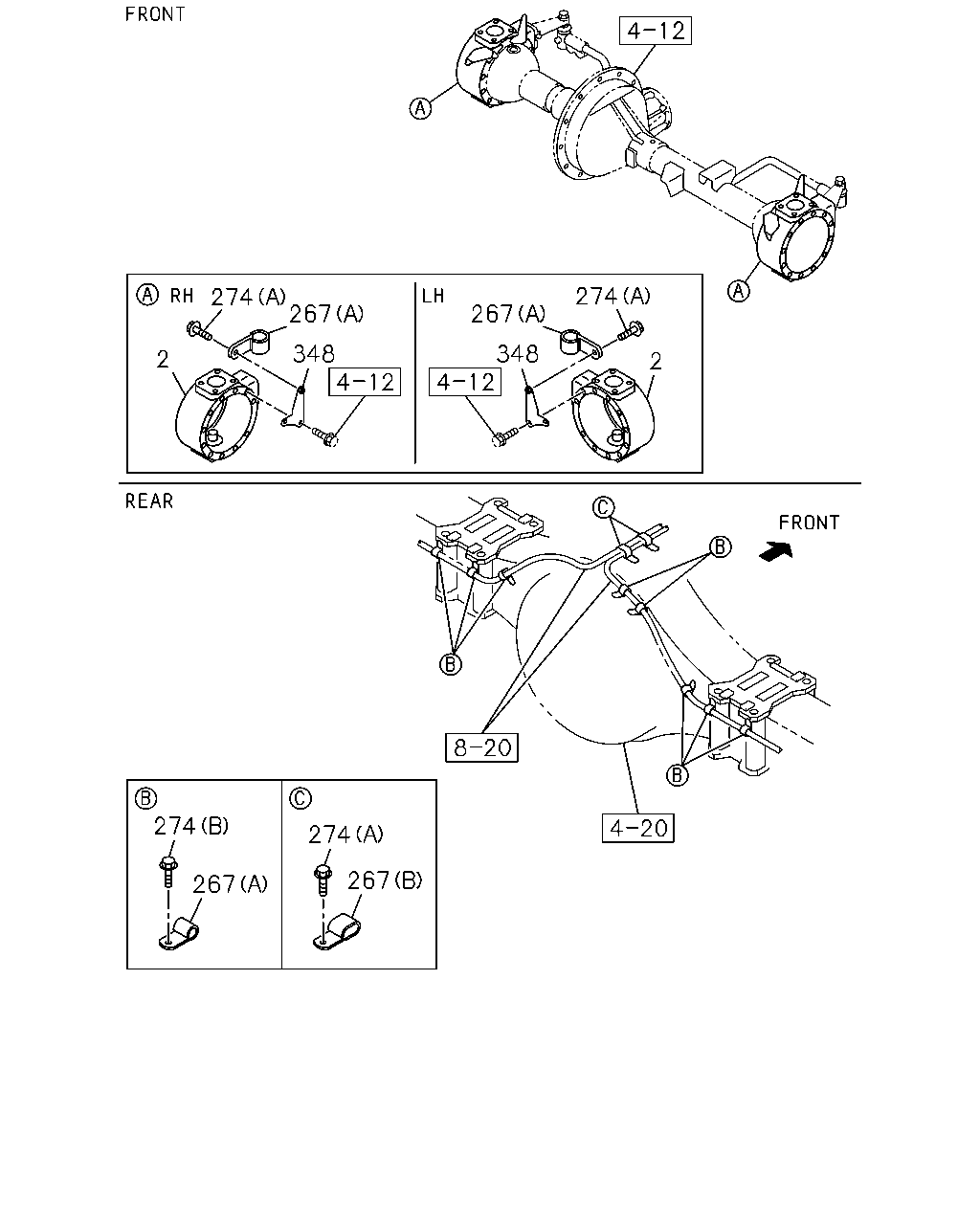

çizim 364463
274 267 348 2 274 267 274 267 274 267 348 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE 1-43242-006-3 01 1 1011-1102 ●
2 KNUCKLE; FRT AXLE 1-43242-006-4 01 1 1103- ● ●
2 KNUCKLE; FRT AXLE 9-43241-037-1 01 1 1011-1102 ●
2 KNUCKLE; FRT AXLE 9-43241-037-2 01 1 1103- ● ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1307- ● ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 08 1 1307- ● ●
267 CLIP; HARNESS
(B) ID=11X2 L=20 		0-95325-035-0 02 1 1307- ● ●
274 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ● ●
274 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1307- ● ●
274 BOLT; CLIP
(B) M8X10 FLANGE 		0-28050-810-0 08 1 1307- ● ●
348 BRACKET; CLIP 1-47477-539-0 01 1 1307- ● ●
348 BRACKET; CLIP 1-47477-540-0 01 1 1307- ● ●
