Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#6985) — 32 parça
◀

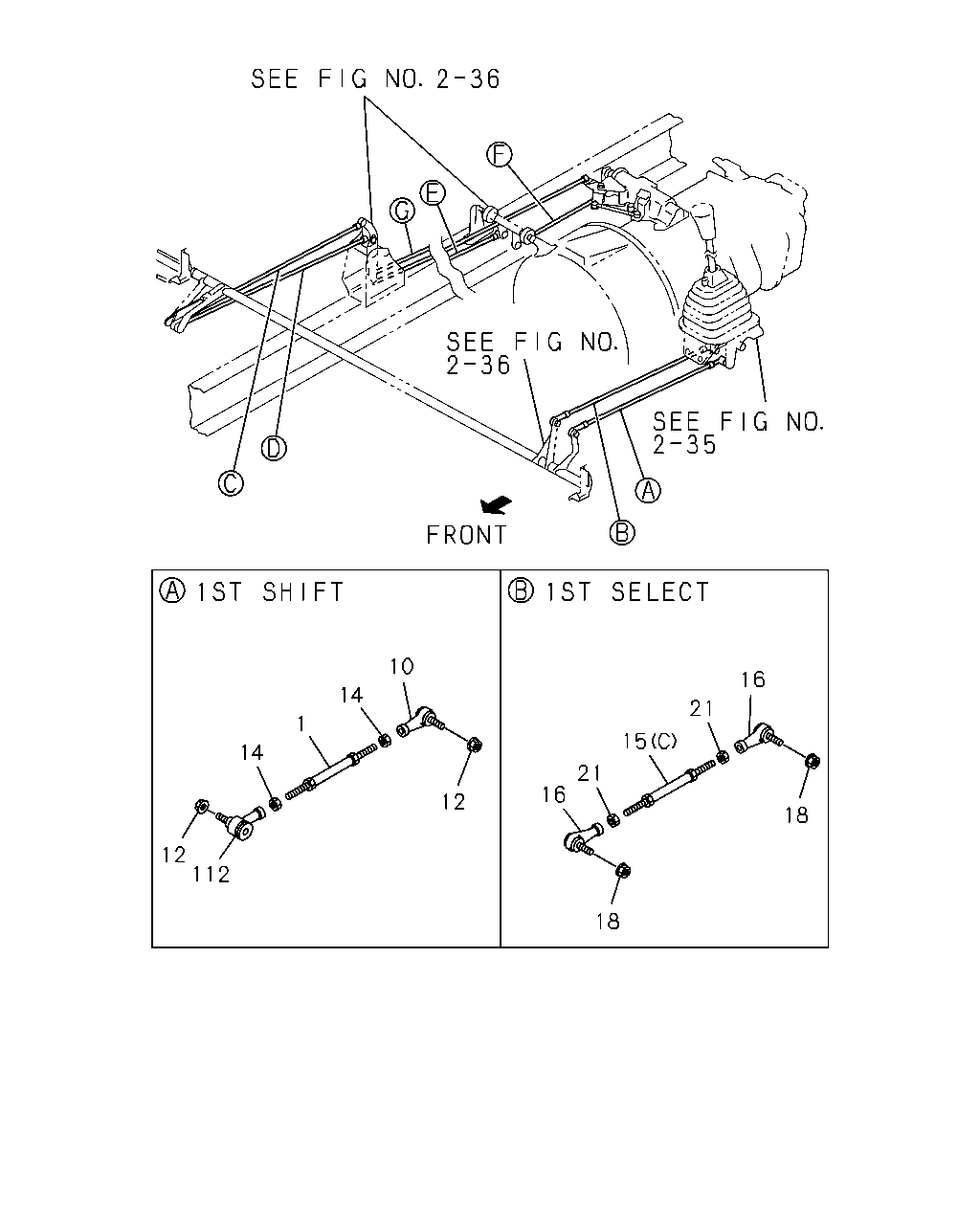

[237A] LINK ROD;1ST (11 parça)
[237A] LINK ROD;2ND,3RD AND 4TH (21 parça)
▶
12
112
14
1
14
10
12
16
21
15
18
21
16
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ROD; LINK,1ST SHIFT
L=480
9-08401-248-0
01
1
9908-
10
JOINT ASM; BALL,SELECT ROD
1-09760-125-0
01
1
9908-
12
NUT; 1ST LINK ROD,SHIFT
M10 FLANGE
1-09440-061-0
02
1
9908-
14
NUT; LK,RIGHT SCREW,LINK ROD
M12
9-99111-412-0
02
1
9908-
15
ROD; LINK 1ST SHIFT
(A) L=440
1-33652-672-0
01
1
9908-
15
ROD; LINK 1ST SHIFT
(B) L=490
1-33652-700-0
01
1
9908-
15
ROD; LINK 1ST SHIFT
(C) L=556
1-33652-744-0
01
1
9908-
16
JOINT ASM; BALL,CONT ROD
1-09760-108-0
02
1
9908-
18
NUT; 1ST LINK ROD
M8 FLANGE
1-09440-062-1
02
1
9908-
21
NUT; LK,RIGHT SCREW,LINK ROD
M8
9-09111-408-0
02
1
9908-
112
JOINT; RUBBER
1-33670-413-1
02
1
9908-
112
25
15
25
22
24
24
22
25
15
25
22
28
28
32
30
35
5
35
30
32
45
49
8
49
45
38
36
44
6
44
36
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
ROD; LINK,3RD SHIFT
L=855
1-33652-321-0
01
1
9908-
6
ROD; LINK,3RD SELECT
L=1255
1-33652-330-0
01
1
9908-
8
ROD; LINK,4TH SHIFT
L=337
1-33652-767-0
01
1
9908-
15
ROD; LINK 1ST SHIFT
(A) L=440
1-33652-672-0
01
1
9908-
15
ROD; LINK 1ST SHIFT
(B) L=490
1-33652-700-0
01
1
9908-
15
ROD; LINK 1ST SHIFT
(C) L=556
1-33652-744-0
01
1
9908-
22
JOINT; BALL,SCREW,LINK ROD
(A)
1-09760-108-0
02
1
9908-
22
JOINT; BALL,SCREW,LINK ROD
(B)
1-09760-125-0
01
1
9908-
24
NUT; 2ND LINK ROD,SHIFT
M10 FLANGE
1-09440-061-0
02
1
9908-
25
NUT; LK,RIGHT SCREW,LINK ROD
(A) M8
9-09111-408-0
02
1
9908-
25
NUT; LK,RIGHT SCREW,LINK ROD
(B) M12
9-99111-412-0
02
1
9908-
28
NUT; 2ND LINK ROD
M8 FLANGE
1-09440-062-1
02
1
9908-
30
JOINT; BALL,RIGHT SCREW,LINK ROD
1-09760-124-0
02
1
9908-
32
NUT; 3RD LINK ROD
M10 FLANGE
1-09440-061-0
02
1
9908-
35
NUT; LK,RIGHT SCREW,LINK ROD
M10
9-09111-410-0
02
1
9908-
36
JOINT; BALL,RIGHT SCREW,LINK ROD
1-09760-108-0
02
1
9908-
38
NUT; 3RD LINK ROD
M8 FLANGE
1-09440-062-1
02
1
9908-
44
NUT; LK,RIGHT SCREW,LINK ROD
M8
9-09111-408-0
02
1
9908-
45
JOINT; BALL,RIGHT SCREW,LINK ROD
1-09760-125-0
02
1
9908-
49
NUT; LK,RIGHT SCREW,LINK ROD
M12
9-99111-412-0
02
1
9908-
112
JOINT; RUBBER
1-33670-413-1
02
1
9908-
