◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#69849) — 318 parça

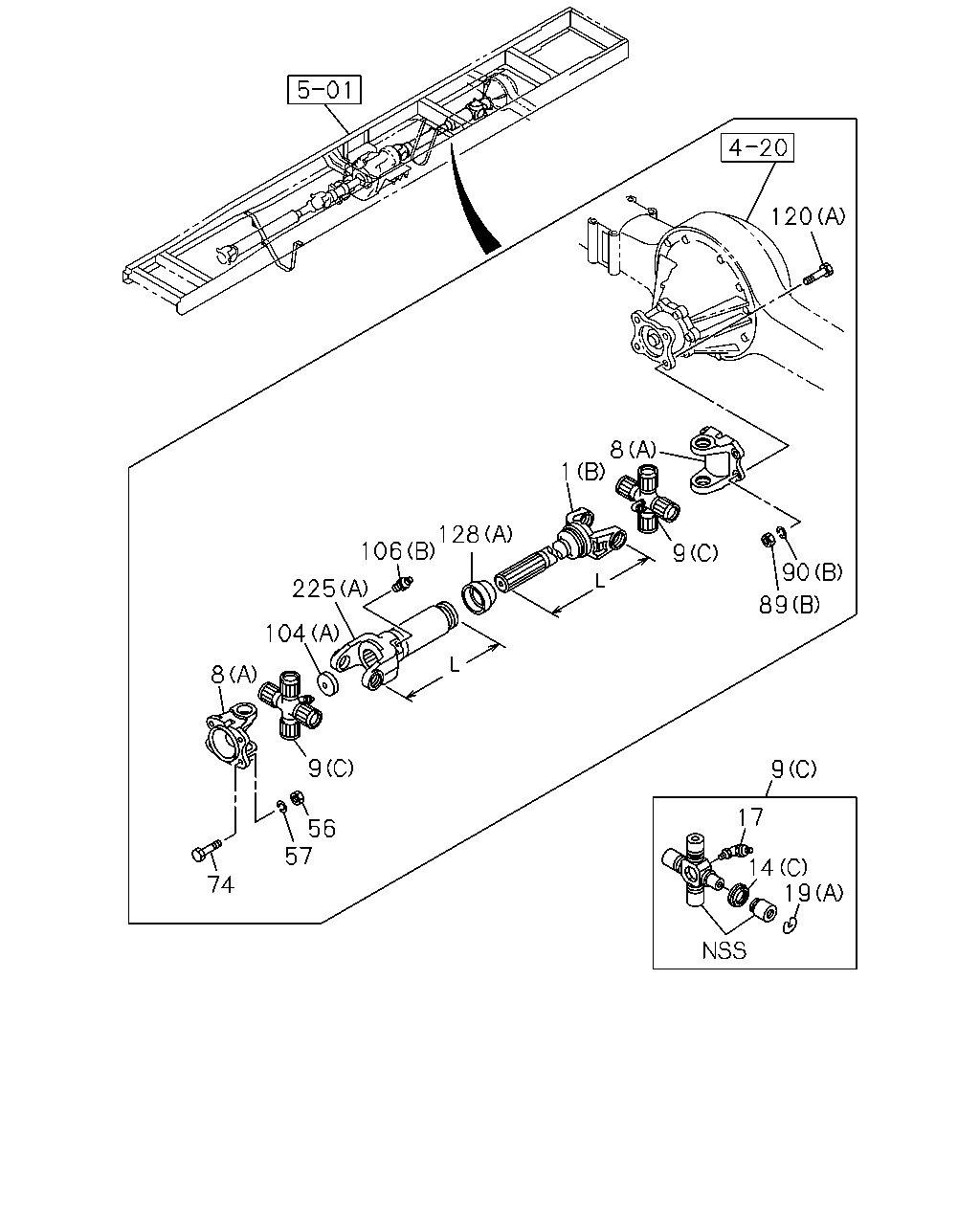

çizim 122802
8 1 128 106 225 104 8 9 56 57 74 9 90 89 120 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(B) L=1231 		8-98069-680-0 01 1 1103- ●
1 SHAFT; PROP
(B) L=721 		8-98069-696-0 01 1 1011- ●
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 1011-1102 ●
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 1103- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1011-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1103- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1011-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1011-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1103- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1103- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1011-1102 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1103-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 1011-1102 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 1103-1106 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 1011-1102 ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-1 02 1 1103- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1011-1102 ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1103-1106 ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1011-1102 ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1103-1505 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1011-1102 ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1103-1505 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1103- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1011-1102 ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 1103- ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1011-1102 ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1103-1111 ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-814-0 04 1 1112-1202 ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 1203- ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1011-1102 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1103- ● ●
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1011-1102 ●
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1103- ● ●
89 NUT; YOKE TO RR AXLE
(B) M14 		0-91110-514-0 04 1 1011-1102 ●
89 NUT; YOKE TO RR AXLE
(B) M14 		0-91110-514-0 04 1 1103- ● ●
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=12.2 		0-91510-612-0 04 1 1011-1102 ●
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=12.2 		0-91510-612-0 04 1 1103- ● ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 1011-1102 ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 1103-1111 ● ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202 ● ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 1203- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1011-1102 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1103- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1011-1102 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1011-1102 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1103- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1103- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1011-1102 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1103- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1011-1102 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1011-1102 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1103-1306 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1103-1306 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1307- ● ●
120 BOLT; YOKE TO RR AXLE
(B) M12X32 		1-09000-076-1 04 1 1011-1102 ●
120 BOLT; YOKE TO RR AXLE
(B) M12X32 		1-09000-076-1 04 1 1103- ● ●
120 BOLT; YOKE TO RR AXLE
(A) M14X37 		1-09000-121-0 04 1 1011-1102 ●
120 BOLT; YOKE TO RR AXLE
(A) M14X37 		1-09000-121-0 04 1 1103- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1011-1102 ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1103- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1011-1102 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1011-1102 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1103- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 1103- ● ●

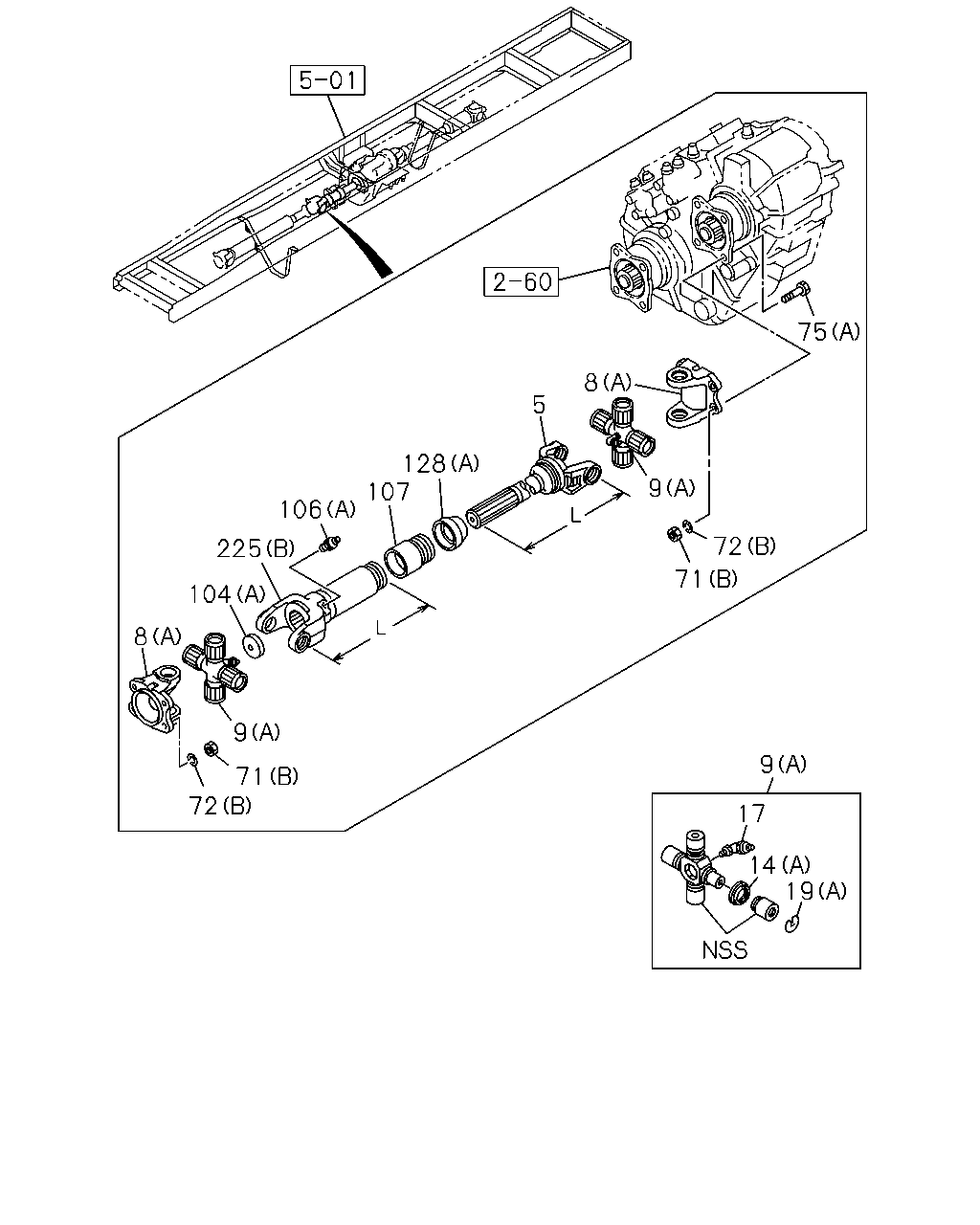

çizim 122828
8 5 128 107 106 225 104 8 9 71 72 71 9 72 9 17 14 19 75
BalonParca AdiParca NoAdetTipApplied Date A B
5 YOKE; STUB,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) L=347 		1-37171-090-1 01 1 1011-1102 ●
5 YOKE; STUB,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) L=347 		1-37171-090-1 01 1 1103- ● ●
5 YOKE; STUB,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=387 		1-37171-086-1 01 1 1011-1102 ●
5 YOKE; STUB,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=387 		1-37171-086-1 01 1 1103- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1011-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1103- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1011-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1011-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1103- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1103- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1011-1102 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1103-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 1011-1102 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 1103-1106 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 1011-1102 ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-1 02 1 1103- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1011-1102 ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1103-1106 ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1011-1102 ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1103-1505 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1011-1102 ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1103-1505 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1103- ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 1011-1102 ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 1103- ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1011-1102 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1011-1102 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1103- ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1103- ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 1011-1102 ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 1103- ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1011-1102 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1011-1102 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1103-1111 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1103-1111 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1203- ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1203- ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 1011-1102 ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 1103- ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 1011-1102 ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 1103- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1011-1102 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1103- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1011-1102 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1011-1102 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1103- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1103- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1011-1102 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1103- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1011-1102 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1011-1102 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1103-1306 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1103-1306 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1307- ● ●
107 COVER; RET,SLEEVE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-37249-060-1 01 1 1011-1102 ●
107 COVER; RET,SLEEVE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-37249-060-1 01 1 1103- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1011-1102 ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1103- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1011-1102 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1011-1102 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1103- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 1103- ● ●

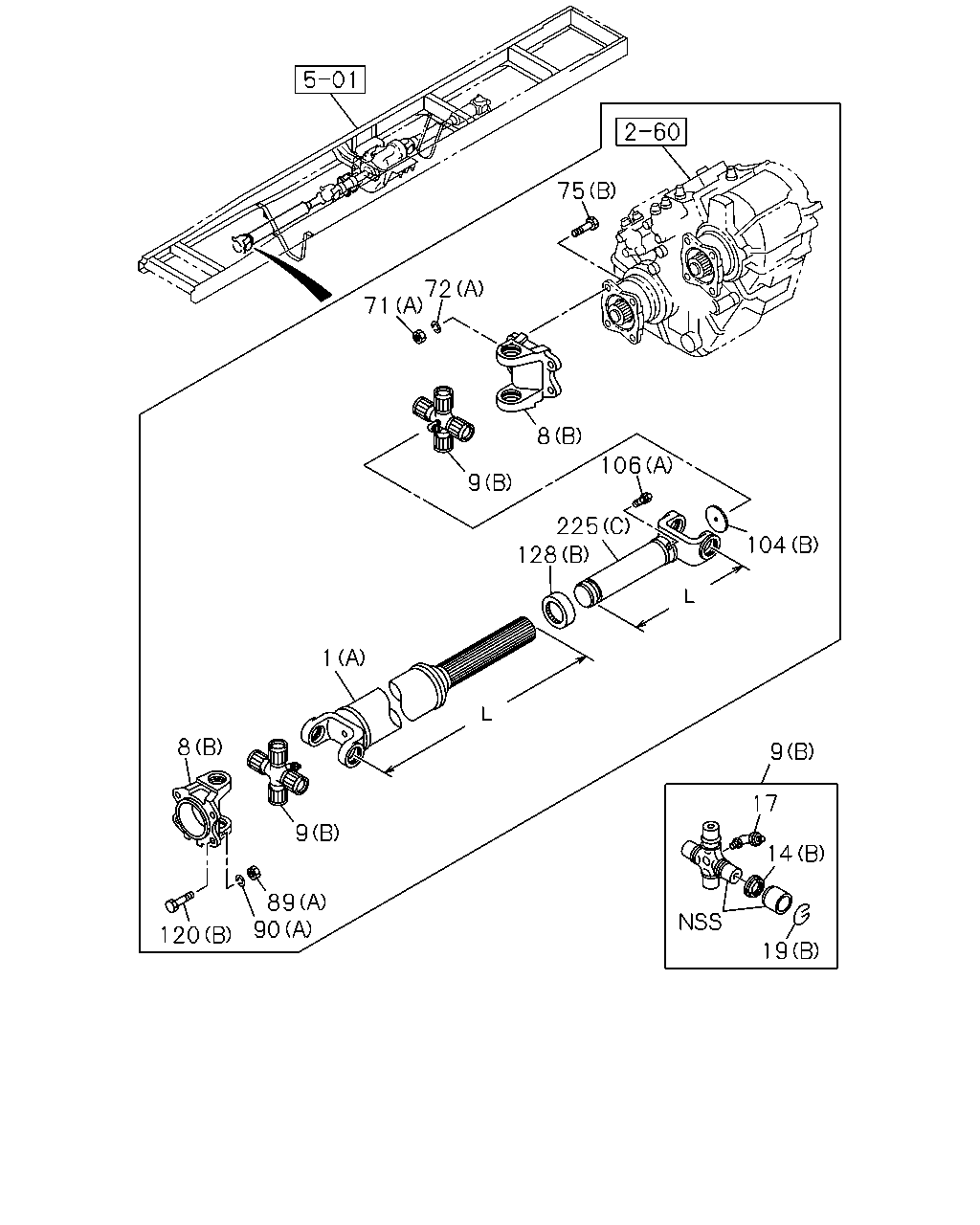

çizim 122864
71 72 75 9 8 106 225 128 104 1 8 9 120 90 89 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; PROP
(B) L=1231 		8-98069-680-0 01 1 1103- ●
1 SHAFT; PROP
(B) L=721 		8-98069-696-0 01 1 1011- ●
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 1011-1102 ●
1 SHAFT; PROP
(A) L=1497 		8-98078-995-0 01 1 1103- ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1011-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1103- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1011-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1011-1102 ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1103- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-056-3 02 1 1103- ● ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1011-1102 ●
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1103-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-0 AR 1 1011-1102 ●
9 JOURNAL ASM; PROP SHAFT
(B) 		8-98020-789-1 02 1 1107- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-103-1 AR 1 1103-1106 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-0 02 1 1011-1102 ●
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98048-925-1 02 1 1103- ● ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1011-1102 ●
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1103-1106 ● ●
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107- ● ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1011-1102 ●
14 COVER; DUST,SPIDER
(A) 		1-37319-012-0 08 1 1103-1505 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1011-1102 ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1103-1505 ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
14 COVER; DUST,SPIDER
(C) 		8-98020-800-0 08 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1011-1102 ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1103-1306 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1307- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1011-1102 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1103- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1103- ● ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 1011-1102 ●
71 NUT; YOKE
(A) M12 		0-91110-512-0 04 1 1103- ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1011-1102 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1011-1102 ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1103- ● ●
71 NUT; YOKE
(B) M14 		0-91110-514-0 04 1 1103- ● ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 1011-1102 ●
72 WASHER; LK,YOKE
(A) ID=12.2 		0-91510-612-0 04 1 1103- ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1011-1102 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1011-1102 ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1103-1111 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1103-1111 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202 ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1203- ● ●
72 WASHER; LK,YOKE
(B) ID=14.2 		0-91510-614-0 04 1 1203- ● ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 1011-1102 ●
75 BOLT; PROP SHAFT TO TRANS
(B) M12X32 		1-09000-076-1 04 1 1103- ● ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 1011-1102 ●
75 BOLT; PROP SHAFT TO TRANS
(A) M14X37 		1-09000-121-0 04 1 1103- ● ●
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1011-1102 ●
89 NUT; YOKE TO RR AXLE
(A) M12 		0-91110-512-0 04 1 1103- ● ●
89 NUT; YOKE TO RR AXLE
(B) M14 		0-91110-514-0 04 1 1011-1102 ●
89 NUT; YOKE TO RR AXLE
(B) M14 		0-91110-514-0 04 1 1103- ● ●
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=12.2 		0-91510-612-0 04 1 1011-1102 ●
90 WASHER; LK,YOKE TO RR AXLE
(A) ID=12.2 		0-91510-612-0 04 1 1103- ● ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 1011-1102 ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 1103-1111 ● ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-814-0 04 1 1112-1202 ● ●
90 WASHER; LK,YOKE TO RR AXLE
(B) ID=14.2 		0-91510-614-0 04 1 1203- ● ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1011-1102 ●
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1103- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1011-1102 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1011-1102 ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1103- ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1103- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1011-1102 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) M6 STRAIGHT 		0-90301-406-0 01 1 1103- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1011-1102 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1011-1102 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1103-1306 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1103-1306 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1307- ● ●
120 BOLT; YOKE TO RR AXLE
(B) M12X32 		1-09000-076-1 04 1 1011-1102 ●
120 BOLT; YOKE TO RR AXLE
(B) M12X32 		1-09000-076-1 04 1 1103- ● ●
120 BOLT; YOKE TO RR AXLE
(A) M14X37 		1-09000-121-0 04 1 1011-1102 ●
120 BOLT; YOKE TO RR AXLE
(A) M14X37 		1-09000-121-0 04 1 1103- ● ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1011-1102 ●
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1103- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1011-1102 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1011-1102 ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1103- ● ●
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
(C) L=228 		1-37241-098-2 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=254 		8-98020-885-0 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=241 		1-37241-084-2 01 1 1103- ● ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 1011-1102 ●
225 YOKE; SLEEVE,PROP SHAFT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=271 		1-37241-099-2 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
