3-78 — FIXING PARTS; AIR PIPING (#69848) — 146 parça

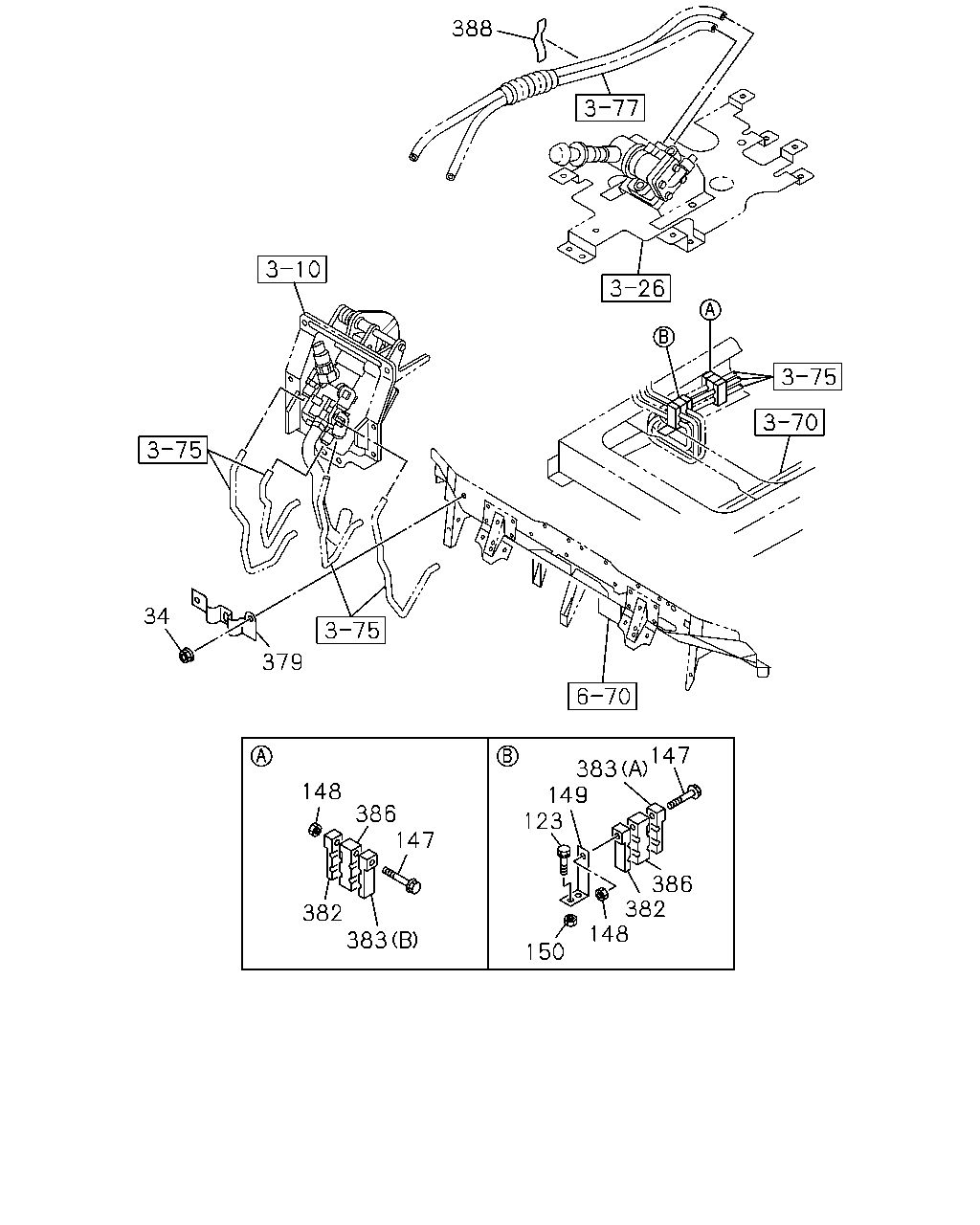

388 34 379 148 386 147 382 383 147 383 149 386 382 148 150 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1011-1102	●
34	NUT; BRKT M6 FLANGE	0-91180-106-0	02	1	1103-	●	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
123	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	04	1	1103-1306		●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	03	1	1011-1306	●
147	BOLT; PIPE CLIP M8X70 FLANGE	0-28050-870-0	03	1	1307-	●	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1103-1306		●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1011-1306	●
148	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1307-	●	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	1011-1102	●
149	BRACKET; PIPE CLIP	1-47476-792-0	01	1	1103-1409	●	●
149	BRACKET; PIPE CLIP	8-98296-534-0	01	1	1410-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
150	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1011-1102	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1103-1306	●	●
379	BRACKET; NYLON TUBE	8-98044-013-0	01	1	1307-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	04	1	1103-1306		●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	1011-1306	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	07	1	1307-	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	06	1	1011-1102	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	06	1	1103-1306	●	●
382	CLIP; UPR ID=10 & 10	1-09709-241-0	03	1	1307-	●	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	04	1	1103-1306		●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	03	1	1011-1306	●
383	CLIP; LWR (A) ID=10 & 10	1-09709-241-0	03	1	1307-	●	●
383	CLIP; LWR (B) ID=10 & 10	1-09709-243-0	06	1	1011-1102	●
383	CLIP; LWR (B) ID=10 & 10	1-09709-243-0	06	1	1103-1306	●	●
383	CLIP; LWR (B) ID=10 & 10	1-09709-243-0	07	1	1307-	●	●
386	CLIP; CENTER ID=10	1-09709-242-0	04	1	1103-1306		●
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	1011-1306	●
386	CLIP; CENTER ID=10	1-09709-242-0	03	1	1307-	●	●
388	SEAL 100X40	1-72498-022-1	03	1	1011-	●	●

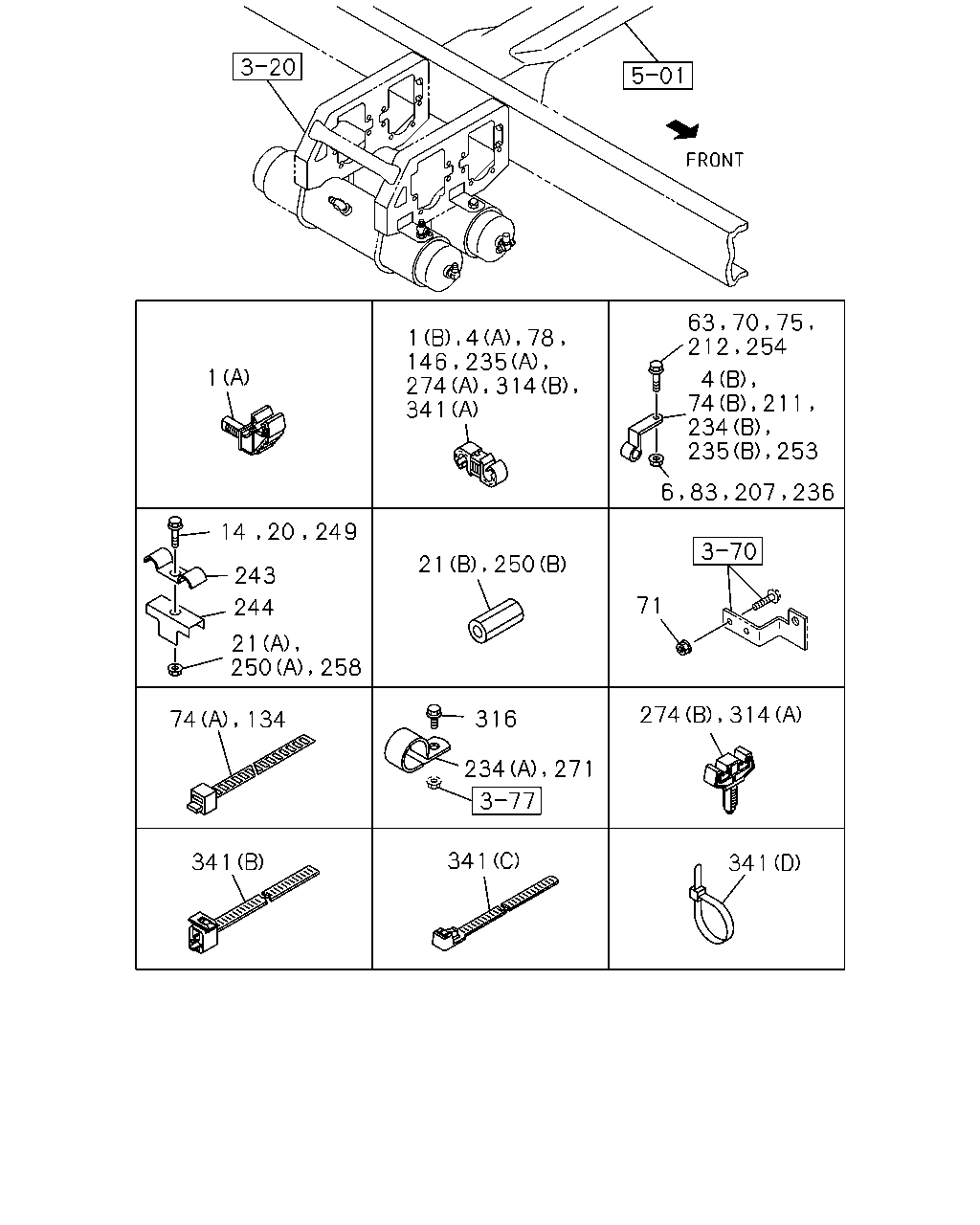

14 20 249 243 244 21 250 258 74 134 341 341 234 271 316 274 314 341 21 250 71 6 83 207 236 253 235 234 74 211 4 212 254 75 70 63 78 4 1 146 235 314 274 341 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE (A) ID=6.35	1-09701-247-1	04	1	1103-1306		●
1	CLIP; AIR PIPE (A) ID=6.35	1-09701-247-1	05	1	1307-		●
1	CLIP; AIR PIPE (A) ID=6.35	1-09701-247-1	03	1	1011-1102	●
1	CLIP; AIR PIPE (A) ID=6.35	1-09701-247-1	03	1	1011-1102	●
1	CLIP; AIR PIPE (A) ID=6.35	1-09701-247-1	03	1	1103-	●	●
1	CLIP; AIR PIPE (A) ID=6.35	1-09701-247-1	03	1	1103-	●
1	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1011-1102	●
1	CLIP; AIR PIPE (B) ID=6.35 & 6.35	1-09709-273-1	01	1	1103-	●	●
4	CLIP; AIR PIPE (A) ID=12 & 12	1-09709-280-1	01	1	1307-	●	●
4	CLIP; AIR PIPE (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1307-	●	●
4	CLIP; AIR PIPE (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1103-1306		●
4	CLIP; AIR PIPE (A) ID=4.76 & 4.76	1-09709-303-0	02	1	1307-1407	●
4	CLIP; AIR PIPE (A) ID=4.76 & 4.76	1-09709-303-0	02	1	1408-	●	●
4	CLIP; AIR PIPE (A) ID=6.35 & 6.35	1-09709-273-1	01	1	1103-1306		●
4	CLIP; AIR PIPE (A) ID=4.76 & 4.76	1-09709-303-0	01	1	1307-1407		●
4	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	04	1	1103-1306		●
4	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	02	1	1307-		●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	08	1	1103-1306		●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	10	1	1307-		●
4	CLIP; AIR PIPE (A) ID=6.35 & 6.35	1-09709-273-1	02	1	1011-1306	●
4	CLIP; AIR PIPE (A) ID=6.35 & 12	1-09709-275-1	01	1	1307-	●
4	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	03	1	1011-	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	04	1	1011-1306	●
4	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	09	1	1307-	●
4	CLIP; AIR PIPE (A) ID=10 & 12	1-09709-278-1	01	1	1011-1102	●
4	CLIP; AIR PIPE (A) ID=10 & 12	1-09709-278-1	01	1	1103-	●	●
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1103-1306		●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1307-		●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	05	1	1011-1102	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	05	1	1103-1306	●	●
14	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1307-	●
20	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	04	1	1011-1102	●
20	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	04	1	1103-	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1011-1102	●
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1103-	●	●
21	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	01	1	1011-1102	●
21	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
21	NUT; CLIP (B)	9-14149-158-0	03	1	1011-1102	●
21	NUT; CLIP (B)	9-14149-158-0	03	1	1103-	●	●
63	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	1307-		●
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	1103-1306		●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1011-1102	●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1103-	●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	1011-1102	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	1103-1306	●	●
74	CLIP; NYLON TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1011-1102	●
74	CLIP; NYLON TUBE (B) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1103-1306	●	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1011-1102	●
75	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1103-1306	●	●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	02	1	1103-1306		●
78	CLIP; AIR PIPE ID=10 & 12	1-09709-278-1	01	1	1307-		●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1011-1102	●
83	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1103-1306	●	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1011-1102	●
134	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1103-	●	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	02	1	1103-1306		●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	1307-		●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	04	1	1011-1306	●
146	CLIP; AIR PIPE ID=10 & 10	1-09709-277-1	05	1	1307-	●
207	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	1307-		●
211	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	01	1	1307-		●
212	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1307-		●
234	CLIP; UNION (B) ID=11 H=20 L=20	8-98033-780-0	01	1	1307-		●
234	CLIP; UNION (A) ID=11 L=16	0-95235-025-0	02	1	1011-1102	●
234	CLIP; UNION (A) ID=11 L=16	0-95235-025-0	02	1	1103-1306	●	●
234	CLIP; UNION (B) ID=11 H=20 L=20	8-98033-780-0	03	1	1307-	●
235	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	01	1	1307-	●	●
235	CLIP; AIR PIPE (A) ID=10 & 10	1-09709-277-1	01	1	1307-	●	●
235	CLIP; AIR PIPE (B) ID=11 H=20 L=20	8-98033-780-0	02	1	1307-		●
236	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1307-		●
243	CLIP; AIR,PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1011-1102	●
243	CLIP; AIR,PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1103-	●	●
244	BRACKET; CLIP,AIR PIPE	1-47475-427-1	01	1	1011-1102	●
244	BRACKET; CLIP,AIR PIPE	1-47475-427-1	01	1	1103-	●	●
249	BOLT; PIPE CLIP M8X45 FLANGE	0-28050-845-0	03	1	1011-1102	●
249	BOLT; PIPE CLIP M8X45 FLANGE	0-28050-845-0	03	1	1103-1306	●	●
249	BOLT; PIPE CLIP M8X45 FLANGE	0-28050-845-0	04	1	1307-	●	●
249	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1011-1102	●
249	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1103-1306	●	●
249	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	04	1	1307-	●	●
250	NUT; PIPE CLIP (A) M8 FLANGE	0-91180-108-0	01	1	1011-1102	●
250	NUT; PIPE CLIP (A) M8 FLANGE	0-91180-108-0	01	1	1103-1306	●	●
250	NUT; PIPE CLIP (B)	9-14149-158-0	03	1	1011-1102	●
250	NUT; PIPE CLIP (B)	9-14149-158-0	03	1	1103-1306	●	●
250	NUT; PIPE CLIP (B)	9-14149-158-0	04	1	1307-	●	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	04	1	1307-		●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	06	1	1011-1102	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	06	1	1103-1306	●	●
253	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	03	1	1307-	●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1011-1102	●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28650-825-0	01	1	1103-1306	●	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	04	1	1307-		●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	1011-1102	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	1103-1306	●	●
258	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	1307-	●
271	CLIP; AIR PIPE FIX ID=11 L=20	0-95235-035-0	06	1	1011-1102	●
271	CLIP; AIR PIPE FIX ID=11 L=20	0-95235-035-0	06	1	1103-	●	●
274	CLIP; AIR PIPE (B)	8-98012-254-1	03	1	1103-1306		●
274	CLIP; AIR PIPE (B)	8-98012-254-1	02	1	1307-		●
274	CLIP; AIR PIPE (A) ID=6.35 & 10.0	1-09709-274-1	01	1	1011-1306	●
314	CLIP; AIR PIPE (B) ID=6.35 & 10.0	1-09709-274-1	01	1	1307-	●	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	03	1	1011-1102	●
314	CLIP; AIR PIPE (A)	8-98012-254-1	03	1	1103-	●	●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	04	1	1011-1102	●
316	BOLT; CLIP M8X10 FLANGE	0-28050-810-0	04	1	1103-	●	●
341	CLIP; HARNESS (A) ID=10 & 10	1-09709-277-1	01	1	1307-	●	●
341	CLIP; HARNESS (A) ID=10 & 10	1-09709-277-1	01	1	1307-	●
341	CLIP; HARNESS (B) L=180	1-09707-162-1	04	1	1307-	●	●
341	CLIP; HARNESS (A) ID=10 & 15	1-09709-279-1	01	1	1307-	●	●
341	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	1307-	●	●
341	CLIP; HARNESS (C) L=250	5-09707-030-1	04	1	1307-	●	●
341	CLIP; HARNESS (D) L=600	8-98172-345-0	01	1	1307-	●	●
