Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#69847) — 469 parça

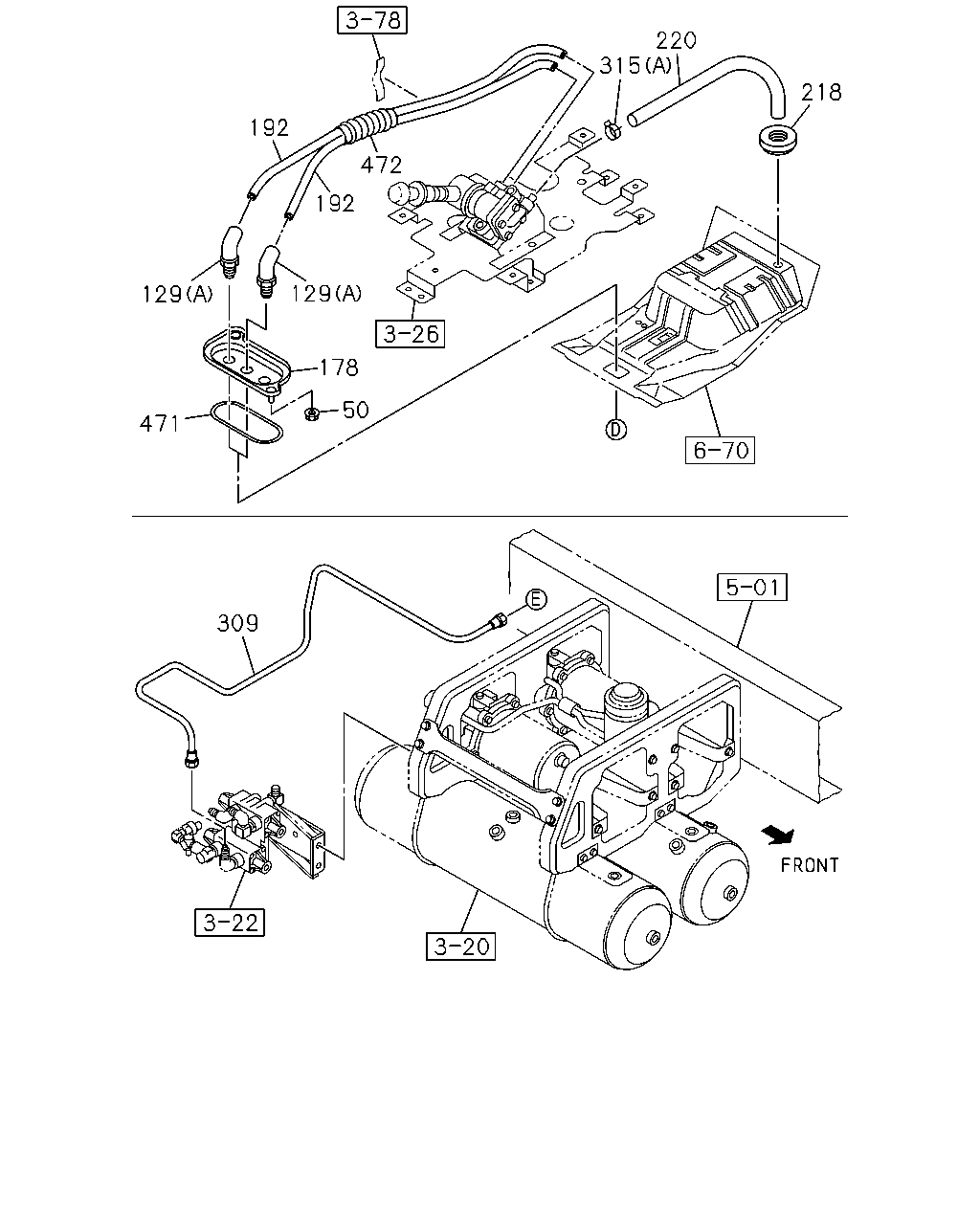

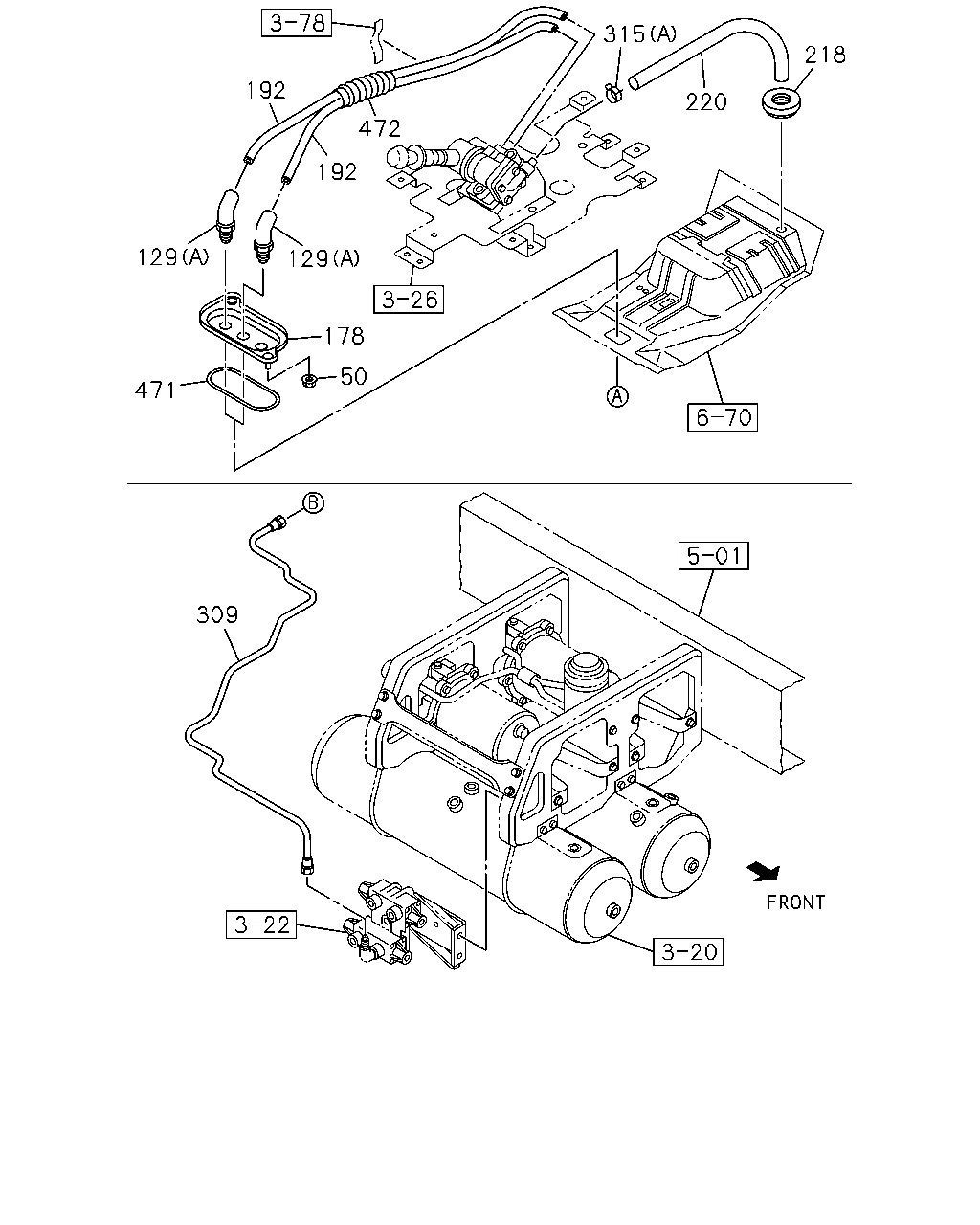

192 472 192 129 129 471 50 178 315 220 218 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1011-	●	●
178	BRACKET; UNION	8-98017-054-1	01	1	1011-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1011-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1011-	●	●
309	PIPE; AIR,MPV TO UNION L=896 SERVICED BY L=900	1-47428-873-0	01	1	1103-1306		●
309	PIPE; AIR,MPV TO UNION L=1291 SERVICED BY L=1300	1-47428-877-0	01	1	1307-		●
309	PIPE; AIR,MPV TO UNION L=753 SERVICED BY L=800	1-47428-872-0	01	1	1011-1306	●
309	PIPE; AIR,MPV TO UNION L=1253 SERVICED BY L=1300	1-47428-877-0	01	1	1307-	●
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1307-	●	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1011-1102	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1103-1306	●	●
315	CLIP (B) L=350	1-09707-183-0	03	1	1307-	●	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	1011-	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	1011-	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1011-1102	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1103-	●	●

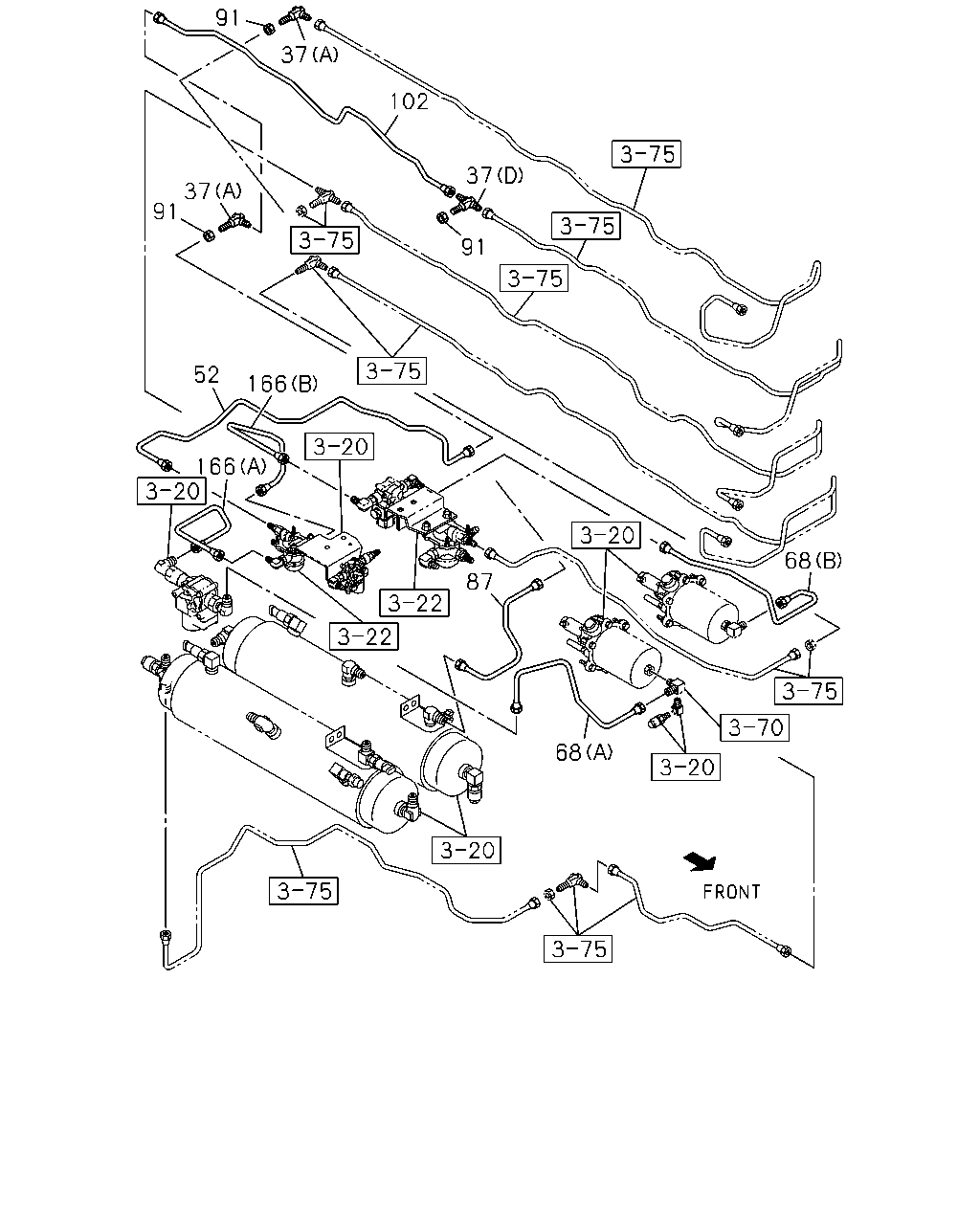

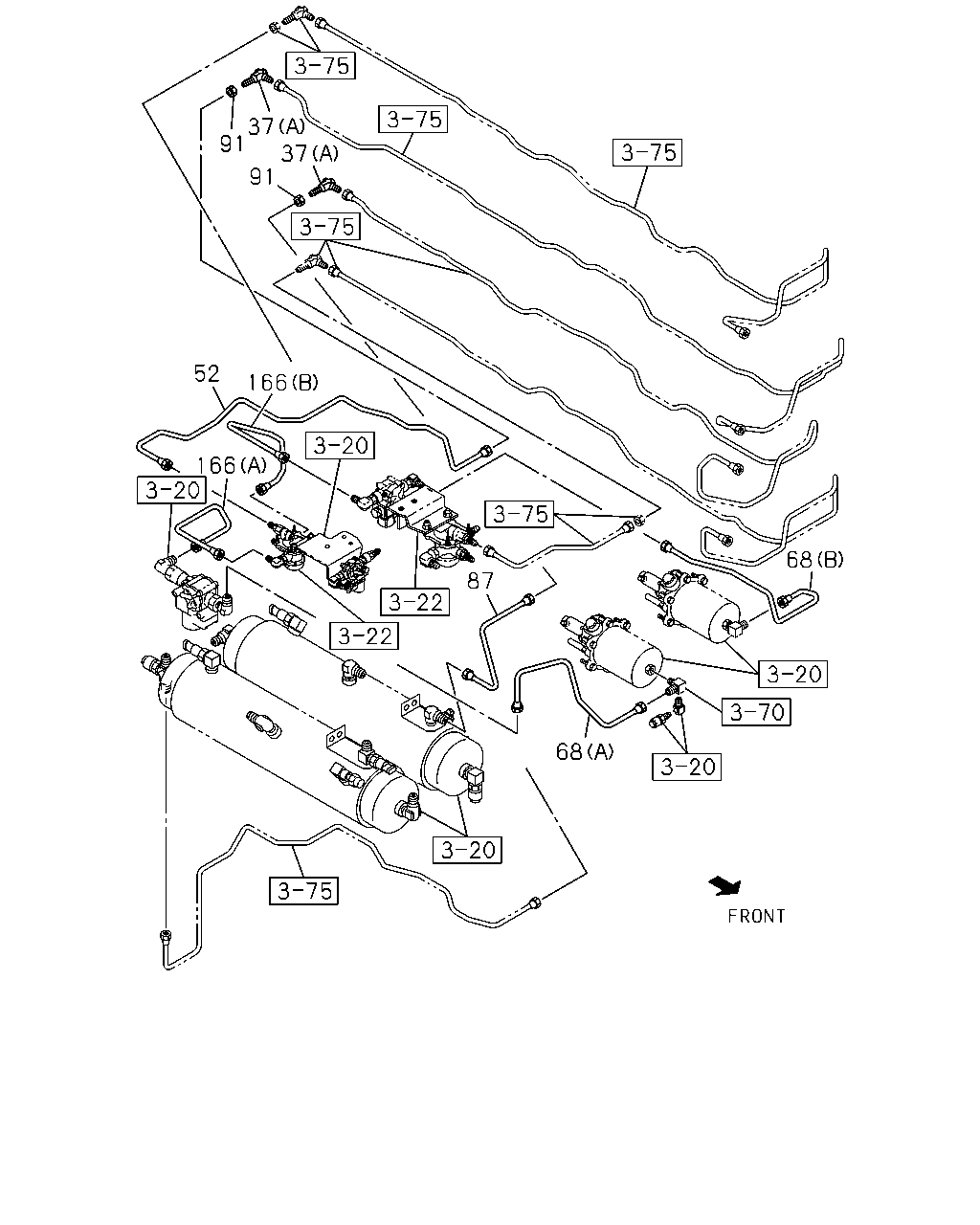

68 37 37 91 91 52 166 166 87 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (C) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306		●
37	UNION; AIR PIPE (D) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1103-1306		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1307-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1011-1306	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1307-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1011-1102	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1103-	●	●
52	PIPE; AIR,UNION TO RELAY VLV L=1017	8-98244-577-0	01	1	1307-	●
52	PIPE; AIR,UNION TO RELAY VLV L=1054	8-98244-580-0	01	1	1307-		●
68	PIPE; AIR,MODULATOR TO UNION (A) L=468	8-98230-353-0	01	1	1307-	●	●
68	PIPE; AIR,MODULATOR TO UNION (B) L=458	8-98236-971-0	01	1	1307-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=1579	8-98108-573-1	01	1	1103-1306		●
87	PIPE; AIR,AIR TANK TO UNION	8-98233-859-0	01	1	1307-		●
87	PIPE; AIR,AIR TANK TO UNION L=914 SERVICED BY L=1000	1-47428-874-0	01	1	1011-1306	●
87	PIPE; AIR,AIR TANK TO UNION	8-98233-858-0	01	1	1307-	●
91	NUT; PIPE UNION M12	0-91111-512-0	01	1	1307-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1011-1102	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1103-	●	●
166	PIPE; AIR,RELAY VALVE TO UNION (A) L=380	8-98230-358-0	01	1	1307-	●	●
166	PIPE; AIR,RELAY VALVE TO UNION (B) L=395	8-98244-575-0	01	1	1307-	●	●

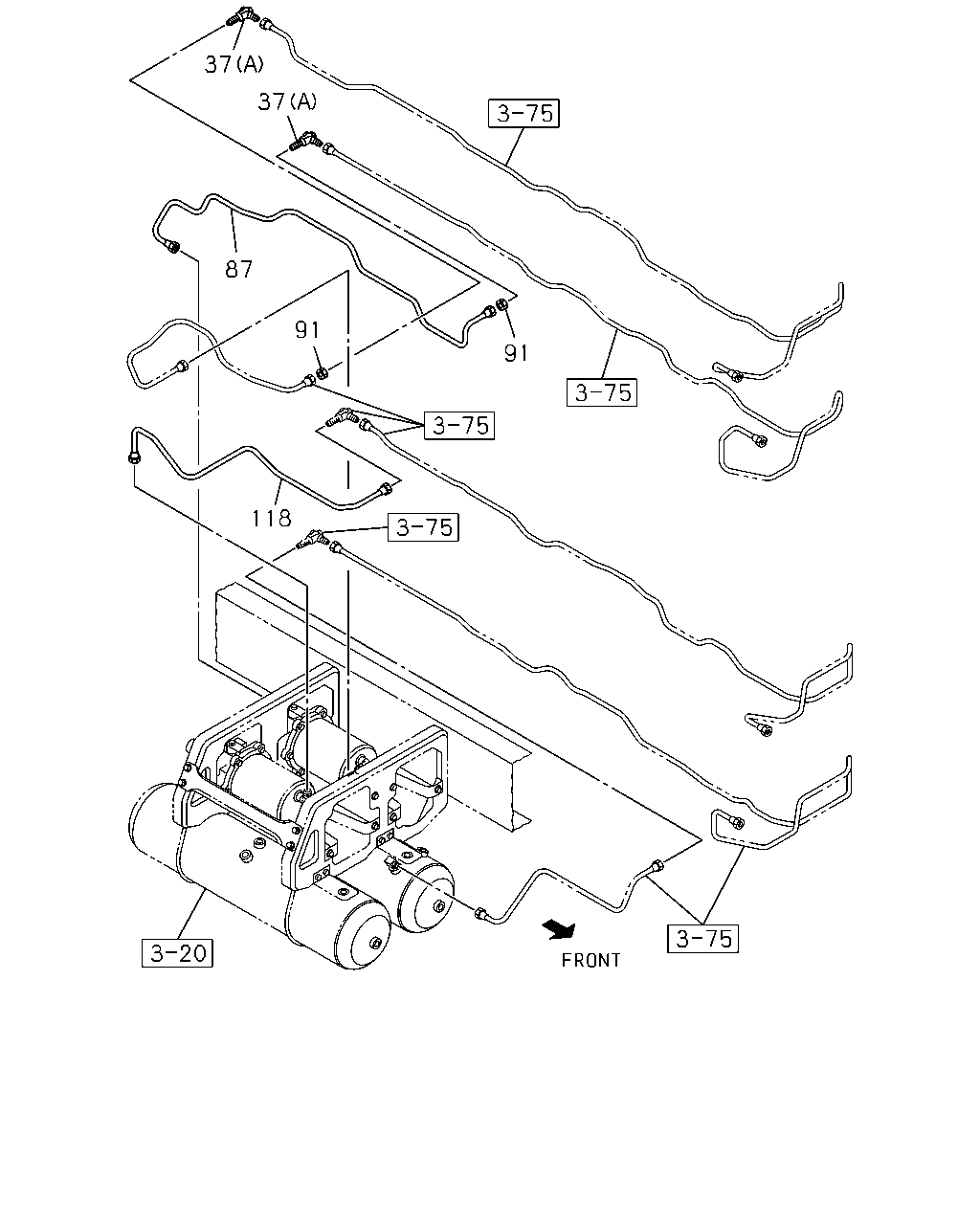

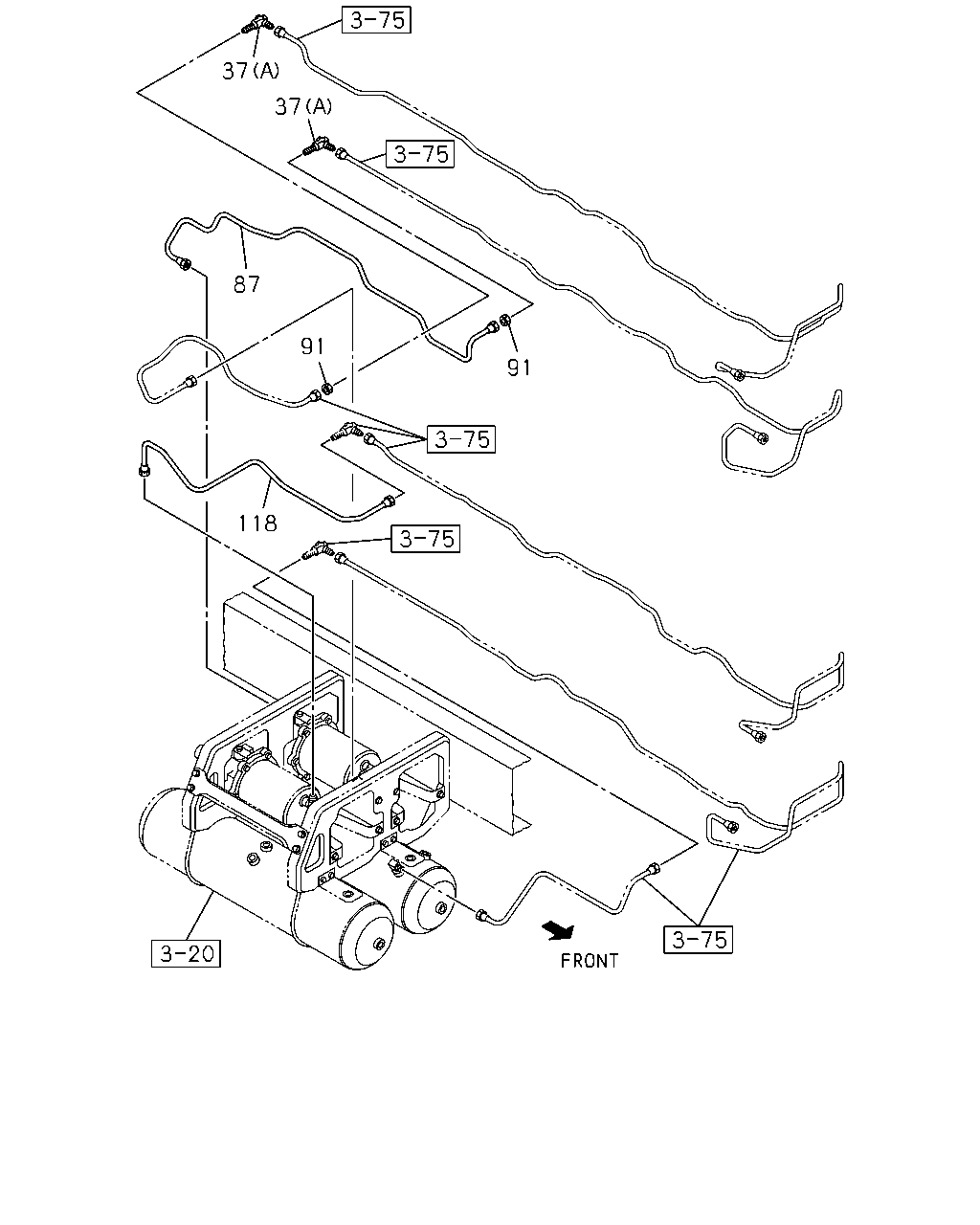

118 91 87 91 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (C) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306		●
37	UNION; AIR PIPE (D) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1103-1306		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1307-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1011-1306	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1307-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1011-1102	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1103-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=1579	8-98108-573-1	01	1	1103-1306		●
87	PIPE; AIR,AIR TANK TO UNION	8-98233-859-0	01	1	1307-		●
87	PIPE; AIR,AIR TANK TO UNION L=914 SERVICED BY L=1000	1-47428-874-0	01	1	1011-1306	●
87	PIPE; AIR,AIR TANK TO UNION	8-98233-858-0	01	1	1307-	●
91	NUT; PIPE UNION M12	0-91111-512-0	01	1	1307-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1011-1102	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1103-	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=654 SERVICED BY L=660	1-47428-869-0	01	1	1103-1306		●
118	PIPE; AIR,UNION TO AIR MASTER L=747 SERVICED BY L=800	1-47428-872-0	01	1	1011-1306	●

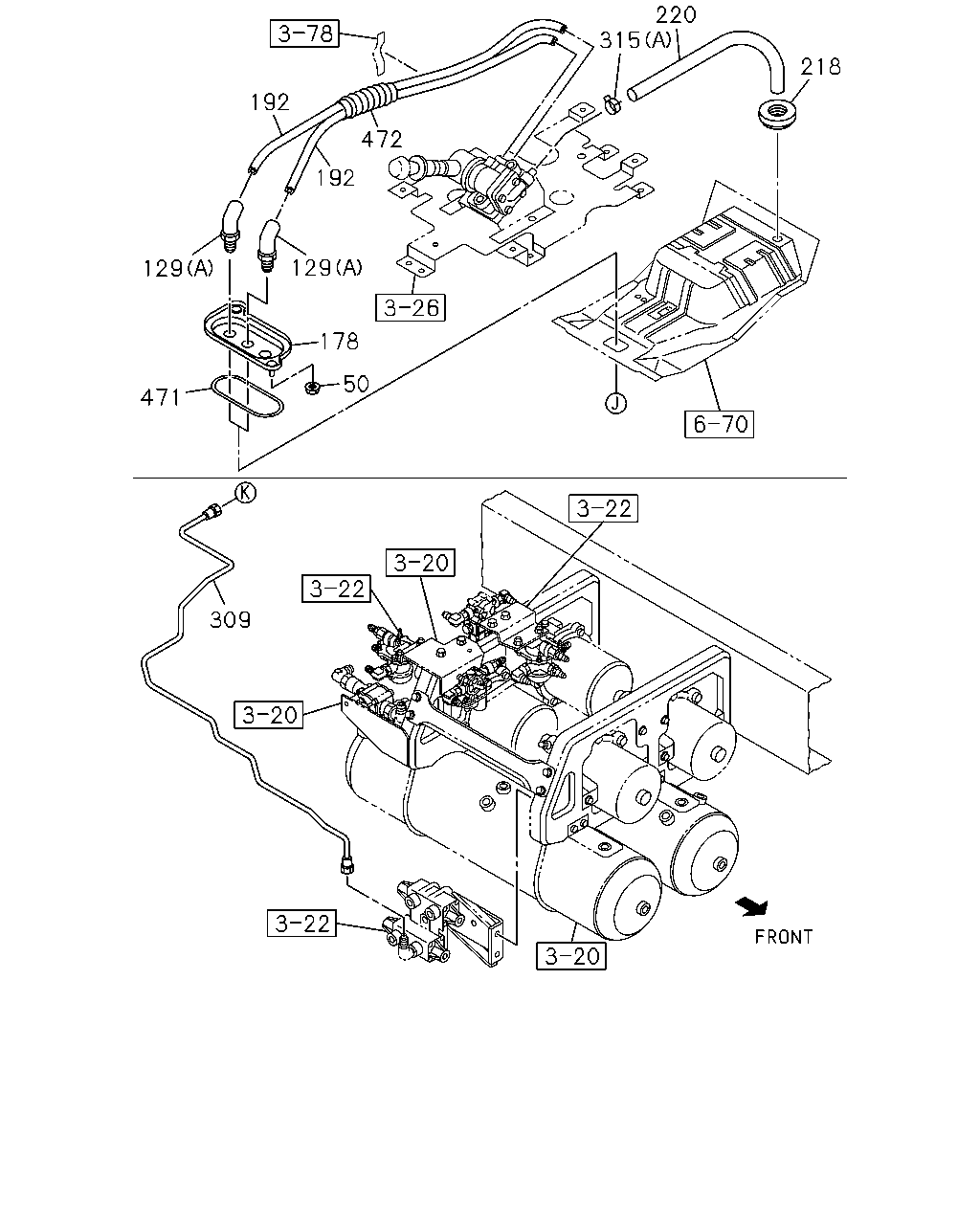

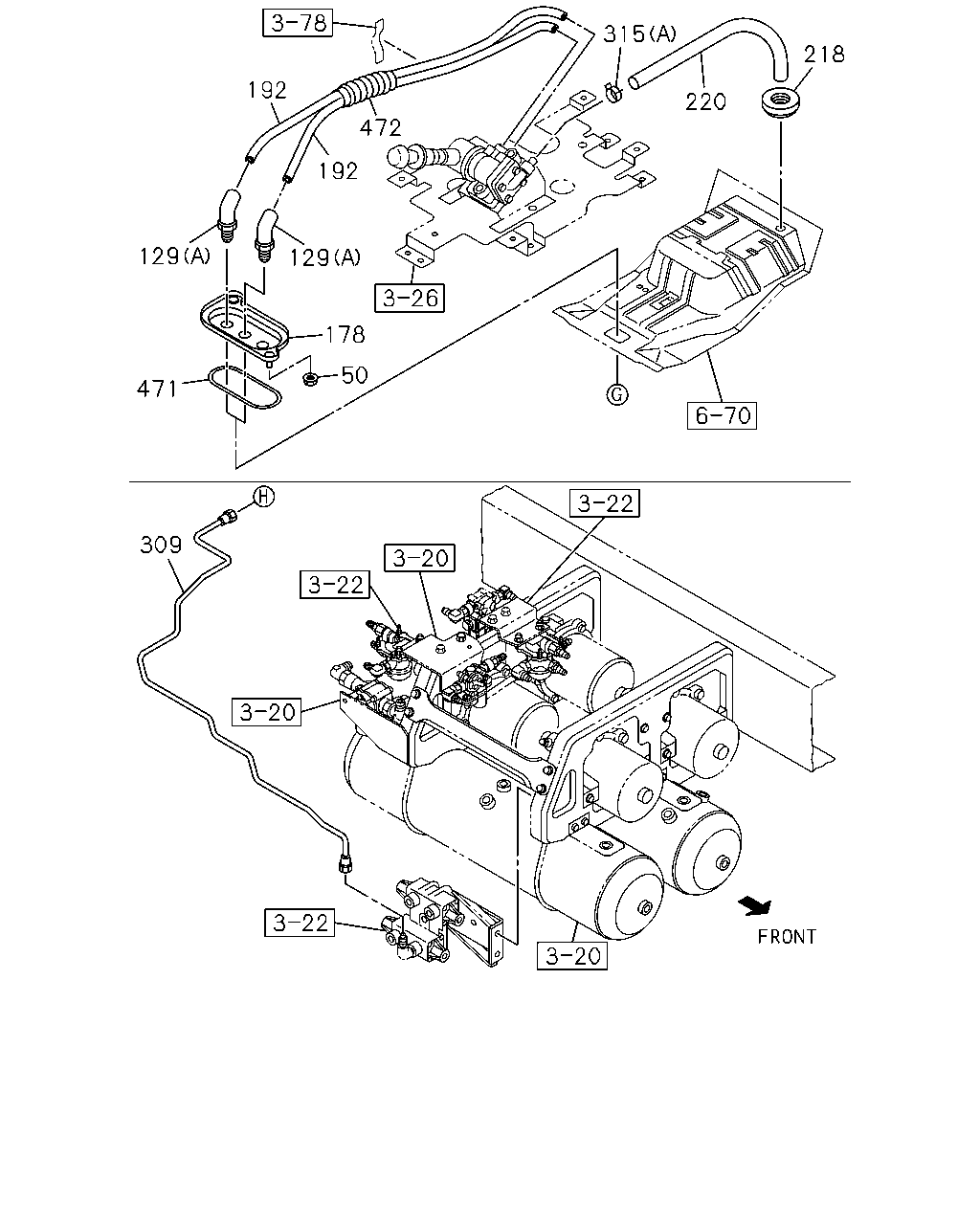

192 192 472 315 220 218 129 129 178 50 471 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1011-	●	●
178	BRACKET; UNION	8-98017-054-1	01	1	1011-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1011-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1011-	●	●
309	PIPE; AIR,MPV TO UNION L=896 SERVICED BY L=900	1-47428-873-0	01	1	1103-1306		●
309	PIPE; AIR,MPV TO UNION L=1291 SERVICED BY L=1300	1-47428-877-0	01	1	1307-		●
309	PIPE; AIR,MPV TO UNION L=753 SERVICED BY L=800	1-47428-872-0	01	1	1011-1306	●
309	PIPE; AIR,MPV TO UNION L=1253 SERVICED BY L=1300	1-47428-877-0	01	1	1307-	●
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1307-	●	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1011-1102	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1103-1306	●	●
315	CLIP (B) L=350	1-09707-183-0	03	1	1307-	●	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	1011-	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	1011-	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1011-1102	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1103-	●	●

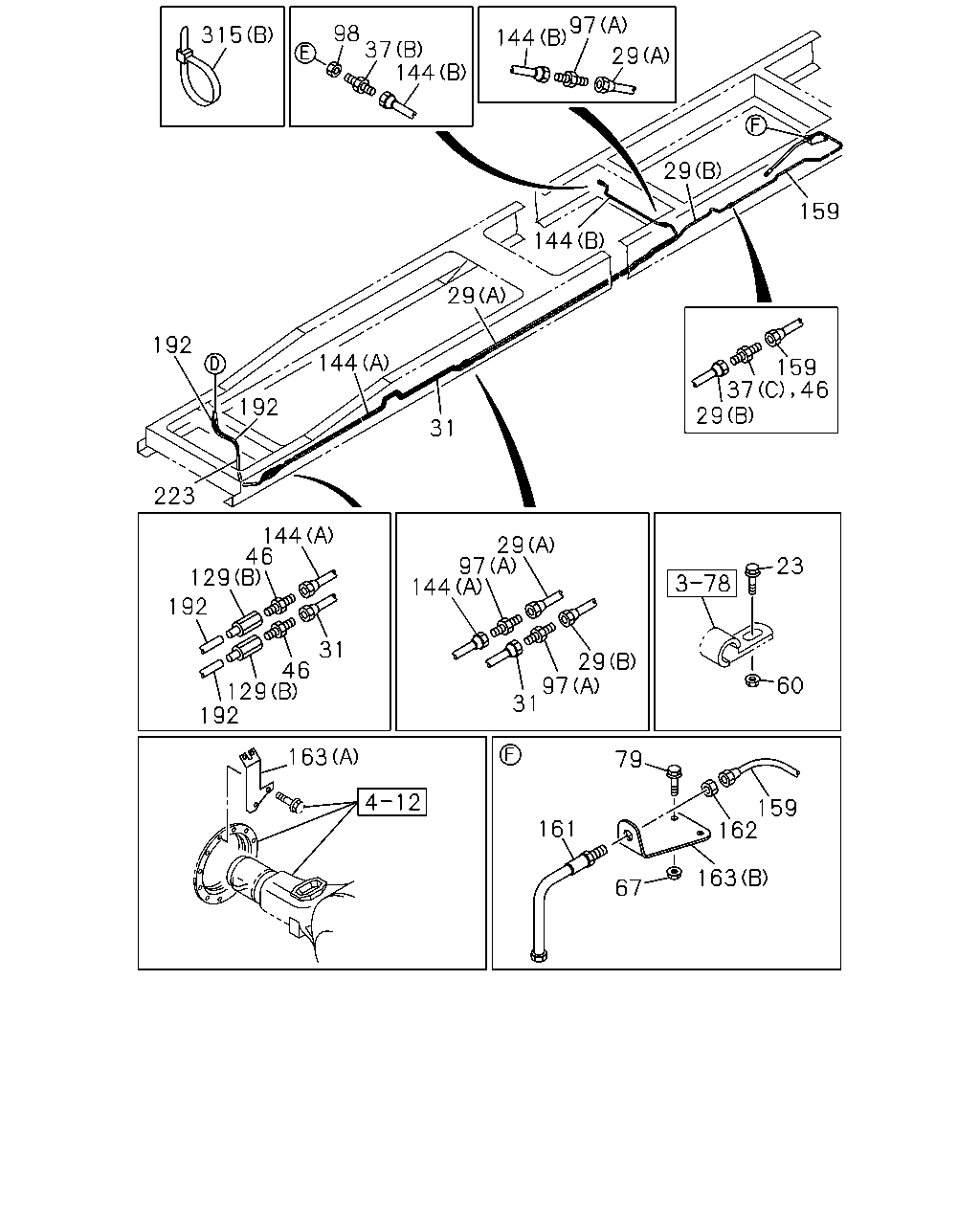

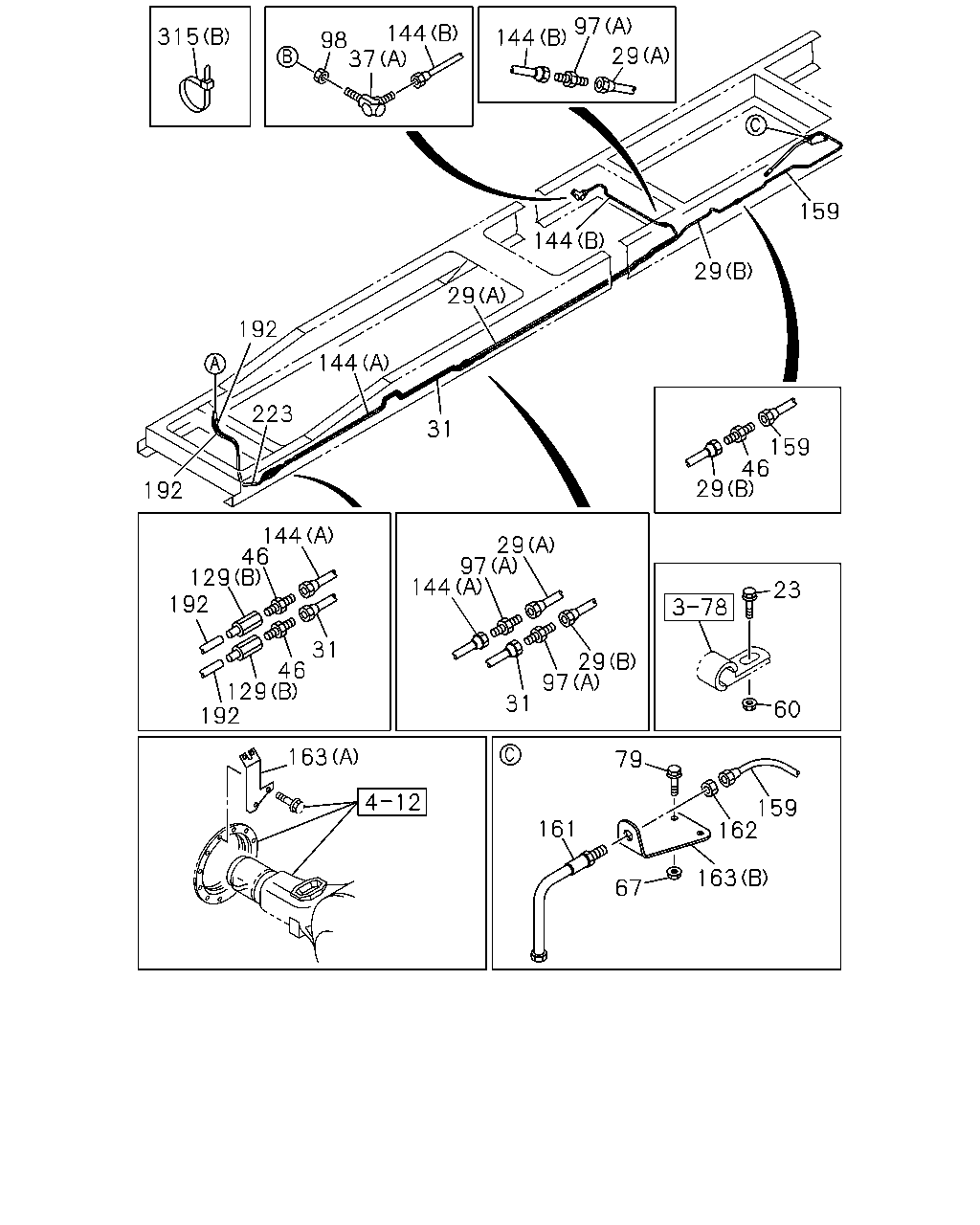

315 98 37 144 144 97 29 159 29 144 29 144 192 223 31 192 144 46 129 192 31 46 129 192 163 31 97 29 144 97 29 23 60 159 162 163 67 161 79 29 46 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	01	1	1307-		●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	1103-1306	●	●
23	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	03	1	1307-	●
29	PIPE; AIR,UNION TO UNION (A) L=2052 SERVICED BY L=2100	1-47428-882-0	01	1	1307-		●
29	PIPE; AIR,UNION TO UNION (A) L=1395	8-98122-841-0	01	1	1011-1102	●
29	PIPE; AIR,UNION TO UNION (A) L=1395	8-98122-841-0	01	1	1103-1306	●	●
29	PIPE; AIR,UNION TO UNION (B) L=2014	8-98244-265-0	01	1	1307-	●	●
29	PIPE; AIR,UNION TO UNION (B) L=1774	8-98122-842-0	01	1	1011-1102	●
29	PIPE; AIR,UNION TO UNION (B) L=1774	8-98122-842-0	01	1	1103-1306	●	●
29	PIPE; AIR,UNION TO UNION (A) L=2421	8-98236-307-0	01	1	1307-	●
31	PIPE; AIR,UNION TO UNION L=1584	8-98122-840-0	01	1	1011-1102	●
31	PIPE; AIR,UNION TO UNION L=1584	8-98122-840-0	01	1	1103-1306	●	●
31	PIPE; AIR,UNION TO UNION L=1584 SERVICED BY L=1700	1-47428-880-0	01	1	1307-	●	●
37	UNION; AIR PIPE (C) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306		●
37	UNION; AIR PIPE (D) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1103-1306		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1307-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1011-1306	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1307-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1011-1102	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1103-	●	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1011-	●	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	1011-1102	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	1103-	●	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	1307-		●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	1103-1306	●	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	1307-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1011-1102	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1011-1102	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306	●	●
97	UNION; AIR PIPE (B) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	02	1	1011-1102	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	02	1	1103-1306	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1011-	●	●
144	PIPE; AIR,UNION TO UNION (B) L=648	8-98111-603-0	01	1	1103-1306		●
144	PIPE; AIR,UNION TO UNION (B)	8-98234-047-0	01	1	1307-		●
144	PIPE; AIR,UNION TO UNION (B) L=790	8-98111-602-1	01	1	1011-1306	●
144	PIPE; AIR,UNION TO UNION (B) L=1398 SERVICED BY L=1400	1-47428-878-0	01	1	1307-	●
144	PIPE; AIR,UNION TO UNION (A) L=1537	8-98122-839-0	01	1	1011-1102	●
144	PIPE; AIR,UNION TO UNION (A) L=1537	8-98122-839-0	01	1	1103-1306	●	●
144	PIPE; AIR,UNION TO UNION (A) L=1541	8-98234-049-0	01	1	1307-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	1103-1306		●
159	PIPE; AIR,UNION TO FLEX HOSE L=2362	8-98244-266-0	01	1	1307-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	1011-1306	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1861	8-98244-270-0	01	1	1307-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	1011-1102	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	1103-	●	●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	1011-	●	●
163	BRACKET; FLEX HOSE (B)	8-98044-842-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (B)	8-98044-842-0	01	1	1103-	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1103-	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1011-1102	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1103-	●	●
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1307-	●	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1011-1102	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1103-1306	●	●
315	CLIP (B) L=350	1-09707-183-0	03	1	1307-	●	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	1011-	●	●

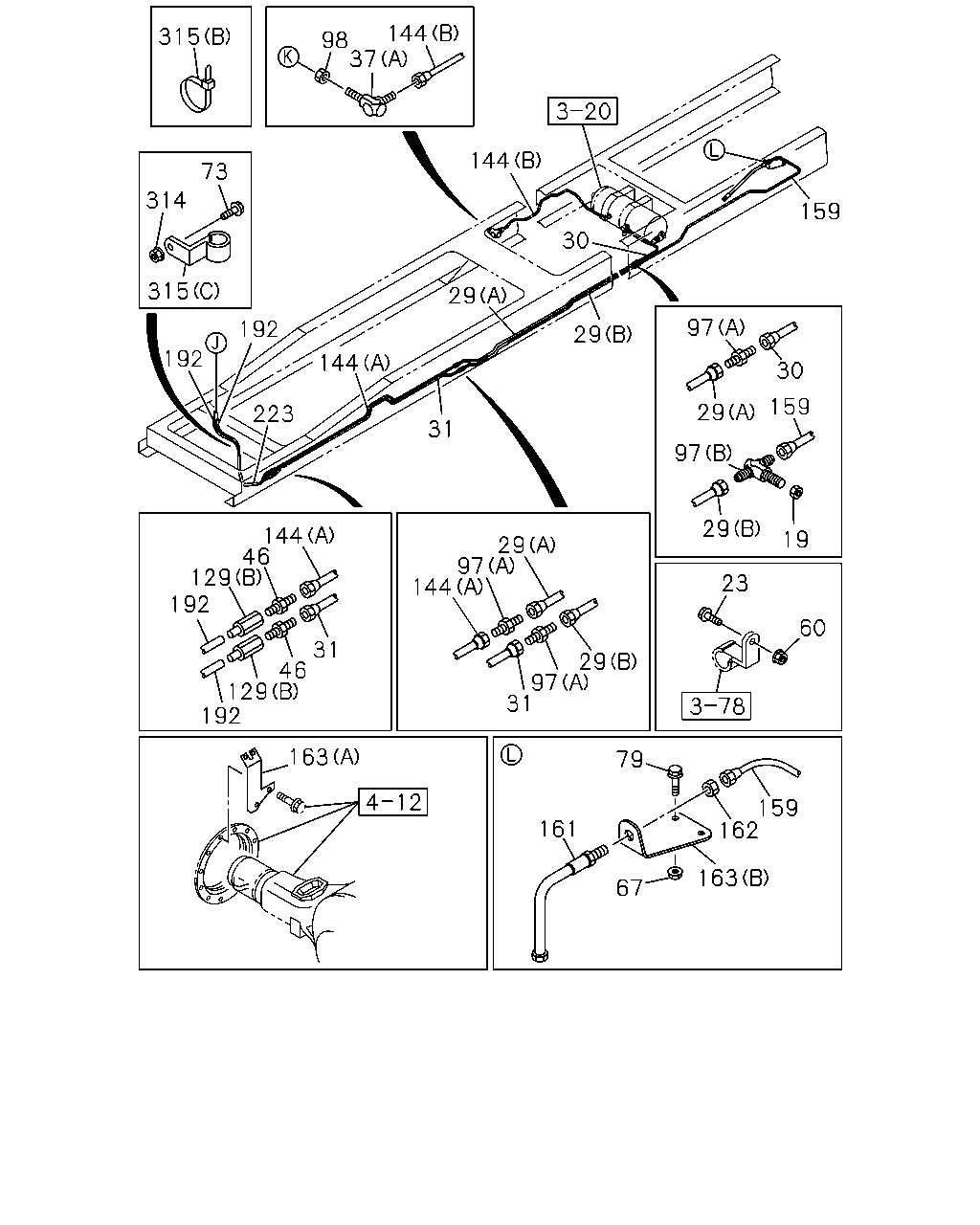

315 98 37 144 144 73 314 315 192 192 223 144 29 159 97 29 30 31 30 159 29 97 29 19 60 23 159 162 163 67 161 79 29 97 31 29 97 144 163 31 46 129 192 144 46 129 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	1307-	●	●
23	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	01	1	1307-		●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	1103-1306	●	●
23	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	03	1	1307-	●
29	PIPE; AIR,UNION TO UNION (A) L=2052 SERVICED BY L=2100	1-47428-882-0	01	1	1307-		●
29	PIPE; AIR,UNION TO UNION (A) L=1395	8-98122-841-0	01	1	1011-1102	●
29	PIPE; AIR,UNION TO UNION (A) L=1395	8-98122-841-0	01	1	1103-1306	●	●
29	PIPE; AIR,UNION TO UNION (B) L=2014	8-98244-265-0	01	1	1307-	●	●
29	PIPE; AIR,UNION TO UNION (B) L=1774	8-98122-842-0	01	1	1011-1102	●
29	PIPE; AIR,UNION TO UNION (B) L=1774	8-98122-842-0	01	1	1103-1306	●	●
29	PIPE; AIR,UNION TO UNION (A) L=2421	8-98236-307-0	01	1	1307-	●
30	PIPE; AIR,AIR TANK TO JOINT L=929 SERVICED BY L=1000	1-47428-874-0	01	1	1307-		●
31	PIPE; AIR,UNION TO UNION L=1584	8-98122-840-0	01	1	1011-1102	●
31	PIPE; AIR,UNION TO UNION L=1584	8-98122-840-0	01	1	1103-1306	●	●
31	PIPE; AIR,UNION TO UNION L=1584 SERVICED BY L=1700	1-47428-880-0	01	1	1307-	●	●
37	UNION; AIR PIPE (C) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306		●
37	UNION; AIR PIPE (D) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1103-1306		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1307-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1011-1306	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1307-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1011-1102	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1103-	●	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1011-	●	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	1011-1102	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	1103-	●	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	1307-		●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	1103-1306	●	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	1307-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
73	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1011-1102	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1011-1102	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306	●	●
97	UNION; AIR PIPE (B) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	02	1	1011-1102	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	02	1	1103-1306	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1011-	●	●
144	PIPE; AIR,UNION TO UNION (B) L=648	8-98111-603-0	01	1	1103-1306		●
144	PIPE; AIR,UNION TO UNION (B)	8-98234-047-0	01	1	1307-		●
144	PIPE; AIR,UNION TO UNION (B) L=790	8-98111-602-1	01	1	1011-1306	●
144	PIPE; AIR,UNION TO UNION (B) L=1398 SERVICED BY L=1400	1-47428-878-0	01	1	1307-	●
144	PIPE; AIR,UNION TO UNION (A) L=1537	8-98122-839-0	01	1	1011-1102	●
144	PIPE; AIR,UNION TO UNION (A) L=1537	8-98122-839-0	01	1	1103-1306	●	●
144	PIPE; AIR,UNION TO UNION (A) L=1541	8-98234-049-0	01	1	1307-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	1103-1306		●
159	PIPE; AIR,UNION TO FLEX HOSE L=2362	8-98244-266-0	01	1	1307-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	1011-1306	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1861	8-98244-270-0	01	1	1307-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	1011-1102	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	1103-	●	●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	1011-	●	●
163	BRACKET; FLEX HOSE (B)	8-98044-842-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (B)	8-98044-842-0	01	1	1103-	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1103-	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1011-1102	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1103-	●	●
314	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1307-	●	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1011-1102	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1103-1306	●	●
315	CLIP (B) L=350	1-09707-183-0	03	1	1307-	●	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	1011-	●	●

37 37 91 87 91 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (C) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306		●
37	UNION; AIR PIPE (D) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1103-1306		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1307-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1011-1306	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1307-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1011-1102	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1103-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=1579	8-98108-573-1	01	1	1103-1306		●
87	PIPE; AIR,AIR TANK TO UNION	8-98233-859-0	01	1	1307-		●
87	PIPE; AIR,AIR TANK TO UNION L=914 SERVICED BY L=1000	1-47428-874-0	01	1	1011-1306	●
87	PIPE; AIR,AIR TANK TO UNION	8-98233-858-0	01	1	1307-	●
91	NUT; PIPE UNION M12	0-91111-512-0	01	1	1307-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1011-1102	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1103-	●	●
118	PIPE; AIR,UNION TO AIR MASTER L=654 SERVICED BY L=660	1-47428-869-0	01	1	1103-1306		●
118	PIPE; AIR,UNION TO AIR MASTER L=747 SERVICED BY L=800	1-47428-872-0	01	1	1011-1306	●

192 472 315 220 218 192 129 129 471 178 50 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1011-	●	●
178	BRACKET; UNION	8-98017-054-1	01	1	1011-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1011-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1011-	●	●
309	PIPE; AIR,MPV TO UNION L=896 SERVICED BY L=900	1-47428-873-0	01	1	1103-1306		●
309	PIPE; AIR,MPV TO UNION L=1291 SERVICED BY L=1300	1-47428-877-0	01	1	1307-		●
309	PIPE; AIR,MPV TO UNION L=753 SERVICED BY L=800	1-47428-872-0	01	1	1011-1306	●
309	PIPE; AIR,MPV TO UNION L=1253 SERVICED BY L=1300	1-47428-877-0	01	1	1307-	●
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1307-	●	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1011-1102	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1103-1306	●	●
315	CLIP (B) L=350	1-09707-183-0	03	1	1307-	●	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	1011-	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	1011-	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1011-1102	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1103-	●	●

218 220 315 472 192 192 129 129 471 178 50 309

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1011-	●	●
178	BRACKET; UNION	8-98017-054-1	01	1	1011-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
218	GROMMET; VINYL HOSE OD=24	9-61166-007-0	01	1	1011-	●	●
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1011-	●	●
309	PIPE; AIR,MPV TO UNION L=896 SERVICED BY L=900	1-47428-873-0	01	1	1103-1306		●
309	PIPE; AIR,MPV TO UNION L=1291 SERVICED BY L=1300	1-47428-877-0	01	1	1307-		●
309	PIPE; AIR,MPV TO UNION L=753 SERVICED BY L=800	1-47428-872-0	01	1	1011-1306	●
309	PIPE; AIR,MPV TO UNION L=1253 SERVICED BY L=1300	1-47428-877-0	01	1	1307-	●
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1307-	●	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1011-1102	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1103-1306	●	●
315	CLIP (B) L=350	1-09707-183-0	03	1	1307-	●	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	1011-	●	●
471	SEAL; BRKT	1-79738-832-0	01	1	1011-	●	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1011-1102	●
472	TUBE; SPUTTER	8-98067-708-0	01	1	1103-	●	●

91 37 102 37 91 37 91 52 166 166 68 87 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	UNION; AIR PIPE (C) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306		●
37	UNION; AIR PIPE (D) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1103-1306		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1307-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1011-1306	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1307-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1011-1102	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1103-	●	●
52	PIPE; AIR,UNION TO RELAY VLV L=1017	8-98244-577-0	01	1	1307-	●
52	PIPE; AIR,UNION TO RELAY VLV L=1054	8-98244-580-0	01	1	1307-		●
68	PIPE; AIR,MODULATOR TO UNION (A) L=468	8-98230-353-0	01	1	1307-	●	●
68	PIPE; AIR,MODULATOR TO UNION (B) L=458	8-98236-971-0	01	1	1307-	●	●
87	PIPE; AIR,AIR TANK TO UNION L=1579	8-98108-573-1	01	1	1103-1306		●
87	PIPE; AIR,AIR TANK TO UNION	8-98233-859-0	01	1	1307-		●
87	PIPE; AIR,AIR TANK TO UNION L=914 SERVICED BY L=1000	1-47428-874-0	01	1	1011-1306	●
87	PIPE; AIR,AIR TANK TO UNION	8-98233-858-0	01	1	1307-	●
91	NUT; PIPE UNION M12	0-91111-512-0	01	1	1307-		●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1011-1102	●
91	NUT; PIPE UNION M16	0-91111-516-0	02	1	1103-	●	●
102	PIPE; AIR,UNION TO UNION SERVICED BY L=1100	1-47428-875-0	01	1	1307-		●
166	PIPE; AIR,RELAY VALVE TO UNION (A) L=380	8-98230-358-0	01	1	1307-	●	●
166	PIPE; AIR,RELAY VALVE TO UNION (B) L=395	8-98244-575-0	01	1	1307-	●	●

315 98 37 144 144 97 29 29 159 144 29 159 46 37 29 31 144 192 223 192 144 46 129 192 129 31 46 192 163 144 97 29 23 60 159 162 163 67 161 79 29 97 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	01	1	1307-		●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	1103-1306	●	●
23	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	03	1	1307-	●
29	PIPE; AIR,UNION TO UNION (A) L=2052 SERVICED BY L=2100	1-47428-882-0	01	1	1307-		●
29	PIPE; AIR,UNION TO UNION (A) L=1395	8-98122-841-0	01	1	1011-1102	●
29	PIPE; AIR,UNION TO UNION (A) L=1395	8-98122-841-0	01	1	1103-1306	●	●
29	PIPE; AIR,UNION TO UNION (B) L=2014	8-98244-265-0	01	1	1307-	●	●
29	PIPE; AIR,UNION TO UNION (B) L=1774	8-98122-842-0	01	1	1011-1102	●
29	PIPE; AIR,UNION TO UNION (B) L=1774	8-98122-842-0	01	1	1103-1306	●	●
29	PIPE; AIR,UNION TO UNION (A) L=2421	8-98236-307-0	01	1	1307-	●
31	PIPE; AIR,UNION TO UNION L=1584	8-98122-840-0	01	1	1011-1102	●
31	PIPE; AIR,UNION TO UNION L=1584	8-98122-840-0	01	1	1103-1306	●	●
31	PIPE; AIR,UNION TO UNION L=1584 SERVICED BY L=1700	1-47428-880-0	01	1	1307-	●	●
37	UNION; AIR PIPE (C) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306		●
37	UNION; AIR PIPE (D) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1103-1306		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1307-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1011-1306	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1307-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1011-1102	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1103-	●	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1011-	●	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	1011-1102	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	1103-	●	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	1307-		●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	1103-1306	●	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	1307-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1011-1102	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1011-1102	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306	●	●
97	UNION; AIR PIPE (B) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	02	1	1011-1102	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	02	1	1103-1306	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1011-	●	●
144	PIPE; AIR,UNION TO UNION (B) L=648	8-98111-603-0	01	1	1103-1306		●
144	PIPE; AIR,UNION TO UNION (B)	8-98234-047-0	01	1	1307-		●
144	PIPE; AIR,UNION TO UNION (B) L=790	8-98111-602-1	01	1	1011-1306	●
144	PIPE; AIR,UNION TO UNION (B) L=1398 SERVICED BY L=1400	1-47428-878-0	01	1	1307-	●
144	PIPE; AIR,UNION TO UNION (A) L=1537	8-98122-839-0	01	1	1011-1102	●
144	PIPE; AIR,UNION TO UNION (A) L=1537	8-98122-839-0	01	1	1103-1306	●	●
144	PIPE; AIR,UNION TO UNION (A) L=1541	8-98234-049-0	01	1	1307-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	1103-1306		●
159	PIPE; AIR,UNION TO FLEX HOSE L=2362	8-98244-266-0	01	1	1307-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	1011-1306	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1861	8-98244-270-0	01	1	1307-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	1011-1102	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	1103-	●	●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	1011-	●	●
163	BRACKET; FLEX HOSE (B)	8-98044-842-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (B)	8-98044-842-0	01	1	1103-	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1103-	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1011-1102	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1103-	●	●
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1307-	●	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1011-1102	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1103-1306	●	●
315	CLIP (B) L=350	1-09707-183-0	03	1	1307-	●	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	1011-	●	●

144 37 98 315 144 73 314 315 144 192 192 223 31 29 30 29 97 159 30 29 97 159 19 29 23 60 29 97 144 29 97 31 144 46 129 192 31 46 129 192 163 161 79 159 162 163 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	NUT; PIPE UNION M12	0-91111-512-0	01	1	1307-	●	●
23	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	01	1	1307-		●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
23	BOLT; UNION BRKT M8X20 FLANGE	0-28650-820-0	02	1	1103-1306	●	●
23	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	03	1	1307-	●
29	PIPE; AIR,UNION TO UNION (A) L=2052 SERVICED BY L=2100	1-47428-882-0	01	1	1307-		●
29	PIPE; AIR,UNION TO UNION (A) L=1395	8-98122-841-0	01	1	1011-1102	●
29	PIPE; AIR,UNION TO UNION (A) L=1395	8-98122-841-0	01	1	1103-1306	●	●
29	PIPE; AIR,UNION TO UNION (B) L=2014	8-98244-265-0	01	1	1307-	●	●
29	PIPE; AIR,UNION TO UNION (B) L=1774	8-98122-842-0	01	1	1011-1102	●
29	PIPE; AIR,UNION TO UNION (B) L=1774	8-98122-842-0	01	1	1103-1306	●	●
29	PIPE; AIR,UNION TO UNION (A) L=2421	8-98236-307-0	01	1	1307-	●
30	PIPE; AIR,AIR TANK TO JOINT L=929 SERVICED BY L=1000	1-47428-874-0	01	1	1307-		●
31	PIPE; AIR,UNION TO UNION L=1584	8-98122-840-0	01	1	1011-1102	●
31	PIPE; AIR,UNION TO UNION L=1584	8-98122-840-0	01	1	1103-1306	●	●
31	PIPE; AIR,UNION TO UNION L=1584 SERVICED BY L=1700	1-47428-880-0	01	1	1307-	●	●
37	UNION; AIR PIPE (C) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306		●
37	UNION; AIR PIPE (D) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-		●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1103-1306		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1307-		●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	01	1	1011-1306	●
37	UNION; AIR PIPE (B) M16 L=74	0-92123-310-0	01	1	1307-	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1011-1102	●
37	UNION; AIR PIPE (A) M16 ELBOW	0-92135-210-0	02	1	1103-	●	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1011-	●	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	1011-1102	●
46	NIPPLE; AIR PIPE M16 STRAIGHT L=42	0-92123-010-0	02	1	1103-	●	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	1307-		●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	1103-1306	●	●
60	NUT; NIPPLE,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	1307-	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
67	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
73	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1011-1102	●
79	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	02	1	1103-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1011-1102	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1103-1306	●	●
97	UNION; AIR PIPE (B) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1307-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	02	1	1011-1102	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	02	1	1103-1306	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-	●	●
97	UNION; AIR PIPE (A) M16 STRAIGHT L=42	0-92123-010-0	01	1	1307-		●
98	NUT; PIPE UNION M16	0-91111-516-0	01	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (B) DIN8 & M16 STRAIGHT	1-09660-875-0	02	1	1011-	●	●
129	CONNECTOR; NYLON TUBE (A) DIN13 & M18 ELBOW	8-97611-963-1	02	1	1011-	●	●
144	PIPE; AIR,UNION TO UNION (B) L=648	8-98111-603-0	01	1	1103-1306		●
144	PIPE; AIR,UNION TO UNION (B)	8-98234-047-0	01	1	1307-		●
144	PIPE; AIR,UNION TO UNION (B) L=790	8-98111-602-1	01	1	1011-1306	●
144	PIPE; AIR,UNION TO UNION (B) L=1398 SERVICED BY L=1400	1-47428-878-0	01	1	1307-	●
144	PIPE; AIR,UNION TO UNION (A) L=1537	8-98122-839-0	01	1	1011-1102	●
144	PIPE; AIR,UNION TO UNION (A) L=1537	8-98122-839-0	01	1	1103-1306	●	●
144	PIPE; AIR,UNION TO UNION (A) L=1541	8-98234-049-0	01	1	1307-	●	●
159	PIPE; AIR,UNION TO FLEX HOSE L=2632 SERVICED BY L=2900	1-47428-885-0	01	1	1103-1306		●
159	PIPE; AIR,UNION TO FLEX HOSE L=2362	8-98244-266-0	01	1	1307-		●
159	PIPE; AIR,UNION TO FLEX HOSE L=2132 SERVICED BY L=2500	1-47428-883-0	01	1	1011-1306	●
159	PIPE; AIR,UNION TO FLEX HOSE L=1861	8-98244-270-0	01	1	1307-	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	1011-1102	●
161	HOSE; FLEX,QUICK RELEASE VLV L=600	1-09363-732-0	01	1	1103-	●	●
162	NUT; FLEX HOSE M16	0-91111-516-0	01	1	1011-	●	●
163	BRACKET; FLEX HOSE (B)	8-98044-842-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (B)	8-98044-842-0	01	1	1103-	●	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (A)	8-98093-260-0	01	1	1103-	●	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1011-1102	●
163	BRACKET; FLEX HOSE (A)	8-98106-706-0	01	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1011-1102	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	02	1	1103-	●	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1011-1102	●
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	1103-	●	●
314	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-	●	●
315	CLIP (C) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1307-	●	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1011-1102	●
315	CLIP (B) L=350	1-09707-183-0	01	1	1103-1306	●	●
315	CLIP (B) L=350	1-09707-183-0	03	1	1307-	●	●
315	CLIP (A) ID=14	8-94238-572-0	01	1	1011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
