◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#69846) — 199 parça

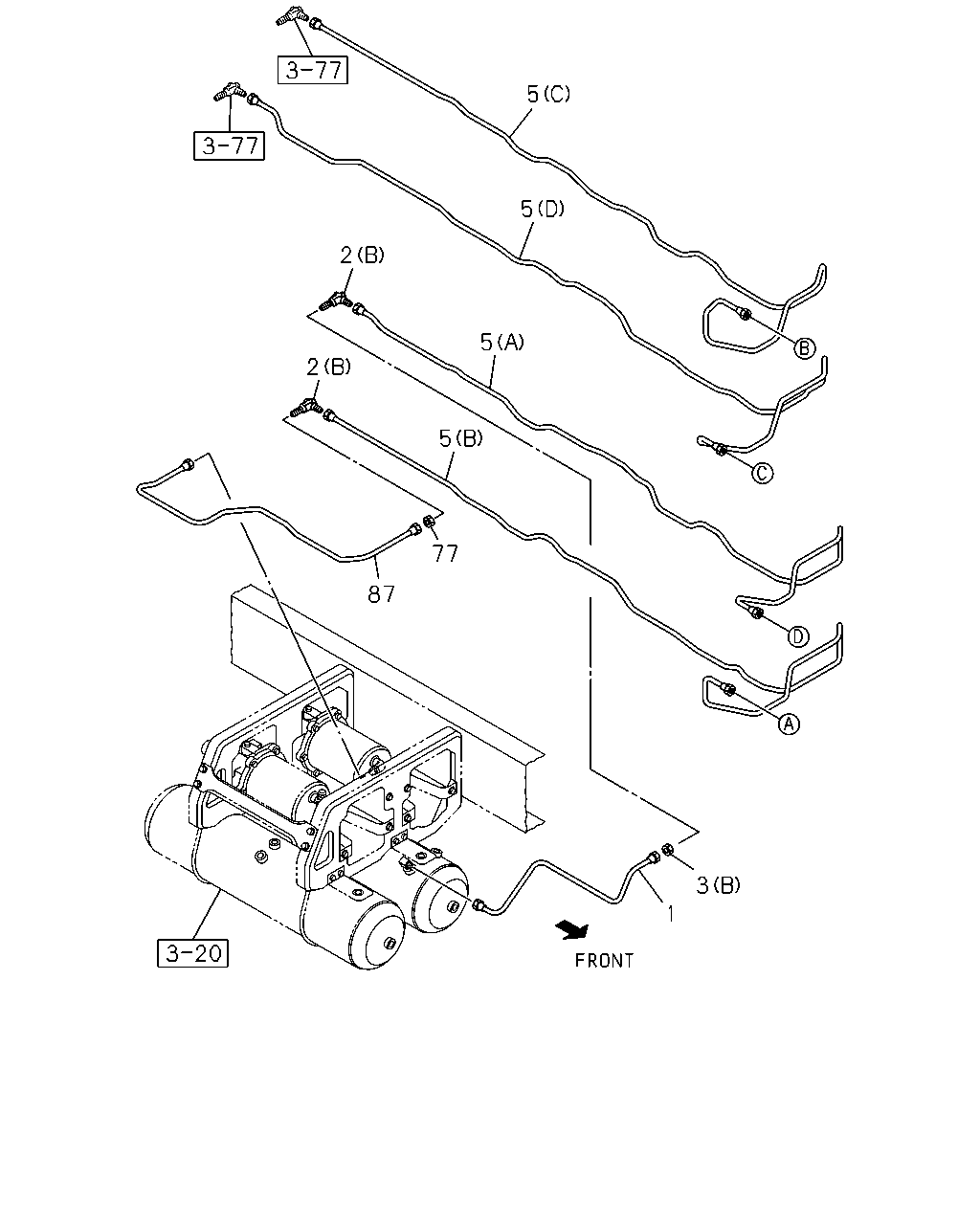

çizim 121758
5 5 5 5 2 2 77 87 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=715 SERVICED BY L=730 		1-47428-871-0 01 1 1103-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1320 SERVICED BY L=1400 		1-47428-878-0 01 1 1307-1407 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1378 SERVICED BY L=1400 		1-47428-878-0 01 1 1408- ●
1 PIPE; AIR,AIR TANK TO UNION
L=580 SERVICED BY L=600 		1-47428-868-0 01 1 1011-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1335 SERVICED BY L=1400 		1-47428-878-0 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1408- ●
2 UNION; AIR PIPE
(C) M16X2 2WAY ELBOW 		1-09654-148-1 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1011-1102 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1103-1407 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1011-1102 ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1103- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1011-1102 ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1103- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2275 		8-98233-854-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2907 SERVICED BY L=3300 		1-47428-886-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2874 SERVICED BY L=2900 		1-47428-885-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2738 		8-98111-243-1 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(E) L=595 SERVICED BY L=600 		1-47428-868-0 01 1 1307-1407 ●
5 PIPE; AIR,UNION TO UNION
(E) L=576 SERVICED BY L=600 		1-47428-868-0 01 1 1408- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2956 		8-98111-247-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2625 		8-98233-847-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2562 SERVICED BY L=2600 		1-47428-884-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2923 		8-98233-853-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2975 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2976 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2497 		8-98111-224-1 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2576 		8-98244-135-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2804 		8-98111-242-1 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2790 		8-98233-846-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2919 		8-98111-246-0 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=2885 		8-98236-938-0 01 1 1307- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1011-1102 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1103- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=994 SERVICED BY L=1000 		1-47428-874-0 01 1 1103-1306 ●
87 PIPE; AIR,UNION TO AIR MASTER
L=745 SERVICED BY L=800 		1-47428-872-0 01 1 1011-1306 ●

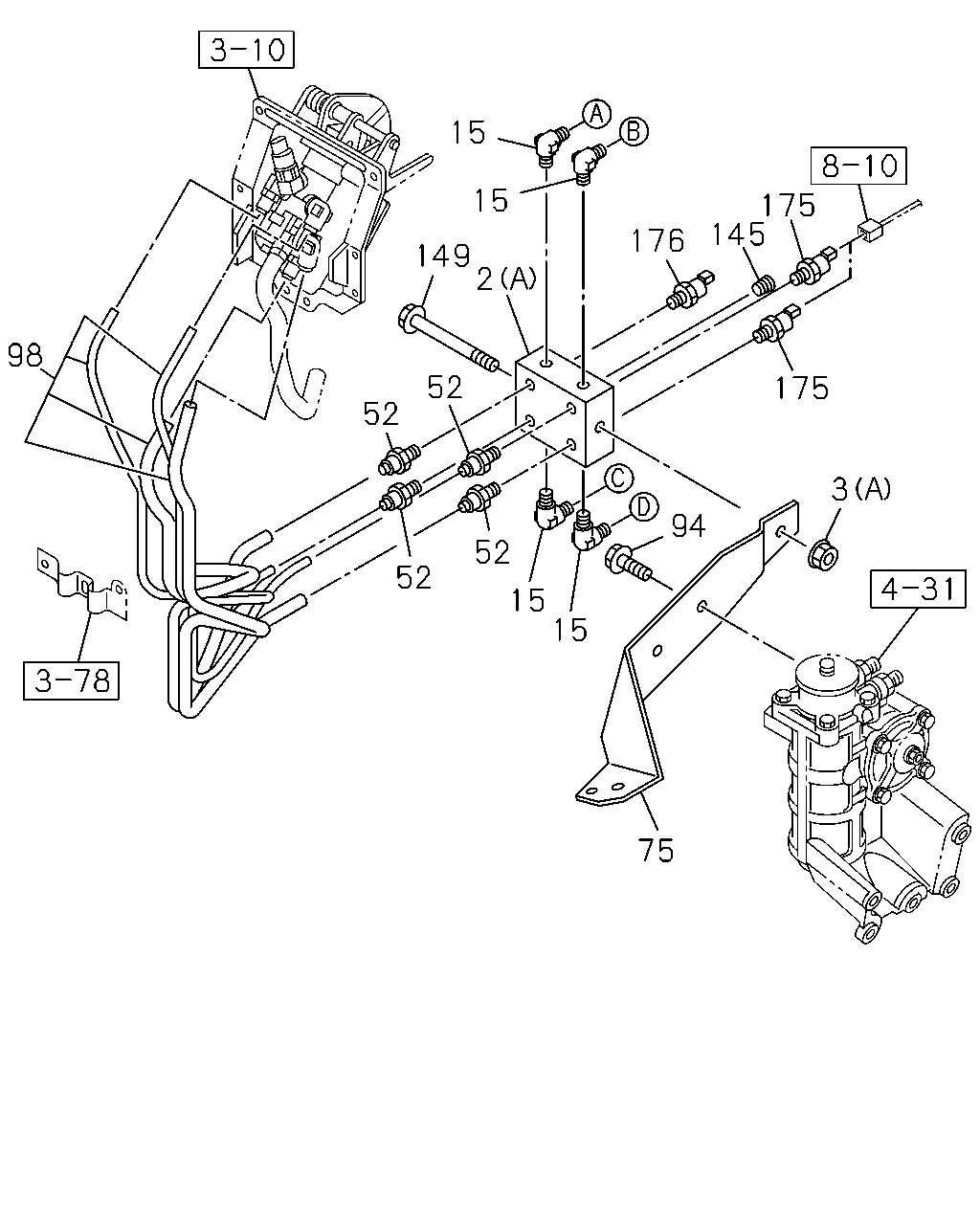

çizim 122307
75 15 15 52 52 52 52 175 3 94 175 145 176 2 149 15 15 98
BalonParca AdiParca NoAdetTipApplied Date A B
2 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1408- ●
2 UNION; AIR PIPE
(C) M16X2 2WAY ELBOW 		1-09654-148-1 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1011-1102 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1103-1407 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1011-1102 ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1103- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1011-1102 ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1103- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1011-1102 ●
15 CONNECTOR; AIR PIPE
M16 & PT1/4 ELBOW 		0-92134-310-0 04 1 1103- ● ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1011-1102 ●
52 CONNECTOR; NYLON TUBE
DIN12 & R1/4 STRAIGHT 		1-09660-967-0 04 1 1103- ● ●
75 BRACKET; UNION 8-98066-785-0 01 1 1011-1102 ●
75 BRACKET; UNION 8-98066-785-0 01 1 1103- ● ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1011-1102 ●
94 BOLT; BRKT
M10X20 FLANGE 		0-28151-020-0 02 1 1103- ● ●
98 TUBE; NYLON 8-98079-179-0 01 1 1103- ●
98 TUBE; NYLON 8-98079-175-0 01 1 1011- ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1011-1102 ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1103- ● ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1011-1102 ●
149 BOLT; UNION
M8X100 FLANGE 		0-28050-800-0 01 1 1103- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1011-1102 ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1103- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1011-1102 ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1103- ● ●

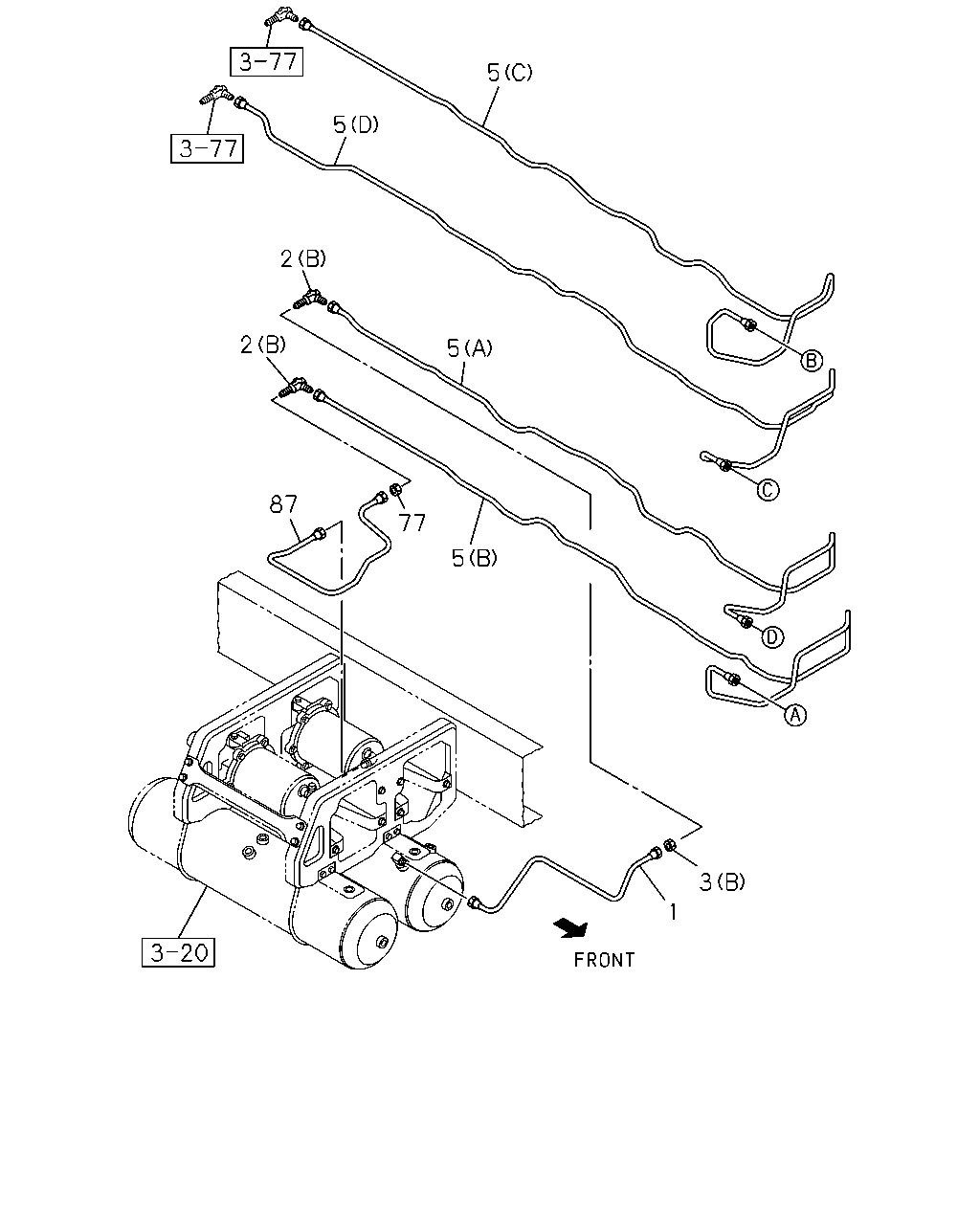

çizim 189136
1 3 5 5 5 5 2 2 87 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=715 SERVICED BY L=730 		1-47428-871-0 01 1 1103-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1320 SERVICED BY L=1400 		1-47428-878-0 01 1 1307-1407 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1378 SERVICED BY L=1400 		1-47428-878-0 01 1 1408- ●
1 PIPE; AIR,AIR TANK TO UNION
L=580 SERVICED BY L=600 		1-47428-868-0 01 1 1011-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1335 SERVICED BY L=1400 		1-47428-878-0 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1408- ●
2 UNION; AIR PIPE
(C) M16X2 2WAY ELBOW 		1-09654-148-1 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1011-1102 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1103-1407 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1011-1102 ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1103- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1011-1102 ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1103- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2275 		8-98233-854-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2907 SERVICED BY L=3300 		1-47428-886-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2874 SERVICED BY L=2900 		1-47428-885-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2738 		8-98111-243-1 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(E) L=595 SERVICED BY L=600 		1-47428-868-0 01 1 1307-1407 ●
5 PIPE; AIR,UNION TO UNION
(E) L=576 SERVICED BY L=600 		1-47428-868-0 01 1 1408- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2956 		8-98111-247-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2625 		8-98233-847-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2562 SERVICED BY L=2600 		1-47428-884-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2923 		8-98233-853-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2975 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2976 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2497 		8-98111-224-1 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2576 		8-98244-135-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2804 		8-98111-242-1 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2790 		8-98233-846-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2919 		8-98111-246-0 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=2885 		8-98236-938-0 01 1 1307- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1011-1102 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1103- ● ●
87 PIPE; AIR,UNION TO AIR MASTER
L=994 SERVICED BY L=1000 		1-47428-874-0 01 1 1103-1306 ●
87 PIPE; AIR,UNION TO AIR MASTER
L=745 SERVICED BY L=800 		1-47428-872-0 01 1 1011-1306 ●

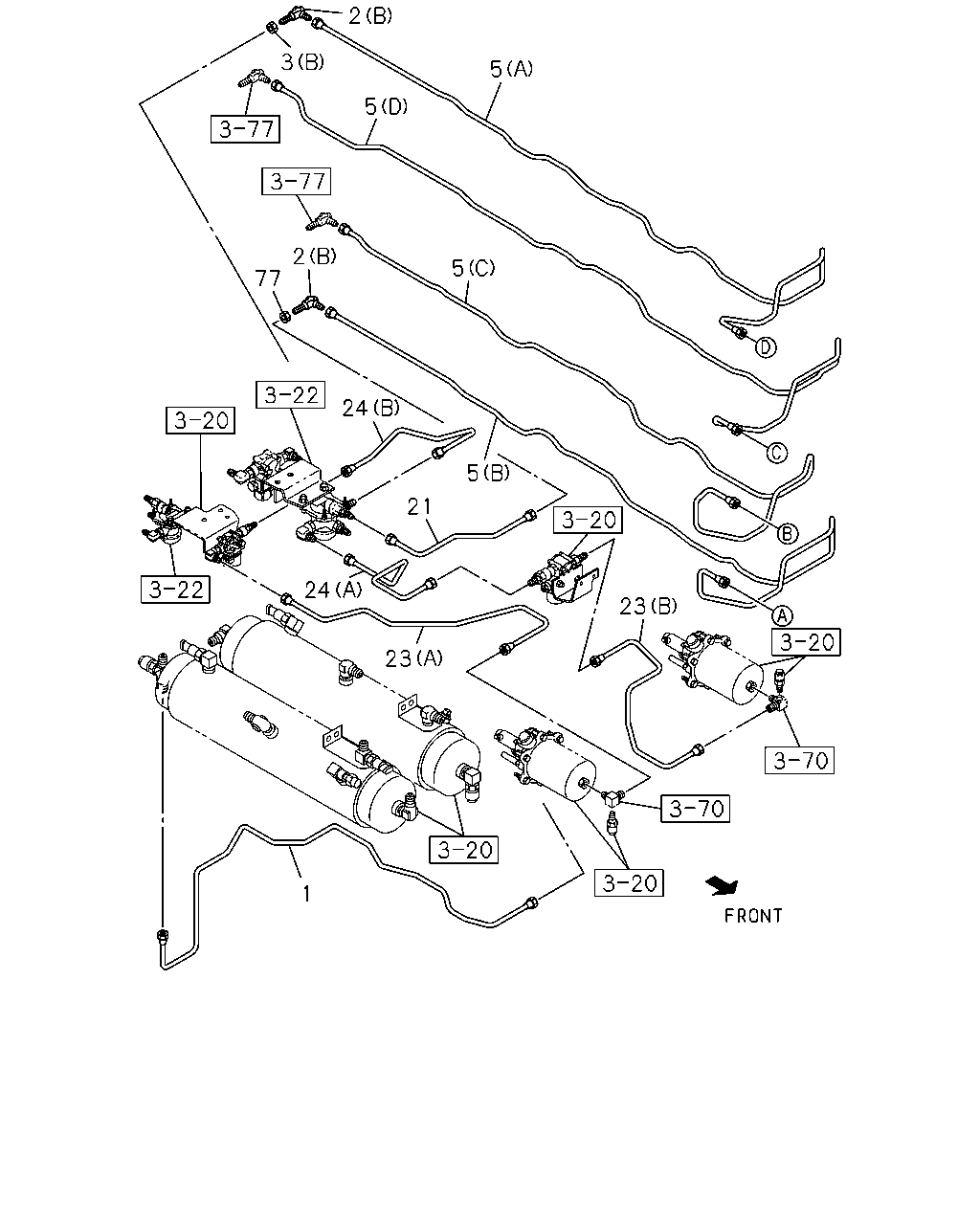

çizim 189194
2 5 3 5 5 2 77 24 21 5 24 23 1 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=715 SERVICED BY L=730 		1-47428-871-0 01 1 1103-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1320 SERVICED BY L=1400 		1-47428-878-0 01 1 1307-1407 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1378 SERVICED BY L=1400 		1-47428-878-0 01 1 1408- ●
1 PIPE; AIR,AIR TANK TO UNION
L=580 SERVICED BY L=600 		1-47428-868-0 01 1 1011-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1335 SERVICED BY L=1400 		1-47428-878-0 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1408- ●
2 UNION; AIR PIPE
(C) M16X2 2WAY ELBOW 		1-09654-148-1 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1011-1102 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1103-1407 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1011-1102 ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1103- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1011-1102 ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1103- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2275 		8-98233-854-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2907 SERVICED BY L=3300 		1-47428-886-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2874 SERVICED BY L=2900 		1-47428-885-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2738 		8-98111-243-1 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(E) L=595 SERVICED BY L=600 		1-47428-868-0 01 1 1307-1407 ●
5 PIPE; AIR,UNION TO UNION
(E) L=576 SERVICED BY L=600 		1-47428-868-0 01 1 1408- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2956 		8-98111-247-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2625 		8-98233-847-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2562 SERVICED BY L=2600 		1-47428-884-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2923 		8-98233-853-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2975 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2976 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2497 		8-98111-224-1 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2576 		8-98244-135-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2804 		8-98111-242-1 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2790 		8-98233-846-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2919 		8-98111-246-0 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=2885 		8-98236-938-0 01 1 1307- ●
21 PIPE; AIR,UNION TO RELAY VLV
L=326 		8-98245-406-0 01 1 1307- ●
21 PIPE; AIR,UNION TO RELAY VLV
L=936 		8-98245-407-0 01 1 1307- ●
23 PIPE; AIR,MODULATOR
(A) L=735 SERVICED BY L=800 		1-47428-872-0 01 1 1307- ● ●
23 PIPE; AIR,MODULATOR
(B) L=458 		8-98230-351-0 01 1 1307- ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(A) L=392 		8-98230-357-0 01 1 1307- ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(B) L=300 		8-98236-977-0 01 1 1307- ● ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1011-1102 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1103- ● ●

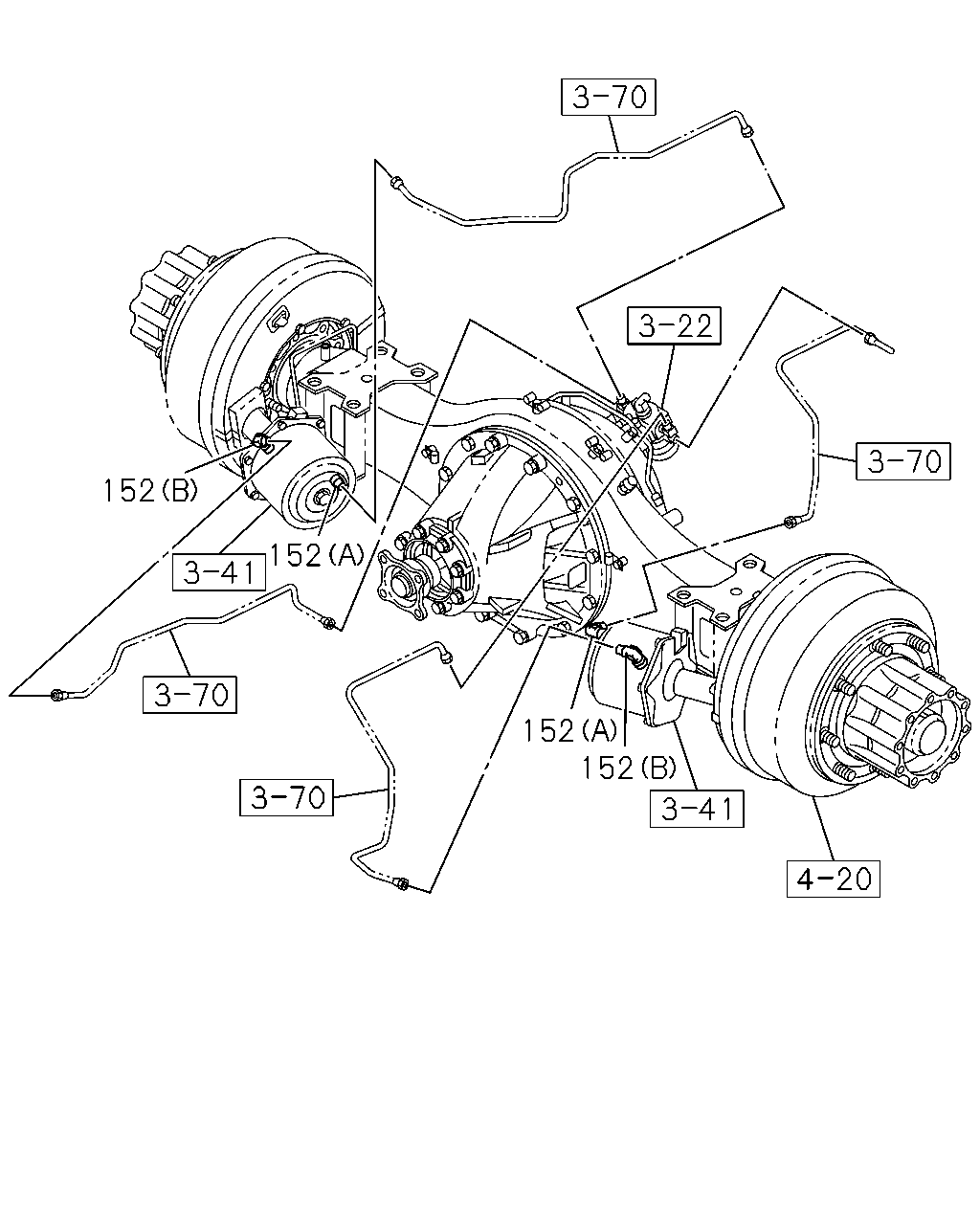

çizim 363365
152 152 152 152
BalonParca AdiParca NoAdetTipApplied Date A B
152 CONNECTOR; POWER CHAMBER
(A) M14 & PT1/4 ELBOW 		1-09650-432-0 02 1 1011-1102 ●
152 CONNECTOR; POWER CHAMBER
(A) M14 & PT1/4 ELBOW 		1-09650-432-0 02 1 1103- ● ●
152 CONNECTOR; POWER CHAMBER
(B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 1011-1102 ●
152 CONNECTOR; POWER CHAMBER
(B) M14 & PT3/8 ELBOW 		1-09650-437-0 02 1 1103- ● ●

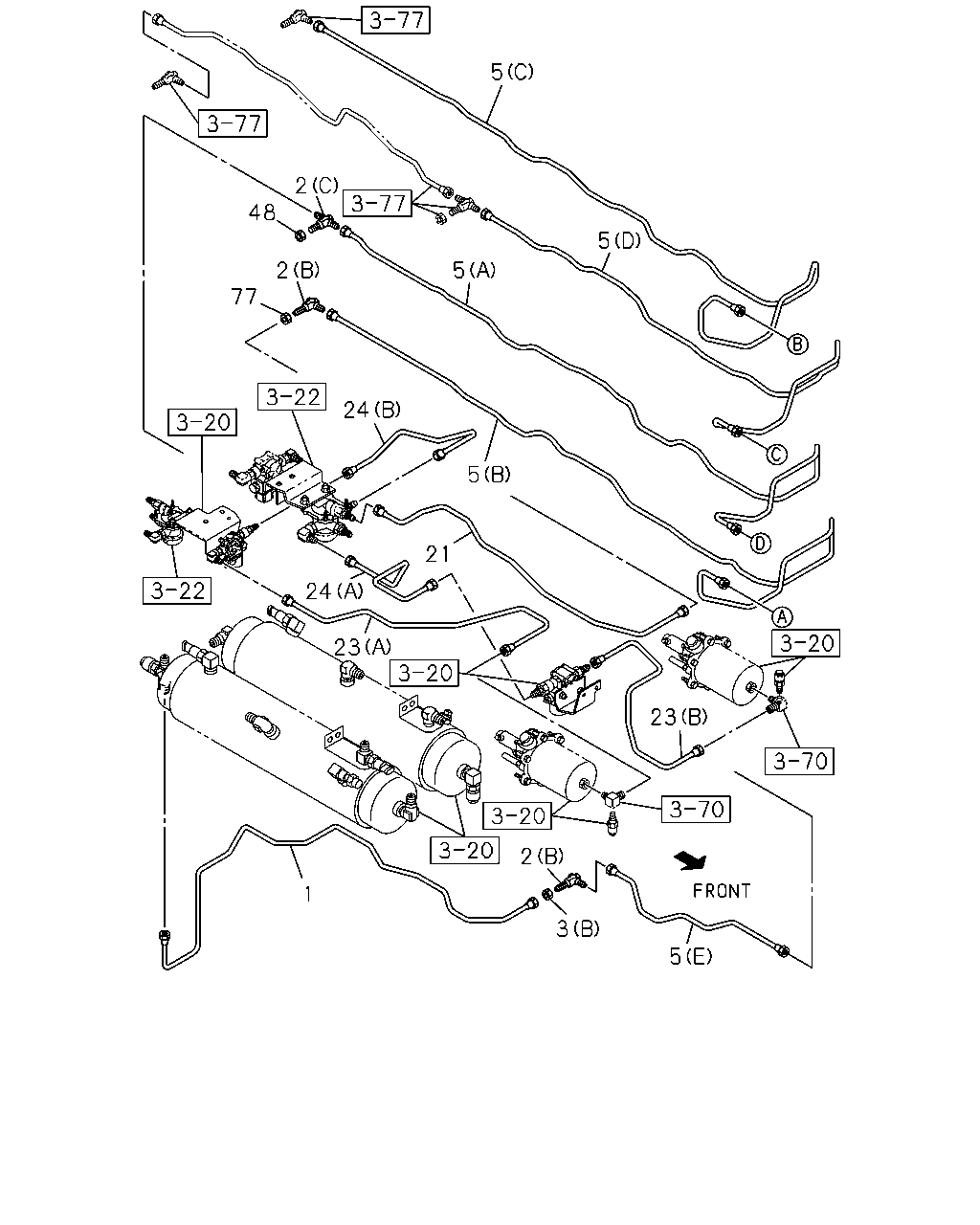

çizim 364424
5 5 5 2 48 77 2 24 5 24 21 23 23 2 3 1 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,AIR TANK TO UNION
L=715 SERVICED BY L=730 		1-47428-871-0 01 1 1103-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1320 SERVICED BY L=1400 		1-47428-878-0 01 1 1307-1407 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1378 SERVICED BY L=1400 		1-47428-878-0 01 1 1408- ●
1 PIPE; AIR,AIR TANK TO UNION
L=580 SERVICED BY L=600 		1-47428-868-0 01 1 1011-1306 ●
1 PIPE; AIR,AIR TANK TO UNION
L=1335 SERVICED BY L=1400 		1-47428-878-0 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1408- ●
2 UNION; AIR PIPE
(C) M16X2 2WAY ELBOW 		1-09654-148-1 01 1 1307- ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1011-1102 ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 02 1 1103-1407 ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ● ●
2 UNION; AIR PIPE
(B) M16 ELBOW 		0-92135-210-0 01 1 1408- ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1011-1102 ●
2 UNION; AIR PIPE
(A) 		8-98057-394-1 01 1 1103- ● ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1011-1102 ●
3 NUT; PIPE UNION
(B) M16 		0-91111-516-0 01 1 1103- ● ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
3 NUT; PIPE UNION
(A) M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
5 PIPE; AIR,UNION TO UNION
(D) L=2275 		8-98233-854-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2907 SERVICED BY L=3300 		1-47428-886-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2874 SERVICED BY L=2900 		1-47428-885-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2738 		8-98111-243-1 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(E) L=595 SERVICED BY L=600 		1-47428-868-0 01 1 1307-1407 ●
5 PIPE; AIR,UNION TO UNION
(E) L=576 SERVICED BY L=600 		1-47428-868-0 01 1 1408- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2956 		8-98111-247-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2625 		8-98233-847-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2562 SERVICED BY L=2600 		1-47428-884-0 01 1 1103-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2923 		8-98233-853-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(B) L=2975 SERVICED BY L=3300 		1-47428-886-0 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(B) L=2976 SERVICED BY L=3300 		1-47428-886-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(A) L=2497 		8-98111-224-1 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(C) L=2576 		8-98244-135-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(C) L=2804 		8-98111-242-1 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(A) L=2790 		8-98233-846-0 01 1 1307- ●
5 PIPE; AIR,UNION TO UNION
(D) L=2919 		8-98111-246-0 01 1 1011-1306 ●
5 PIPE; AIR,UNION TO UNION
(D) L=2885 		8-98236-938-0 01 1 1307- ●
21 PIPE; AIR,UNION TO RELAY VLV
L=326 		8-98245-406-0 01 1 1307- ●
21 PIPE; AIR,UNION TO RELAY VLV
L=936 		8-98245-407-0 01 1 1307- ●
23 PIPE; AIR,MODULATOR
(A) L=735 SERVICED BY L=800 		1-47428-872-0 01 1 1307- ● ●
23 PIPE; AIR,MODULATOR
(B) L=458 		8-98230-351-0 01 1 1307- ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(A) L=392 		8-98230-357-0 01 1 1307- ● ●
24 PIPE; AIR,RELAY VLV TO UNION
(B) L=300 		8-98236-977-0 01 1 1307- ● ●
48 NUT; UNION BRKT
M12 		0-91111-512-0 01 1 1307- ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1011-1102 ●
77 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
