3-70 — BRAKE PIPING; AIR,AIR MASTER (#69845) — 526 parça

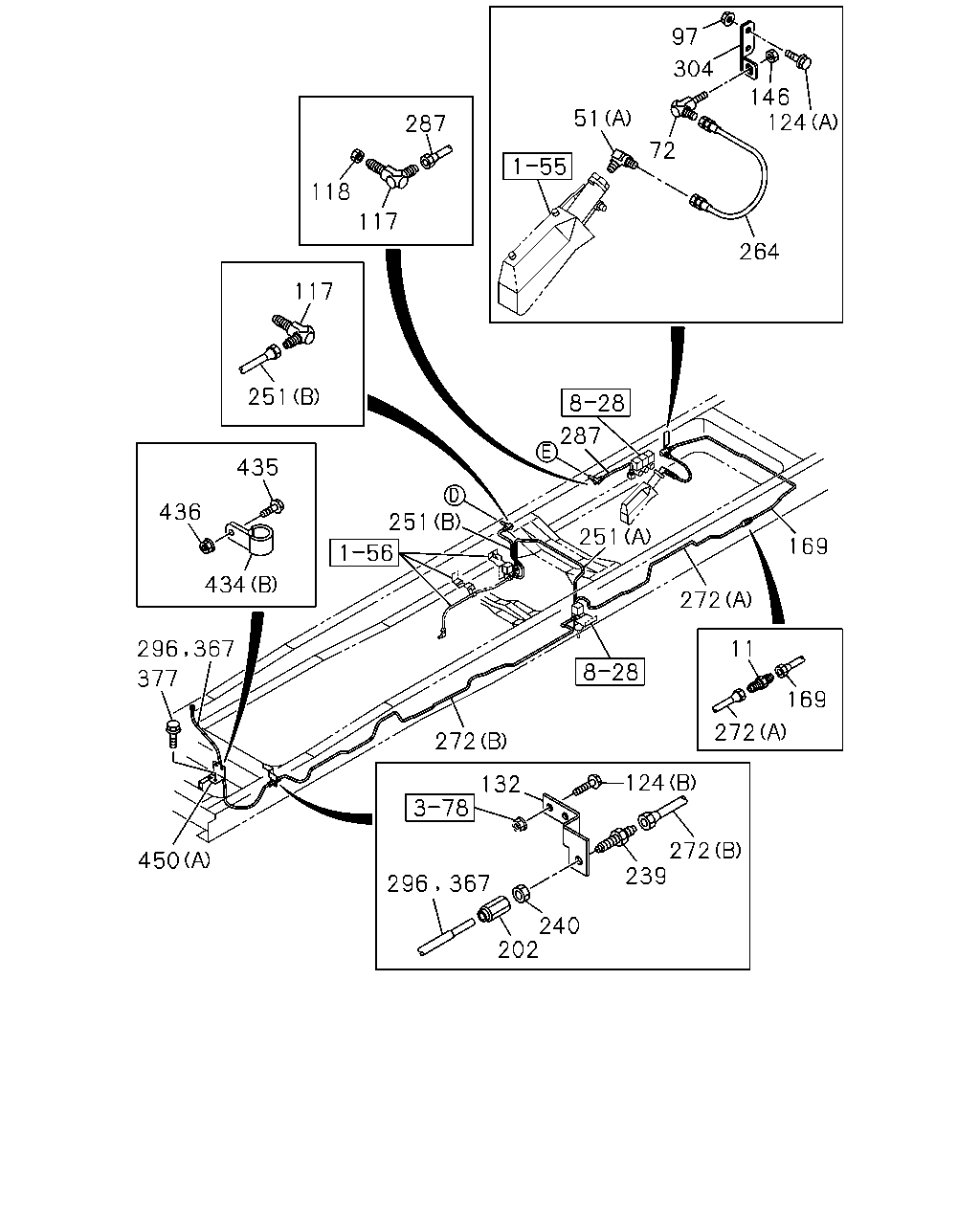

çizim 121328
97 304 146 124 264 72 51 287 118 117 117 251 435 436 434 296 367 377 450 296 367 132 272 251 287 251 169 272 11 169 272 124 272 239 240 202
BalonParca AdiParca NoAdetTipApplied Date A B
11 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1011-1102 ●
11 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1103- ● ●
51 UNION
(B) M12 ELBOW 		0-92125-006-0 01 1 1011-1102 ●
51 UNION
(B) M12 ELBOW 		0-92125-006-0 01 1 1103-1306 ● ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011-1102 ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1103- ● ●
72 UNION; AIR PIPE
M12 ELBOW 		0-92125-006-0 01 1 1307- ● ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
117 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1103-1306 ●
117 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1307- ● ●
118 NUT; UNION
M12 		9-09840-280-0 02 1 1103-1306 ●
118 NUT; UNION
M12 		9-09840-280-0 01 1 1307- ● ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1011-1102 ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1103- ● ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1011-1102 ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1103- ● ●
132 BRACKET; PIPE UNION 8-98122-875-0 01 1 1011-1102 ●
132 BRACKET; PIPE UNION 8-98122-875-0 01 1 1103- ● ●
146 NUT; UNION
M12 		9-09840-280-0 01 1 1307- ● ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1857 SERVICED BY L=2000 		1-47428-823-0 01 1 1103-1306 ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=2078 SERVICED BY L=2200 		1-47428-824-0 01 1 1307- ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 1011-1306 ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1406 SERVICED BY L=1500 		1-47428-819-0 01 1 1307- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1011- ● ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1011-1102 ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1103- ● ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1011-1102 ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1103- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=415 		8-98234-208-0 01 1 1307- ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=926 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1011-1102 ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1103-1306 ● ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 1011-1102 ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 1103-1306 ● ●
264 HOSE; FLEX
L=300 		1-09363-611-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1390 SERVICED BY L=1500 		1-47428-819-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (B) L=2422 		8-98122-837-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (B) L=2422 		8-98122-837-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2434 		8-98233-975-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (B) L=2449 		8-98122-836-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (B) L=2449 		8-98122-836-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2461 SERVICED BY L=2500 		1-47428-826-0 01 1 1307- ● ●
287 PIPE; AIR,MAG VLV
L=1337 SERVICED BY L=1370 		1-47428-818-0 01 1 1103-1306 ●
287 PIPE; AIR,MAG VLV
L=1063 		8-98138-240-1 01 1 1011-1306 ●
287 PIPE; AIR,MAG VLV
L=186 		8-98234-128-0 01 1 1307- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1011-1102 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1103- ● ●
304 BRACKET; UNION 8-98234-504-0 01 1 1307- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1011-1102 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
434 CLIP
(C) ID=35 L=33 		1-09700-945-0 01 1 1103- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1011-1102 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1103-1306 ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1307- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1011-1102 ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1103-1306 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1011-1102 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1103-1306 ● ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1011-1306 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1011-1306 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1102 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ●
450 BRACKET; CLIP
(B) 		8-98116-173-0 01 1 1103- ●
450 BRACKET; CLIP
(A) 		8-98070-479-0 01 1 1011- ● ●

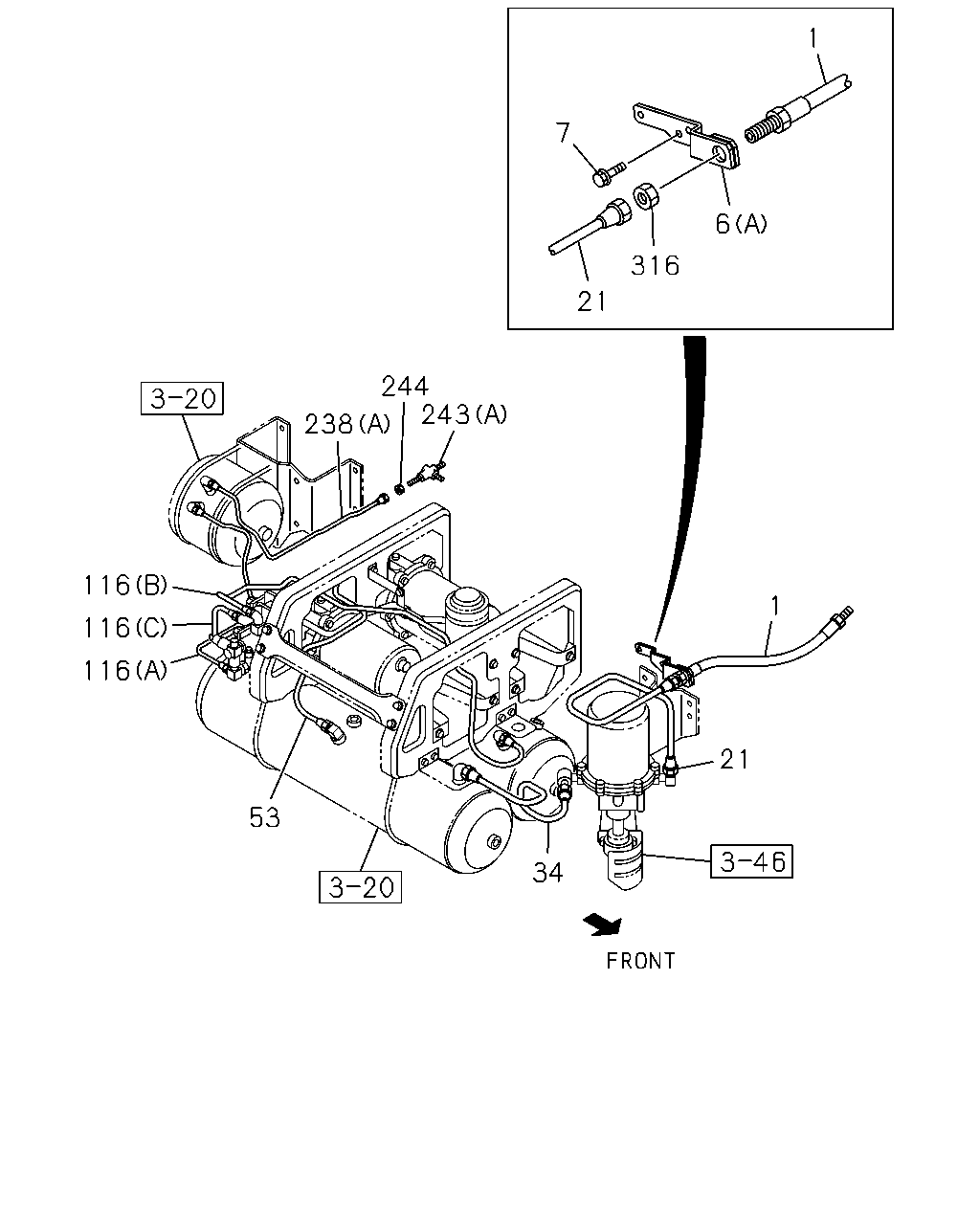

çizim 121529
1 1 7 21 316 6 21 34 53 116 116 116 238 244 243
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 1103- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 1103- ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 1011- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 1011- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 1103- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98119-929-0 01 1 1011- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 1103- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 1011-1306 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=826 		8-98234-138-0 01 1 1307- ●
34 PIPE; AIR
L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 1103-1306 ●
34 PIPE; AIR
L=1317 		8-98233-798-0 01 1 1307- ●
34 PIPE; AIR
L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1011-1306 ●
34 PIPE; AIR
L=409 		8-98234-137-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98244-583-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1011-1102 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1103-1306 ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98244-579-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1016 SERVICED BY L=1100 		1-47428-815-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=497 		8-98237-000-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(H) L=438 		8-98233-872-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 1103-1306 ●
116 PIPE; AIR,PROTECTION VLV
(I) L=972 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 1011-1306 ●
116 PIPE; AIR,PROTECTION VLV
(F) L=778 SERVICED BY L=800 		1-47428-812-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-561-0 01 1 1011-1102 ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-561-0 01 1 1103-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98230-363-0 01 1 1307- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 1011-1102 ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 1103-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(J) 		8-98236-892-0 01 1 1307- ● ●
238 PIPE; AIR,UNION TO UNION
(D) L=1398 SERVICED BY L=1500 		1-47428-819-0 01 1 1103-1306 ●
238 PIPE; AIR,UNION TO UNION
(E) L=1315 SERVICED BY L=1370 		1-47428-818-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(B) L=349 		8-98111-571-0 01 1 1103-1306 ●
238 PIPE; AIR,UNION TO UNION
(F) L=415 		8-98233-972-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(C) L=503 		8-98111-579-0 01 1 1103-1306 ●
238 PIPE; AIR,UNION TO UNION
(A) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 1011-1306 ●
243 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1103-1306 ●
243 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1011-1306 ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1011-1102 ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1103-1306 ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1011-1102 ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1103- ● ●

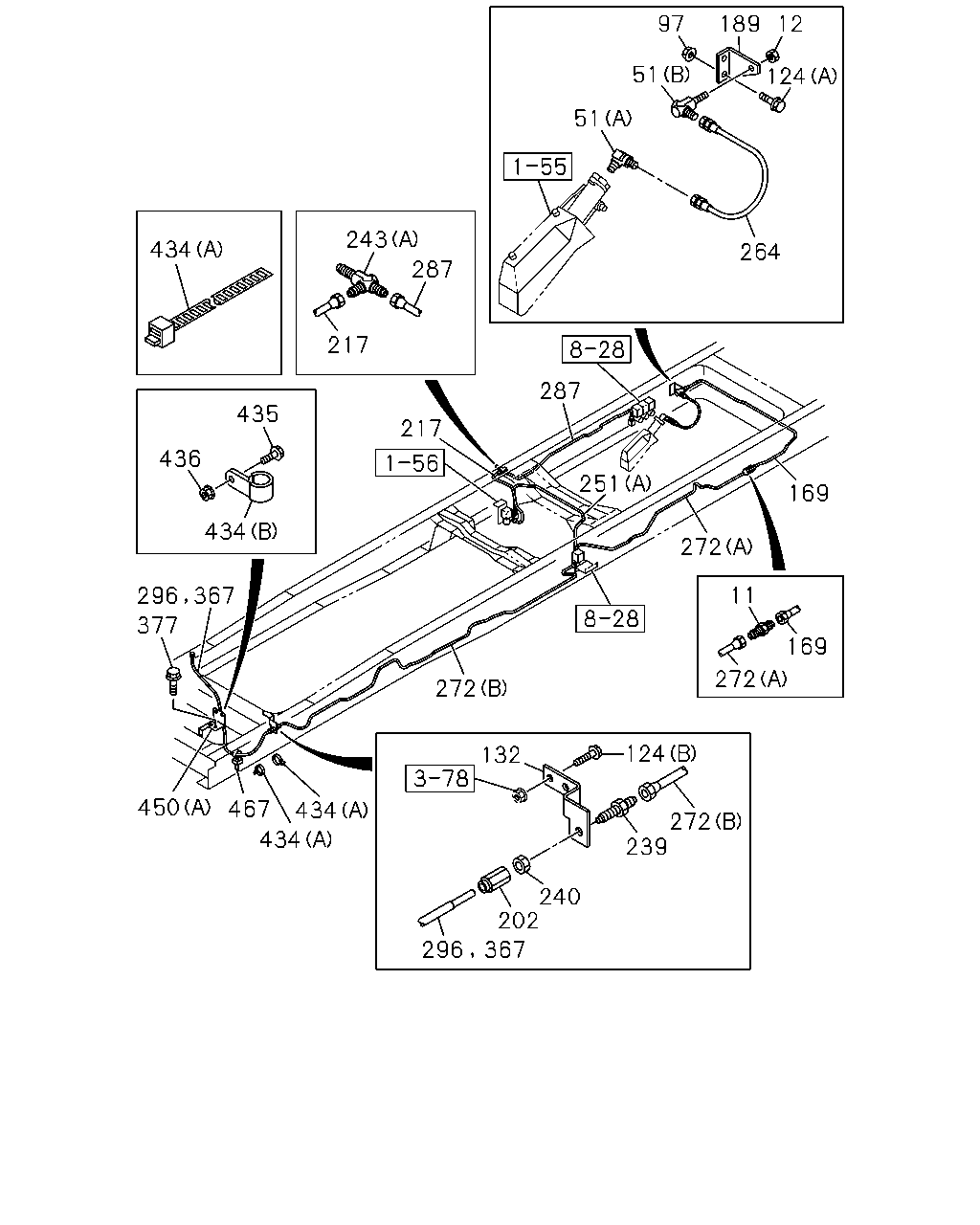

çizim 189135
272 169 11 272 169 264 124 12 189 97 51 51 287 251 217 287 243 217 435 436 434 367 296 377 450 467 434 434 434 124 272 239 240 202 367 296 132 272
BalonParca AdiParca NoAdetTipApplied Date A B
11 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1011-1102 ●
11 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1103- ● ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 1011-1102 ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 1103-1306 ● ●
51 UNION
(B) M12 ELBOW 		0-92125-006-0 01 1 1011-1102 ●
51 UNION
(B) M12 ELBOW 		0-92125-006-0 01 1 1103-1306 ● ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011-1102 ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1103- ● ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1011-1102 ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1103- ● ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1011-1102 ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1103- ● ●
132 BRACKET; PIPE UNION 8-98122-875-0 01 1 1011-1102 ●
132 BRACKET; PIPE UNION 8-98122-875-0 01 1 1103- ● ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1857 SERVICED BY L=2000 		1-47428-823-0 01 1 1103-1306 ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=2078 SERVICED BY L=2200 		1-47428-824-0 01 1 1307- ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 1011-1306 ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1406 SERVICED BY L=1500 		1-47428-819-0 01 1 1307- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 1011-1102 ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 1103-1306 ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1011- ● ●
217 PIPE; VAC,UNION TO MAG VLV
L=419 		8-98111-790-0 01 1 1011-1306 ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1011-1102 ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1103- ● ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1011-1102 ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1103- ● ●
243 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1103-1306 ●
243 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1011-1306 ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=415 		8-98234-208-0 01 1 1307- ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=926 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1011-1102 ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1103-1306 ● ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 1011-1102 ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 1103-1306 ● ●
264 HOSE; FLEX
L=300 		1-09363-611-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1390 SERVICED BY L=1500 		1-47428-819-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (B) L=2422 		8-98122-837-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (B) L=2422 		8-98122-837-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2434 		8-98233-975-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (B) L=2449 		8-98122-836-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (B) L=2449 		8-98122-836-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2461 SERVICED BY L=2500 		1-47428-826-0 01 1 1307- ● ●
287 PIPE; AIR,MAG VLV
L=1337 SERVICED BY L=1370 		1-47428-818-0 01 1 1103-1306 ●
287 PIPE; AIR,MAG VLV
L=1063 		8-98138-240-1 01 1 1011-1306 ●
287 PIPE; AIR,MAG VLV
L=186 		8-98234-128-0 01 1 1307- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1011-1102 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1103- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1011-1102 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
434 CLIP
(C) ID=35 L=33 		1-09700-945-0 01 1 1103- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1011-1102 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1103-1306 ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1307- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1011-1102 ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1103-1306 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1011-1102 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1103-1306 ● ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1011-1306 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1011-1306 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1102 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ●
450 BRACKET; CLIP
(B) 		8-98116-173-0 01 1 1103- ●
450 BRACKET; CLIP
(A) 		8-98070-479-0 01 1 1011- ● ●
467 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1011-1102 ●
467 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1103-1306 ● ●

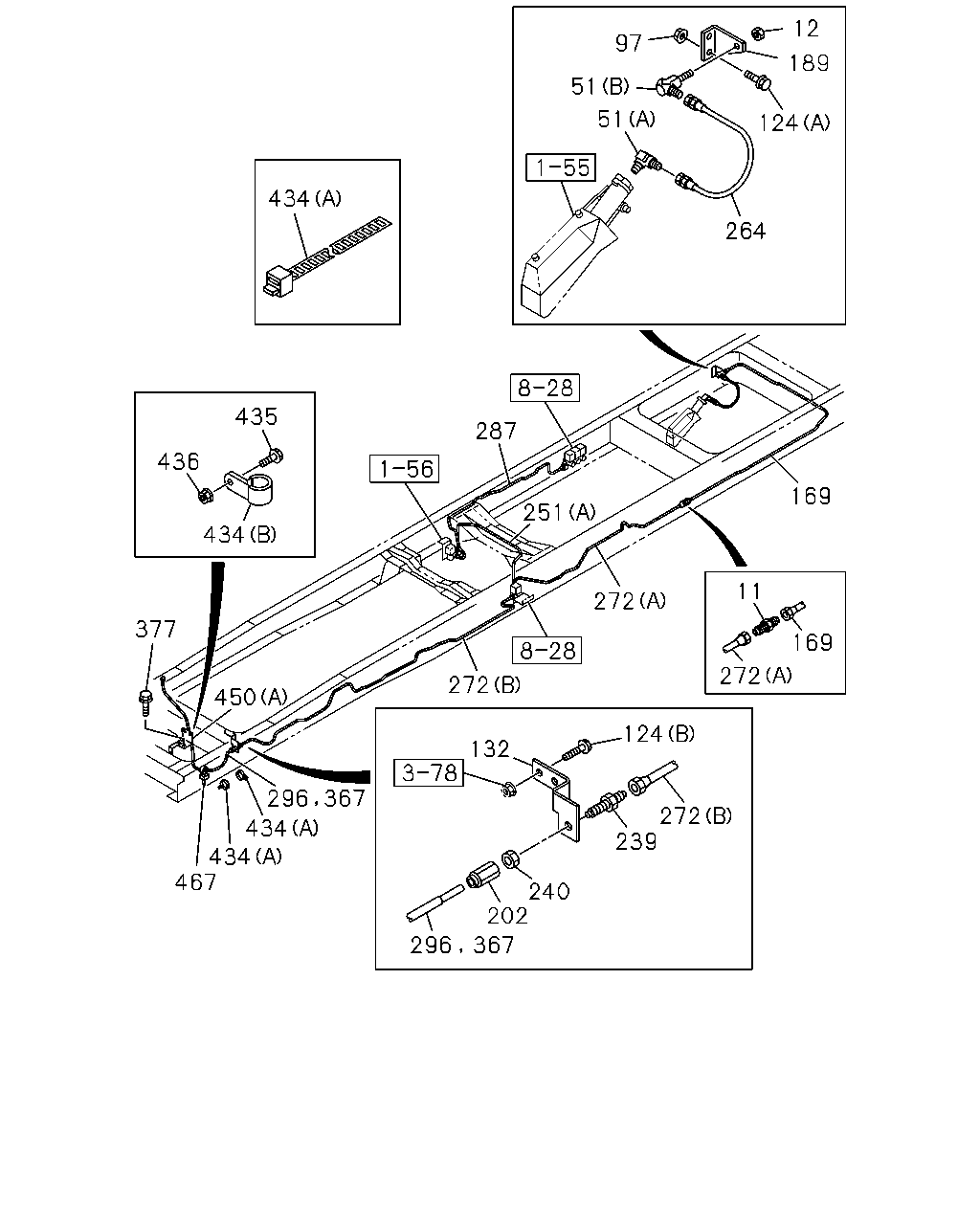

çizim 189137
367 296 202 240 239 272 124 132 272 367 296 434 434 467 450 377 272 272 169 11 169 251 287 435 436 434 434 264 124 189 12 97 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
11 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1011-1102 ●
11 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1103- ● ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 1011-1102 ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 1103-1306 ● ●
51 UNION
(B) M12 ELBOW 		0-92125-006-0 01 1 1011-1102 ●
51 UNION
(B) M12 ELBOW 		0-92125-006-0 01 1 1103-1306 ● ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011-1102 ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1103- ● ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1011-1102 ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1103- ● ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1011-1102 ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1103- ● ●
132 BRACKET; PIPE UNION 8-98122-875-0 01 1 1011-1102 ●
132 BRACKET; PIPE UNION 8-98122-875-0 01 1 1103- ● ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1857 SERVICED BY L=2000 		1-47428-823-0 01 1 1103-1306 ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=2078 SERVICED BY L=2200 		1-47428-824-0 01 1 1307- ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 1011-1306 ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1406 SERVICED BY L=1500 		1-47428-819-0 01 1 1307- ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 1011-1102 ●
189 BRACKET; FLEX HOSE 8-98054-640-0 01 1 1103-1306 ● ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1011- ● ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1011-1102 ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1103- ● ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1011-1102 ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1103- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=415 		8-98234-208-0 01 1 1307- ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=926 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1011-1102 ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1103-1306 ● ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 1011-1102 ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 1103-1306 ● ●
264 HOSE; FLEX
L=300 		1-09363-611-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1390 SERVICED BY L=1500 		1-47428-819-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (B) L=2422 		8-98122-837-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (B) L=2422 		8-98122-837-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2434 		8-98233-975-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (B) L=2449 		8-98122-836-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (B) L=2449 		8-98122-836-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2461 SERVICED BY L=2500 		1-47428-826-0 01 1 1307- ● ●
287 PIPE; AIR,MAG VLV
L=1337 SERVICED BY L=1370 		1-47428-818-0 01 1 1103-1306 ●
287 PIPE; AIR,MAG VLV
L=1063 		8-98138-240-1 01 1 1011-1306 ●
287 PIPE; AIR,MAG VLV
L=186 		8-98234-128-0 01 1 1307- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1011-1102 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1103- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1011-1102 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
434 CLIP
(C) ID=35 L=33 		1-09700-945-0 01 1 1103- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1011-1102 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1103-1306 ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1307- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1011-1102 ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1103-1306 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1011-1102 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1103-1306 ● ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1011-1306 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1011-1306 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1102 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ●
450 BRACKET; CLIP
(B) 		8-98116-173-0 01 1 1103- ●
450 BRACKET; CLIP
(A) 		8-98070-479-0 01 1 1011- ● ●
467 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1011-1102 ●
467 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1103-1306 ● ●

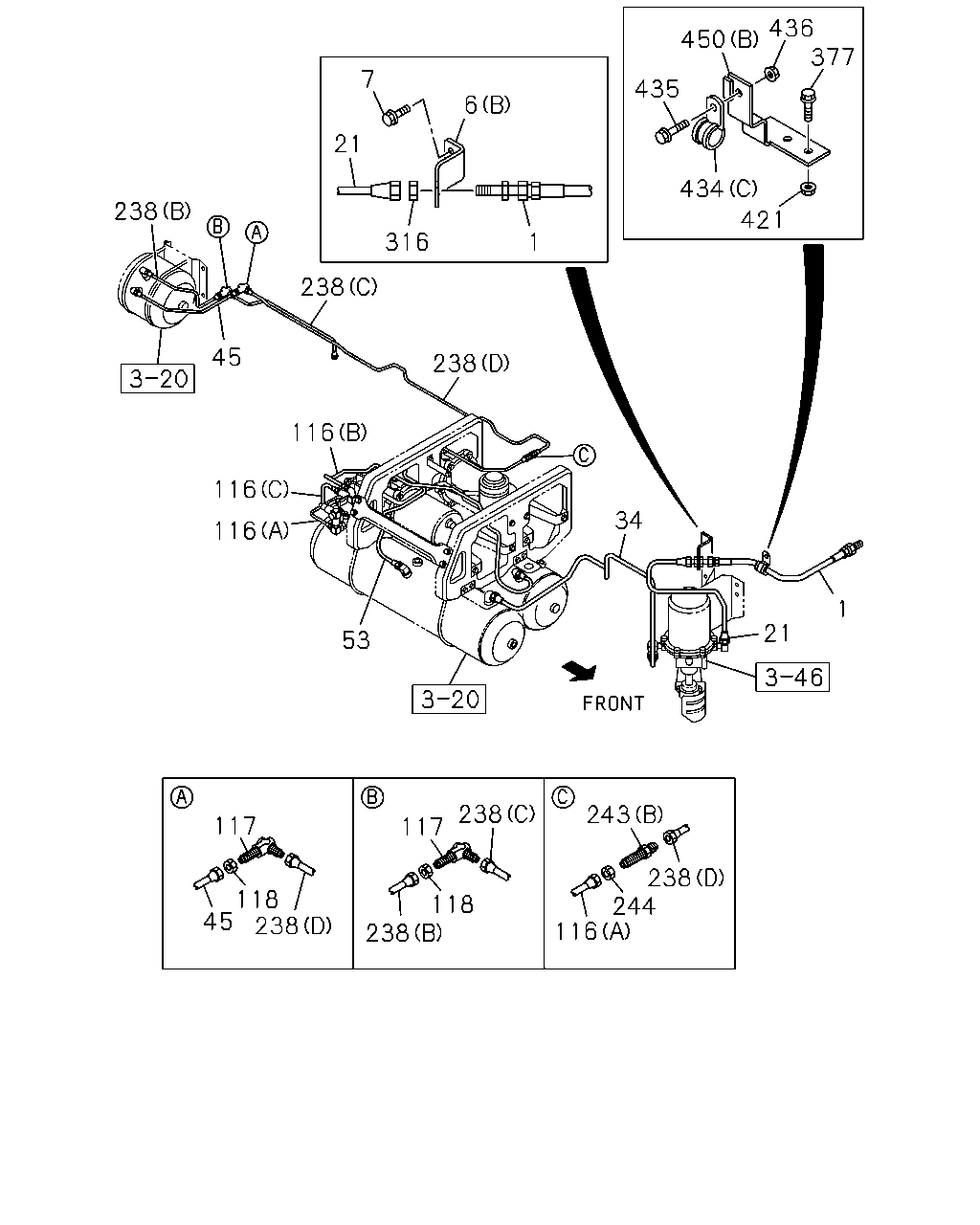

çizim 189192
238 45 238 238 316 1 21 7 6 435 434 421 450 436 377 1 21 34 116 116 116 53 117 45 118 238 238 118 117 238 243 238 244 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 1103- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 1103- ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 1011- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 1011- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 1103- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98119-929-0 01 1 1011- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 1103- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 1011-1306 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=826 		8-98234-138-0 01 1 1307- ●
34 PIPE; AIR
L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 1103-1306 ●
34 PIPE; AIR
L=1317 		8-98233-798-0 01 1 1307- ●
34 PIPE; AIR
L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1011-1306 ●
34 PIPE; AIR
L=409 		8-98234-137-0 01 1 1307- ●
45 PIPE; AIR,UNION TO AIR TANK
L=361 		8-98111-262-0 01 1 1103-1306 ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98244-583-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1011-1102 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1103-1306 ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98244-579-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1016 SERVICED BY L=1100 		1-47428-815-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=497 		8-98237-000-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(H) L=438 		8-98233-872-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 1103-1306 ●
116 PIPE; AIR,PROTECTION VLV
(I) L=972 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 1011-1306 ●
116 PIPE; AIR,PROTECTION VLV
(F) L=778 SERVICED BY L=800 		1-47428-812-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-561-0 01 1 1011-1102 ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-561-0 01 1 1103-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98230-363-0 01 1 1307- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 1011-1102 ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 1103-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(J) 		8-98236-892-0 01 1 1307- ● ●
117 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1103-1306 ●
117 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1307- ● ●
118 NUT; UNION
M12 		9-09840-280-0 02 1 1103-1306 ●
118 NUT; UNION
M12 		9-09840-280-0 01 1 1307- ● ●
238 PIPE; AIR,UNION TO UNION
(D) L=1398 SERVICED BY L=1500 		1-47428-819-0 01 1 1103-1306 ●
238 PIPE; AIR,UNION TO UNION
(E) L=1315 SERVICED BY L=1370 		1-47428-818-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(B) L=349 		8-98111-571-0 01 1 1103-1306 ●
238 PIPE; AIR,UNION TO UNION
(F) L=415 		8-98233-972-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(C) L=503 		8-98111-579-0 01 1 1103-1306 ●
238 PIPE; AIR,UNION TO UNION
(A) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 1011-1306 ●
243 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1103-1306 ●
243 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1011-1306 ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1011-1102 ●
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1103-1306 ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1011-1102 ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1103- ●
434 CLIP
(C) ID=35 L=33 		1-09700-945-0 01 1 1103- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1011-1102 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1103-1306 ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1307- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1011-1102 ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1103-1306 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1011-1102 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1103-1306 ● ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1011-1306 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1011-1306 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1102 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ●
450 BRACKET; CLIP
(B) 		8-98116-173-0 01 1 1103- ●
450 BRACKET; CLIP
(A) 		8-98070-479-0 01 1 1011- ● ●

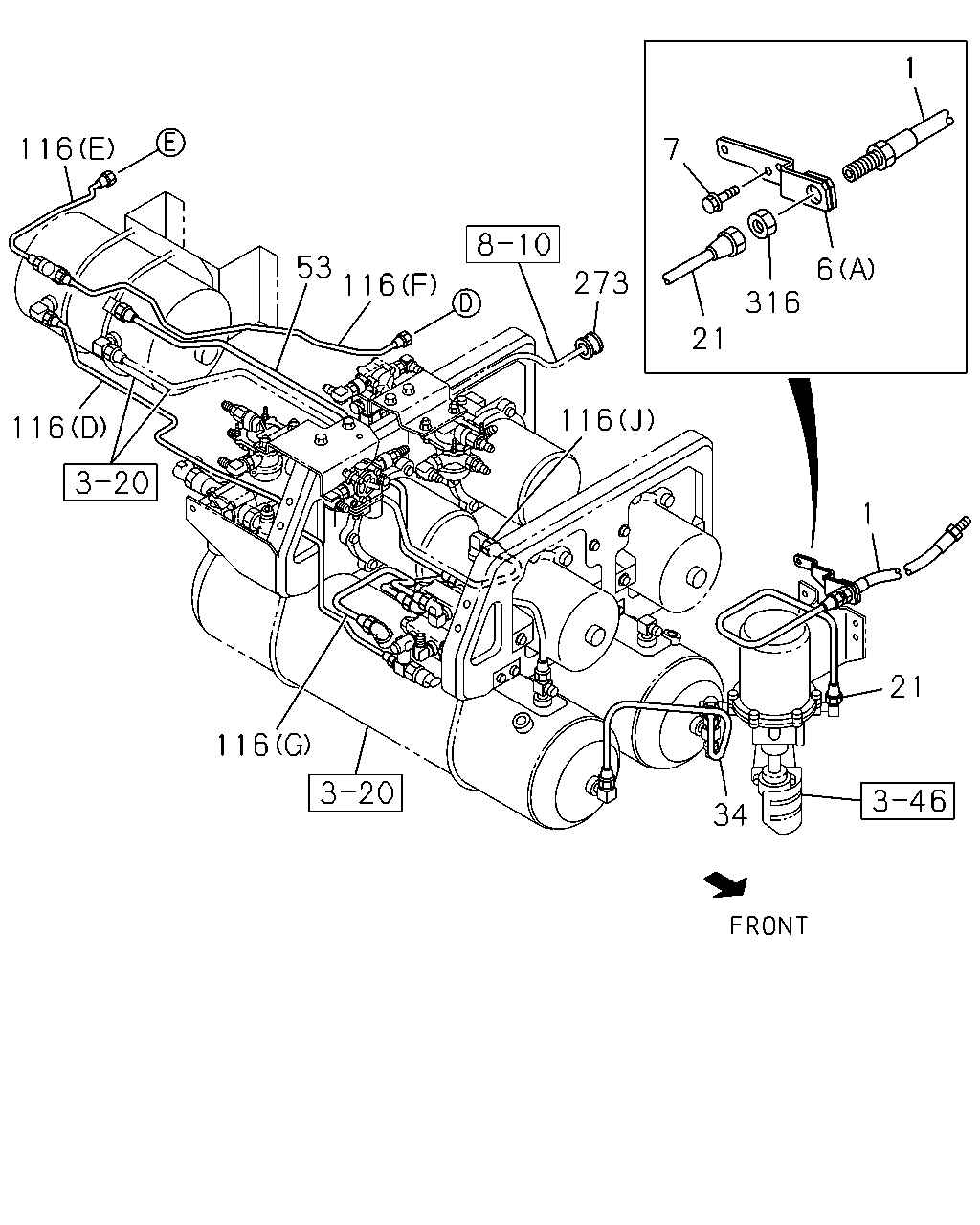

çizim 364377
116 53 116 116 273 21 7 316 6 1 1 21 34 116 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 1103- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 1103- ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 1011- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 1011- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 1103- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98119-929-0 01 1 1011- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 1103- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 1011-1306 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=826 		8-98234-138-0 01 1 1307- ●
34 PIPE; AIR
L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 1103-1306 ●
34 PIPE; AIR
L=1317 		8-98233-798-0 01 1 1307- ●
34 PIPE; AIR
L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1011-1306 ●
34 PIPE; AIR
L=409 		8-98234-137-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98244-583-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1011-1102 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1103-1306 ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98244-579-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1016 SERVICED BY L=1100 		1-47428-815-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=497 		8-98237-000-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(H) L=438 		8-98233-872-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 1103-1306 ●
116 PIPE; AIR,PROTECTION VLV
(I) L=972 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 1011-1306 ●
116 PIPE; AIR,PROTECTION VLV
(F) L=778 SERVICED BY L=800 		1-47428-812-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-561-0 01 1 1011-1102 ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-561-0 01 1 1103-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98230-363-0 01 1 1307- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 1011-1102 ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 1103-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(J) 		8-98236-892-0 01 1 1307- ● ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1307- ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1011-1102 ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1103- ● ●

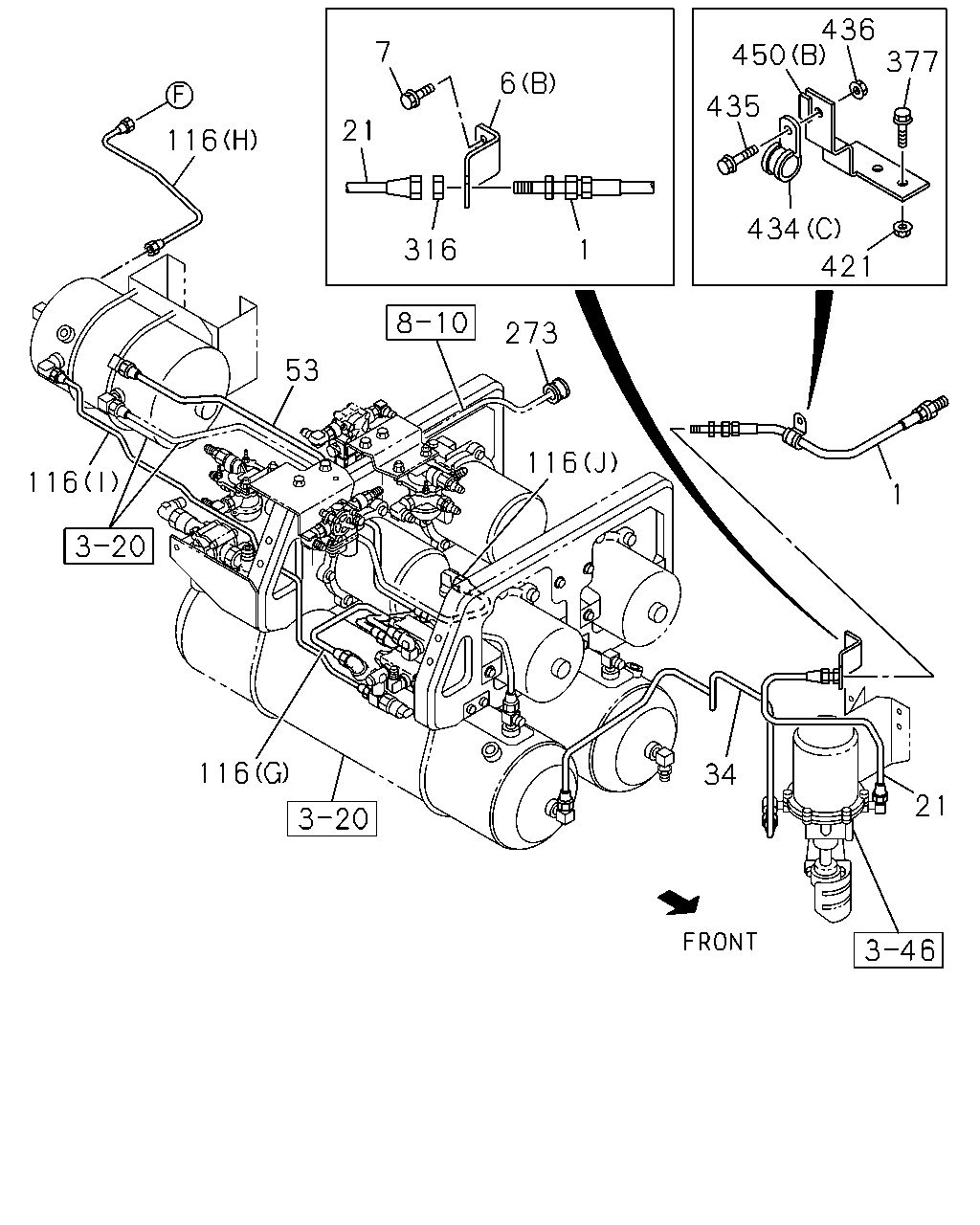

çizim 364404
116 7 21 6 316 450 436 435 434 377 421 273 53 116 116 116 34 21 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98114-274-0 01 1 1103- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98116-053-0 01 1 1103- ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98080-164-0 01 1 1011- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-913-0 01 1 1011- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-98116-174-0 01 1 1103- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98119-929-0 01 1 1011- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
21 PIPE; AIR,UNION TO AIR DRYER
L=703 		8-98095-357-0 01 1 1103- ●
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 1011-1306 ●
21 PIPE; AIR,UNION TO AIR DRYER
L=826 		8-98234-138-0 01 1 1307- ●
34 PIPE; AIR
L=1262 SERVICED BY L=1300 		1-49115-488-0 01 1 1103-1306 ●
34 PIPE; AIR
L=1317 		8-98233-798-0 01 1 1307- ●
34 PIPE; AIR
L=526 SERVICED BY L=550 		1-49115-478-0 01 1 1011-1306 ●
34 PIPE; AIR
L=409 		8-98234-137-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98244-583-0 01 1 1307- ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1011-1102 ●
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 1103-1306 ● ●
53 PIPE; AIR,AIR TANK TO VALVE 8-98244-579-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(D) L=1016 SERVICED BY L=1100 		1-47428-815-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=497 		8-98237-000-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(H) L=438 		8-98233-872-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 1103-1306 ●
116 PIPE; AIR,PROTECTION VLV
(I) L=972 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=584 SERVICED BY L=600 		1-47428-809-0 01 1 1011-1306 ●
116 PIPE; AIR,PROTECTION VLV
(F) L=778 SERVICED BY L=800 		1-47428-812-0 01 1 1307- ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-561-0 01 1 1011-1102 ●
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-561-0 01 1 1103-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(G) 		8-98230-363-0 01 1 1307- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 1011-1102 ●
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 1103-1306 ● ●
116 PIPE; AIR,PROTECTION VLV
(J) 		8-98236-892-0 01 1 1307- ● ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1307- ● ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1011-1102 ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1103- ●
434 CLIP
(C) ID=35 L=33 		1-09700-945-0 01 1 1103- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1011-1102 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1103-1306 ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1307- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1011-1102 ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1103-1306 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1011-1102 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1103-1306 ● ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1011-1306 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1011-1306 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1102 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ●
450 BRACKET; CLIP
(B) 		8-98116-173-0 01 1 1103- ●
450 BRACKET; CLIP
(A) 		8-98070-479-0 01 1 1011- ● ●

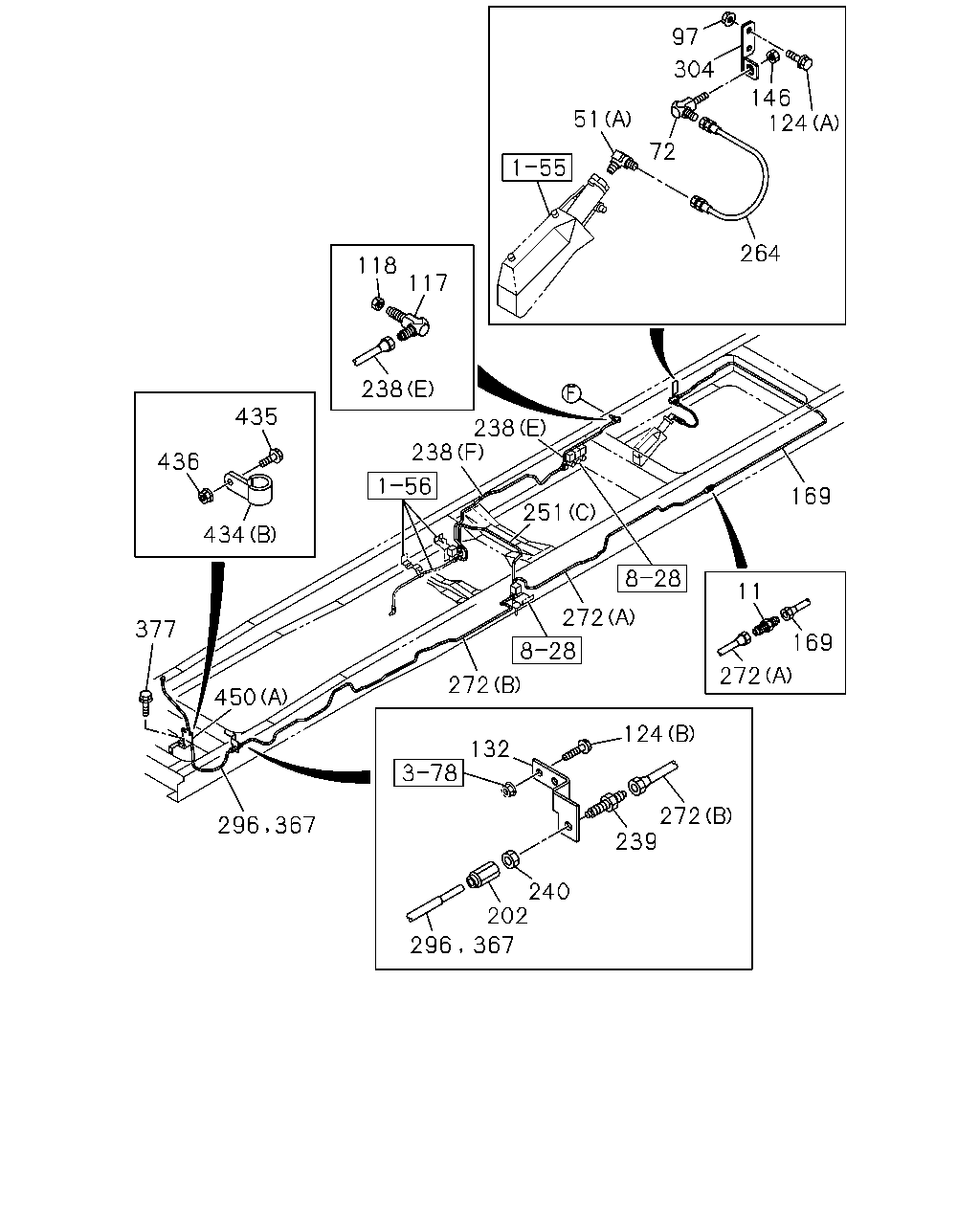

çizim 365839
97 304 146 124 72 51 264 118 117 238 238 238 251 169 11 169 272 124 132 272 239 240 202 367 296 272 272 367 296 450 377 434 436 435
BalonParca AdiParca NoAdetTipApplied Date A B
11 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1011-1102 ●
11 UNION; AIR PIPE
M12 L=40 		0-92113-006-0 01 1 1103- ● ●
51 UNION
(B) M12 ELBOW 		0-92125-006-0 01 1 1011-1102 ●
51 UNION
(B) M12 ELBOW 		0-92125-006-0 01 1 1103-1306 ● ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011-1102 ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1103- ● ●
72 UNION; AIR PIPE
M12 ELBOW 		0-92125-006-0 01 1 1307- ● ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
97 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
117 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 1103-1306 ●
117 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1307- ● ●
118 NUT; UNION
M12 		9-09840-280-0 02 1 1103-1306 ●
118 NUT; UNION
M12 		9-09840-280-0 01 1 1307- ● ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1011-1102 ●
124 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1103- ● ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1011-1102 ●
124 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 02 1 1103- ● ●
132 BRACKET; PIPE UNION 8-98122-875-0 01 1 1011-1102 ●
132 BRACKET; PIPE UNION 8-98122-875-0 01 1 1103- ● ●
146 NUT; UNION
M12 		9-09840-280-0 01 1 1307- ● ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1857 SERVICED BY L=2000 		1-47428-823-0 01 1 1103-1306 ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=2078 SERVICED BY L=2200 		1-47428-824-0 01 1 1307- ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1173 SERVICED BY L=1200 		1-47428-816-0 01 1 1011-1306 ●
169 PIPE; AIR,UNION TO FLEX HOSE
L=1406 SERVICED BY L=1500 		1-47428-819-0 01 1 1307- ●
202 ADAPTER
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1011- ● ●
238 PIPE; AIR,UNION TO UNION
(D) L=1398 SERVICED BY L=1500 		1-47428-819-0 01 1 1103-1306 ●
238 PIPE; AIR,UNION TO UNION
(E) L=1315 SERVICED BY L=1370 		1-47428-818-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(B) L=349 		8-98111-571-0 01 1 1103-1306 ●
238 PIPE; AIR,UNION TO UNION
(F) L=415 		8-98233-972-0 01 1 1307- ●
238 PIPE; AIR,UNION TO UNION
(C) L=503 		8-98111-579-0 01 1 1103-1306 ●
238 PIPE; AIR,UNION TO UNION
(A) L=593 SERVICED BY L=600 		1-47428-809-0 01 1 1011-1306 ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1011-1102 ●
239 UNION; AIR PIPE
M12 L=56.5 		0-92113-106-0 01 1 1103- ● ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1011-1102 ●
240 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1103- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=415 		8-98234-208-0 01 1 1307- ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=926 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1011-1102 ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1103-1306 ● ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=948 SERVICED BY L=1000 		1-47428-814-0 01 1 1307- ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 1011-1102 ●
264 HOSE; FLEX
L=350 		1-09363-877-0 01 1 1103-1306 ● ●
264 HOSE; FLEX
L=300 		1-09363-611-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1359 SERVICED BY L=1370 		1-47428-818-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
(A) L=1390 SERVICED BY L=1500 		1-47428-819-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (B) L=2422 		8-98122-837-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> (B) L=2422 		8-98122-837-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2434 		8-98233-975-0 01 1 1307- ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (B) L=2449 		8-98122-836-0 01 1 1011-1102 ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6> (B) L=2449 		8-98122-836-0 01 1 1103-1306 ● ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=2461 SERVICED BY L=2500 		1-47428-826-0 01 1 1307- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1011-1102 ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1103- ● ●
304 BRACKET; UNION 8-98234-504-0 01 1 1307- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1011-1102 ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
434 CLIP
(C) ID=35 L=33 		1-09700-945-0 01 1 1103- ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1011-1102 ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1103-1306 ● ●
434 CLIP
(B) ID=7 L=20 		0-95234-635-0 01 1 1307- ● ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1011-1102 ●
434 CLIP
(A) L=600 		1-09707-107-1 01 1 1103-1306 ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1011-1102 ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1103-1306 ● ●
434 CLIP
(A) L=250 		5-09707-030-1 02 1 1011-1306 ●
434 CLIP
(A) L=140 		5-09707-031-1 02 1 1011-1306 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1011-1102 ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1103- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1011-1102 ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103- ●
450 BRACKET; CLIP
(B) 		8-98116-173-0 01 1 1103- ●
450 BRACKET; CLIP
(A) 		8-98070-479-0 01 1 1011- ● ●
çizim 365865

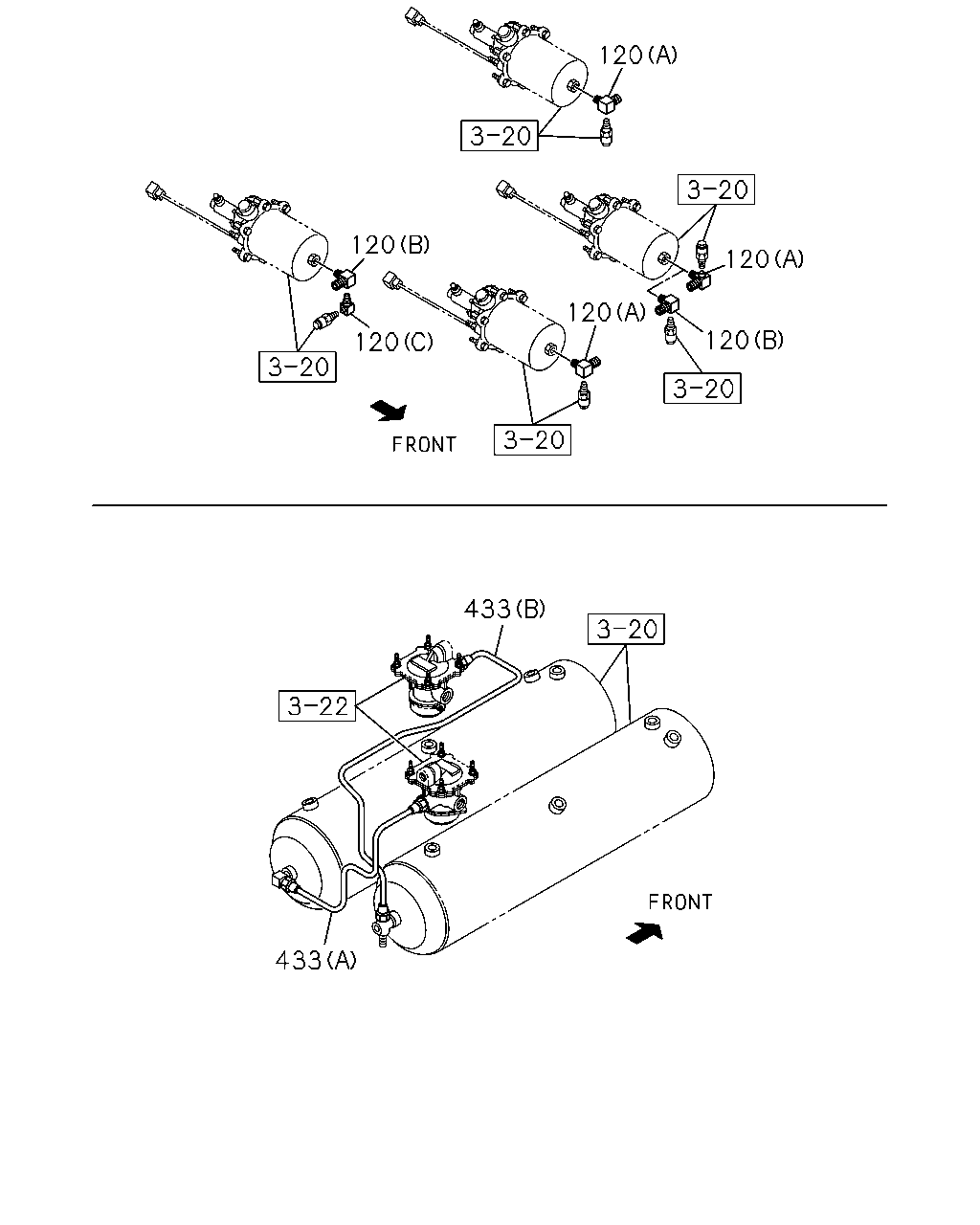

120 120 120 120 120 120 433 433
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE
(A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 03 1 1307- ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1307- ●
120 CONNECTOR; AIR PIPE
(C) PT1/4 2WAY 		1-09660-693-0 01 1 1307- ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 02 1 1307- ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 02 1 1307- ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
(A) L=486 		8-98236-978-0 01 1 1307- ● ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
(B) L=950 		8-98244-370-0 01 1 1307- ● ●
çizim 366501

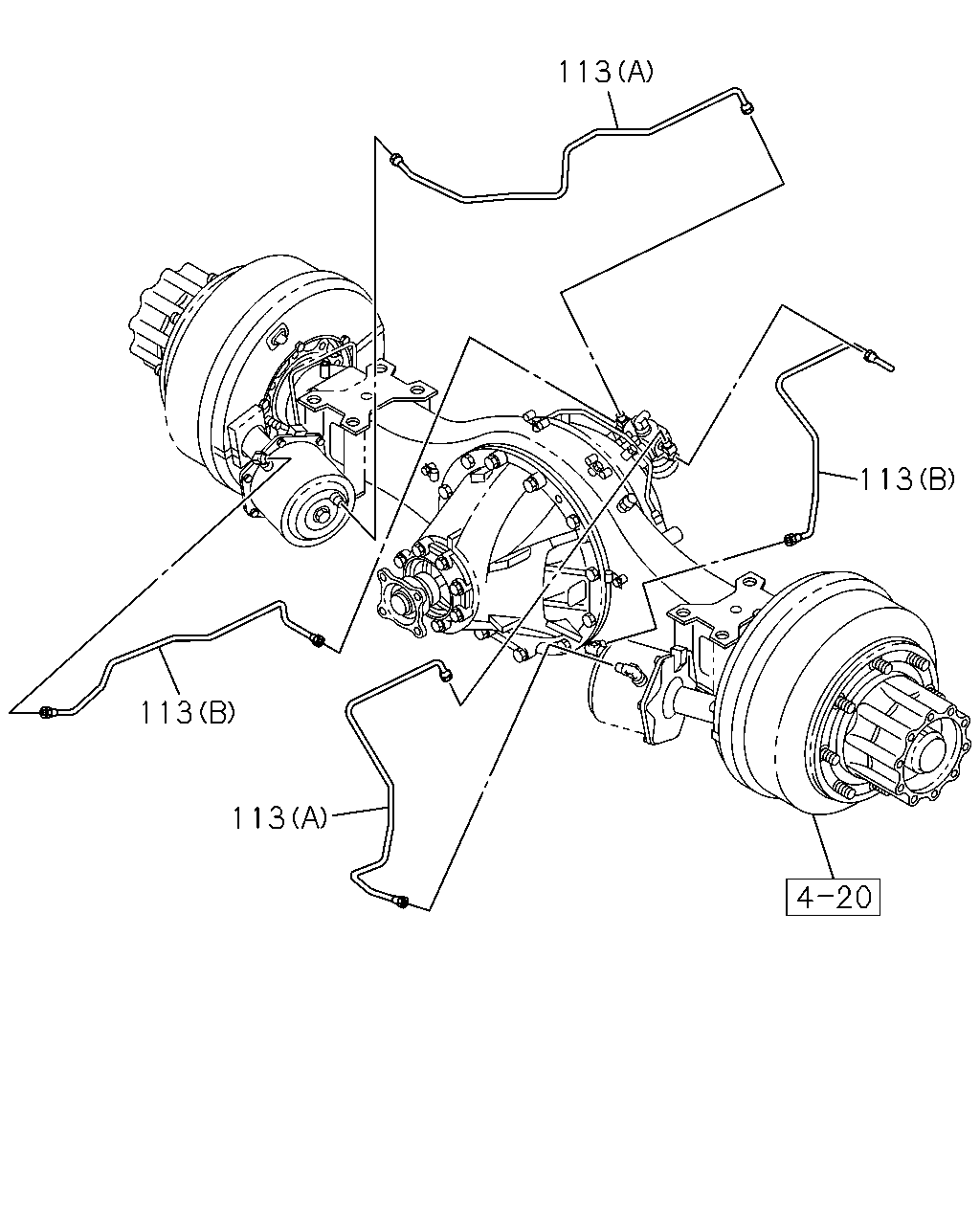

113 113 113 113
BalonParca AdiParca NoAdetTipApplied Date A B
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-688-0 01 1 1011-1102 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-688-0 01 1 1103- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-689-0 01 1 1011-1102 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-689-0 01 1 1103- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=838 		8-98095-146-0 01 1 1011-1102 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=838 		8-98095-146-0 01 1 1103- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=838 		8-98095-147-0 01 1 1011-1102 ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=838 		8-98095-147-0 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
