Isuzu WW
▶
TRUCKS
▶
FSS
▶
11306 - FSS(AUST/NZ)EURO5
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#69844) — 22 parça
Tümü
A - FCS5WS
B - FCS5MS
◀

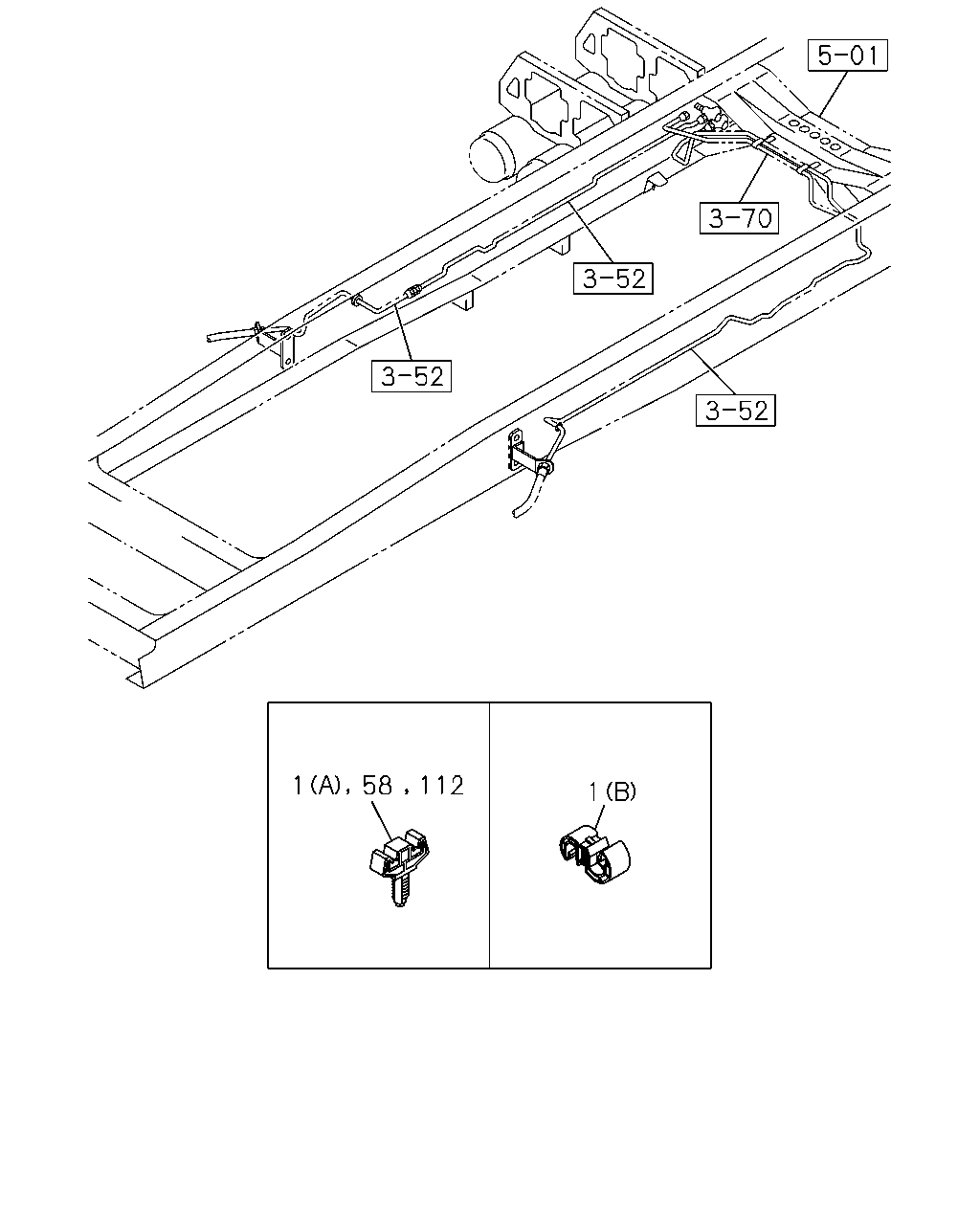

[358A] FRAME SIDE (16 parça)

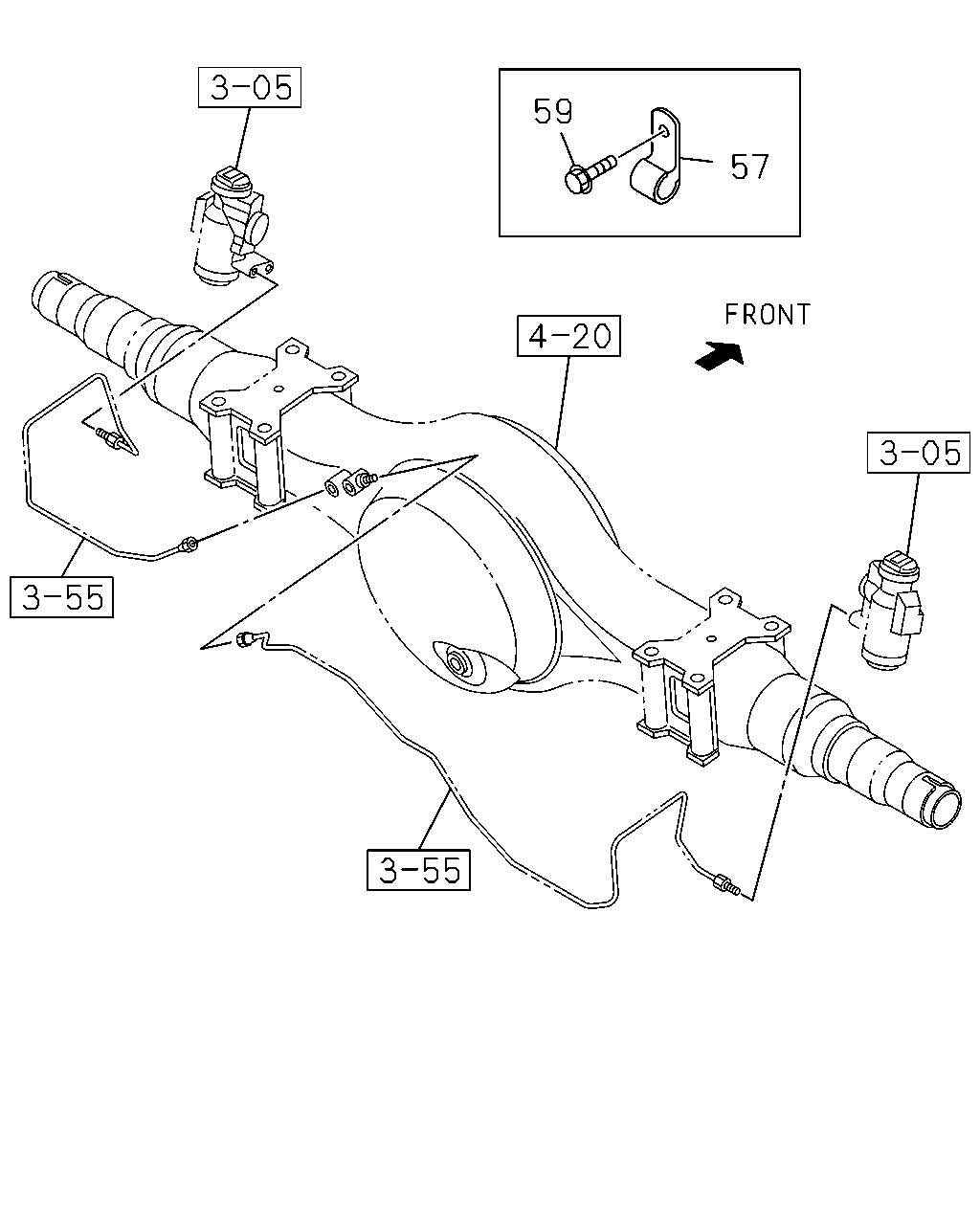

[358A] REAR AXLE SIDE (6 parça)
▶
1
112
58
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; OIL PIPE TO BODY
(B) ID=6.35 & 10.0
1-09709-274-1
01
1
1408-
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
1307-
●
1
CLIP; OIL PIPE TO BODY
(B) ID=4.76 & 6.35
1-09709-304-0
01
1
1011-1102
●
1
CLIP; OIL PIPE TO BODY
(B) ID=4.76 & 6.35
1-09709-304-0
01
1
1103-1306
●
●
1
CLIP; OIL PIPE TO BODY
(B) ID=6.35 & 6.35
1-09709-273-1
01
1
1307-
●
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
06
1
1011-1102
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
06
1
1103-1306
●
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
07
1
1307-
●
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
1011-1102
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
1103-1306
●
●
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
02
1
1307-
●
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1011-1102
●
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1103-
●
●
112
CLIP; OIL PIPE
8-98012-254-1
02
1
1307-
●
112
CLIP; OIL PIPE
8-98012-254-1
02
1
1011-1306
●
112
CLIP; OIL PIPE
8-98012-254-1
03
1
1307-
●
57
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
05
1
1011-1102
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
05
1
1103-1211
●
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
07
1
1212-
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
05
1
1011-1102
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
05
1
1103-1211
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
07
1
1212-
●
●
