3-55 — BRAKE PIPING; OIL,REAR (#69843) — 84 parça

138 33 46 75 138 33 33 32 39 1 39 4 1 3 4 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

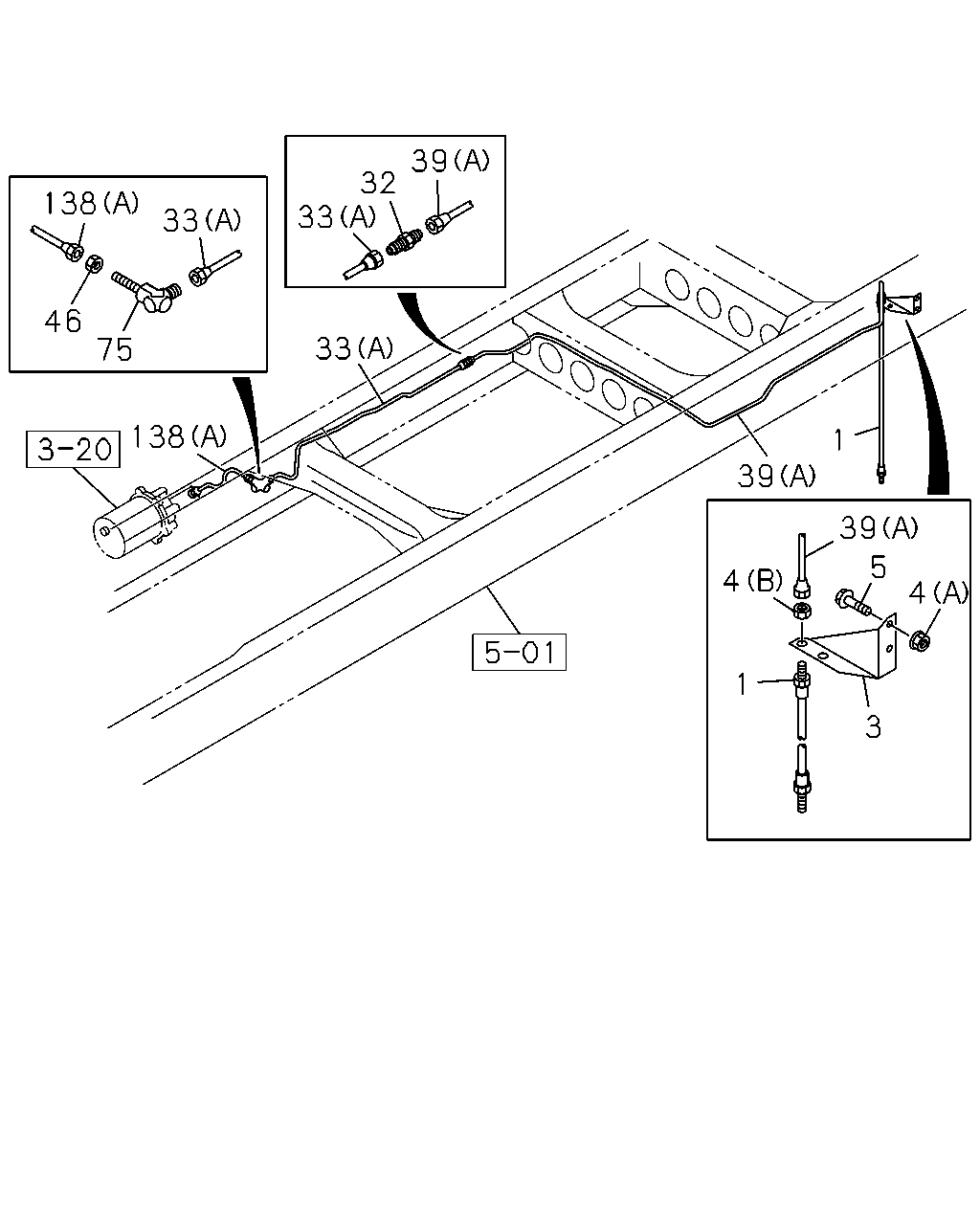

1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	1011-1102	●
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	1103-1306	●	●
1	HOSE; FLEX,RR BRK L=690	0-05213-690-0	02	1	1307-	●	●
3	BRACKET; FLEX HOSE,RR BRK	8-98093-550-0	01	1	1011-1102	●
3	BRACKET; FLEX HOSE,RR BRK	8-98093-550-0	01	1	1103-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1011-1102	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1103-1306	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	02	1	1307-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1011-	●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1011-1102	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1103-	●	●
33	PIPE; OIL,UNION TO UNION (C) L=1093 SERVICED BY L=1100	1-47428-731-0	01	1	1307-	●
33	PIPE; OIL,UNION TO UNION (C) L=976 SERVICED BY L=1000	1-47428-730-0	01	1	1307-		●
33	PIPE; OIL,UNION TO UNION (A) L=1364	8-98111-596-0	01	1	1103-1306		●
33	PIPE; OIL,UNION TO UNION (B) L=1026 SERVICED BY L=1100	1-47428-731-0	01	1	1307-		●
33	PIPE; OIL,UNION TO UNION (A) L=1147	8-98138-233-0	01	1	1011-1306	●
33	PIPE; OIL,UNION TO UNION (B) L=1281 SERVICED BY L=1370	1-47428-734-0	01	1	1307-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2100 SERVICED BY L=2200	1-47428-740-0	01	1	1307-	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	1011-1102	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	1103-1306	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2028 SERVICED BY L=2200	1-47428-740-0	01	1	1307-	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1011-1102	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1103-1306	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	1307-	●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1011-1102	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1103-1306	●	●
75	UNION; OIL PIPE M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
138	PIPE; HYDRAULIC UNIT (C) L=515	8-98233-908-0	01	1	1307-		●
138	PIPE; HYDRAULIC UNIT (B) L=348	8-98233-910-0	01	1	1307-		●
138	PIPE; HYDRAULIC UNIT (A) L=622 SERVICED BY L=650	1-47428-726-0	01	1	1103-1306		●
138	PIPE; HYDRAULIC UNIT (C) L=413	8-98244-164-0	01	1	1307-	●
138	PIPE; HYDRAULIC UNIT (A) L=491	8-98108-549-0	01	1	1011-1306	●
138	PIPE; HYDRAULIC UNIT (B) L=237	8-98244-163-0	01	1	1307-	●

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

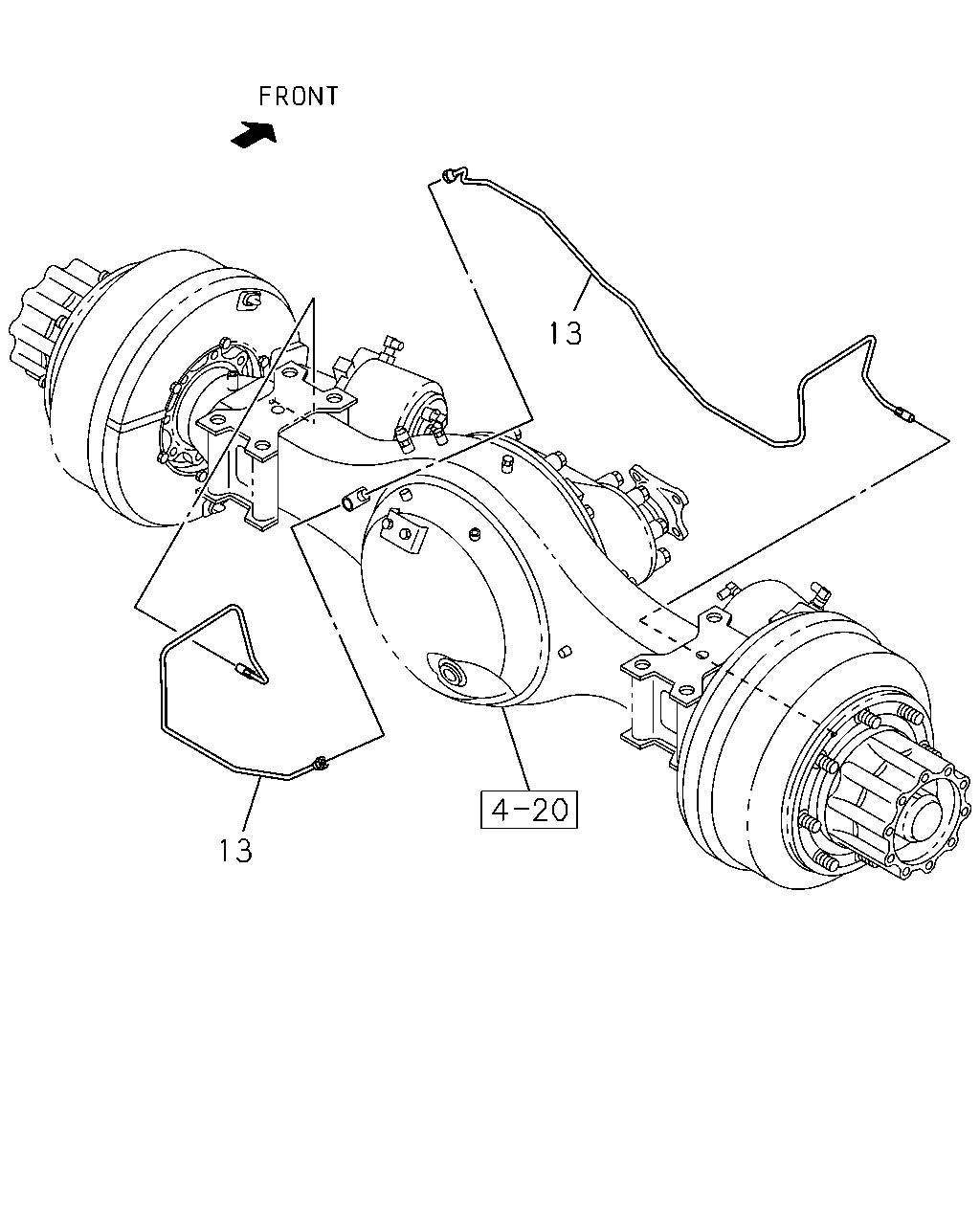

13	PIPE; BRK,RR AXLE	8-98029-681-0	01	1	1011-1102	●
13	PIPE; BRK,RR AXLE	8-98029-681-0	01	1	1103-1306	●	●
13	PIPE; BRK,RR AXLE	8-98232-734-1	01	1	1307-	●	●
13	PIPE; BRK,RR AXLE	8-98029-682-0	01	1	1011-1102	●
13	PIPE; BRK,RR AXLE	8-98029-682-0	01	1	1103-1306	●	●
13	PIPE; BRK,RR AXLE	8-98232-735-1	01	1	1307-	●	●

39 39 33 33 138 138 46 75 33 33 138 138 33 32 39 33 39 1 1 39 39 4 4 5 4 3 1 1 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

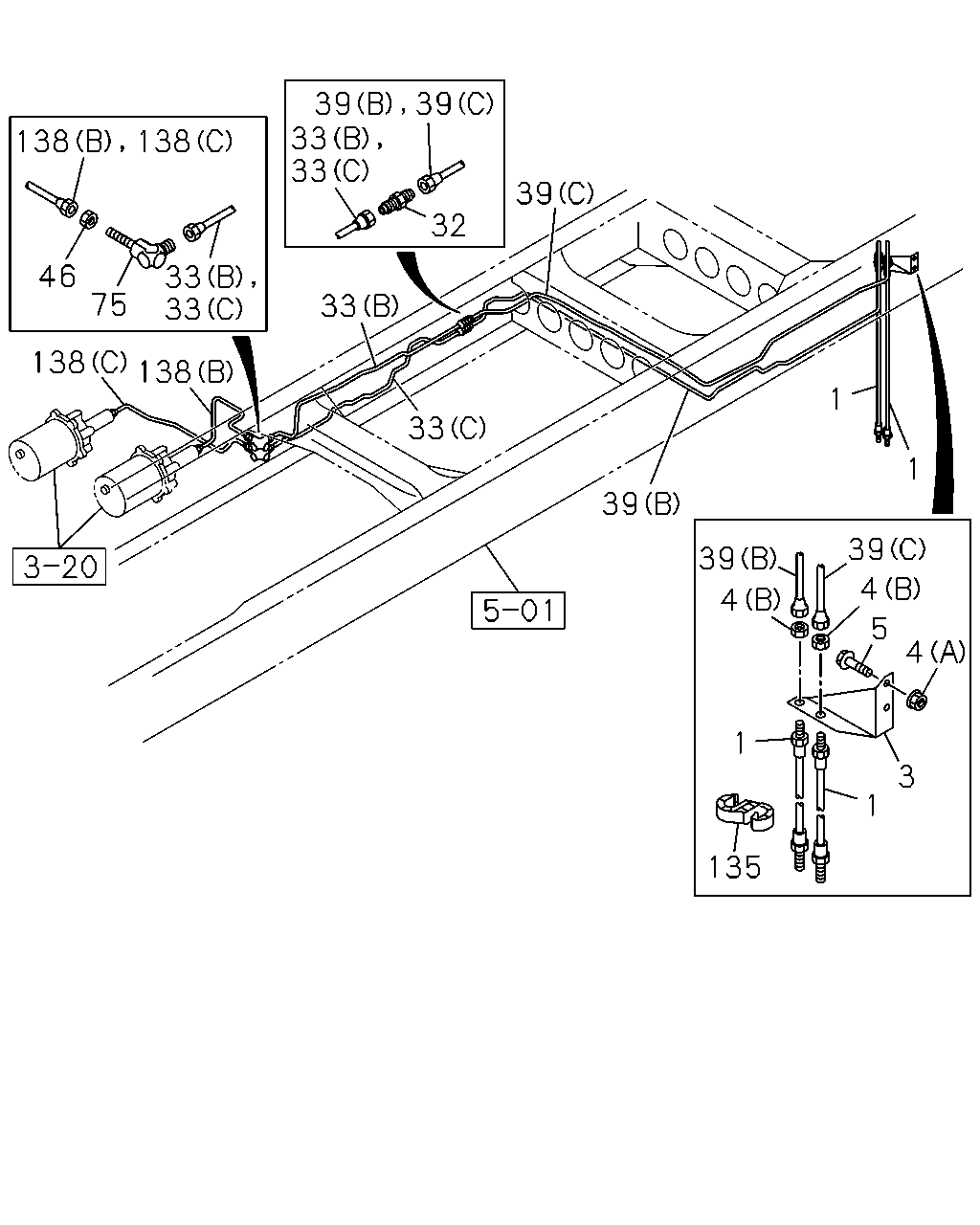

1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	1011-1102	●
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	1103-1306	●	●
1	HOSE; FLEX,RR BRK L=690	0-05213-690-0	02	1	1307-	●	●
3	BRACKET; FLEX HOSE,RR BRK	8-98093-550-0	01	1	1011-1102	●
3	BRACKET; FLEX HOSE,RR BRK	8-98093-550-0	01	1	1103-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	1011-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1011-1102	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1103-1306	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	02	1	1307-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1011-	●	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1011-1102	●
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	02	1	1103-	●	●
33	PIPE; OIL,UNION TO UNION (C) L=1093 SERVICED BY L=1100	1-47428-731-0	01	1	1307-	●
33	PIPE; OIL,UNION TO UNION (C) L=976 SERVICED BY L=1000	1-47428-730-0	01	1	1307-		●
33	PIPE; OIL,UNION TO UNION (A) L=1364	8-98111-596-0	01	1	1103-1306		●
33	PIPE; OIL,UNION TO UNION (B) L=1026 SERVICED BY L=1100	1-47428-731-0	01	1	1307-		●
33	PIPE; OIL,UNION TO UNION (A) L=1147	8-98138-233-0	01	1	1011-1306	●
33	PIPE; OIL,UNION TO UNION (B) L=1281 SERVICED BY L=1370	1-47428-734-0	01	1	1307-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (B) L=2100 SERVICED BY L=2200	1-47428-740-0	01	1	1307-	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	1011-1102	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (A) L=2022 SERVICED BY L=2200	1-47428-740-0	01	1	1103-1306	●	●
39	PIPE; OIL,UNION TO RR FLEX HOSE (C) L=2028 SERVICED BY L=2200	1-47428-740-0	01	1	1307-	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1011-1102	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1103-1306	●	●
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	1307-	●	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1011-1102	●
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1103-1306	●	●
75	UNION; OIL PIPE M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
135	CLIP; FLEX HOSE ID=10 & 10	1-09709-277-1	01	1	1307-	●	●
138	PIPE; HYDRAULIC UNIT (C) L=515	8-98233-908-0	01	1	1307-		●
138	PIPE; HYDRAULIC UNIT (B) L=348	8-98233-910-0	01	1	1307-		●
138	PIPE; HYDRAULIC UNIT (A) L=622 SERVICED BY L=650	1-47428-726-0	01	1	1103-1306		●
138	PIPE; HYDRAULIC UNIT (C) L=413	8-98244-164-0	01	1	1307-	●
138	PIPE; HYDRAULIC UNIT (A) L=491	8-98108-549-0	01	1	1011-1306	●
138	PIPE; HYDRAULIC UNIT (B) L=237	8-98244-163-0	01	1	1307-	●

13 1 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	1011-1102	●
1	HOSE; FLEX,RR BRK L=730	0-05213-730-0	01	1	1103-1306	●	●
1	HOSE; FLEX,RR BRK L=690	0-05213-690-0	02	1	1307-	●	●

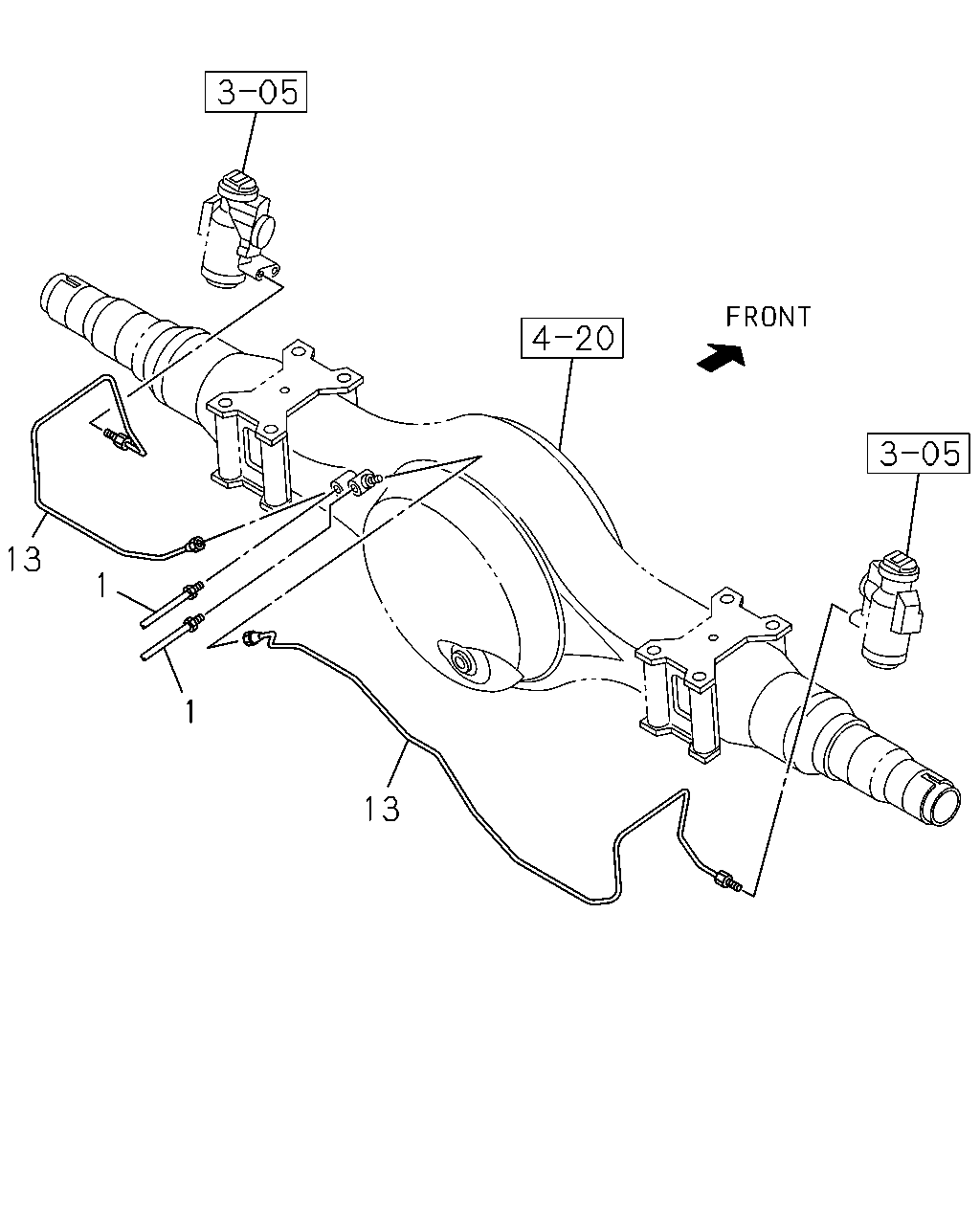

13	PIPE; BRK,RR AXLE	8-98029-681-0	01	1	1011-1102	●
13	PIPE; BRK,RR AXLE	8-98029-681-0	01	1	1103-1306	●	●
13	PIPE; BRK,RR AXLE	8-98232-734-1	01	1	1307-	●	●
13	PIPE; BRK,RR AXLE	8-98029-682-0	01	1	1011-1102	●
13	PIPE; BRK,RR AXLE	8-98029-682-0	01	1	1103-1306	●	●
13	PIPE; BRK,RR AXLE	8-98232-735-1	01	1	1307-	●	●
