Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#69842) — 209 parça

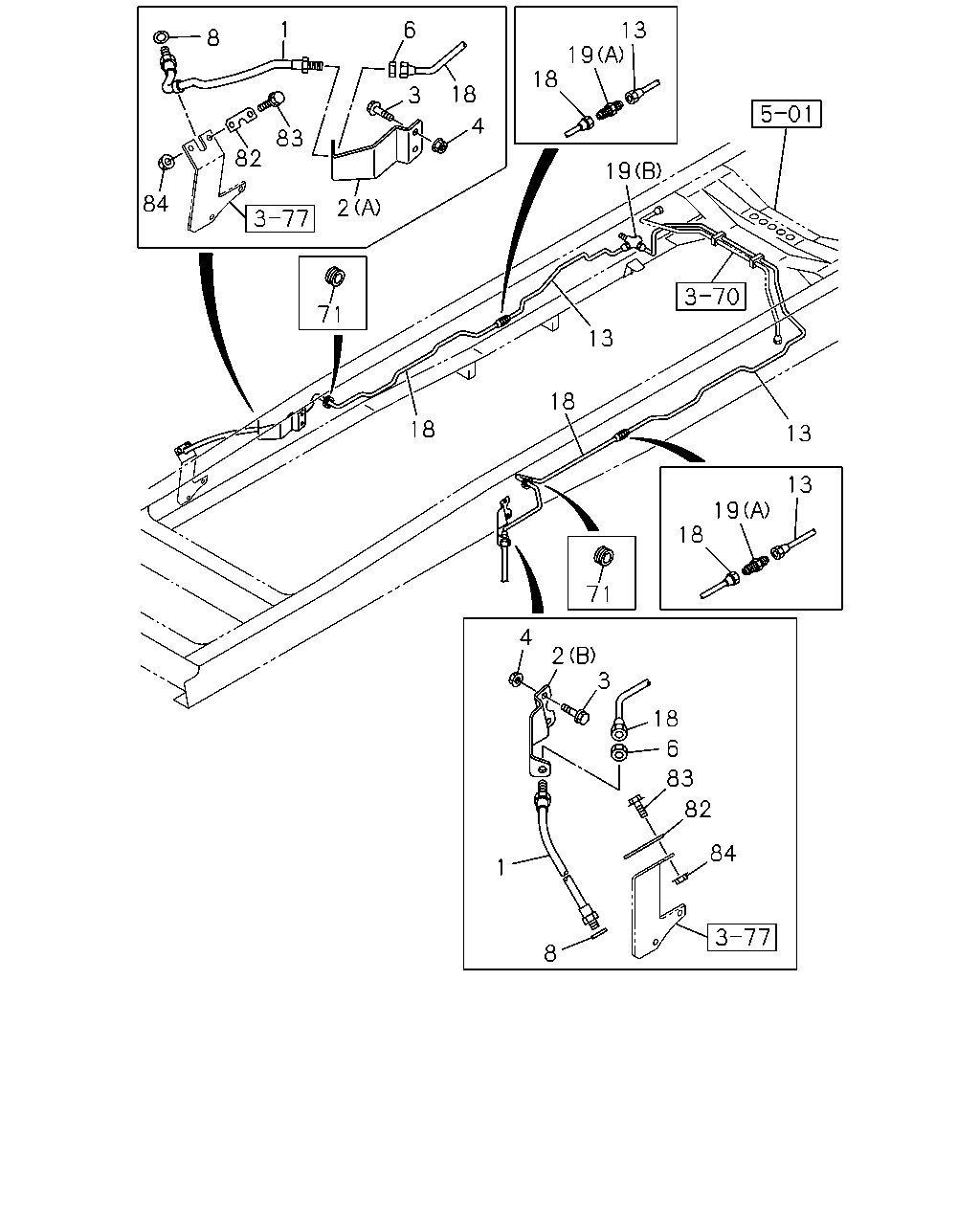

8 1 6 4 18 3 2 83 82 84 71 18 18 13 13 13 19 18 71 18 19 13 19 4 2 3 18 6 83 82 84 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-97623-929-0	02	1	1011-1102	●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	02	1	1103-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	1011-1102	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	1103-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98113-700-0	01	1	1011-1102	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98113-700-0	01	1	1103-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1011-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1103-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1011-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1011-	●	●
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1244 SERVICED BY L=1250	1-47428-733-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1328 SERVICED BY L=1370	1-47428-734-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1906 SERVICED BY L=2000	1-47428-739-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1982 SERVICED BY L=2000	1-47428-739-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2042 SERVICED BY L=2200	1-47428-740-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1011-1306	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=964 SERVICED BY L=1000	1-47428-730-0	01	1	1307-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1011-1102	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1103-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=1003 SERVICED BY L=1100	1-47428-731-0	01	1	1307-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1011-1102	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1103-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1307-		●
19	UNION; OIL PIPE (C) M12 3WAY	0-92138-606-0	01	1	1103-1306		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1307-		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1011-1102	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1103-1306	●	●
19	UNION; OIL PIPE (D) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1011-1306	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	1307-	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1011-	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	1011-	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	1011-	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1011-	●	●

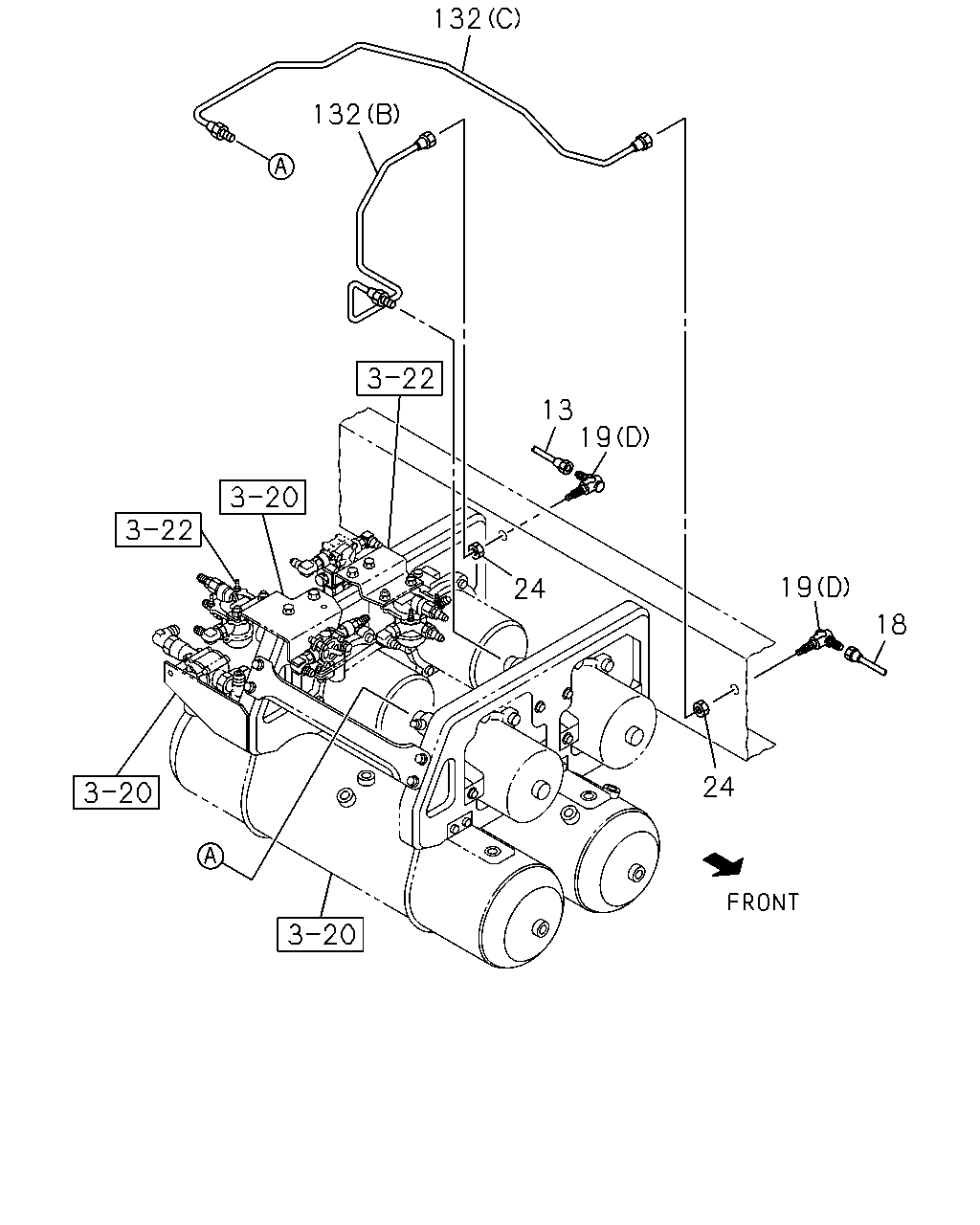

132 24 13 19 18 19 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1244 SERVICED BY L=1250	1-47428-733-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1328 SERVICED BY L=1370	1-47428-734-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1906 SERVICED BY L=2000	1-47428-739-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1982 SERVICED BY L=2000	1-47428-739-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2042 SERVICED BY L=2200	1-47428-740-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1011-1306	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=964 SERVICED BY L=1000	1-47428-730-0	01	1	1307-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1011-1102	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1103-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=1003 SERVICED BY L=1100	1-47428-731-0	01	1	1307-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1011-1102	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1103-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1307-		●
19	UNION; OIL PIPE (C) M12 3WAY	0-92138-606-0	01	1	1103-1306		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1307-		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1011-1102	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1103-1306	●	●
19	UNION; OIL PIPE (D) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1011-1306	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	1307-	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1011-1102	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1103-1306	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	1307-	●	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=354	8-98236-937-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT (D) L=171	8-98233-906-0	01	1	1307-1407		●
132	PIPE; OIL,BRK,HYD UNIT (D) L=635	8-98281-127-0	01	1	1408-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=902 SERVICED BY L=1000	1-47428-730-0	01	1	1103-1306		●
132	PIPE; OIL,BRK,HYD UNIT (E) L=426	8-98233-904-0	01	1	1307-1407		●
132	PIPE; OIL,BRK,HYD UNIT (E) L=273	8-98281-126-0	01	1	1408-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=521 SERVICED BY L=550	1-47428-724-0	01	1	1011-1306	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=811	8-98236-936-0	01	1	1307-	●

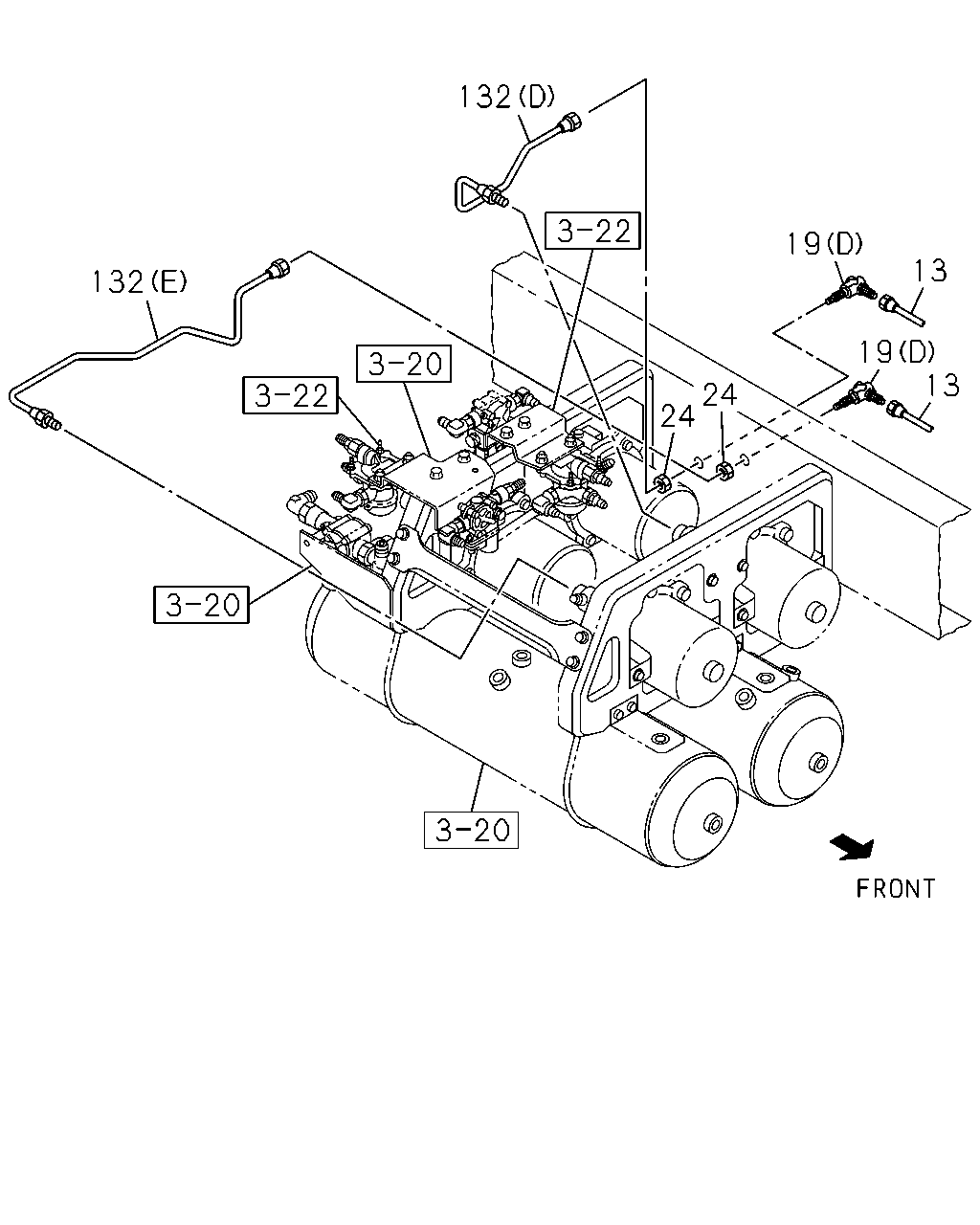

132 132 13 19 24 19 18 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1244 SERVICED BY L=1250	1-47428-733-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1328 SERVICED BY L=1370	1-47428-734-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1906 SERVICED BY L=2000	1-47428-739-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1982 SERVICED BY L=2000	1-47428-739-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2042 SERVICED BY L=2200	1-47428-740-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1011-1306	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=964 SERVICED BY L=1000	1-47428-730-0	01	1	1307-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1011-1102	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1103-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=1003 SERVICED BY L=1100	1-47428-731-0	01	1	1307-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1011-1102	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1103-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1307-		●
19	UNION; OIL PIPE (C) M12 3WAY	0-92138-606-0	01	1	1103-1306		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1307-		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1011-1102	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1103-1306	●	●
19	UNION; OIL PIPE (D) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1011-1306	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	1307-	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1011-1102	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1103-1306	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	1307-	●	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=354	8-98236-937-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT (D) L=171	8-98233-906-0	01	1	1307-1407		●
132	PIPE; OIL,BRK,HYD UNIT (D) L=635	8-98281-127-0	01	1	1408-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=902 SERVICED BY L=1000	1-47428-730-0	01	1	1103-1306		●
132	PIPE; OIL,BRK,HYD UNIT (E) L=426	8-98233-904-0	01	1	1307-1407		●
132	PIPE; OIL,BRK,HYD UNIT (E) L=273	8-98281-126-0	01	1	1408-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=521 SERVICED BY L=550	1-47428-724-0	01	1	1011-1306	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=811	8-98236-936-0	01	1	1307-	●

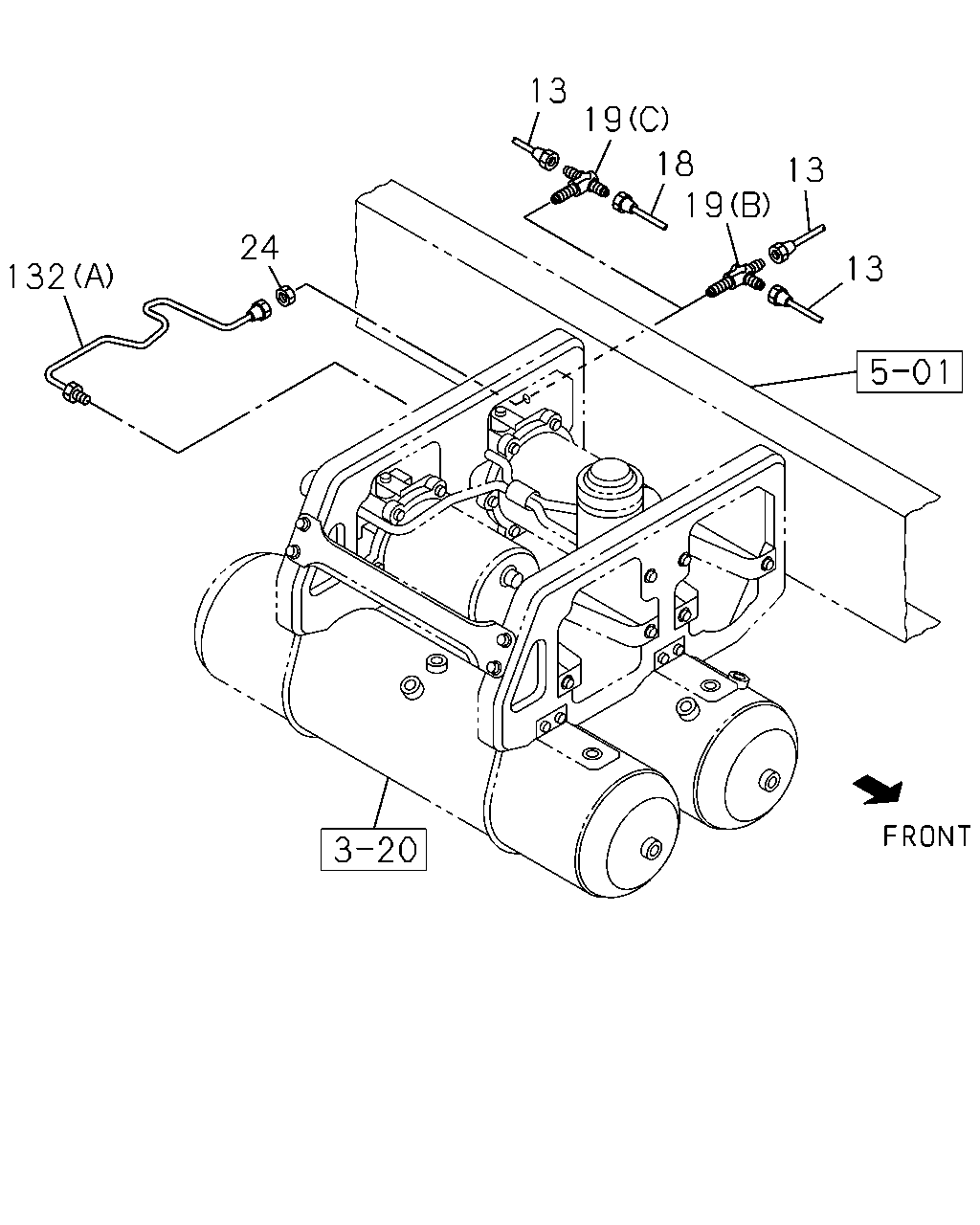

132 132 19 13 19 13 24 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1244 SERVICED BY L=1250	1-47428-733-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1328 SERVICED BY L=1370	1-47428-734-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1906 SERVICED BY L=2000	1-47428-739-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1982 SERVICED BY L=2000	1-47428-739-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2042 SERVICED BY L=2200	1-47428-740-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1011-1306	●
19	UNION; OIL PIPE (C) M12 3WAY	0-92138-606-0	01	1	1103-1306		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1307-		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1011-1102	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1103-1306	●	●
19	UNION; OIL PIPE (D) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1011-1306	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	1307-	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1011-1102	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1103-1306	●	●
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	02	1	1307-	●	●
132	PIPE; OIL,BRK,HYD UNIT (B) L=354	8-98236-937-0	01	1	1307-	●
132	PIPE; OIL,BRK,HYD UNIT (D) L=171	8-98233-906-0	01	1	1307-1407		●
132	PIPE; OIL,BRK,HYD UNIT (D) L=635	8-98281-127-0	01	1	1408-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=902 SERVICED BY L=1000	1-47428-730-0	01	1	1103-1306		●
132	PIPE; OIL,BRK,HYD UNIT (E) L=426	8-98233-904-0	01	1	1307-1407		●
132	PIPE; OIL,BRK,HYD UNIT (E) L=273	8-98281-126-0	01	1	1408-		●
132	PIPE; OIL,BRK,HYD UNIT (A) L=521 SERVICED BY L=550	1-47428-724-0	01	1	1011-1306	●
132	PIPE; OIL,BRK,HYD UNIT (C) L=811	8-98236-936-0	01	1	1307-	●

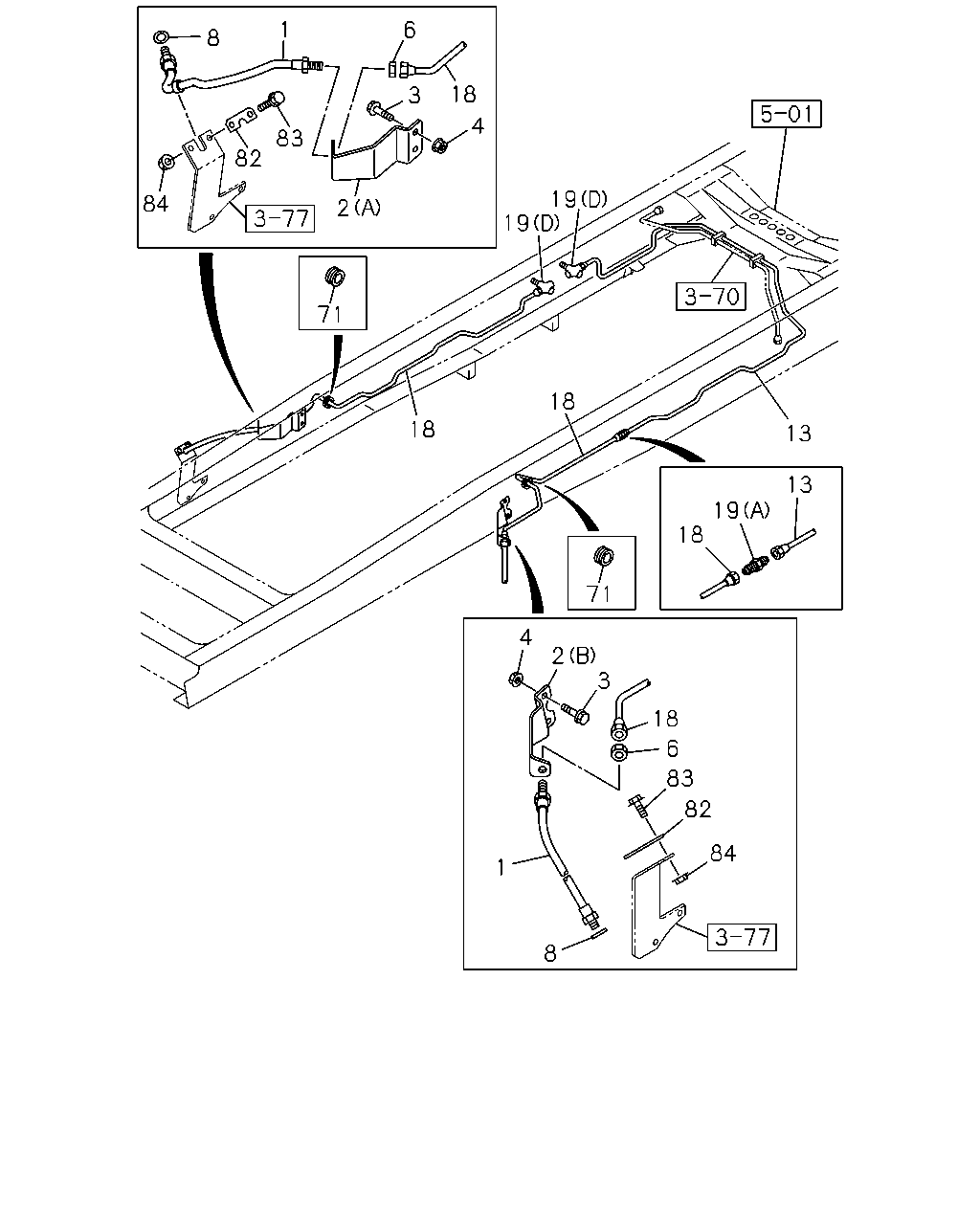

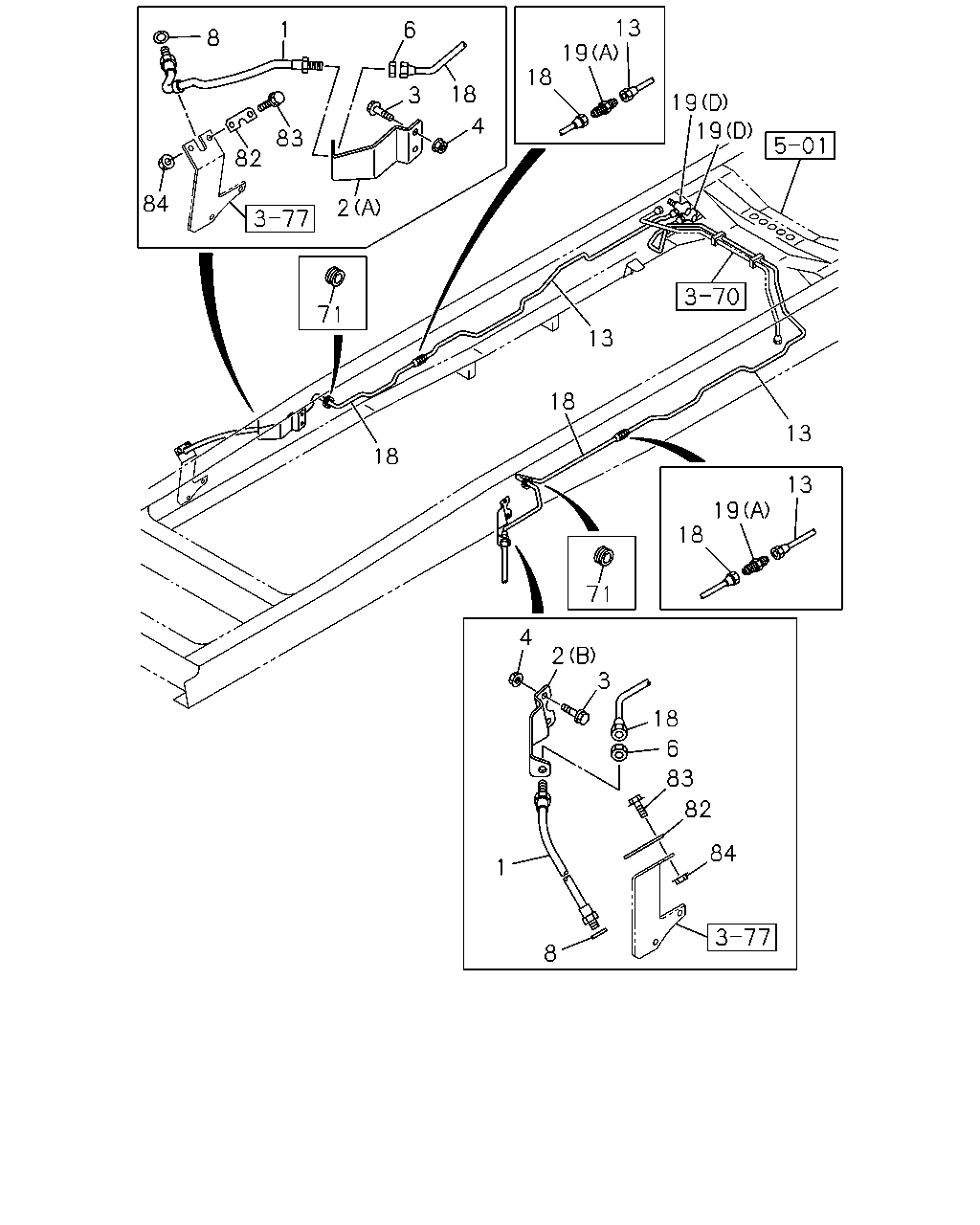

1 6 18 4 3 2 83 82 84 8 19 19 18 71 18 13 13 19 18 71 4 2 3 18 6 83 82 84 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-97623-929-0	02	1	1011-1102	●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	02	1	1103-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	1011-1102	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	1103-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98113-700-0	01	1	1011-1102	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98113-700-0	01	1	1103-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1011-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1103-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1011-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1011-	●	●
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1244 SERVICED BY L=1250	1-47428-733-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1328 SERVICED BY L=1370	1-47428-734-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1906 SERVICED BY L=2000	1-47428-739-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1982 SERVICED BY L=2000	1-47428-739-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2042 SERVICED BY L=2200	1-47428-740-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1011-1306	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=964 SERVICED BY L=1000	1-47428-730-0	01	1	1307-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1011-1102	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1103-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=1003 SERVICED BY L=1100	1-47428-731-0	01	1	1307-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1011-1102	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1103-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1307-		●
19	UNION; OIL PIPE (C) M12 3WAY	0-92138-606-0	01	1	1103-1306		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1307-		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1011-1102	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1103-1306	●	●
19	UNION; OIL PIPE (D) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1011-1306	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	1307-	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1011-	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	1011-	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	1011-	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1011-	●	●

8 1 6 3 18 4 2 83 82 84 18 19 13 19 19 13 18 13 13 19 18 71 4 2 3 18 6 83 82 84 8 1 18 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-97623-929-0	02	1	1011-1102	●
1	HOSE; FLEX,FRT BRK	8-97623-929-0	02	1	1103-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	1011-1102	●
2	BRACKET; FLEX HOSE,FRT BRK (B)	8-98089-851-0	01	1	1103-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98113-700-0	01	1	1011-1102	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98113-700-0	01	1	1103-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1011-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1011-1102	●
4	NUT; FLEX HOSE BRKT,FRT BRK M8 FLANGE	0-91180-108-0	04	1	1103-	●	●
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1011-	●	●
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1011-	●	●
13	PIPE; OIL,UNION TO UNION L=1098 SERVICED BY L=1100	1-47428-731-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1244 SERVICED BY L=1250	1-47428-733-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1328 SERVICED BY L=1370	1-47428-734-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1805 SERVICED BY L=1820	1-47428-738-0	01	1	1103-1306		●
13	PIPE; OIL,UNION TO UNION L=1906 SERVICED BY L=2000	1-47428-739-0	01	1	1307-1407		●
13	PIPE; OIL,UNION TO UNION L=1982 SERVICED BY L=2000	1-47428-739-0	01	1	1408-		●
13	PIPE; OIL,UNION TO UNION L=1754 SERVICED BY L=1820	1-47428-738-0	01	1	1011-1306	●
13	PIPE; OIL,UNION TO UNION L=2042 SERVICED BY L=2200	1-47428-740-0	01	1	1307-	●
13	PIPE; OIL,UNION TO UNION L=1116	8-98111-276-0	01	1	1011-1306	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=964 SERVICED BY L=1000	1-47428-730-0	01	1	1307-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1011-1102	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=958 SERVICED BY L=1000	1-47428-730-0	01	1	1103-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=1003 SERVICED BY L=1100	1-47428-731-0	01	1	1307-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1011-1102	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1103-1306	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=567 SERVICED BY L=600	1-47428-725-0	01	1	1307-		●
19	UNION; OIL PIPE (C) M12 3WAY	0-92138-606-0	01	1	1103-1306		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1307-		●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1011-1102	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	02	1	1103-1306	●	●
19	UNION; OIL PIPE (D) M12 ELBOW	8-97325-150-0	02	1	1307-	●	●
19	UNION; OIL PIPE (B) M12 3WAY	0-92138-906-0	01	1	1011-1306	●
19	UNION; OIL PIPE (A) M12 L=40	0-92113-006-0	01	1	1307-	●
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1011-	●	●
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	1011-	●	●
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	1011-	●	●
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1011-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
