3-46 — AIR DRYER (#69841) — 118 parça

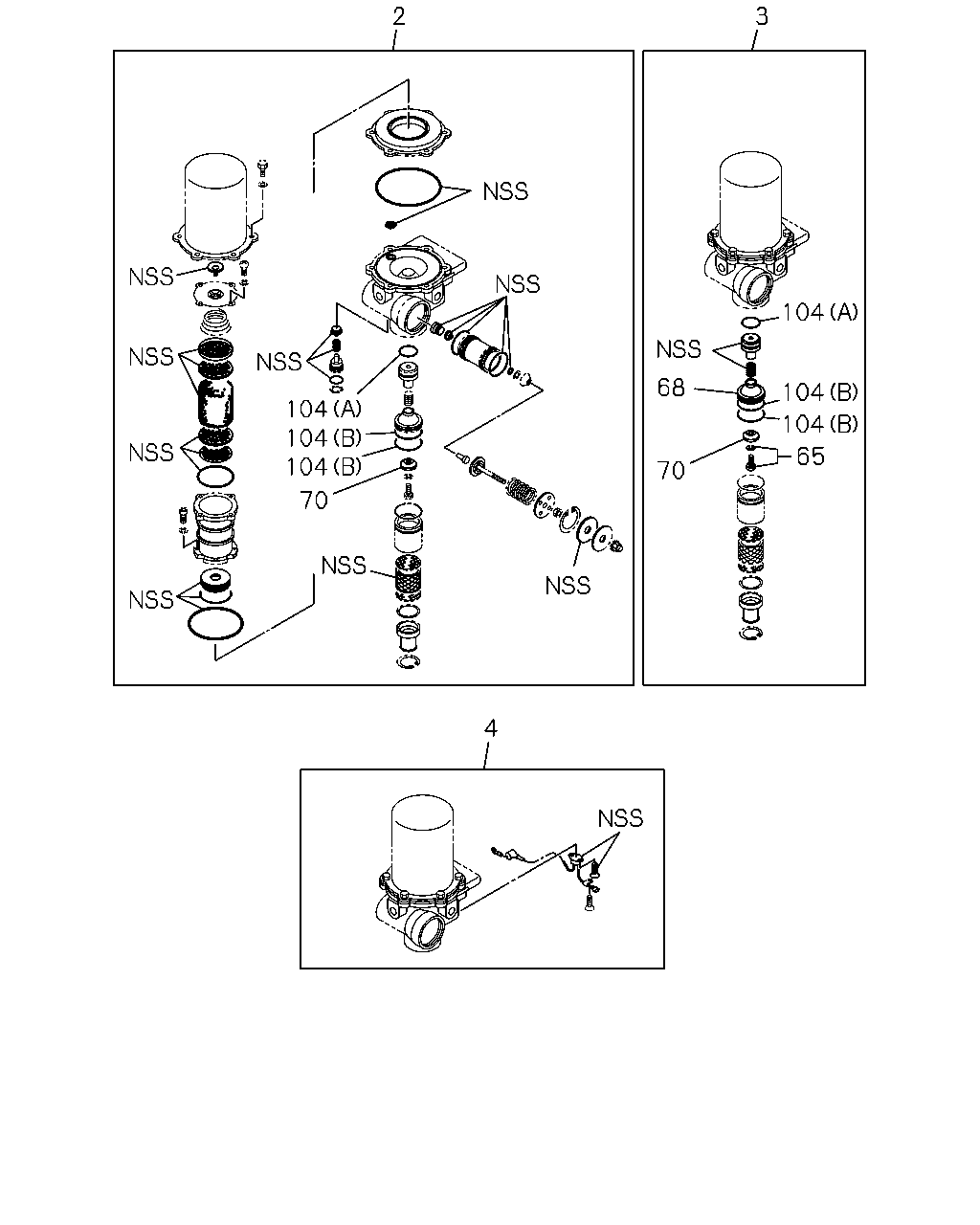

çizim 118221
2 104 104 104 70 4 70 68 104 104 104 65 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; AIR DRYER 1-85576-457-0 01 1 1011-1102 ●
2 REPAIR KIT; AIR DRYER 1-85576-457-0 01 1 1103-1211 ● ●
2 REPAIR KIT; AIR DRYER 8-98226-323-0 01 1 1212- ● ●
3 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 1011-1102 ●
3 PISTON KIT; AIR DRYER 1-85576-383-0 01 1 1103-1211 ● ●
3 PISTON KIT; AIR DRYER 8-98226-322-0 01 1 1212- ● ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-443-0 01 1 1011-1102 ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-443-0 01 1 1103- ● ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 1011-1102 ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 1103- ● ●
68 BODY; VALVE 1-48199-515-0 01 1 1011-1102 ●
68 BODY; VALVE 1-48199-515-0 01 1 1103- ● ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 1011-1102 ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 1103- ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 1307- ● ●
104 GASKET
(A) 		1-48199-495-0 01 1 1011-1102 ●
104 GASKET
(A) 		1-48199-495-0 01 1 1103-1211 ● ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 1011-1102 ●
104 GASKET
(B) 		1-48199-496-0 02 1 1103-1211 ● ●
104 GASKET
(B) 		1-48199-496-0 01 1 1212-1306 ● ●

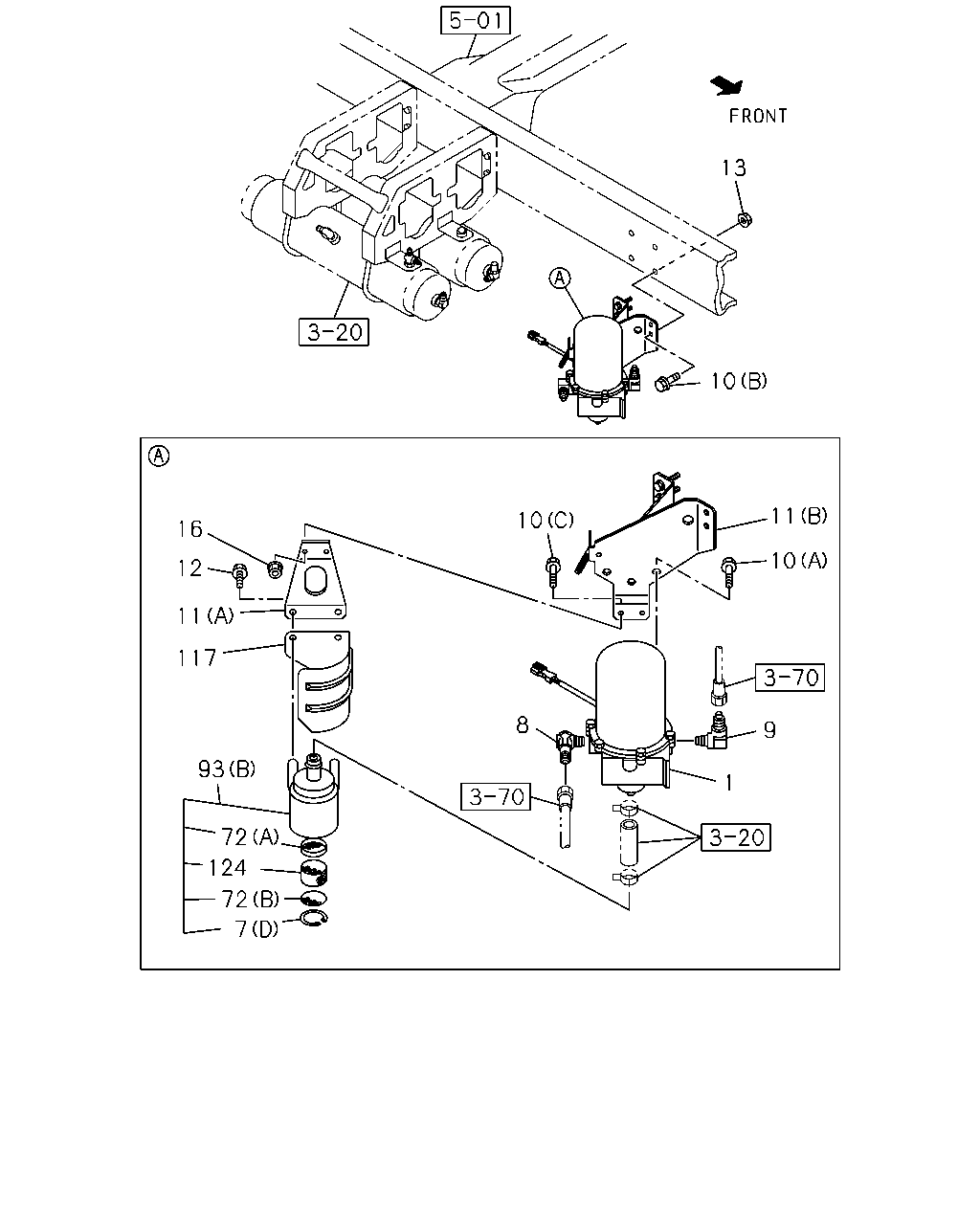

çizim 118247
7 72 124 72 93 117 11 12 16 1 9 10 11 10 10 13 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-370-2 01 1 1011-1102 ●
1 DRYER; AIR 1-48190-370-2 01 1 1103-1211 ● ●
1 DRYER; AIR 8-98225-285-0 01 1 1212- ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 1011-1102 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 1103- ● ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 1011-1102 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 1103- ● ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 1011-1102 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 1103- ● ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 1011-1102 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 1103- ● ●
8 CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1103- ●
8 CONNECTOR; OUT,AIR DRYER 1-09650-516-0 01 1 1011- ●
9 CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1011-1102 ●
9 CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1103- ● ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 1011-1102 ●
10 BOLT; AIR DRYER
(A) M10X25 FLANGE 		0-28051-025-0 03 1 1103- ● ●
10 BOLT; AIR DRYER
(B) M10X30 FLANGE 		0-28051-030-0 02 1 1011-1102 ●
10 BOLT; AIR DRYER
(B) M10X30 FLANGE 		0-28051-030-0 02 1 1103- ● ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1011-1102 ●
10 BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER 		1-09980-548-0 02 1 1103- ● ●
11 BRACKET; AIR DRYER
(B) 		8-98099-368-0 01 1 1103- ●
11 BRACKET; AIR DRYER
(B) 		8-97622-759-1 01 1 1011- ●
11 BRACKET; AIR DRYER
(A) 		8-98039-092-0 01 1 1011-1102 ●
11 BRACKET; AIR DRYER
(A) 		8-98039-092-0 01 1 1103- ● ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1011-1102 ●
12 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1103- ● ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 1011-1102 ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 1103- ● ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1011-1102 ●
16 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1103- ● ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 1011-1102 ●
72 PLATE; FILTER,AIR DRYER
(A) 		1-48199-585-0 01 1 1103- ● ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 1011-1102 ●
72 PLATE; FILTER,AIR DRYER
(B) 		1-48199-602-0 01 1 1103- ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 1011-1102 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 1103- ● ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 1011-1102 ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 1103- ● ●
117 COVER; SILENCER 8-98065-972-1 01 1 1011-1102 ●
117 COVER; SILENCER 8-98065-972-1 01 1 1103- ● ●
124 FILTER; SILENCER 1-48199-465-0 01 1 1011-1102 ●
124 FILTER; SILENCER 1-48199-465-0 01 1 1103- ● ●

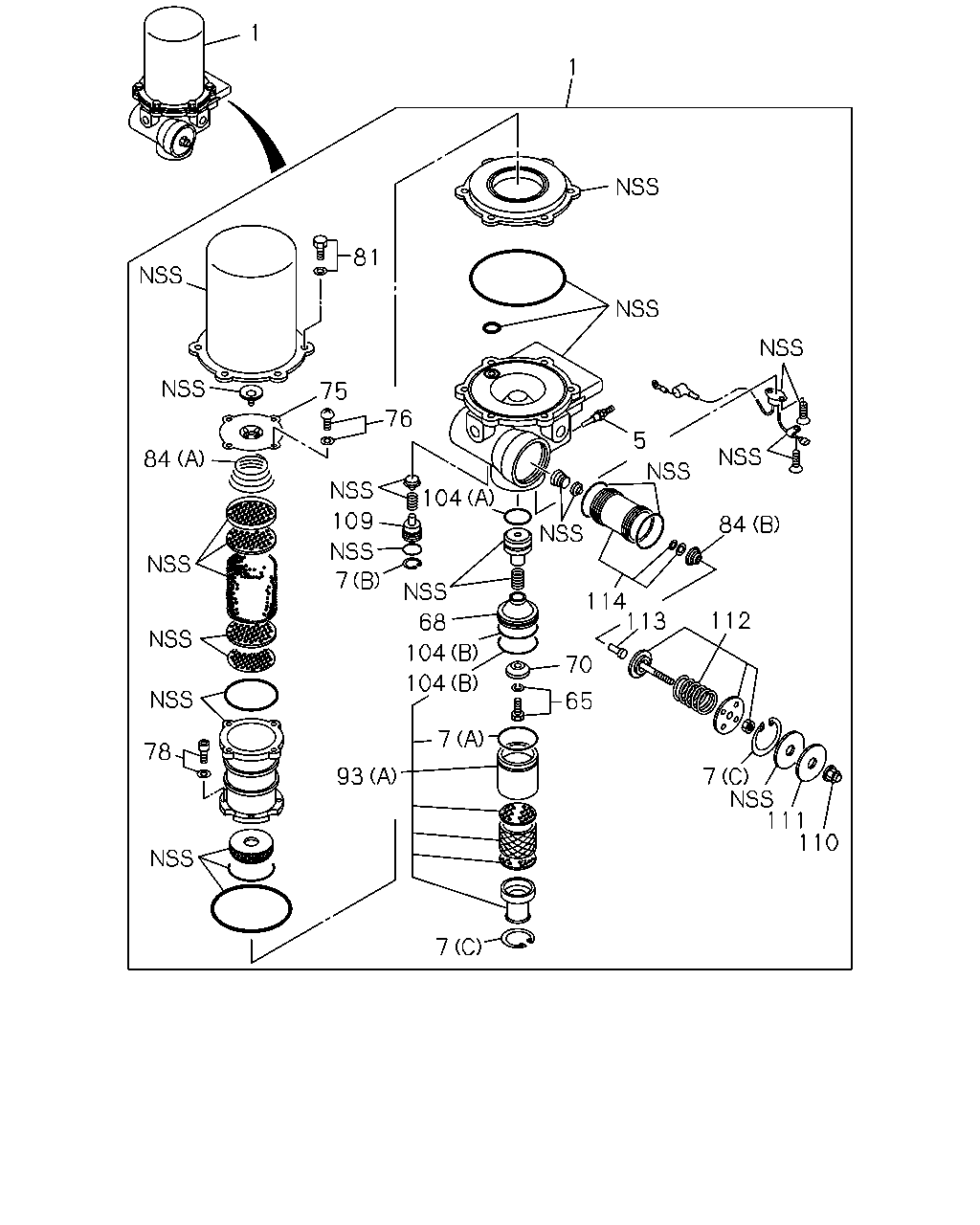

çizim 118454
1 1 81 75 84 109 78 93 7 76 104 68 104 104 7 7 65 70 114 113 112 84 7 111 110 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRYER; AIR 1-48190-370-2 01 1 1011-1102 ●
1 DRYER; AIR 1-48190-370-2 01 1 1103-1211 ● ●
1 DRYER; AIR 8-98225-285-0 01 1 1212- ● ●
5 HEATER ASM; AIR DRYER 1-48199-530-0 01 1 1011-1102 ●
5 HEATER ASM; AIR DRYER 1-48199-530-0 01 1 1103- ● ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 1011-1102 ●
7 RING; SNAP,AIR DRYER
(D) 		1-47769-017-0 01 1 1103- ● ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 1011-1102 ●
7 RING; SNAP,AIR DRYER
(C) 		1-48199-520-0 02 1 1103- ● ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 1011-1102 ●
7 RING; SNAP,AIR DRYER
(B) 		1-48199-529-0 01 1 1103- ● ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 1011-1102 ●
7 RING; SNAP,AIR DRYER
(A) 		1-48199-579-0 01 1 1103- ● ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 1011-1102 ●
65 BOLT; PURGE VLV 1-48199-517-0 01 1 1103- ● ●
68 BODY; VALVE 1-48199-515-0 01 1 1011-1102 ●
68 BODY; VALVE 1-48199-515-0 01 1 1103- ● ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 1011-1102 ●
70 VALVE; AIR DRYER 1-48199-504-0 01 1 1103- ● ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 1011-1102 ●
75 COVER; CASE,AIR DRYER 1-48199-427-0 01 1 1103- ● ●
76 BOLT; COVER,AIR DRYER 1-48199-412-0 04 1 1011-1102 ●
76 BOLT; COVER,AIR DRYER 1-48199-412-0 04 1 1103- ● ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-417-0 04 1 1011-1102 ●
78 BOLT; OIL FILTER,AIR DRYER 1-48199-417-0 04 1 1103- ● ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 1011-1102 ●
81 BOLT; CASE,AIR DRYER 1-48199-436-0 06 1 1103- ● ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 1011-1102 ●
84 SPRING; AIR DRYER
(A) 		1-48199-425-0 01 1 1103- ● ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 1011-1102 ●
84 SPRING; AIR DRYER
(B) 		1-48199-523-0 01 1 1103- ● ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 1011-1102 ●
93 SILENCER; AIR DRYER
(B) 		1-48199-581-0 01 1 1103- ● ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 1011-1102 ●
93 SILENCER; AIR DRYER
(A) 		1-48199-619-0 01 1 1103- ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 1307- ● ●
104 GASKET
(A) 		1-48199-495-0 01 1 1011-1102 ●
104 GASKET
(A) 		1-48199-495-0 01 1 1103-1211 ● ●
104 GASKET
(A) 		8-98226-321-0 01 1 1212- ● ●
104 GASKET
(B) 		1-48199-496-0 02 1 1011-1102 ●
104 GASKET
(B) 		1-48199-496-0 02 1 1103-1211 ● ●
104 GASKET
(B) 		1-48199-496-0 01 1 1212-1306 ● ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 1011-1102 ●
109 STOPPER; CHECK VALVE 1-48199-539-0 01 1 1103- ● ●
110 NUT; CAP 1-48199-527-0 01 1 1011-1102 ●
110 NUT; CAP 1-48199-527-0 01 1 1103- ● ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 1011-1102 ●
111 PLATE; GOVERNOR 1-48199-526-0 01 1 1103- ● ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 1011-1102 ●
112 SCREW & SPRING ASM; AIR DRYER 1-48199-524-0 01 1 1103- ● ●
113 STEM; EXHAUST 1-48199-522-0 01 1 1011-1102 ●
113 STEM; EXHAUST 1-48199-522-0 01 1 1103- ● ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 1011-1102 ●
114 PISTON ASM; GOVERNOR 1-48199-521-0 01 1 1103- ● ●
