Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#69835) — 606 parça

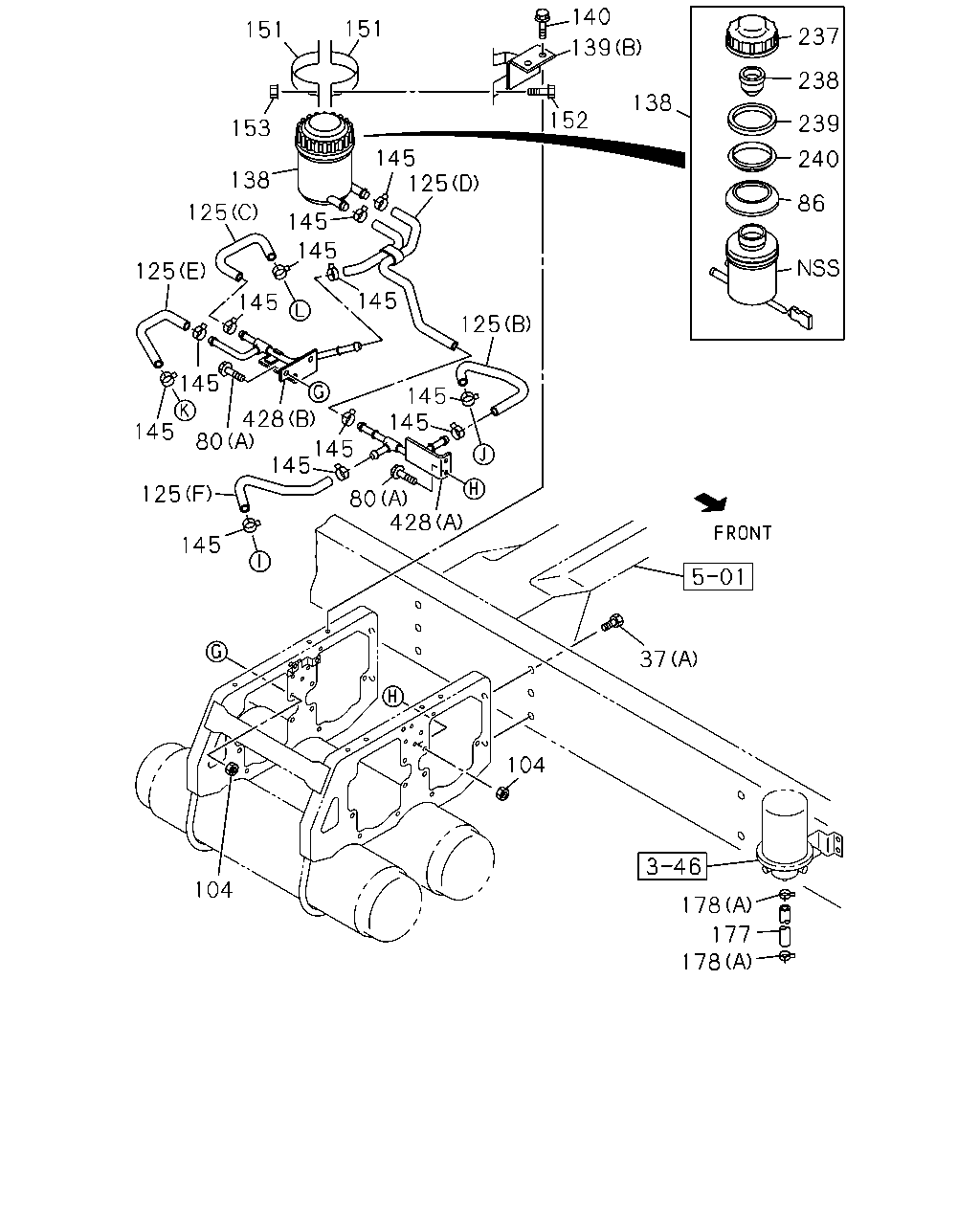

151 151 145 125 152 138 139 140 237 238 239 86 37 153 125 146 145 145 145 428 80 1 145 125 145 145 145 125 125 138 145 145 145 428 80 104 104 178 177 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (E)	8-98166-972-0	01	1	1307-	●	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1011-1102	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1103-1306	●	●
1	TANK ASM; AIR (D)	1-48370-954-0	01	1	1307-	●	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1011-1102	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1103-1306	●	●
1	TANK ASM; AIR (A)	8-97622-812-0	01	1	1307-	●	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	1011-1102	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	1103-1306	●	●
1	TANK ASM; AIR (B)	8-97623-480-0	01	1	1307-	●	●
37	BOLT; AIR TANK (B) M10X40 FLANGE	0-28651-040-0	02	1	1307-	●	●
37	BOLT; AIR TANK (A) M12X40 FLANGE	0-28651-240-0	06	1	1011-1102	●
37	BOLT; AIR TANK (A) M12X40 FLANGE	0-28651-240-0	06	1	1103-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1103-1306		●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1011-1306	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	20	1	1307-	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1011-1102	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1103-1306	●	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	1011-1306	●
80	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	1011-1102	●
86	SEAL; DUST	1-47529-019-0	01	1	1103-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1011-1306	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1307-	●	●
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98229-722-0	01	1	1307-	●	●
125	HOSE; OIL TANK TO AIR MASTER (C)	8-98229-723-1	01	1	1307-	●	●
125	HOSE; OIL TANK TO AIR MASTER (D)	8-98241-391-0	01	1	1307-	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1011-1102	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1103-1306	●	●
125	HOSE; OIL TANK TO AIR MASTER (E)	8-98229-725-1	01	1	1307-	●	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	1011-1102	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	1103-1306	●	●
125	HOSE; OIL TANK TO AIR MASTER (F)	8-98244-384-0	01	1	1307-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1011-1102	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1103-	●	●
139	BRACKET; OIL TANK (A)	1-47537-081-2	01	1	1011-1102	●
139	BRACKET; OIL TANK (A)	1-47537-081-2	01	1	1103-1306	●	●
139	BRACKET; OIL TANK (B)	8-97622-132-0	01	1	1307-	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	1011-1102	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	1103-1306	●	●
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1011-1102	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1103-1306	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	12	1	1307-	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1011-1102	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1103-1306	●	●
151	BAND; OIL TANK,AIR MASTER	8-97620-570-0	02	1	1307-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1103-		●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1011-	●
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1011-1102	●
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1103-1306	●	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1011-1102	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1103-	●	●
178	CLIP; HOSE (B)	9-09917-171-0	01	1	1011-1102	●
178	CLIP; HOSE (B)	9-09917-171-0	01	1	1103-1306	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1011-1102	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1103-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1011-1102	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1103-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	1011-1102	●
239	FILTER; DUST	1-47529-017-0	01	1	1103-	●	●
428	PIPE; OIL TANK TO AIR MASTER (A)	8-98244-368-0	01	1	1307-	●	●
428	PIPE; OIL TANK TO AIR MASTER (B)	8-98244-369-0	01	1	1307-	●	●

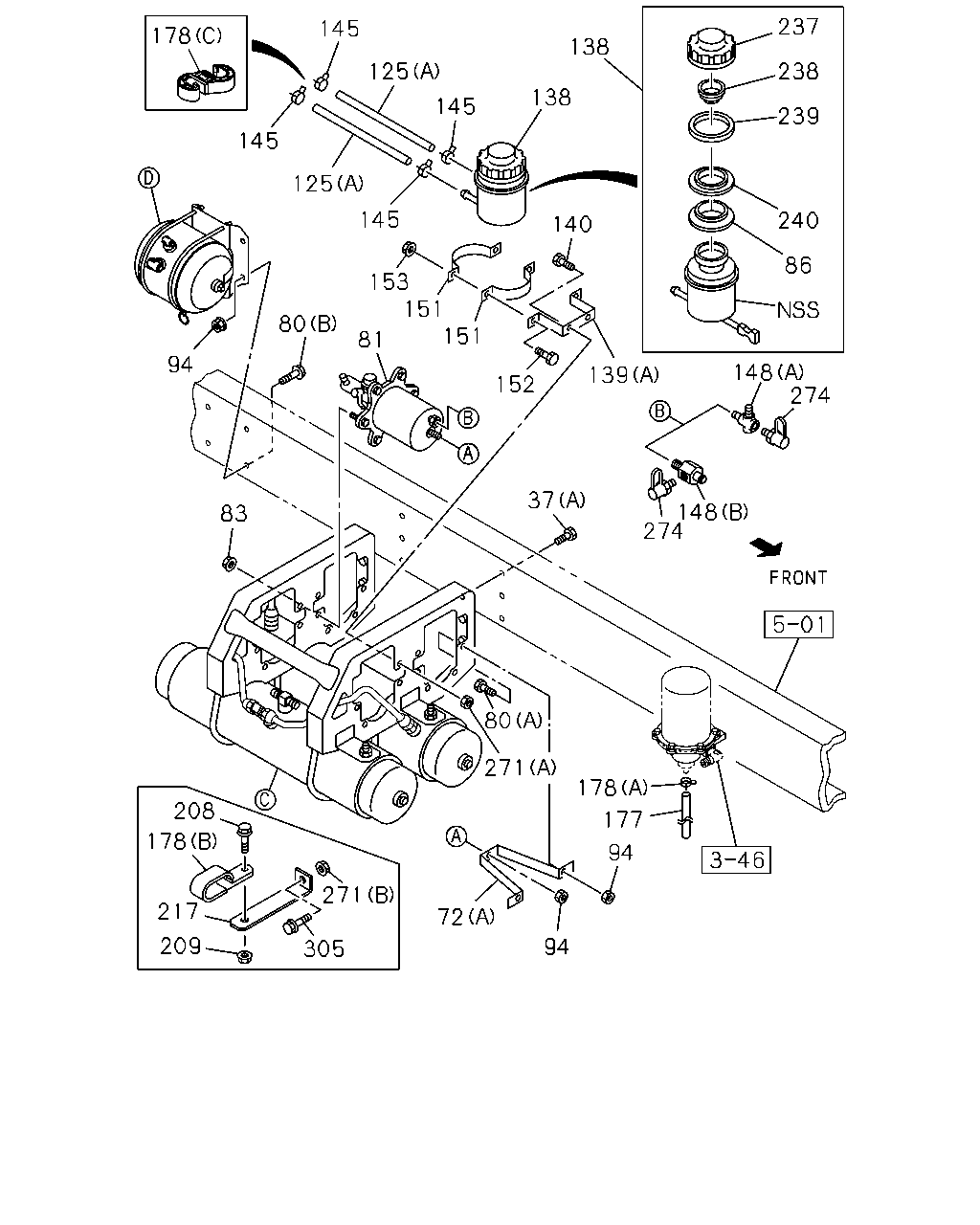

145 145 125 125 138 138 145 140 145 153 151 151 152 139 37 274 148 148 274 86 240 239 238 237 80 271 72 94 94 177 178 271 208 178 217 209 305 83 94 80 81 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK (B) M10X40 FLANGE	0-28651-040-0	02	1	1307-	●	●
37	BOLT; AIR TANK (A) M12X40 FLANGE	0-28651-240-0	06	1	1011-1102	●
37	BOLT; AIR TANK (A) M12X40 FLANGE	0-28651-240-0	06	1	1103-	●	●
72	BRACKET; AIR MASTER (B)	8-98230-373-0	01	1	1307-	●	●
72	BRACKET; AIR MASTER (C)	8-98230-374-0	02	1	1307-	●	●
72	BRACKET; AIR MASTER (D)	8-98230-375-0	01	1	1307-	●	●
72	BRACKET; AIR MASTER (E)	8-98244-177-0	02	1	1307-	●	●
72	BRACKET; AIR MASTER (A)	8-98120-254-0	02	1	1011-1102	●
72	BRACKET; AIR MASTER (A)	8-98120-254-0	02	1	1103-1306	●	●
72	BRACKET; AIR MASTER (F)	8-98230-371-0	02	1	1307-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1103-1306		●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1011-1306	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	20	1	1307-	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1011-1102	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1103-1306	●	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	1011-1306	●
80	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-665-1	02	1	1011-1102	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-665-1	02	1	1103-1306	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	04	1	1307-	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	1011-1102	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	1103-1306	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	16	1	1307-	●	●
86	SEAL; DUST	1-47529-019-0	01	1	1011-1102	●
86	SEAL; DUST	1-47529-019-0	01	1	1103-	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1103-1306		●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	01	1	1011-1306	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	06	1	1011-1102	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	06	1	1103-1306	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	16	1	1307-	●	●
125	HOSE; OIL TANK TO AIR MASTER (B)	8-98229-722-0	01	1	1307-	●	●
125	HOSE; OIL TANK TO AIR MASTER (C)	8-98229-723-1	01	1	1307-	●	●
125	HOSE; OIL TANK TO AIR MASTER (D)	8-98241-391-0	01	1	1307-	●	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1011-1102	●
125	HOSE; OIL TANK TO AIR MASTER (A) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1103-1306	●	●
125	HOSE; OIL TANK TO AIR MASTER (E)	8-98229-725-1	01	1	1307-	●	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	1011-1102	●
125	HOSE; OIL TANK TO AIR MASTER (A)	8-98098-558-0	01	1	1103-1306	●	●
125	HOSE; OIL TANK TO AIR MASTER (F)	8-98244-384-0	01	1	1307-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1011-1102	●
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	1103-	●	●
139	BRACKET; OIL TANK (A)	1-47537-081-2	01	1	1011-1102	●
139	BRACKET; OIL TANK (A)	1-47537-081-2	01	1	1103-1306	●	●
139	BRACKET; OIL TANK (B)	8-97622-132-0	01	1	1307-	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	1011-1102	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28651-020-0	02	1	1103-1306	●	●
140	BOLT; OIL TANK TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	1307-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1011-1102	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	1103-1306	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	12	1	1307-	●	●
148	CONNECTOR; AIR MASTER (A) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1011-1102	●
148	CONNECTOR; AIR MASTER (A) DIN1/8 & M16X2 3WAY	1-09656-462-1	01	1	1103-1306	●	●
148	CONNECTOR; AIR MASTER (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1011-1102	●
148	CONNECTOR; AIR MASTER (B) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1103-1306	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1011-1102	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	1103-1306	●	●
151	BAND; OIL TANK,AIR MASTER	8-97620-570-0	02	1	1307-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1103-		●
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1011-	●
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1011-1102	●
178	CLIP; HOSE (C) ID=12 & 12	1-09709-280-1	01	1	1103-1306	●	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1011-1102	●
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1103-	●	●
178	CLIP; HOSE (B)	9-09917-171-0	01	1	1011-1102	●
178	CLIP; HOSE (B)	9-09917-171-0	01	1	1103-1306	●	●
208	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1011-1102	●
208	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1103-1306	●	●
209	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1011-1102	●
209	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
217	BRACKET; RUBBER HOSE L=112	1-47475-694-1	01	1	1011-1102	●
217	BRACKET; RUBBER HOSE L=112	1-47475-694-1	01	1	1103-1306	●	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1011-1102	●
237	CAP; OIL TANK	1-47525-030-0	01	1	1103-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1011-1102	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	1103-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	1011-1102	●
239	FILTER; DUST	1-47529-017-0	01	1	1103-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	1011-1102	●
240	HOLDER; FILTER	1-47529-018-0	01	1	1103-	●	●
271	NUT; BRKT,HOSE (B) M8 FLANGE	0-91180-108-0	01	1	1011-1102	●
271	NUT; BRKT,HOSE (B) M8 FLANGE	0-91180-108-0	01	1	1103-1306	●	●
271	NUT; BRKT,HOSE (A) M10 FLANGE	0-91180-210-0	02	1	1011-1102	●
271	NUT; BRKT,HOSE (A) M10 FLANGE	0-91180-210-0	02	1	1103-1306	●	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1011-1102	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1103-1306	●	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	04	1	1307-	●	●
305	BOLT; BRKT,HOSE M8X20 FLANGE	0-28650-820-0	01	1	1011-1102	●
305	BOLT; BRKT,HOSE M8X20 FLANGE	0-28650-820-0	01	1	1103-1306	●	●

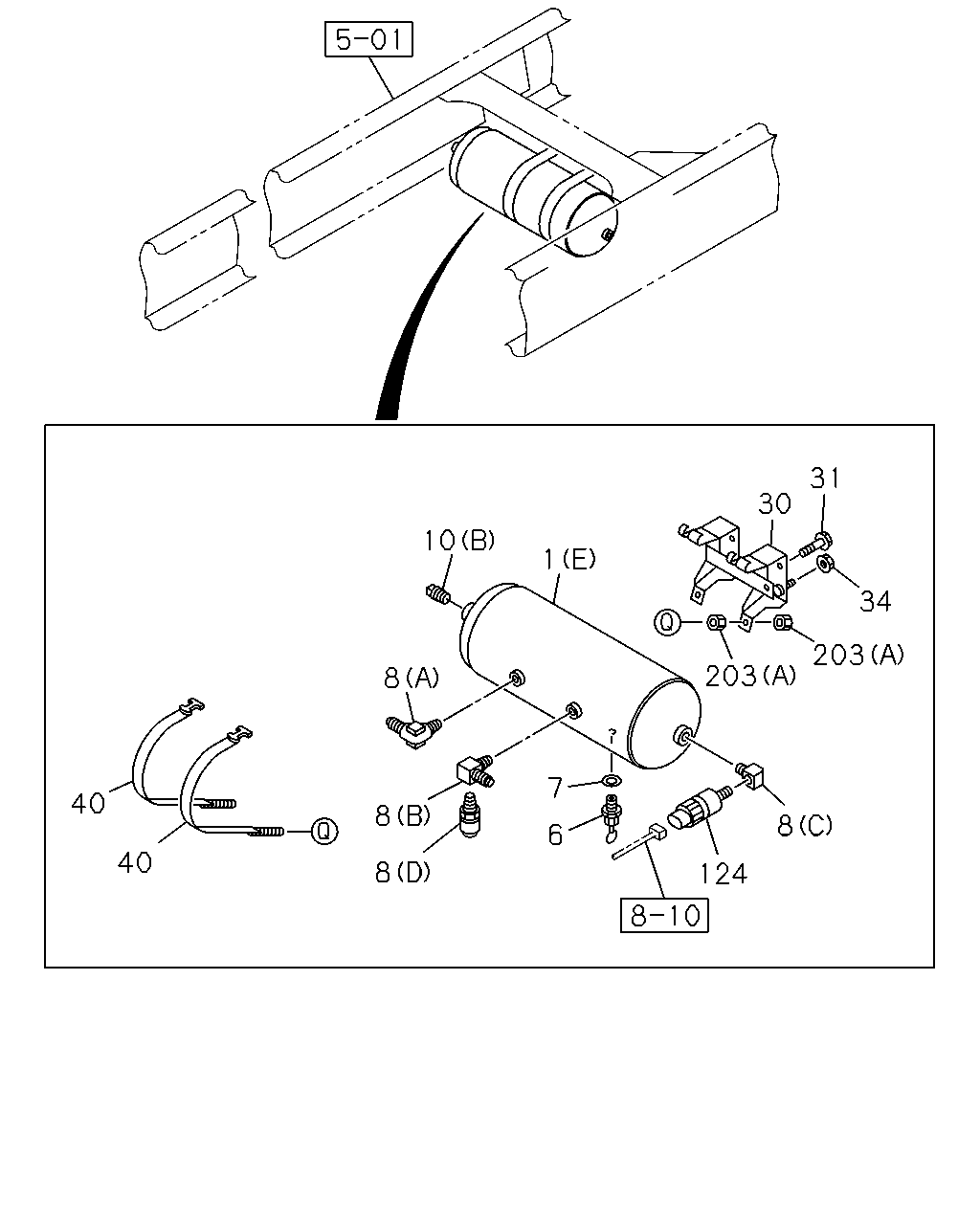

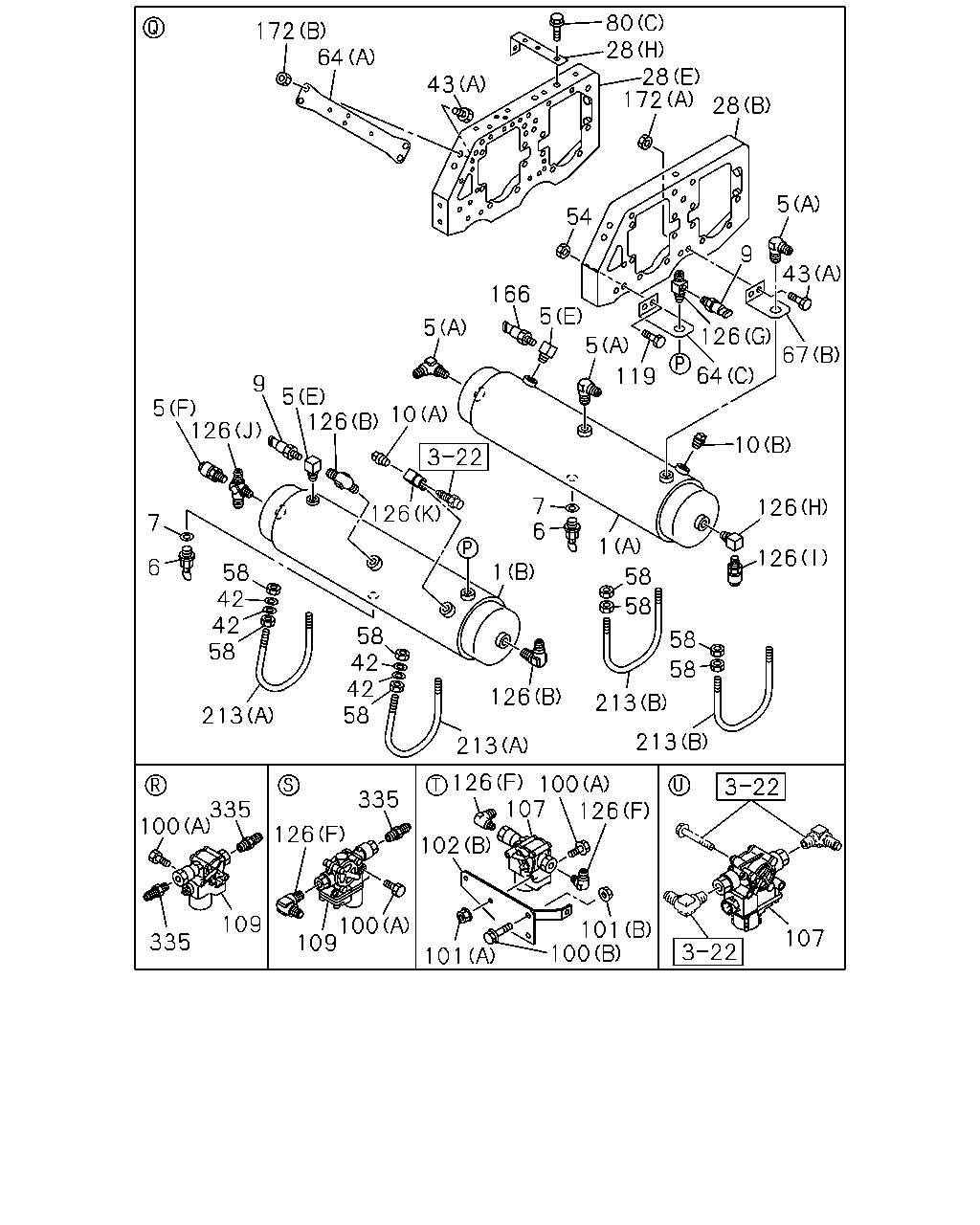

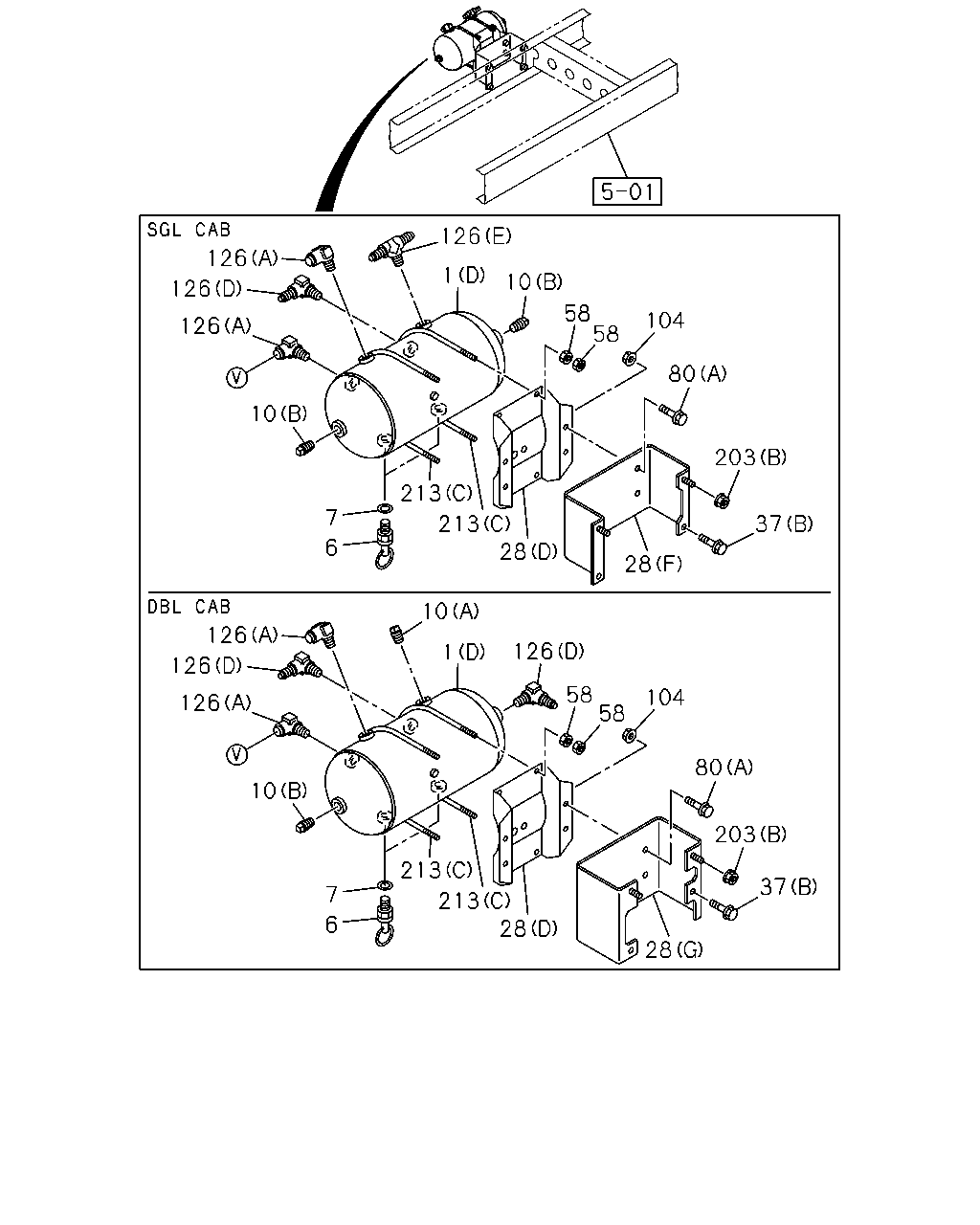

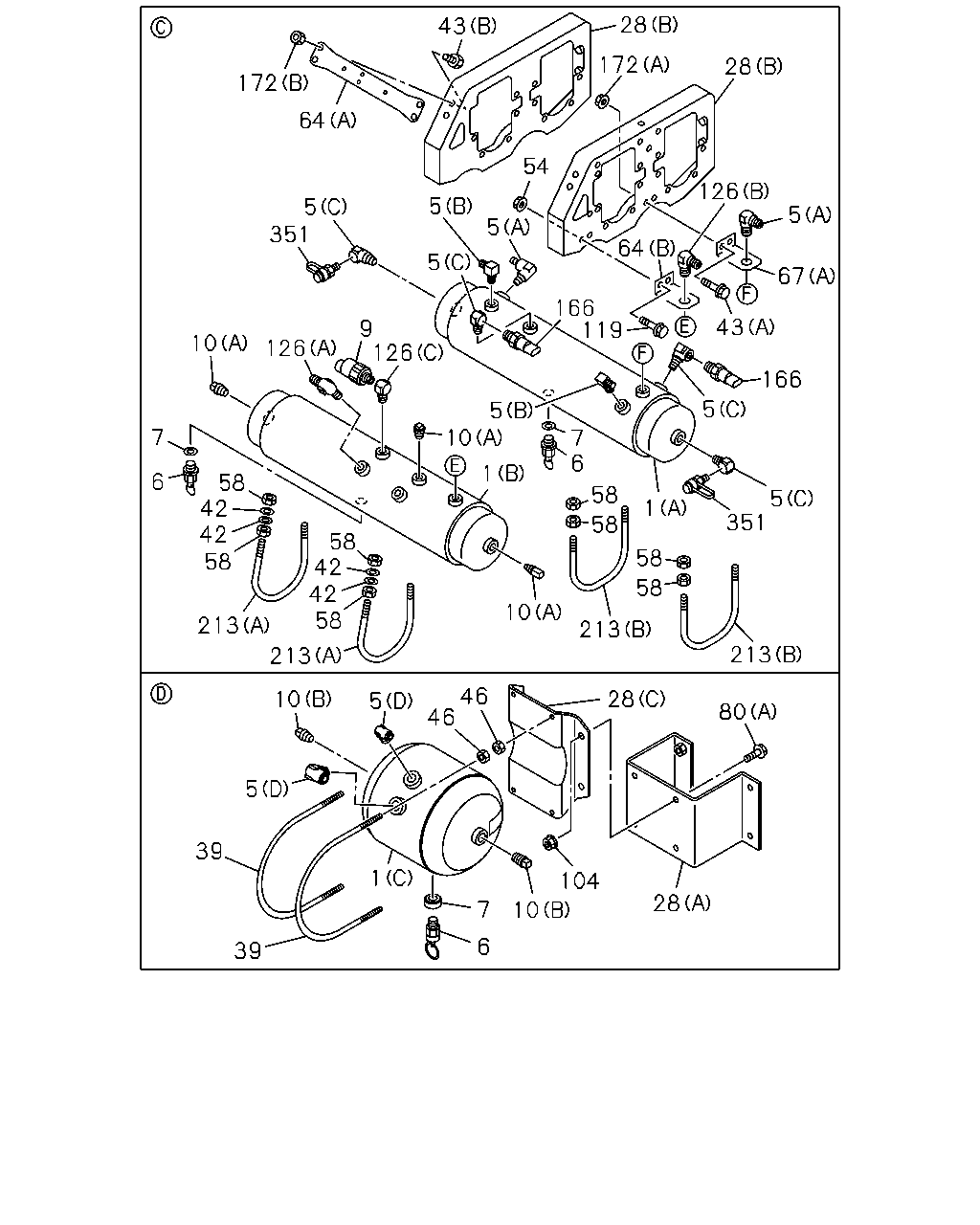

43 28 28 5 67 43 166 1 351 58 58 213 213 10 28 80 28 104 10 6 1 46 5 10 5 39 7 39 213 213 58 58 42 58 42 42 58 6 7 10 9 126 10 5 58 6 7 1 58 5 119 166 64 5 5 5 351 172 54 64 172 5 5 46 42 126 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (E)	8-98166-972-0	01	1	1307-	●	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1011-1102	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1103-1306	●	●
1	TANK ASM; AIR (D)	1-48370-954-0	01	1	1307-	●	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1011-1102	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1103-1306	●	●
1	TANK ASM; AIR (A)	8-97622-812-0	01	1	1307-	●	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	1011-1102	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	1103-1306	●	●
1	TANK ASM; AIR (B)	8-97623-480-0	01	1	1307-	●	●
5	UNION; AIR TANK (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	1011-1102	●
5	UNION; AIR TANK (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	1103-1306	●	●
5	UNION; AIR TANK (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1307-	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1011-1102	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1103-1306	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	1307-	●	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	1011-1102	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	1103-1306	●	●
5	UNION; AIR TANK (F) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1307-	●	●
5	UNION; AIR TANK (B)	8-98111-509-0	02	1	1011-1102	●
5	UNION; AIR TANK (B)	8-98111-509-0	02	1	1103-1306	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1307-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1307-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1011-1102	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1103-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1011-1102	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1103-1306	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1307-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1307-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1307-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1011-1102	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1103-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1011-1102	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1103-1306	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1307-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	01	1	1011-1102	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	01	1	1103-1306	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	02	1	1307-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1307-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1307-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1011-1102	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1103-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	1011-1102	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	1103-1306	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	1307-		●
28	BRACKET; AIR TANK (D)	8-98237-322-0	01	1	1307-	●	●
28	BRACKET; AIR TANK (E)	8-98238-311-0	01	1	1307-	●	●
28	BRACKET; AIR TANK (G)	8-98237-623-0	01	1	1307-		●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	1011-1102	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	1103-1306	●	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	01	1	1307-	●	●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	1011-1102	●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	1103-1306	●	●
28	BRACKET; AIR TANK (H)	1-47478-941-0	01	1	1307-	●	●
28	BRACKET; AIR TANK (A)	8-98111-673-1	01	1	1011-1306	●
28	BRACKET; AIR TANK (F)	8-98237-321-0	01	1	1307-	●
39	U-BOLT; AIR TANK L=210	1-48317-458-1	02	1	1011-1102	●
39	U-BOLT; AIR TANK L=210	1-48317-458-1	02	1	1103-1306	●	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1011-1102	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1103-	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	1011-1102	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	1103-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1011-1102	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1103-1306	●	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1307-	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	24	1	1307-		●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1011-1102	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1103-1306	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	08	1	1307-	●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	1011-1102	●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	1103-	●	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	1011-1102	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	1103-1306	●	●
64	STAY; AIR TANK,MAIN (C)	1-48317-349-0	01	1	1307-	●	●
67	STAY; SUB TANK (A)	8-97614-753-0	01	1	1011-1102	●
67	STAY; SUB TANK (A)	8-97614-753-0	01	1	1103-1306	●	●
67	STAY; SUB TANK (B)	8-98230-370-0	01	1	1307-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1103-1306		●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1011-1306	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	20	1	1307-	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1011-1102	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1103-1306	●	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	1011-1306	●
80	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1011-1306	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1307-	●	●
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1307-	●
126	CONNECTOR; ELBOW (E) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1307-	●
126	CONNECTOR; ELBOW (F) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1307-	●	●
126	CONNECTOR; ELBOW (G)	1-09656-736-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (H) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (I) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1307-	●	●
126	CONNECTOR; ELBOW (J) M16X2 & R3/8 & RC1/4 4WAY ELBOW	8-98061-136-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	1307-		●
126	CONNECTOR; ELBOW (K) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1307-		●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1011-1102	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1103-1306	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1307-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	1011-1102	●
126	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	1103-1306	●	●
126	CONNECTOR; ELBOW (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1011-1102	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1103-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	02	1	1011-1102	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	02	1	1103-1306	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	1307-	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	1011-1102	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	1103-	●	●
213	BOLT; U AIR TANK (C) L=210	1-48317-458-1	02	1	1307-	●	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1011-1102	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1103-	●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1011-1102	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1103-	●	●
351	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1011-1102	●
351	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1103-1306	●	●

40 40 8 8 10 8 1 7 6 203 124 203 8 30 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (E)	8-98166-972-0	01	1	1307-	●	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1011-1102	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1103-1306	●	●
1	TANK ASM; AIR (D)	1-48370-954-0	01	1	1307-	●	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1011-1102	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1103-1306	●	●
1	TANK ASM; AIR (A)	8-97622-812-0	01	1	1307-	●	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	1011-1102	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	1103-1306	●	●
1	TANK ASM; AIR (B)	8-97623-480-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1307-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1307-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1011-1102	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1103-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1011-1102	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1103-1306	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1307-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1307-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1307-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1011-1102	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1103-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1011-1102	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1103-1306	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1307-	●
8	CONNECTOR; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1307-	●	●
8	CONNECTOR; AIR TANK (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1307-	●	●
8	CONNECTOR; AIR TANK (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1307-	●	●
8	CONNECTOR; AIR TANK (D) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1307-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1307-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1307-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1011-1102	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1103-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	1011-1102	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	1103-1306	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	1307-		●
30	BRACKET; AIR TANK,SUB	1-48317-894-1	01	1	1307-	●	●
31	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	02	1	1307-	●	●
34	NUT; BRKT,AIR TANK M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
40	BAND ASM; AIR TANK	1-48317-893-1	02	1	1307-	●	●
124	SWITCH; AIR PRESSURE	8-97615-622-0	01	1	1307-	●	●
203	NUT (A) M8	0-91110-508-0	04	1	1307-	●	●
203	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●

83 83 83 80 80 317 83 81 274 83 81 80 81 83 83 100 81 274 414 94 102 100 37 94 102 274 0 101 94 101 12 126 257 317 317 317 17 317 274 317 257 100 94 83 257 257 94 72 72 72 72 72 72 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE ASM; AIR,AIR TANK TO AIR TANK L=1194 SERVICED BY L=1200	1-49115-487-0	01	1	1307-	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK L=1153 SERVICED BY L=1200	1-49115-487-0	01	1	1307-		●
37	BOLT; AIR TANK (B) M10X40 FLANGE	0-28651-040-0	02	1	1307-	●	●
37	BOLT; AIR TANK (A) M12X40 FLANGE	0-28651-240-0	06	1	1011-1102	●
37	BOLT; AIR TANK (A) M12X40 FLANGE	0-28651-240-0	06	1	1103-	●	●
72	BRACKET; AIR MASTER (B)	8-98230-373-0	01	1	1307-	●	●
72	BRACKET; AIR MASTER (C)	8-98230-374-0	02	1	1307-	●	●
72	BRACKET; AIR MASTER (D)	8-98230-375-0	01	1	1307-	●	●
72	BRACKET; AIR MASTER (E)	8-98244-177-0	02	1	1307-	●	●
72	BRACKET; AIR MASTER (A)	8-98120-254-0	02	1	1011-1102	●
72	BRACKET; AIR MASTER (A)	8-98120-254-0	02	1	1103-1306	●	●
72	BRACKET; AIR MASTER (F)	8-98230-371-0	02	1	1307-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1103-1306		●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1011-1306	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	20	1	1307-	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1011-1102	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1103-1306	●	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	1011-1306	●
80	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-665-1	02	1	1011-1102	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-665-1	02	1	1103-1306	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT.	1-47800-826-0	04	1	1307-	●	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	1011-1102	●
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	08	1	1103-1306	●	●
83	NUT; AIR MASTER M8 FLANGE	0-91180-108-0	16	1	1307-	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	1103-1306		●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	01	1	1011-1306	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	06	1	1011-1102	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	06	1	1103-1306	●	●
94	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	16	1	1307-	●	●
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	06	1	1307-	●	●
100	BOLT; MODULATOR (B) M10X25 FLANGE	0-28651-025-0	05	1	1307-	●	●
101	NUT; MODULATOR (A) M8 FLANGE	0-91180-108-0	04	1	1307-	●	●
101	NUT; MODULATOR (B) M10 FLANGE	0-91180-210-0	03	1	1307-	●	●
102	BRACKET; MODULATOR (B)	8-97623-022-1	01	1	1307-	●	●
102	BRACKET; MODULATOR (A)	8-98237-174-0	01	1	1307-	●	●
102	BRACKET; MODULATOR (C)	8-98237-212-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1307-	●
126	CONNECTOR; ELBOW (E) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1307-	●
126	CONNECTOR; ELBOW (F) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1307-	●	●
126	CONNECTOR; ELBOW (G)	1-09656-736-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (H) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (I) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1307-	●	●
126	CONNECTOR; ELBOW (J) M16X2 & R3/8 & RC1/4 4WAY ELBOW	8-98061-136-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	1307-		●
126	CONNECTOR; ELBOW (K) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1307-		●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1011-1102	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1103-1306	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1307-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	1011-1102	●
126	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	1103-1306	●	●
126	CONNECTOR; ELBOW (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1011-1102	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1103-	●	●
257	GASKET; PLUG (A) ID=16.2 OD=24	9-09571-416-0	01	1	1307-	●	●
257	GASKET; PLUG (B) ID=22.5	9-09571-422-0	03	1	1307-	●	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1011-1102	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	02	1	1103-1306	●	●
274	CONNECTOR; VLV R1/4 & M16 TEST CONNECTOR	1-47459-013-1	04	1	1307-	●	●
317	CONNECTOR; MODULATOR (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1307-	●	●
317	CONNECTOR; MODULATOR (B) INNER PT3/8,OUTER M22	1-09650-494-1	03	1	1307-	●	●
317	CONNECTOR; MODULATOR (C) M16 & PT3/8 STRAIGHT	1-09661-044-0	01	1	1307-	●	●
414	NUT M8 FLANGE	0-91180-108-0	02	1	1307-	●	●

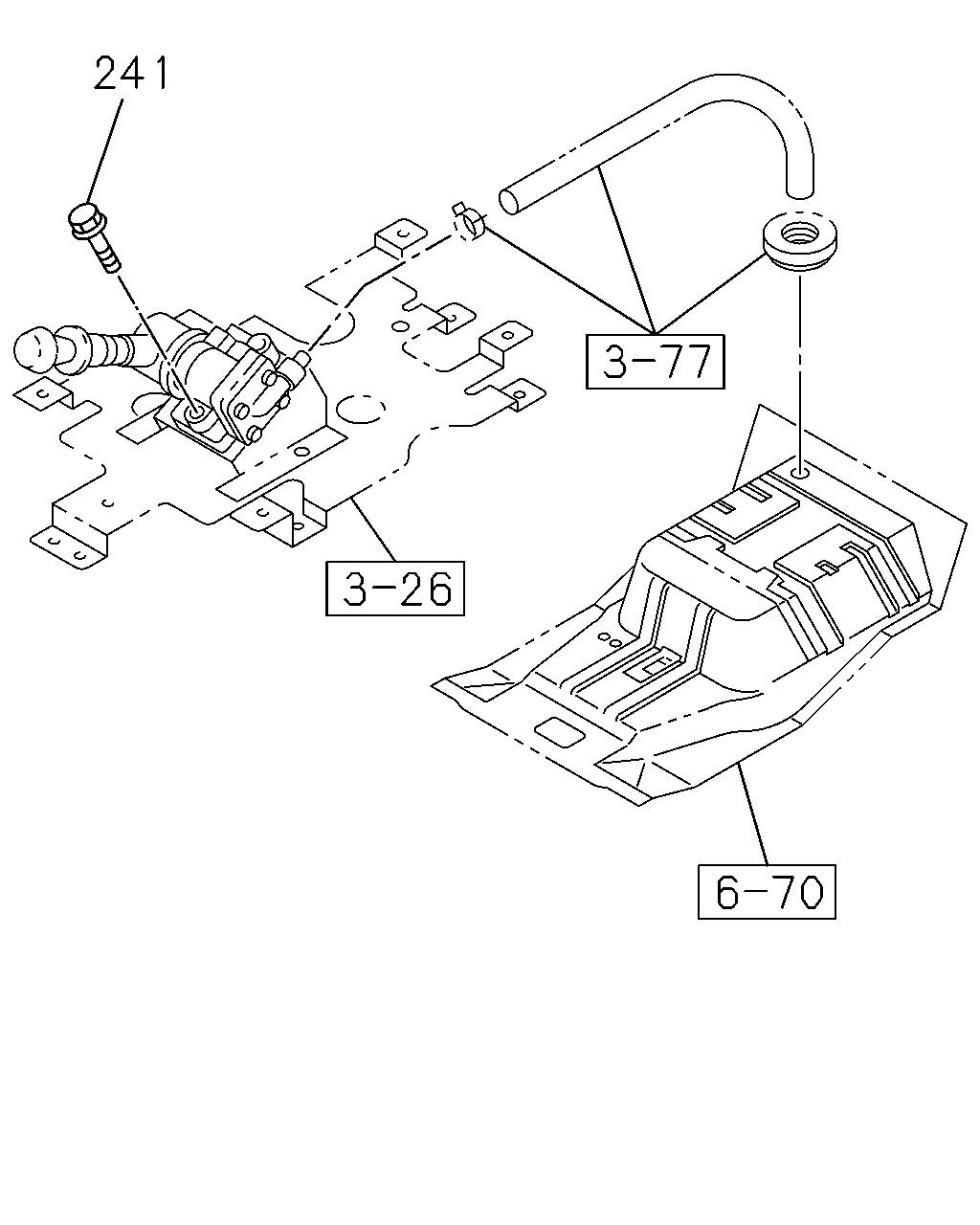

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1011-1102	●
	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1103-	●	●

172 43 80 28 172 28 5 9 67 126 64 10 126 126 119 5 5 166 5 5 10 7 1 58 58 58 58 213 213 126 213 126 126 126 9 5 7 6 58 42 42 58 213 58 42 42 58 1 6 64 54 28 43 100 335 126 109 335 100 126 102 126 101 101 100 107 335 109 100 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (E)	8-98166-972-0	01	1	1307-	●	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1011-1102	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1103-1306	●	●
1	TANK ASM; AIR (D)	1-48370-954-0	01	1	1307-	●	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1011-1102	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1103-1306	●	●
1	TANK ASM; AIR (A)	8-97622-812-0	01	1	1307-	●	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	1011-1102	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	1103-1306	●	●
1	TANK ASM; AIR (B)	8-97623-480-0	01	1	1307-	●	●
5	UNION; AIR TANK (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	1011-1102	●
5	UNION; AIR TANK (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	1103-1306	●	●
5	UNION; AIR TANK (E) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1307-	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1011-1102	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1103-1306	●	●
5	UNION; AIR TANK (A) M16 & PT3/8 ELBOW	1-09650-438-0	03	1	1307-	●	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	1011-1102	●
5	UNION; AIR TANK (C) PT1/4 2WAY	1-09660-693-0	04	1	1103-1306	●	●
5	UNION; AIR TANK (F) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1307-	●	●
5	UNION; AIR TANK (B)	8-98111-509-0	02	1	1011-1102	●
5	UNION; AIR TANK (B)	8-98111-509-0	02	1	1103-1306	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1307-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1307-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1011-1102	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1103-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1011-1102	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1103-1306	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1307-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1307-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1307-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1011-1102	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1103-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1011-1102	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1103-1306	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1307-	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	01	1	1011-1102	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	01	1	1103-1306	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	8-97615-622-0	02	1	1307-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1307-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1307-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1011-1102	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1103-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	1011-1102	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	1103-1306	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	1307-		●
28	BRACKET; AIR TANK (D)	8-98237-322-0	01	1	1307-	●	●
28	BRACKET; AIR TANK (E)	8-98238-311-0	01	1	1307-	●	●
28	BRACKET; AIR TANK (G)	8-98237-623-0	01	1	1307-		●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	1011-1102	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	1103-1306	●	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	01	1	1307-	●	●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	1011-1102	●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	1103-1306	●	●
28	BRACKET; AIR TANK (H)	1-47478-941-0	01	1	1307-	●	●
28	BRACKET; AIR TANK (A)	8-98111-673-1	01	1	1011-1306	●
28	BRACKET; AIR TANK (F)	8-98237-321-0	01	1	1307-	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1011-1102	●
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	1103-	●	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	1011-1102	●
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28651-025-0	04	1	1103-	●	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1307-	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	24	1	1307-		●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1011-1102	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1103-1306	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	08	1	1307-	●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	1011-1102	●
64	STAY; AIR TANK,MAIN (A)	1-53318-293-1	01	1	1103-	●	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	1011-1102	●
64	STAY; AIR TANK,MAIN (B)	8-94301-490-0	01	1	1103-1306	●	●
64	STAY; AIR TANK,MAIN (C)	1-48317-349-0	01	1	1307-	●	●
67	STAY; SUB TANK (A)	8-97614-753-0	01	1	1011-1102	●
67	STAY; SUB TANK (A)	8-97614-753-0	01	1	1103-1306	●	●
67	STAY; SUB TANK (B)	8-98230-370-0	01	1	1307-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1103-1306		●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1011-1306	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	20	1	1307-	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1011-1102	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1103-1306	●	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	1011-1306	●
80	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
100	BOLT; MODULATOR (A) M8X80 FLANGE	0-28050-880-0	06	1	1307-	●	●
100	BOLT; MODULATOR (B) M10X25 FLANGE	0-28651-025-0	05	1	1307-	●	●
101	NUT; MODULATOR (A) M8 FLANGE	0-91180-108-0	04	1	1307-	●	●
101	NUT; MODULATOR (B) M10 FLANGE	0-91180-210-0	03	1	1307-	●	●
102	BRACKET; MODULATOR (B)	8-97623-022-1	01	1	1307-	●	●
102	BRACKET; MODULATOR (A)	8-98237-174-0	01	1	1307-	●	●
102	BRACKET; MODULATOR (C)	8-98237-212-0	01	1	1307-	●	●
107	MODULATOR; RR	8-98215-453-0	02	1	1307-	●	●
109	MODULATOR; FRT	8-98244-861-0	02	1	1307-	●	●
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	1011-1102	●
119	BOLT; STAY M8X20 FLANGE	0-28650-820-0	02	1	1103-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1307-	●
126	CONNECTOR; ELBOW (E) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1307-	●
126	CONNECTOR; ELBOW (F) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1307-	●	●
126	CONNECTOR; ELBOW (G)	1-09656-736-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (H) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (I) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1307-	●	●
126	CONNECTOR; ELBOW (J) M16X2 & R3/8 & RC1/4 4WAY ELBOW	8-98061-136-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	1307-		●
126	CONNECTOR; ELBOW (K) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1307-		●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1011-1102	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1103-1306	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1307-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	1011-1102	●
126	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	1103-1306	●	●
126	CONNECTOR; ELBOW (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1011-1102	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1103-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	02	1	1011-1102	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	02	1	1103-1306	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK	8-97615-622-0	01	1	1307-	●	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	1011-1102	●
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	1011-1102	●
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	1103-	●	●
213	BOLT; U AIR TANK (C) L=210	1-48317-458-1	02	1	1307-	●	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1011-1102	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1103-	●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1011-1102	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1103-	●	●
335	CONNECTOR; MODULATOR M16 & PT3/8 STRAIGHT	1-09650-179-1	03	1	1307-	●	●

126 126 126 10 7 6 213 213 126 1 58 10 58 104 80 203 37 28 28 126 126 126 10 7 6 213 213 28 28 37 203 80 104 58 58 126 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR (E)	8-98166-972-0	01	1	1307-	●	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1011-1102	●
1	TANK ASM; AIR (B)	1-48330-598-0	01	1	1103-1306	●	●
1	TANK ASM; AIR (D)	1-48370-954-0	01	1	1307-	●	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1011-1102	●
1	TANK ASM; AIR (A)	1-48370-541-0	01	1	1103-1306	●	●
1	TANK ASM; AIR (A)	8-97622-812-0	01	1	1307-	●	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	1011-1102	●
1	TANK ASM; AIR (C)	8-98081-870-1	01	1	1103-1306	●	●
1	TANK ASM; AIR (B)	8-97623-480-0	01	1	1307-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	03	1	1307-	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1307-		●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1011-1102	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	01	1	1103-	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1011-1102	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	1103-1306	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	02	1	1307-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1307-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1307-		●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1011-1102	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1103-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1011-1102	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	1103-1306	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1307-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1307-	●	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	01	1	1307-	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1011-1102	●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	1103-	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	1011-1102	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	03	1	1103-1306	●	●
10	PLUG; AIR TANK (A) PT1/4	9-99204-513-0	02	1	1307-		●
28	BRACKET; AIR TANK (D)	8-98237-322-0	01	1	1307-	●	●
28	BRACKET; AIR TANK (E)	8-98238-311-0	01	1	1307-	●	●
28	BRACKET; AIR TANK (G)	8-98237-623-0	01	1	1307-		●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	1011-1102	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	02	1	1103-1306	●	●
28	BRACKET; AIR TANK (B)	1-53318-338-6	01	1	1307-	●	●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	1011-1102	●
28	BRACKET; AIR TANK (C)	8-98092-756-1	01	1	1103-1306	●	●
28	BRACKET; AIR TANK (H)	1-47478-941-0	01	1	1307-	●	●
28	BRACKET; AIR TANK (A)	8-98111-673-1	01	1	1011-1306	●
28	BRACKET; AIR TANK (F)	8-98237-321-0	01	1	1307-	●
37	BOLT; AIR TANK (B) M10X40 FLANGE	0-28651-040-0	02	1	1307-	●	●
37	BOLT; AIR TANK (A) M12X40 FLANGE	0-28651-240-0	06	1	1011-1102	●
37	BOLT; AIR TANK (A) M12X40 FLANGE	0-28651-240-0	06	1	1103-	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1307-	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	24	1	1307-		●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1011-1102	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	1103-1306	●	●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	08	1	1307-	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1103-1306		●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1011-1306	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	20	1	1307-	●	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1011-1102	●
80	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	04	1	1103-1306	●	●
80	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1307-	●	●
80	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	03	1	1011-1306	●
80	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1307-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1011-1306	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1307-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1307-	●
126	CONNECTOR; ELBOW (E) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	1307-	●
126	CONNECTOR; ELBOW (F) M16 & PT3/8 ELBOW	1-09650-438-0	04	1	1307-	●	●
126	CONNECTOR; ELBOW (G)	1-09656-736-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (H) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (I) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1307-	●	●
126	CONNECTOR; ELBOW (J) M16X2 & R3/8 & RC1/4 4WAY ELBOW	8-98061-136-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (D) M12 & PT3/8 ELBOW	1-09650-436-0	02	1	1307-		●
126	CONNECTOR; ELBOW (K) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1307-		●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1011-1102	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	01	1	1103-1306	●	●
126	CONNECTOR; ELBOW (A) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1307-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	1011-1102	●
126	CONNECTOR; ELBOW (C) PT1/4 2WAY	1-09660-693-0	01	1	1103-1306	●	●
126	CONNECTOR; ELBOW (F) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	1307-	●	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1011-1102	●
126	CONNECTOR; ELBOW (B) M20 & PT3/4 ELBOW	8-98067-083-1	01	1	1103-	●	●
203	NUT (A) M8	0-91110-508-0	04	1	1307-	●	●
203	NUT (B) M10 FLANGE	0-91180-210-0	02	1	1307-	●	●
213	BOLT; U AIR TANK (C) L=210	1-48317-458-1	02	1	1307-	●	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1011-1102	●
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	1103-	●	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1011-1102	●
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	1103-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
