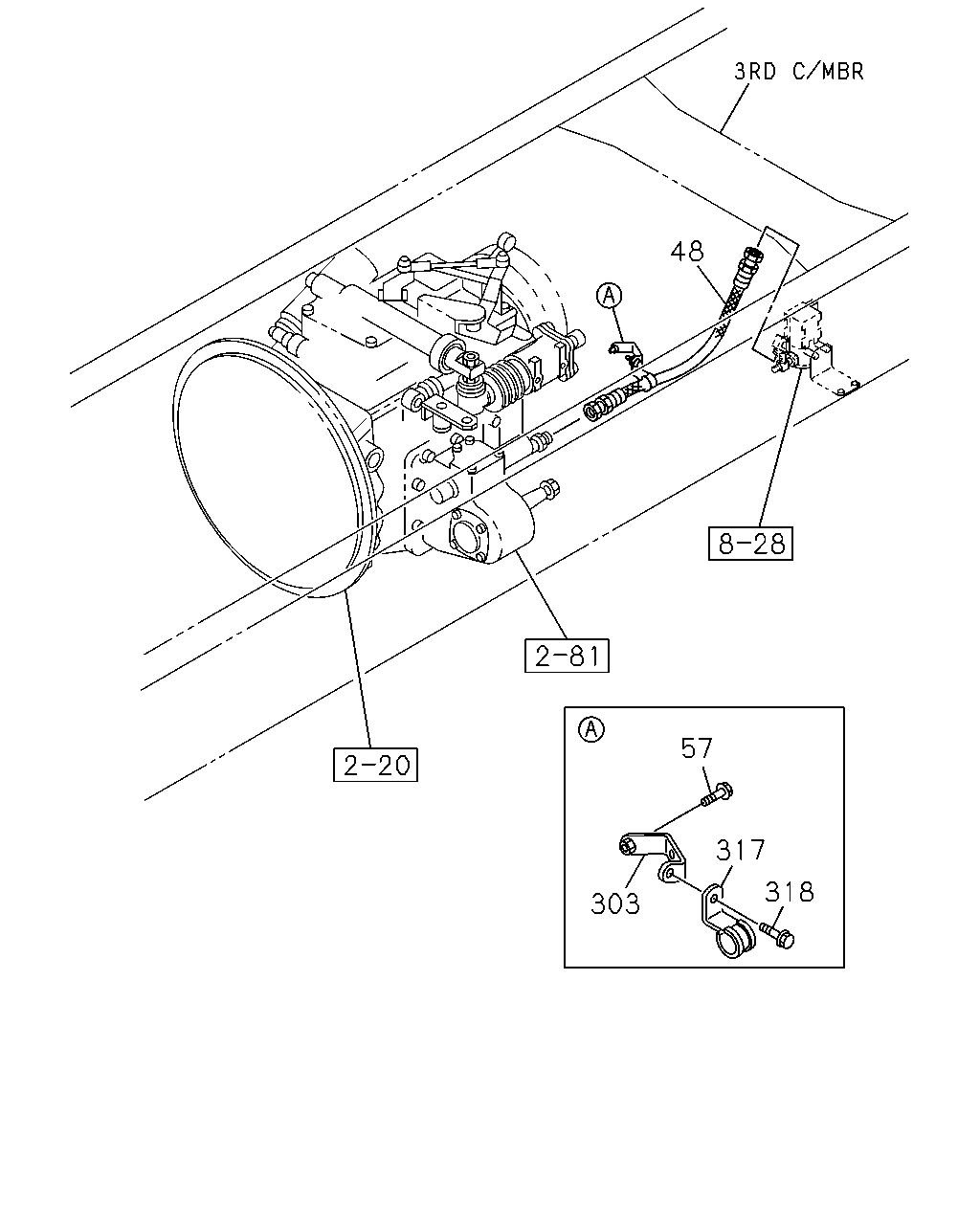

2-85 — POWER TAKE OFF CONTROL (#69830) — 7 parça

57 317 318 303 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=500	1-09363-733-0	01	1	1011-1102	●
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=500	1-09363-733-0	01	1	1103-1306	●	●
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=500	1-09363-733-0	01	1	1307-	●	●
57	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE	0-28651-025-0	01	1	1307-	●	●
303	BRACKET; CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98136-973-0	01	1	1307-	●	●
317	CLIP; NYLON TUBE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30	1-09701-215-1	01	1	1307-	●	●
318	BOLT; CLIP TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	01	1	1307-	●	●
