Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10820 - CXZ LHD CHINA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

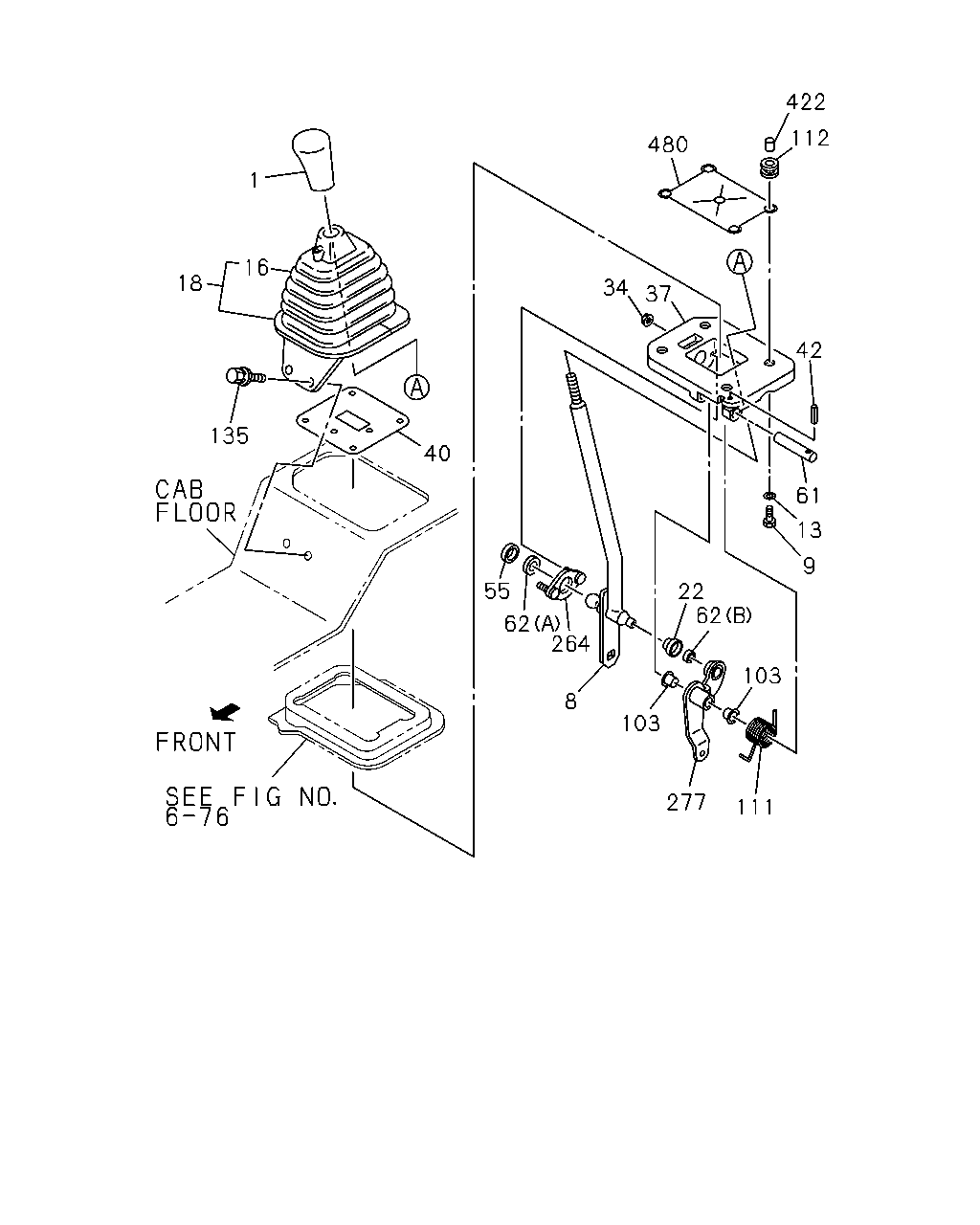

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#6983) — 23 parça
422
112
480
34
37
42
61
13
9
55
62
264
8
103
277
111
103
62
22
1
18
16
135
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-068-0
01
1
9908-
8
LEVER; CHANGE
1-33613-348-0
01
1
9908-
9
BOLT; CHANGE LEVER
M8X25 FLANGE
0-28680-825-0
04
1
9908-
13
WASHER; PL,SUPER SHIFT LEVER
ID=8.4 OD=22
9-09160-708-0
04
1
9908-
16
BOOT; CHANGE LEVER
1-79996-368-0
01
1
9908-
18
BOOT; CHANGE LEVER
1-79996-436-2
01
1
9908-
22
COVER; DUST,CHANGE LEVER
1-33619-573-0
01
1
9908-
34
NUT
M6 FLANGE
0-91150-106-0
02
1
9908-
37
BRACKET; CHANGE LEVER SUPPORT
1-33619-467-0
01
1
9908-
40
SEAL; BOOT HOLDER CHANGE LEVER
1-79996-345-0
01
1
9908-
42
PIN; SPRING,SELECT LEVER PIN
D=5 L=28
8-94252-581-0
01
1
9908-
55
SEAT; RUBBER,SELECT SPRING
1-33619-429-0
01
1
9908-
61
PIN; SELECT LEVER
1-33619-470-0
01
1
9908-
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
9908-
62
SEAT; BALL,CHANGE LEVER
(B)
8-97011-900-0
01
1
9908-
103
BUSHING; RELAY LEVER
ID=14 OD=16
8-94252-671-0
02
1
9908-
111
SPRING
1-09585-136-0
01
1
9908-
112
RUBBER; CUSHION
8-97091-426-0
04
1
9908-
135
BOLT
M8X20 W/LK&PL WASHER
8-94279-208-0
04
1
9908-
264
PLATE; COVER
1-33619-469-0
01
1
9908-
277
LEVER; RELAY
1-33651-636-0
01
1
9908-
422
BUSHING; CHANGE LEVER
8-97091-427-0
04
1
9908-
480
RUBBER; COVER
1-33619-554-0
01
1
9908-
