2-75 — TRANSFER CONTROL (#69827) — 32 parça

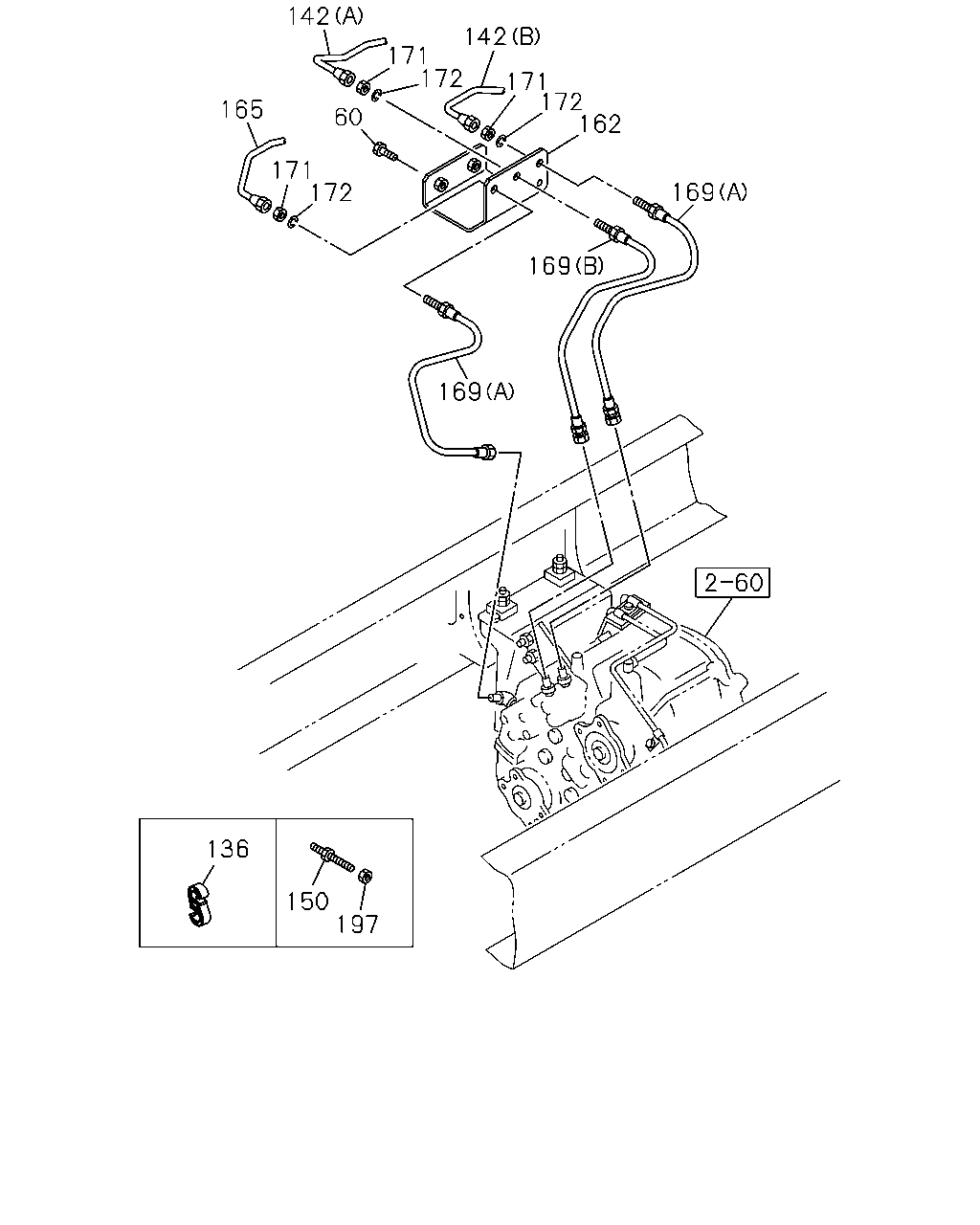

çizim 114486
165 171 172 169 136 150 197 169 169 162 172 171 142 172 60 171 142
BalonParca AdiParca NoAdetTipApplied Date A B
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1103-1306 ● ●
60 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307- ● ●
136 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 02 1 1011-1102 ●
136 CLIP; AIR PIPE
ID=6.35 & 6.35 		1-09709-273-1 02 1 1103- ● ●
136 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 1011-1102 ●
136 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 02 1 1103- ● ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(A) SERVICED BY L=700 		1-47428-811-0 01 1 1307- ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(B) SERVICED BY L=550 		1-47428-808-0 01 1 1307- ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(B) L=552 SERVICED BY L=600 		1-47428-809-0 01 1 1011-1102 ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(B) L=552 SERVICED BY L=600 		1-47428-809-0 01 1 1103-1306 ● ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(B) L=552 SERVICED BY L=600 		1-47428-809-0 01 1 1307- ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(A) L=668 SERVICED BY L=700 		1-47428-811-0 01 1 1011-1102 ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(A) L=668 SERVICED BY L=700 		1-47428-811-0 01 1 1103-1306 ● ●
142 PIPE; AIR,FLEX HOSE TO TRANSFER
(A) L=668 SERVICED BY L=700 		1-47428-811-0 01 1 1307- ●
150 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 1307- ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98116-431-0 01 1 1011-1102 ●
162 BRACKET; FLEX HOSE,TRANSFER 8-98116-431-0 01 1 1103- ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
SERVICED BY L=800 		1-47428-812-0 01 1 1307- ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1011-1102 ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1103-1107 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1108-1306 ● ●
165 PIPE; AIR,MAG VLV TO FLEX HOSE
L=769 SERVICED BY L=800 		1-47428-812-0 01 1 1307- ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=340 		1-09363-622-0 02 1 1011-1102 ●
169 HOSE; FLEX,TRANSFER CONT
(A) L=340 		1-09363-622-0 02 1 1103- ● ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=490 		1-09363-632-0 01 1 1011-1102 ●
169 HOSE; FLEX,TRANSFER CONT
(B) L=490 		1-09363-632-0 01 1 1103- ● ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 1011-1102 ●
171 NUT; FLEX HOSE
M12 		9-09840-280-0 03 1 1103- ● ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 1011-1102 ●
172 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 03 1 1103- ● ●
197 NUT; UNION
M12 		9-09840-280-0 01 1 1307- ●
