2-61 — TRANSFER CASE AND GEAR SHIFTER (#69824) — 196 parça

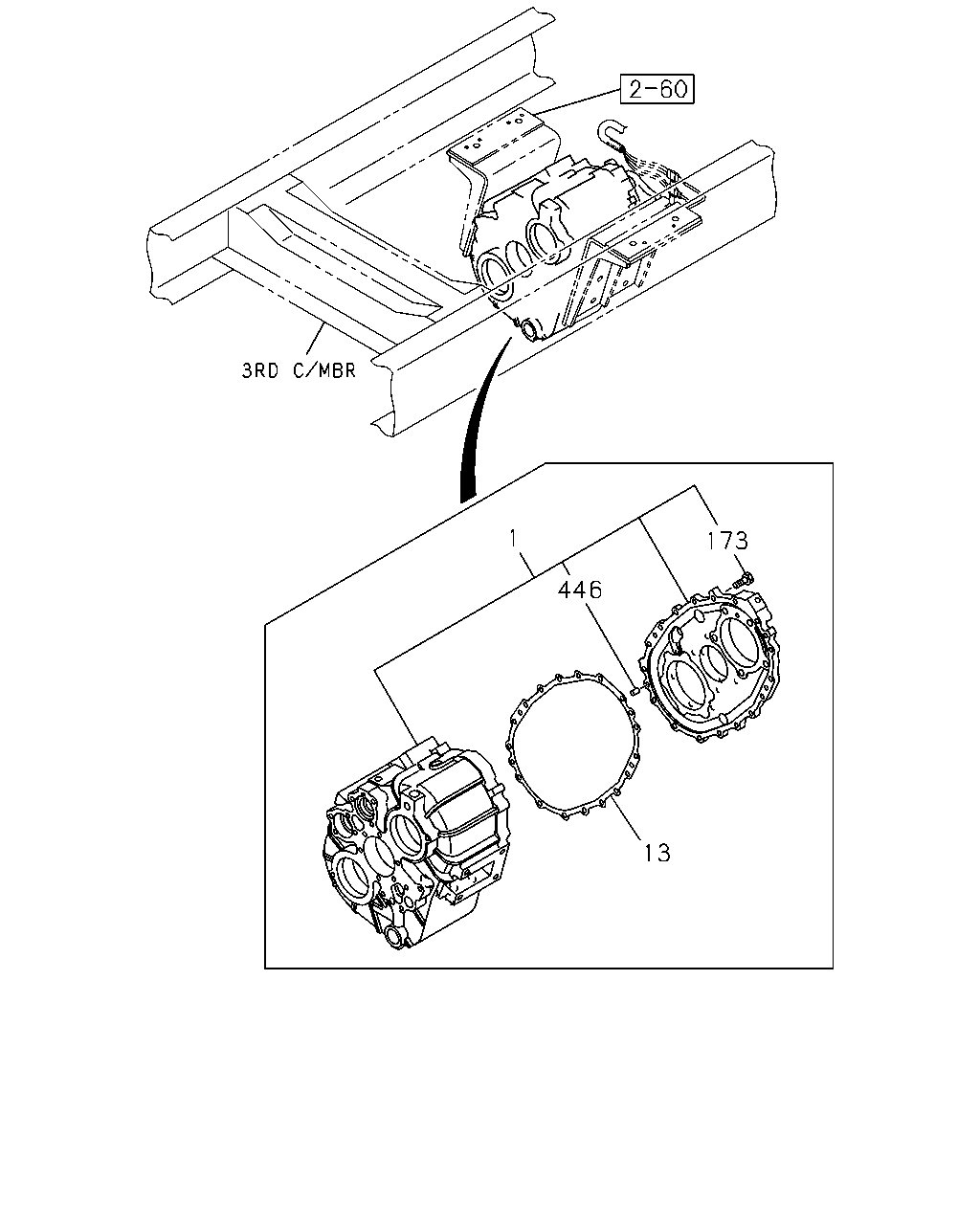

çizim 114404
13 446 173 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER 1-36110-051-0 01 1 1011-1102 ●
1 CASE; TRANSFER 1-36110-051-0 01 1 1103- ● ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 1011-1102 ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 1103- ● ●
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50551-030-0 14 1 1011-1102 ●
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50551-030-0 14 1 1103- ● ●
446 PIN; STRAIGHT 9-08161-016-0 02 1 1011-1102 ●
446 PIN; STRAIGHT 9-08161-016-0 02 1 1103- ● ●

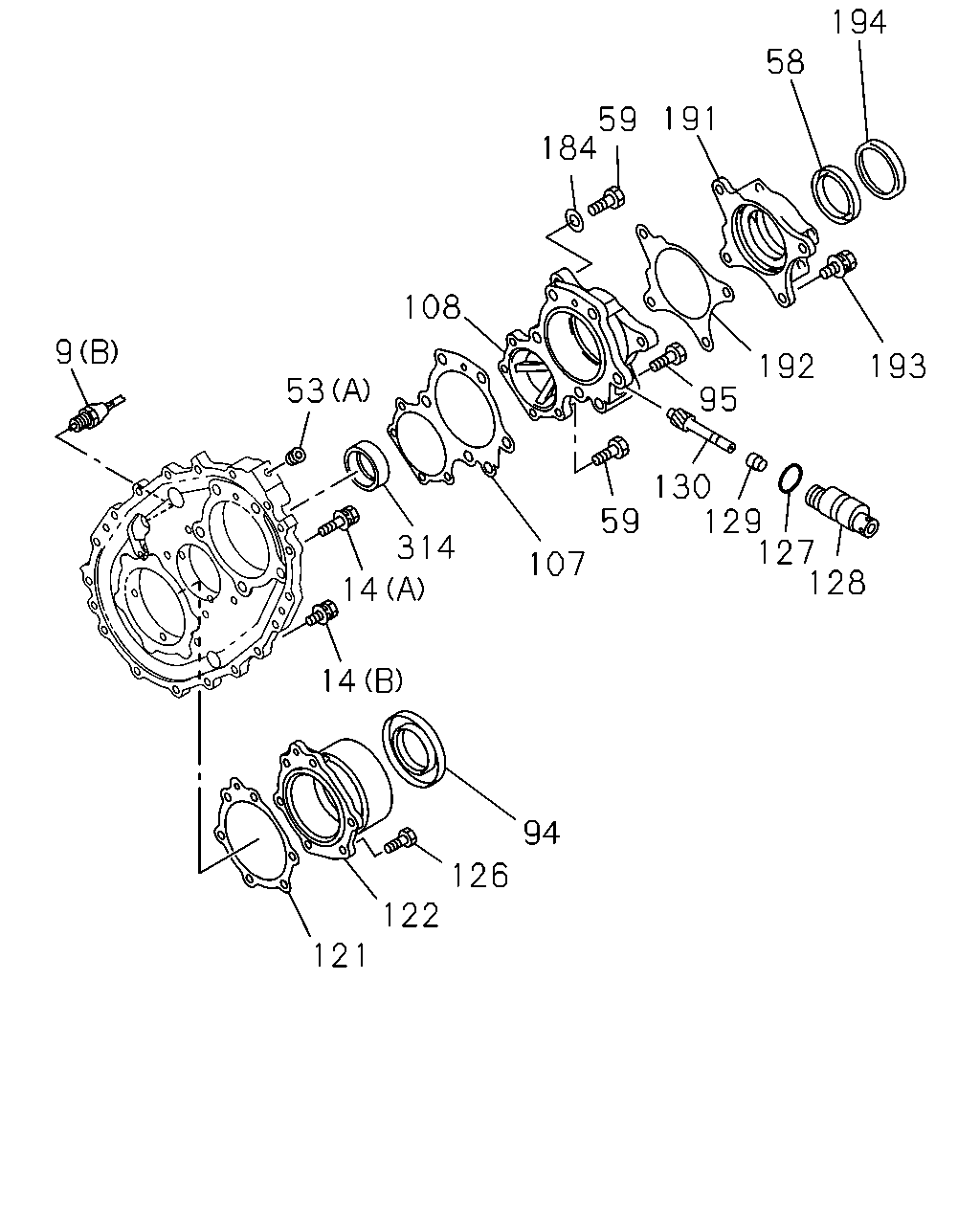

çizim 114712
194 58 191 59 184 108 53 9 121 122 126 94 14 14 314 107 59 130 129 127 128 95 192 193
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1011-1102 ●
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1103- ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1011-1102 ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1103- ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50551-030-0 01 1 1011-1102 ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50551-030-0 01 1 1103- ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50551-045-0 02 1 1011-1102 ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50551-045-0 02 1 1103- ● ●
53 PLUG; COVER
(B) M16X12 		0-92002-416-0 02 1 1011-1102 ●
53 PLUG; COVER
(B) M16X12 		0-92002-416-0 02 1 1103- ● ●
53 PLUG; COVER
(A) 		9-09205-510-0 01 1 1011-1102 ●
53 PLUG; COVER
(A) 		9-09205-510-0 01 1 1103- ● ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 1011-1102 ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 1103- ● ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 1011-1102 ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 1103- ● ●
59 BOLT; UPR COVER
M14X40 		0-23851-440-0 04 1 1011-1102 ●
59 BOLT; UPR COVER
M14X40 		0-23851-440-0 04 1 1103- ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 1011-1102 ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 1103- ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-1 01 1 1011-1102 ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-1 01 1 1103- ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 1011-1102 ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 1103- ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 1011-1102 ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 1103- ● ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 1011-1102 ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 1103- ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 1011-1102 ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 1103- ● ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 1011-1102 ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 1103- ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 1011-1102 ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 1103- ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 1011-1102 ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 1103- ● ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 1011-1102 ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 1103- ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 1011-1102 ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 1103- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 1011-1102 ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 1103- ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		0-91510-514-0 05 1 1011-1102 ●
184 WASHER; LK,UPR COVER
ID=14.2 		0-91510-514-0 05 1 1103- ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 1011-1102 ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 1103- ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 1011-1102 ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 1103- ● ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 1011-1102 ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 1103- ● ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 1011-1102 ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 1103- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 1011-1102 ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 1103- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 1011-1102 ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 1103- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 1011-1102 ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 1103- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 1011-1102 ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 1103- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 1011-1102 ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 1103- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 1011-1102 ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 1103- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 1011-1102 ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 1103- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 1011-1102 ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 1103- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 1011-1102 ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 1103- ● ●

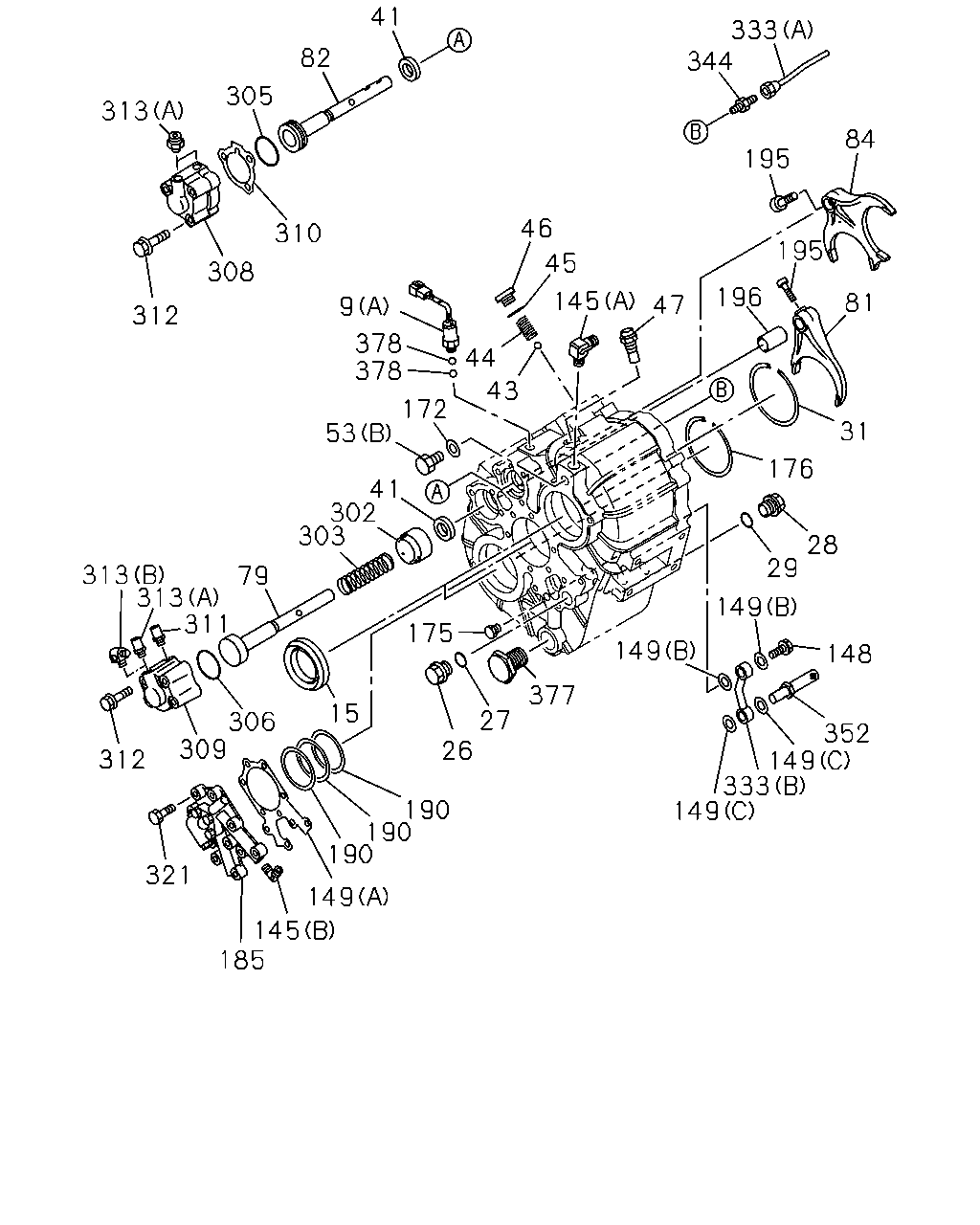

çizim 189124
185 321 312 309 145 149 190 190 190 26 27 377 149 175 15 306 313 313 311 79 303 302 41 53 378 378 172 149 148 352 149 333 149 29 28 176 31 81 196 195 84 195 333 344 46 45 145 47 44 43 312 308 310 9 313 305 82 41
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1011-1102 ●
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1103- ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1011-1102 ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1103- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 1011-1102 ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 1103- ● ●
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1011-1102 ●
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1103- ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1011-1102 ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1103- ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1011-1102 ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1103- ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1011-1102 ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1103- ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 1011-1102 ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 1103- ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 1011-1102 ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 1103- ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 1011-1102 ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 1103- ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 1011-1102 ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 1103- ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 1011-1102 ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 1103- ● ●
46 SEAT; SPR 9-09862-175-0 01 1 1011-1102 ●
46 SEAT; SPR 9-09862-175-0 01 1 1103- ● ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 1011-1102 ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 1103- ● ●
53 PLUG; COVER
(B) M16X12 		0-92002-416-0 02 1 1011-1102 ●
53 PLUG; COVER
(B) M16X12 		0-92002-416-0 02 1 1103- ● ●
53 PLUG; COVER
(A) 		9-09205-510-0 01 1 1011-1102 ●
53 PLUG; COVER
(A) 		9-09205-510-0 01 1 1103- ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 1011-1102 ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 1103- ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 1011-1102 ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 1103- ● ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 1011-1102 ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 1103- ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 1011-1102 ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 1103- ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1011-1102 ●
145 CONNECTOR; OIL PIPE,TRANSFER
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1103- ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
(A) 		1-09650-325-1 01 1 1011-1102 ●
145 CONNECTOR; OIL PIPE,TRANSFER
(A) 		1-09650-325-1 01 1 1103- ● ●
148 BOLT; EYE,OIL PIPE
M12X27 FLANGE 		1-09675-085-0 01 1 1011-1102 ●
148 BOLT; EYE,OIL PIPE
M12X27 FLANGE 		1-09675-085-0 01 1 1103- ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (A) 		1-36289-029-0 01 1 1011-1102 ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (A) 		1-36289-029-0 01 1 1103- ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (B) ID=12.2 		9-09572-012-0 02 1 1011-1102 ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (B) ID=12.2 		9-09572-012-0 02 1 1103- ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		9-09572-016-0 02 1 1011-1102 ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		9-09572-016-0 02 1 1103- ● ●
172 GASKET; PLUG
ID=16.2 		9-09571-616-0 02 1 1011-1102 ●
172 GASKET; PLUG
ID=16.2 		9-09571-616-0 02 1 1103- ● ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 1011-1102 ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 1103- ● ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 1011-1102 ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 1103- ● ●
185 PUMP ASM; OIL,TRANSFER 1-13110-036-2 01 1 1011-1102 ●
185 PUMP ASM; OIL,TRANSFER 1-13110-036-2 01 1 1103- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 1011-1102 ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 1103- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 1011-1102 ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 1103- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 1011-1102 ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 1103- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 1011-1102 ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 1103- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 1011-1102 ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 1103- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 1011-1102 ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 1103- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 1011-1102 ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 1103- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 1011-1102 ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 1103- ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 1011-1102 ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 1103- ● ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 1011-1102 ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 1103- ● ●
302 SEAT; SPRING 1-36572-002-1 01 1 1011-1102 ●
302 SEAT; SPRING 1-36572-002-1 01 1 1103- ● ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 1011-1102 ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 1103- ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 1011-1102 ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 1103- ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 1011-1102 ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 1103- ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 1011-1102 ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 1103- ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 1011-1102 ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 1103- ● ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 1011-1102 ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 1103- ● ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 1011-1102 ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 1103- ● ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 1011-1102 ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 1103- ● ●
313 CONNECTOR; AIR CYL
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1011-1102 ●
313 CONNECTOR; AIR CYL
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1103- ● ●
313 CONNECTOR; AIR CYL
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1011-1102 ●
313 CONNECTOR; AIR CYL
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1103- ● ●
321 BOLT; PUMP HSG
M10X35 FLANGE 		0-28151-035-0 08 1 1011-1102 ●
321 BOLT; PUMP HSG
M10X35 FLANGE 		0-28151-035-0 08 1 1103- ● ●
321 BOLT; PUMP HSG
M10X50 FLANGE 		0-28151-050-0 02 1 1011-1102 ●
321 BOLT; PUMP HSG
M10X50 FLANGE 		0-28151-050-0 02 1 1103- ● ●
333 PIPE; OIL,TRANSFER
(A) 		1-36161-030-0 01 1 1011-1102 ●
333 PIPE; OIL,TRANSFER
(A) 		1-36161-030-0 01 1 1103- ● ●
333 PIPE; OIL,TRANSFER
(B) 		1-36161-033-0 01 1 1011-1102 ●
333 PIPE; OIL,TRANSFER
(B) 		1-36161-033-0 01 1 1103- ● ●
344 CONNECTOR 0-92111-808-0 01 1 1011-1102 ●
344 CONNECTOR 0-92111-808-0 01 1 1103- ● ●
352 FILTER; OIL 1-36289-001-0 01 1 1011-1102 ●
352 FILTER; OIL 1-36289-001-0 01 1 1103- ● ●
377 ADAPTER; OIL PIPE 1-09669-131-0 01 1 1011-1102 ●
377 ADAPTER; OIL PIPE 1-09669-131-0 01 1 1103- ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 1011-1102 ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
