◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11306 - FSS(AUST/NZ)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-60 - TRANSFER ▶
2-60 — TRANSFER (#69823) — 368 parça

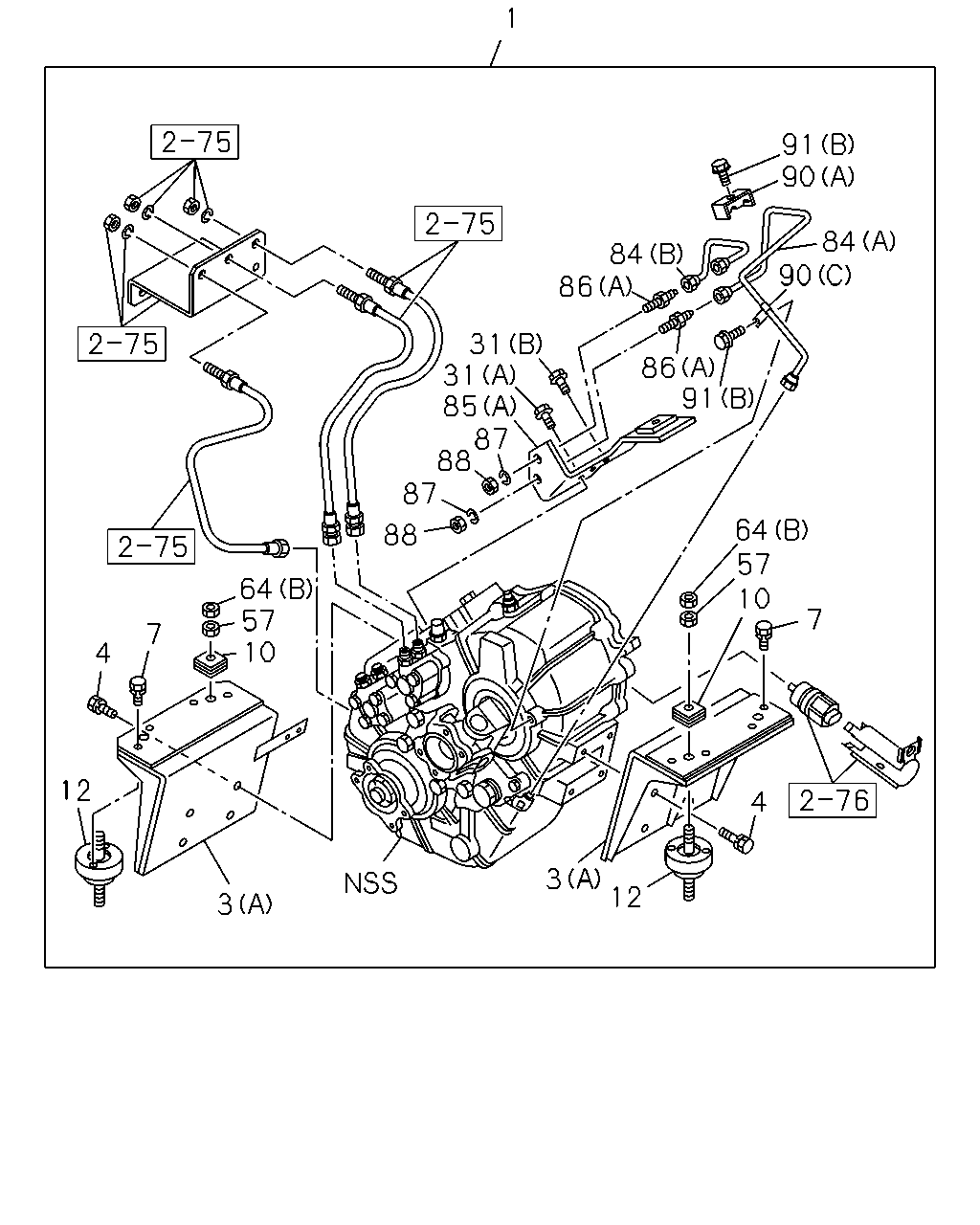

çizim 114361
12 3 3 12 4 7 10 57 64 88 87 88 87 85 31 31 86 84 91 90 84 90 86 91 64 57 10 7 4 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSFER ASM 1-36000-738-0 01 1 1011-1102 ●
1 TRANSFER ASM 1-36000-738-0 01 1 1103- ● ●
3 BRACKET; TRANSFER
(B) 		8-97613-315-0 01 1 1011-1102 ●
3 BRACKET; TRANSFER
(B) 		8-97613-315-1 01 1 1103- ● ●
3 BRACKET; TRANSFER
(C) 		8-97614-324-0 01 1 1011-1102 ●
3 BRACKET; TRANSFER
(C) 		8-97614-324-1 01 1 1103- ● ●
3 BRACKET; TRANSFER
(A) 		8-98093-613-0 01 1 1011-1102 ●
3 BRACKET; TRANSFER
(A) 		8-98093-613-0 01 1 1103- ● ●
3 BRACKET; TRANSFER
(A) 		8-98093-614-0 01 1 1011-1102 ●
3 BRACKET; TRANSFER
(A) 		8-98093-614-0 01 1 1103- ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28051-230-0 AR 1 1011-1102 ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28051-230-0 AR 1 1103- ● ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 1011-1102 ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 1103- ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28051-025-0 08 1 1011-1102 ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28051-025-0 08 1 1103- ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 1011-1102 ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 1103- ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 1011-1102 ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 1103- ● ●
31 BOLT; BRKT
(A) M10X16 FLANGE 		0-28151-016-0 01 1 1011-1102 ●
31 BOLT; BRKT
(A) M10X16 FLANGE 		0-28151-016-0 01 1 1103- ● ●
31 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 02 1 1011-1102 ●
31 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 02 1 1103- ● ●
57 NUT; CUSHION RUBBER,UPR
M12 		0-91110-512-0 04 1 1011-1102 ●
57 NUT; CUSHION RUBBER,UPR
M12 		0-91110-512-0 04 1 1103- ● ●
64 NUT; CUSHION RUBBER,LWR
(A) M14 		0-91110-514-0 04 1 1011-1102 ●
64 NUT; CUSHION RUBBER,LWR
(A) M14 		0-91110-514-0 04 1 1103- ● ●
64 NUT; CUSHION RUBBER,LWR
(B) M12 		0-91111-512-0 04 1 1011-1102 ●
64 NUT; CUSHION RUBBER,LWR
(B) M12 		0-91111-512-0 04 1 1103- ● ●
84 PIPE; T/F,COOLER
(I) 		8-98116-113-1 01 1 1103-1306 ●
84 PIPE; T/F,COOLER
(I) 		8-98233-817-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 1103-1306 ●
84 PIPE; T/F,COOLER
(J) 		8-98233-820-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(K) 		8-98119-818-0 01 1 1103- ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 1103- ●
84 PIPE; T/F,COOLER
(H) 		8-98180-763-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(H) 		8-98180-763-0 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(C) 		8-98116-119-1 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(D) 		8-98233-816-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(D) 		8-98116-120-0 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(C) 		8-98233-818-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(E) 		8-98116-123-0 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(E) 		8-98233-819-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(F) 		8-98116-124-1 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(F) 		8-98233-821-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(G) 		8-98119-819-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(G) 		8-98119-819-0 01 1 1103- ● ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 1011-1102 ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 1103- ● ●
85 BRACKET; FLEX HOSE
(B) 		8-98116-064-0 01 1 1011-1102 ●
85 BRACKET; FLEX HOSE
(B) 		8-98116-064-0 01 1 1103- ● ●
86 UNION
(B) M16 STRAIGHT L=42 		0-92123-010-0 04 1 1011-1102 ●
86 UNION
(B) M16 STRAIGHT L=42 		0-92123-010-0 04 1 1103- ● ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 1011-1102 ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 1103- ● ●
87 WASHER
ID=16.2 		0-91510-516-0 02 1 1011-1102 ●
87 WASHER
ID=16.2 		0-91510-516-0 02 1 1103- ● ●
88 NUT
M16 		0-91110-516-0 02 1 1011-1102 ●
88 NUT
M16 		0-91110-516-0 02 1 1103- ● ●
90 CLIP
(C) 		1-09700-695-2 01 1 1011-1102 ●
90 CLIP
(C) 		1-09700-695-2 01 1 1103- ● ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1011-1102 ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1103- ● ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 1011-1102 ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 1103- ● ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 1011-1102 ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 1103- ● ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1011-1102 ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1103-1306 ● ●
91 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 1011-1102 ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 1103- ● ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 1011-1102 ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 1103- ● ●

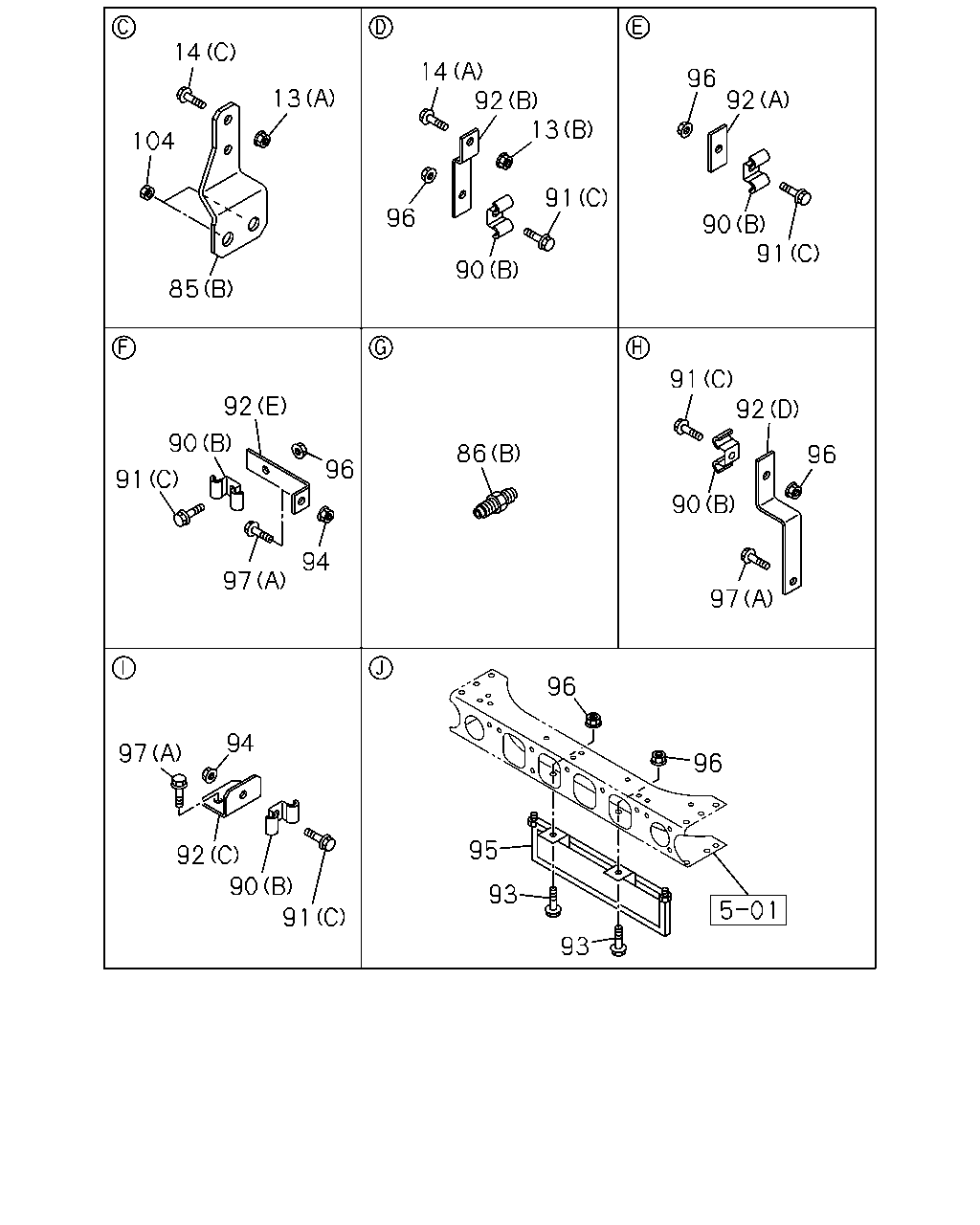

çizim 114362
93 93 95 96 96 97 90 91 92 96 91 90 92 96 14 92 13 91 90 96 86 14 13 104 85 92 96 94 97 90 91 97 94 92 90 91
BalonParca AdiParca NoAdetTipApplied Date A B
13 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1011-1306 ●
13 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
14 BOLT; BRKT
(B) M14X40 		0-20851-440-0 11 1 1011-1102 ●
14 BOLT; BRKT
(B) M14X40 		0-20851-440-0 11 1 1103- ● ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1011-1306 ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
14 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 1011-1102 ●
14 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 1103- ● ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 1011-1102 ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 1103- ● ●
85 BRACKET; FLEX HOSE
(B) 		8-98116-064-0 01 1 1011-1102 ●
85 BRACKET; FLEX HOSE
(B) 		8-98116-064-0 01 1 1103- ● ●
86 UNION
(B) M16 STRAIGHT L=42 		0-92123-010-0 04 1 1011-1102 ●
86 UNION
(B) M16 STRAIGHT L=42 		0-92123-010-0 04 1 1103- ● ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 1011-1102 ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 1103- ● ●
90 CLIP
(C) 		1-09700-695-2 01 1 1011-1102 ●
90 CLIP
(C) 		1-09700-695-2 01 1 1103- ● ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1011-1102 ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1103- ● ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 1011-1102 ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 1103- ● ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 1011-1102 ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 1103- ● ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1011-1102 ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1103-1306 ● ●
91 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 1011-1102 ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 1103- ● ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 1011-1102 ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 1103- ● ●
92 BRACKET
(F) 		1-47475-427-1 01 1 1307- ● ●
92 BRACKET
(F) 		1-47475-427-1 03 1 1103-1306 ●
92 BRACKET
(F) 		1-47475-427-1 02 1 1307- ●
92 BRACKET
(A) L=50 		1-47475-299-2 02 1 1011-1102 ●
92 BRACKET
(A) L=50 		1-47475-299-2 02 1 1103- ● ●
92 BRACKET
(E) L=68.5 		1-47475-591-0 02 1 1011-1306 ●
92 BRACKET
(E) L=68.5 		1-47475-591-0 01 1 1307- ●
92 BRACKET
(B) 		1-47477-261-0 01 1 1011-1306 ●
92 BRACKET
(B) 		1-47475-601-0 01 1 1307- ●
92 BRACKET
(C) 		8-98116-125-0 01 1 1011-1102 ●
92 BRACKET
(C) 		8-98116-125-0 01 1 1103- ● ●
92 BRACKET
(D) 		8-98116-126-0 02 1 1011-1102 ●
92 BRACKET
(D) 		8-98116-126-0 02 1 1103- ● ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 03 1 1011- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 1011-1102 ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 1103- ● ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 1011-1102 ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 1103- ● ●
94 NUT
M8 FLANGE 		0-91180-108-0 04 1 1011-1306 ●
94 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
95 COOLER 1-21700-394-0 01 1 1011-1102 ●
95 COOLER 1-21700-394-0 01 1 1103-1405 ● ●
95 COOLER 8-98269-766-0 01 1 1406- ● ●
96 NUT
M8 FLANGE 		0-91180-108-0 04 1 1103-1306 ●
96 NUT
M8 FLANGE 		0-91180-108-0 03 1 1307- ●
96 NUT
M8 FLANGE 		0-91180-108-0 06 1 1011- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
97 BOLT
(B) M8X45 FLANGE 		0-28050-845-0 01 1 1307- ● ●
97 BOLT
(B) M8X45 FLANGE 		0-28050-845-0 03 1 1103-1306 ●
97 BOLT
(B) M8X45 FLANGE 		0-28050-845-0 02 1 1307- ●
97 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1103- ●
97 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 06 1 1011-1306 ●
97 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1307- ●
104 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 1011-1102 ●
104 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 1103- ● ●

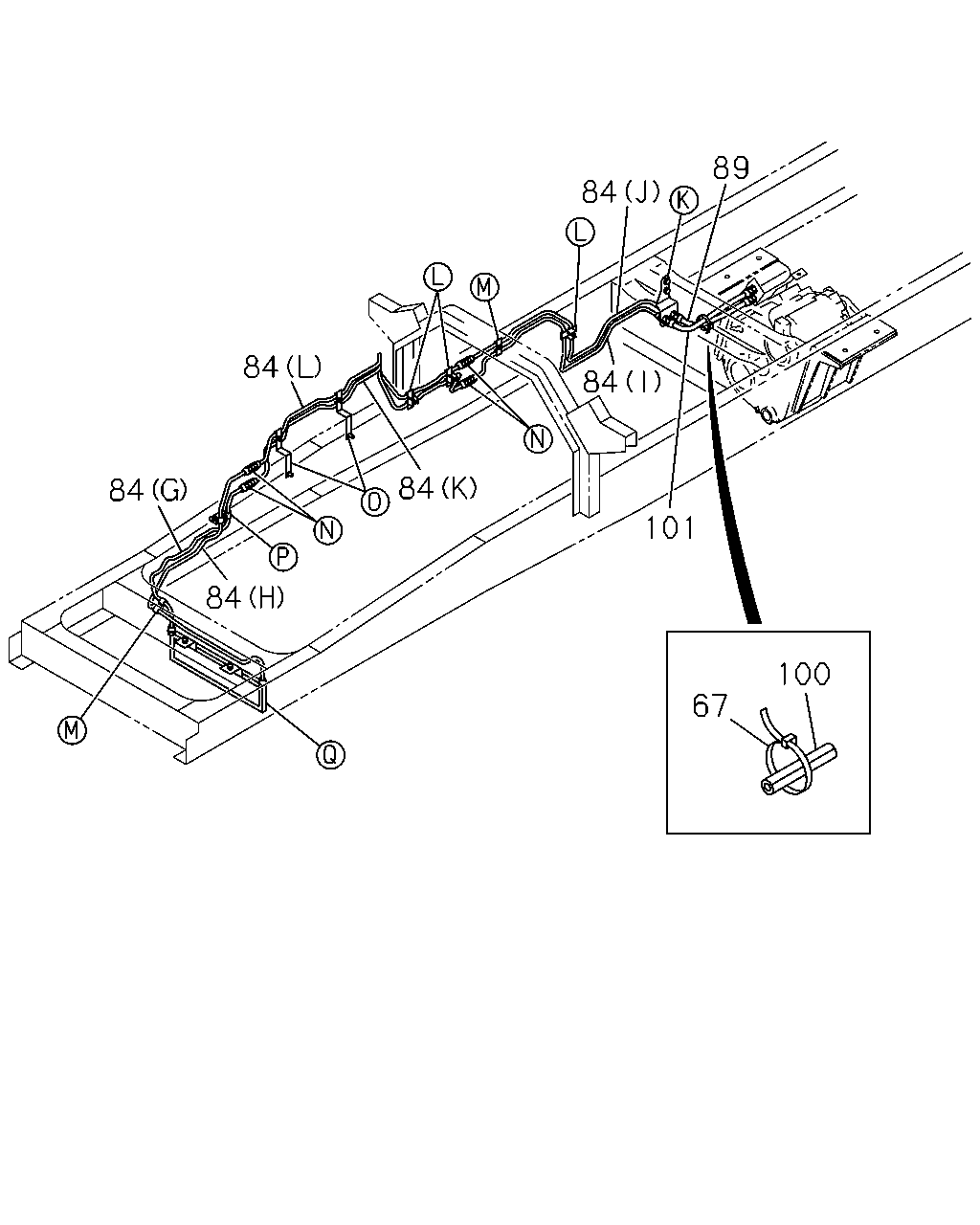

çizim 114363
67 100 101 84 89 84 84 84 84 84
BalonParca AdiParca NoAdetTipApplied Date A B
67 CLIP; BAND
L=250 		5-09707-030-1 01 1 1011-1102 ●
67 CLIP; BAND
L=250 		5-09707-030-1 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(I) 		8-98116-113-1 01 1 1103-1306 ●
84 PIPE; T/F,COOLER
(I) 		8-98233-817-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 1103-1306 ●
84 PIPE; T/F,COOLER
(J) 		8-98233-820-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(K) 		8-98119-818-0 01 1 1103- ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 1103- ●
84 PIPE; T/F,COOLER
(H) 		8-98180-763-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(H) 		8-98180-763-0 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(C) 		8-98116-119-1 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(D) 		8-98233-816-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(D) 		8-98116-120-0 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(C) 		8-98233-818-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(E) 		8-98116-123-0 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(E) 		8-98233-819-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(F) 		8-98116-124-1 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(F) 		8-98233-821-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(G) 		8-98119-819-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(G) 		8-98119-819-0 01 1 1103- ● ●
89 HOSE
L=405 		1-09364-800-0 01 1 1103- ●
89 HOSE
L=360 		1-09364-839-0 01 1 1011- ●
100 SLEEVE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1011-1102 ●
100 SLEEVE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1103- ● ●
101 HOSE; FLEX
L=465 		1-09365-146-0 01 1 1103- ●
101 HOSE; FLEX
L=430 		1-09364-872-0 01 1 1011- ●

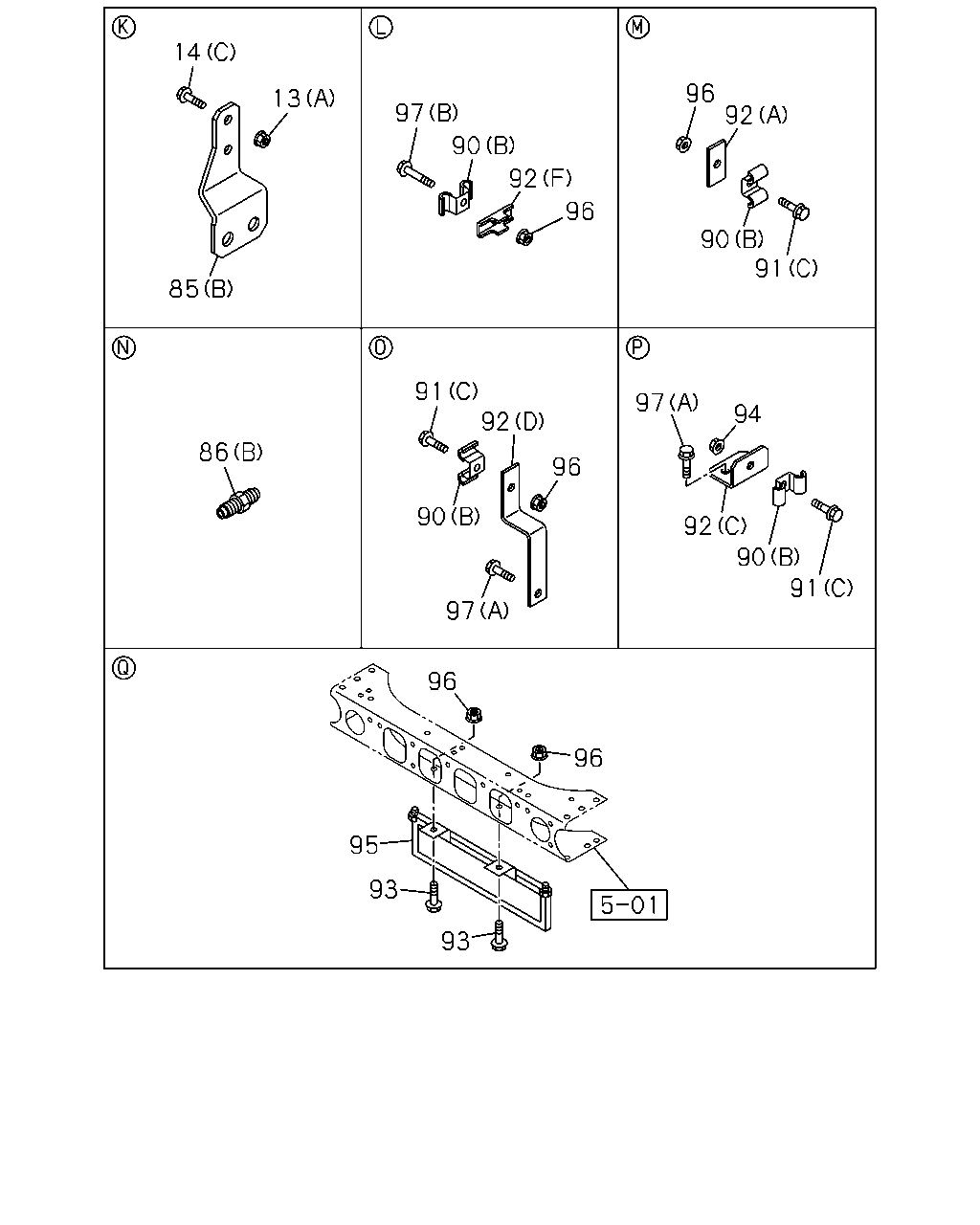

çizim 114401
93 93 95 96 96 91 90 92 94 97 97 90 91 92 96 91 90 92 96 96 92 90 97 13 14 85 86
BalonParca AdiParca NoAdetTipApplied Date A B
13 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1011-1306 ●
13 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1307- ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
13 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
14 BOLT; BRKT
(B) M14X40 		0-20851-440-0 11 1 1011-1102 ●
14 BOLT; BRKT
(B) M14X40 		0-20851-440-0 11 1 1103- ● ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1011-1306 ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
14 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 1011-1102 ●
14 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 1103- ● ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 1011-1102 ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 1103- ● ●
85 BRACKET; FLEX HOSE
(B) 		8-98116-064-0 01 1 1011-1102 ●
85 BRACKET; FLEX HOSE
(B) 		8-98116-064-0 01 1 1103- ● ●
86 UNION
(B) M16 STRAIGHT L=42 		0-92123-010-0 04 1 1011-1102 ●
86 UNION
(B) M16 STRAIGHT L=42 		0-92123-010-0 04 1 1103- ● ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 1011-1102 ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 1103- ● ●
90 CLIP
(C) 		1-09700-695-2 01 1 1011-1102 ●
90 CLIP
(C) 		1-09700-695-2 01 1 1103- ● ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1011-1102 ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1103- ● ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 1011-1102 ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 1103- ● ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 1011-1102 ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 1103- ● ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1011-1102 ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1103-1306 ● ●
91 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 1011-1102 ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 1103- ● ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 1011-1102 ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 1103- ● ●
92 BRACKET
(F) 		1-47475-427-1 01 1 1307- ● ●
92 BRACKET
(F) 		1-47475-427-1 03 1 1103-1306 ●
92 BRACKET
(F) 		1-47475-427-1 02 1 1307- ●
92 BRACKET
(A) L=50 		1-47475-299-2 02 1 1011-1102 ●
92 BRACKET
(A) L=50 		1-47475-299-2 02 1 1103- ● ●
92 BRACKET
(E) L=68.5 		1-47475-591-0 02 1 1011-1306 ●
92 BRACKET
(E) L=68.5 		1-47475-591-0 01 1 1307- ●
92 BRACKET
(B) 		1-47477-261-0 01 1 1011-1306 ●
92 BRACKET
(B) 		1-47475-601-0 01 1 1307- ●
92 BRACKET
(C) 		8-98116-125-0 01 1 1011-1102 ●
92 BRACKET
(C) 		8-98116-125-0 01 1 1103- ● ●
92 BRACKET
(D) 		8-98116-126-0 02 1 1011-1102 ●
92 BRACKET
(D) 		8-98116-126-0 02 1 1103- ● ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 1011-1102 ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ● ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 1103- ●
93 BOLT
M8X25 FLANGE 		0-28650-825-0 03 1 1011- ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 1011-1102 ●
93 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 1103- ● ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 1011-1102 ●
94 NUT
M8 FLANGE 		0-91180-108-0 02 1 1103- ● ●
94 NUT
M8 FLANGE 		0-91180-108-0 04 1 1011-1306 ●
94 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307- ●
95 COOLER 1-21700-394-0 01 1 1011-1102 ●
95 COOLER 1-21700-394-0 01 1 1103-1405 ● ●
95 COOLER 8-98269-766-0 01 1 1406- ● ●
96 NUT
M8 FLANGE 		0-91180-108-0 04 1 1103-1306 ●
96 NUT
M8 FLANGE 		0-91180-108-0 03 1 1307- ●
96 NUT
M8 FLANGE 		0-91180-108-0 06 1 1011- ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 1011-1102 ●
96 NUT
M10 FLANGE 		0-91180-210-0 02 1 1103- ● ●
97 BOLT
(B) M8X45 FLANGE 		0-28050-845-0 01 1 1307- ● ●
97 BOLT
(B) M8X45 FLANGE 		0-28050-845-0 03 1 1103-1306 ●
97 BOLT
(B) M8X45 FLANGE 		0-28050-845-0 02 1 1307- ●
97 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1103- ●
97 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 06 1 1011-1306 ●
97 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 05 1 1307- ●

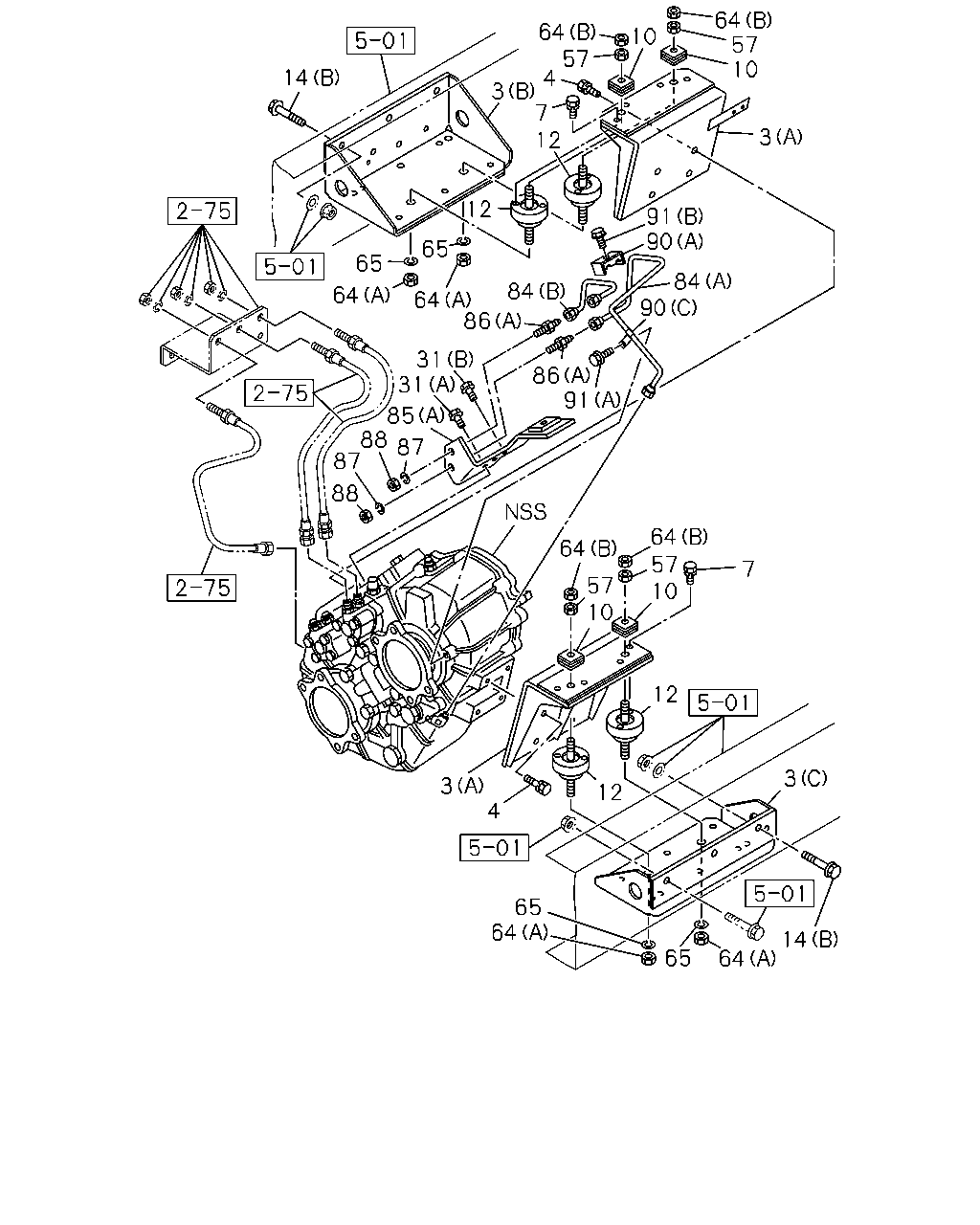

çizim 189120
14 64 65 64 65 12 12 3 4 10 10 7 57 64 57 64 88 87 88 87 85 31 31 91 86 86 84 64 64 65 65 12 12 7 3 4 57 64 64 57 10 3 91 90 84 90 14 10 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 BRACKET; TRANSFER
(B) 		8-97613-315-0 01 1 1011-1102 ●
3 BRACKET; TRANSFER
(B) 		8-97613-315-1 01 1 1103- ● ●
3 BRACKET; TRANSFER
(C) 		8-97614-324-0 01 1 1011-1102 ●
3 BRACKET; TRANSFER
(C) 		8-97614-324-1 01 1 1103- ● ●
3 BRACKET; TRANSFER
(A) 		8-98093-613-0 01 1 1011-1102 ●
3 BRACKET; TRANSFER
(A) 		8-98093-613-0 01 1 1103- ● ●
3 BRACKET; TRANSFER
(A) 		8-98093-614-0 01 1 1011-1102 ●
3 BRACKET; TRANSFER
(A) 		8-98093-614-0 01 1 1103- ● ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28051-230-0 AR 1 1011-1102 ●
4 BOLT; BRKT TO TRANSFER
M12X30 FLANGE 		0-28051-230-0 AR 1 1103- ● ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 1011-1102 ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 1103- ● ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28051-025-0 08 1 1011-1102 ●
7 BOLT; CUSHION RUBBER
M10X25 FLANGE 		0-28051-025-0 08 1 1103- ● ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 1011-1102 ●
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 1103- ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 1011-1102 ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 1103- ● ●
14 BOLT; BRKT
(B) M14X40 		0-20851-440-0 11 1 1011-1102 ●
14 BOLT; BRKT
(B) M14X40 		0-20851-440-0 11 1 1103- ● ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1011-1306 ●
14 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1307- ●
14 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 1011-1102 ●
14 BOLT; BRKT
(C) M10X30 FLANGE 		0-28651-030-0 02 1 1103- ● ●
31 BOLT; BRKT
(A) M10X16 FLANGE 		0-28151-016-0 01 1 1011-1102 ●
31 BOLT; BRKT
(A) M10X16 FLANGE 		0-28151-016-0 01 1 1103- ● ●
31 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 02 1 1011-1102 ●
31 BOLT; BRKT
(B) M12X20 FLANGE 		0-28151-220-0 02 1 1103- ● ●
57 NUT; CUSHION RUBBER,UPR
M12 		0-91110-512-0 04 1 1011-1102 ●
57 NUT; CUSHION RUBBER,UPR
M12 		0-91110-512-0 04 1 1103- ● ●
64 NUT; CUSHION RUBBER,LWR
(A) M14 		0-91110-514-0 04 1 1011-1102 ●
64 NUT; CUSHION RUBBER,LWR
(A) M14 		0-91110-514-0 04 1 1103- ● ●
64 NUT; CUSHION RUBBER,LWR
(B) M12 		0-91111-512-0 04 1 1011-1102 ●
64 NUT; CUSHION RUBBER,LWR
(B) M12 		0-91111-512-0 04 1 1103- ● ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		0-91510-514-0 04 1 1011-1102 ●
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		0-91510-514-0 04 1 1103- ● ●
84 PIPE; T/F,COOLER
(I) 		8-98116-113-1 01 1 1103-1306 ●
84 PIPE; T/F,COOLER
(I) 		8-98233-817-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 1103-1306 ●
84 PIPE; T/F,COOLER
(J) 		8-98233-820-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(K) 		8-98119-818-0 01 1 1103- ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 1103- ●
84 PIPE; T/F,COOLER
(H) 		8-98180-763-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(H) 		8-98180-763-0 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(C) 		8-98116-119-1 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(D) 		8-98233-816-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(D) 		8-98116-120-0 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(C) 		8-98233-818-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(E) 		8-98116-123-0 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(E) 		8-98233-819-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(F) 		8-98116-124-1 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(F) 		8-98233-821-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(G) 		8-98119-819-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(G) 		8-98119-819-0 01 1 1103- ● ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 1011-1102 ●
85 BRACKET; FLEX HOSE
(A) 		1-36183-222-0 01 1 1103- ● ●
85 BRACKET; FLEX HOSE
(B) 		8-98116-064-0 01 1 1011-1102 ●
85 BRACKET; FLEX HOSE
(B) 		8-98116-064-0 01 1 1103- ● ●
86 UNION
(B) M16 STRAIGHT L=42 		0-92123-010-0 04 1 1011-1102 ●
86 UNION
(B) M16 STRAIGHT L=42 		0-92123-010-0 04 1 1103- ● ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 1011-1102 ●
86 UNION
(A) M16X2 STRAIGHT 		1-09654-274-1 02 1 1103- ● ●
87 WASHER
ID=16.2 		0-91510-516-0 02 1 1011-1102 ●
87 WASHER
ID=16.2 		0-91510-516-0 02 1 1103- ● ●
88 NUT
M16 		0-91110-516-0 02 1 1011-1102 ●
88 NUT
M16 		0-91110-516-0 02 1 1103- ● ●
90 CLIP
(C) 		1-09700-695-2 01 1 1011-1102 ●
90 CLIP
(C) 		1-09700-695-2 01 1 1103- ● ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1011-1102 ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1103- ● ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 1011-1102 ●
90 CLIP
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 06 1 1103- ● ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 1011-1102 ●
90 CLIP
(A) ID=9 & 9 L=25 		1-09701-212-2 01 1 1103- ● ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1011-1102 ●
91 BOLT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 1103-1306 ● ●
91 BOLT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1307- ● ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 1011-1102 ●
91 BOLT
(B) M10X16 FLANGE 		0-28151-016-0 01 1 1103- ● ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 1011-1102 ●
91 BOLT
(A) M6X35 FLANGE 		0-28650-635-0 01 1 1103- ● ●

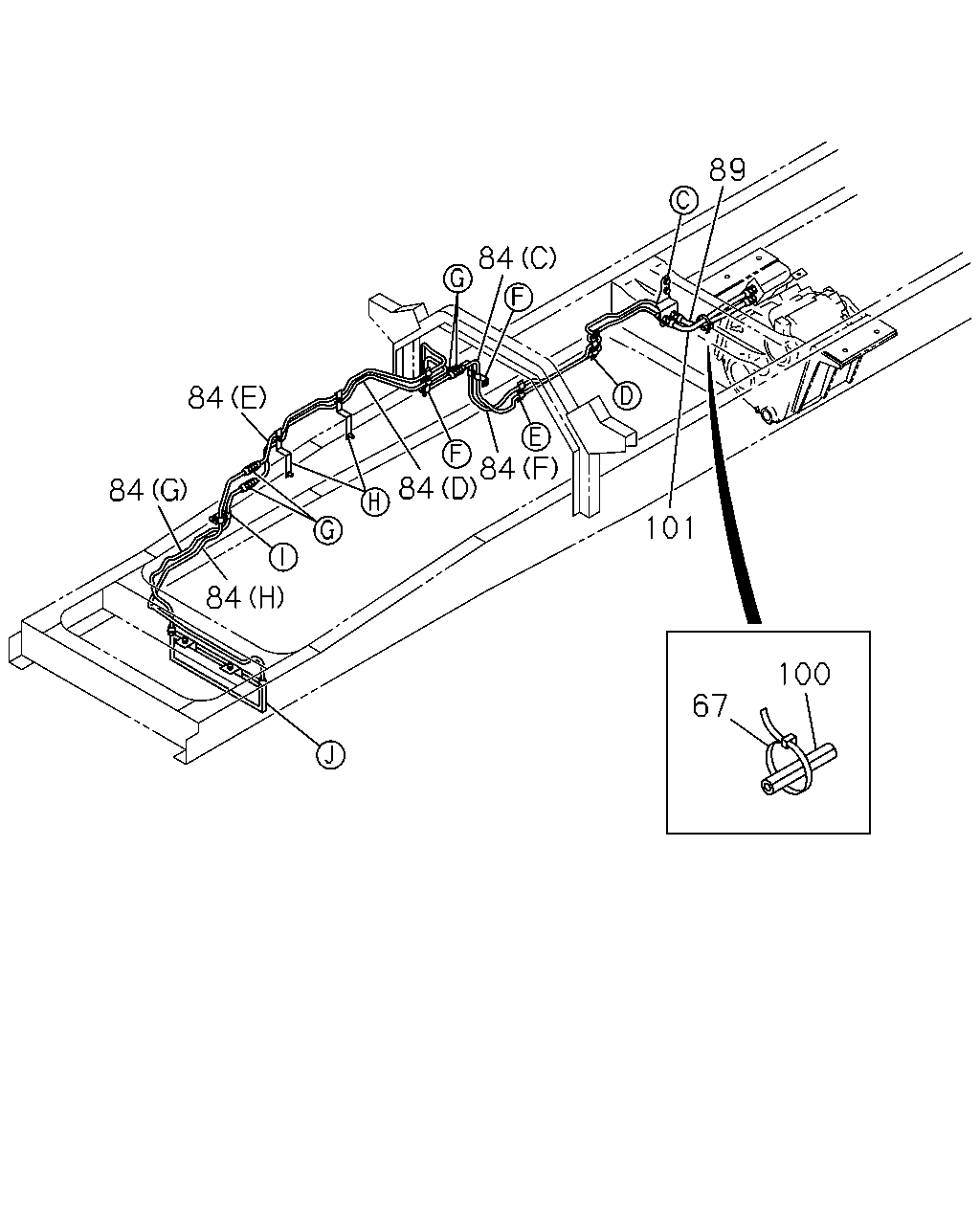

çizim 189121
67 100 101 89 84 84 84 84 84 84
BalonParca AdiParca NoAdetTipApplied Date A B
67 CLIP; BAND
L=250 		5-09707-030-1 01 1 1011-1102 ●
67 CLIP; BAND
L=250 		5-09707-030-1 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(I) 		8-98116-113-1 01 1 1103-1306 ●
84 PIPE; T/F,COOLER
(I) 		8-98233-817-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(J) 		8-98116-118-1 01 1 1103-1306 ●
84 PIPE; T/F,COOLER
(J) 		8-98233-820-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(K) 		8-98119-818-0 01 1 1103- ●
84 PIPE; T/F,COOLER
(L) 		8-98119-820-0 01 1 1103- ●
84 PIPE; T/F,COOLER
(H) 		8-98180-763-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(H) 		8-98180-763-0 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(B) 		1-36161-032-1 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(A) 		1-36161-041-0 01 1 1103- ● ●
84 PIPE; T/F,COOLER
(C) 		8-98116-119-1 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(D) 		8-98233-816-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(D) 		8-98116-120-0 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(C) 		8-98233-818-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(E) 		8-98116-123-0 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(E) 		8-98233-819-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(F) 		8-98116-124-1 01 1 1011-1306 ●
84 PIPE; T/F,COOLER
(F) 		8-98233-821-0 01 1 1307- ●
84 PIPE; T/F,COOLER
(G) 		8-98119-819-0 01 1 1011-1102 ●
84 PIPE; T/F,COOLER
(G) 		8-98119-819-0 01 1 1103- ● ●
89 HOSE
L=405 		1-09364-800-0 01 1 1103- ●
89 HOSE
L=360 		1-09364-839-0 01 1 1011- ●
100 SLEEVE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1011-1102 ●
100 SLEEVE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 1103- ● ●
101 HOSE; FLEX
L=465 		1-09365-146-0 01 1 1103- ●
101 HOSE; FLEX
L=430 		1-09364-872-0 01 1 1011- ●

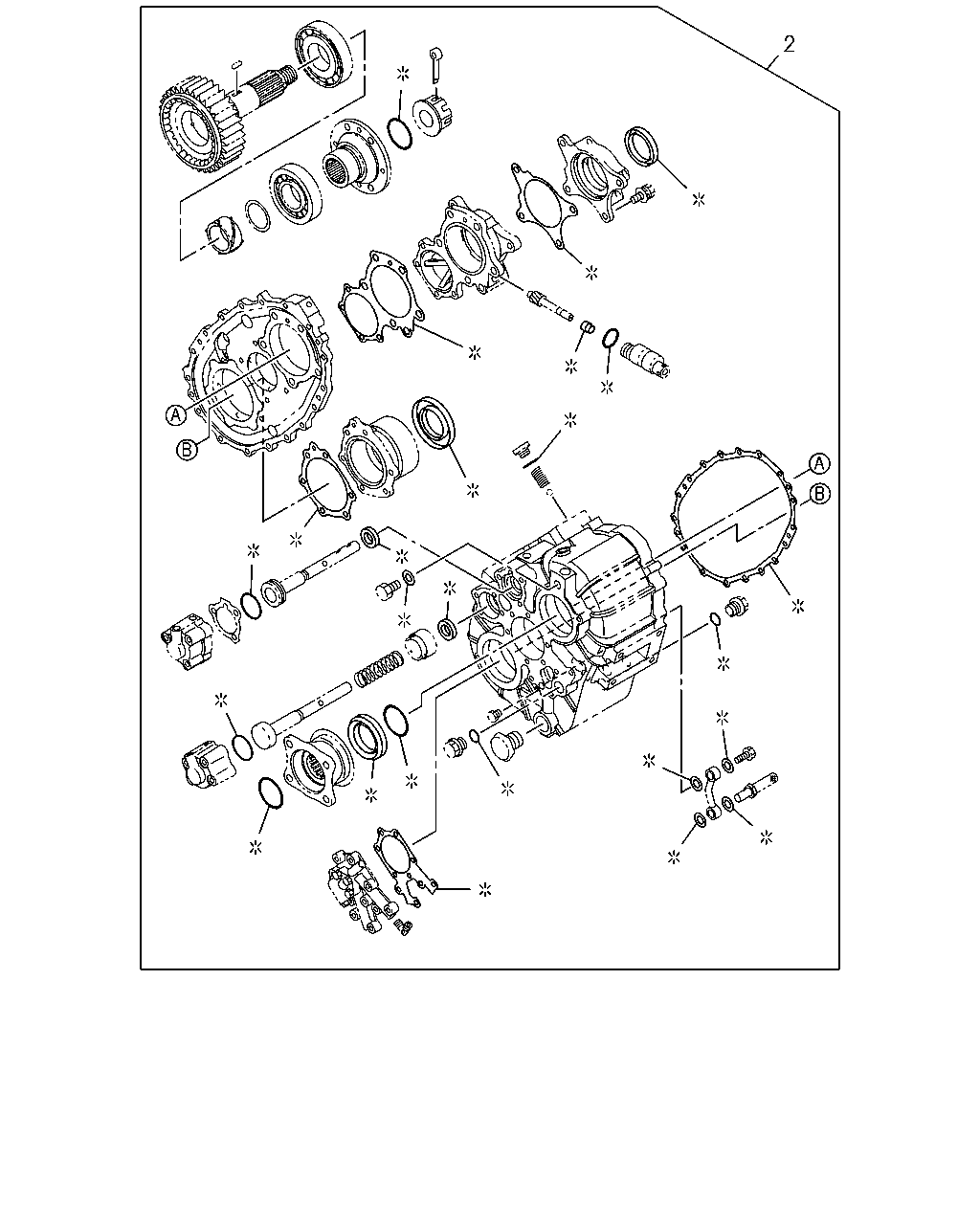

çizim 189122
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; TRANSFER OVERHAUL 1-87831-357-0 01 1 1011-1102 ●
2 REPAIR KIT; TRANSFER OVERHAUL 1-87831-357-0 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
