Isuzu WW
▶
TRUCKS
▶
FSS
▶
11306 - FSS(AUST/NZ)EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶

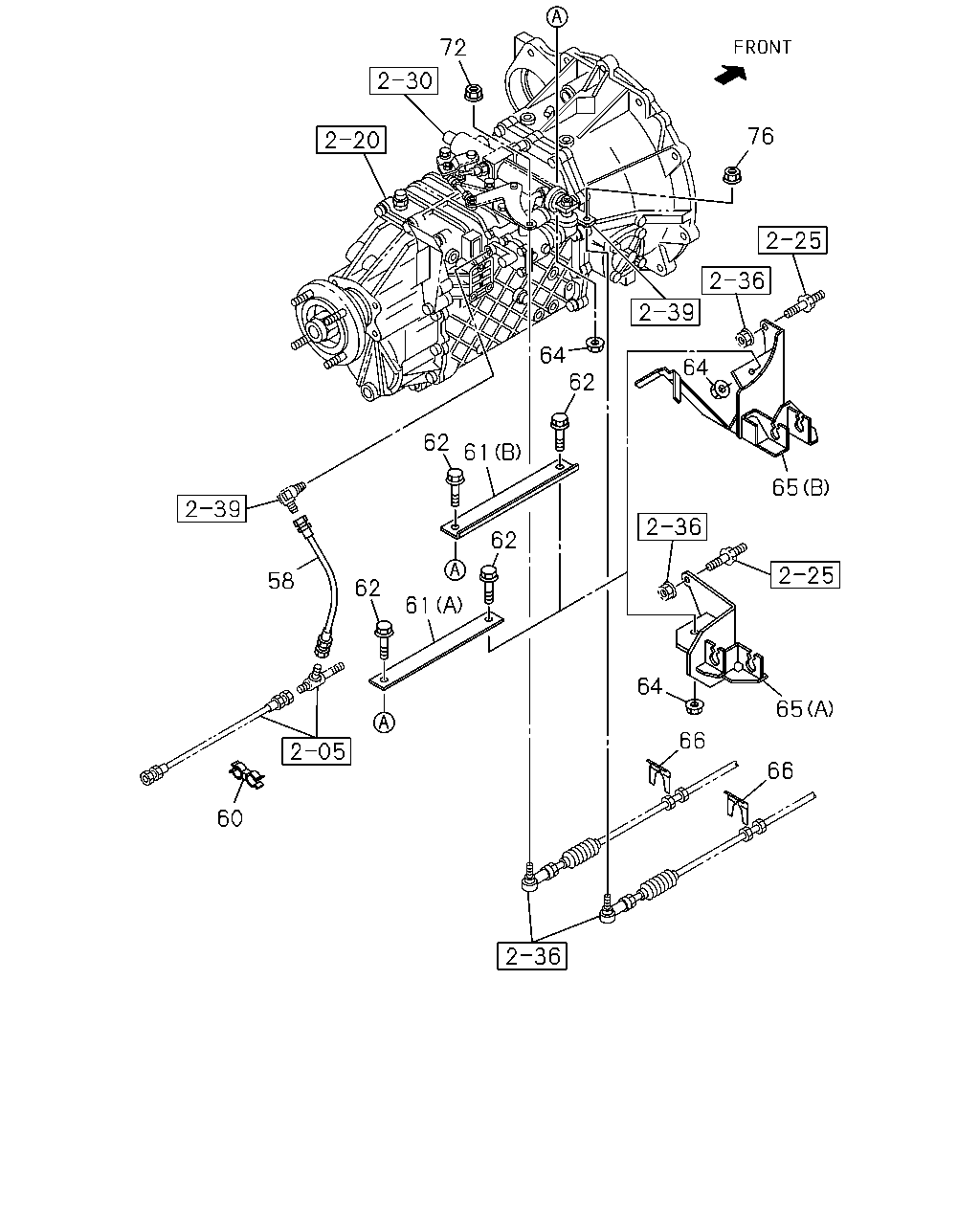

2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#69821) — 19 parça
Tümü
A - FCS5MS
B - FCS5WS
76
72
58
62
61
60
66
66
64
65
62
61
62
62
64
64
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
58
HOSE; FLEX,POWER ASSISTOR
L=290
1-09363-875-0
01
1
1011-1102
●
58
HOSE; FLEX,POWER ASSISTOR
L=290
1-09363-875-0
01
1
1103-
●
●
60
CLIP; FLEX HOSE
ID=11.8 & 7.5
1-09709-182-0
01
1
1011-1102
●
60
CLIP; FLEX HOSE
ID=11.8 & 7.5
1-09709-182-0
01
1
1103-
●
●
61
STAY; BRKT,TRANS CONT
(B)
1-33657-267-0
01
1
1103-
●
61
STAY; BRKT,TRANS CONT
(A)
8-98165-370-0
01
1
1011-1309
●
61
STAY; BRKT,TRANS CONT
(A)
8-98251-404-0
01
1
1310-
●
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
02
1
1011-1102
●
62
BOLT; STAY
M10X30 FLANGE
0-28651-030-0
02
1
1103-
●
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
1011-1102
●
64
NUT; STAY
M10 FLANGE
0-91180-210-0
02
1
1103-
●
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
(B)
8-98090-822-0
01
1
1103-
●
65
BRACKET; SHIFT TO SELECT,TRANS CONT
(A)
8-98010-158-1
01
1
1011-
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1011-1102
●
66
CLIP; SELECT BRKT
ID=22.2
1-09701-209-1
02
1
1103-
●
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
1011-1102
●
72
NUT; TRANS CONT,SELECT
M8 FLANGE
1-09440-049-0
01
1
1103-
●
●
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE
1-09440-049-0
01
1
1011-1102
●
76
NUT; BALL JOINT,SELECT WIRE
M8 FLANGE
1-09440-049-0
01
1
1103-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
