2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#69820) — 91 parça

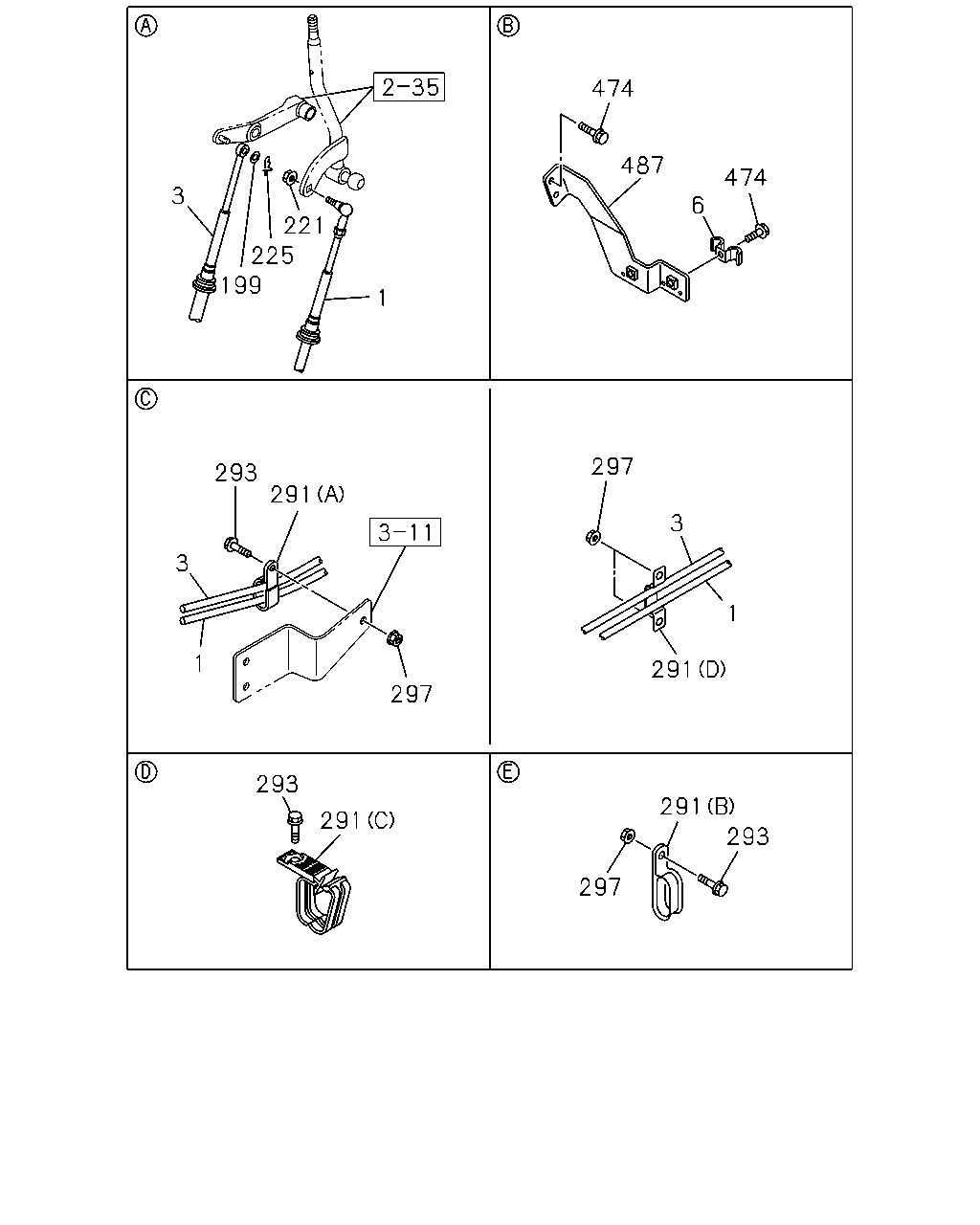

3 199 225 221 474 487 474 6 297 3 1 291 291 293 3 297 1 291 293 297 291 293 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3040	8-98177-579-2	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2985	8-98177-578-2	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3000	8-98171-496-2	01	1	1103-1306	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) L=3000	8-98171-496-2	01	1	1307-	●
1	CABLE; SHIFT,TRANS CONT EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2940	8-98167-197-2	01	1	1103-1306	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2940	8-98167-197-2	01	1	1307-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=2980	8-98112-916-2	01	1	1011-		●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2920	8-98112-915-2	01	1	1011-		●
1	CABLE; SHIFT,TRANS CONT EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2875	8-98112-919-2	01	1	1011-1306		●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2875	8-98112-919-2	01	1	1307-		●
1	CABLE; SHIFT,TRANS CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2935	8-98112-920-2	01	1	1011-1306		●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) L=2935	8-98112-920-2	01	1	1307-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3160	8-98177-581-2	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3105	8-98177-580-2	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3125	8-98171-497-2	01	1	1103-1306	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) L=3125	8-98171-497-2	01	1	1307-	●
3	CABLE; SELECT,TRANS CONT EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=3065	8-98167-198-2	01	1	1103-1306	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3065	8-98167-198-2	01	1	1307-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3095	8-98112-923-3	01	1	1011-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3035	8-98112-922-3	01	1	1011-		●
3	CABLE; SELECT,TRANS CONT EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2995	8-98112-927-4	01	1	1011-1306		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2995	8-98112-927-4	01	1	1307-		●
3	CABLE; SELECT,TRANS CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3055	8-98112-928-3	01	1	1011-1306		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) L=3055	8-98112-928-3	01	1	1307-		●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1011-1102		●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1103-	●	●
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1011-1102		●
199	WASHER; PL,SELECT ID=8.4 OD=16	0-91614-508-0	01	1	1103-	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	1011-1011		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-1102		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1103-	●	●
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1011-1102		●
225	PIN; SELECT CABLE L=27.7	8-94111-137-0	01	1	1103-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1011-1102		●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=13 & 10 & 10 L=35.5	8-98023-991-0	01	1	1103-1504	●	●
291	CLIP; SHIFT TO SELECT,FRAME (C) ID=13 & 10 & 10 L=43.5	8-98292-921-0	01	1	1505-	●	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) (B) ID=13 & 13 L=32	8-97389-264-0	02	1	1011-1102		●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) (B) ID=13 & 13 L=32	8-97389-264-0	02	1	1103-	●	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) (D)	8-98080-966-0	01	1	1011-1102		●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V90A(K44) (D)	8-98080-966-0	01	1	1103-	●	●
291	CLIP; SHIFT TO SELECT,FRAME EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16	0-95325-026-0	01	1	1011-1102		●
291	CLIP; SHIFT TO SELECT,FRAME EXC. GENERATOR 24V90A(K44) (A) ID=11X2 L=16	0-95325-026-0	01	1	1103-1306	●	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) ID=11X2 L=16	0-95325-026-0	01	1	1307-	●	●
291	CLIP; SHIFT TO SELECT,FRAME EXC. GENERATOR 24V90A(K44) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1011-1102		●
291	CLIP; SHIFT TO SELECT,FRAME EXC. GENERATOR 24V90A(K44) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1103-1306	●	●
291	CLIP; SHIFT TO SELECT,FRAME GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) ID=13 & 13 L=32	8-97389-264-0	01	1	1307-	●	●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V90A(K44) M8X25 FLANGE	0-28650-825-0	03	1	1011-1102		●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V90A(K44) M8X25 FLANGE	0-28650-825-0	03	1	1103-	●	●
293	BOLT; CLIP,SHIFT TO SELECT EXC. GENERATOR 24V90A(K44) M8X16 FLANGE	0-28050-816-0	01	1	1011-1102		●
293	BOLT; CLIP,SHIFT TO SELECT EXC. GENERATOR 24V90A(K44) M8X16 FLANGE	0-28050-816-0	01	1	1103-1306	●	●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M8X16 FLANGE	0-28050-816-0	01	1	1307-	●	●
293	BOLT; CLIP,SHIFT TO SELECT EXC. GENERATOR 24V90A(K44) M8X25 FLANGE	0-28650-825-0	02	1	1011-1102		●
293	BOLT; CLIP,SHIFT TO SELECT EXC. GENERATOR 24V90A(K44) M8X25 FLANGE	0-28650-825-0	02	1	1103-1306	●	●
293	BOLT; CLIP,SHIFT TO SELECT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M8X25 FLANGE	0-28650-825-0	02	1	1307-	●	●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1011-1102		●
297	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1103-	●	●
297	NUT; CLIP GENERATOR 24V90A(K44) M8 FLANGE	0-91180-108-0	02	1	1011-1102		●
297	NUT; CLIP GENERATOR 24V90A(K44) M8 FLANGE	0-91180-108-0	02	1	1103-	●	●
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	1011-1102		●
474	BOLT; BRKT M8X25 W/WASHER	0-51640-825-0	03	1	1103-	●	●
487	BRACKET; CONT CABLE	8-98021-920-2	01	1	1011-1012		●
487	BRACKET; CONT CABLE	8-98183-009-0	01	1	1101-1102		●
487	BRACKET; CONT CABLE	8-98183-009-0	01	1	1103-	●	●

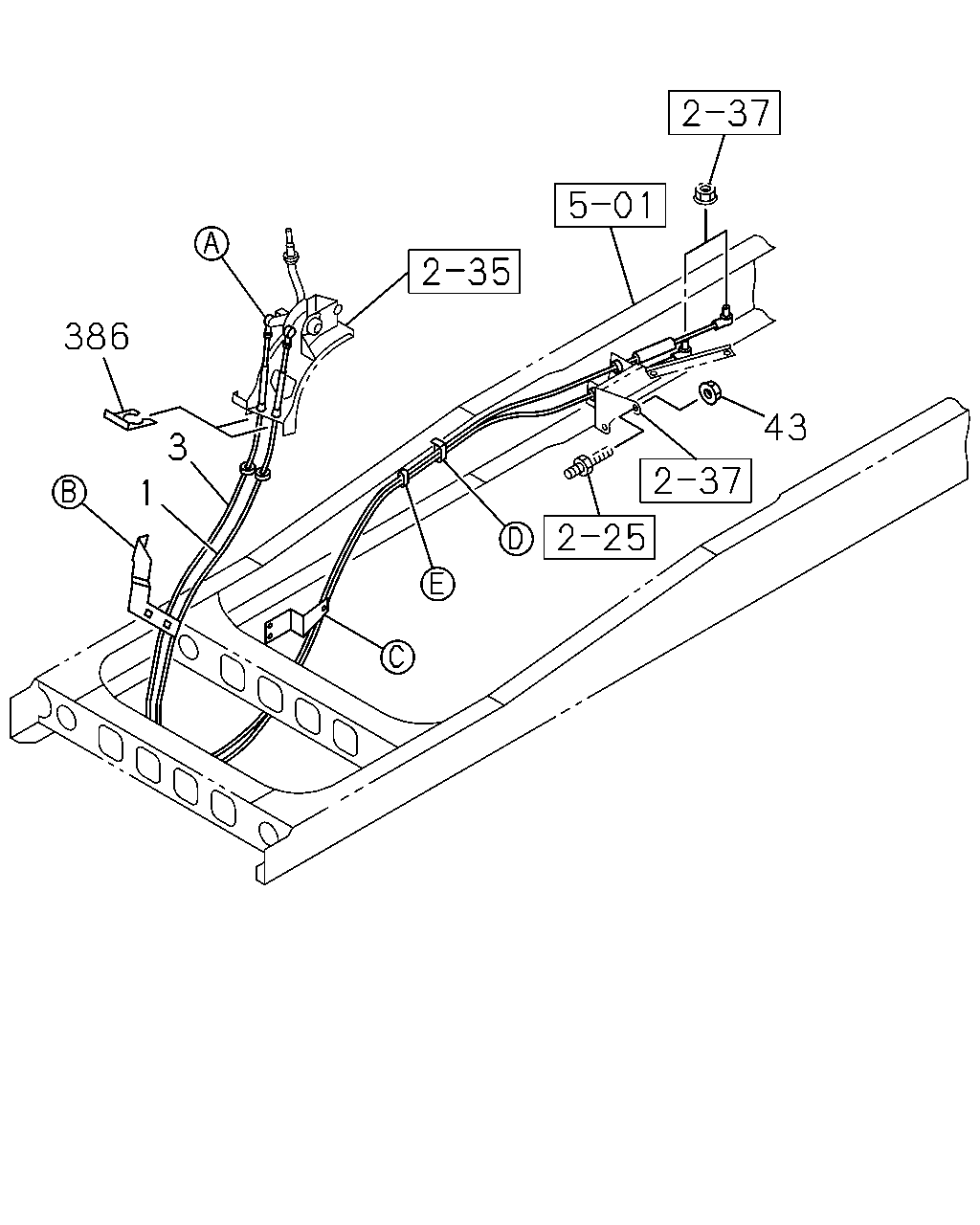

43 386 1 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3040	8-98177-579-2	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2985	8-98177-578-2	01	1	1103-	●
1	CABLE; SHIFT,TRANS CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3000	8-98171-496-2	01	1	1103-1306	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) L=3000	8-98171-496-2	01	1	1307-	●
1	CABLE; SHIFT,TRANS CONT EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2940	8-98167-197-2	01	1	1103-1306	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2940	8-98167-197-2	01	1	1307-	●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=2980	8-98112-916-2	01	1	1011-		●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2920	8-98112-915-2	01	1	1011-		●
1	CABLE; SHIFT,TRANS CONT EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2875	8-98112-919-2	01	1	1011-1306		●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2875	8-98112-919-2	01	1	1307-		●
1	CABLE; SHIFT,TRANS CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=2935	8-98112-920-2	01	1	1011-1306		●
1	CABLE; SHIFT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) L=2935	8-98112-920-2	01	1	1307-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3160	8-98177-581-2	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3105	8-98177-580-2	01	1	1103-	●
3	CABLE; SELECT,TRANS CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3125	8-98171-497-2	01	1	1103-1306	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) L=3125	8-98171-497-2	01	1	1307-	●
3	CABLE; SELECT,TRANS CONT EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=3065	8-98167-198-2	01	1	1103-1306	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3065	8-98167-198-2	01	1	1307-	●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL(6SZ) L=3095	8-98112-923-3	01	1	1011-		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3035	8-98112-922-3	01	1	1011-		●
3	CABLE; SELECT,TRANS CONT EXC. GENERATOR 24V90A(K44),POWER TAKE OFF-FLYWHEEL(6SZ) L=2995	8-98112-927-4	01	1	1011-1306		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=2995	8-98112-927-4	01	1	1307-		●
3	CABLE; SELECT,TRANS CONT POWER TAKE OFF-FLYWHEEL(6SZ) EXC. GENERATOR 24V90A(K44) L=3055	8-98112-928-3	01	1	1011-1306		●
3	CABLE; SELECT,TRANS CONT GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL(6SZ) L=3055	8-98112-928-3	01	1	1307-		●
43	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1011-1102		●
43	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1103-	●	●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1011-1102		●
386	CLIP; CONT CABLE & TUBE	1-09700-966-1	02	1	1103-	●	●
