2-30 — GEAR SHIFTER AND QUADRANT BOX (#6982) — 97 parça

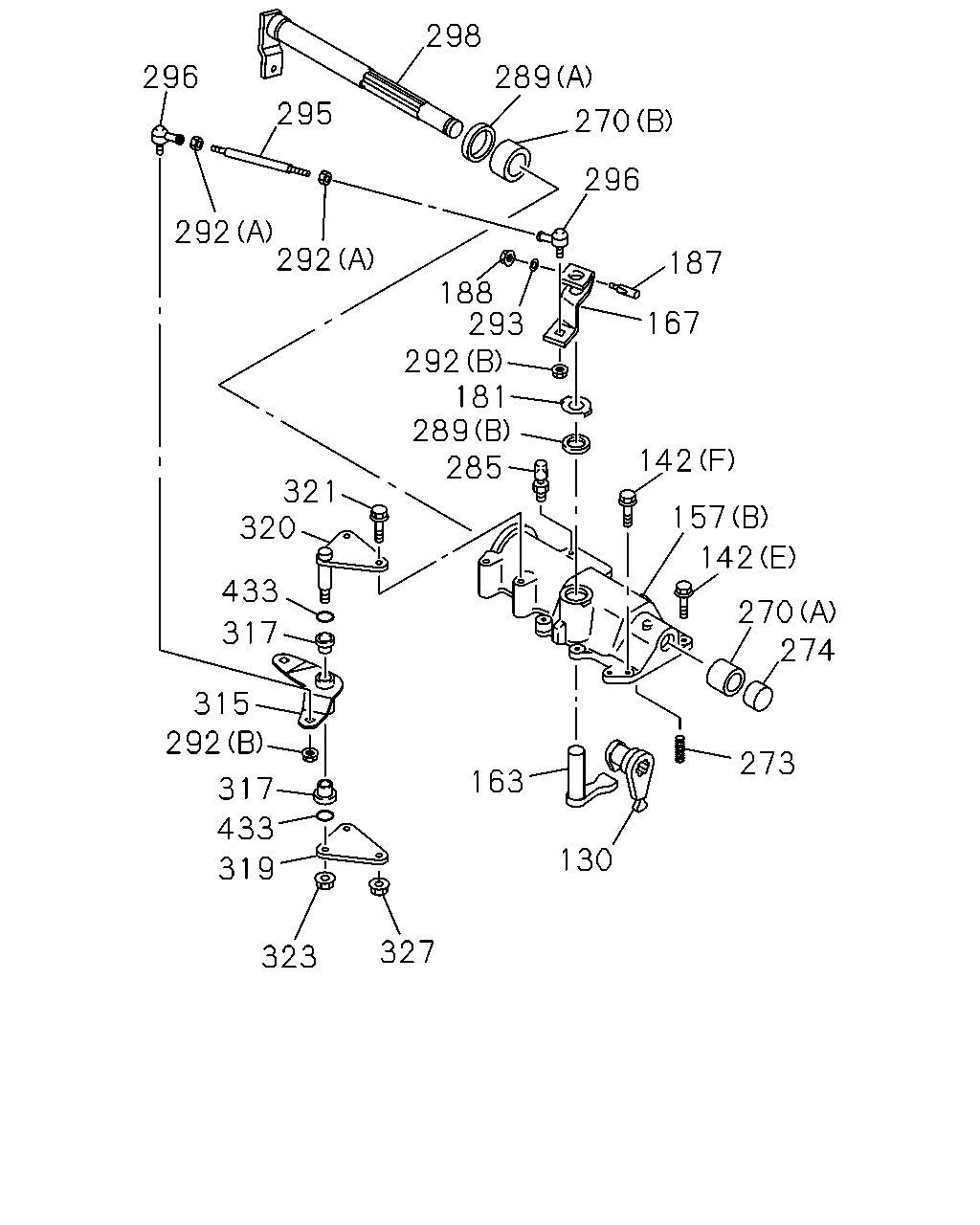

çizim 5890
298 296 289 295 270 296 292 292 187 188 293 292 181 289 285 167 142 321 320 157 142 433 270 274 317 315 292 273 163 317 433 130 319 327 323
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-119-0 01 1 9908-
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 9908-
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9908-
142 BOLT; QUAD BOX
(B) M10X20,M10X26, L=56 		1-09049-014-1 03 1 9908-
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 9908-
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 9908-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9908-
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 9908-
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 9908-
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 9908-
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 9908-
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 9908-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 9908-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 9908-
270 BEARING; NEEDLE,QUAD BOX
(A) NTN 		1-09811-006-0 01 1 9908-
270 BEARING; NEEDLE,QUAD BOX
(A) NSK 		1-09811-057-0 01 1 9908-
270 BEARING; NEEDLE,QUAD BOX
(B) NTN 		1-09811-260-0 01 1 9908-
273 PIN; SPR,STOPPER 1-09748-016-0 01 1 9908-
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 9908-
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 9908-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 9908-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 9908-
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 9908-
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 9908-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 9908-
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 9908-
296 ROD END 1-09760-108-0 02 1 9908-
298 SHAFT; SHIFT LEVER 1-33522-146-0 01 1 9908-
315 LEVER; SELECT 1-33651-747-0 01 1 9908-
317 BUSHING; LEVER 1-09330-119-0 02 1 9908-
319 BRACKET; SELECT LEVER 1-33657-640-0 01 1 9908-
320 SHAFT; LEVER 1-33619-630-0 01 1 9908-
321 BOLT; BRKT,RELAY LEVER
M10X80 		0-10806-080-0 02 1 9908-
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 9908-
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 9908-
327 NUT; BRKT,RELAY LEVER
M10 FLANGE 		0-91150-210-0 02 1 9908-
433 GASKET; BUSHING 1-09623-636-0 02 1 9908-

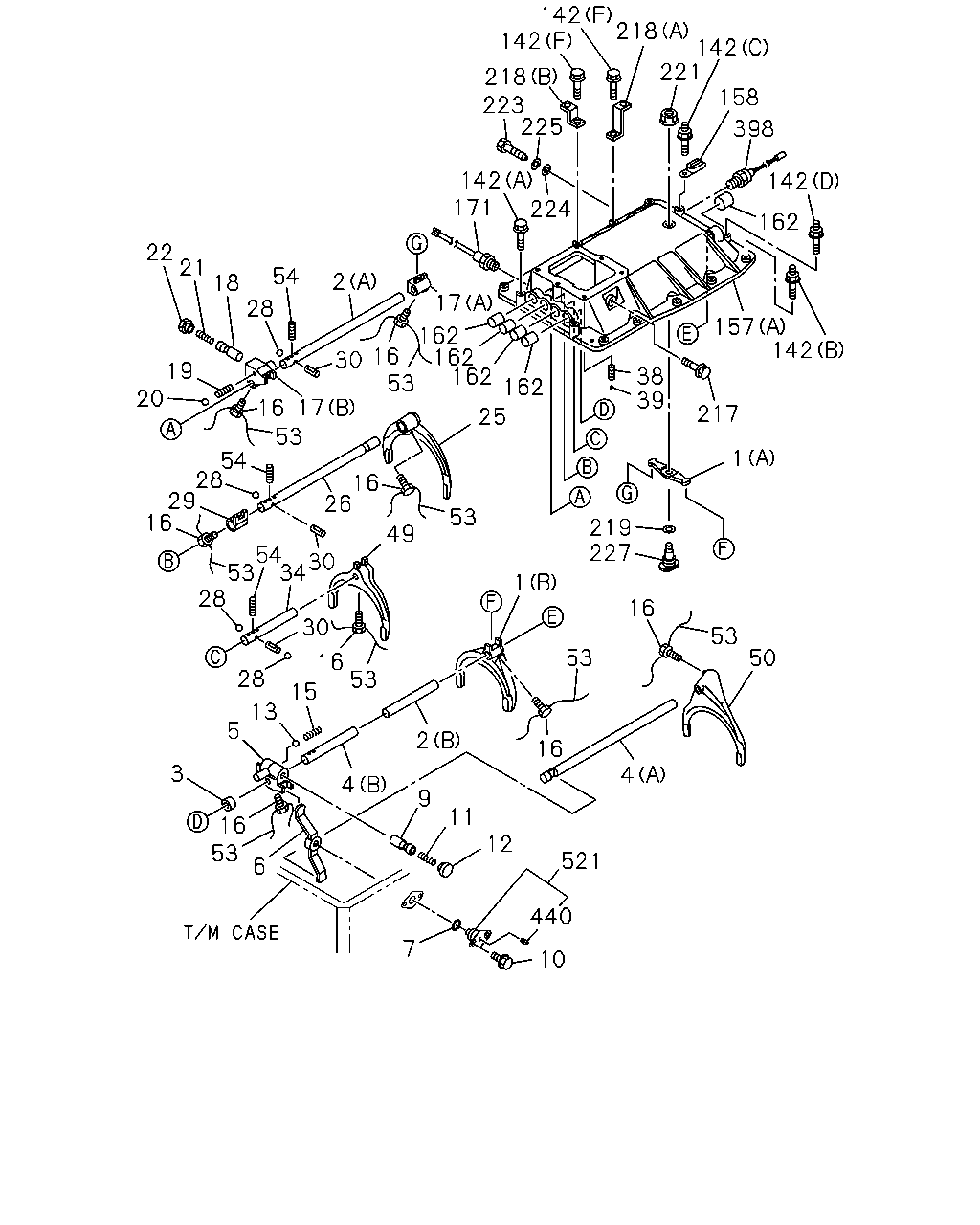

çizim 5892
142 218 142 142 221 218 158 223 225 398 142 171 142 224 162 22 21 54 2 18 28 17 157 142 162 162 162 16 53 30 19 20 38 39 162 16 17 217 25 53 1 54 28 29 16 16 26 53 219 227 49 54 30 28 1 16 30 53 53 50 16 53 28 15 13 5 2 16 3 4 4 9 16 53 11 12 521 6 440 7 10 53 34
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 9908-
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-175-1 01 1 9908-
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-400-1 01 1 9908-
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-408-1 01 1 9908-
3 STOPPER; 6TH SHIFT ROD 9-33537-018-0 01 1 9908-
4 ROD; SHIFT,6TH
(B) 		1-33531-405-1 01 1 9908-
4 ROD; SHIFT,6TH
(A) 		1-33531-414-1 01 1 9908-
5 BLOCK; SHIFT,6TH 1-33511-372-2 01 1 9908-
6 LEVER; RELAY 9-33511-402-1 01 1 9908-
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 9908-
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 9908-
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 9908-
11 SPRING; RETURN,SHIFT SLEEVE 9-09941-160-0 01 1 9908-
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9908-
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 9908-
15 SPRING; LK,SHIFT SLEEVE 9-09941-007-0 01 1 9908-
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 9908-
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-038-2 01 1 9908-
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 9908-
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 9908-
19 SPRING; COIL COMP 1-09580-438-0 01 1 9908-
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 9908-
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 9908-
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 9908-
25 ARM; SHIFT,2ND & 3RD 1-33511-184-1 01 1 9908-
26 ROD; SHIFT,2ND & 3RD 1-33531-410-1 01 1 9908-
28 BALL; INTER LK 9-00097-501-0 04 1 9908-
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 9908-
30 PIN; INTER LK 9-33534-003-0 03 1 9908-
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-412-1 01 1 9908-
38 SPRING; DETENT 1-09580-379-0 04 1 9908-
39 BALL; DETENT 1-09843-012-0 04 1 9908-
49 ARM; SHIFT,4TH & 5TH 1-33511-369-1 01 1 9908-
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 9908-
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 9908-
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 9908-
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 9908-
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 9908-
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 9908-
142 BOLT; QUAD BOX
(B) M10X20,M10X26, L=56 		1-09049-014-1 03 1 9908-
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 9908-
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 9908-
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 9908-
157 BOX; QUAD,TRANS
(B) 		1-33541-256-2 01 1 9908-
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 9908-
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 9908-
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 9908-
171 SWITCH; NEUTRAL 1-82440-101-0 01 1 9908-
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 9908-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 9908-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 9908-
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 9908-
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 9908-
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 9908-
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 9908-
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 9908-
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 9908-
398 SWITCH; REV LAMP 1-82440-082-0 01 1 9908-
440 PLUG; OIL
PT1/4 		9-99204-513-0 01 1 9908-
521 SPINDLE; 6TH 1-33119-255-0 01 1 9908-
